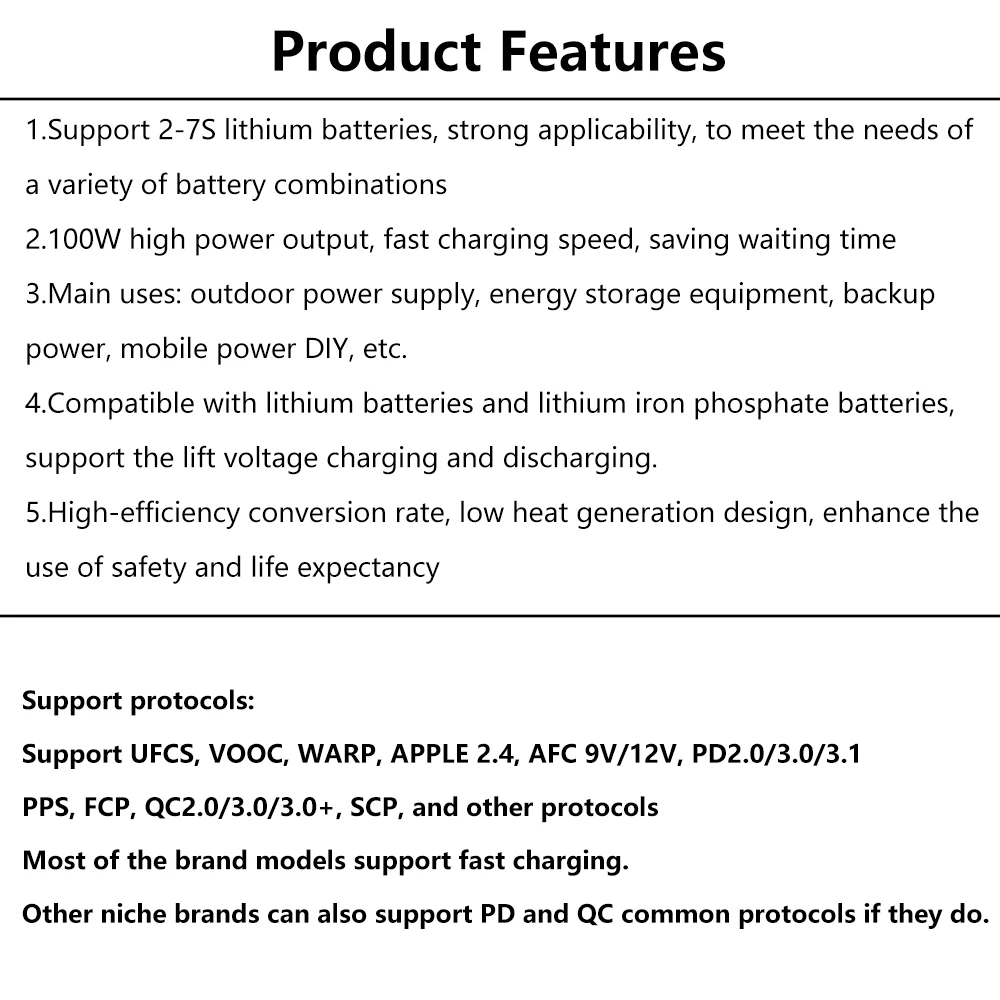

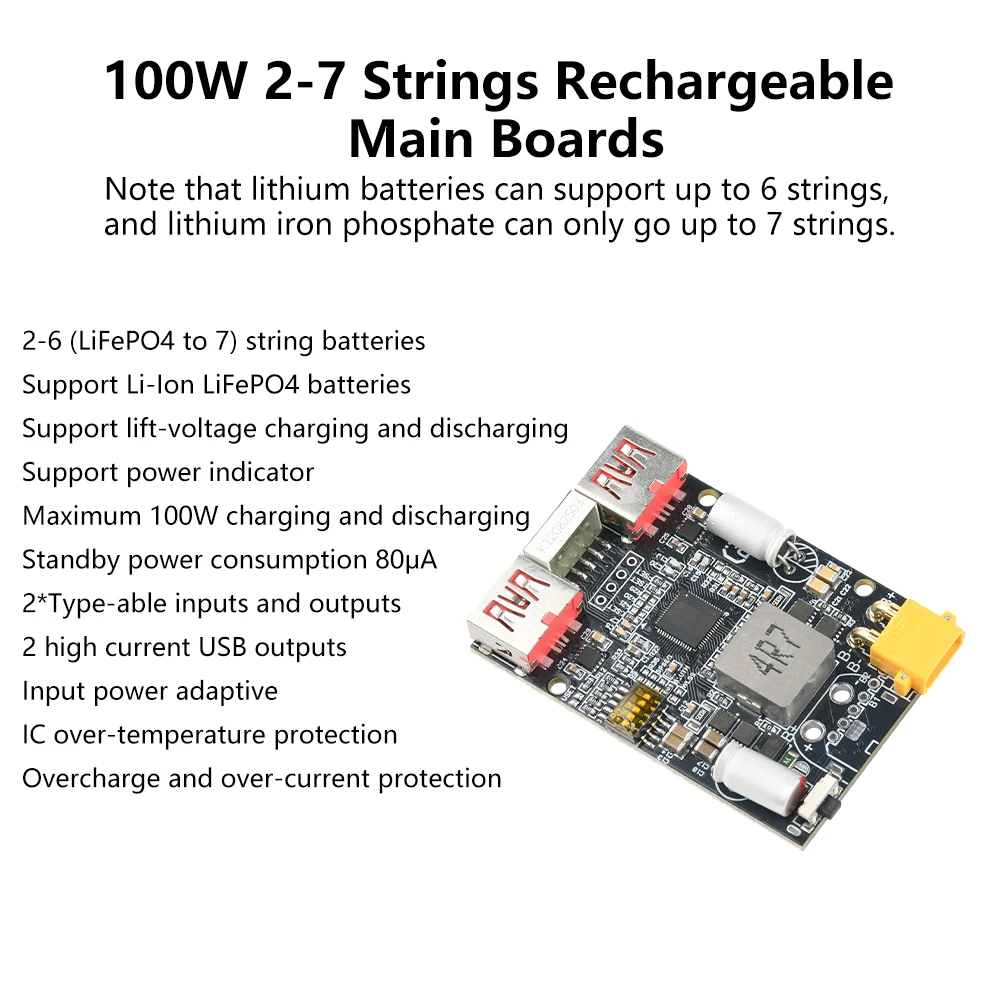

Features

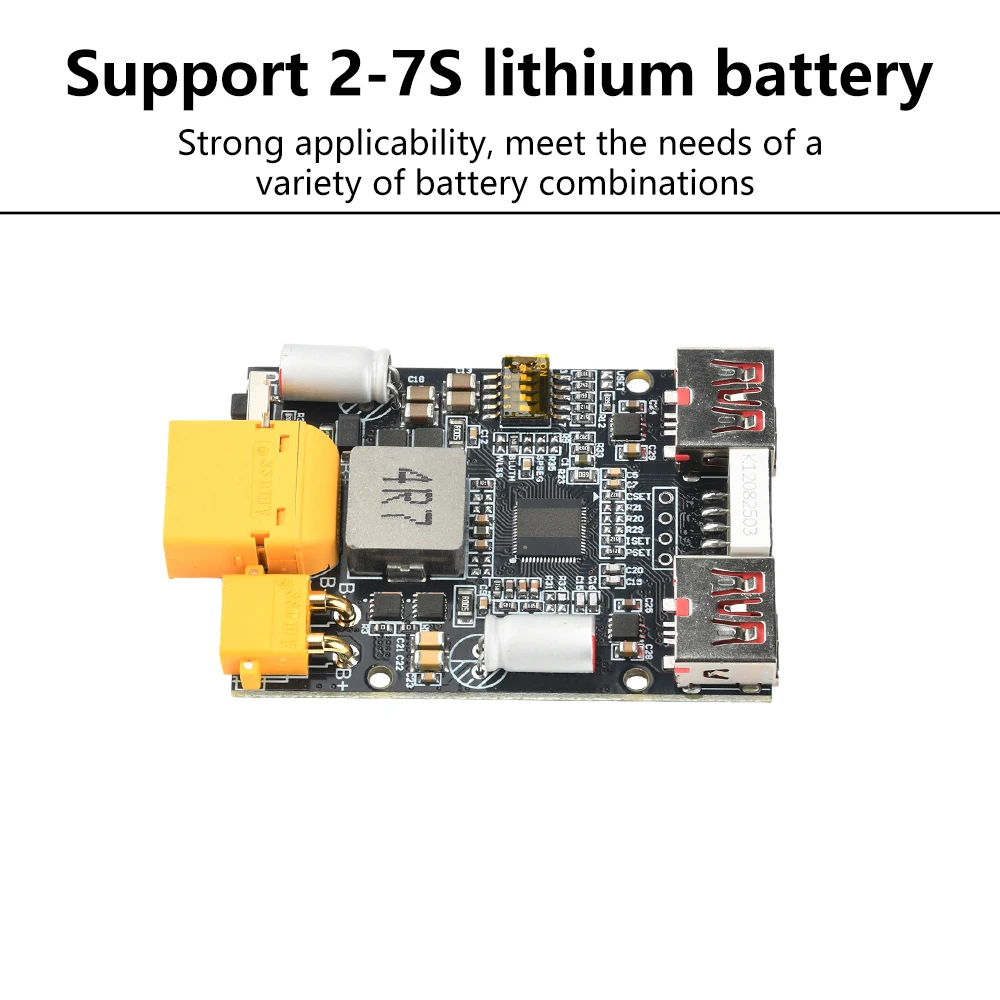

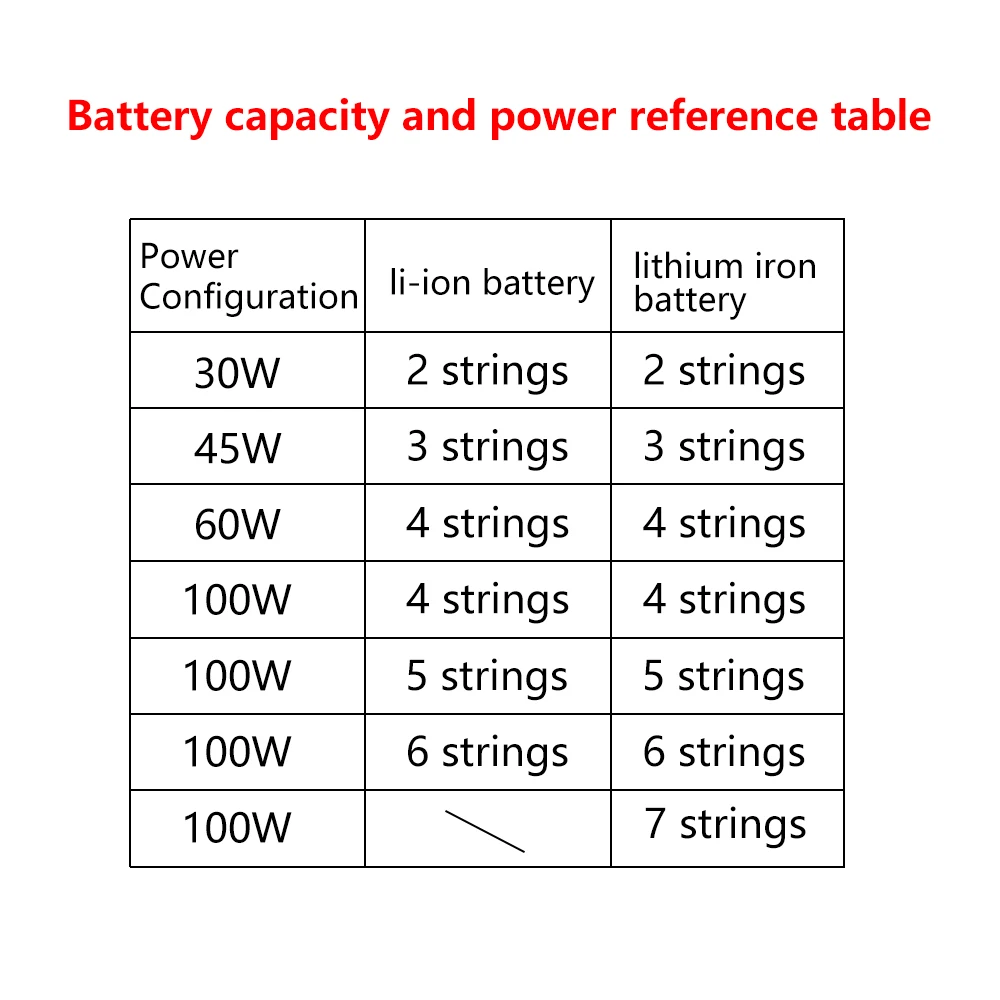

1.Support 2-7S lithium batteries, strong applicability, to meet the needs of a variety of battery combinations
2.100W high power output, fast charging speed, save waiting time

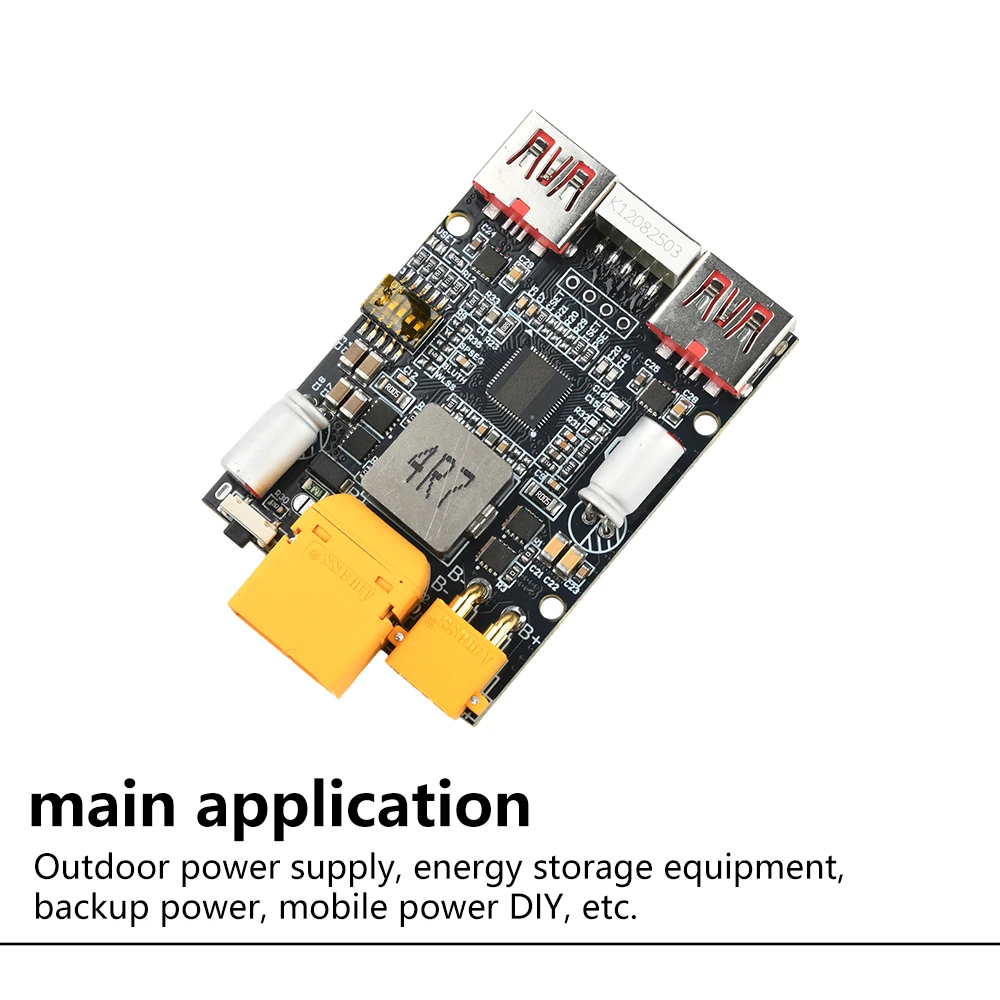

3.Main uses: outdoor power supply, energy storage equipment, backup power, mobile power DIY, etc.

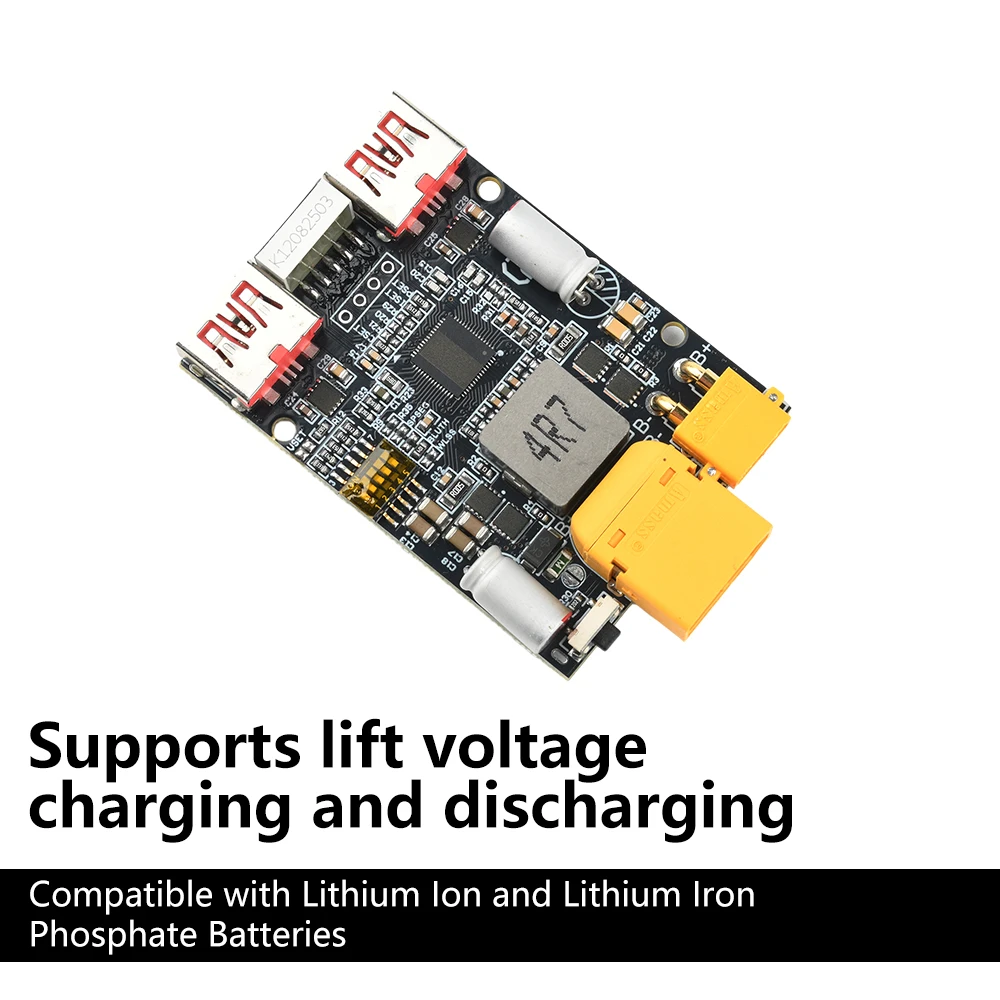

4. Compatible with lithium batteries and lithium iron phosphate batteries, support for lifting voltage charging and discharging.
5. High-efficiency conversion rate, low heat generation design, enhance the use of safety and life expectancy

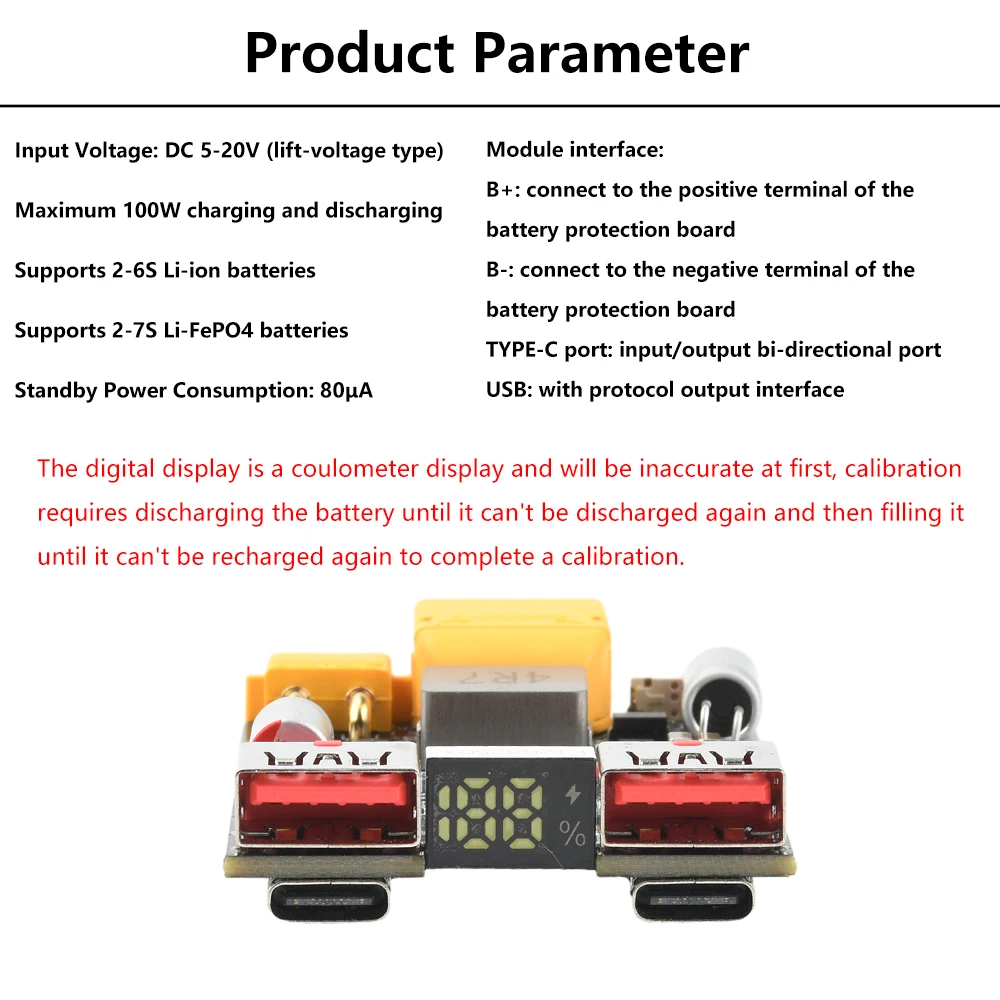

Parameter

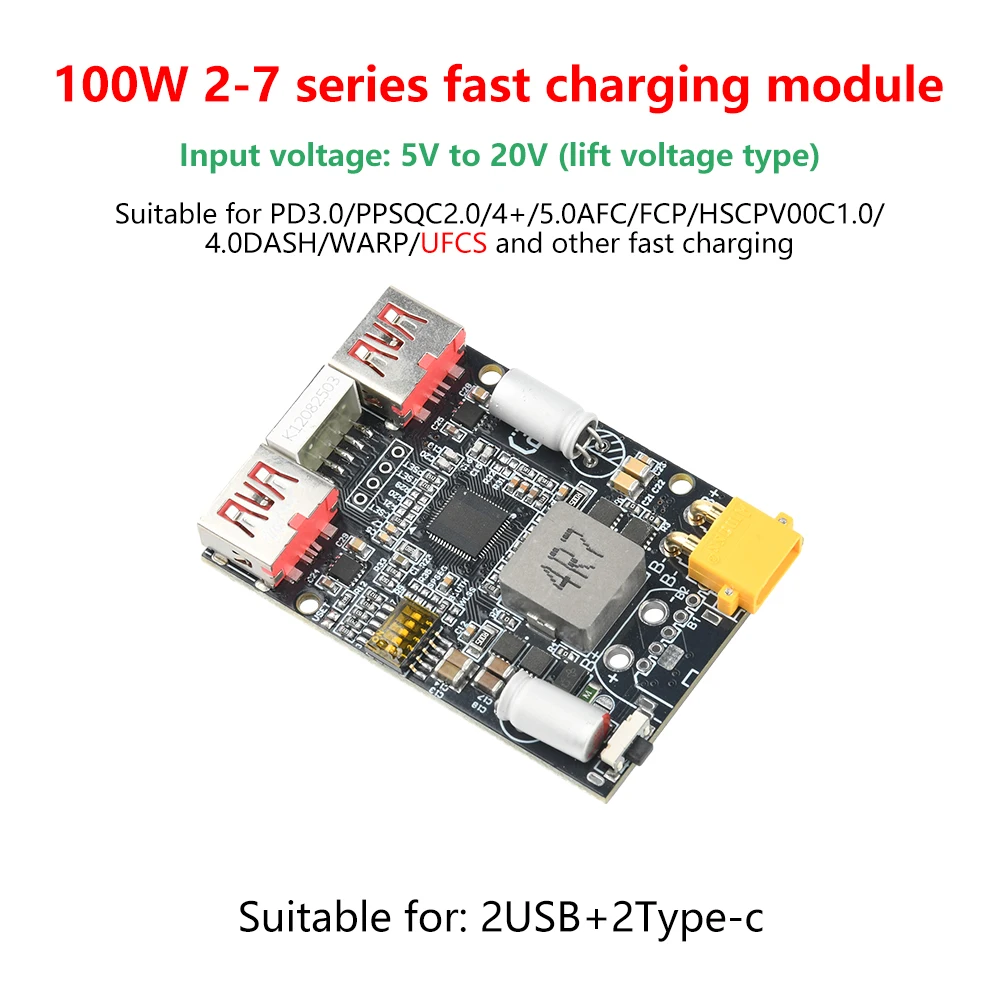

Input voltage: DC 5-20V (lift voltage type)
Maximum 100W charging and discharging
Supports 2-6S lithium batteries
Supports 2-7S lithium iron phosphate
Battery standby power consumption: 80μA

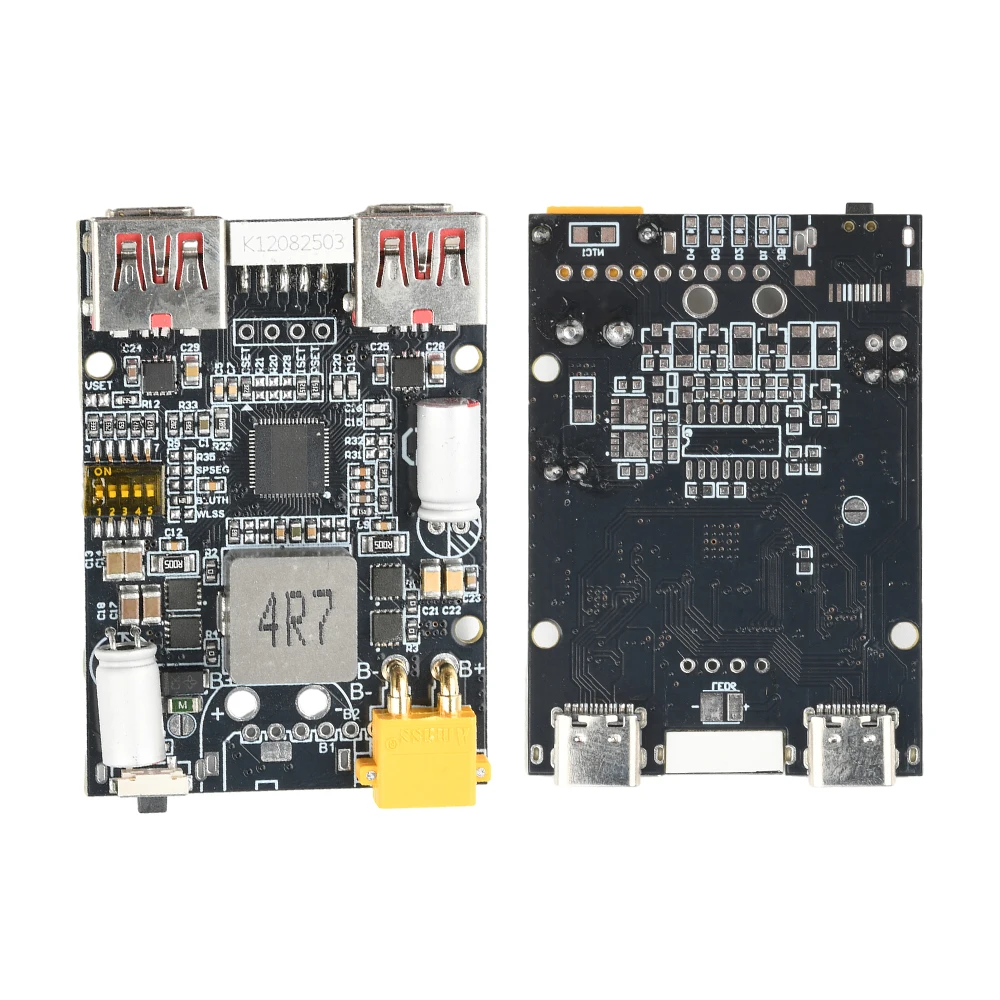

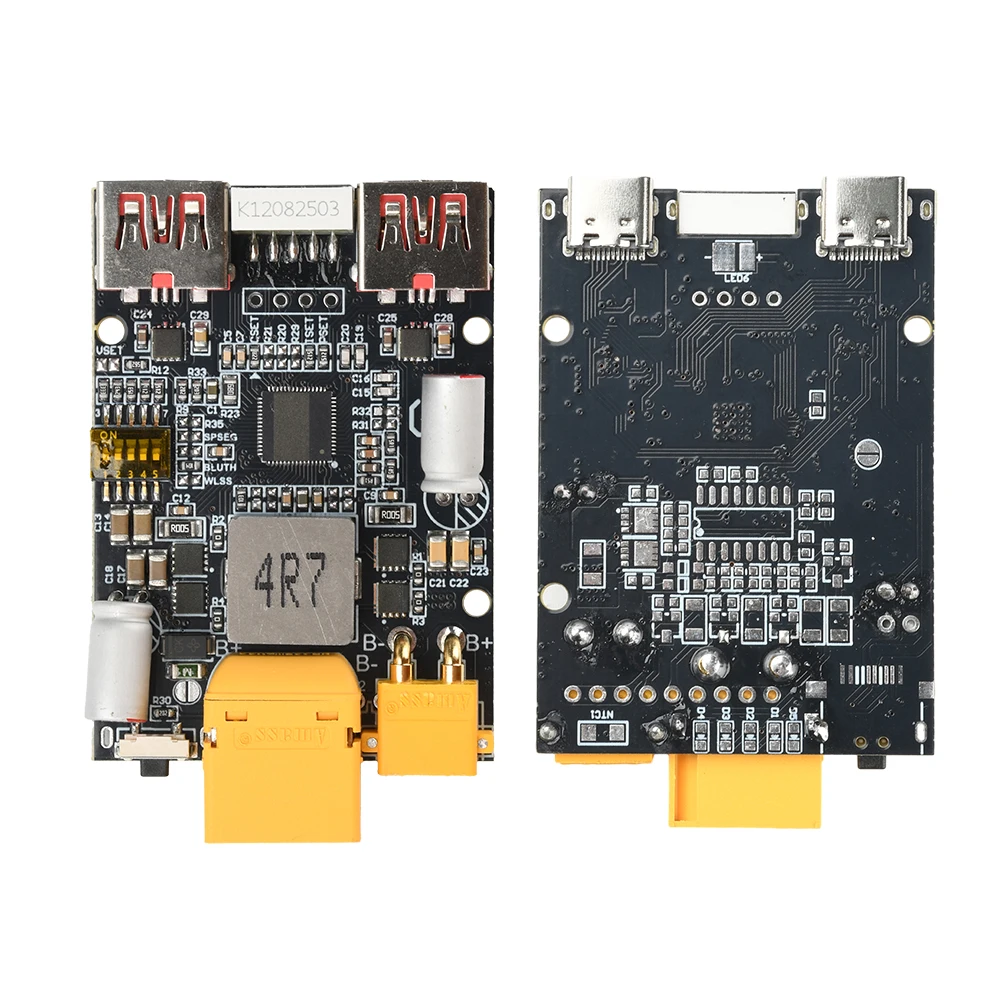

Module interface:

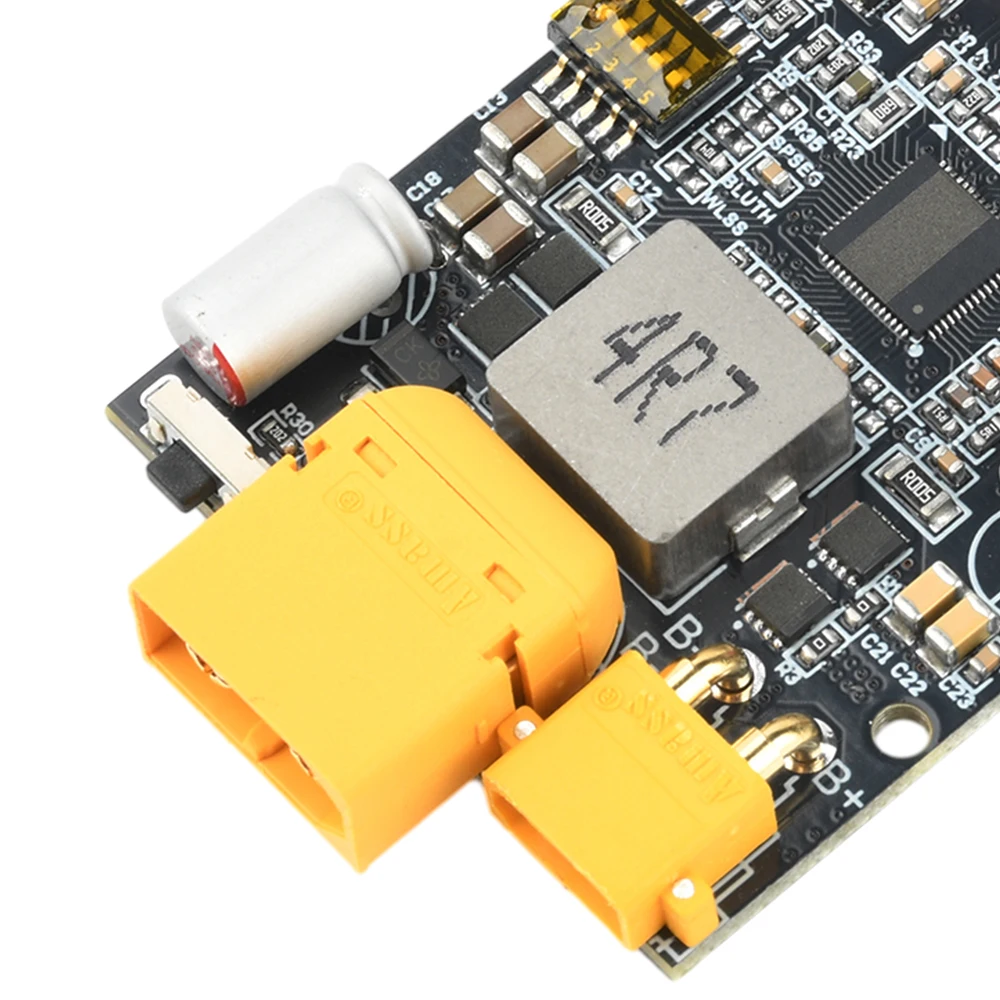

B+: connect to the positive pole of the battery protection board
B-: connect to the negative pole of the battery protection board

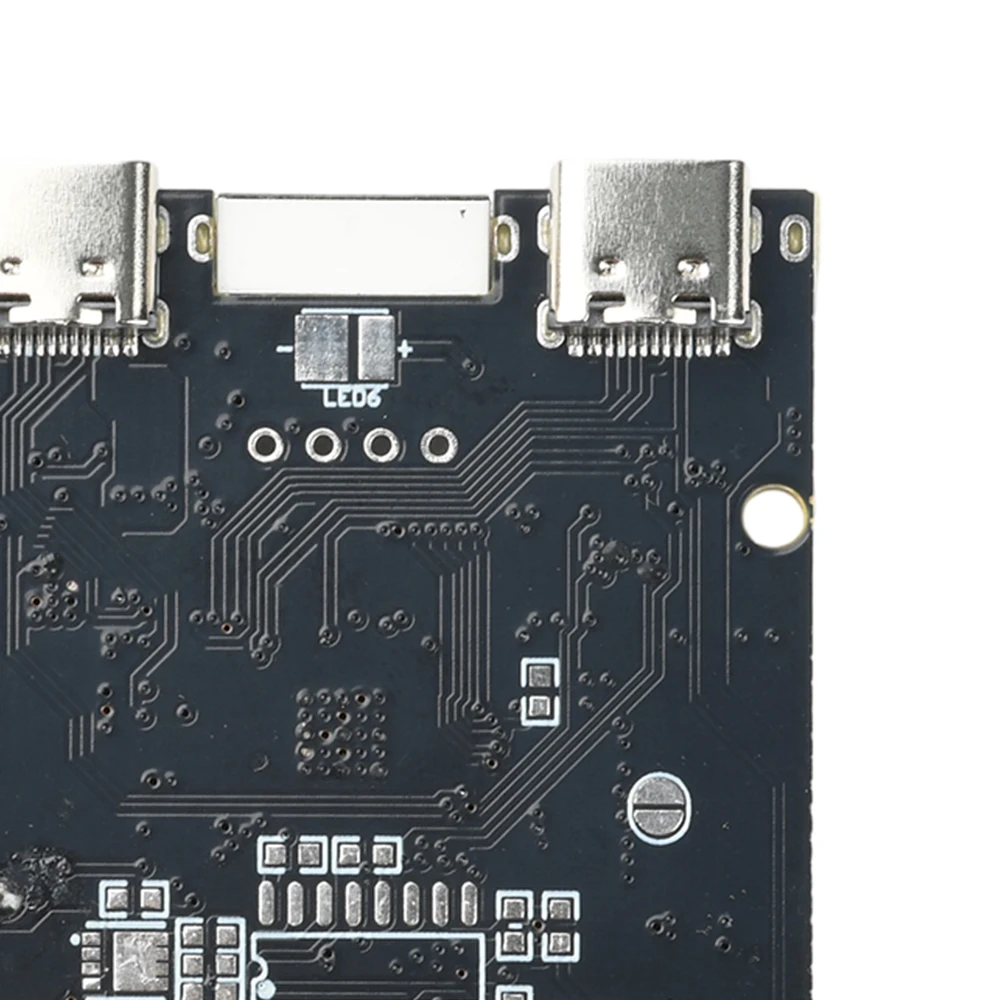

TYPE-C port: input and output bi-directional port
USB: with protocol output interface

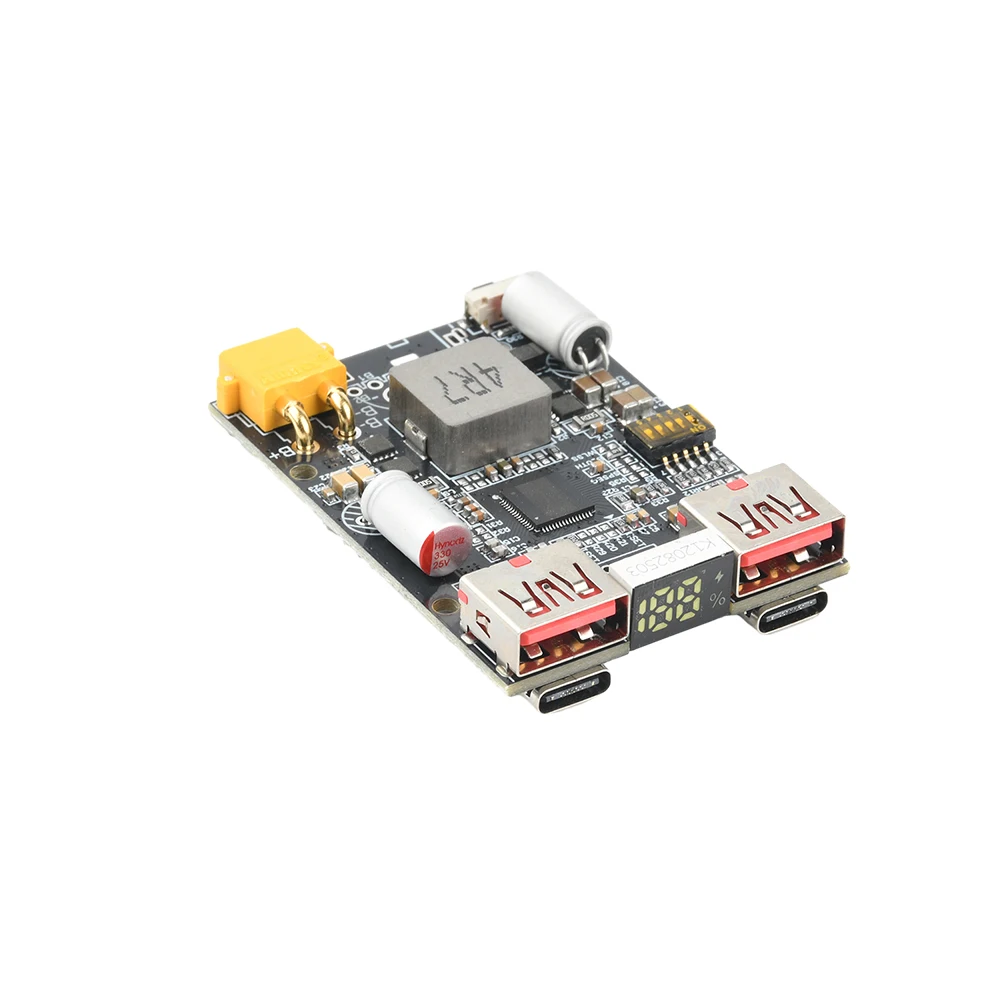

Digital display for the coulometer display, the beginning of the inadmissible, calibration needs to be discharged to the battery can not be discharged, and then full of the battery to can not be recharged, the calibration is completed once.
Support protocols:
Support UFCS, VOOC, WARP, APPLE 2.4, AFC 9V/12V, PD2.0/3.0/3.1
PPS, FCP, QC2.0/3.0/3.0+, SCP, and other protocols Most brand models support fast charging.
Other niche brands can also be supported if they support PD, QC common protocols.
Package include
100W fast charging module *1
