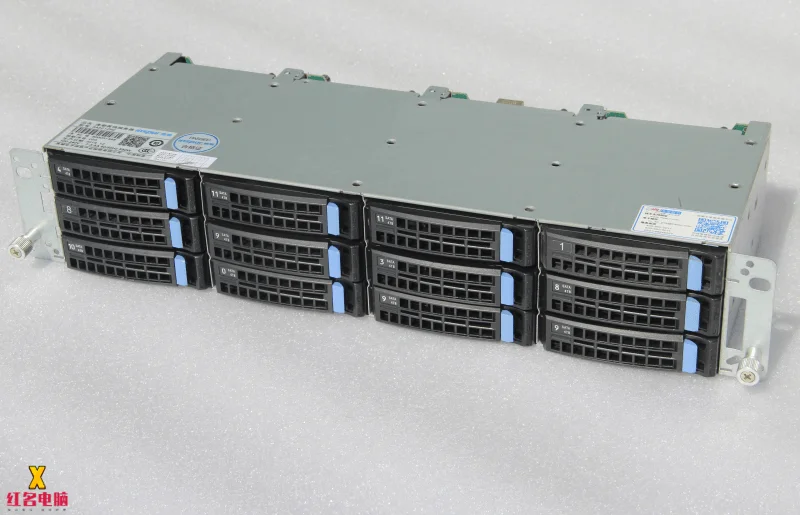

12-Disk 3.5-inch hard drive cage, supports SATA SAS SSD.
The hard disk cage is disassembled from the server, not brand new, and is very convenient to use. It is used for expansion, home desktops, or server hard disk positions.

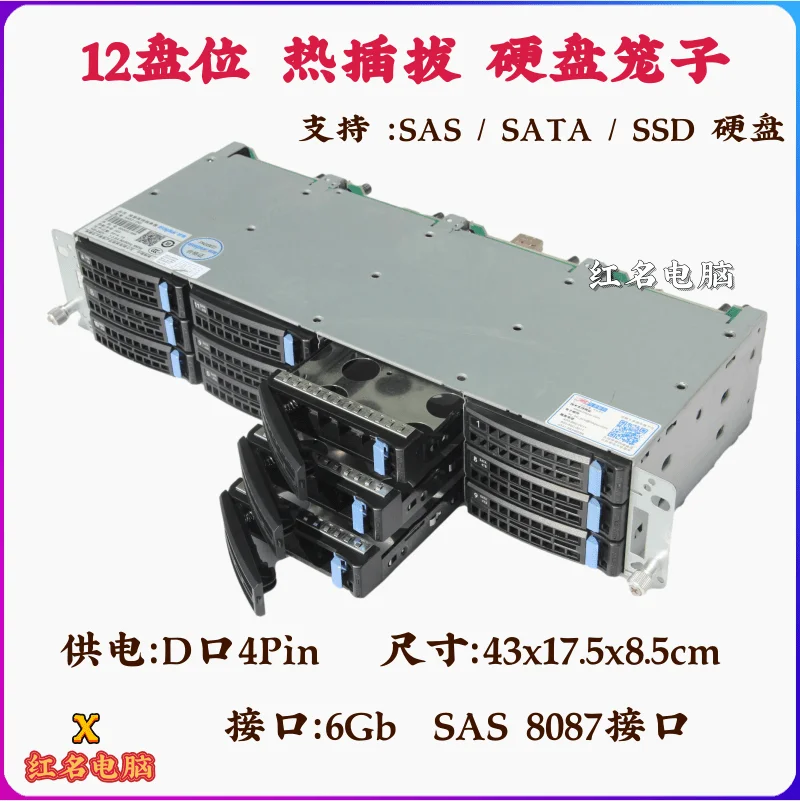

12-Disk 3.5-inch hard drive cage, supports SATA SAS SSD.
Size: 43x17.5x8.5cm
Interface: 6GB SAS 8087 interface
Power supply: D type 4ping interface
The array cards and lines in the main picture and package picture are to allow you to better understand the product. (not included in the package) need to be purchased separately~
Please note: Array cards and lines in the main and package diagramsIt is to allow you to better understand the product.(Not included in the package) You need to buy it separately~

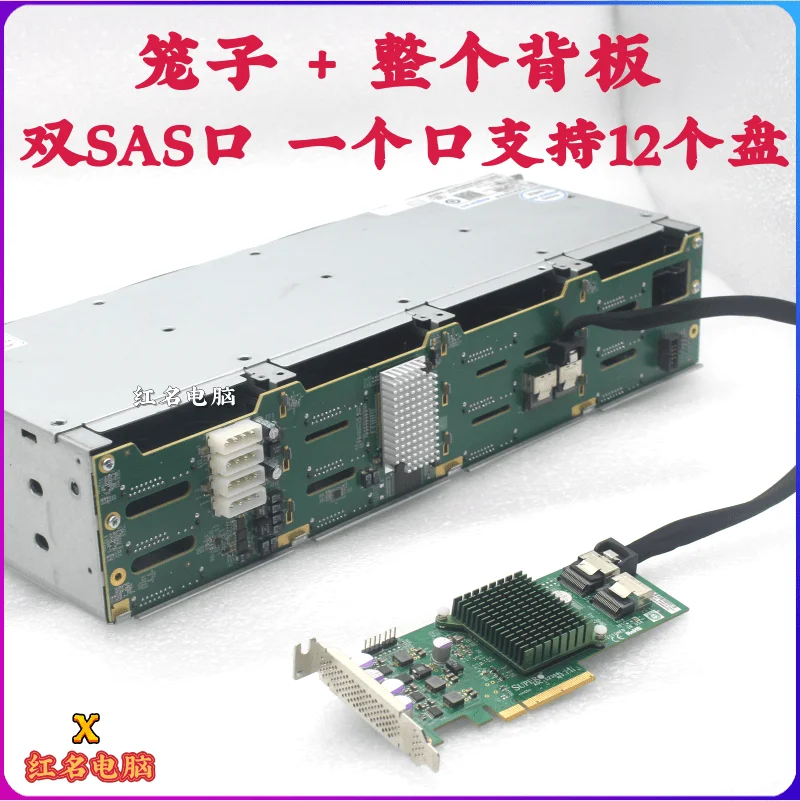

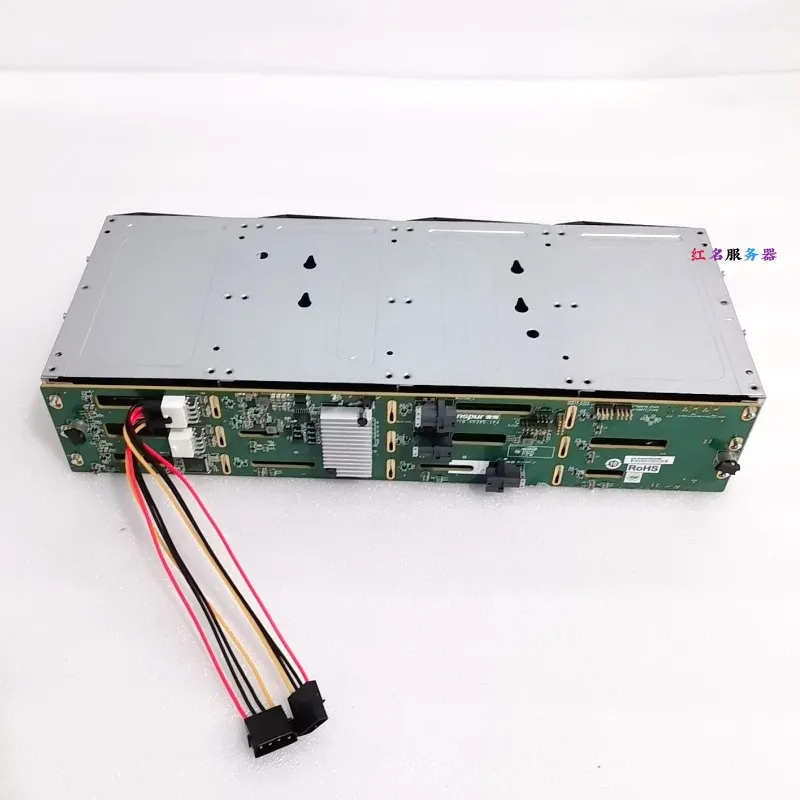

1. The backplane is an entire independent backplane with a built-in EX chip.
2. Dual SAS ports, single port can support 12 disk positions.
3. There is also a SAS port, which supports connecting other cages in series, multiple in series, and a card can support more than 100 hard disks, which is very convenient~
Many friends are not very clear about whether it is 6Gb or 12Gb. Here is a brief explanation:
The maximum speed of 6Gb runs to about 2.2G/s.
12Gb runs up to about 4.5G/s.
If there are 12 mechanical hard disks, the speed of the mechanical disk is 180M/s (a better disk). When all 12 hard disks are stacked at full speed, 12 * 180M = 2.16G/s 6Gb bandwidth bottleneck is enough.
Ditto, if you have an SSD hard drive, then 6Gb is enough, depending on how many hard drives you have.
6Gb hard disk cage |


|
backplane |
6Gb bandwidth backplane SFF-8087 interface One line can support 12 discs Other mouth support, tandem, another cage
|
size |
43*17*8.5CM
|
power supply | 4 D ports for power supply, connect 2 D ports, and that's it. |
Remarks |
Shipping will send an 8087 line by default. Support series, backplane integration 2 SFF-8087 interfaces 6Gb bandwidth If you need array cards, hard disks, cables, etc., you can contact customer service.
|

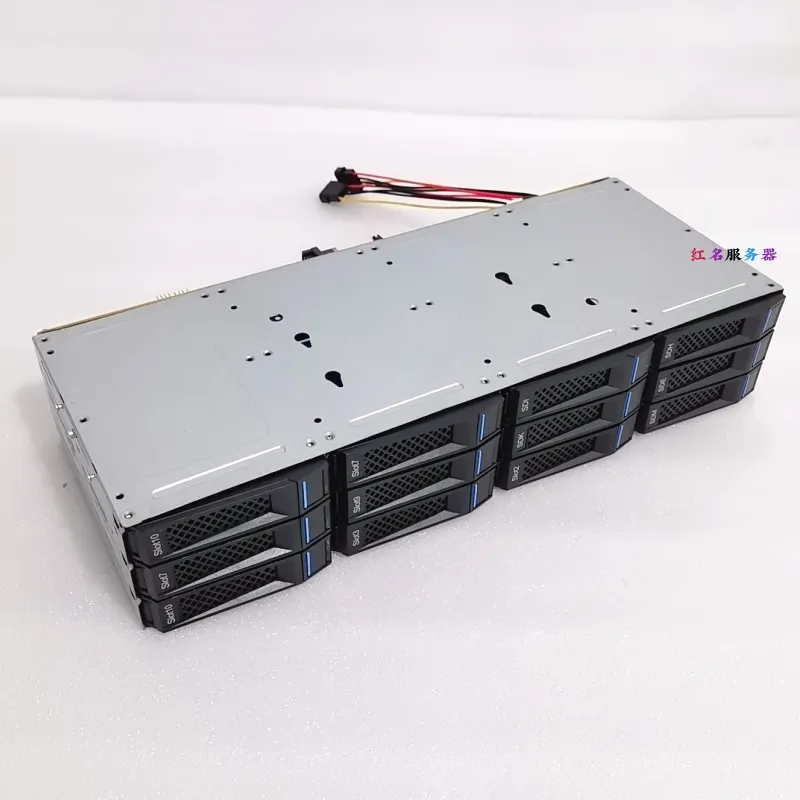

12Gb hard disk cage |



|
backplane |

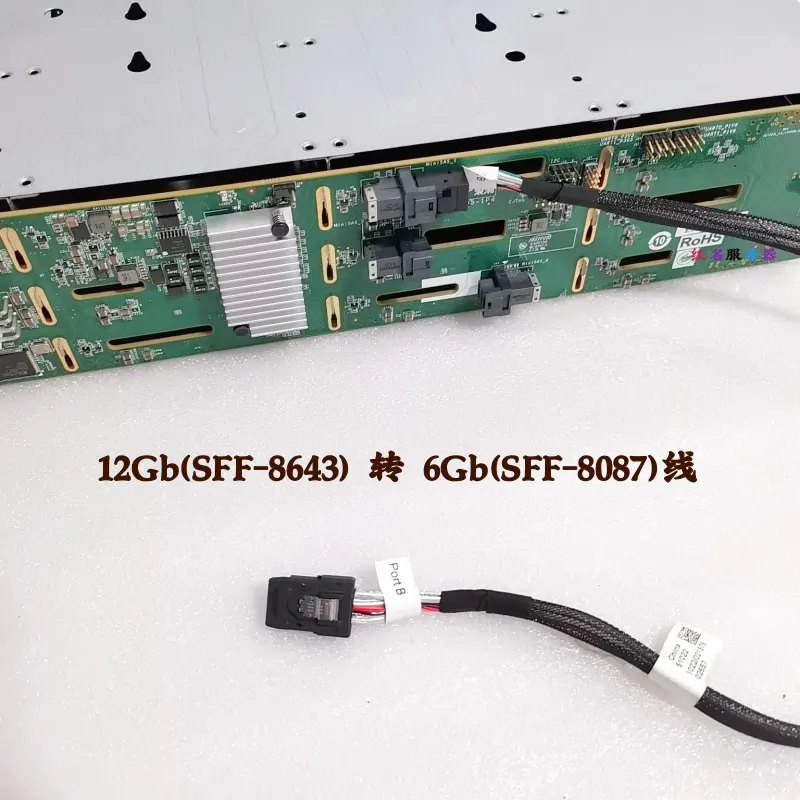

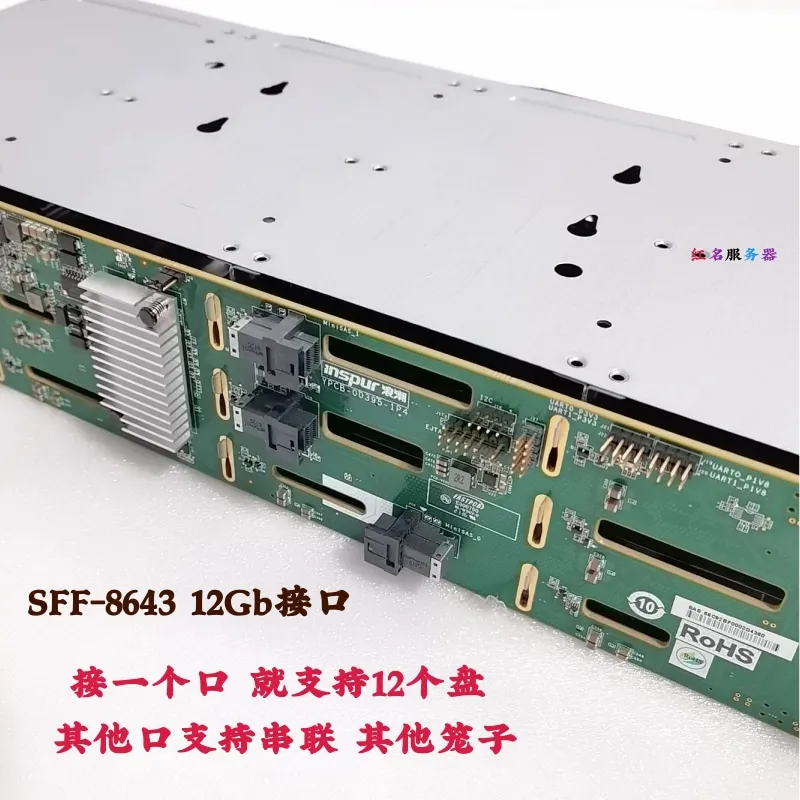

12Gb bandwidth backplane SFF-8643 interface One line can support 12 discs Other mouth support, tandem, another cage
|
size |
43*17*8CM
|
Remarks |
By default, a D port supply wire will be sent for delivery. As shown in the picture above, you can connect 2 D ports. Support for in-line, backplane integration with 3 SFF-8643 interfaces12Gb bandwidth Our store is new, more than 3,000 12Gb cages are sold at a discount~ cost-effective! If you need array cards, hard disks, cables, etc., you can contact customer service.
|

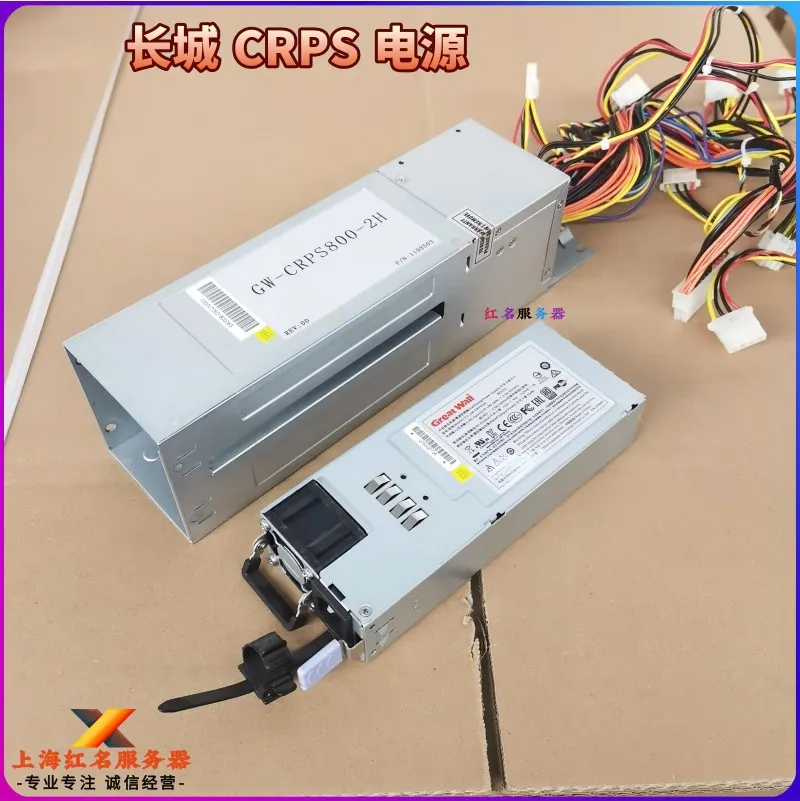

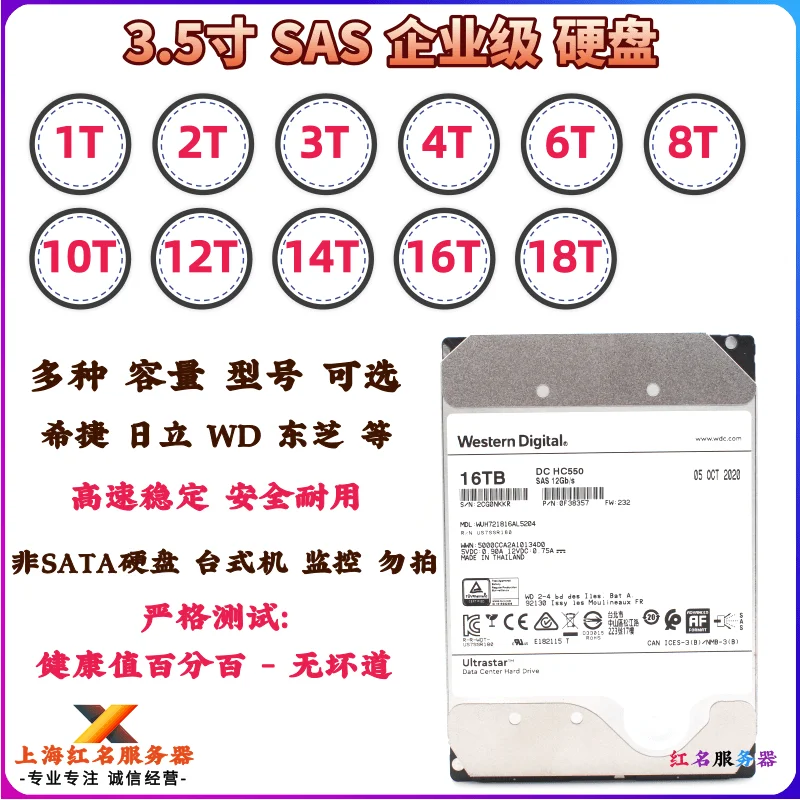

Some other matching products in our store, click the picture to view or buy:
