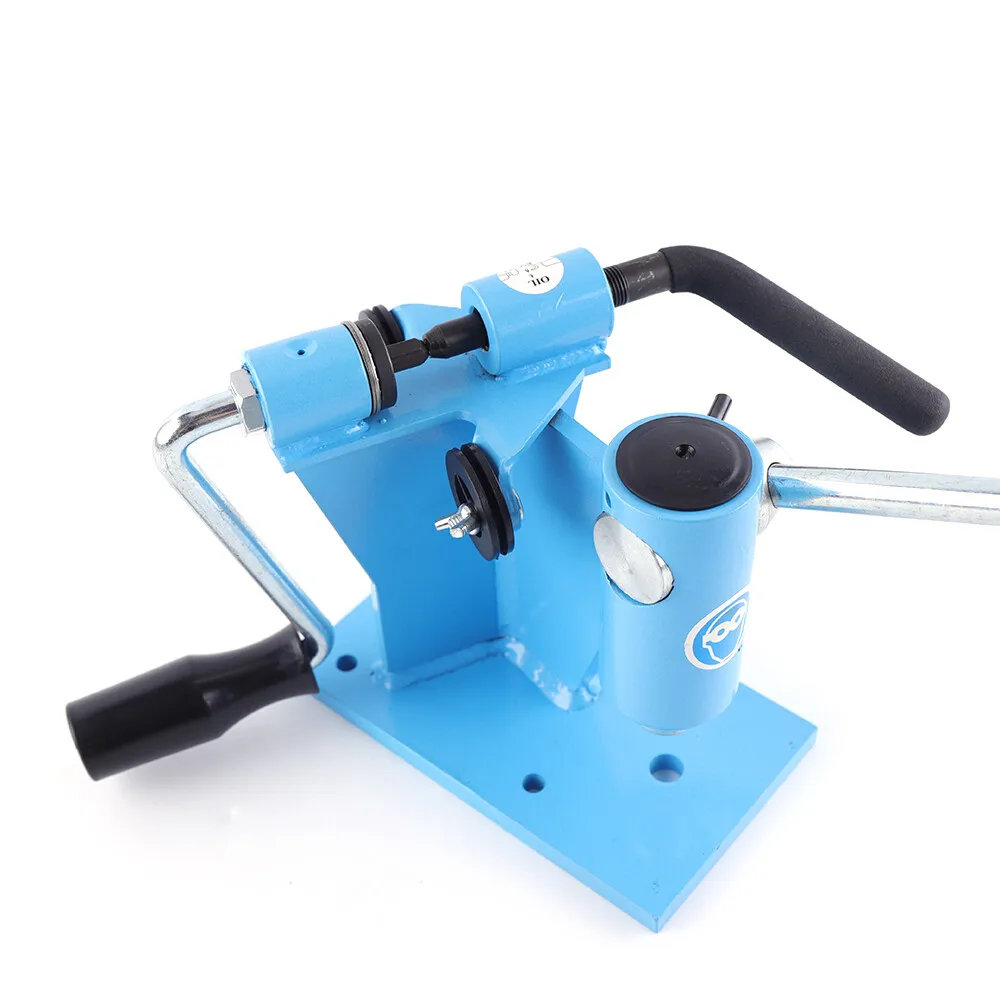

This is the latest chain-breaking, chain-integrated machine with a simple structure and a light overall design that meets the multiple functions of the repair chain.

*Safety Information

●To avoid possible injury to operator and/or bystanders, carefully read all instructions concerning

assembly, operation, and maintenance of this tool.

●Make certain that chain breaker has been mounted securely on flat, clean working surface.

Check mounting regularly.

●Check components on chain breaker regularly for wear and general condition.

●Always wear approved safety accessories for hands and face when using this tool.

Assembly Instructions

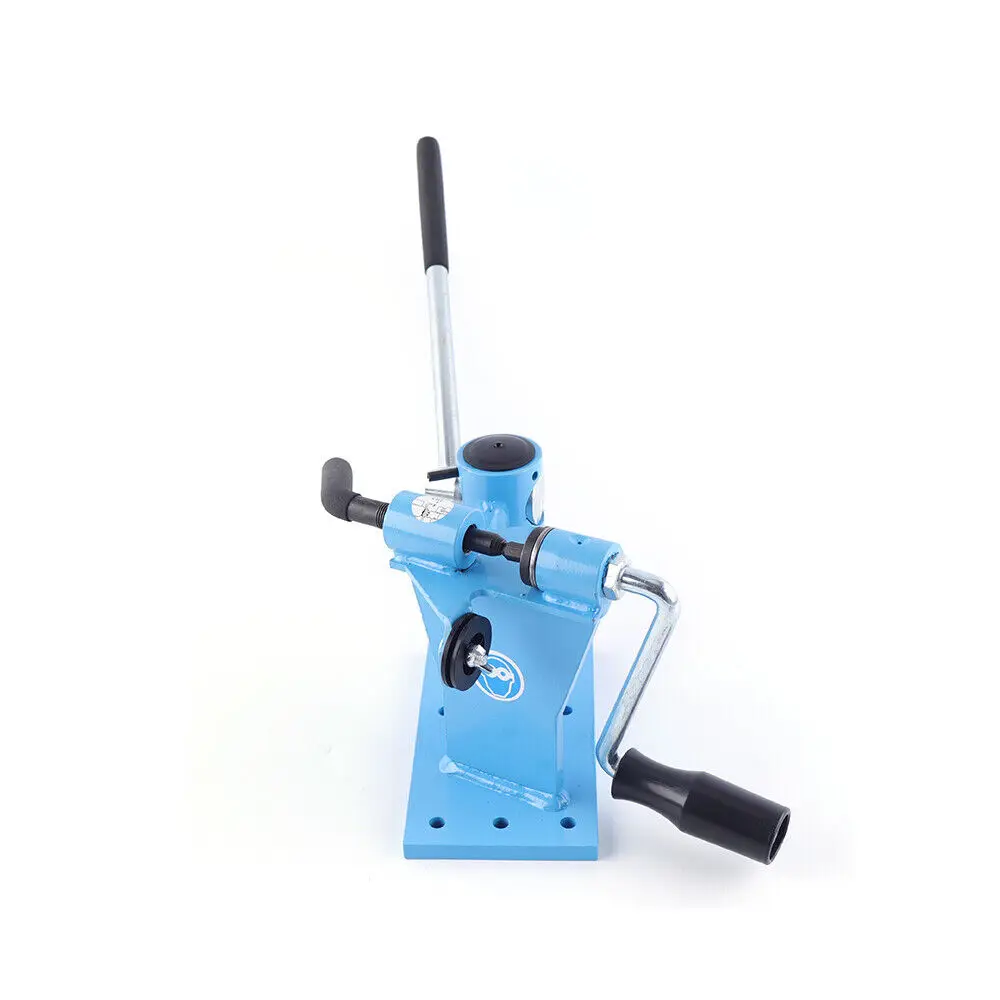

Chain breaker comes supplied already assembled excluding handle portion (1).See exploded view of product.

*BENCH MOUNTING

Step 1. Chain breaker is equipped with two holes for mounting. Lag screws or bolts (not supplied) may be

used to hold the unit in position. (llust, A)

●Mount chain breaker unit flush with side or front of bench area. (llust, A)

*RIGHT OR LEFT HAND USE

Chain breaker comes ready for right-handed use. If lft-handed use is preferred, follow the instuctions below.

Step 1. Unscrew set screw (3) and remove handle (1). (llust. B)

Step 2. Remove plastic cap (5). With screwdriver, depress spring-loaded punch holder (6) to free up cam

(2). (llust. C-D)

Step 3. Slide cam (2) out right side of chain breaker unit. (Ilust. E)

Step 4. Reinsert cam (2) into opposite side of chain breaker unit. Depress punch holder (6) and insert

cam. (llust. F)

Step 5. Replace plastic cap (5) and reinsert handle (1). Tighten set screw (3) with Allen wrench (4).

Step 6. Remove stop pin (10) from right side of unit and reinsert into left side. (llust. G)

*REPLACING PUNCH

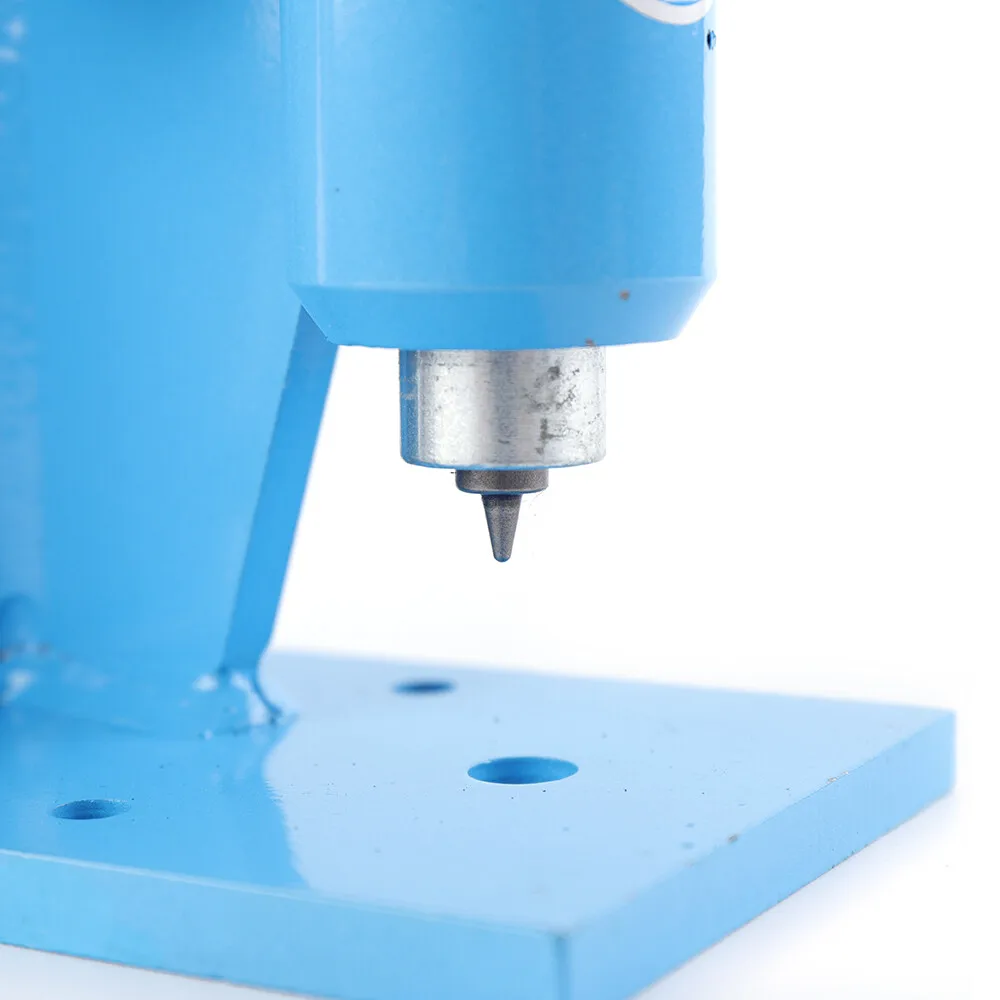

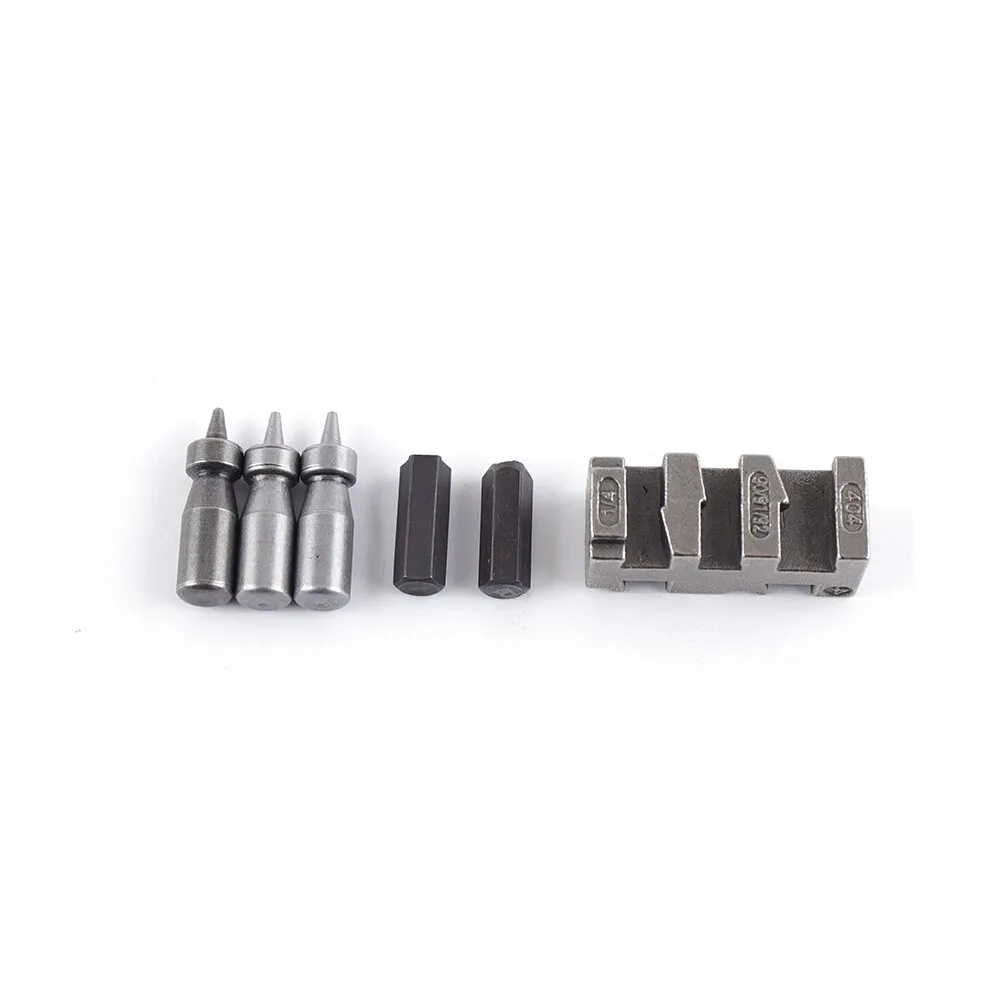

Step 1. To remove worn or damaged punch (9), loosen set screw (7) with Allen wrench (4). (llust. H)

Step 2. Insert new punch (9) into punch holder(6) (push punch up until fully seated). Tighten set screw

(7). (lst.)

*Instructions

—HOW TO BREAK CHAIN

Step 1. Insert chain portion to be broken into the slot of the adjustable anvil(llust. J)Tighten

adjustment knob until chain is securely positioned. Position cutter as shown.( llust.K) IMPORTANT:

It is not necessary to re-adjust anvil when breaking multiple loops of chain of the same chain type.

Step 2. Position rivet head directly under punch and pull handle (1) down just far enough

to push rivet out (do not use excessive force). (llust. L)

NOTE: A. Important - when breaking chain at cutter, make sure cutter is in correct position. (llust. M)

B. For cutters with depth gauges as shown in (llust.. N), make sure to position cutter properly as shown

in (llust. 0) using the side of the adjustable anvil with the slot.



Operating Istuctins

HOW TO SPIN RIVETS

Step 1. Lay chain across plastic chain supports (8) (lust, C)

Step 2. Rotate plastic chain supports (8) so that the rivet head is centered between the take-up handle pocket

(6) and spinner anvil (5). (lust. C)

Step 3. Turn take-up handle (6) until chain is secured against spiner anvil (5). (lust D)

Step 4. Tum sinner crank (1)a few times t0 center the rivet hub in the spinner anvil (5). (lust. E)

Step 5. Apply a few drops of oil to rvethub. (lust. F)

=

Step 6. Tum spiner crank(1) and, at the same time, slowly turn take-up handle (6) inward (pproximately

one fll rvolutin) until rivethead is formed. Take-up handle (6) provides pesse while sinner anvil (5)

forms ivet head. (lust. G)

*Maintenance

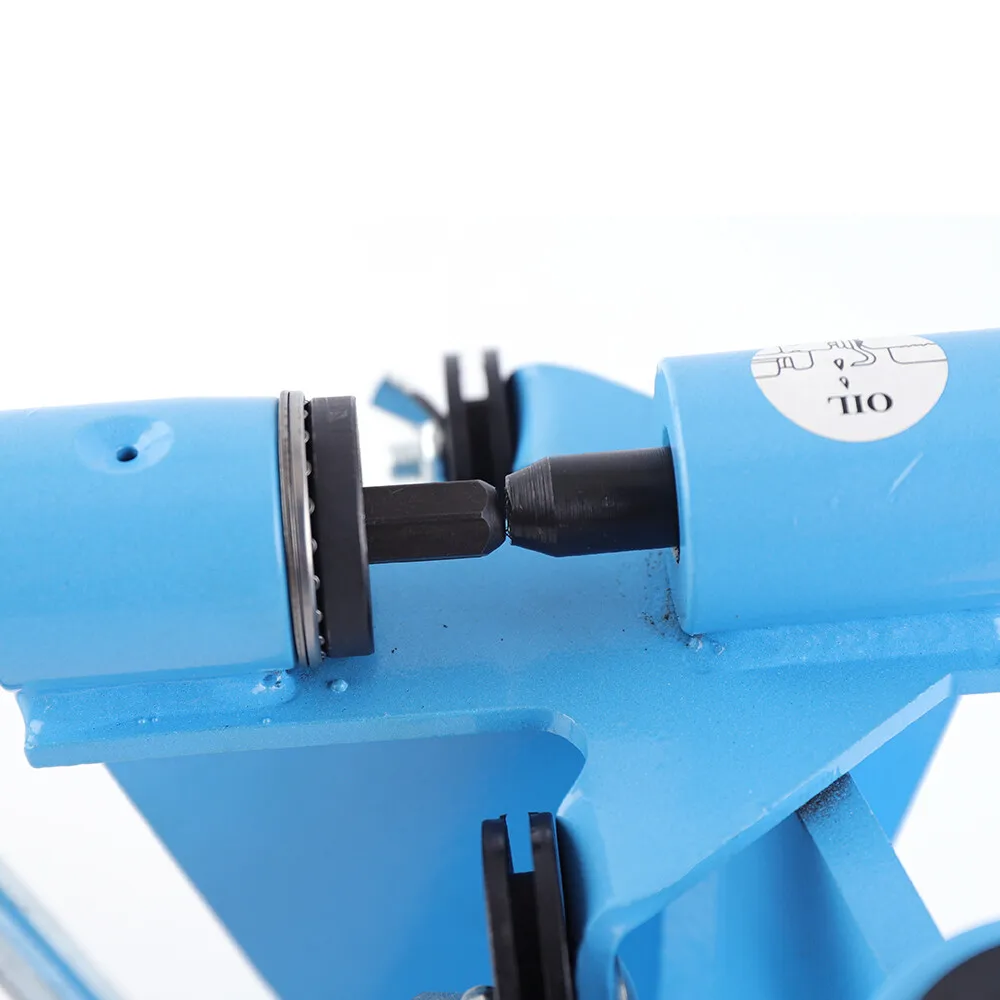

Step 1. This unit is euipped with oling chambers and should be mintained peidially with a ightweight

oil. (lust. H)

For additional instructions on the product, please refer to the instructions.

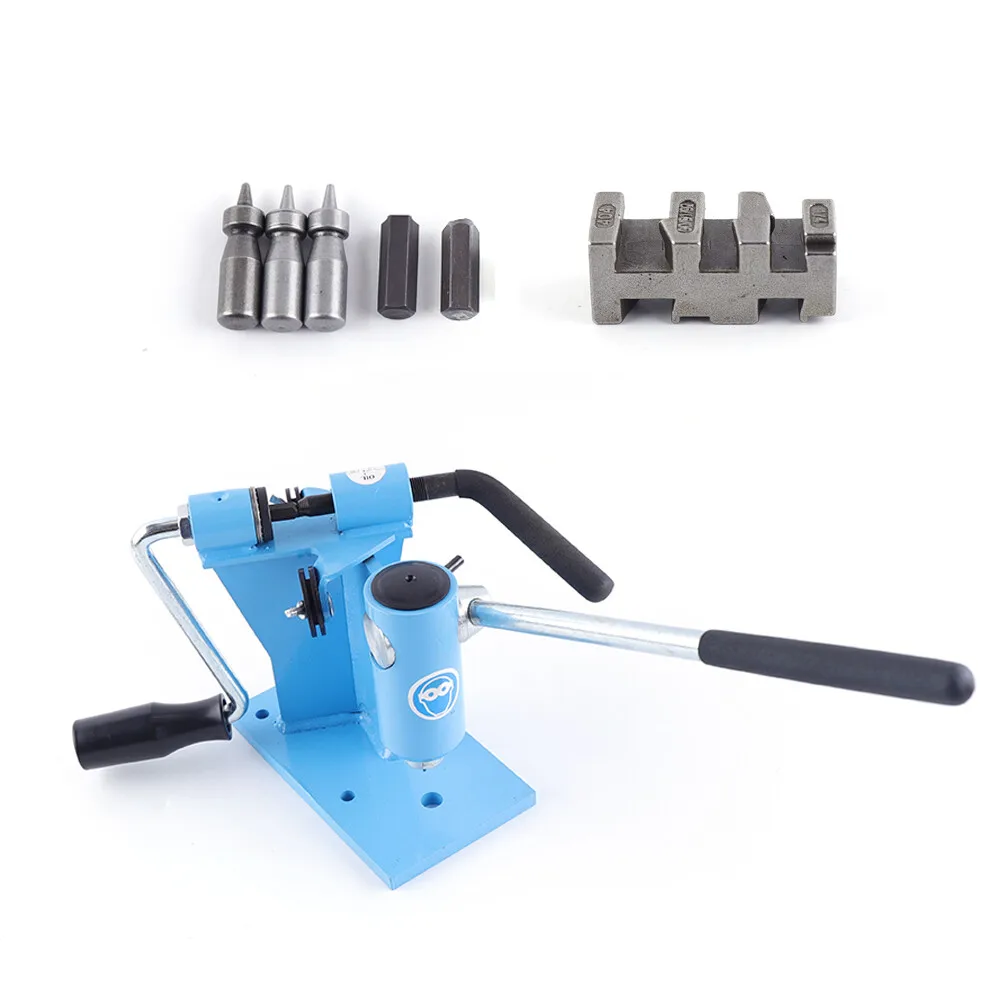

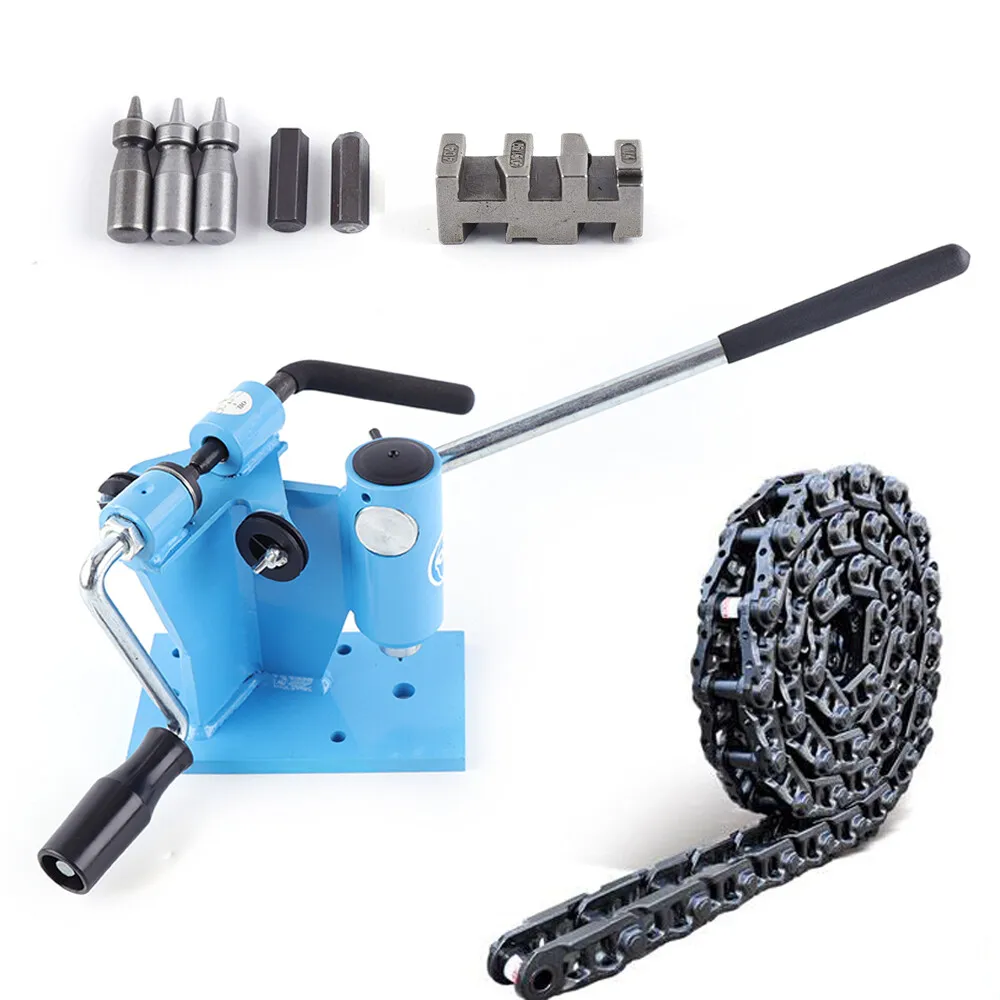

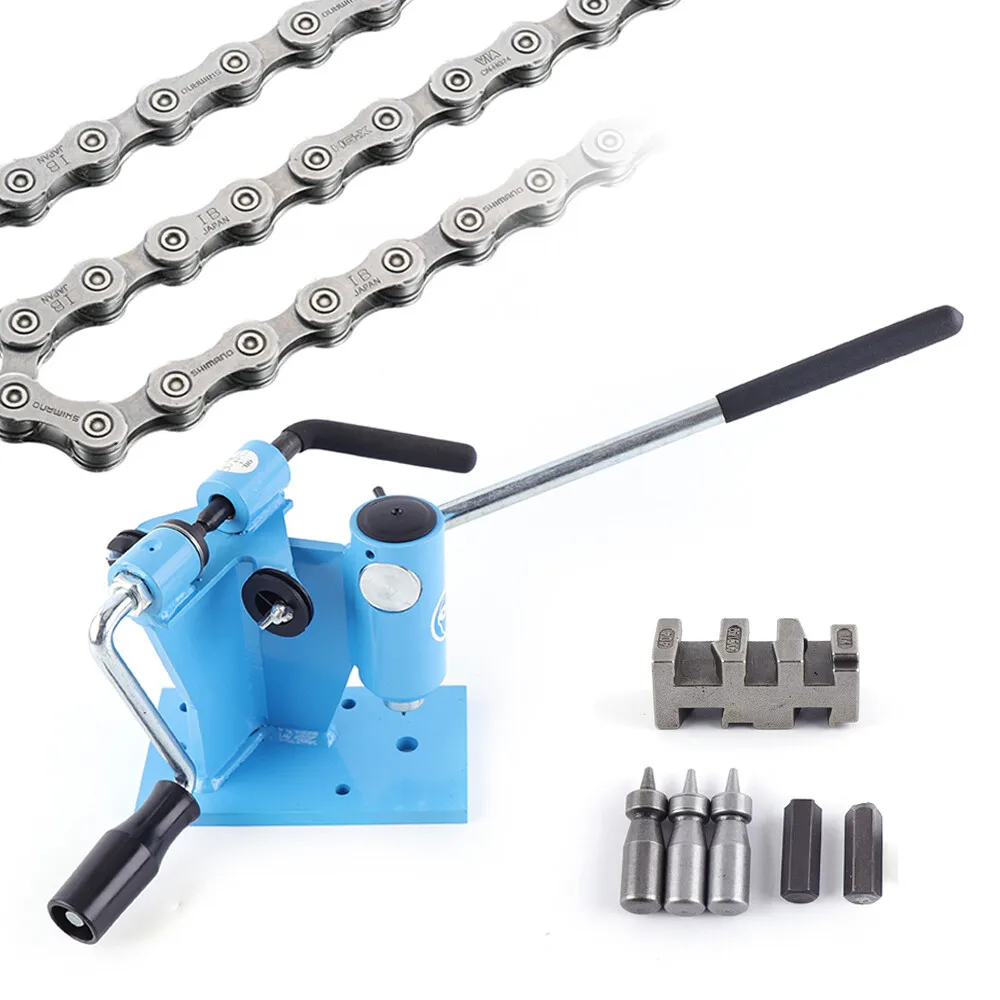

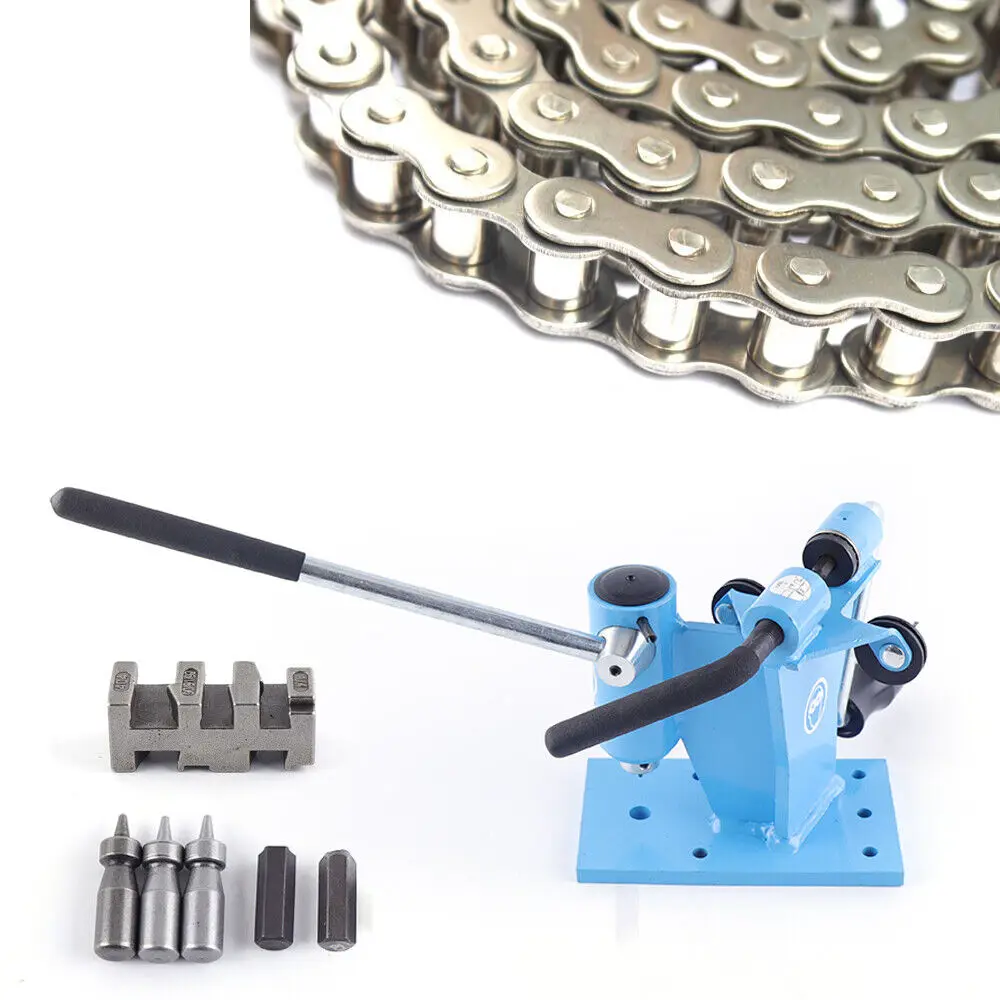

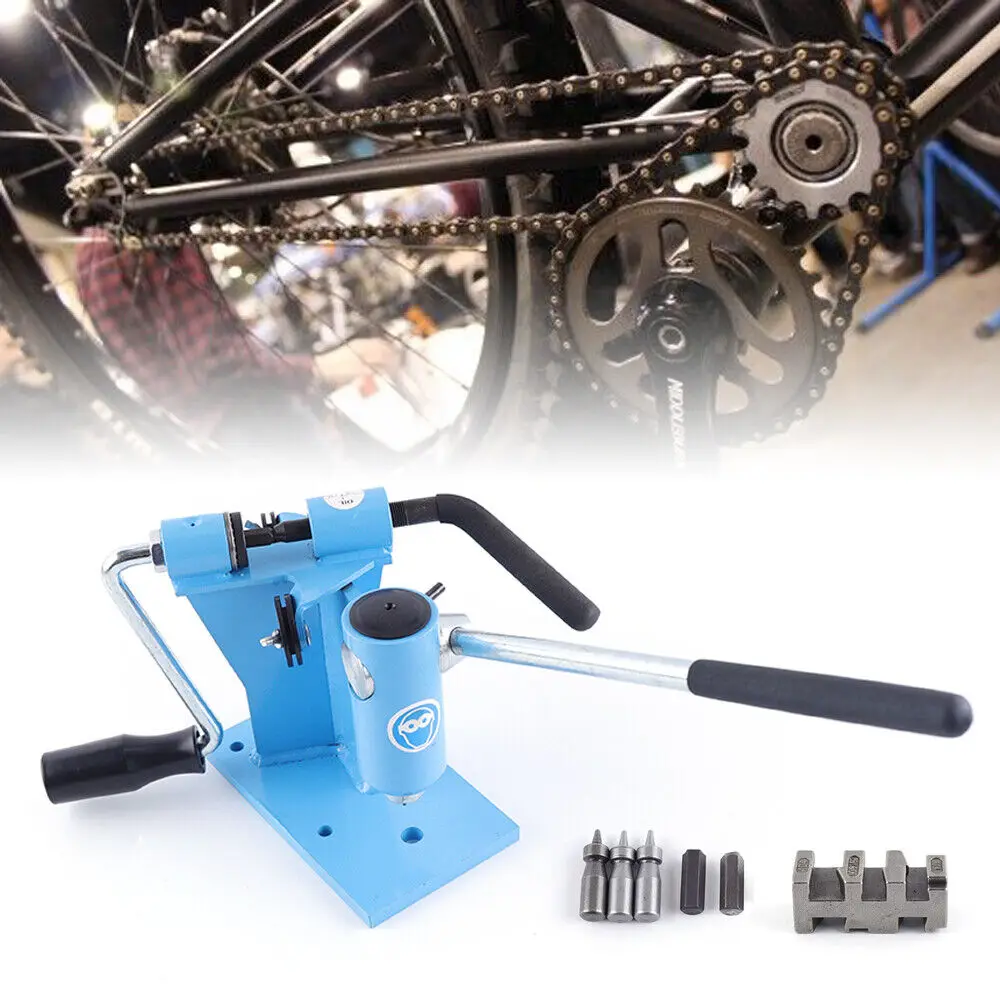

The kit includes:

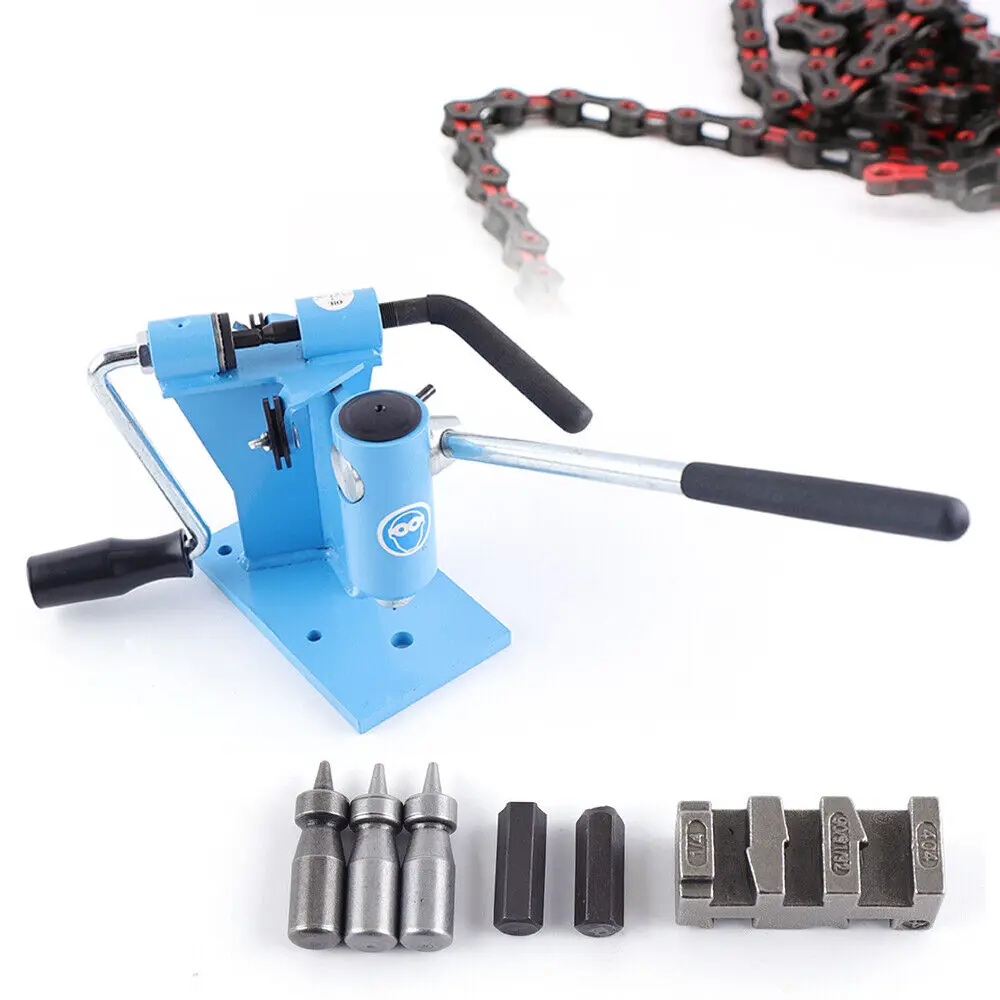

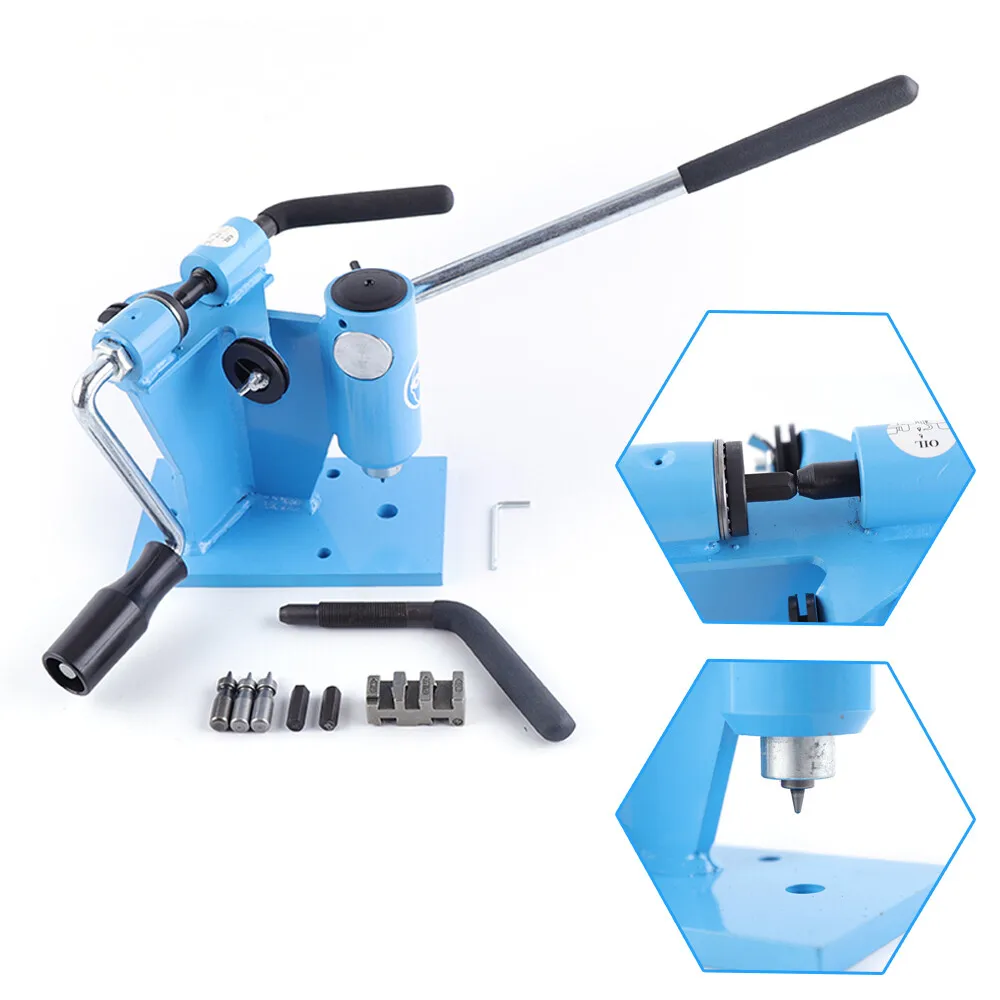

1* broken chain anchor chain machine (integrated)
