Features:

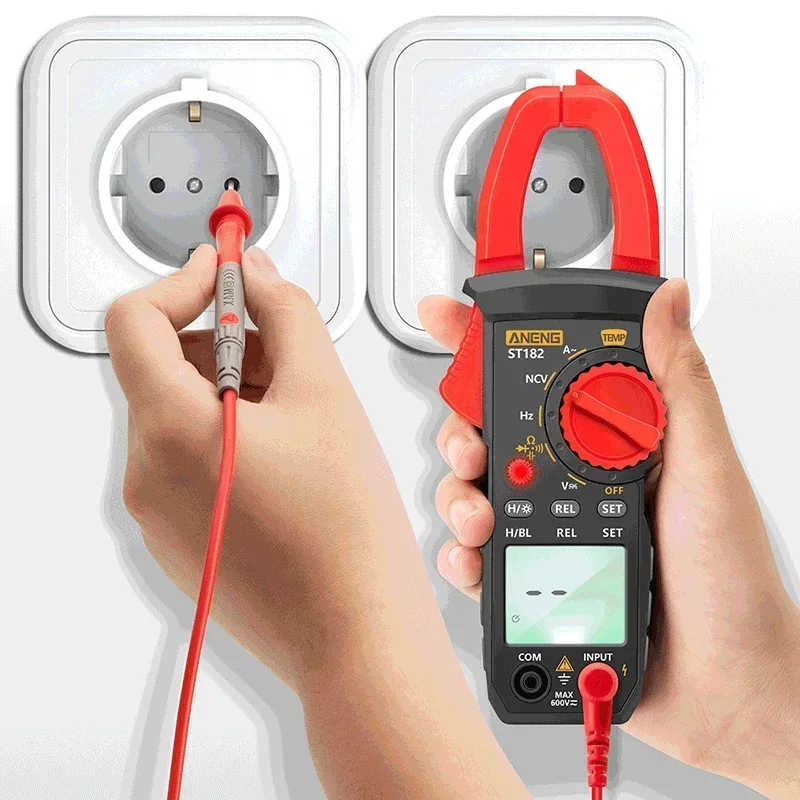

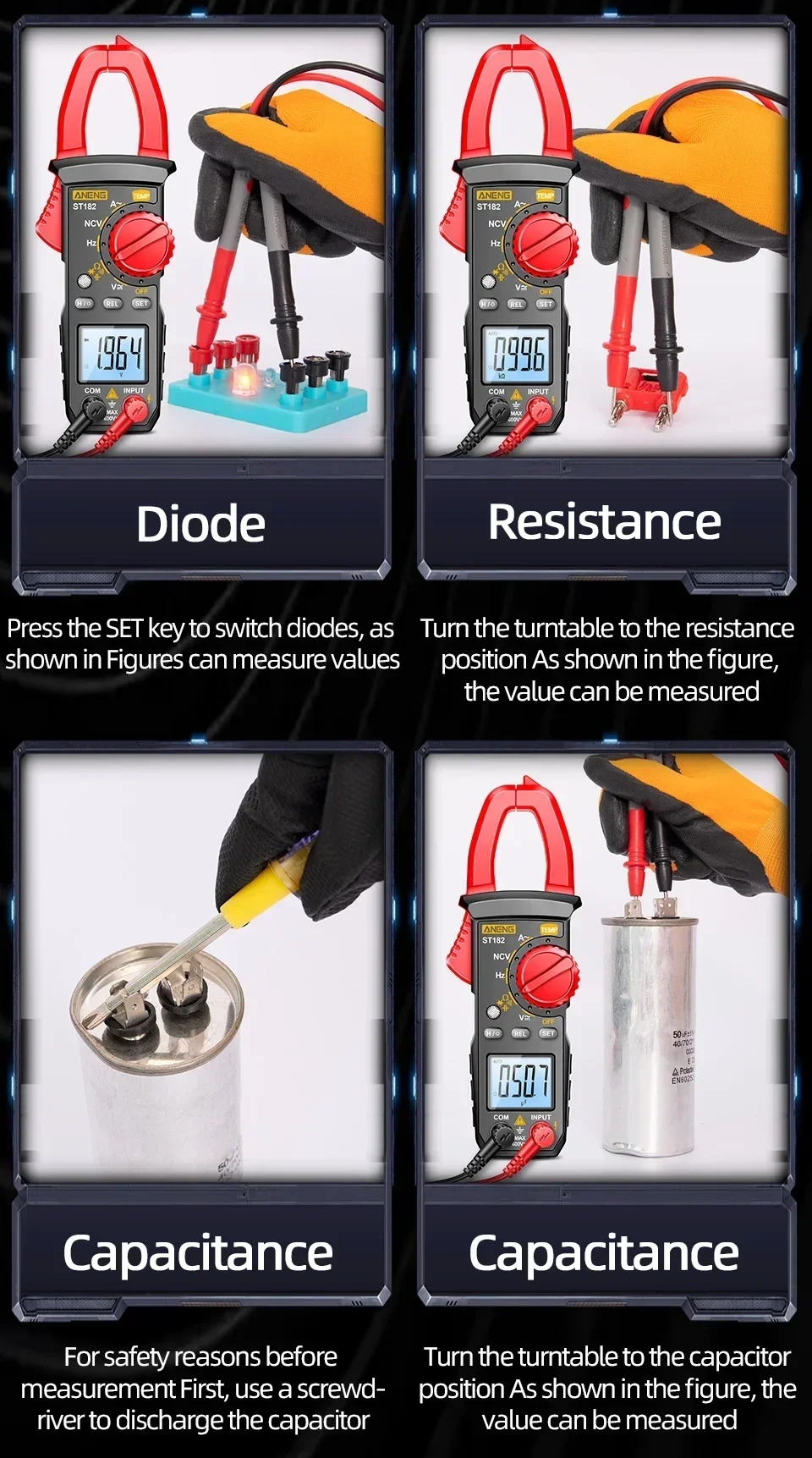

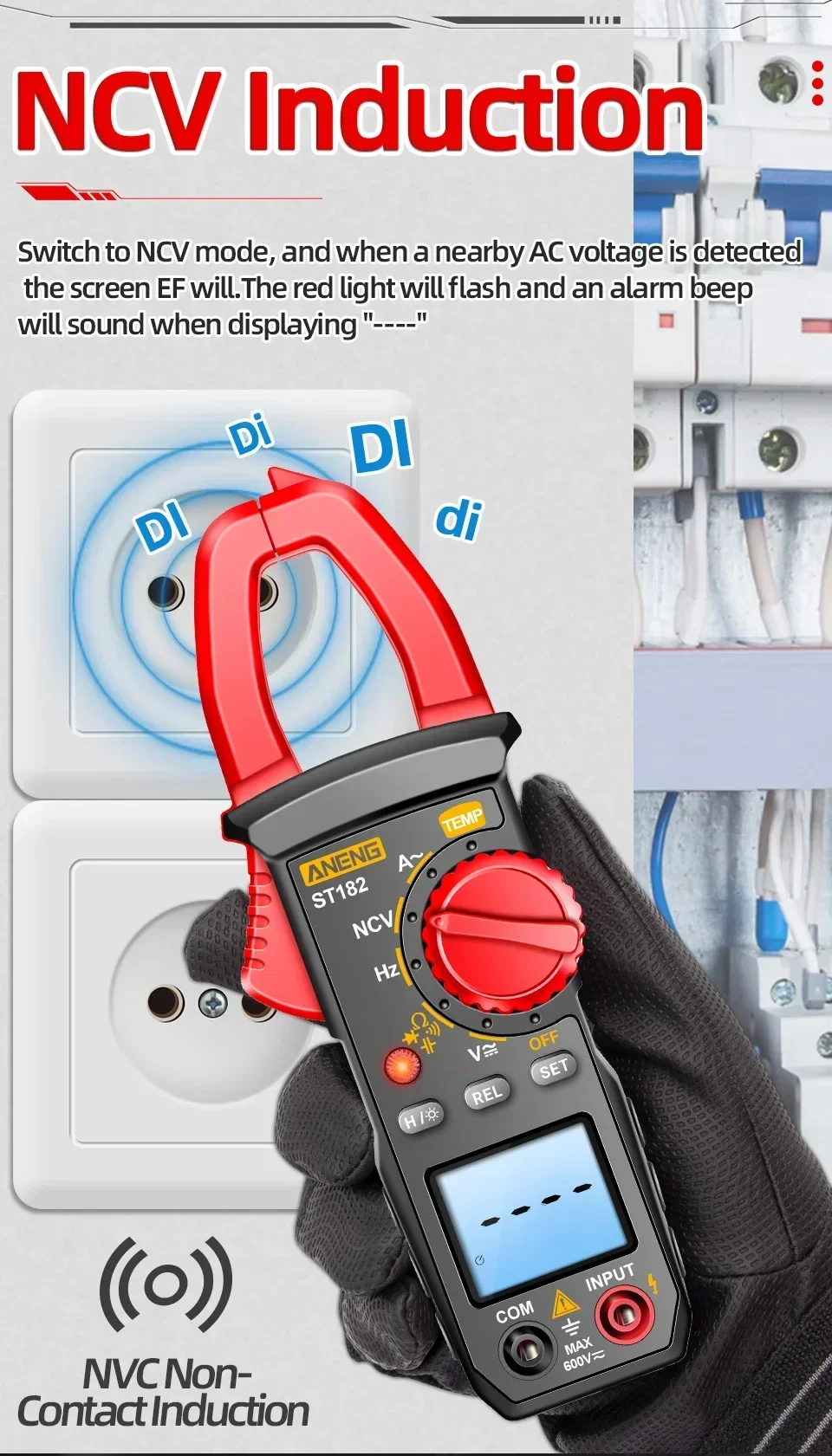

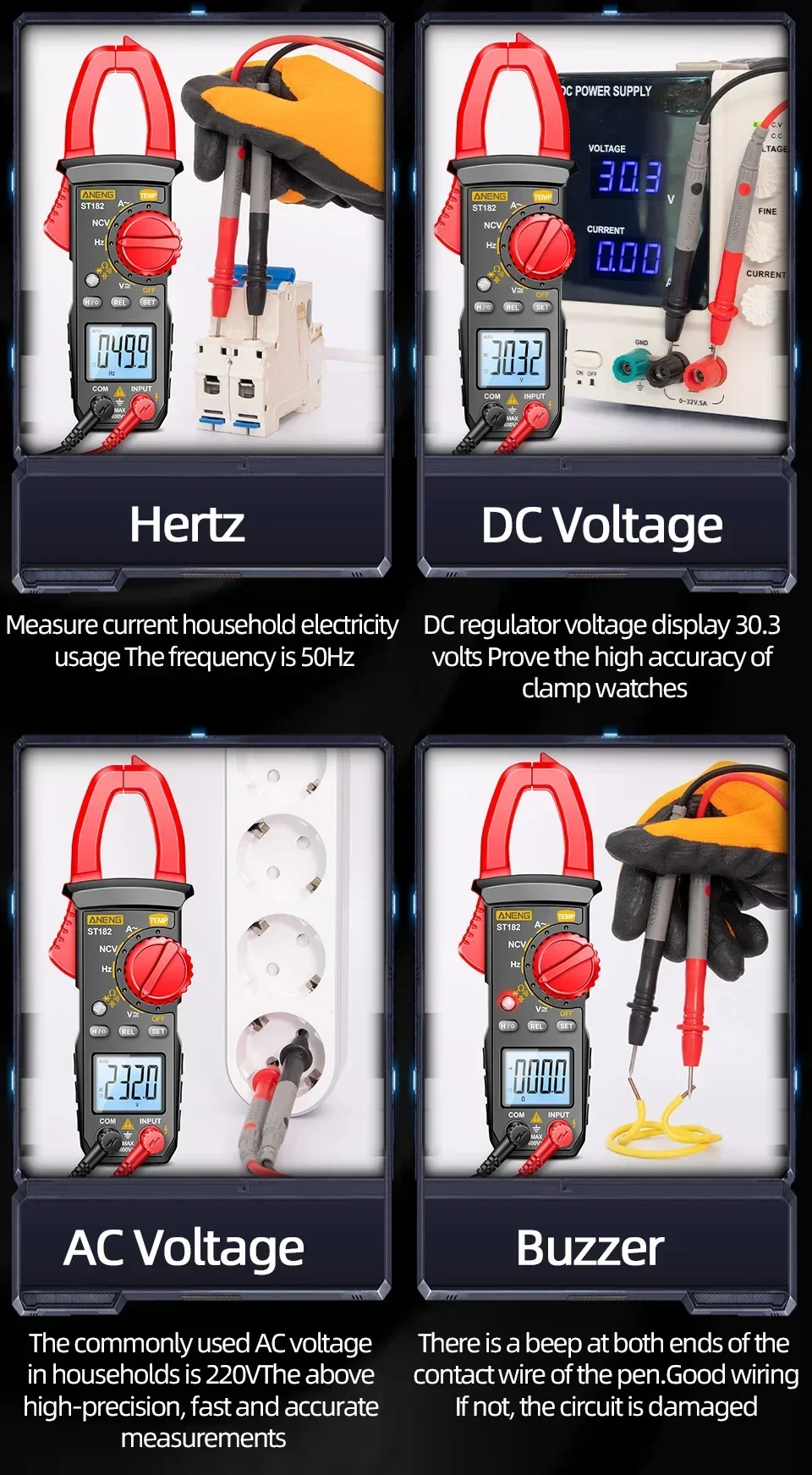

This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.

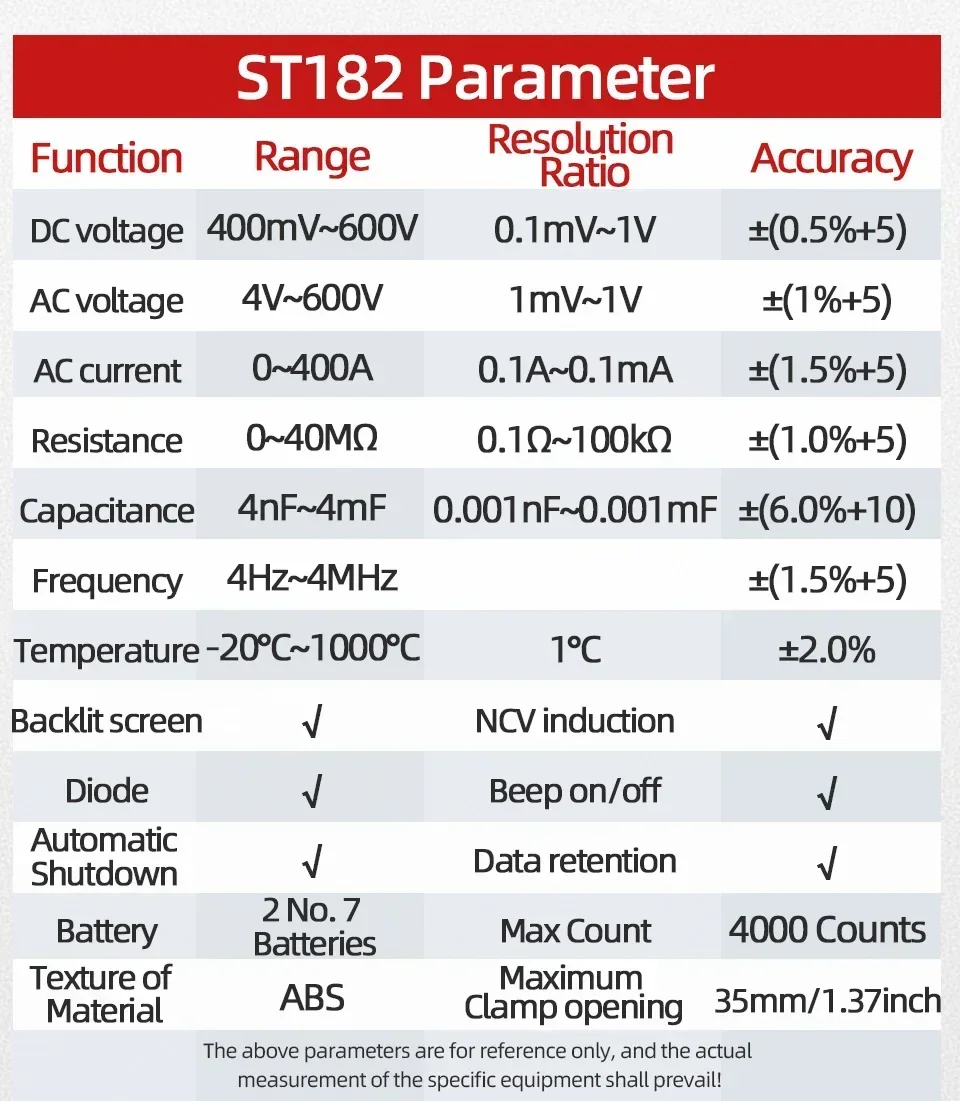

Specifications:
| Range | Accuracy |
AC Voltage | 4V/40V/400V/600V | ± (1.5% + 3) |
DC Voltage | 400MV | ± (1.5% + 5) |
| 4V/40V/400V/600V | ± (1.0% + 3) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ± (1.2% + 3) |
| 40MΩ | ± (1.5% + 5) |

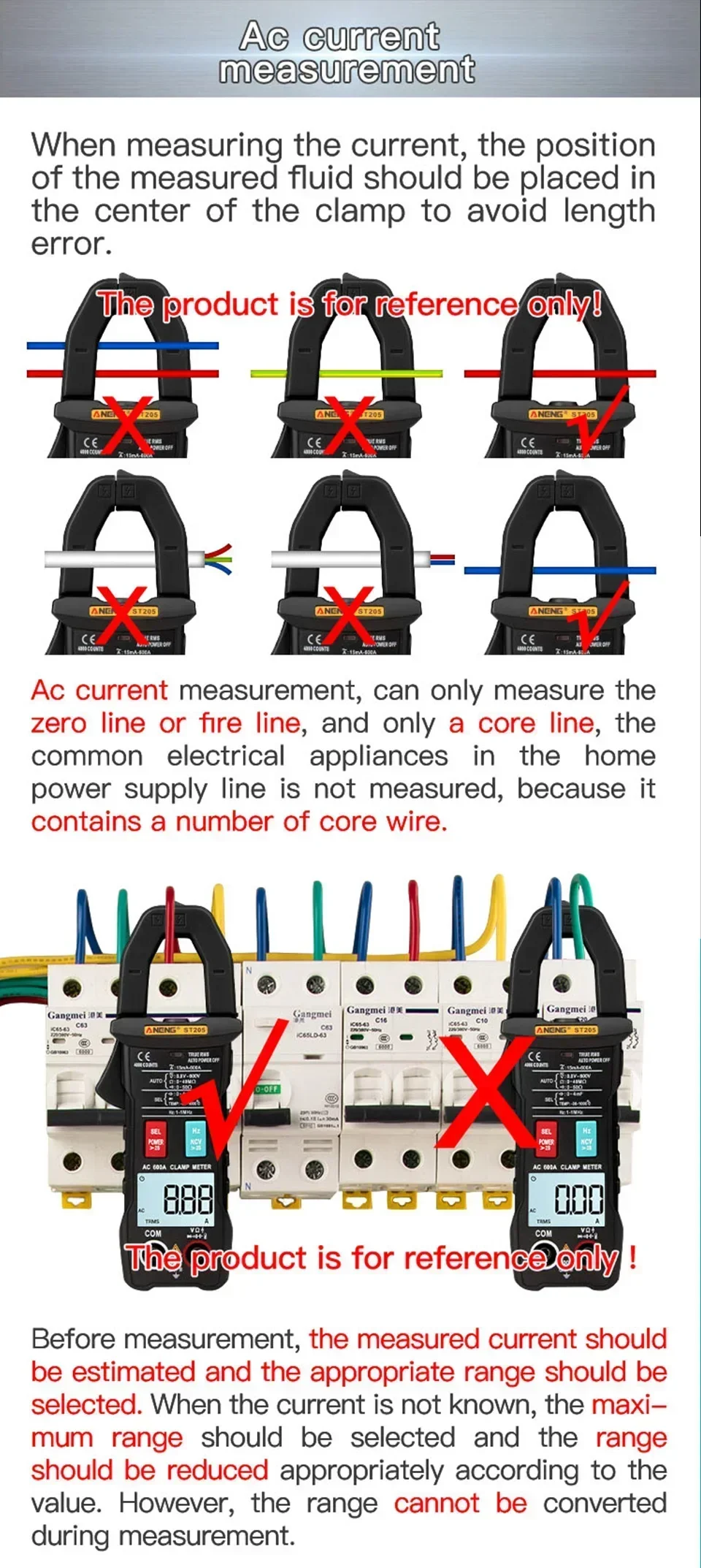

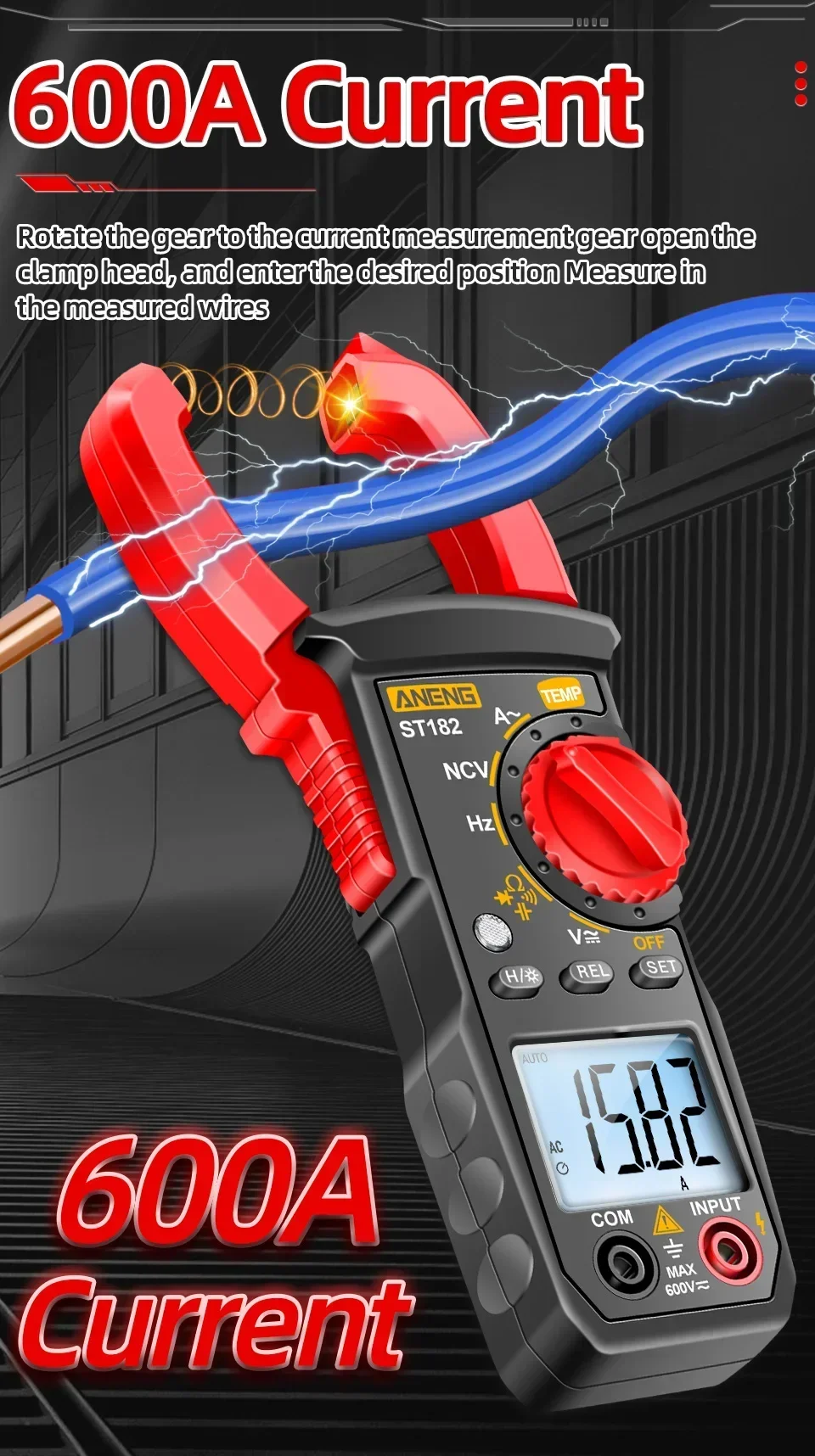

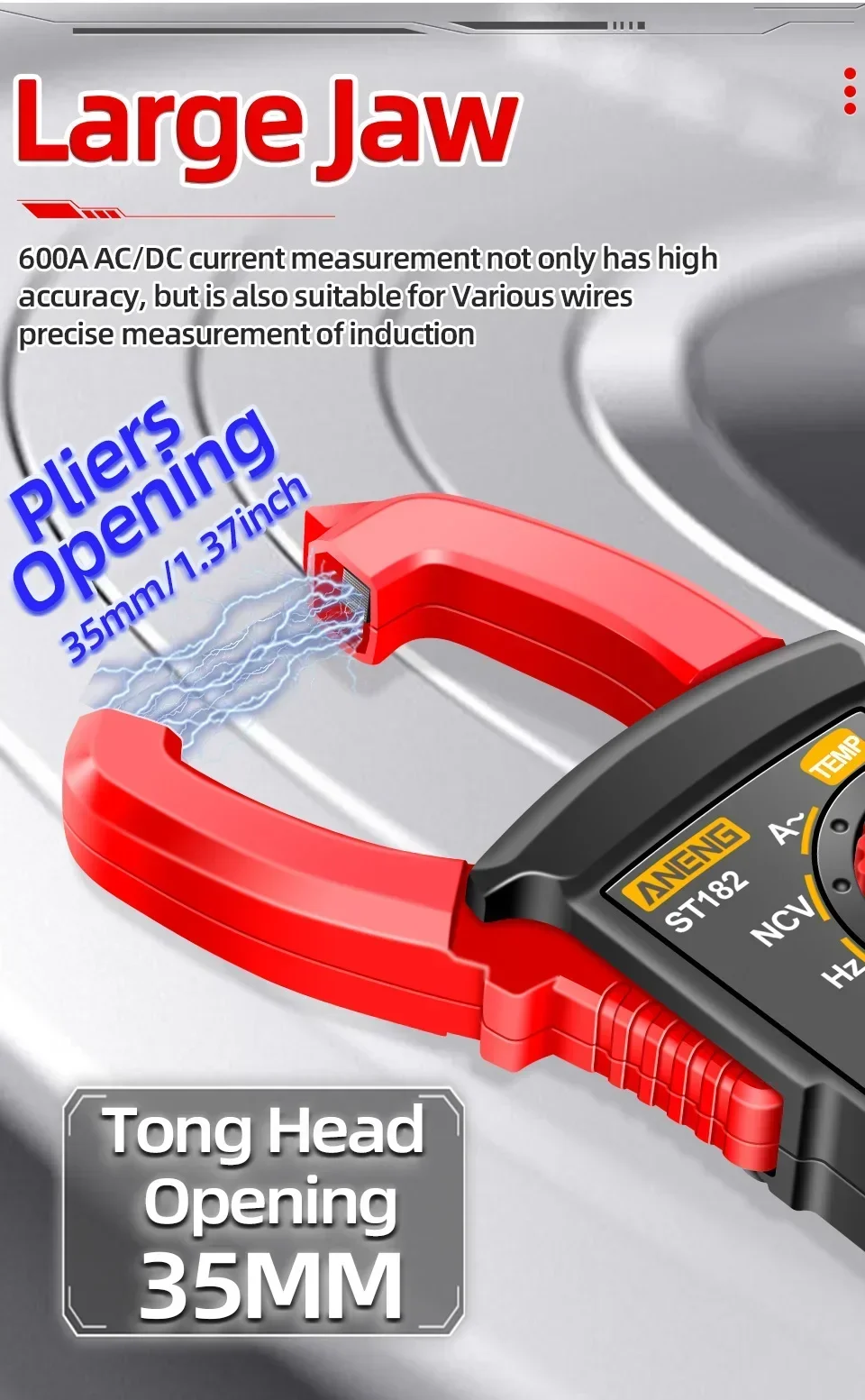

AC Current | 40A/400A | ± (2.5% + 3) |
Frequency | 10Hz~400kHz | ± (1.0% + 5) |
| 400kHz~4MHz | ± (2.0% + 5) |
Capacitance | 1nF~4uF | ± (2.5% + 10) |
| 4uF~400uF | ± (4.0% + 20) |
| 4mF | ± (5.0% + 30) |

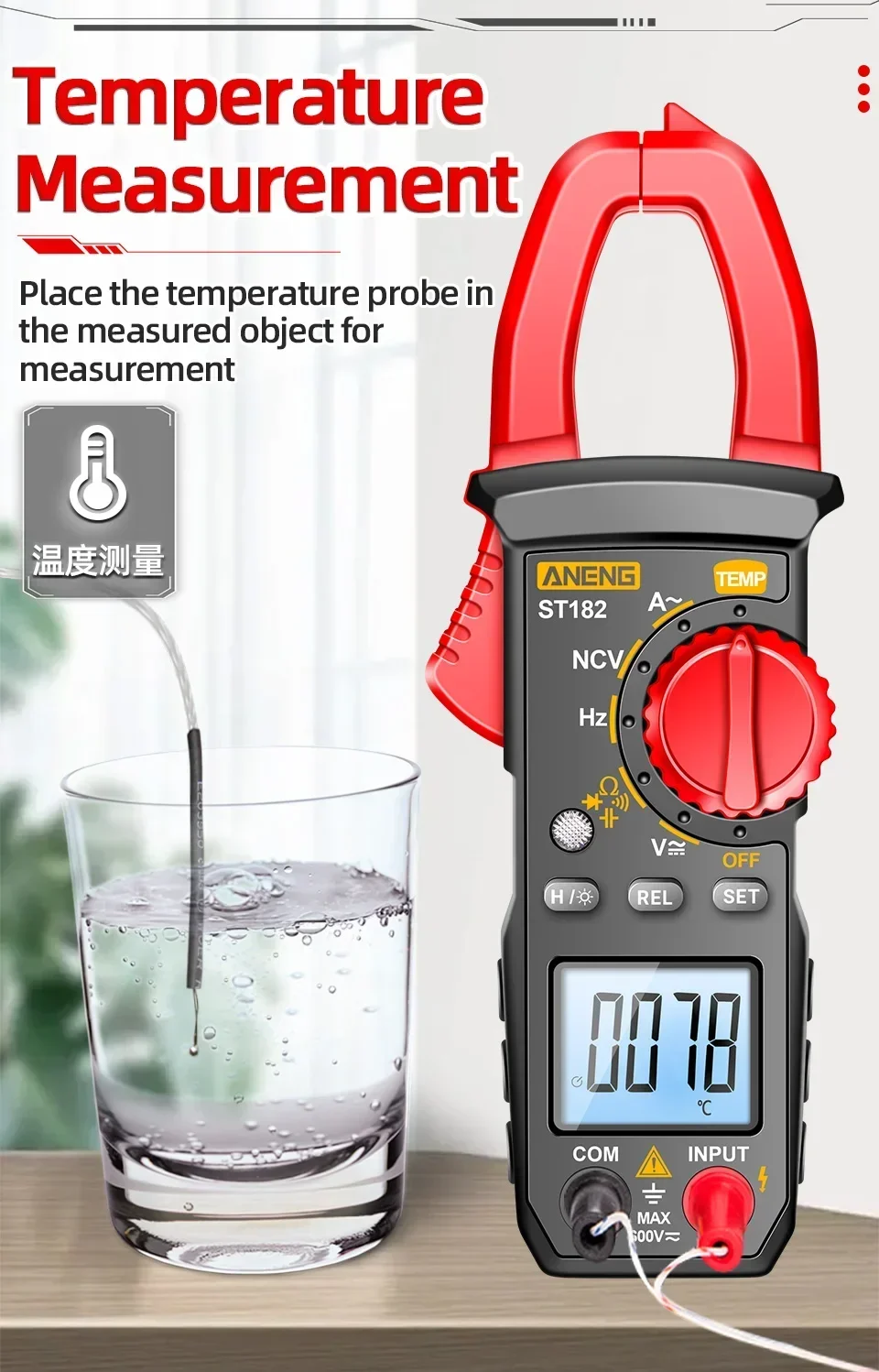

Temperature | 0℃~400℃/32℉~752℉ | ±(2.0%+1℃) |
| 400℃~750℃/752℉~1382℉ | ±(2.5%+1℃) |

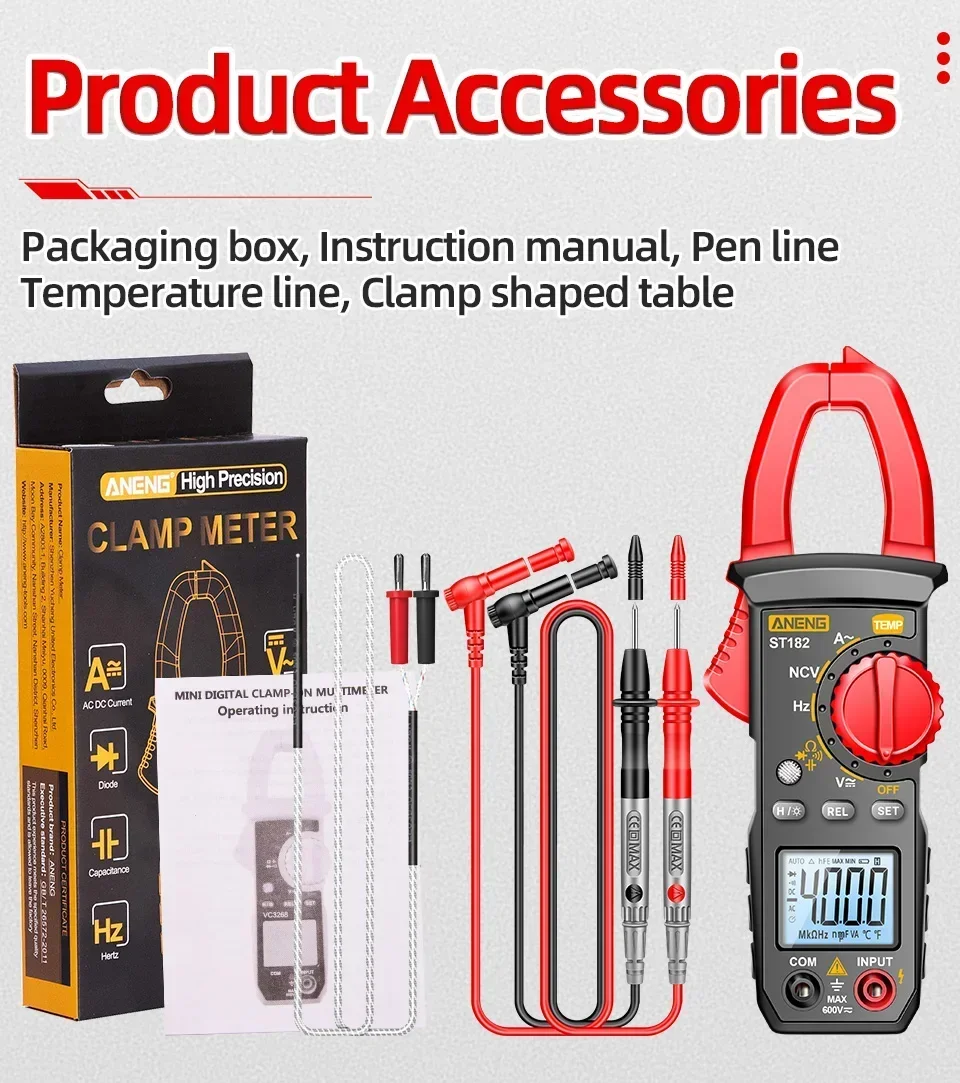

Package List: (Battery not included shipment)
1 * ANENG ST182 Clamp Multimeter
1 * Black Packing Bag
1 * Test Pen
1 * Temperature line
1 * User Manual
1 * Packing Box (ST182 Pro only)
