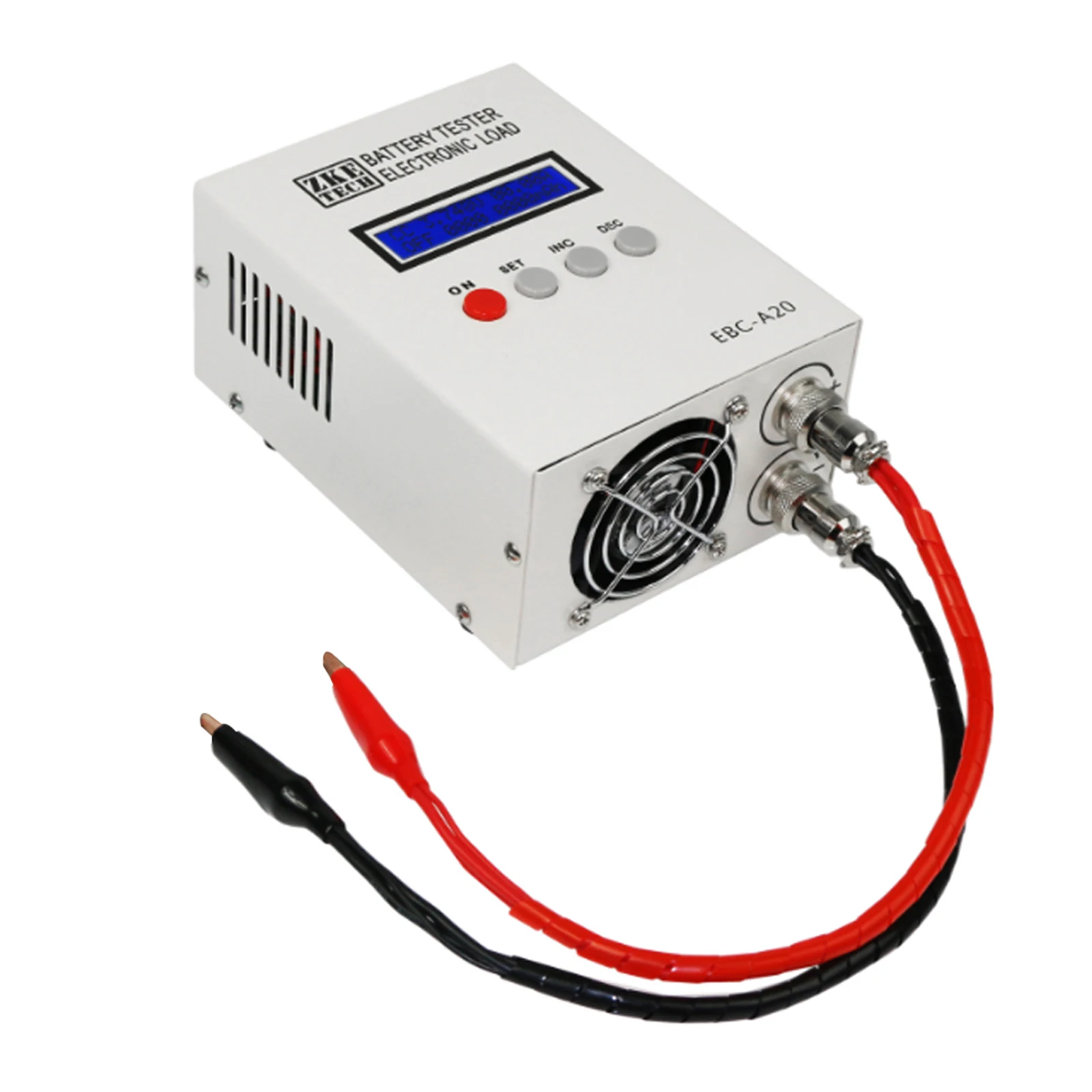

Professional EBC-A20 Battery Capacity Tester - 85W Battery Analyzer with 0.001Ah Accuracy & 3 Modes (CC/CP/CV), LCD Display Batteries Test Device 5A Charge 20A Discharge, USB Data Logging for Lithium/Lead-Acid
Our battery capacity tester is a highly accurate device designed for battery inspection. Whether you are a professional electronics engineer or a keen DIY electronics enthusiast, it will be the ideal choice for you. It has powerful functions, support charging and discharge, and it can accurately test the battery capacity, to ensure that your battery is working in a good condition. Choose it to be your reliable battery inspection partner now!
Key Features
Build to Last: It is mainly made of high-class iron, with a spraying process, which is impact-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.
High Efficiency: It can perform 4-wire testing, voltage testing, and current testing using different cables to ensure accuracy, and the capacity test accuracy is 10Ah / 0.001Ah, 10A-100A / above 0.01A, 100A / 0.1A, so it can accurately measure the capacity of the battery, help users understand the true state of the battery, to avoid equipment failure or performance degradation caused by inaccurate battery capacity.
3 Working Modes: It has 3 working modes: constant current discharge, constant power consumption, and constant voltage and constant current charging, which can meet the needs of different scenarios of testing.
Charging and Discharging Function: It supports charging and discharging functions, which can help users comprehensively evaluate the performance of lithium batteries.
Good Heat Dissipation Performance: The heat dissipation holes can effectively prevent the performance of the equipment from being affected by overheating during a long working time while extending the service life of the product.
Intimate Design: The dedicated USB to TTL cable can support the connection of the computer to control the start through the software and achieve more expanded functions.
Simple Operation: The simple panel and clear LCD display make it easy for you to operate so that you can easily get started and quickly complete the battery test operation.
Lightweight & Portable: It is small(4.72*6.1*3.34 in) and lightweight(3.64 lbs), not taking up too much space, and is easy to carry to the workplace for your convenience.
Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".
Details

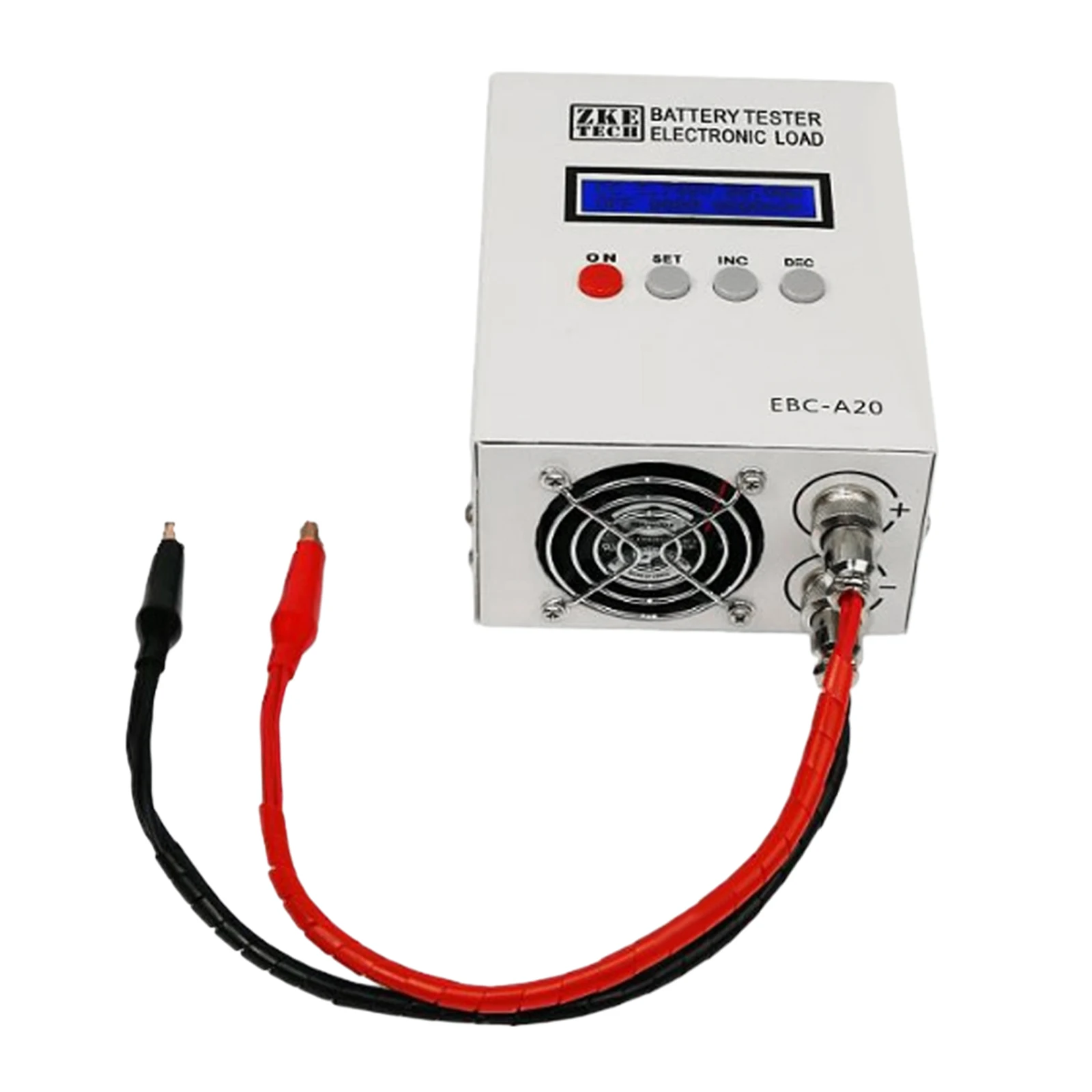

Practical Cables: They allow for convenient and stable connections for easy use.

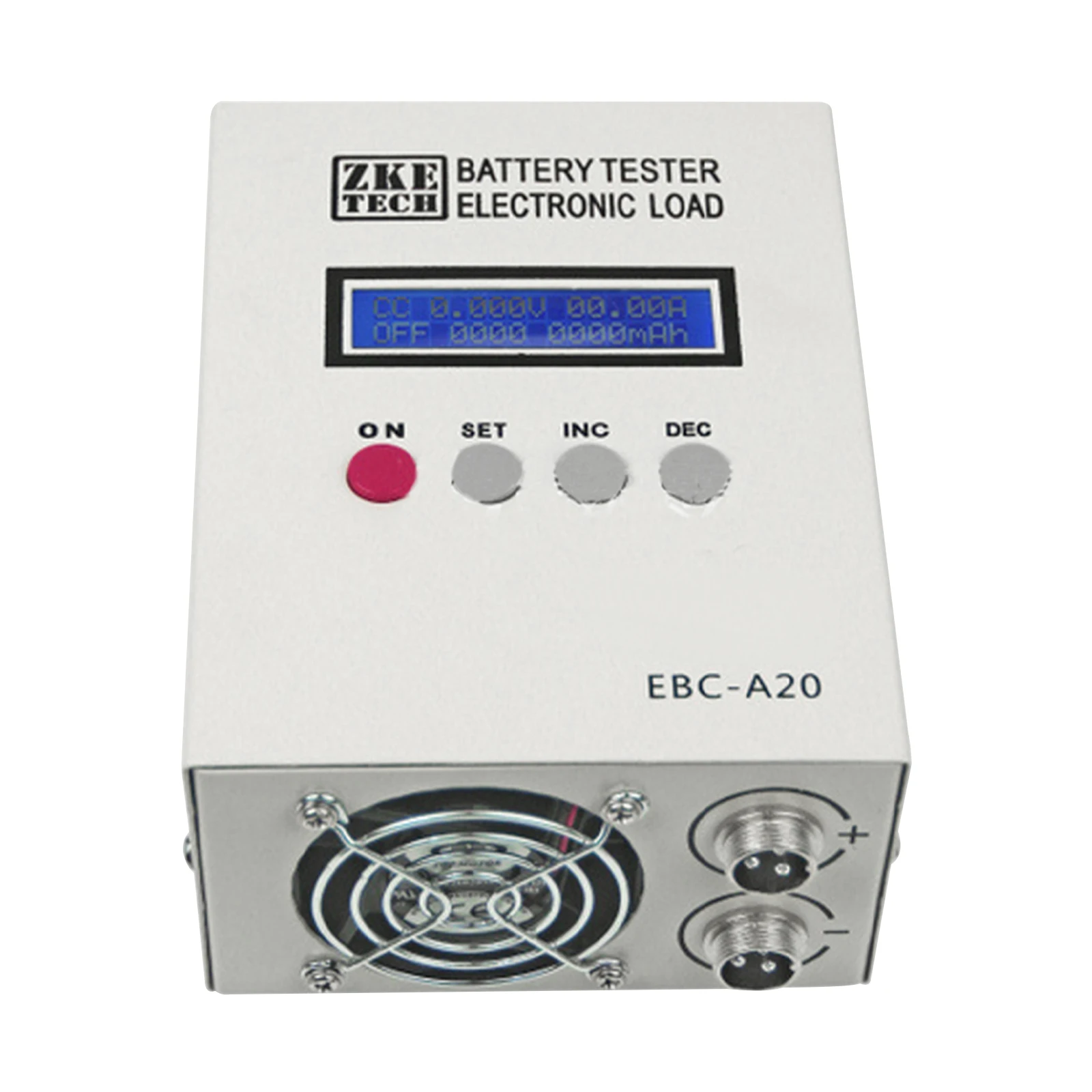

LCD Display: It can display important data such as voltage, current, capacity, time, and power consumption in real-time, so that you can clearly understand the battery test situation.
Application
It can be used to test the capacity of lithium batteries/lead-acid batteries.
Specifications
Model: EBC-A20
Material: Iron
Process: Spraying
Color: Off White
Shape: Rectangular
Display Type: LCD
Computer Connection: USB to TTL Cable
Total Power: 85W
Power Supply: DC19V-20V, Current Above 3.5A
Voltage Setting: 0.00-30V, Minimum Step is 0.01V (Maximum 18V When Charging)
Current Setting:
Discharge: 0.1A-20A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)
Charging: 0.1A-5A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)
3 Modes: DSC-CC (Constant Current Discharge), DSC-CP(Constant Power Consumption), CHG-CV (Constant Voltage and Constant Current Charging)
Voltage Test: 0.0-4.5V (Low Voltage), Accuracy Up to 0.003V
4.5V-30V (High Voltage), Accuracy Up to 0.01V
Current Test: 0.1-20A, Accuracy Up to 0.01A
Capacity Test Accuracy: 10Ah / 0.001Ah, 10A-100A / Above 0.01A , 100A / 0.1A

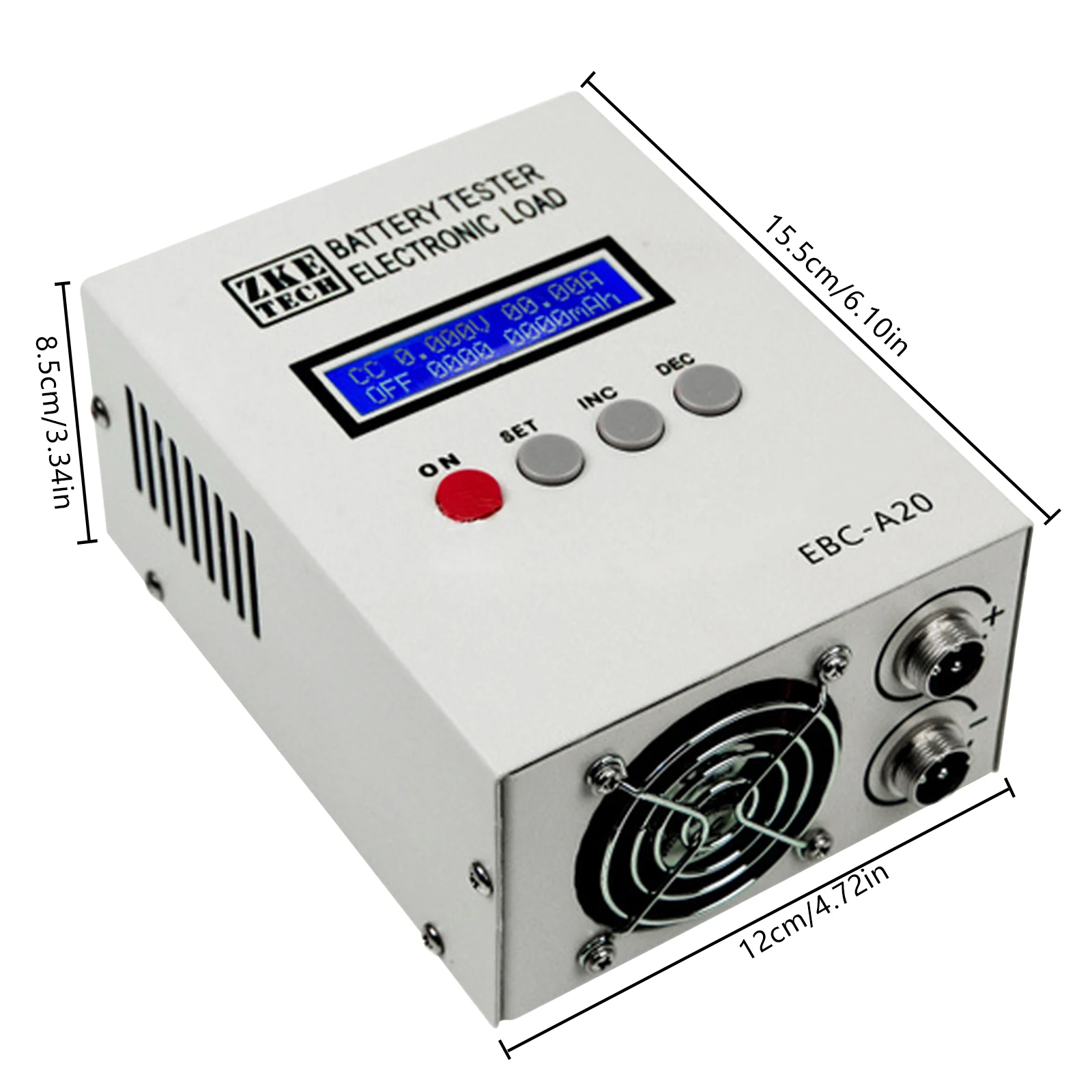

Product Size: 12*15.5*8.5cm/4.72*6.1*3.34 in
Package Size: 28*25*14cm/11.02*9.84*5.51 in
Gross Weight: 1.74kg/3.84 lbs
Net Weight: 1.65kg/3.64 lbs

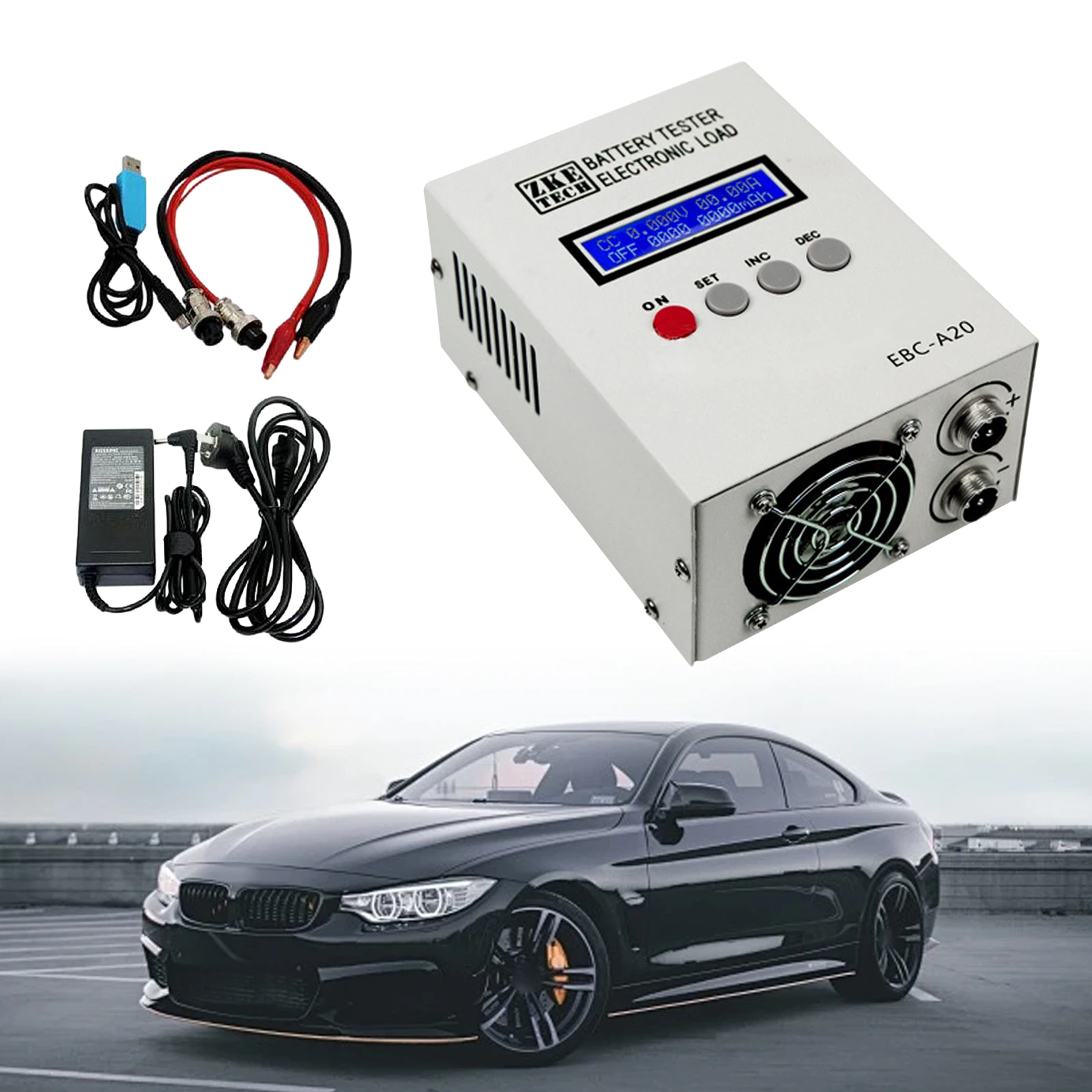

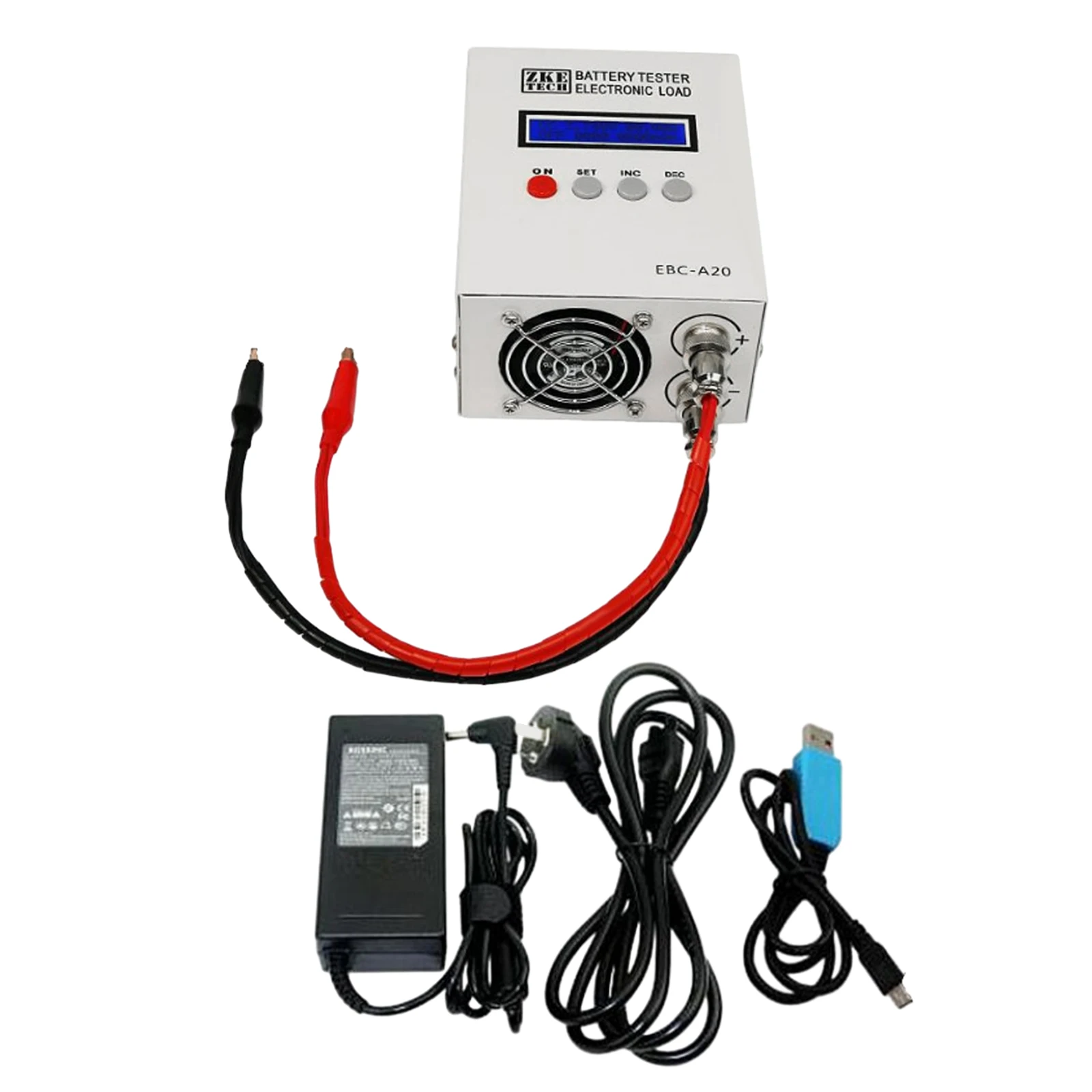

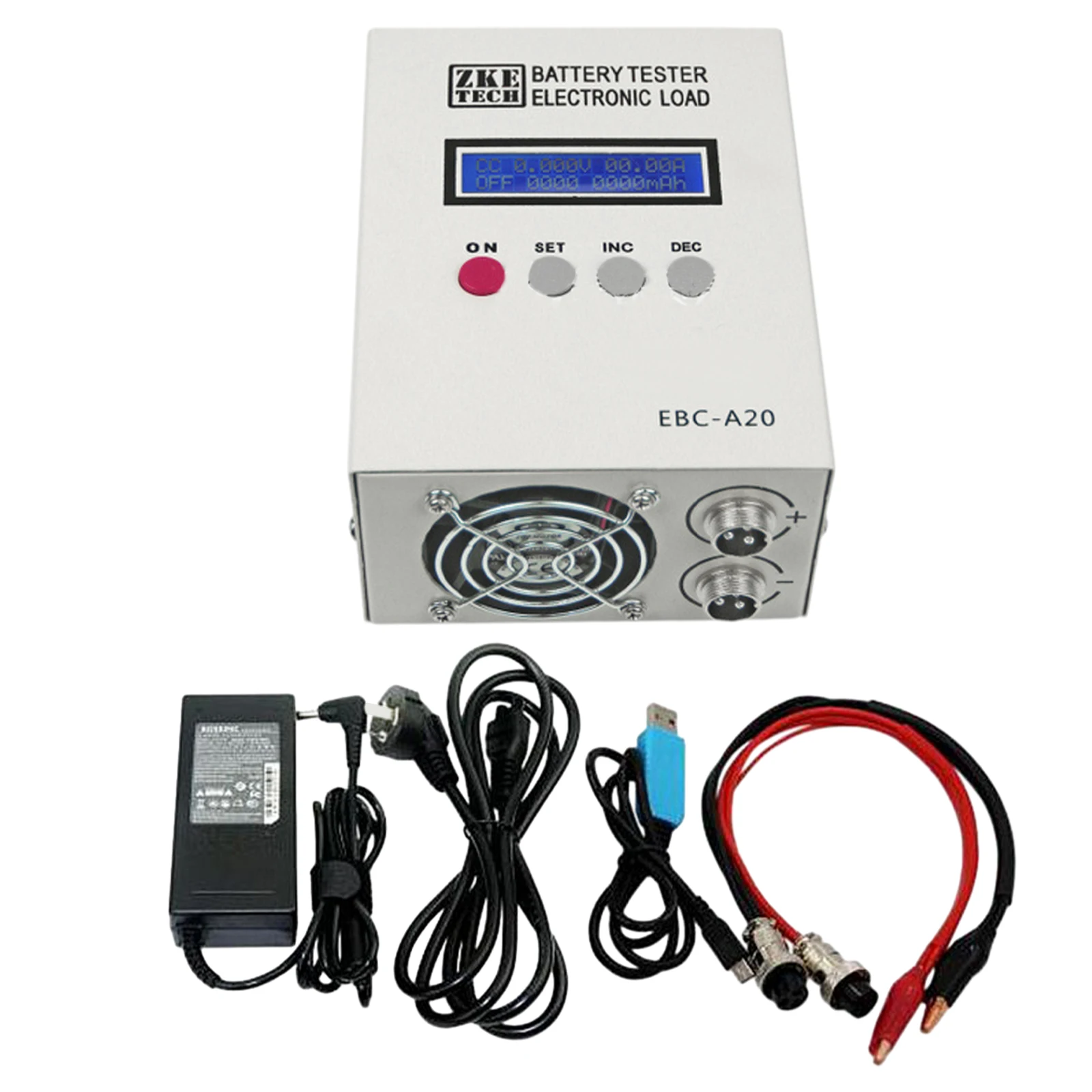

Package Included
1* Battery Capacity Tester
1* Power Cord
1* USB Cable
1Pair* Test Clips

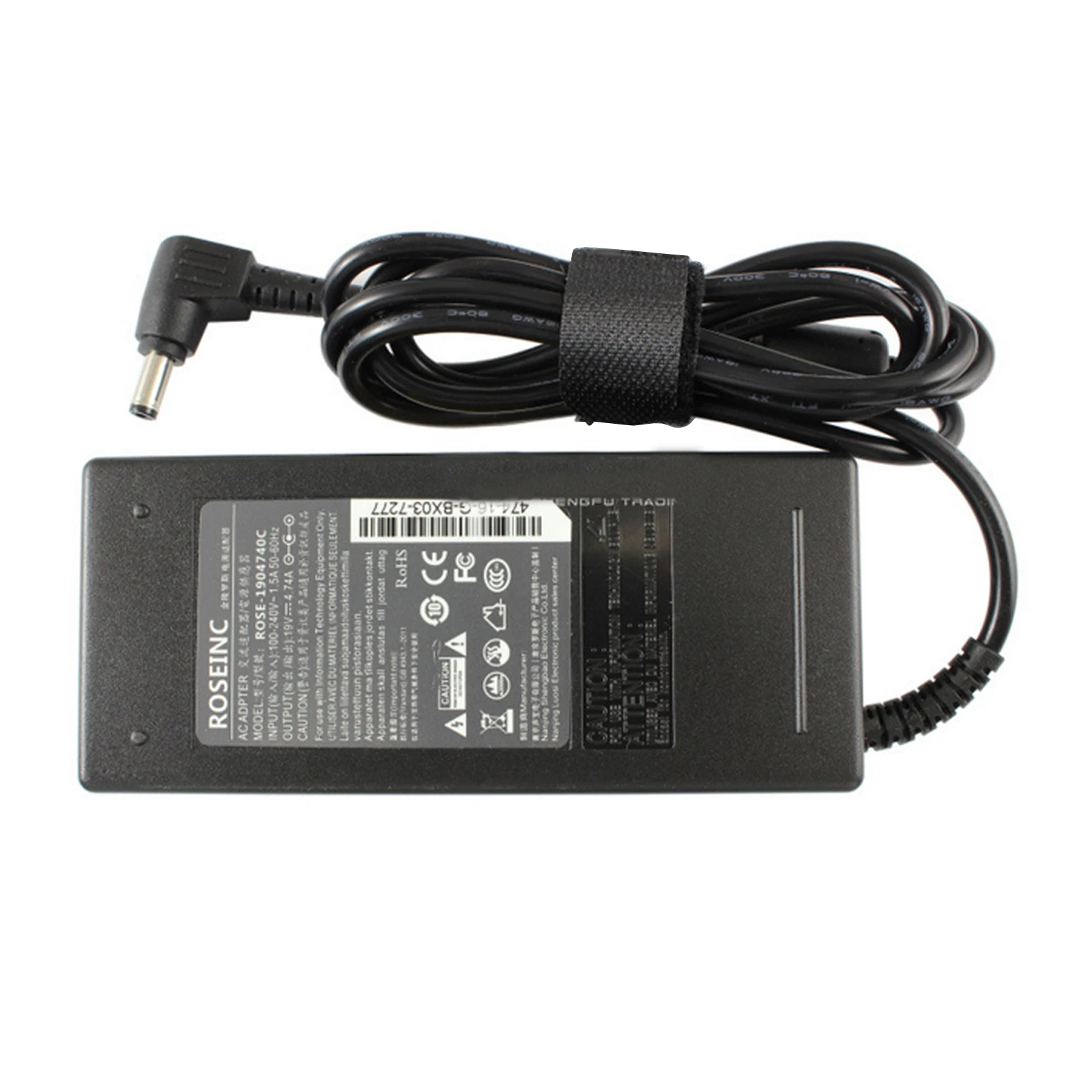

1* Adapter
Note
- Please handle with care and avoid moisture and water during use and movement.
- Please note that the positive and negative connections should not be reversed, and always use the tester within the allowed range.
- This model does not support NiMH, NiCd charging and power testing.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
