Description

This labeling machine is made of high-quality iron, which is strong, durable, and not easy to deform. The speed of this product is 10-30pcs/min, which is fast and can save you a lot of time. It has a labeling accuracy of ±0.5mm/0.01inch, which is high enough to make the label position of the product neatly organized.

Specification

Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: ±0.5mm/0.01inch
Suitable Bottle Diameter: 2-12cm(0.79in-4.72in)
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: ≥75mm/2.9inch
Laber Roll Out Diameter: ≤250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs

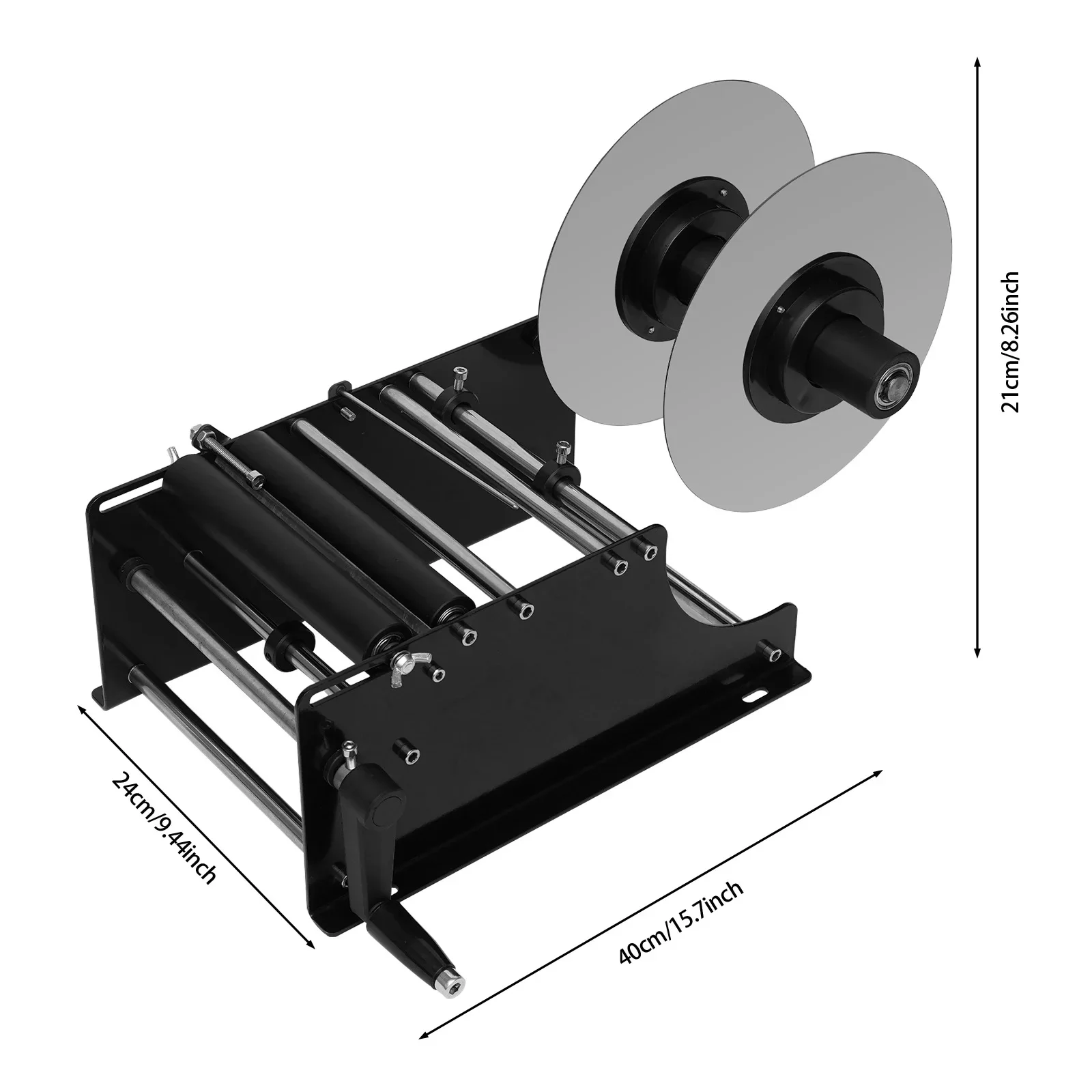

Package Size: 42*25*28cm/16*9.8*11.0inch

Package Included

1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly

Details

Round Corners: This product has very rounded edges to prevent your hands from being cut and is safe to use.

Silicone Ring: It can provide reverse tension to the label roller and fix the position of the roller, which can make it less likely to move. You can use it with peace of mind.

Paper Supply Tray: It holds the label cartridge in place and prevents it from falling.

Bottle Bottom Fixer: The bottle bottom fixer needs to be aligned with the center of the bottle bottom to fix the bottle position and make it less likely to shift during the labeling process, thus causing the labeling to be skewed.

Positioning Rod: The positioning rod can facilitate the positioning of the bottle and ensure that the labeling height of each bottle is consistent.

Application

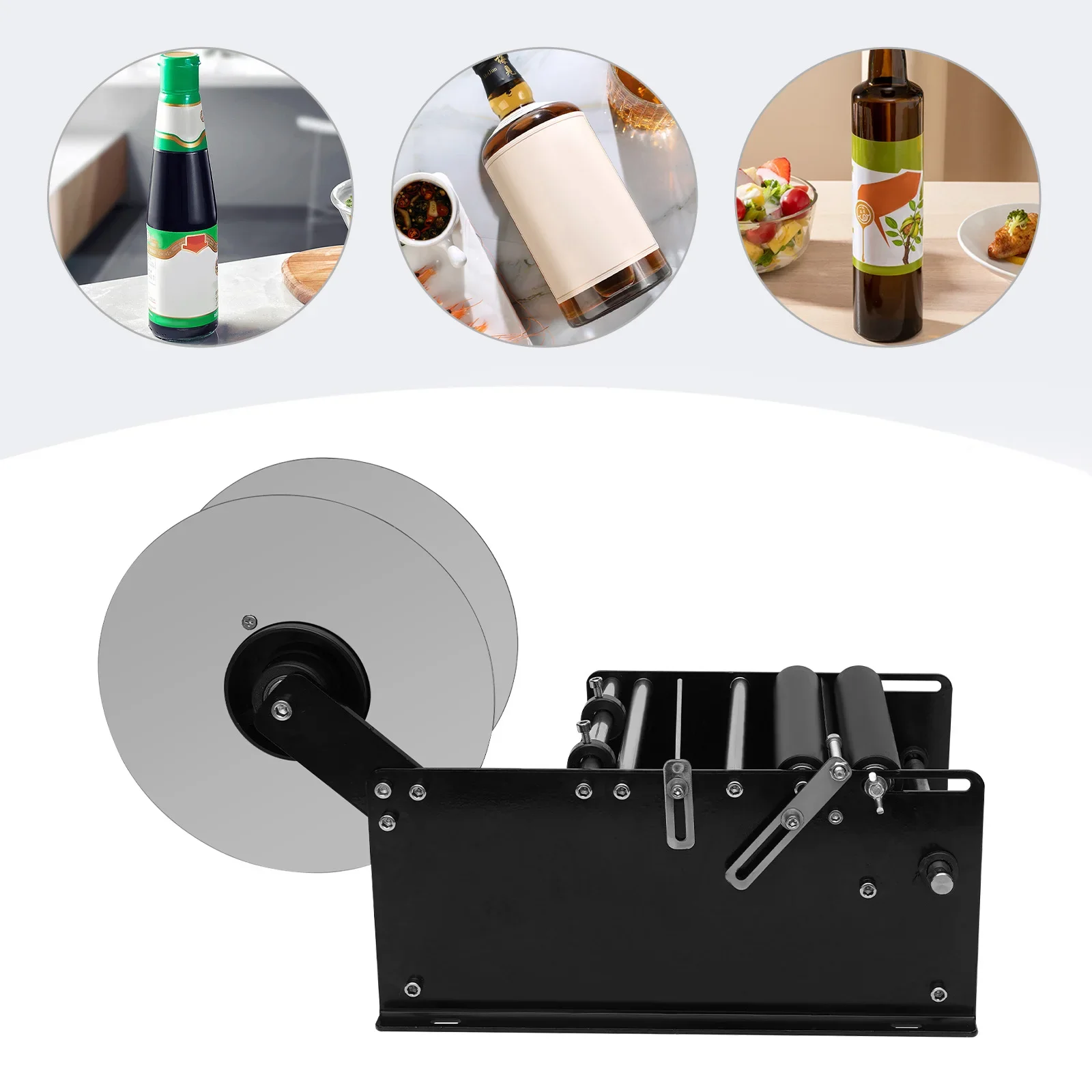

It can be used to apply pressure-sensitive adhesive labels on round bottles, round cans, or cylinders. It is suitable for round bottles of 0.79in-4.72in diameter, such as PET bottles, plastic bottles, glass bottles, metal bottles, etc. It is widely used in cosmetic, beverage, food, food, medical, and other industries to rapidly increase production efficiency as well as improve label quality.

Installation

1.Attach the label cartridge to the side of the machine with screws and nuts.
2.Attach the nut and the label cartridge with a silicone ring.
3.Fix the paper supply tray and the middle part with screws.
4.Insert the paper supply tray into the label cartridge.
5.Attach the hand joystick to the side of the machine with screws.
6.Attach the remaining part of the hand joystick.
7.The installation is complete.

How to Use

1.Use an allen key to unscrew the paper supply tray.
2.Insert the label into the label roller and reattach the paper supply tray.
3.Pull out a piece of label paper and insert it into the machine in sequence.
4.Place the bottle on top of the machine.
5.Rotate the hand joystick to complete the labeling.

Notes

1.It's suggested that you put a piece of tape at the beginning of the label to easy pulling.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
