Measurement frequency: 50KHz~1.5GHz

● RF output: -13dbm (maximum -9dbm)

Frequency accuracy:<2ppm

Frequency stability:<0.5ppm

● Measurement range: ● Measurement range: 70dB (50kHz 300 MHz), (50dB (300M-900MHz), 40dB (900M-1500MHz));

Port SWR:<1.1

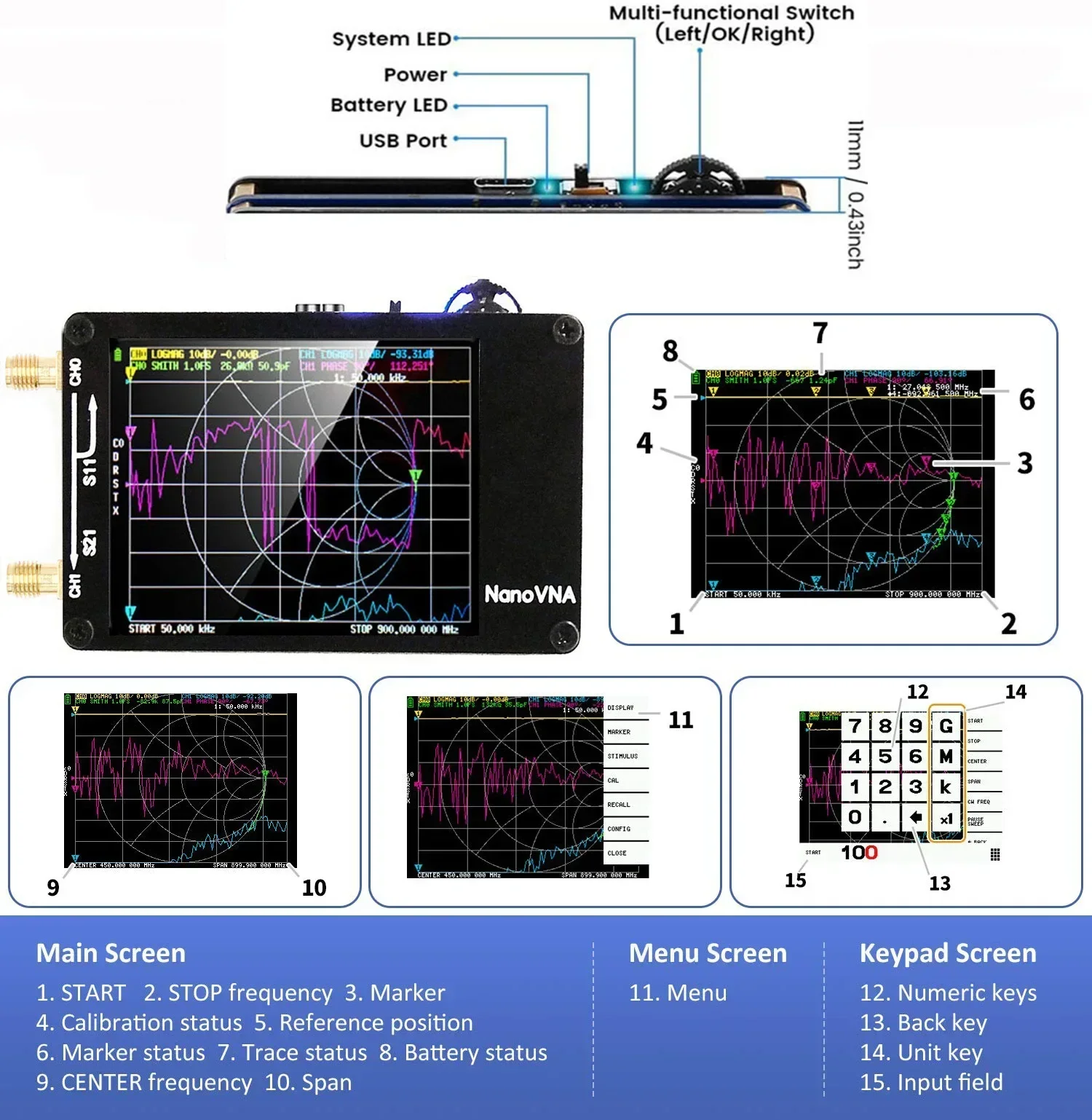

● Display: 2.8 inch TFT (320 x240)

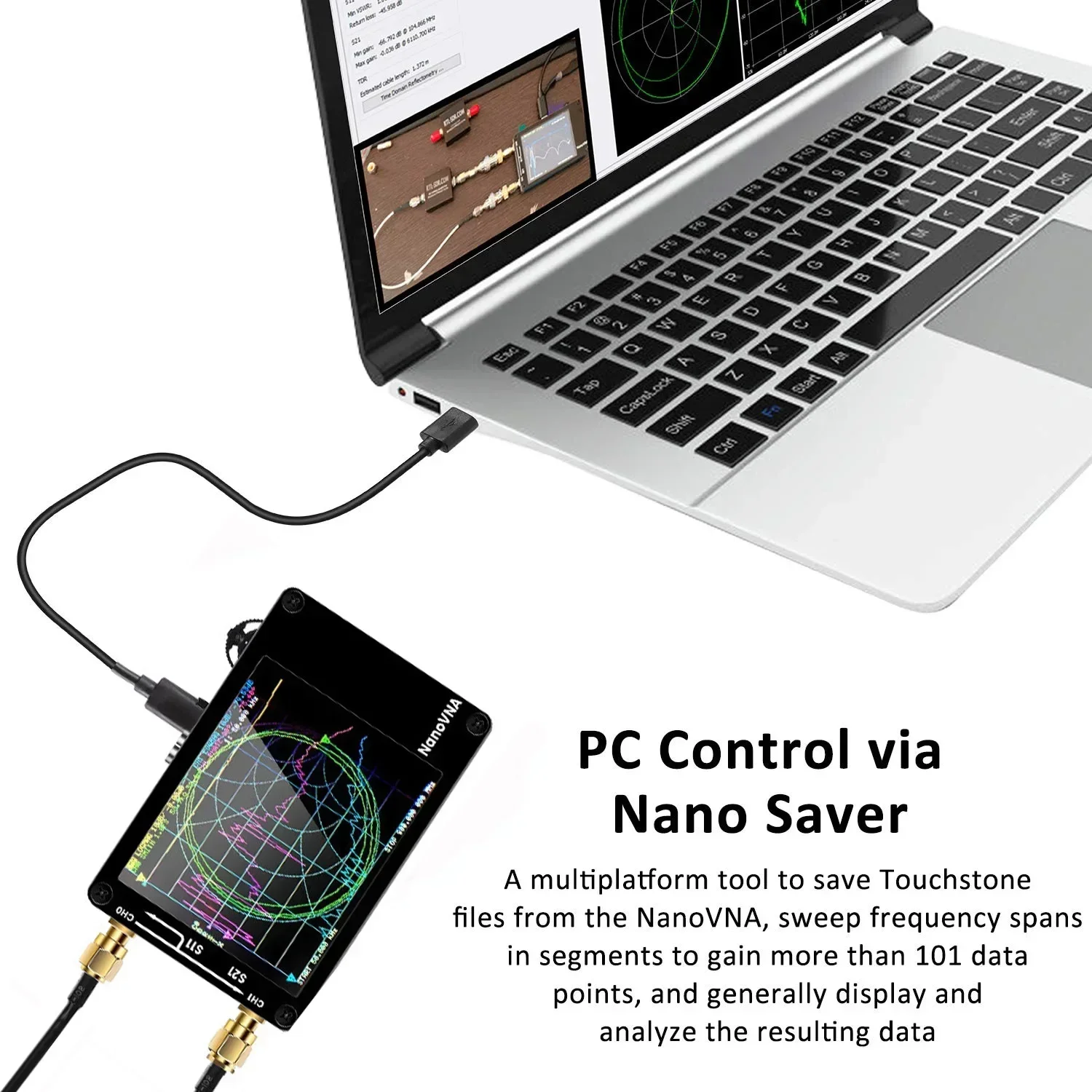

● USB interface: USB type-C communication mode: CDC (serial)

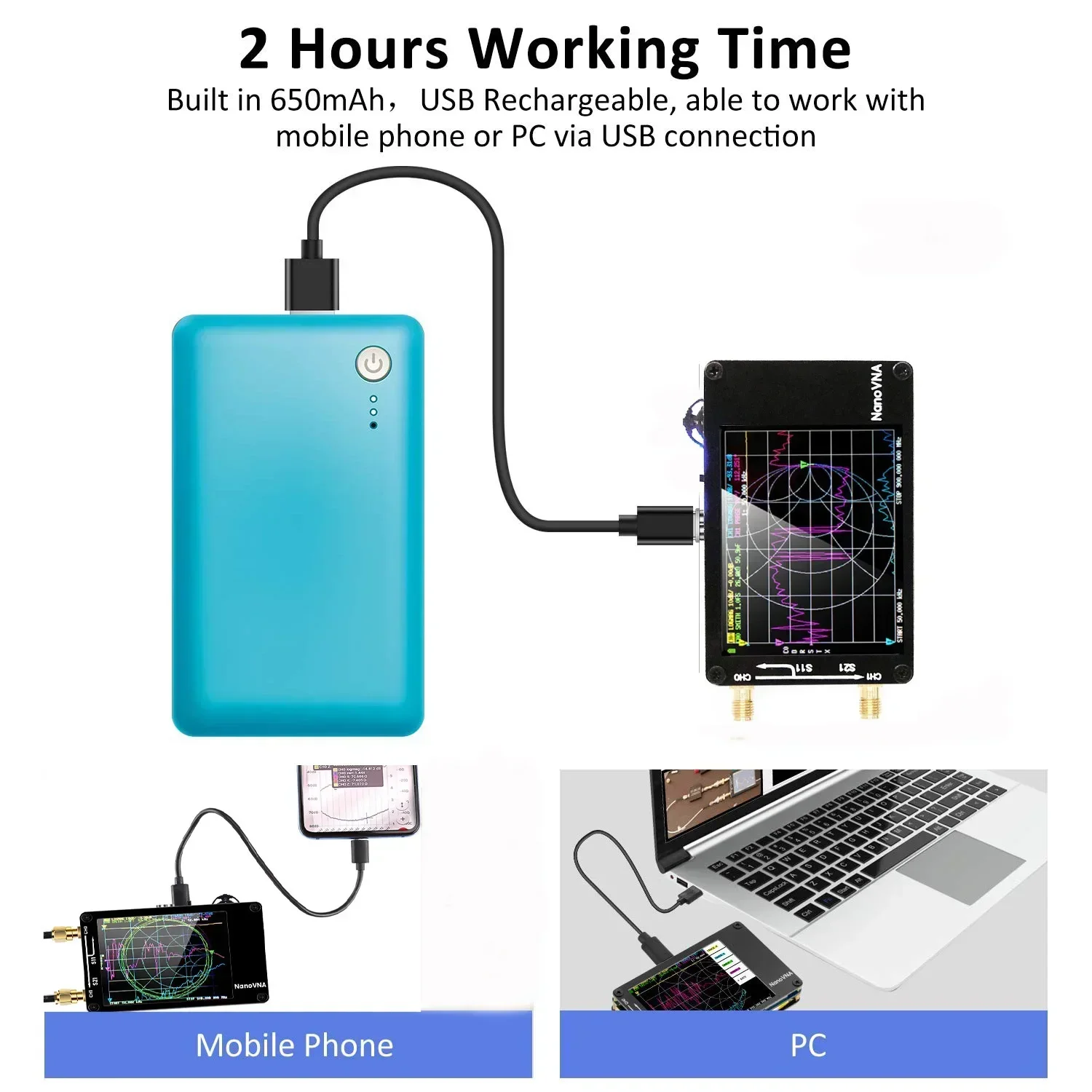

Power supply: USB 5V 120mA, built-in 400mAh battery, maximum charging current 1A, can be used continuously for more than 4 hours

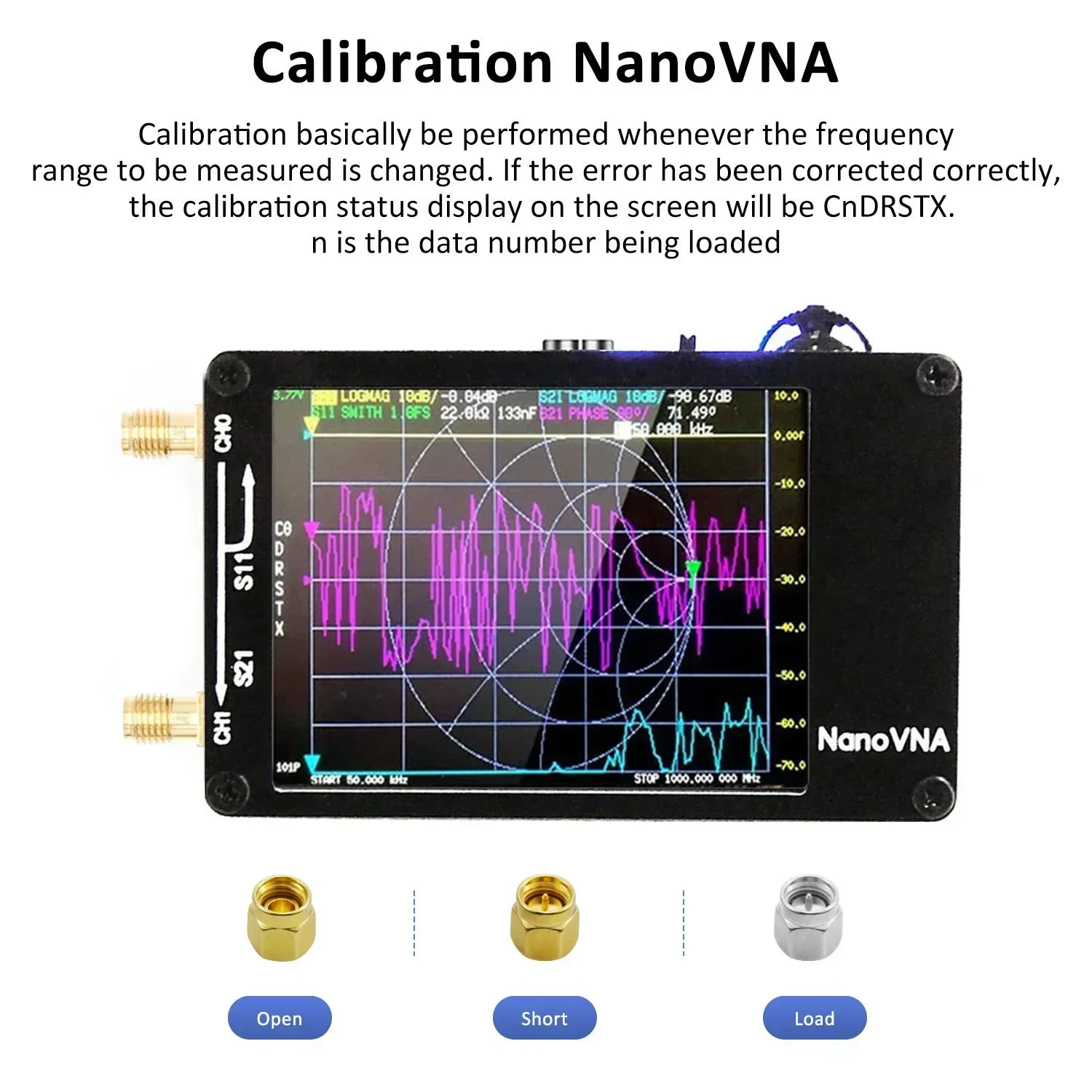

● Number of calibration points: 101 (fixed)

Number of scanning points: 101 (fixed)

Display tracking: 4, Mark: 4, Set save: 5

1. Lower power noise, lower noise when using harmonics;

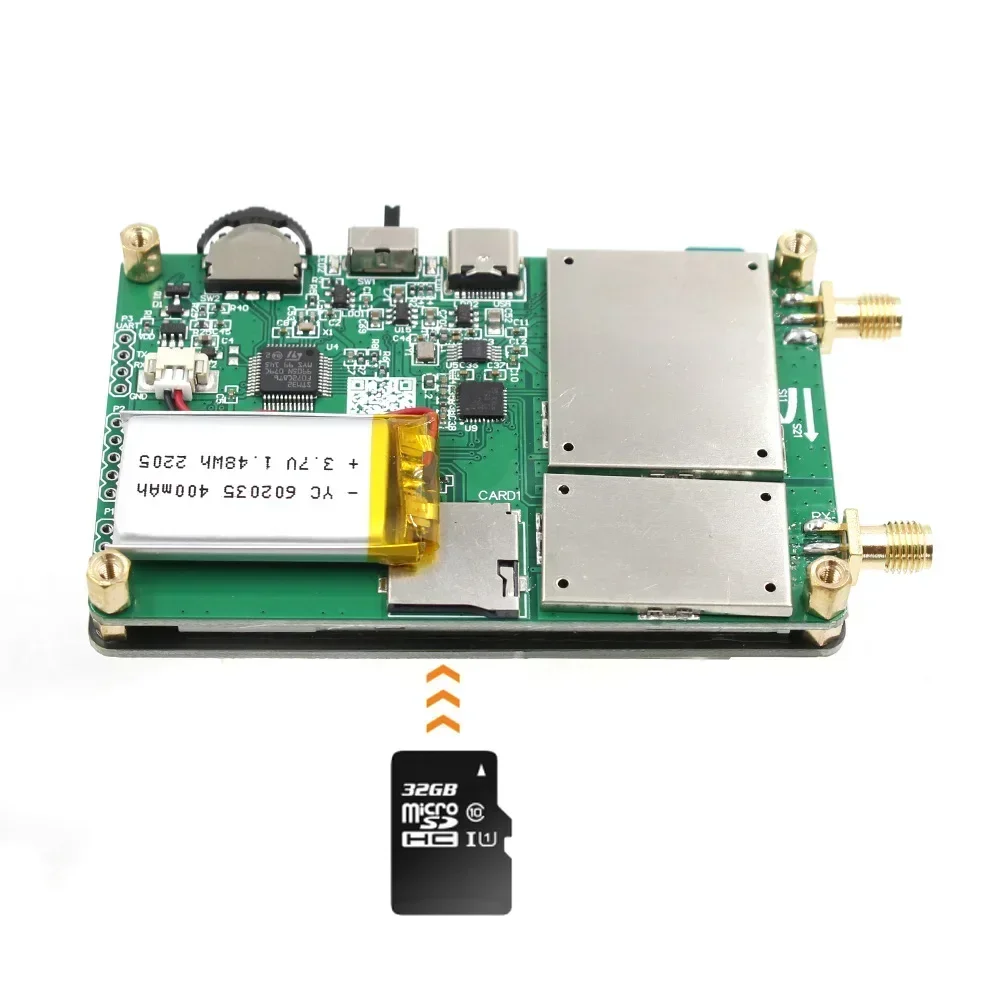

2. Built in 400mAh battery

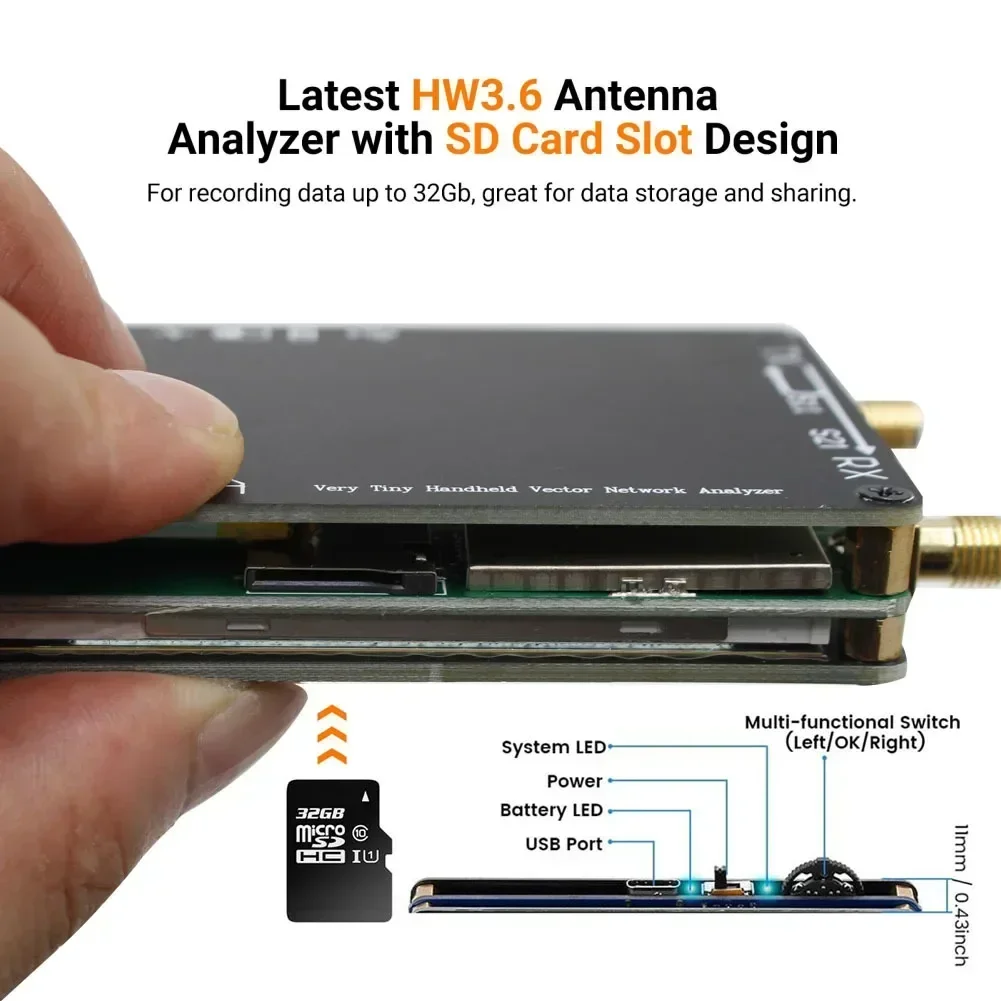

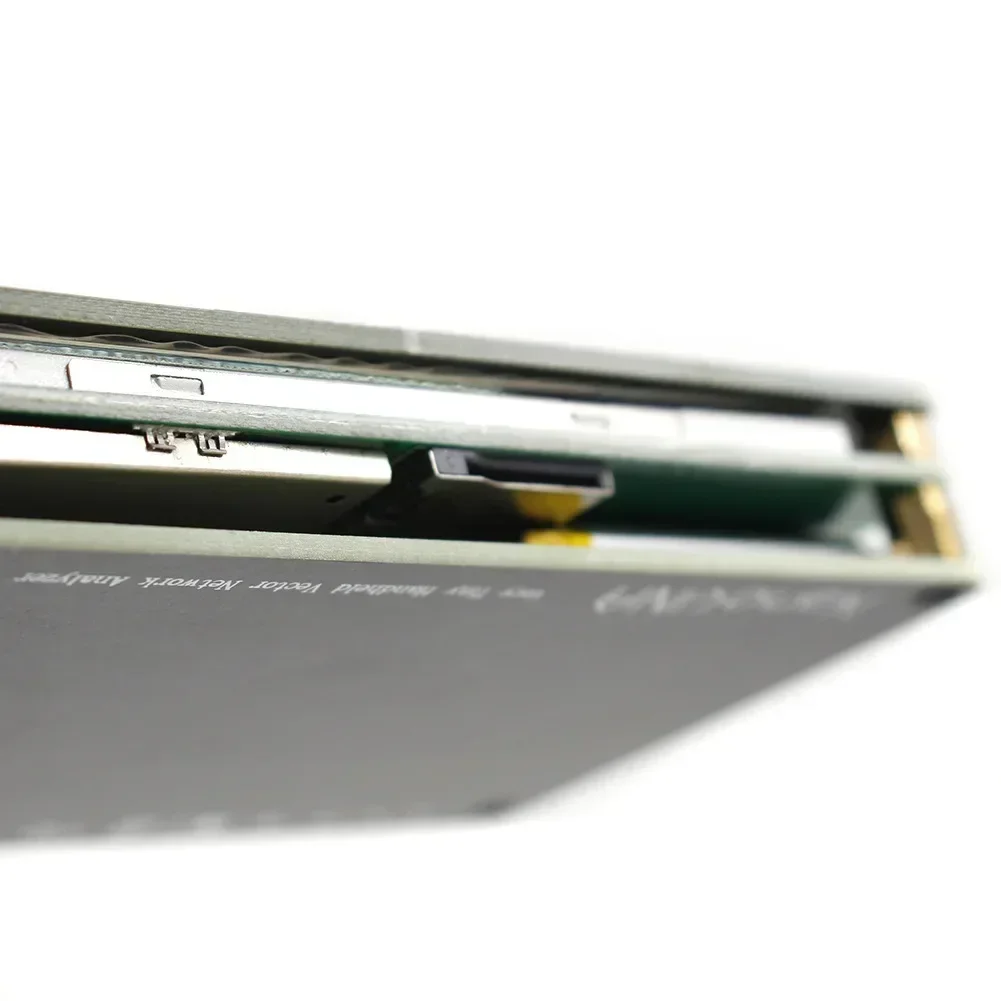

3. Adding a MicroSD card facilitates the storage of test data;

4. Add RTC support;

5. Modify port names to Port1 and Port2

MicroSD supports a maximum of 32GB and only supports SPI mode.

6. This is a DIY product that provides comprehensive vector network measurement capabilities in the size of credit cards as much as possible.

7. Includes a 2.8-inch touch screen, 400mAh battery, measured in TX/RX mode,

Can measure complete S11 and S21 parameters, if needed to obtain S12 and S22,

It is necessary to manually replace the wiring of the transmitting and receiving ports. If there are any other imperfections, you can communicate with me.
