Description:

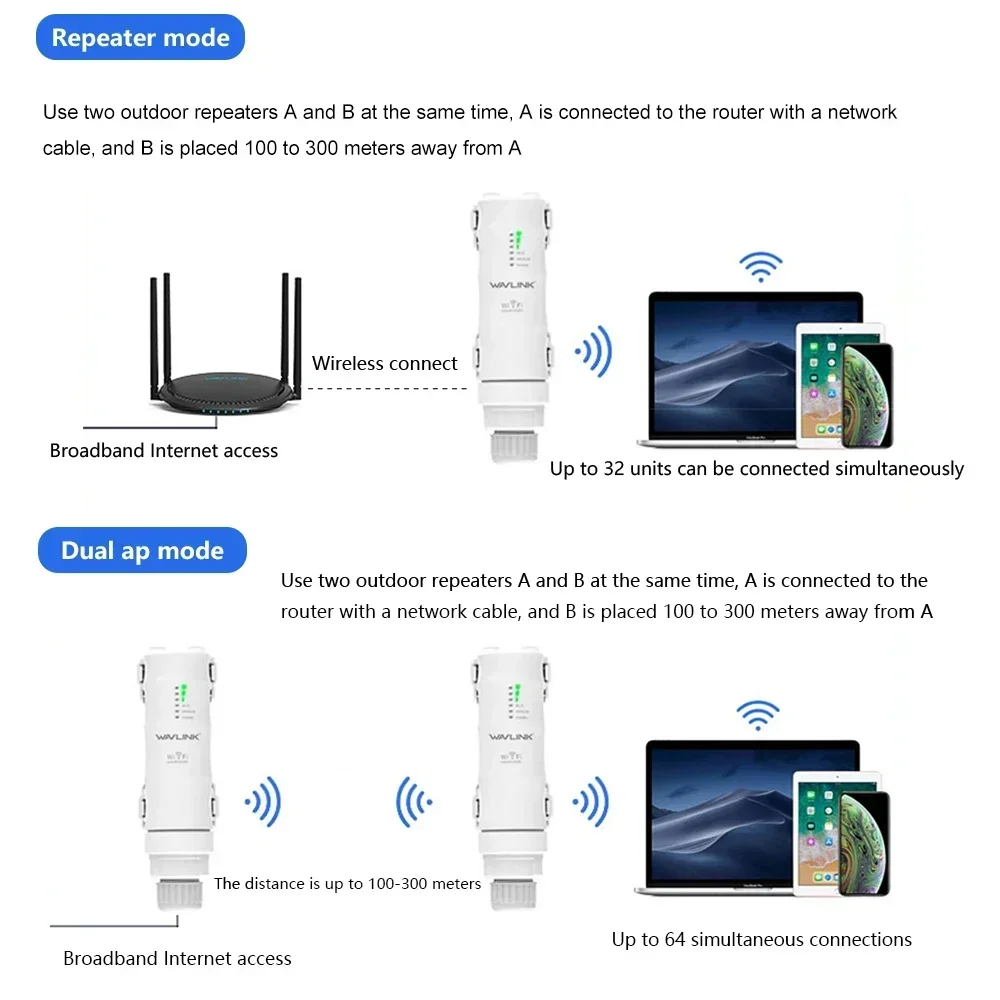

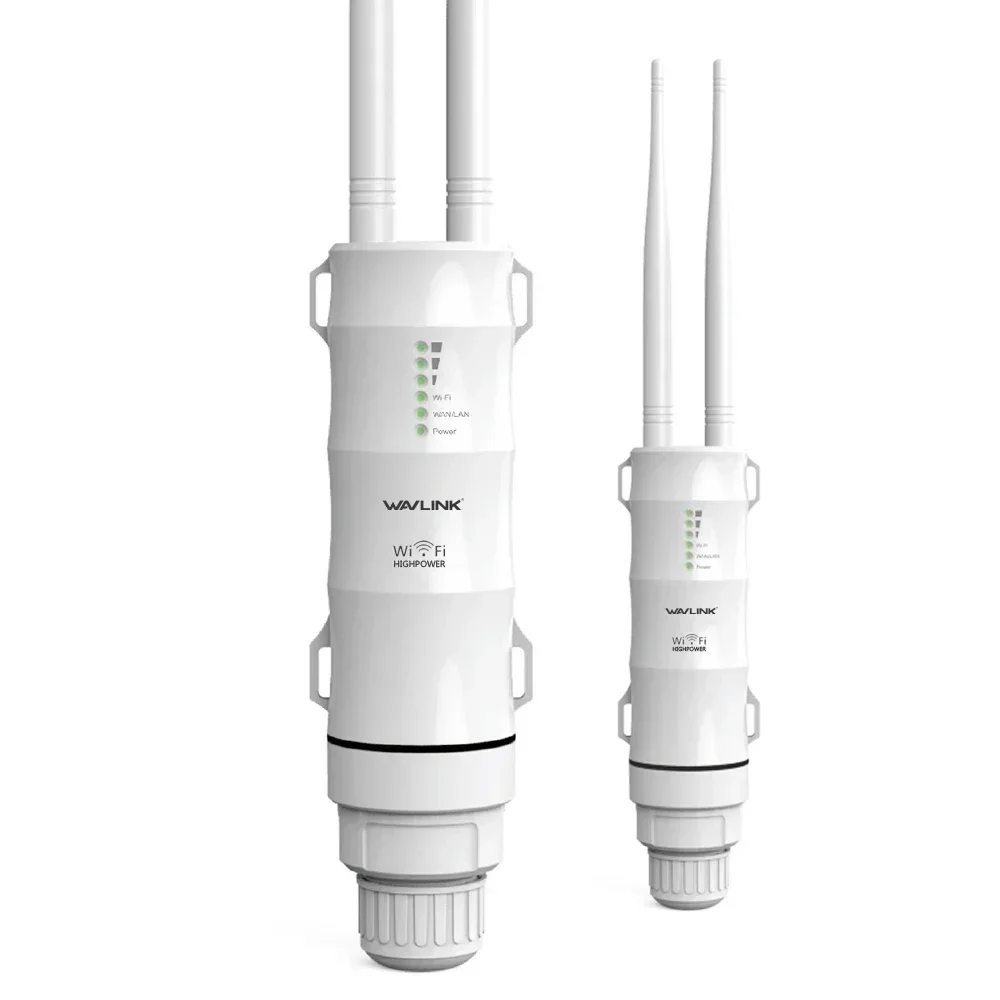

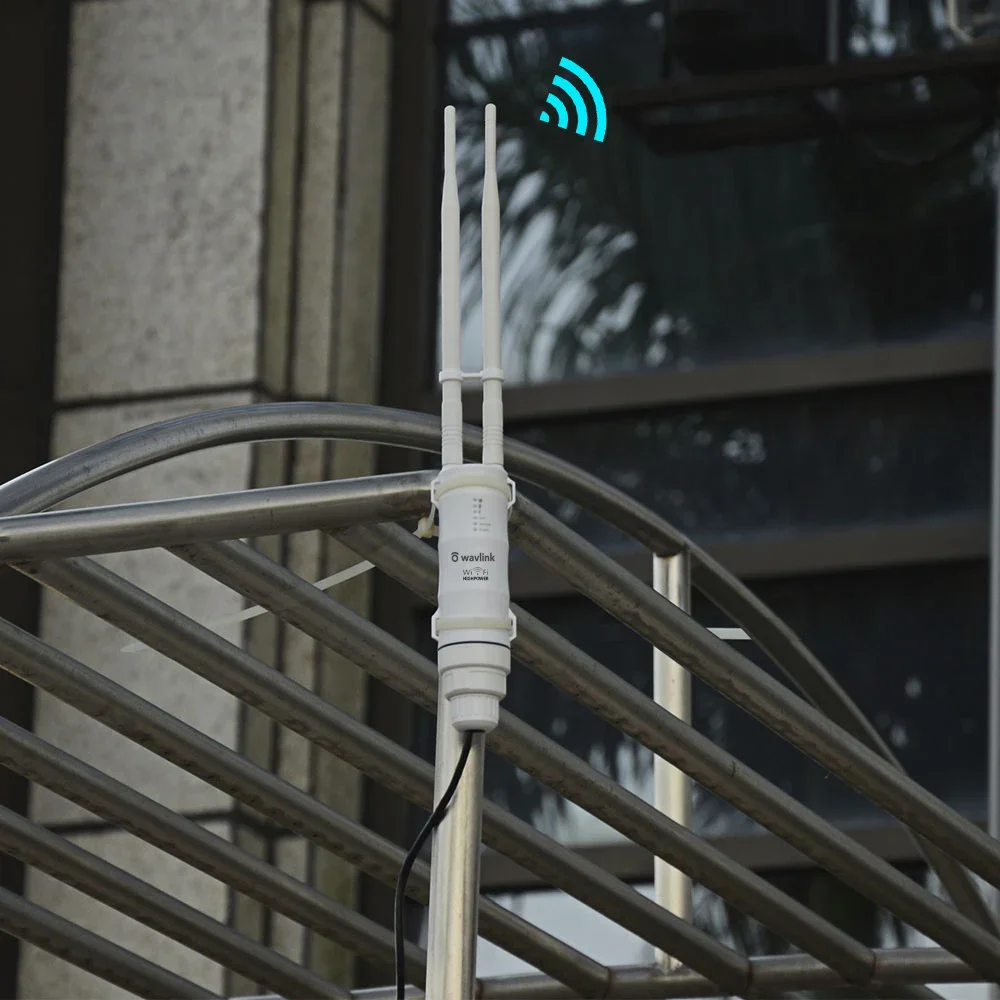

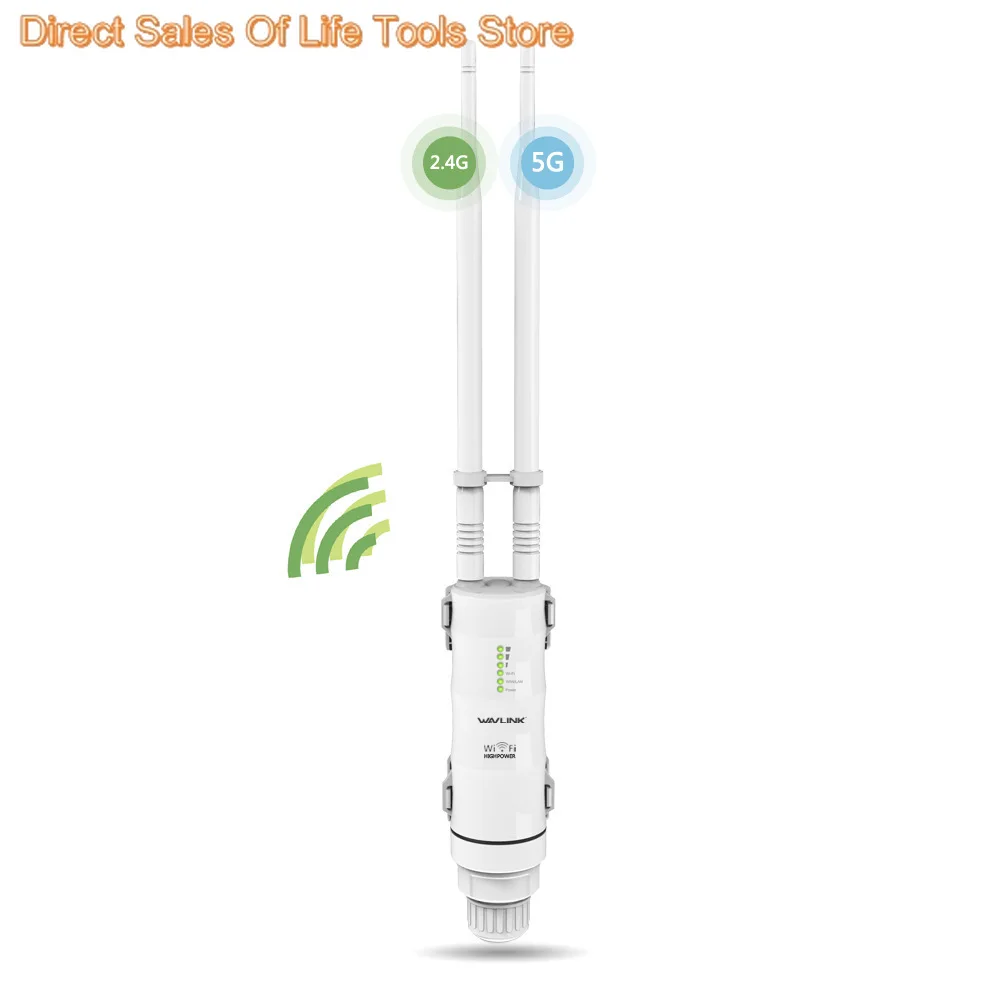

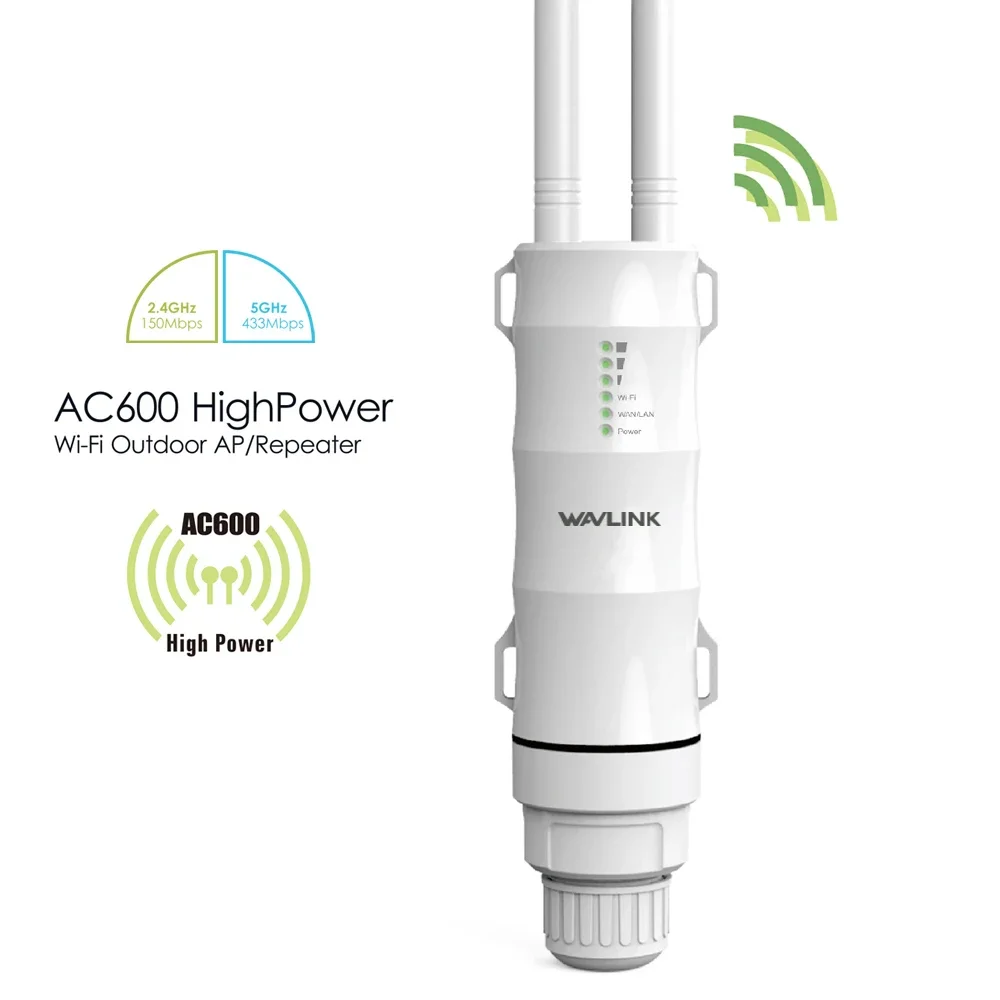

The AC600 HighPower Wi-Fi AP/Repeater is mainly used for providing free Wi-Fi service in big area such as factory, community, street or etc. The AP/Repeater can take an existing 2.4GHz or 5GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. The AP/Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G and 5G transmission speeds of up to 600Mbps. It has 2 x External Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.

Features:

The next generation of Wi-Fi, leading 802.11ac standard
Complies with IEEE 802.11 ac/a/b/g/n, standards
Dual-Band Speed up to 2.4GHz 150Mbps, 5GHz 433Mbps

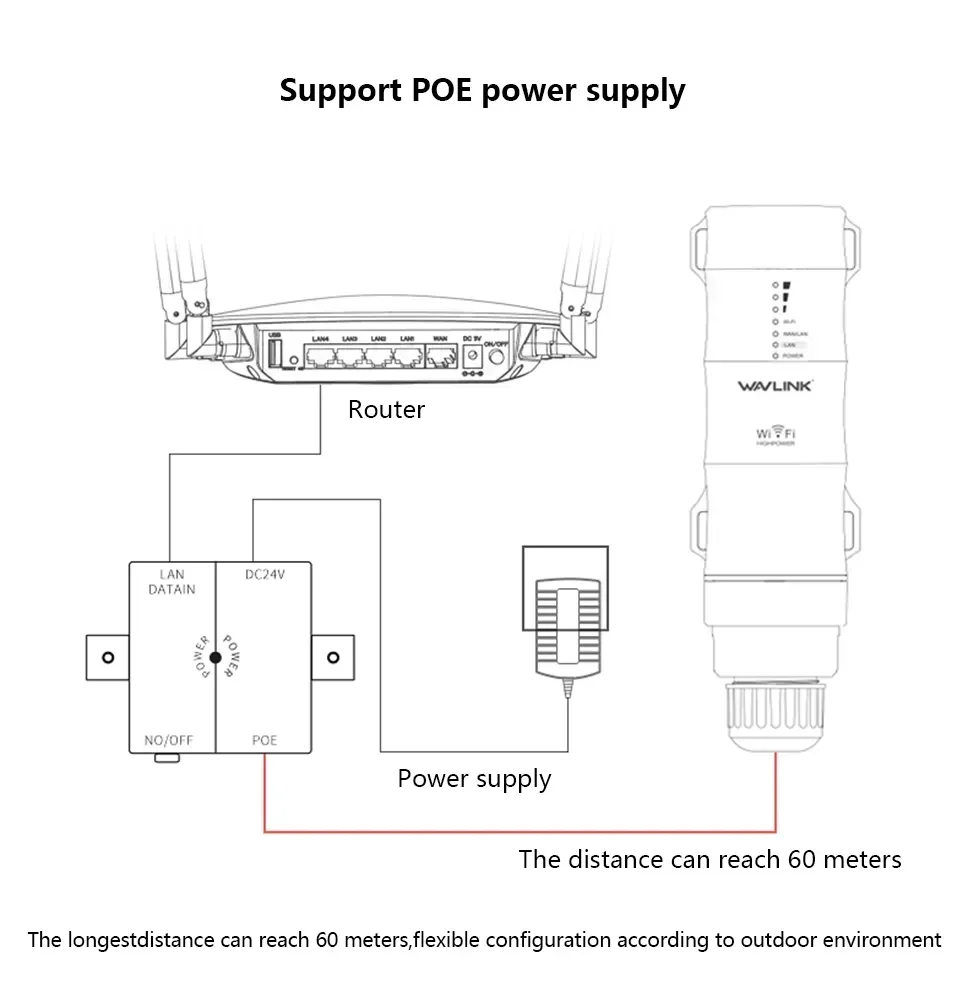

Weater-Proof RJ45 Connector, Integragted Passive Power over Ethernet (PoE)
Passive PoE Support for Flexible Deployment
Provides high performance at a Long-Range Links, depending on its antenna.
Features up to 600mW of power and an enhanced receiver design

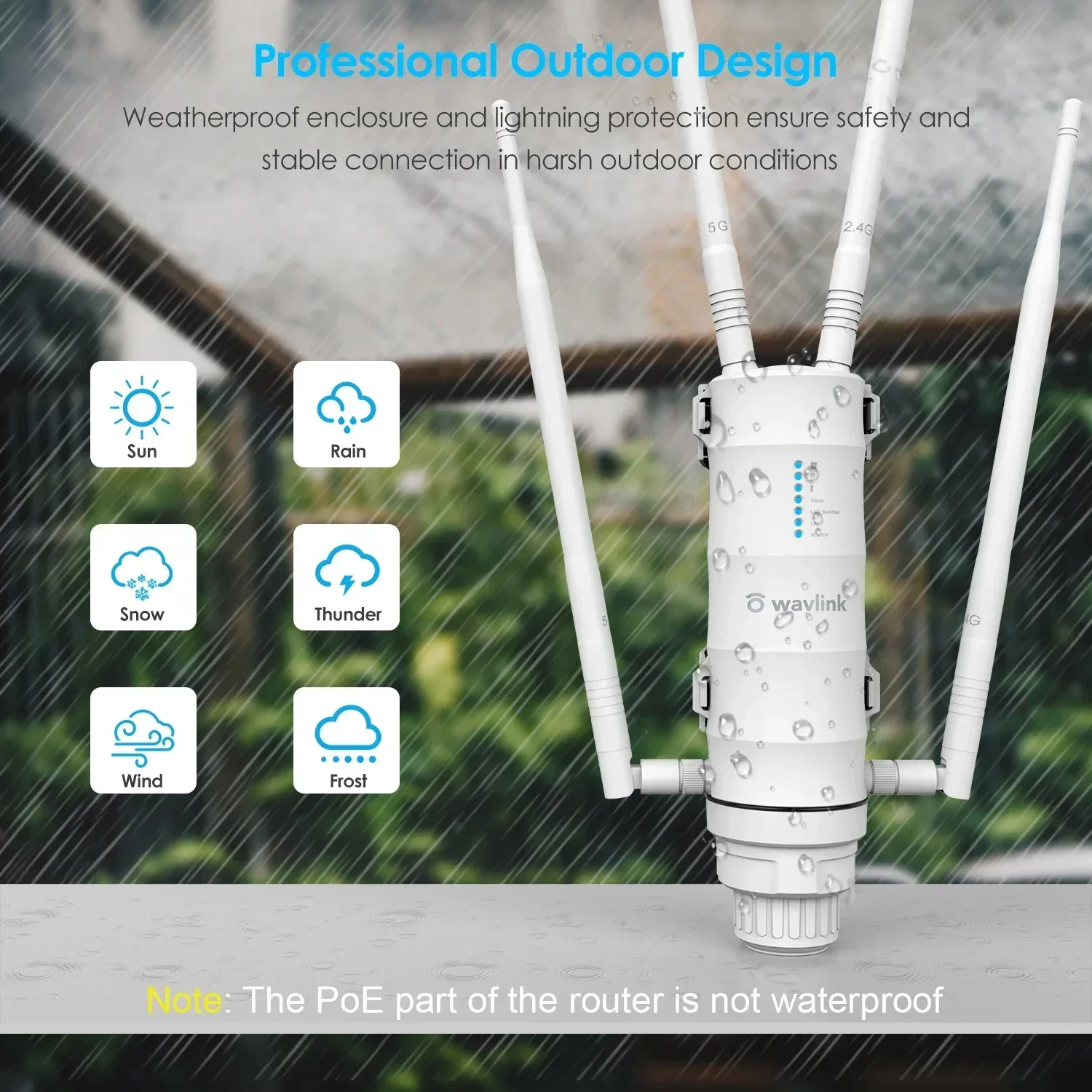

Robust weatherproof case withstands harsh outdoor conditions.

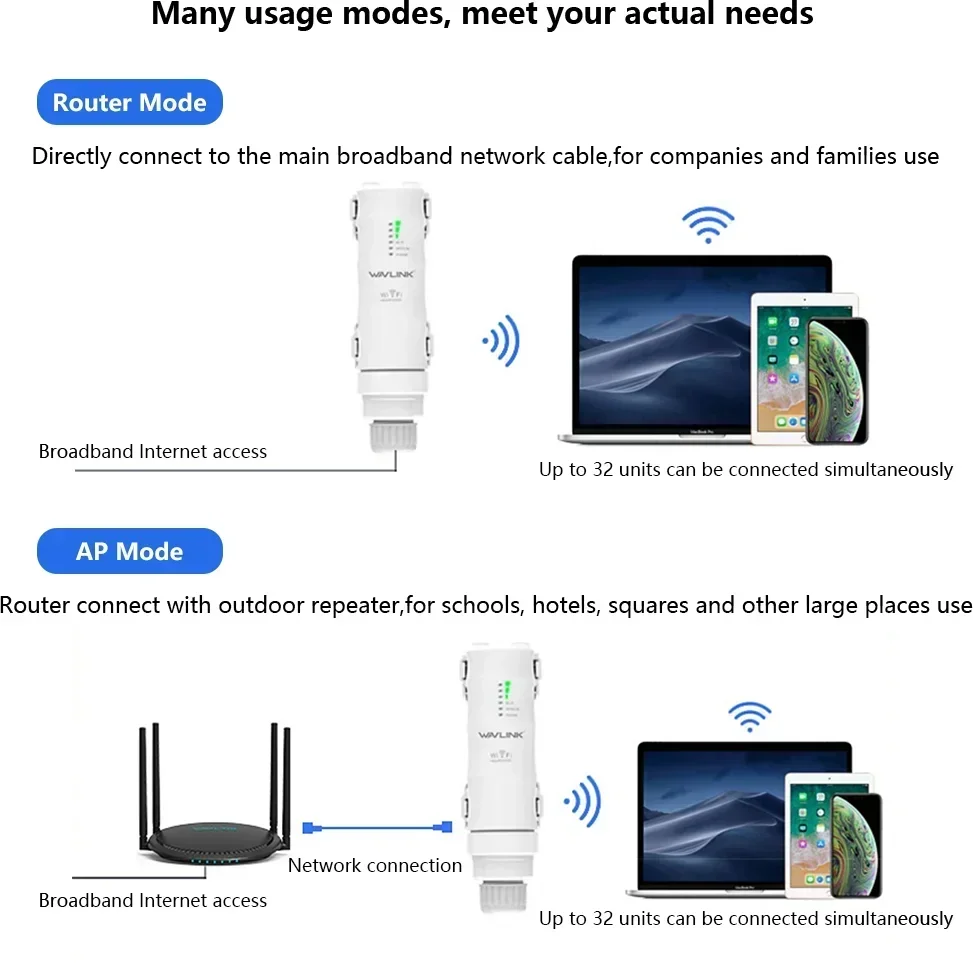

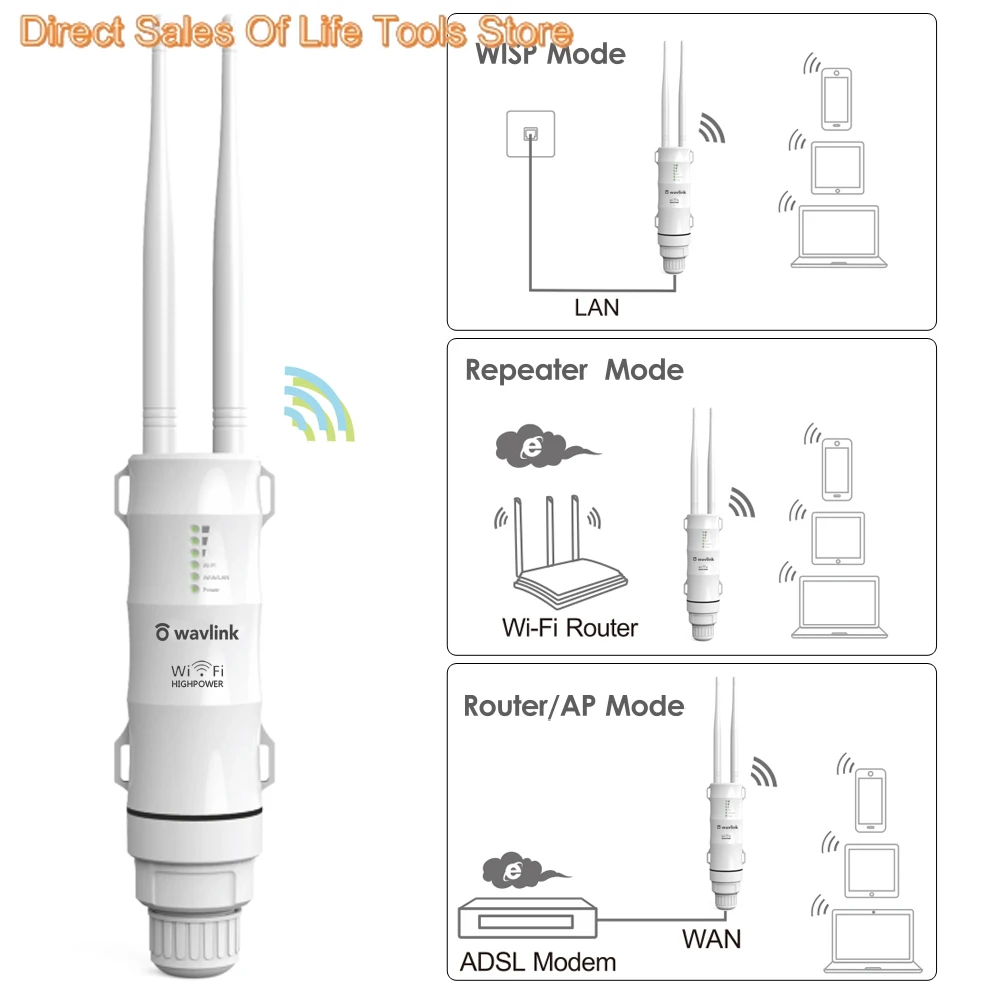

Operation Modes : Router , AP , Repeater , WISP
Maxmum Security with 802.1X, WAP, and WPA2
Support 3 LEDs Wireless Signal Strength
Build in lightnin
i
g arrester (15kV ESD)

Specifications:
Hardware
Ports

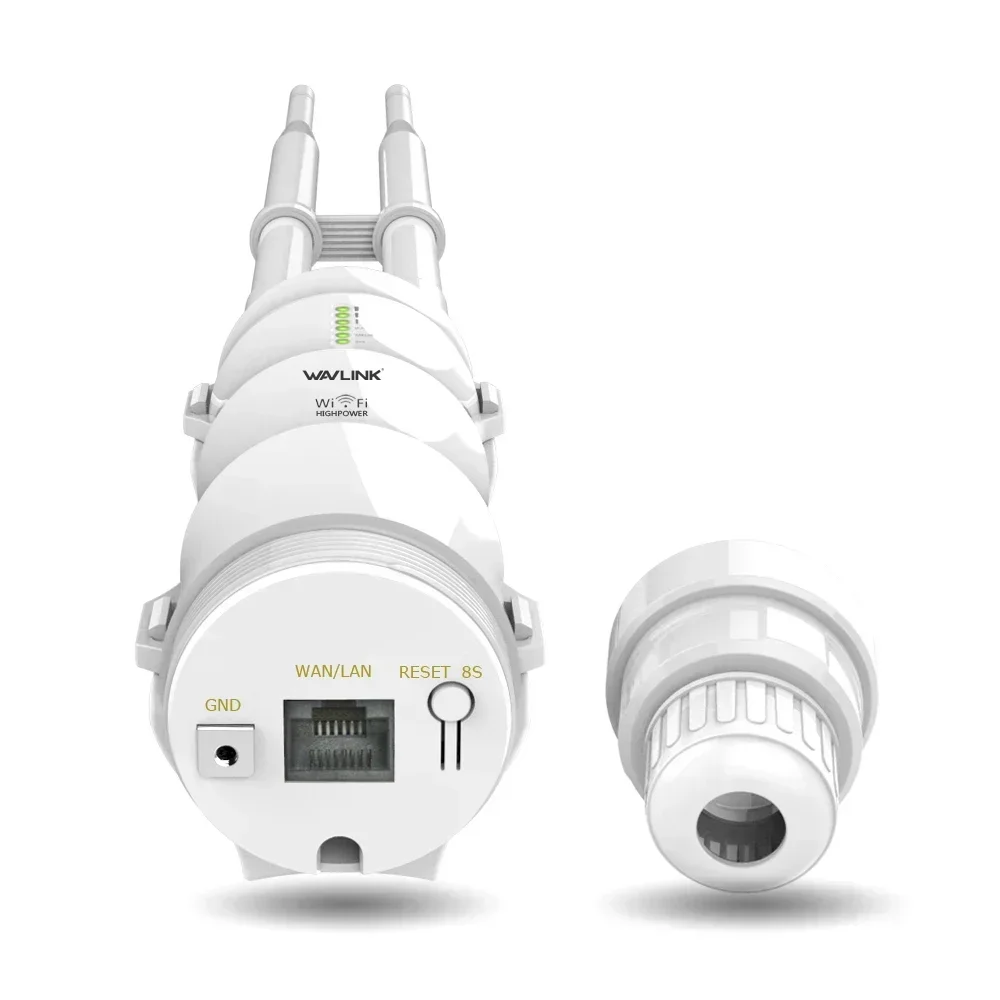

1 x WAN/LAN
Button
1 x Reset 8s
LED
1 x Power, 1xWAN/LAN, 1 x WiFI , 3 x Signal
Chipset
MT7688A+7610E
Flash
64Mb
DDR2
512Mb
Power Supply
DC24V / 0.5A Power over Ethernet ( Passive PoE)
Power Consumption
7W MAX
Rated Voltage/ requency
input:100-240 Va.c. 50/60Hz

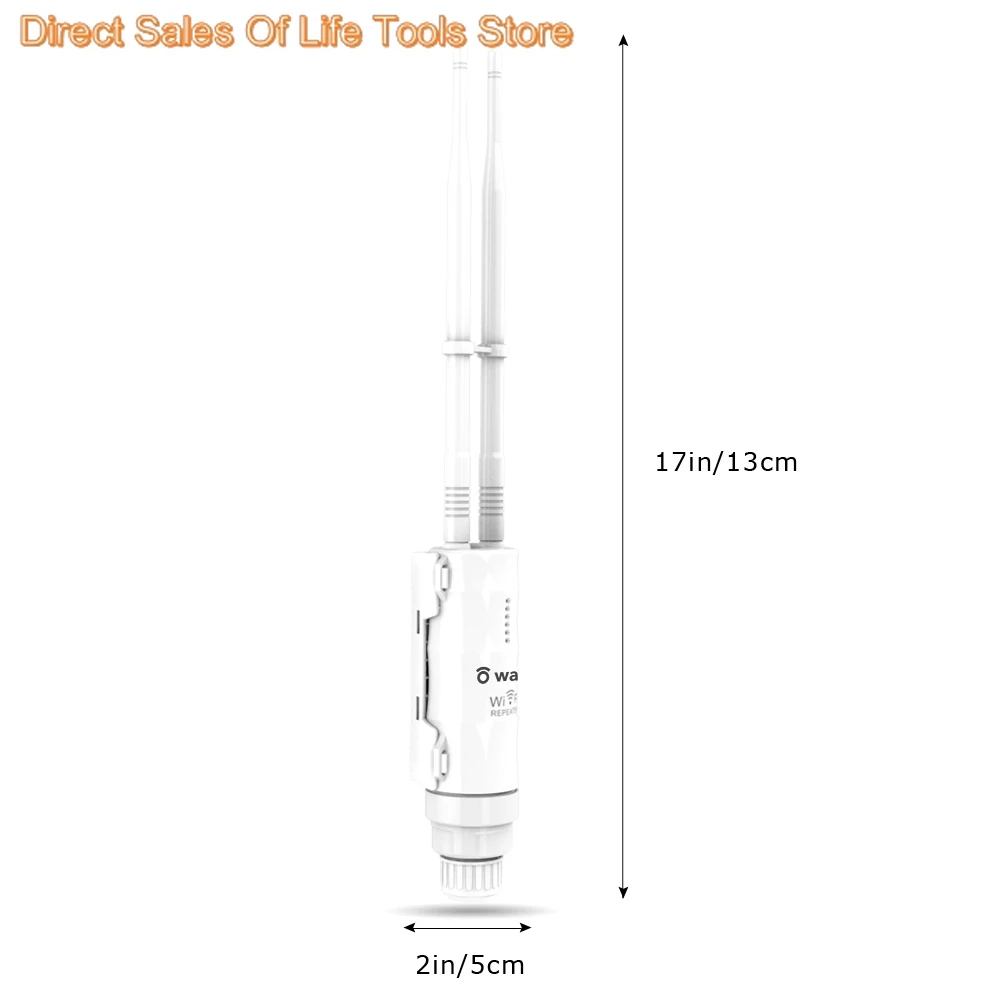

Dimensions
Unit Dimensions
180mm x 50mm x 50mm (L x W x H)
Wireless
Standard
IEEE 802.11b/g/n/a/ac
Frequency band
2.4GHz, 5GHz,
Transmit Power
27DBm MAX
Sensitivity
802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm
Speed
802.11ac: up to 433Mbps, 802.11n: up to 150Mbps
802.11a: up to 54Mbps, 802.11g: 54Mbps
802.11b: 11Mbps
Wireless Security
WPA-PSK/ WPA2-PSK encryption
Antennas

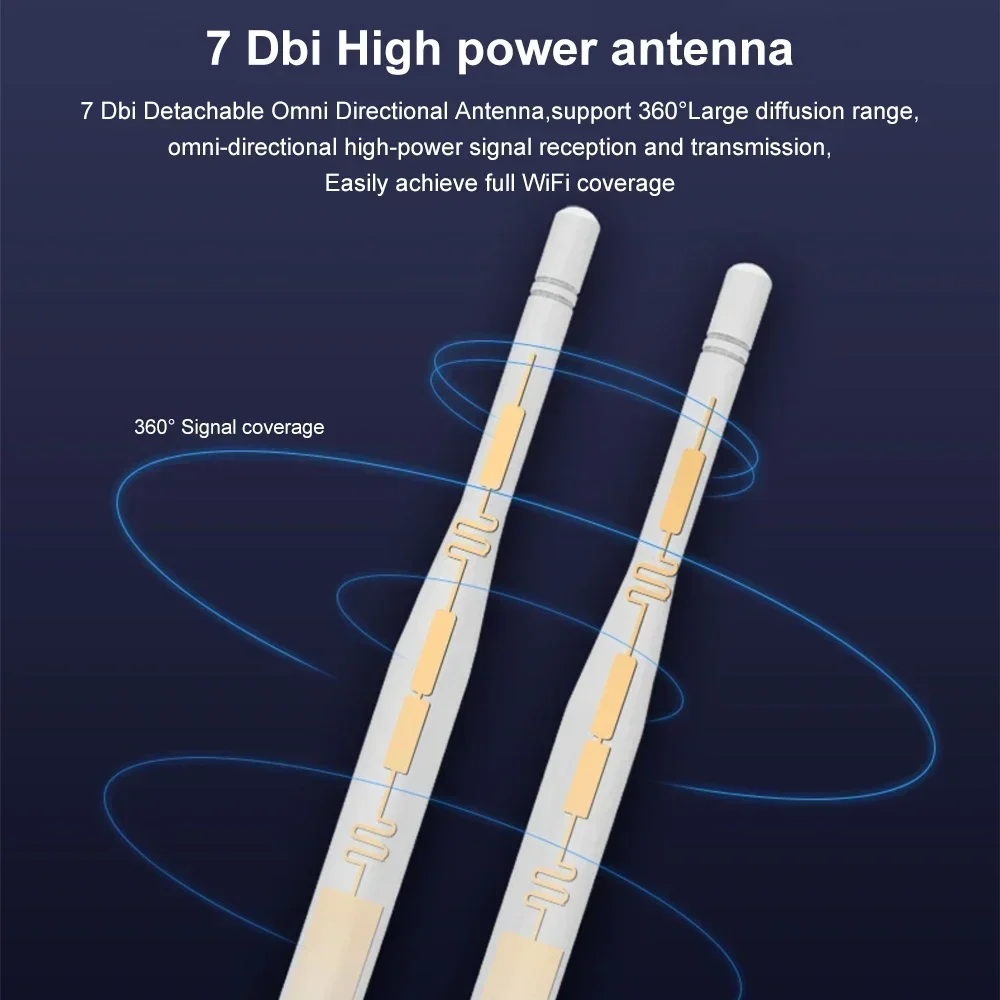

2x7dBi Detachable Omni Directional
Distance
Outdoors 500m, Indoor 150m(According to the actual environment change)

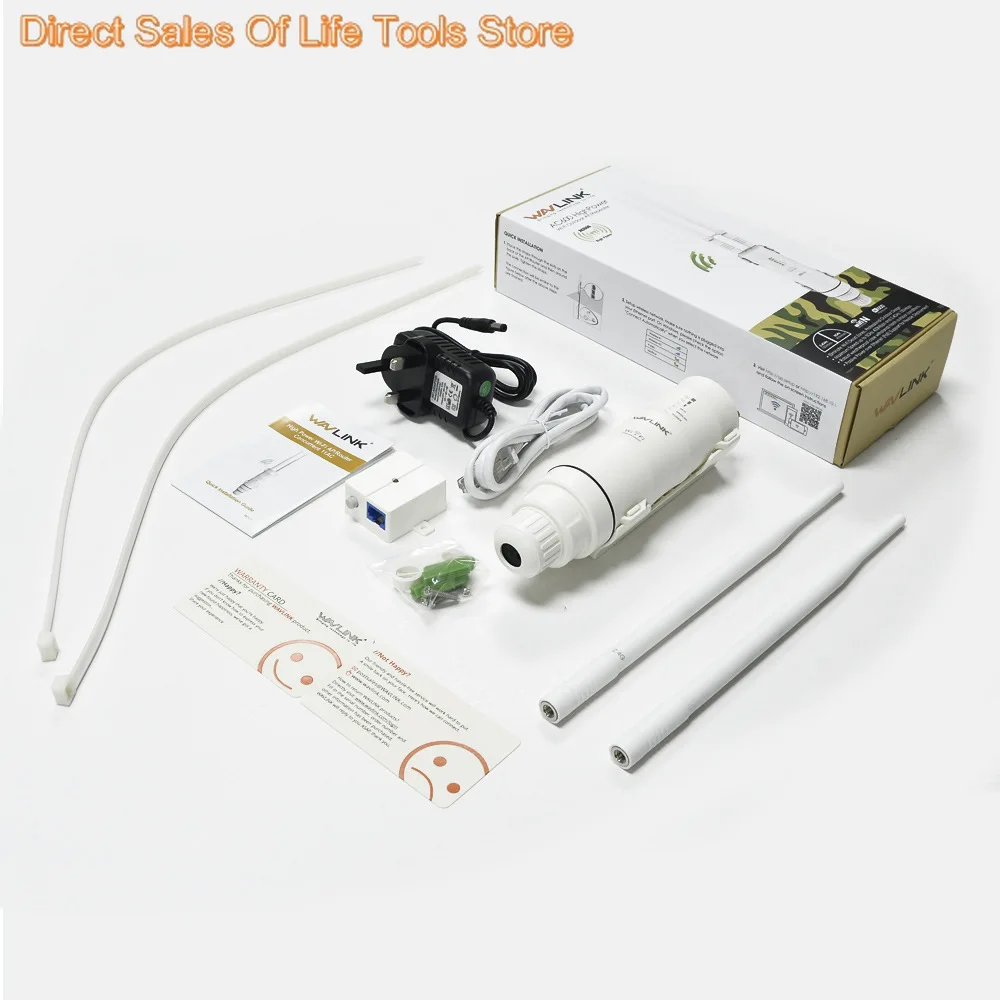

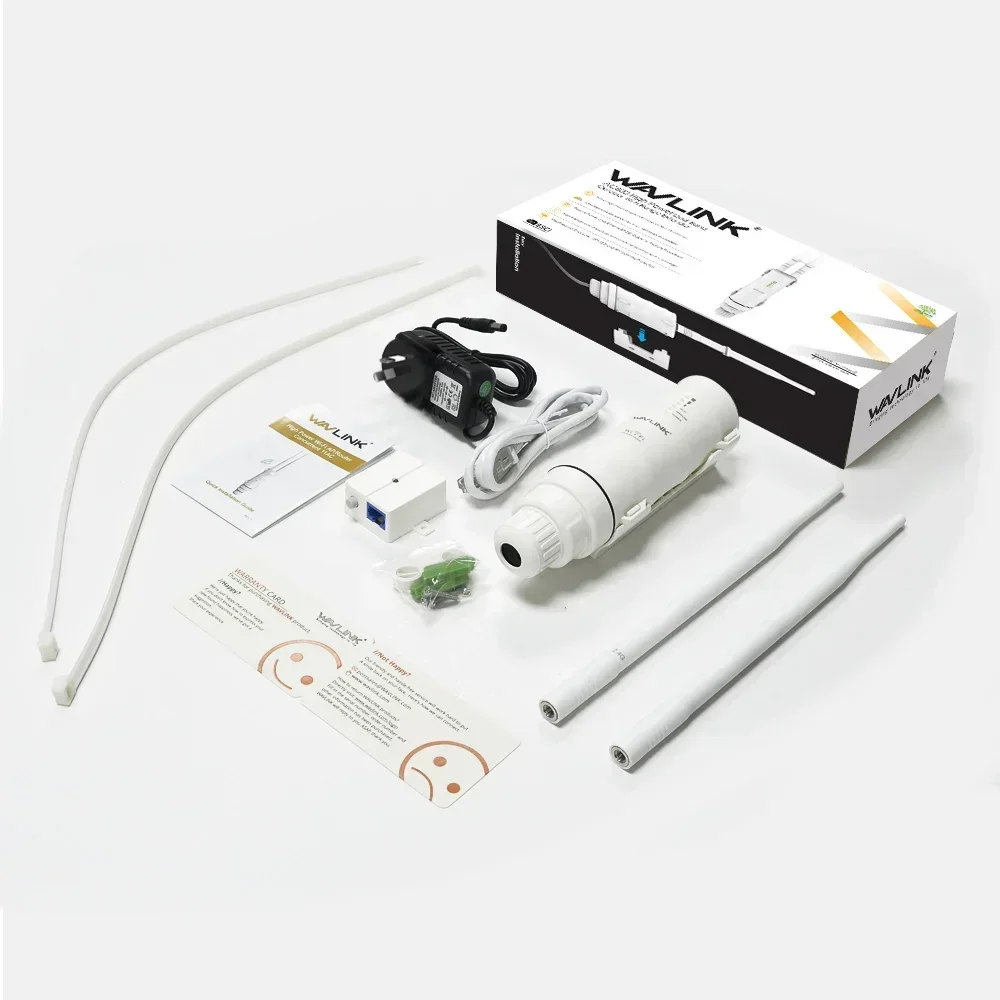

Package includes:

2x Omni antenna
1 x Wi-Fi AP/Router
1 x RJ-45 Networking Cable
1 x Power Adapter (
We will send you a plug adapter according to your country.
)
1 x POE Converter

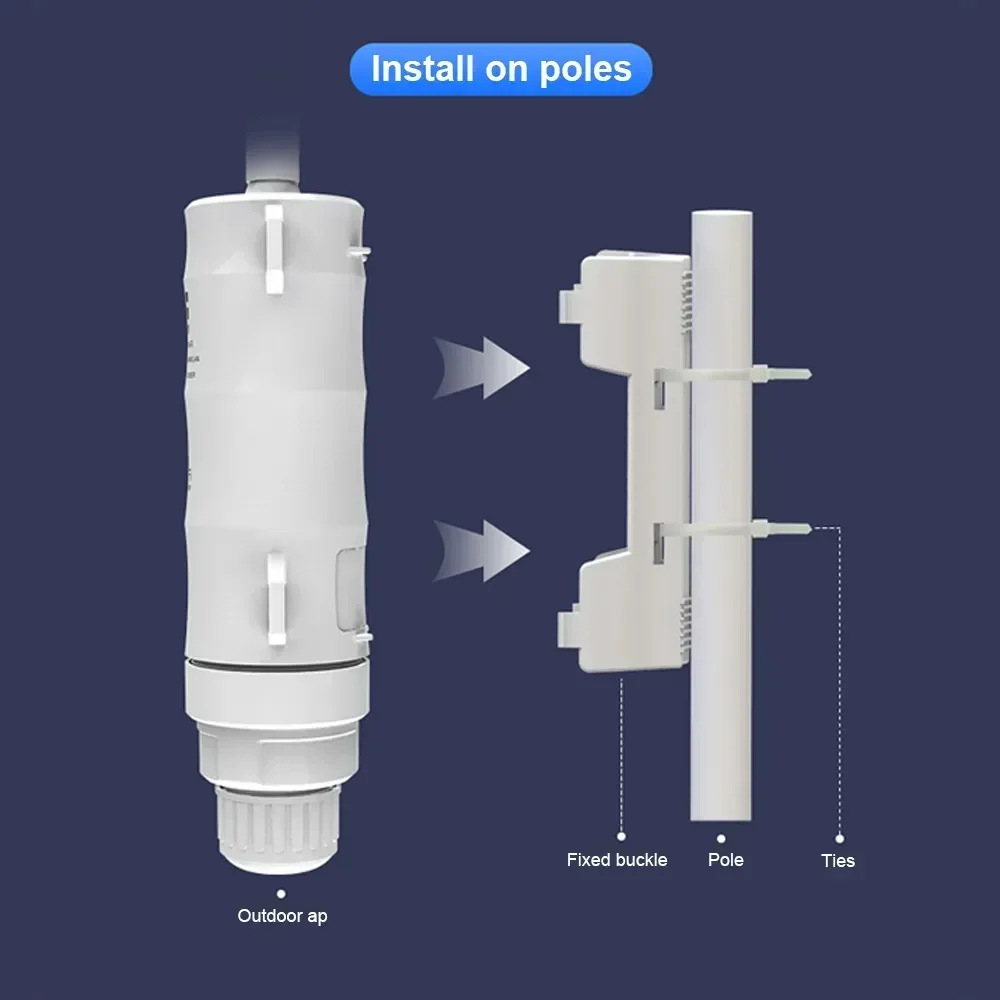

1 x Main body holder
2 x Cable ties
1 x Screw fittings
1 x Quick Installation
