Our spring collect set is carefully crafted from 45# steel and 40Cr material, with excellent wear resistance, ensuring its long service life. With high-precision design and manufacturing processes, this product is capable of handling various high-precision tasks and meeting your demanding requirements for precision. In addition, we have specially equipped a portable dedicated carrying box that is not only easy to carry but also provides great convenience for you when working outside or storing.
Specification
Material: 45# Steel, 40Cr, Aluminum-plastic
Color: Black, Silver
Process: Heat Treatment, Fine Grinding Process
Assembly Required: Yes
Collet Type: ER32
Number of Pieces: 19
Collet Specifications: 2-20mm/0.08-0.78in
Precision: 0.015mm
Each Spring Collet Size: 33*40mm/1.3*1.57in
Chuck Diameter: 12mm/0.47in, 27mm/1.06in
Overall Chuck Size: 121*50mm/4.76*1.97 in
Spanner Size: 250*72mm/9.84*2.83in
Spanner Clamp Length: 44mm/1.73in
Carrying Box Size: 34.5*27.5*9cm/13.6*10.8*3.5in
Package Size: 37*28.5*11cm/14.57*11.22*4.33in
Gross Weight: 4.55kg/10.03 lbs
Net Weight: 4.32kg/9.52 lbs
Build to Last
It is made of 45# steel, 40Cr, and aluminum-plastic material, with heat treatment and fine grinding processes, which are abrasion-resistant and scratch-resistant, ensuring a long service life.
High Precision
The precision of this product can reach 0.015mm, making the work more accurate and efficient, and can well meet your high-precision various tasks.
Thoughtful Design
It has a built-in self-release design, which ensures that the tool will never get stuck on the bracket, making it more convenient and easy for you to use.
Comprehensive Collet Set Specifications
This product includes 19 different sizes of collet (0.08-0.78 inches) and a chuck, which can meet the work requirements of different sizes.
Easy to Operate
It not only has a simple design and structure but also comes with a spanner, making your operation simpler and more convenient.

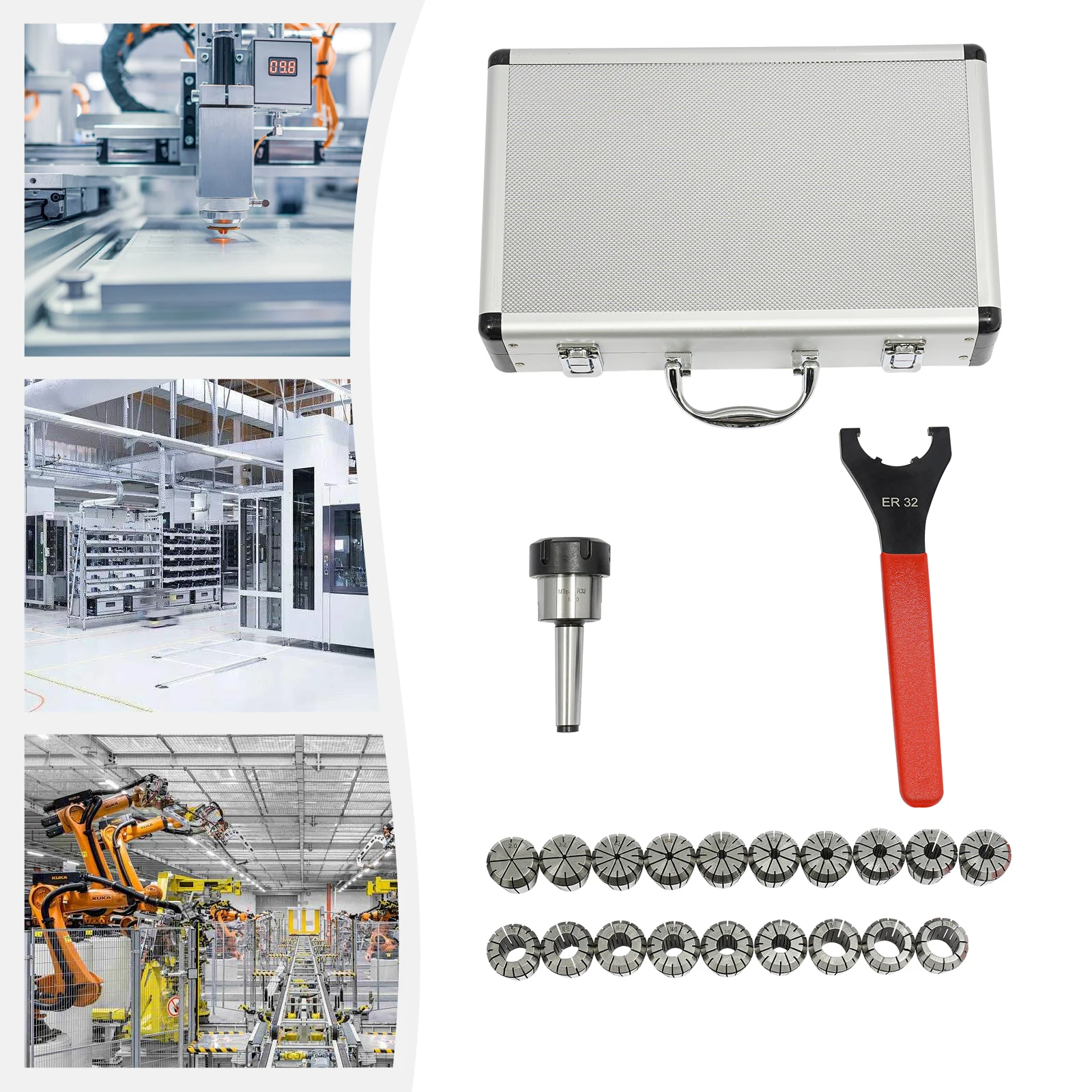

Package Included

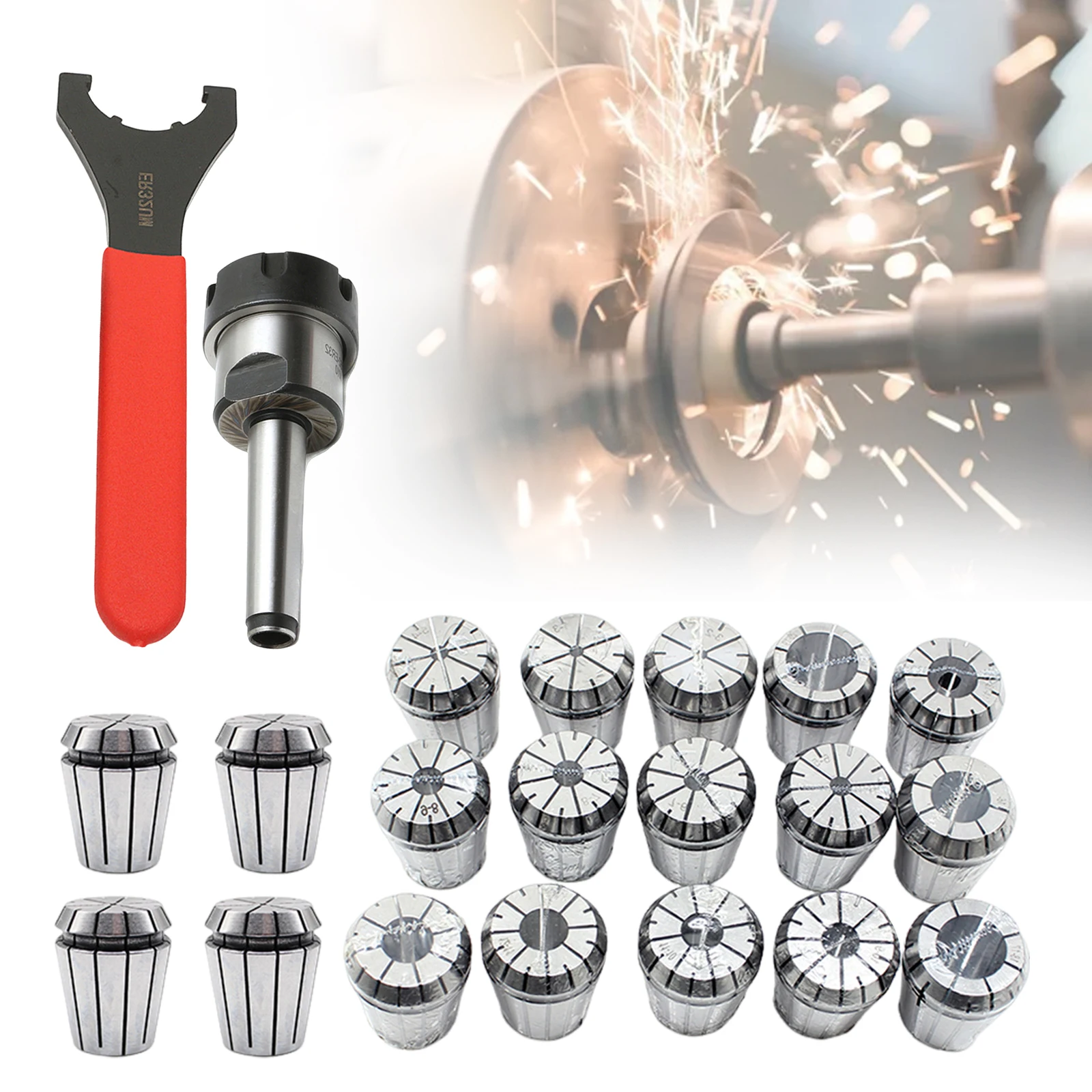

19* Spring Collets
1* Spanner
1* Chuck

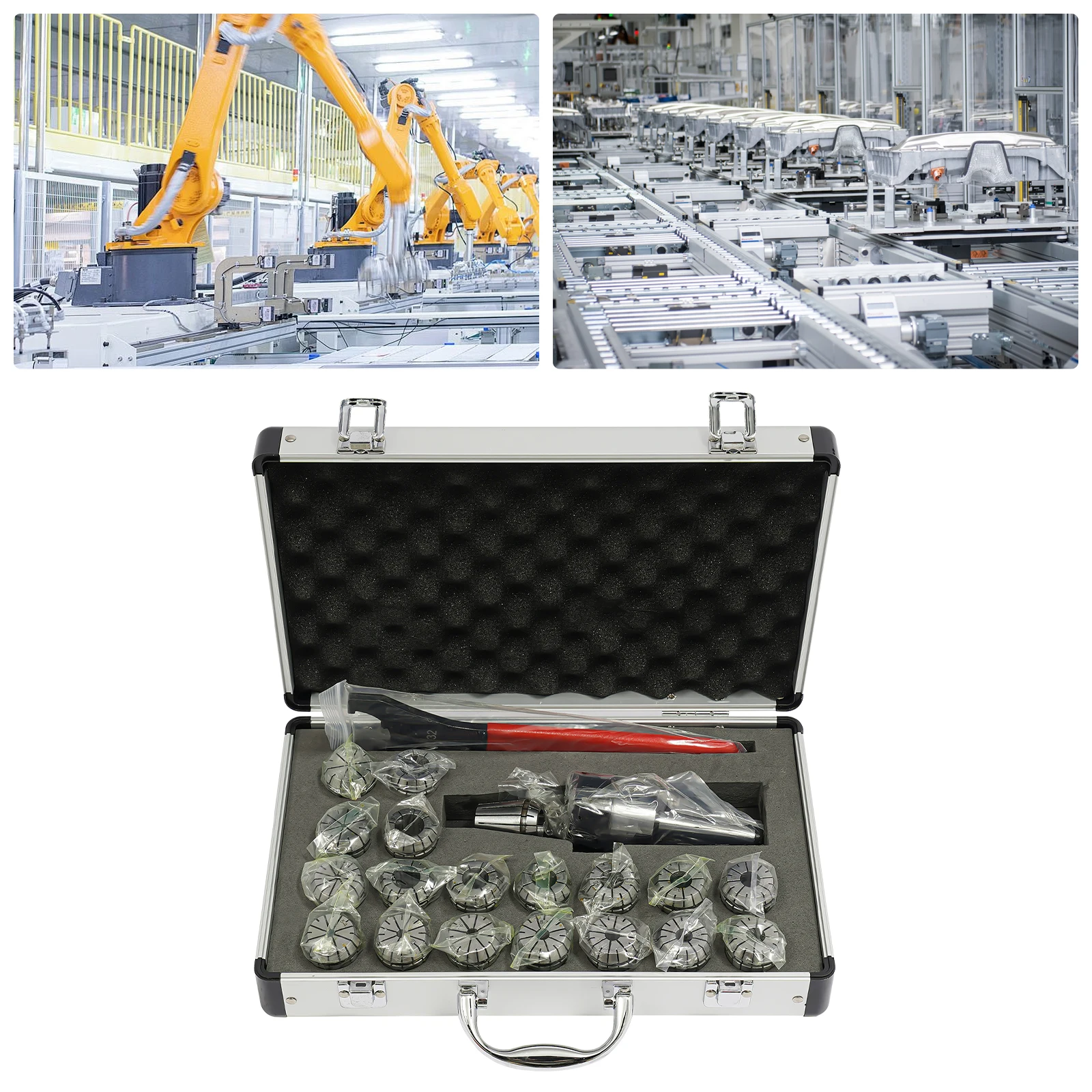

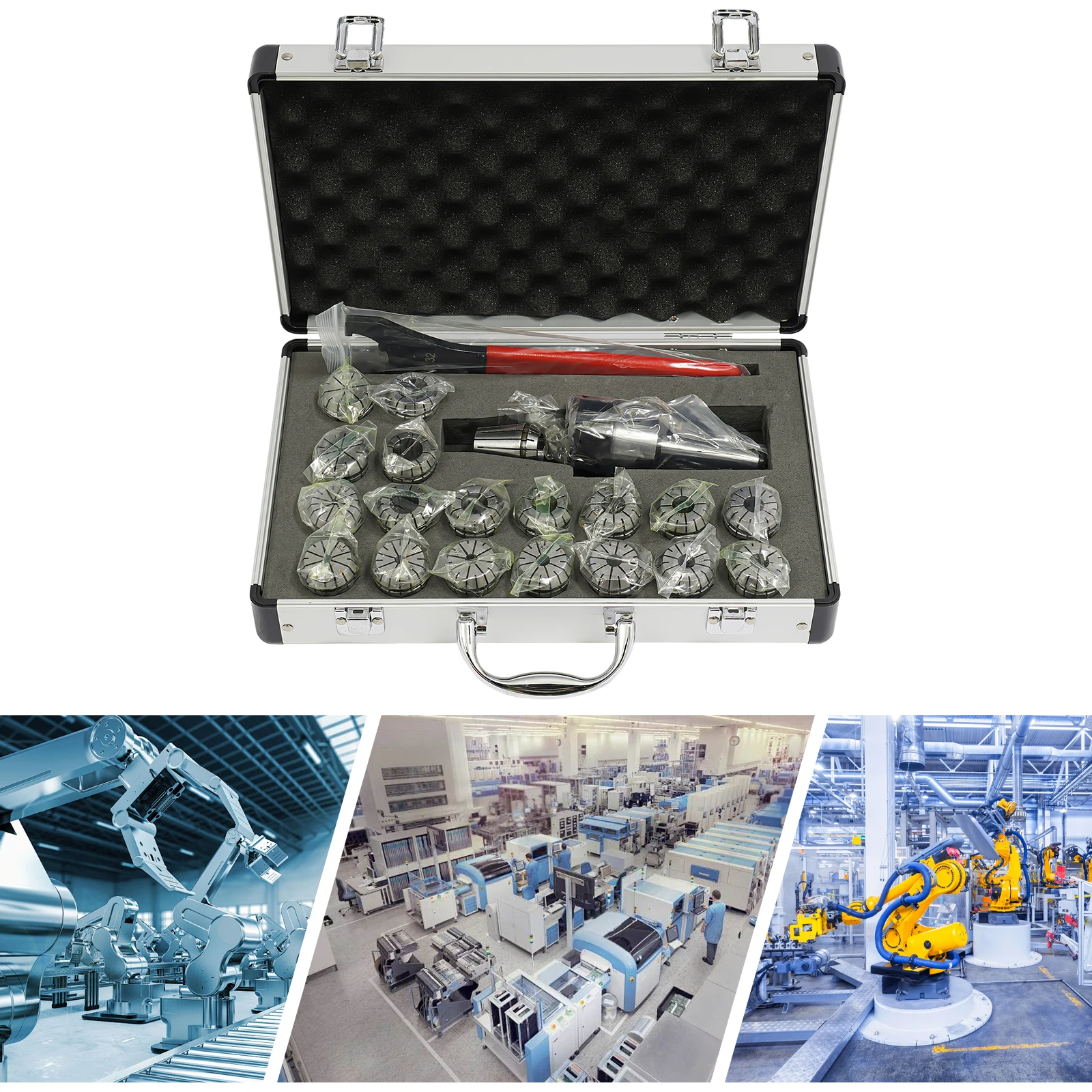

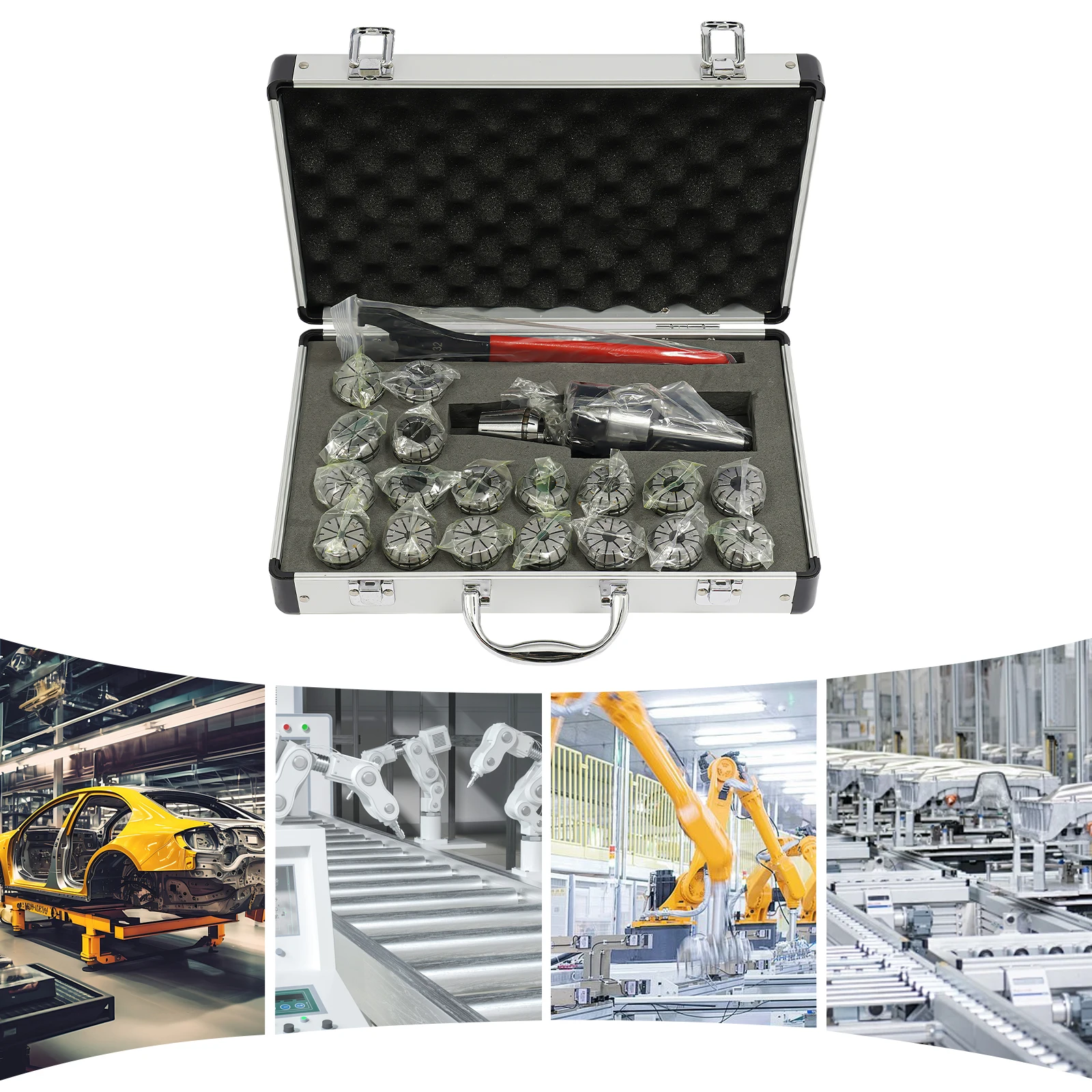

1* Carrying Box
Note
1.Please check the size carefully before ordering.
2.Please do not use tools that exceed the clamping range.
3.Please do not lock the collet without the tool installed, to avoid damage to the clamp spring.
4.If the cutting of abnormal vibration or sound, cut spindle speed and depth of cut to improve the situation.
5.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
