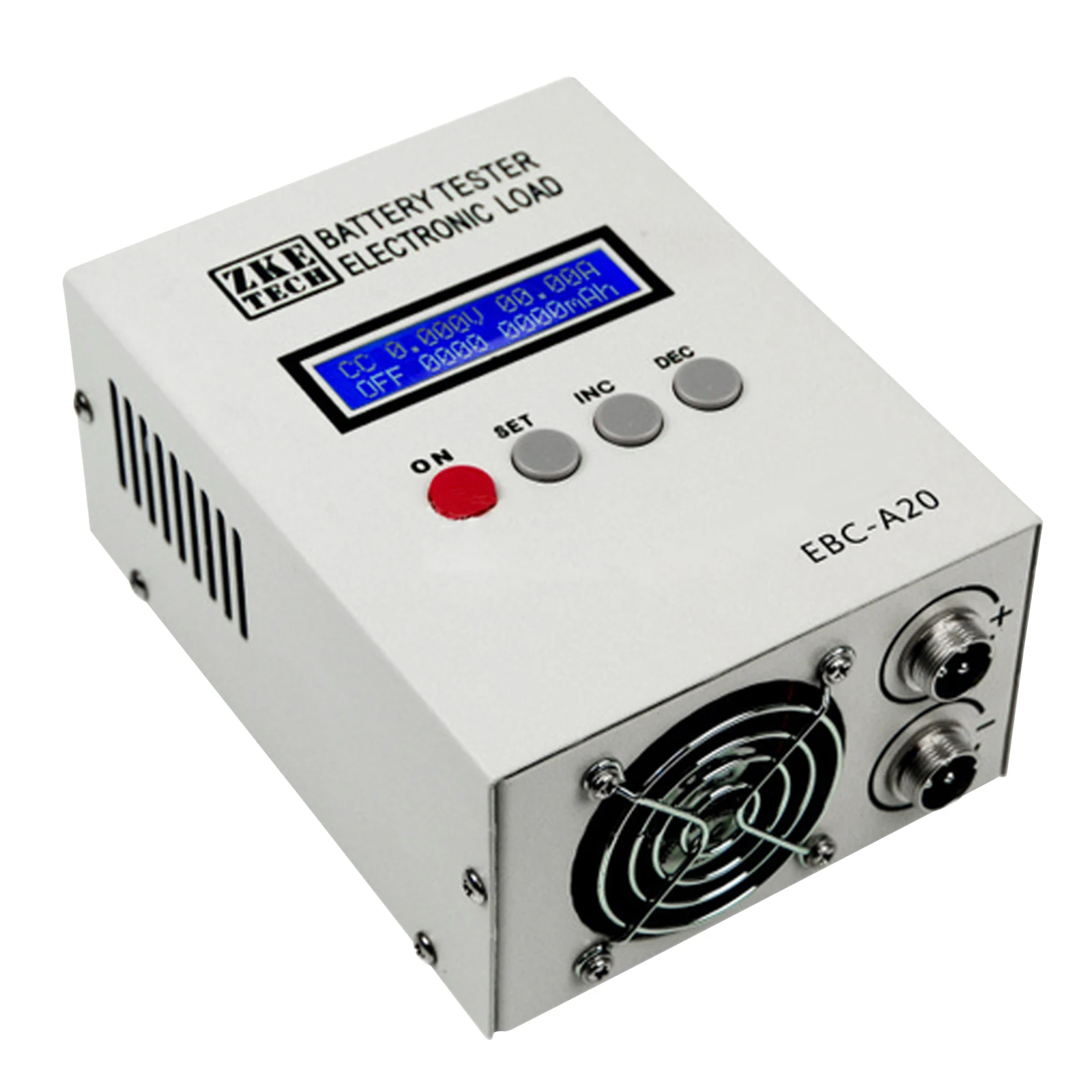

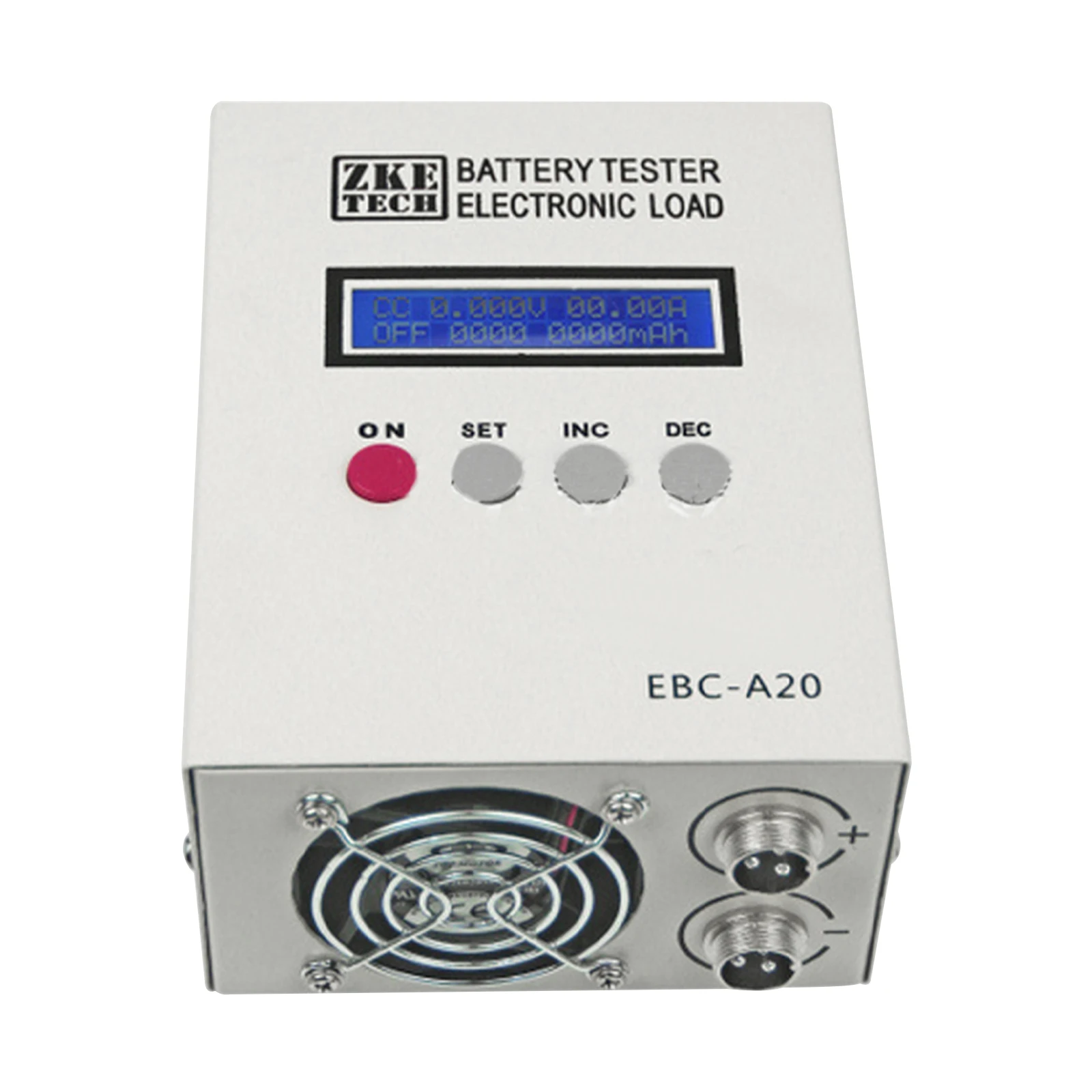

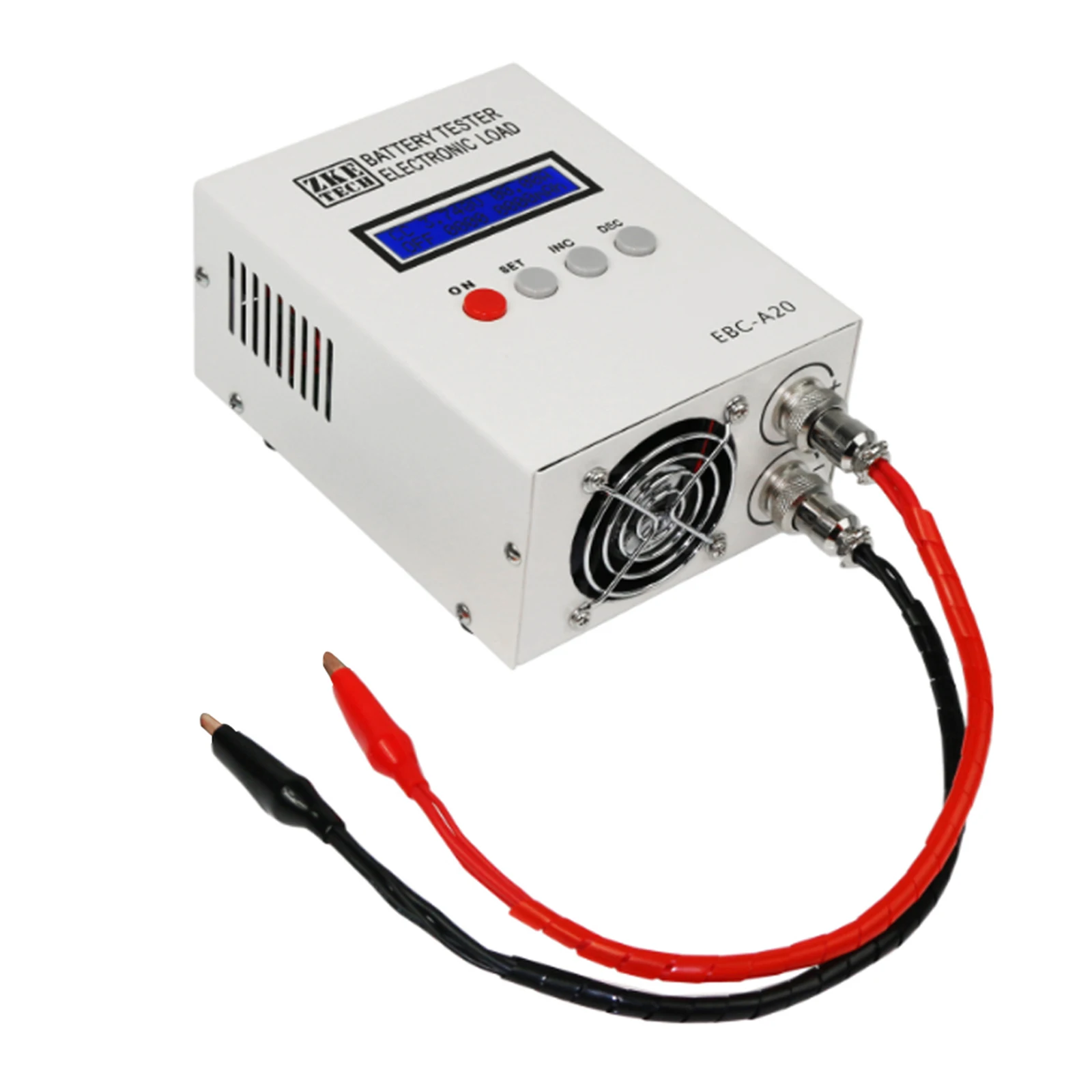

Li-ion Battery Capacity Tester, Batteries Test Device, Battery Capacity Tester Details

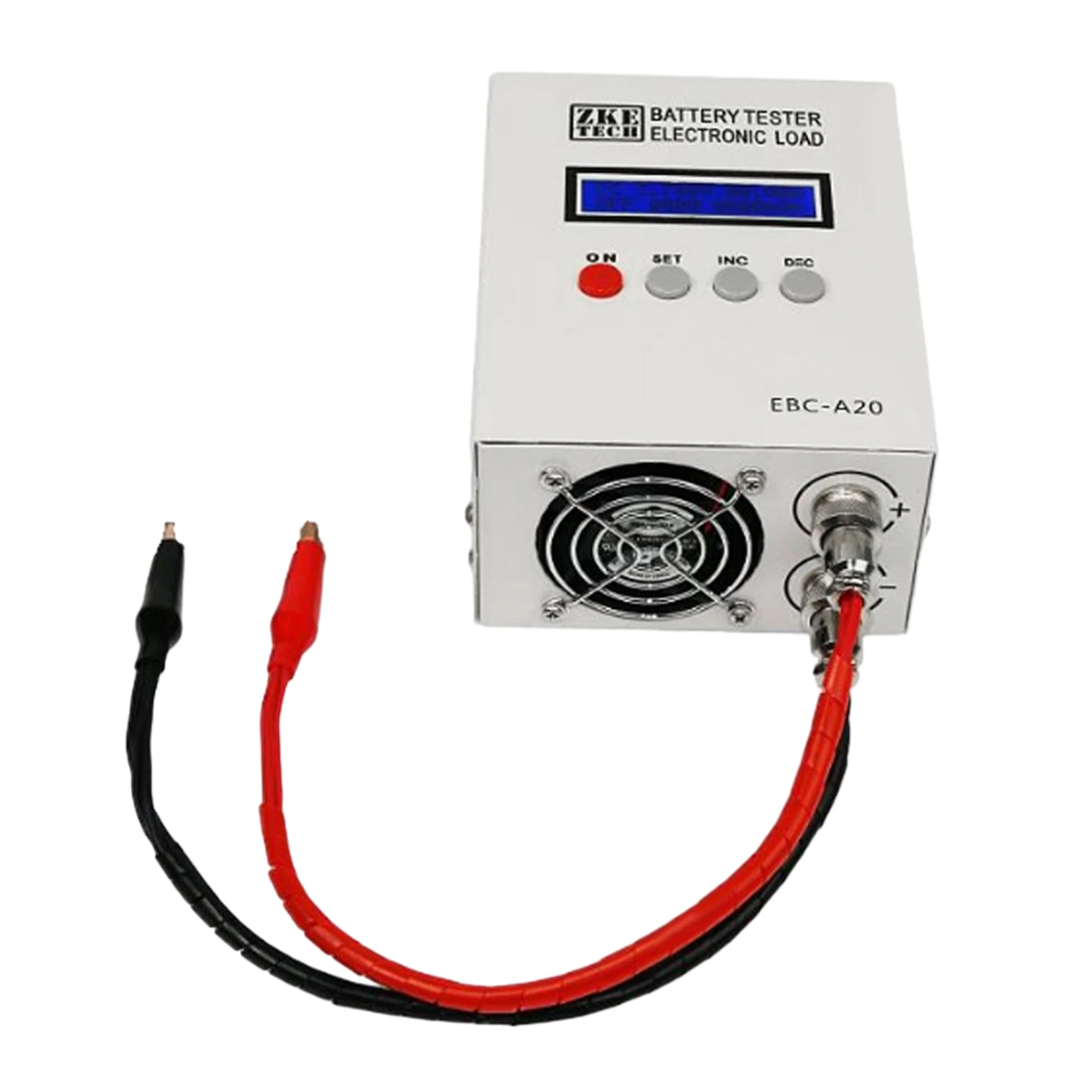

Practical Cables: They allow for convenient and stable connections for easy use.

LCD Display: It can display important data such as voltage, current, capacity, time, and power consumption in real-time, so that you can clearly understand the battery test situation.

Application

It can be used to test the capacity of lithium batteries/lead-acid batteries.

Specifications

Model: EBC-A20

Material: Iron

Process: Spraying

Color: Off White

Shape: Rectangular

Display Type: LCD

Computer Connection: USB to TTL Cable

Total Power: 85W

Power Supply: DC19V-20V, Current Above 3.5A

Voltage Setting: 0.00-30V, Minimum Step is 0.01V (Maximum 18V When Charging)

Current Setting:

Discharge:0.1A-20A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)

Charging: 0.1A-5A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)

3 Modes: DSC-CC (Constant Current Discharge), DSC-CP(Constant Power Consumption), CHG-CV (Constant Voltage and Constant Current Charging)

Voltage Test: 0.0-4.5V (Low Voltage), Accuracy Up to 0.003V

                      4.5V-30V (High Voltage), Accuracy Up to 0.01V

Current Test: 0.1-20A, Accuracy Up to 0.01A

Capacity Test Accuracy: 10Ah / 0.001Ah, 10A-100A / Above 0.01A ,  100A / 0.1A

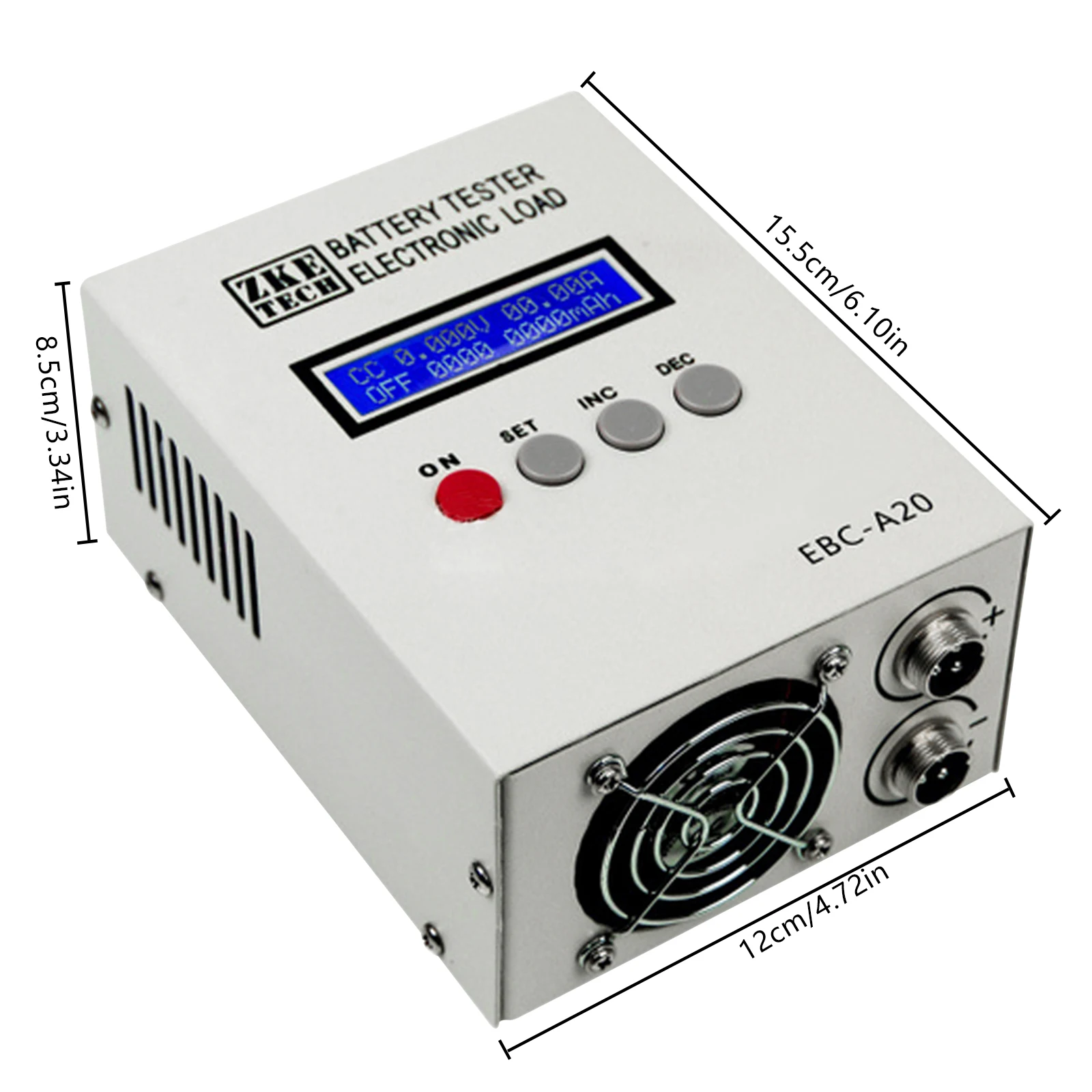

Product Size: 12*15.5*8.5cm/4.72*6.1*3.34 in

Package Size: 28*25*14cm/11.02*9.84*5.51 in

Gross Weight: 1.74kg/3.84 lbs

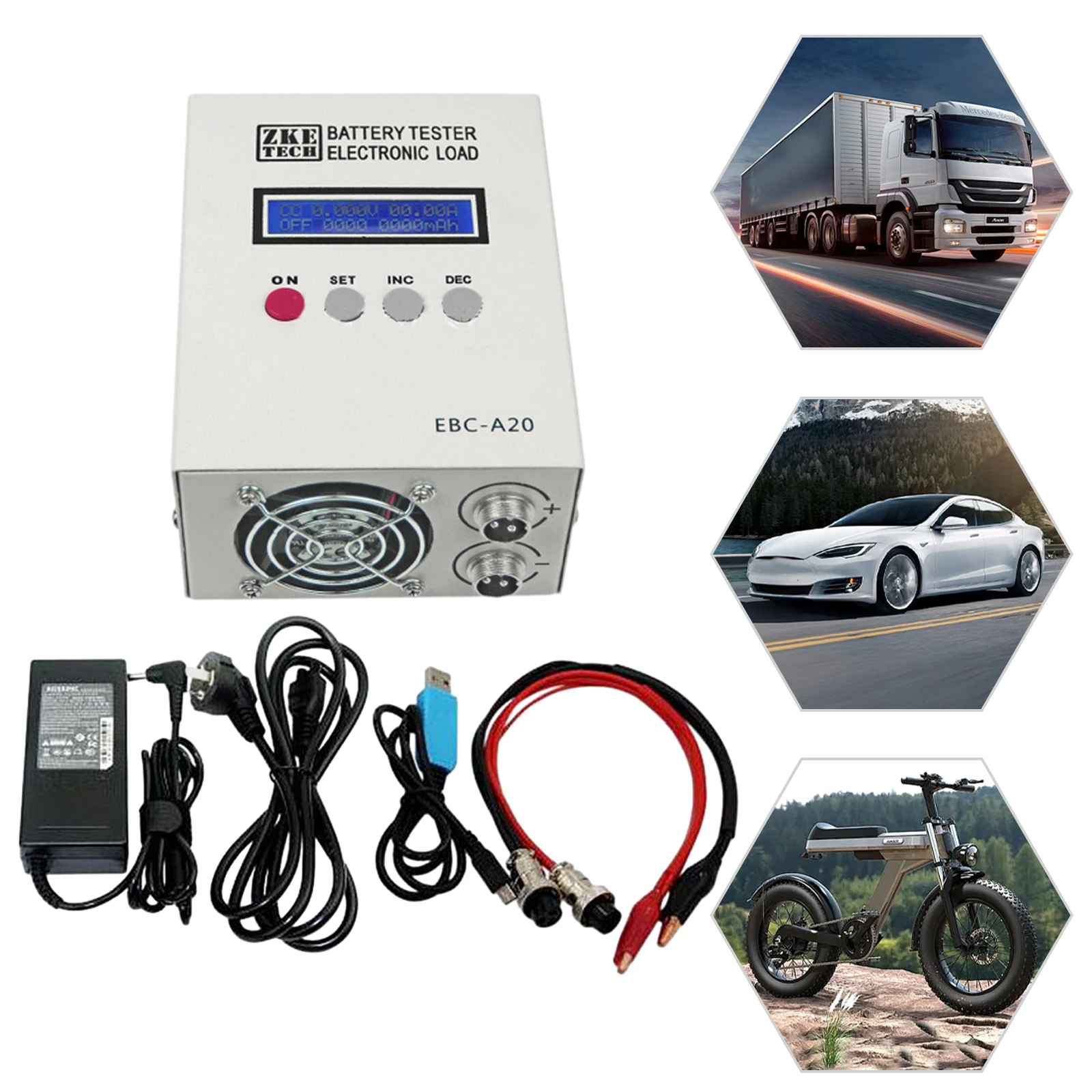

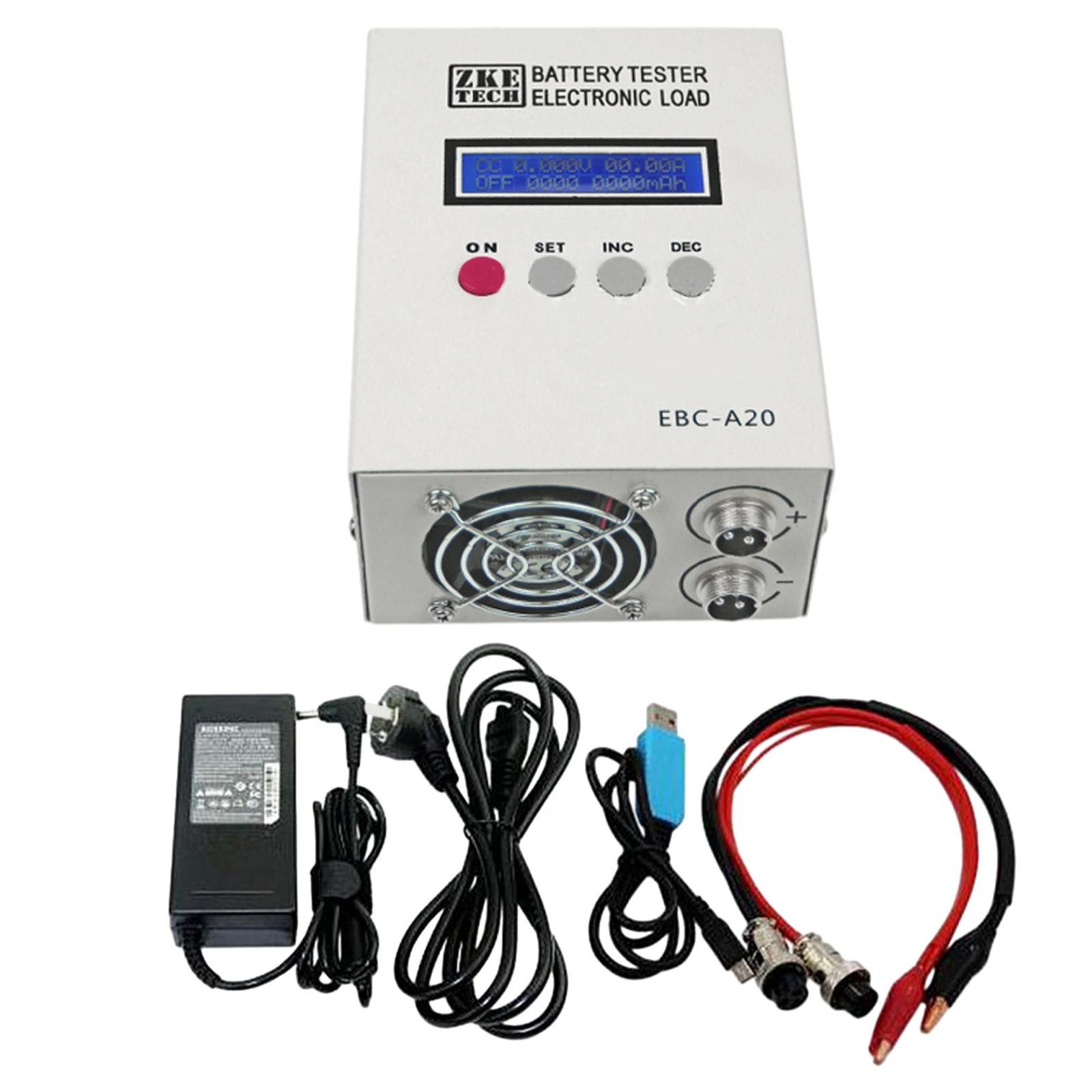

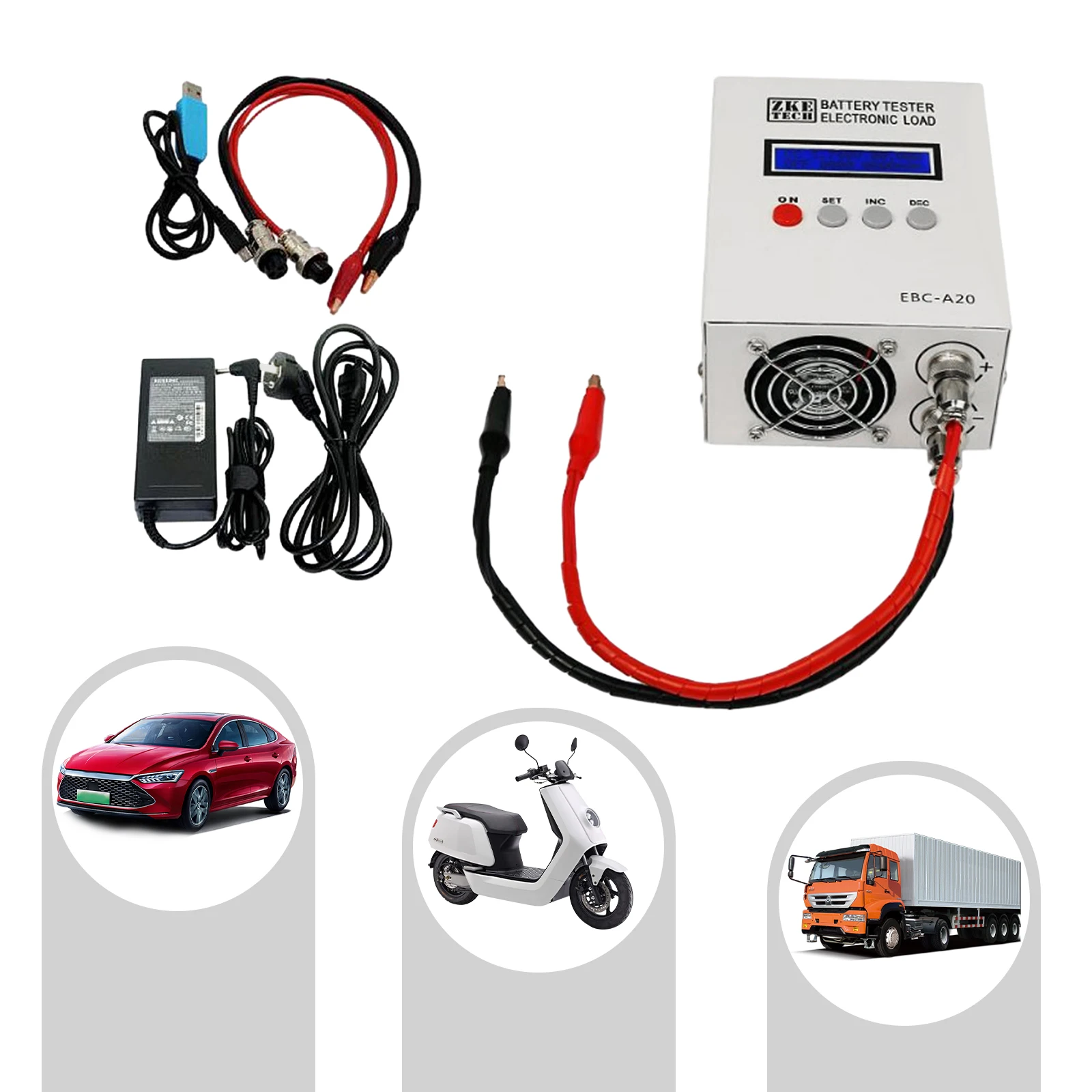

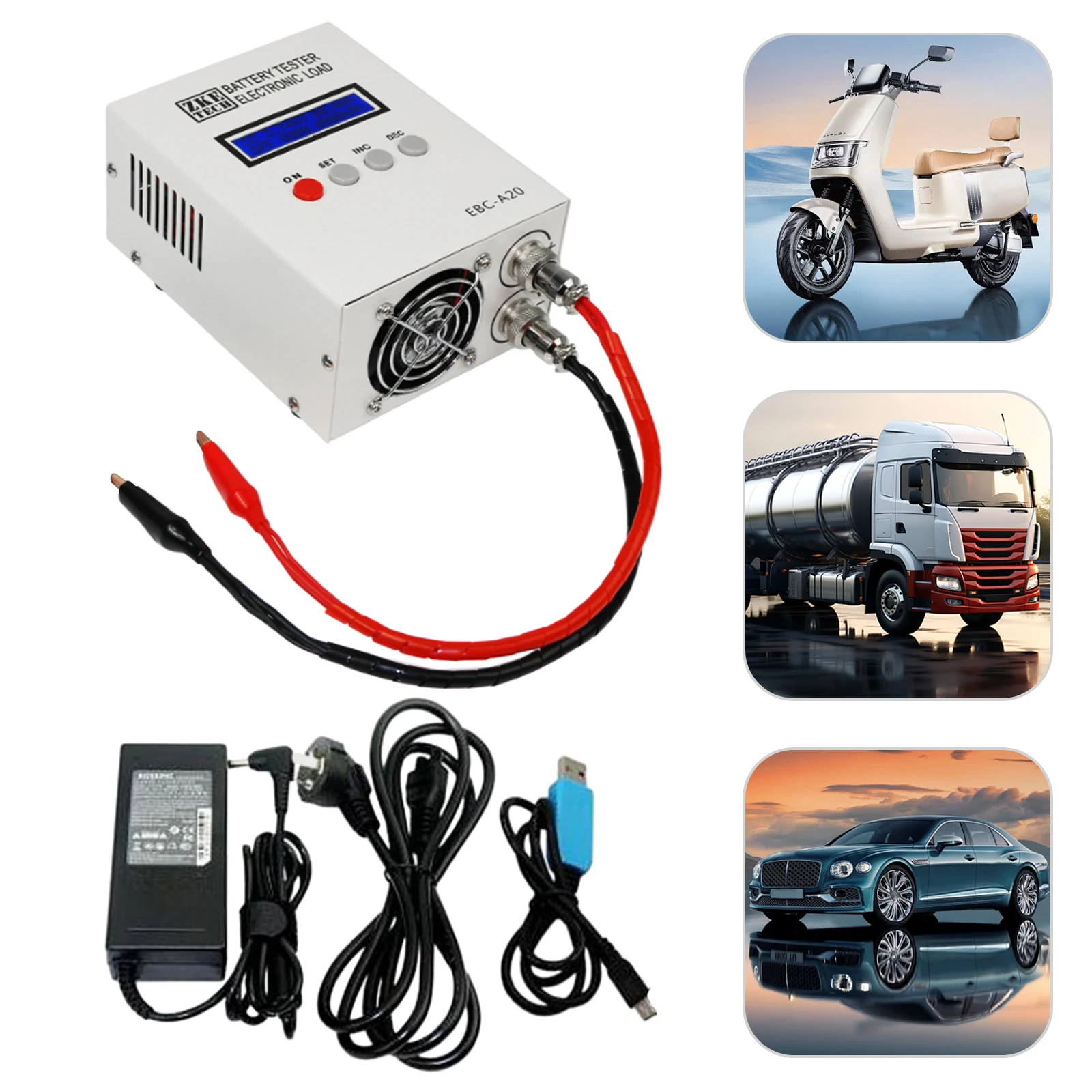

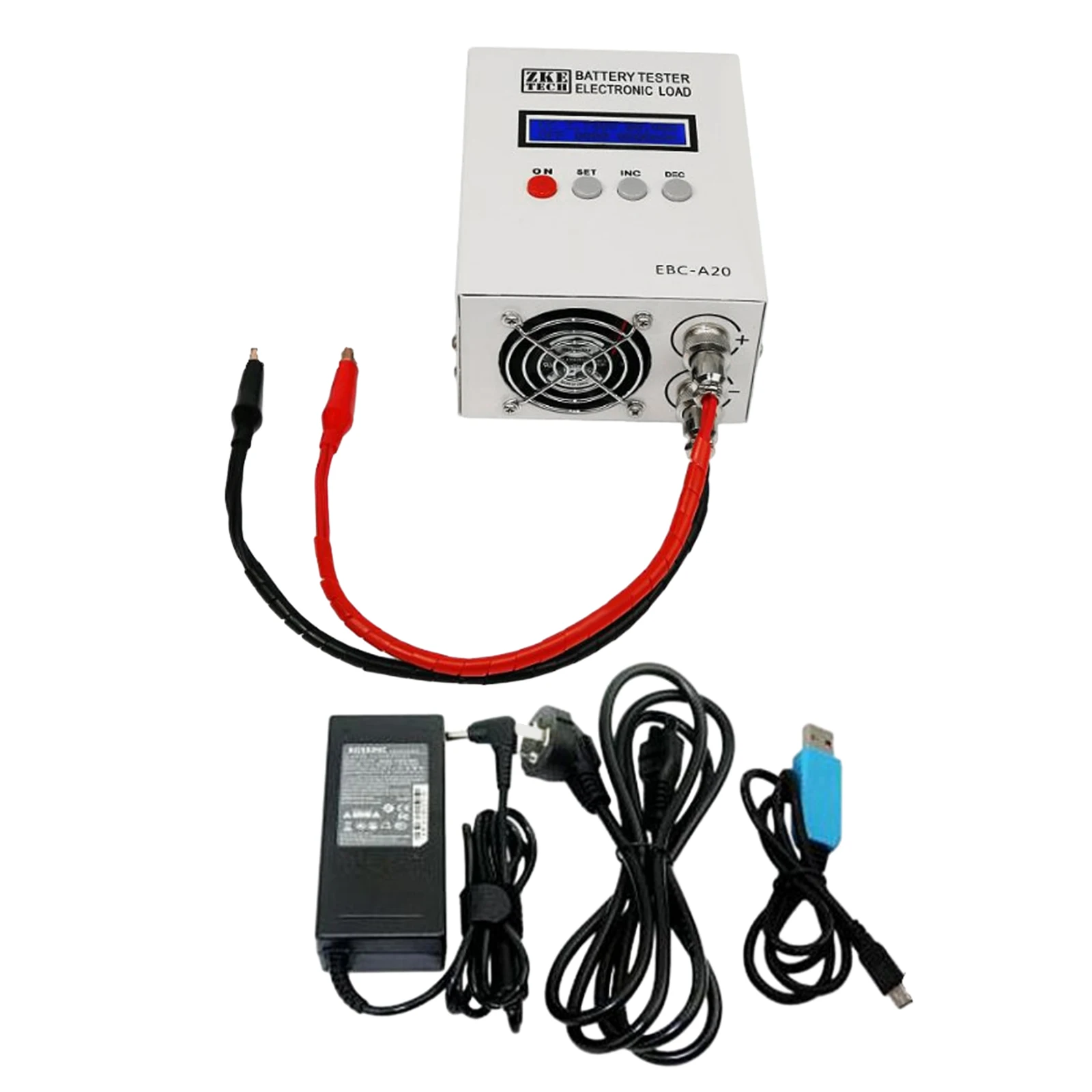

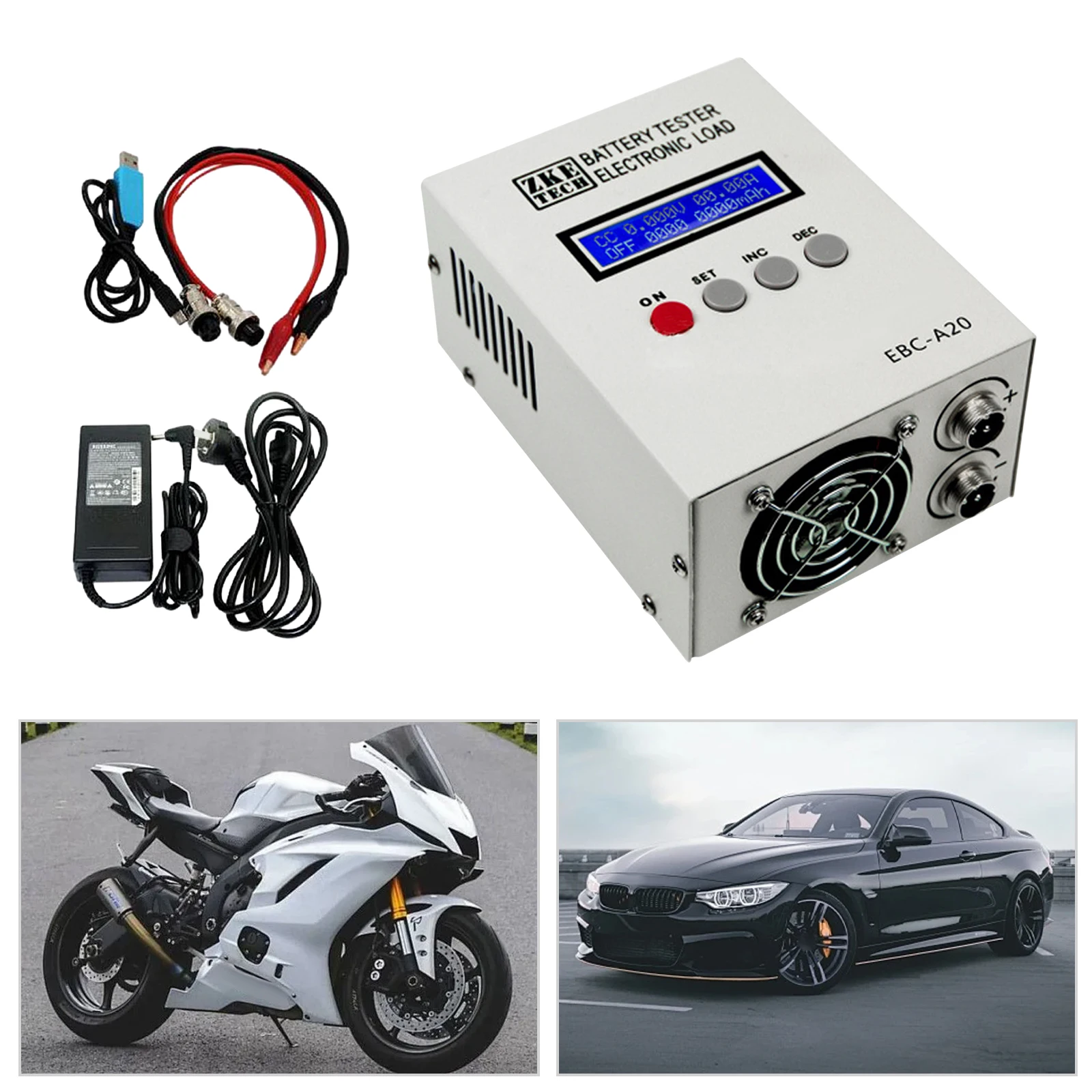

Net Weight: 1.65kg/3.64 lbsPackage Included

1* Battery Capacity Tester

1* Power Cord

1* USB Cable

1Pair* Test Clips

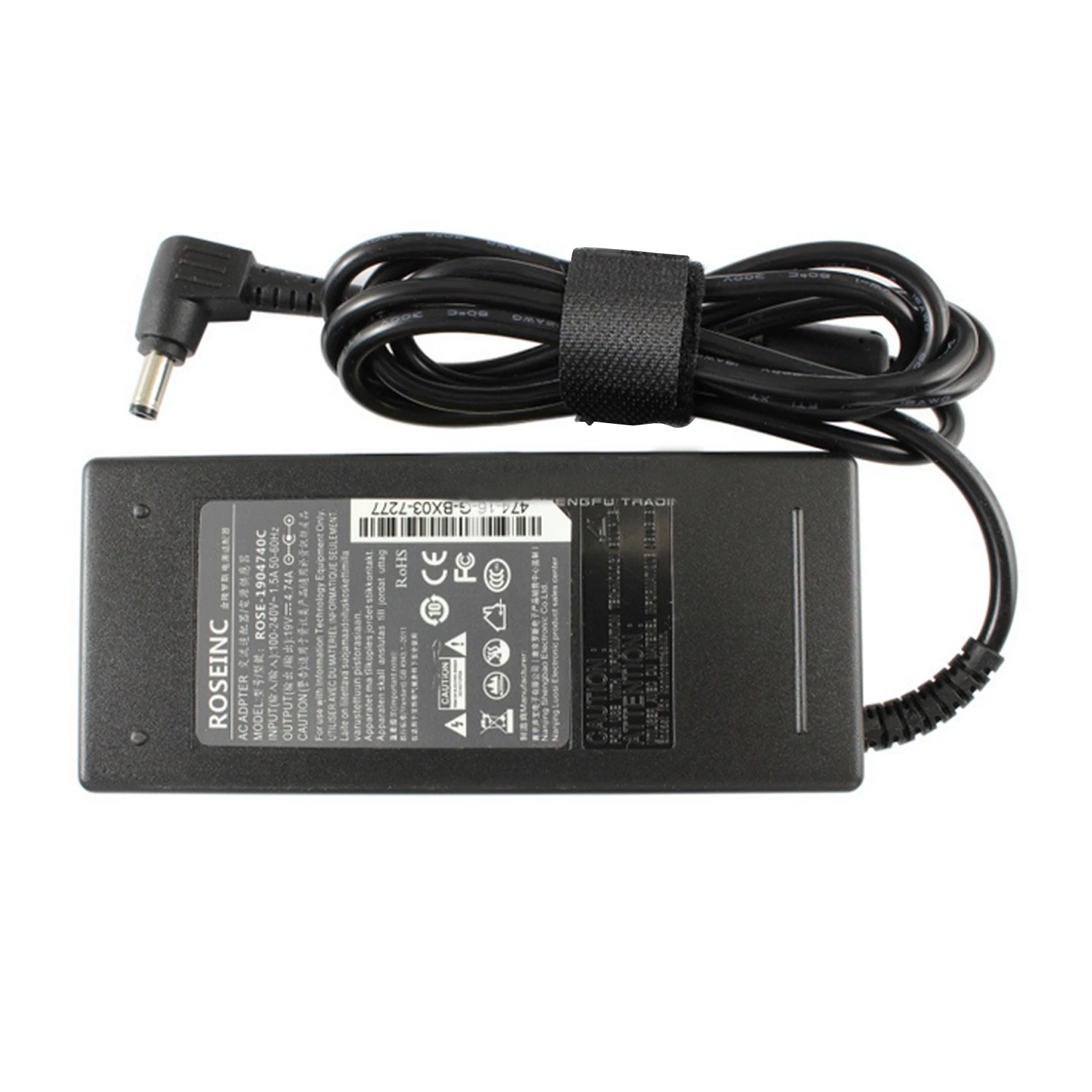

1* AdapterKey Features

Build to Last: It is mainly made of high-class iron, with a sprayingprocess, which is impact-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

High Efficiency: It can perform 4-wire testing, voltage testing, and current testing using different cables to ensure accuracy, and the capacity test accuracy is 10Ah / 0.001Ah, 10A-100A / above 0.01A, 100A / 0.1A, so it can accurately measure the capacity of the battery, help users understand the true state of the battery, to avoid equipment failure or performance degradation caused by inaccurate battery capacity.

3 Working Modes: It has 3 working modes: constant current discharge, constant power consumption, and constant voltage and constant current charging, which can meet the needs of different scenarios of testing.

Charging and Discharging Function: It supports charging and discharging functions, which can help users comprehensively evaluate the performance of lithium batteries.

Good Heat Dissipation Performance: The heat dissipation holes can effectively prevent the performance of the equipment from being affected by overheating during a long working time while extending the service life of the product.

Intimate Design: Thededicated USB to TTL cable can support the connection of the computer to control the start through the software and achieve more expanded functions.

Simple Operation: The simple panel and clear LCD display make it easy for you to operate so that you can easily get started and quickly complete the battery test operation.

Lightweight & Portable: It is small(4.72*6.1*3.34 in) and lightweight(3.64 lbs), not taking up too much space, and is easy to carry to the workplace for your convenience.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Note

1. Please handle with care and avoid moisture and water during use and movement.

2. Please note that the positive and negative connections should not be reversed, and always use the tester within the allowed range.

3. This model does not support NiMH, NiCd charging and power testing.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
