Description
3in1 Dübellehre Bohrschablone Führung Kit 6/8/10mm Holzbearbeitung Hilfe Set Kit
Strong magnetic sheet + gasket design: ensure the accuracy of side hole is less than 0.5mm

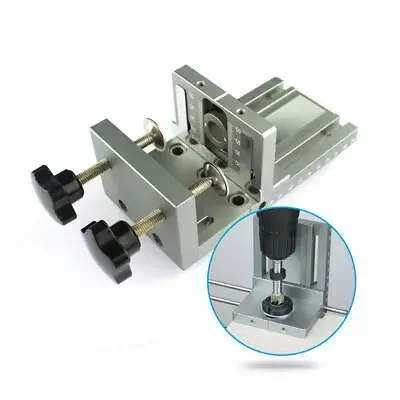

Convenient quick gripper: two clamping methods for precise and convenient punching
CNC computer engraving and molding: ensuring precise and reliable products and precise punching
The eccentric wheel hole is precisely adjustable: the eccentric wheel hole position is adjusted according to the length of the connecting rod

feature:

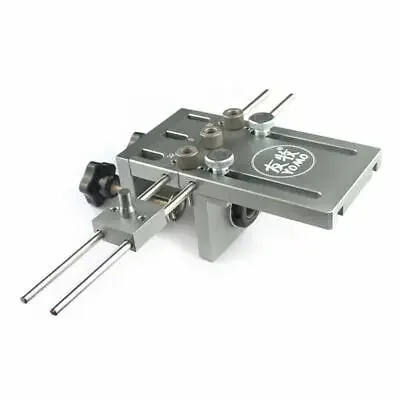

1. Adjustable drill guide rails to easily meet your drilling requirements.

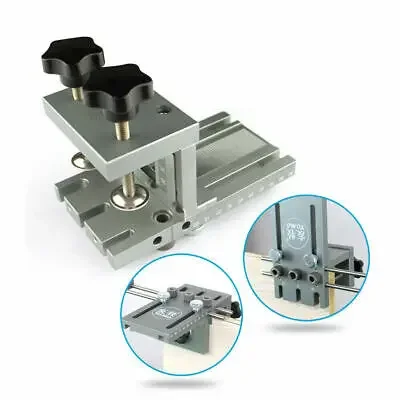

2. Equipped with a special splint, when punching the side, it is not necessary to use a locking pliers to clamp the board.
3. Equipped with 6/8 / 10mm drill sleeve and twist drill to accurately drill holes of corresponding size.
4. Forged with high-quality tool steel, the drill sleeve has good strength and long-term durability.
5. The rigorous and precise process ensures high precision and long service life.

specification:
Drilling guide material: 6061 aluminum alloy
Drill casing material: nitride tool steel
Drill thickness: 10-180mm
Side hole diameter: 15mm
Positive hole size: 6/8 / 10mm

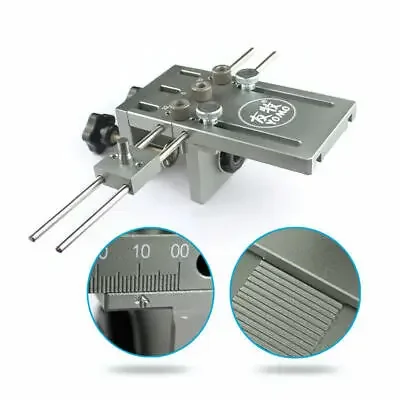

Slider stroke: 5-90mm
Side hole stroke: 23-43mm
Please refer to the manual for other details.

Package list:
1* extended positioner
3*6mm drill sleeve
3*8mm drill sleeve
3*10mm drill sleeve
2* knurled bolt
1*6mm limit ring
1*8mm limit ring
2*10mm limit ring
2* star screw
1*15mm hole opener
1*6mm drill bit
1*8mm drill bit
1*10mm drill bit
1* crescent wrench
1* clamping plate
1* slider set
1* motherboard
2* gasket
2* hex wrench
1* instruction manual

Note:
Since the slider slides 2mm each time, it can only be aligned with the center of the 10, 14, 18, 22mm and other boards. If the thickness of the plate is not these thicknesses, it cannot be aligned with the center to punch holes without adding a gasket.
