Feature:
High-definition color screen display: TFT high-definition color screen is used, the screen layout is ingenious, the function data is clear at a glance, and the visual recognition efficiency is faster and smoother
Sorting and comparison function: Eight groups of voltage and resistance values are pre-set. Whether it is batch screening of high-quality batteries or precise positioning of problem batteries, it can be completed in an for instant, greatly improving work efficiency
Full-process recording: Equipped with automatic retention of test records, so that the test results are clear at a glance, and say goodbye to vague memories. It can also be connected to a computer to export and analyze test data

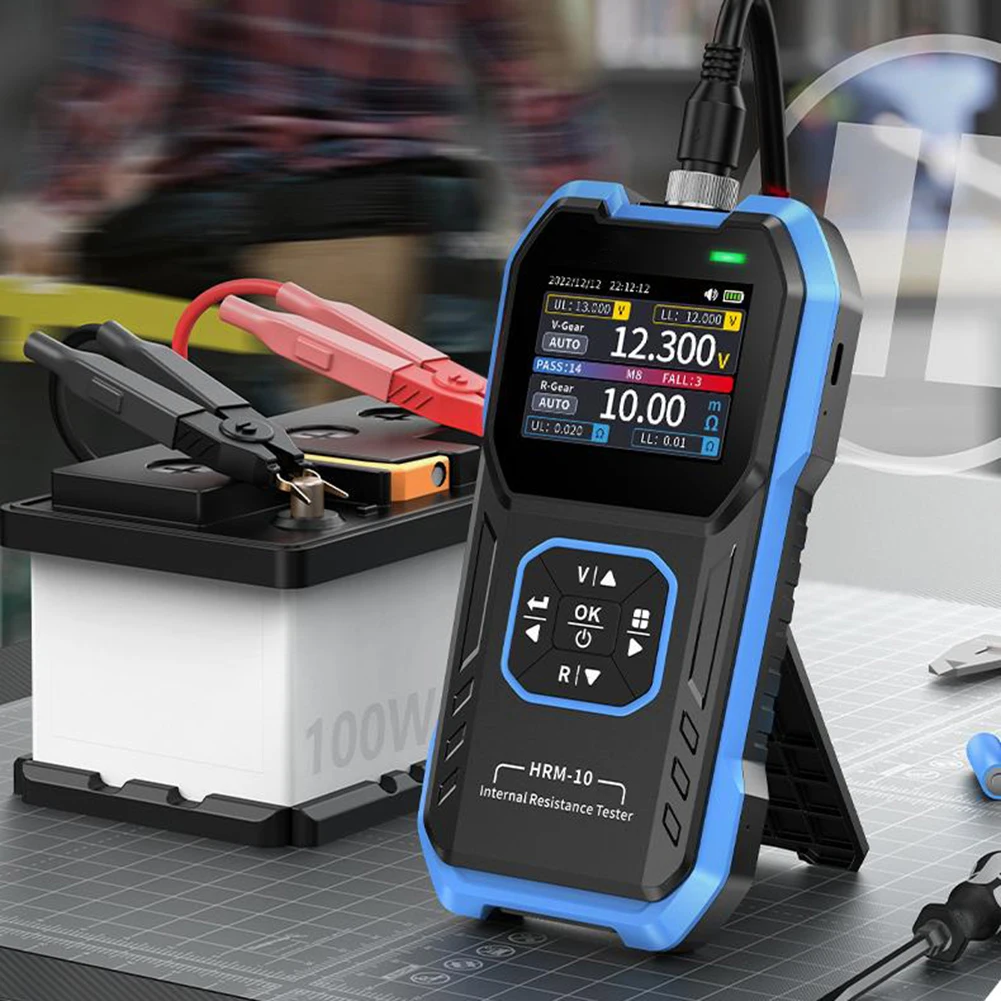

Touch and know: The test uses a Kelvin 4-wire connection to connect and measure, avoiding the influence of wire resistance and contact resistance, and improving test accuracy
Data retention: 1-click pause, the measured data is permanently displayed
Automatic shutdown mode: you can freely choose the automatic shutdown mode or set a specific shutdown time
Specifications:

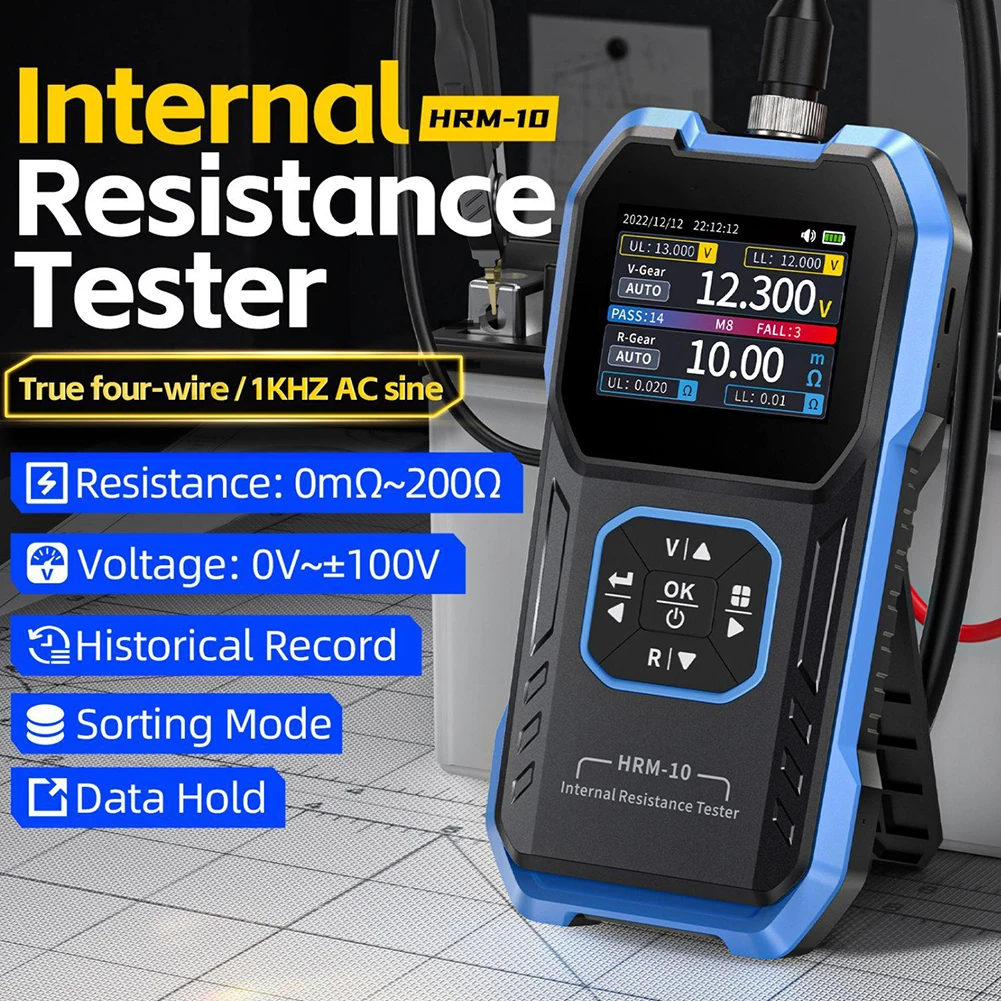

Part Name: Internal resistance tester
Color: As show
Material: Plastic
Model: HRM-10
Range: Voltage 0~±100V (DC); Resistance 0~200Ω
Accuracy: Voltage ±0.5%; Resistance ±0.5%
Gear: Voltage: Automatic, 1V, 10V, 100V; Resistance: Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: TYPE-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: Support
Sorting mode: Support
Historical record: Support
Record data export: Support
Working environment: -10℃—+45℃, relative humidity <80%
Storage environment: -20℃—+80℃, relative humidity <80%
Size: 158.7×80.5×28.4mm
Weight: 225g

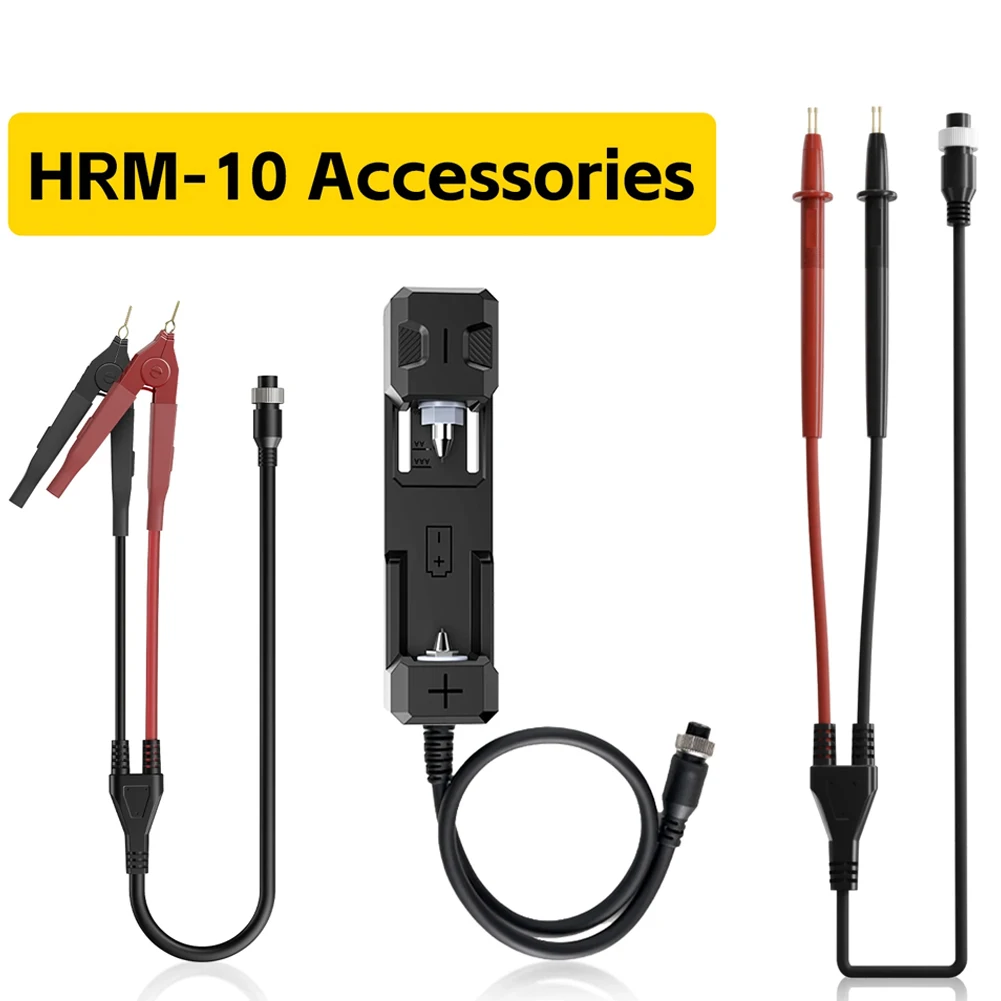

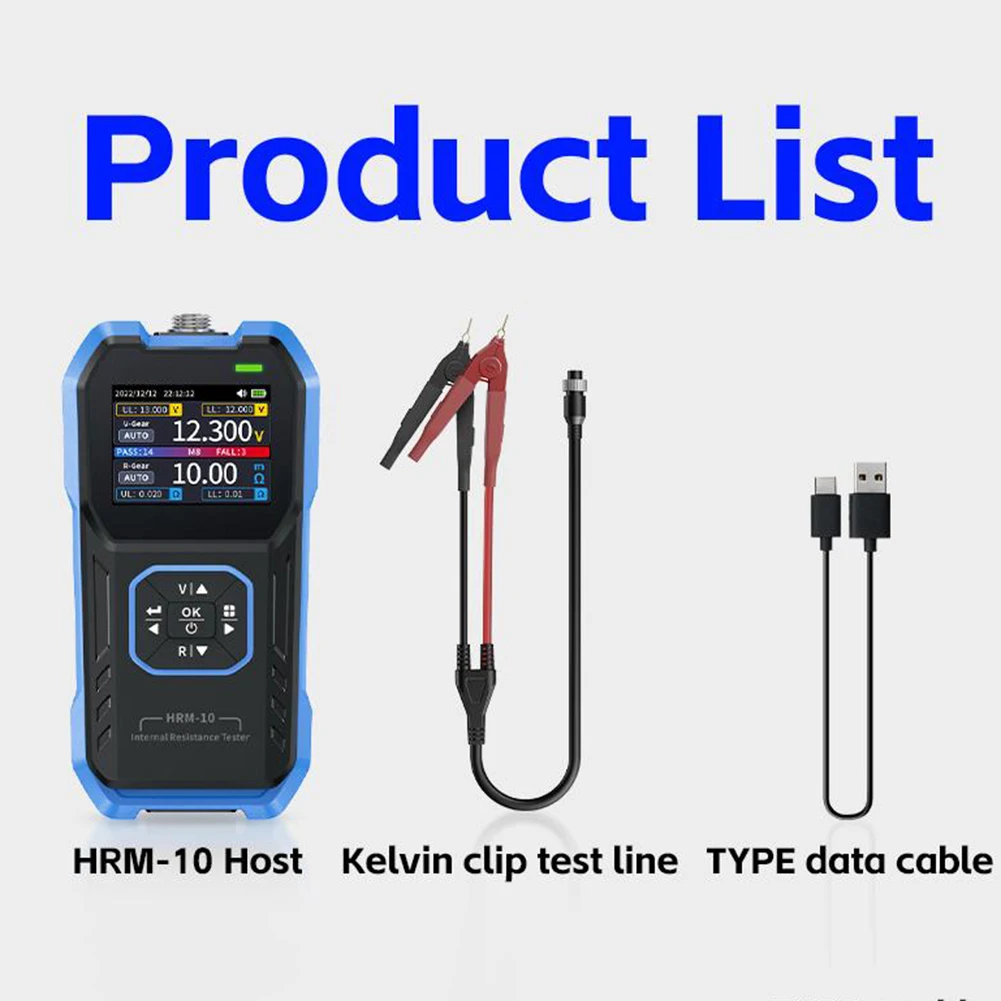

Package Contents:

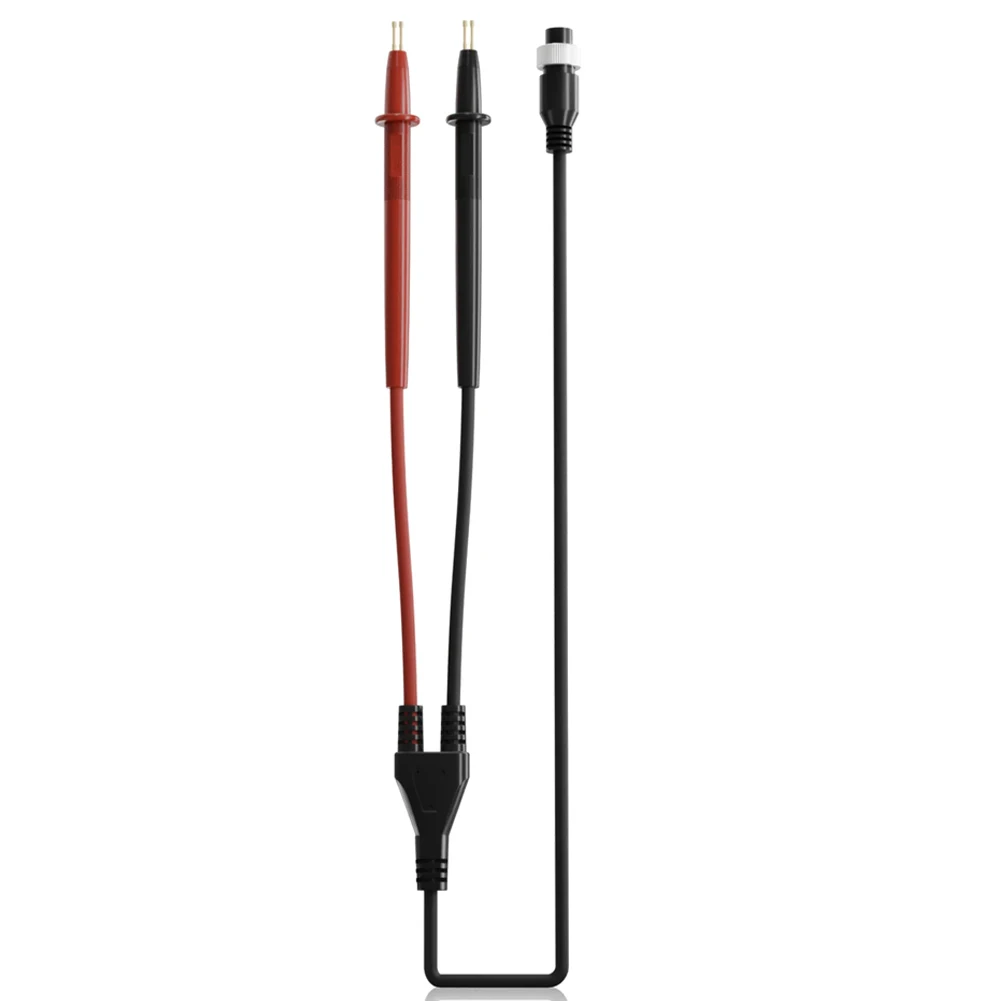

A: 1*Internal Resistance Meter Probe

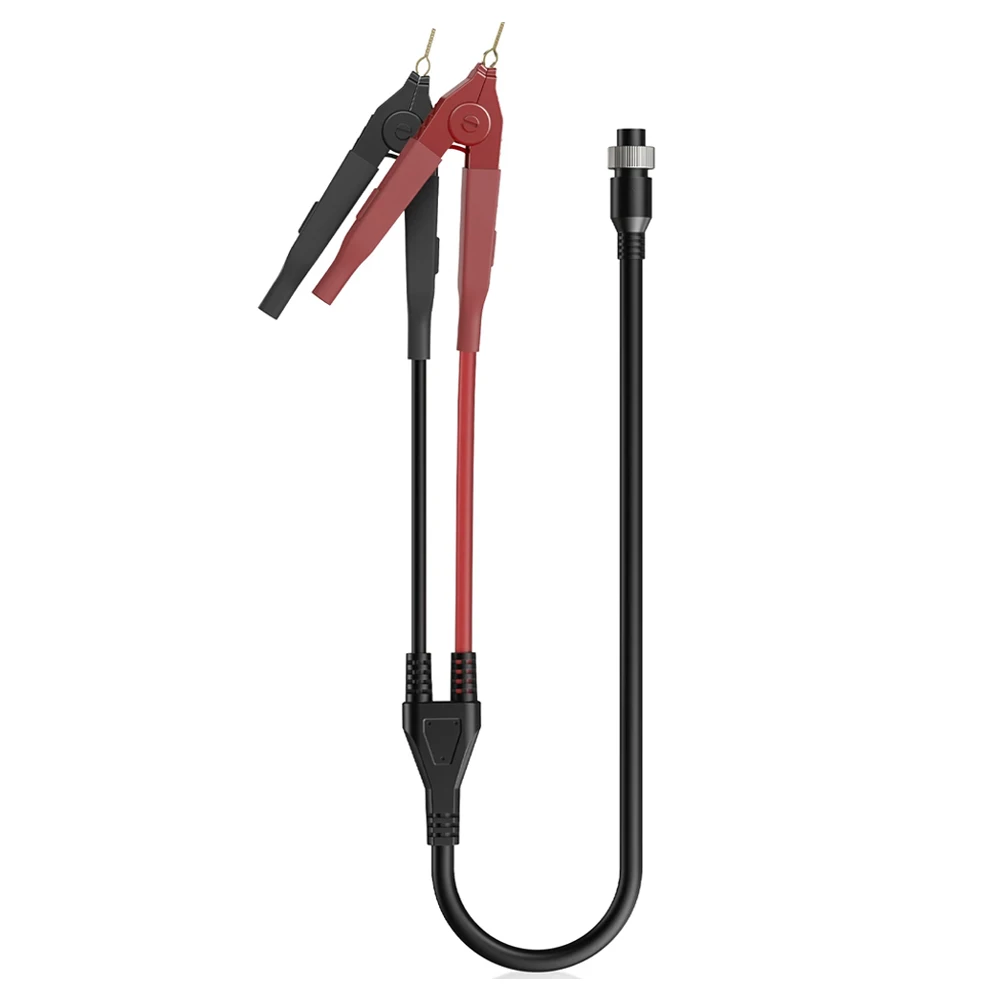

B: 1*Internal Resistance Meter Kelvin Clip

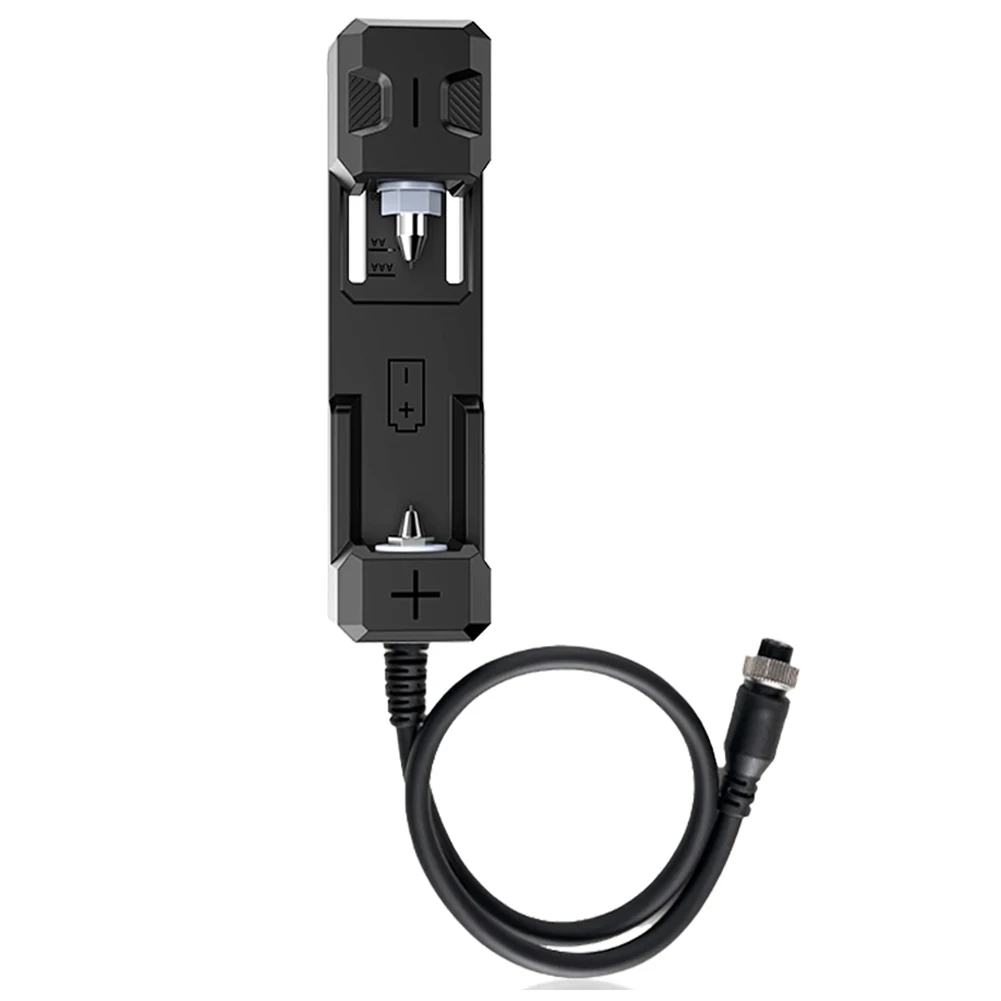

C: 1*Battery Holder

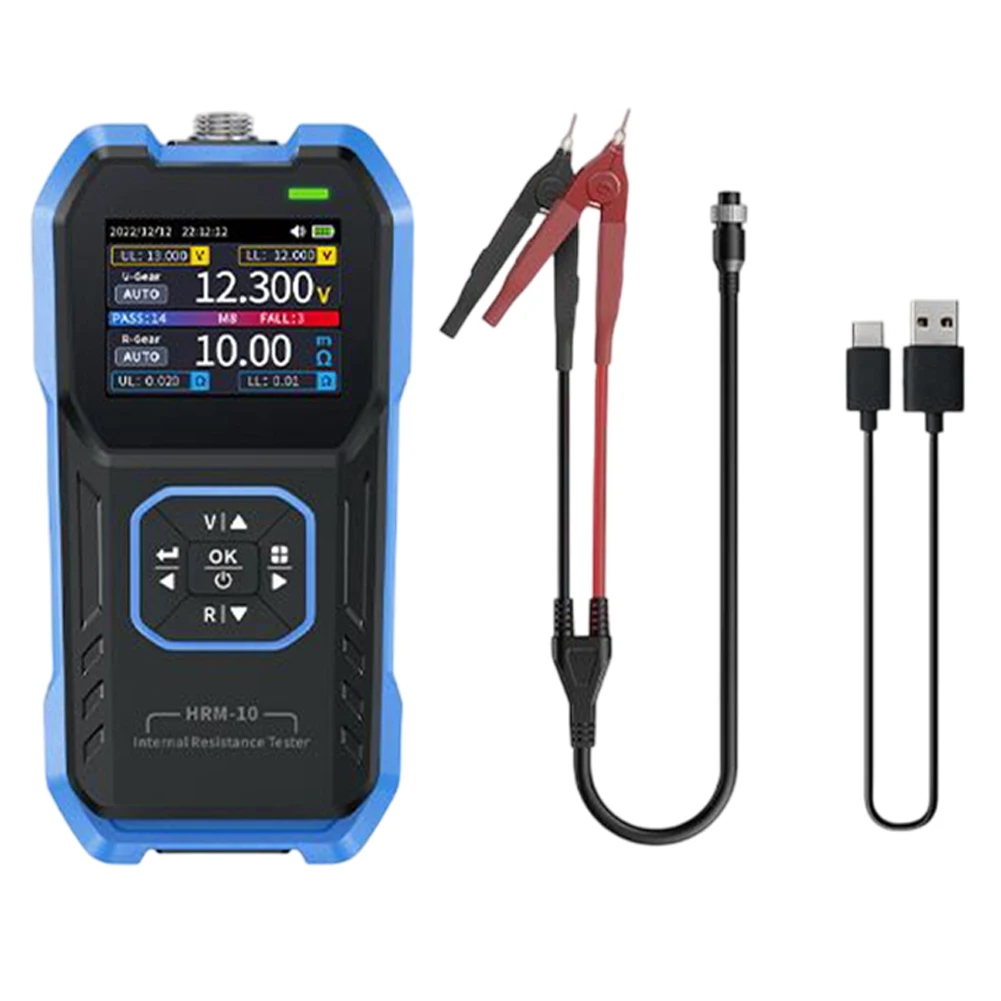

D: 1*Internal Resistance Meter + 1*Internal Resistance Meter Probe + 1*USB Cable

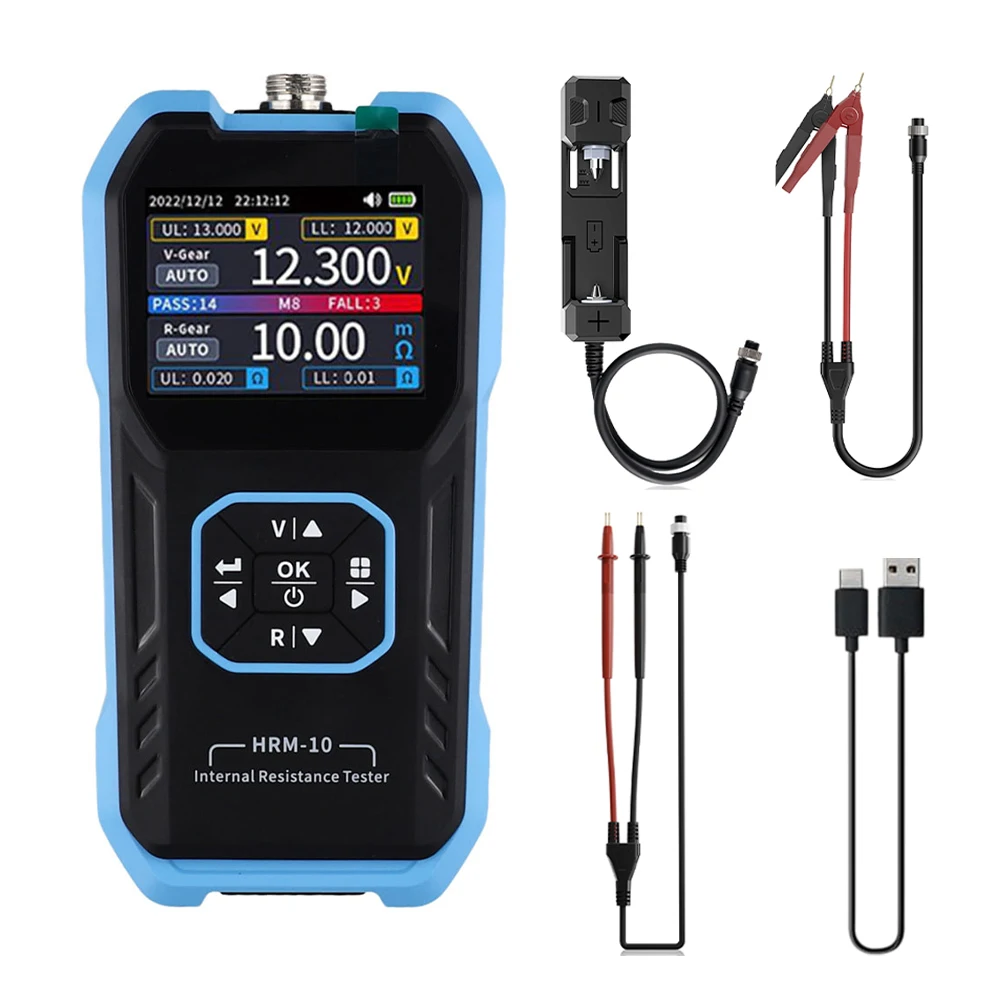

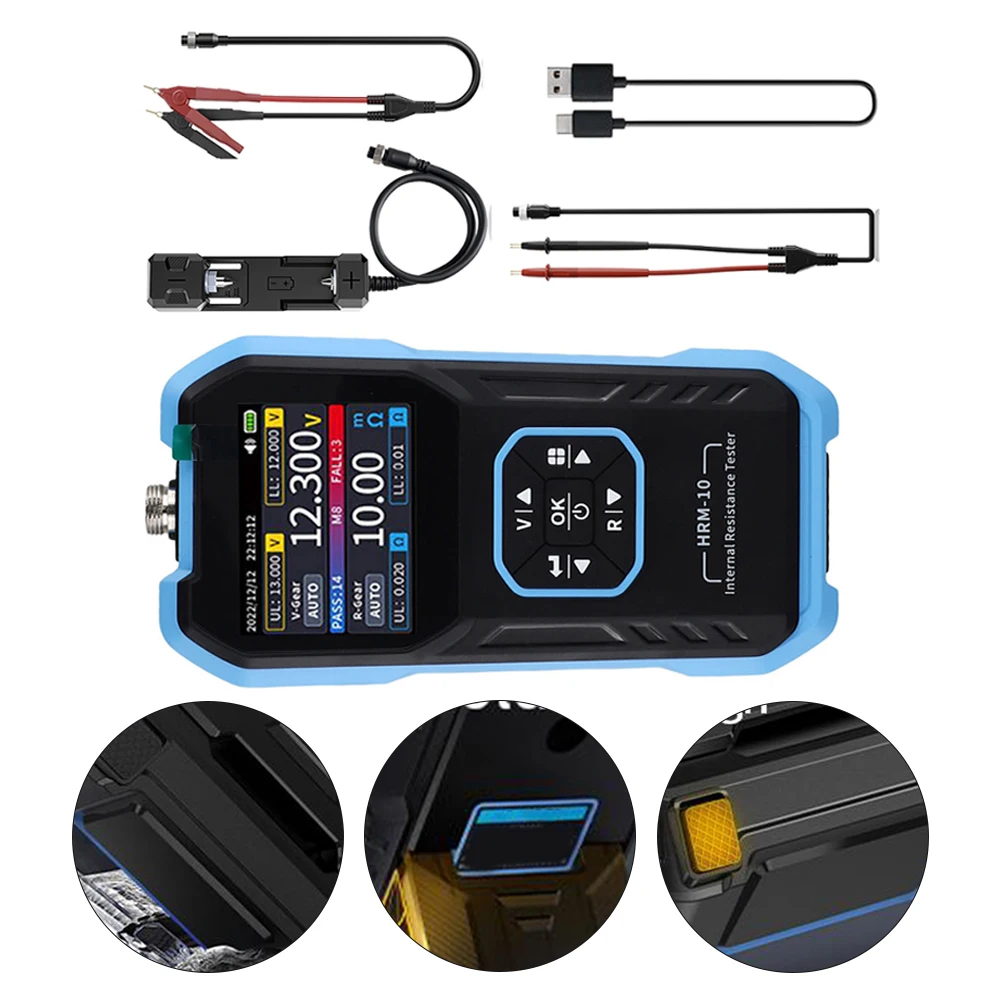

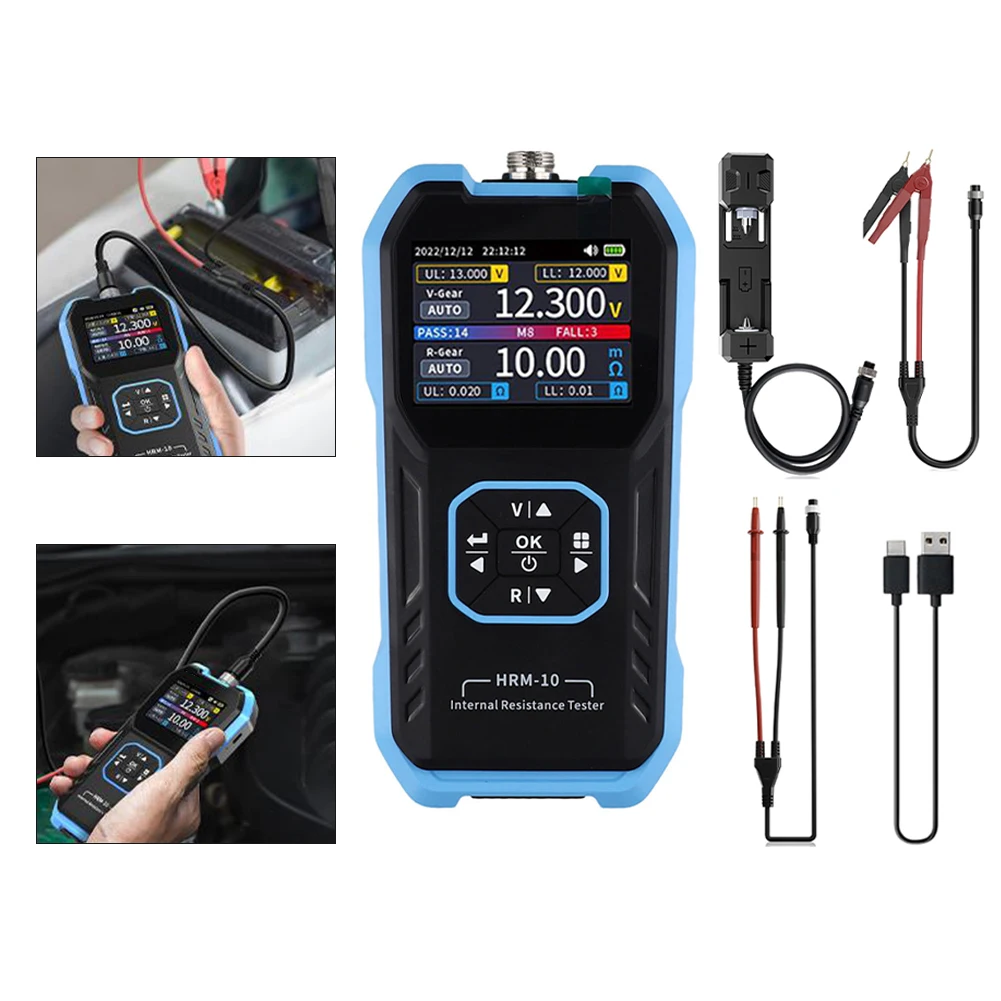

E: 1*Internal Resistance Meter + 1*Internal Resistance Meter Probe + 1*Internal Resistance Meter Kelvin Clip + 1*Battery Holder + 1*USB Cable
Note:
The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
