Specification:

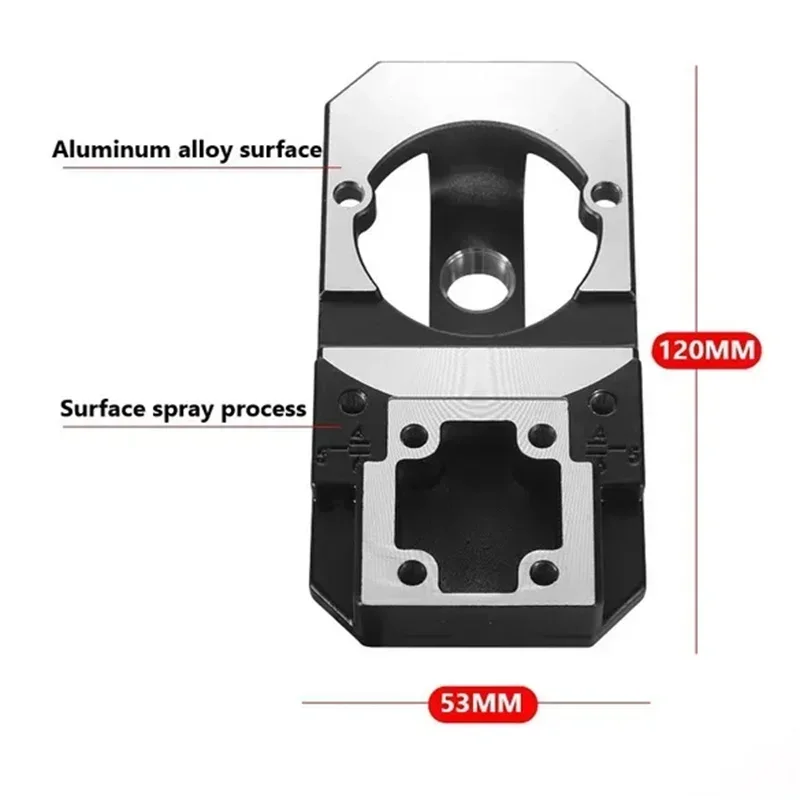

Material: Aluminum alloy material
Product features: Precision manufacturing, accurate positioning and easy operation.
Purpose: 35mm hinge opening installation, door hinge drilling positioning, woodworking auxiliary tool.
How to use:
1. Install a 35mm hole opener, adjust the drilling depth to 12-13MM normally, and then lock the limit ring.

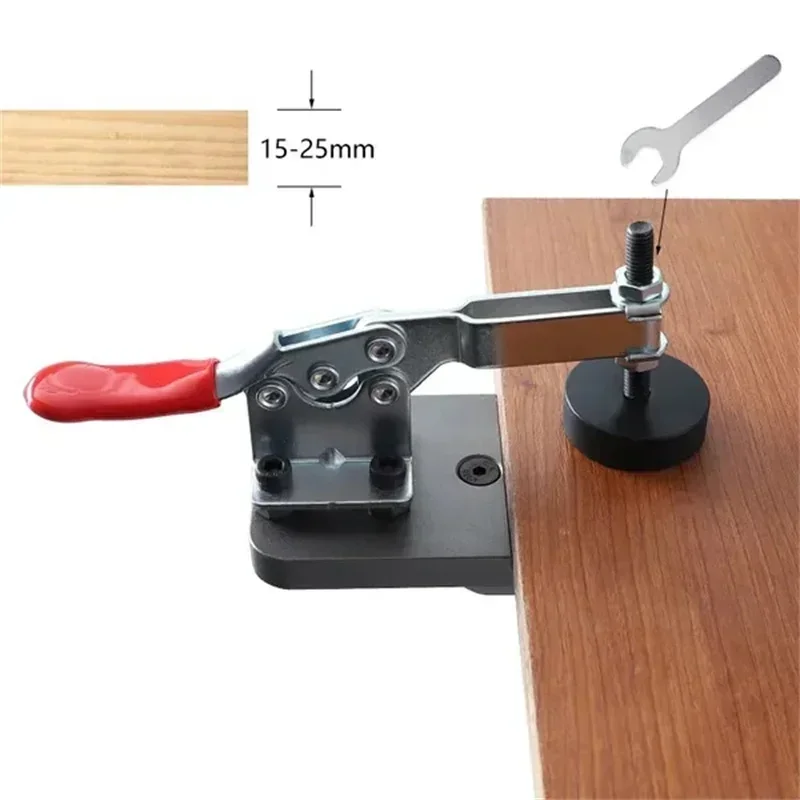

2. Adjust the fixed size of quick clamping black pressing block (Note: the tool can adjust the fixed board size to 15-25mm)
3. Move the puncher to the position of scribing and punching on the board, and lock the quick clip.

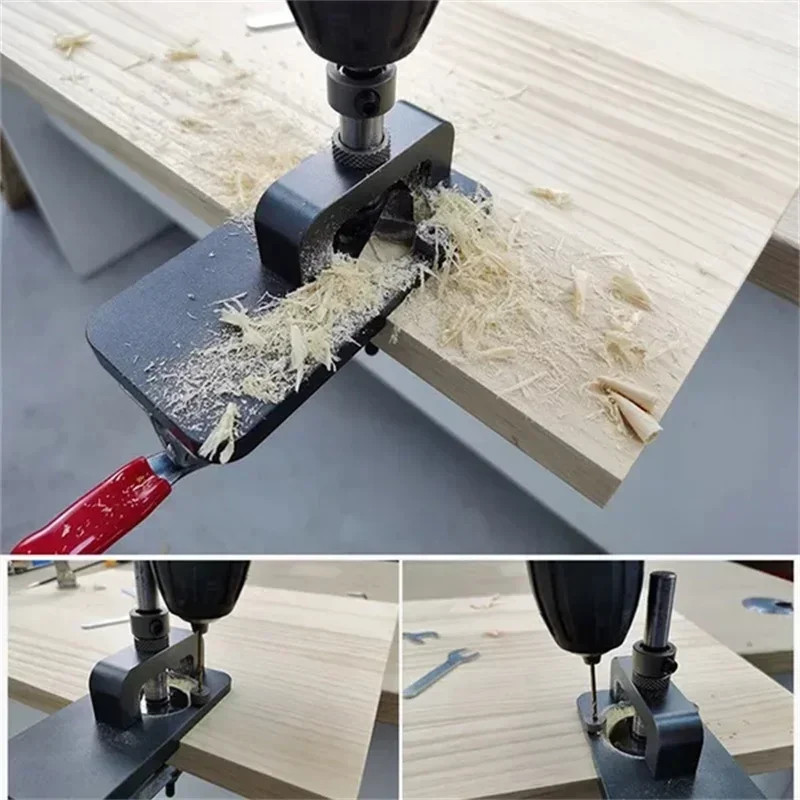

4. The electric drill shall tighten the handle of the hole opener, press down the hole to 12-13MM depth at a uniform speed, and then drill 2mm screw holes on the left and right sides.

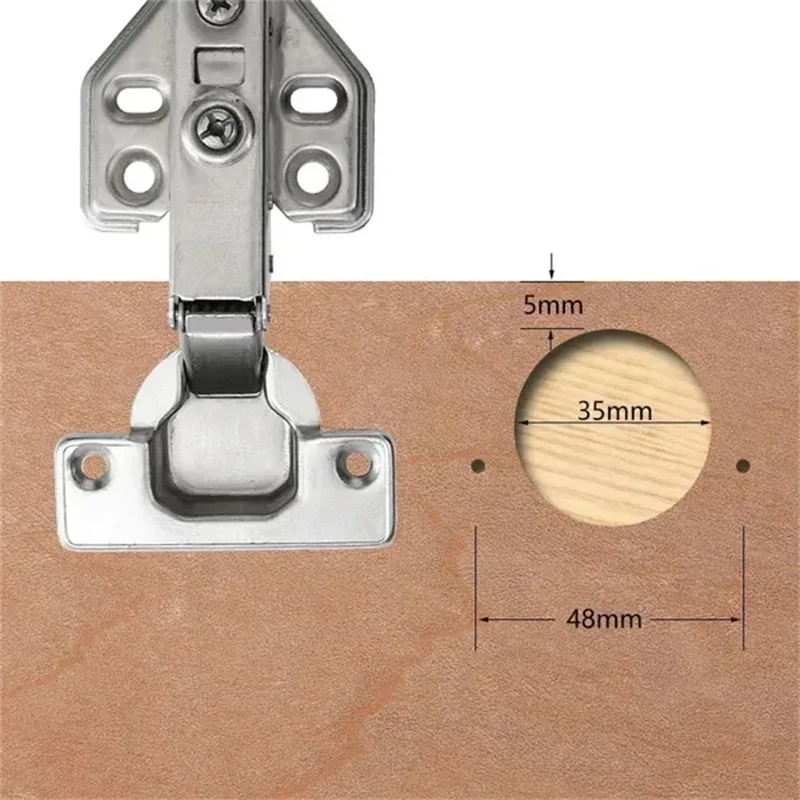

5. The distance from 35mm hole to edge is 5mm, which is suitable for most common hinges.
6. Install 35mm hing

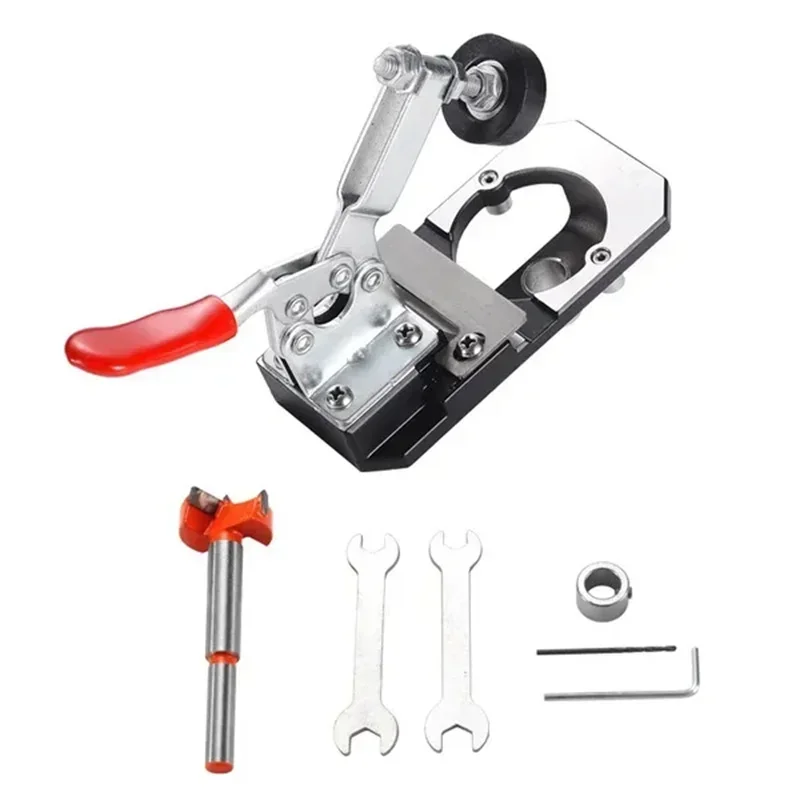

TYPE A Package Content:

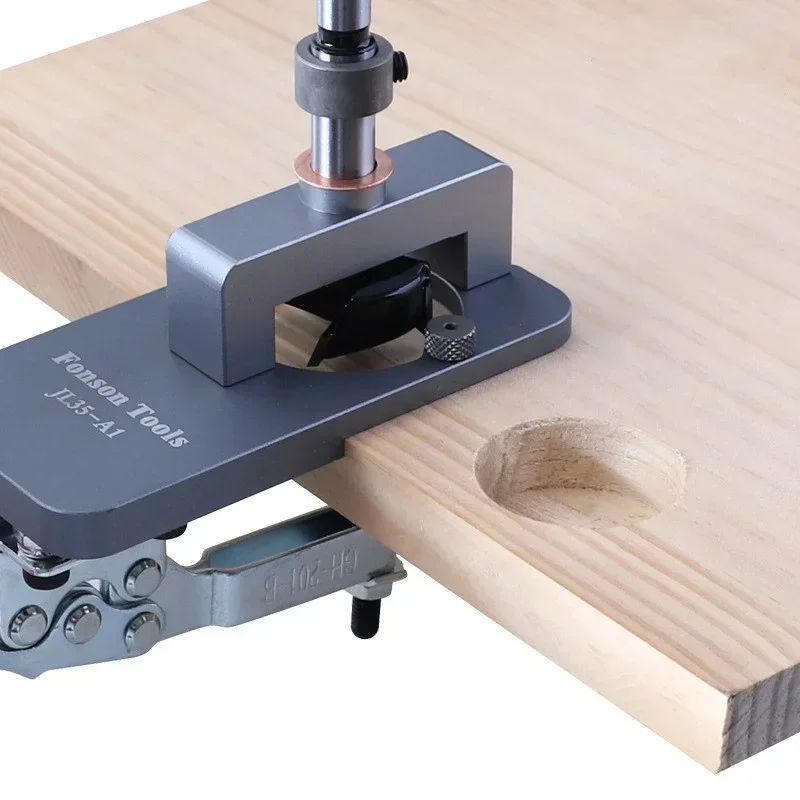

1 * Hinge punch positioner
1 * 35mm hole opener (with limit ring)
2 * Keys
1 * 2mm drill bit
1 * Allen key

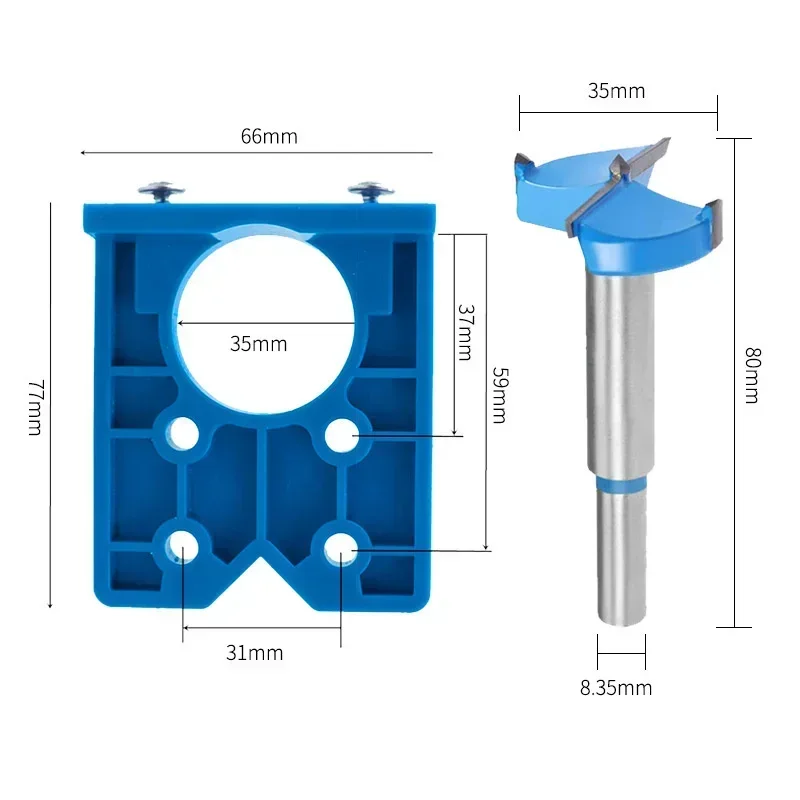

TYPE B Package Content:

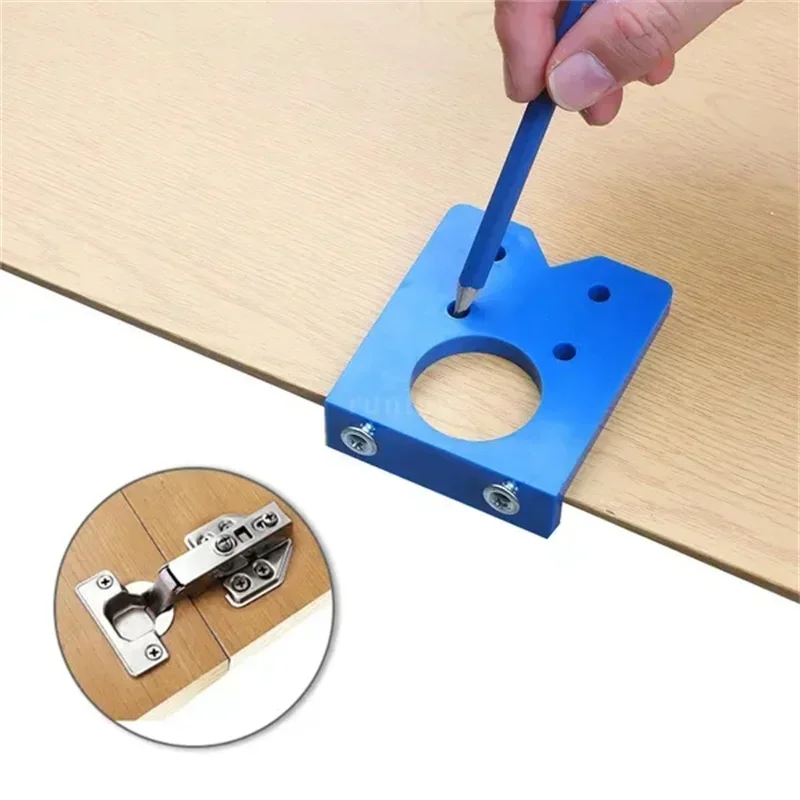

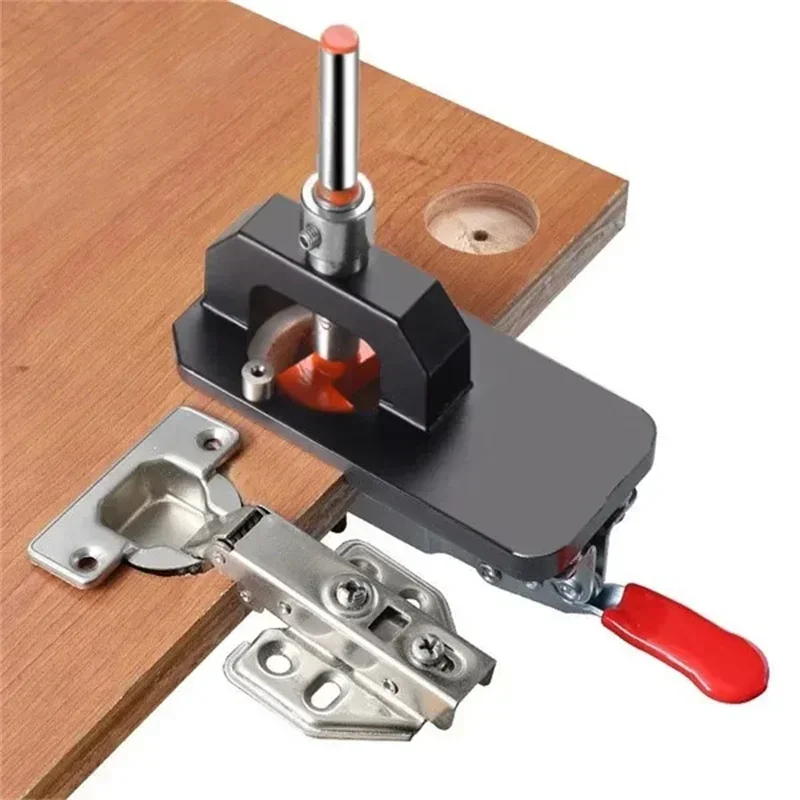

1x Hinge locator
1x 35mm Drill
