Description:
This manual pipe bender is easy to use, high efficiency, guaranteed material, suitable for copper pipe, aluminum pipe, stainless steel pipe and so on.

Specifications:
Model: SWG-22A
Work range: diameter 6-22mm
Bending former:
1/4”(6mm),5/16”(8mm),3/8”(10mm),1/2”(12mm),5/8”(16mm),3/4”(19mm),7/8”(22mm)
Wall thickness of pipe: 1mm
Material: Iron and aluminum (fuselage) , Nylon plastic (mould)
Product size: 33 * 5 *16 cm
Packing size: 52 * 31 * 9.5 cm
Product weight: 4 KG
Packing weight: 5 KG

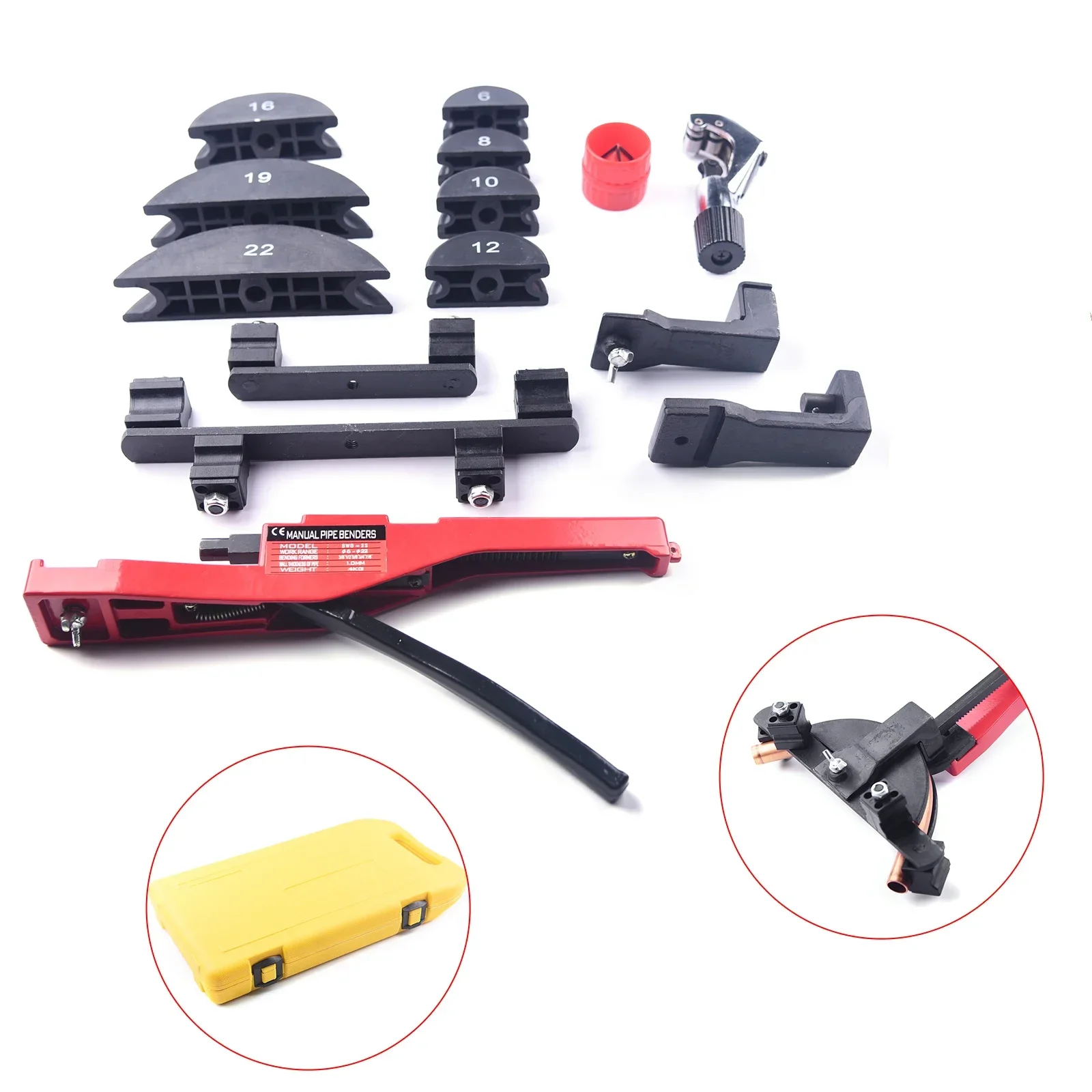

Packing list:
1 x Manual pipe bender

Features:
High quality, guaranteed.
Convenient to use and high efficiency.
Wide application: widely used in the construction industry, chemical factory, central heating, shipping, mechanical engineering, home decoration, construction site, garage and repair workshop.
Usage method:
Fix the base first.
Select the die and roller according to the required elbow size.
When in use, the mold shell is put on the bottom axle, then the bracket is put on the axle, and then the roller is put on the bottom axle λ Fix the positioning block with bolts.
Pull the bracket to the rocker plate, insert the pipe to be bent into the middle of the die and the roller, and adjust the nut to make the die, the pipe and the roller fit together. Then pull the handle.

Notes
1.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
2.Our aim is to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.
