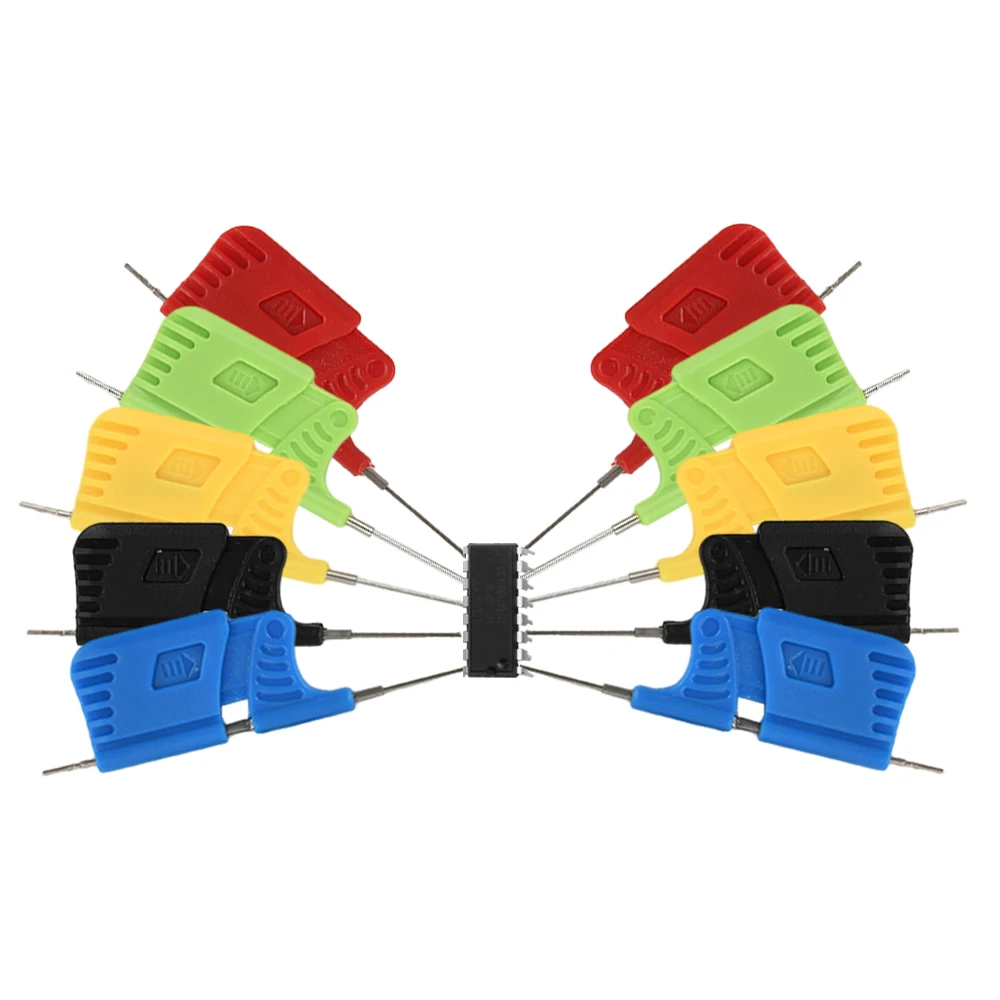

10PCS Universal IC Chip Micro IC Clamp SOP SOIC TSSOP TSOP SSOP MSOP PLCC QFP TQFP LQFP SMD IC Chip pin Clip DIP Logic AnalyzerFeatures:1. Universal IC compatibility: suitable for a variety of SMD/IC packages, such as SOP, TSSOP, QFP, etc.2. Precise clamping design: for chip pins with a pitch greater than 0.3mm to ensure stable contact3. Safe isolation layer: The surface of the clamp is covered with a non-conductive isolation layer to ensure safe handling.4. Simple and easy to use: simple clip design, without soldering can be quickly and easily tested5. Compact and portable: the smallest integrated circuit clips, portable design, easy to use in a variety of electronic projects
Parameter:

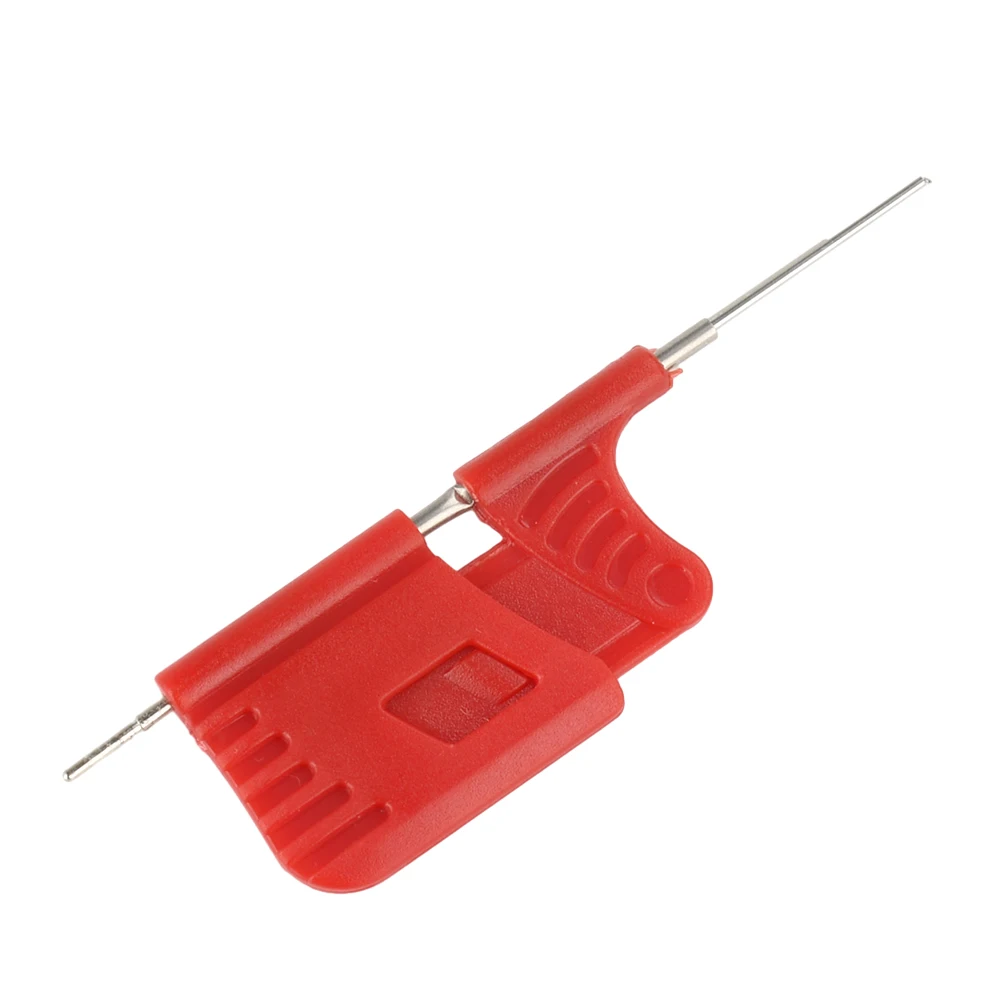

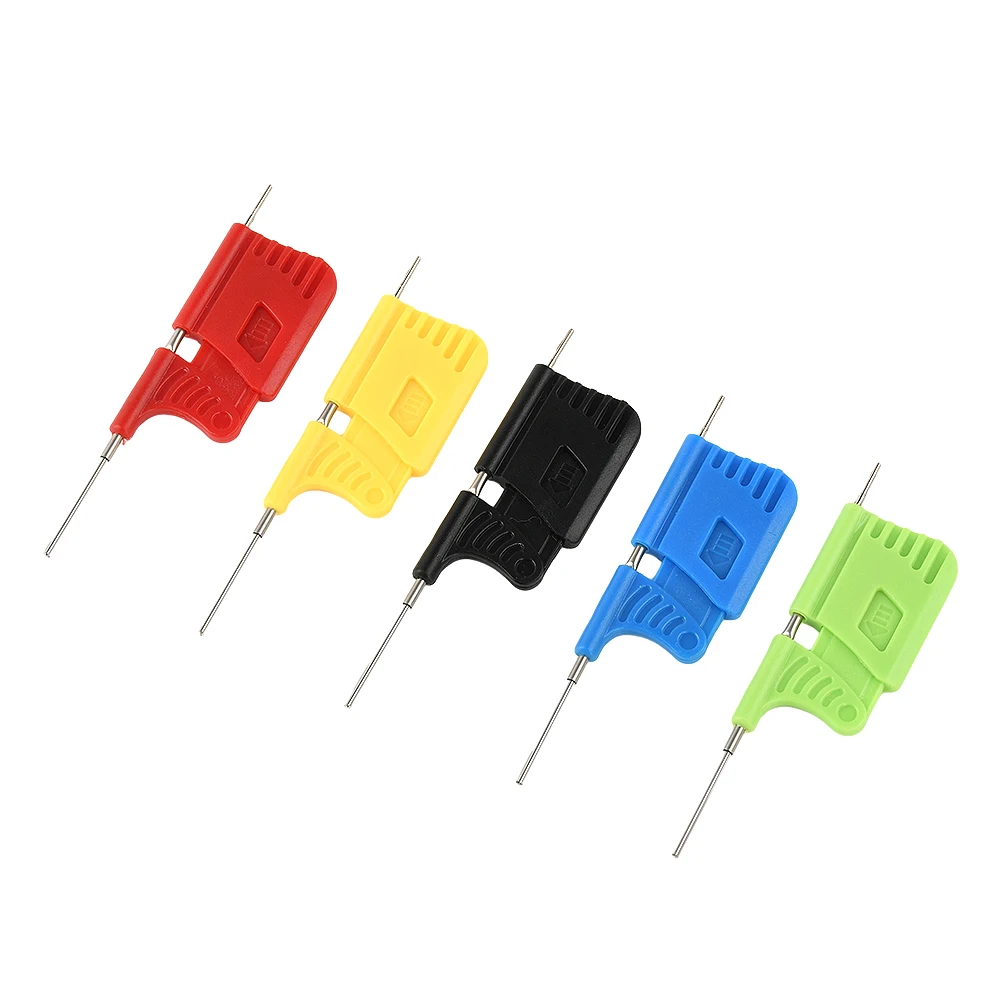

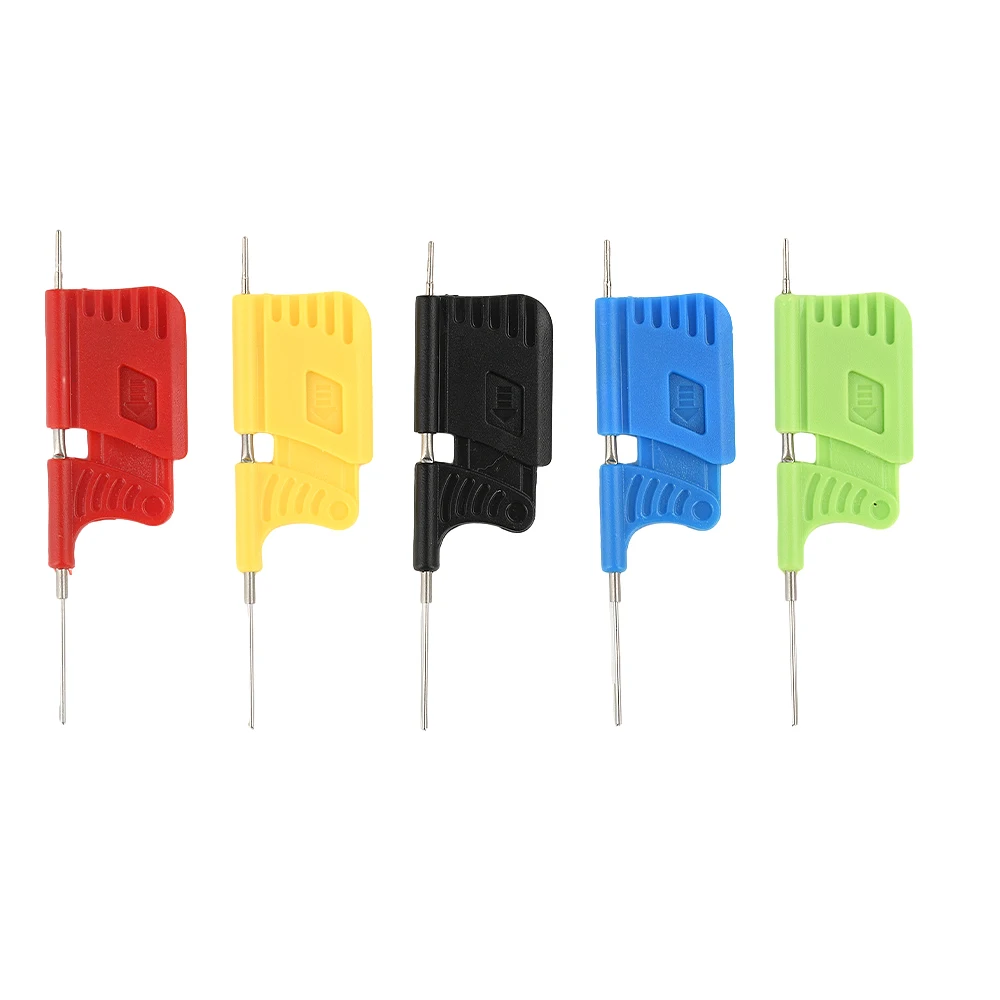

Product Name: SDK08 Chip Test Clip
Voltage: DC 40V
Current: 2A
Usage:
Step 1: Insert the DuPont cable.

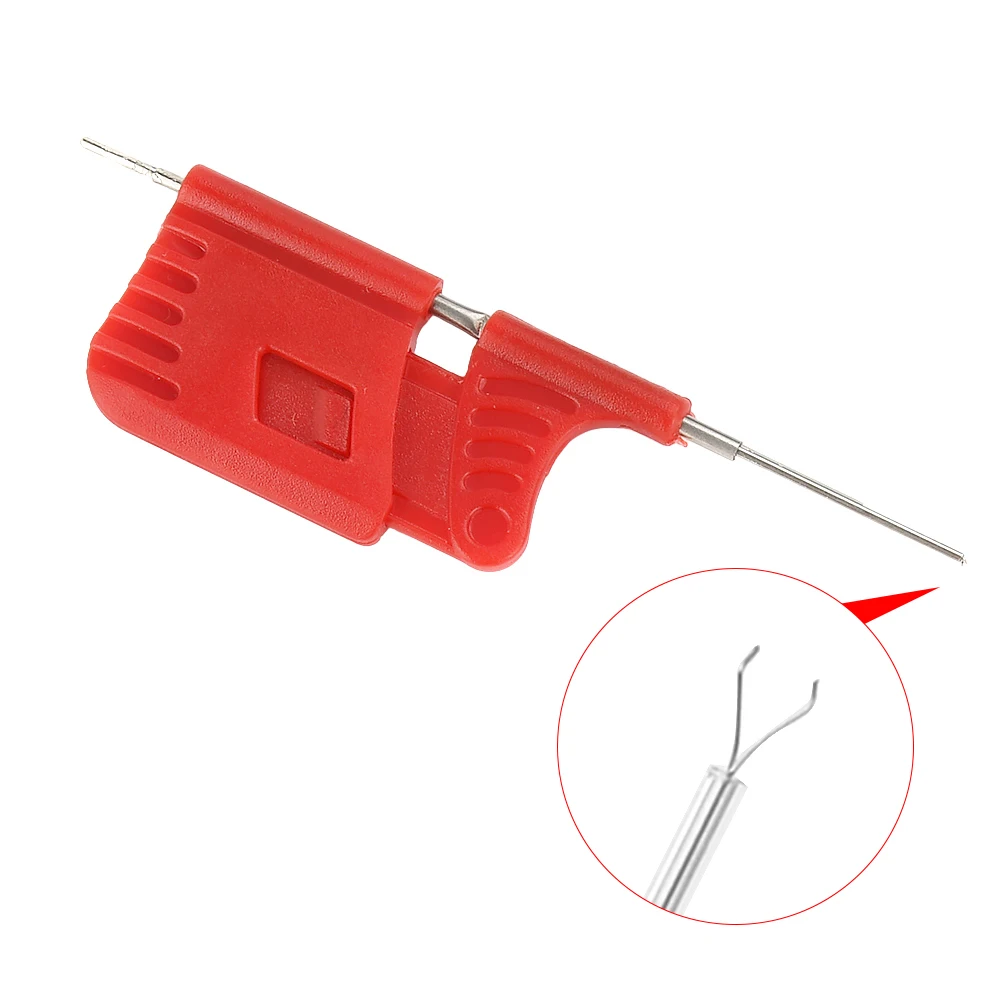

Step 2: Push out the clip.

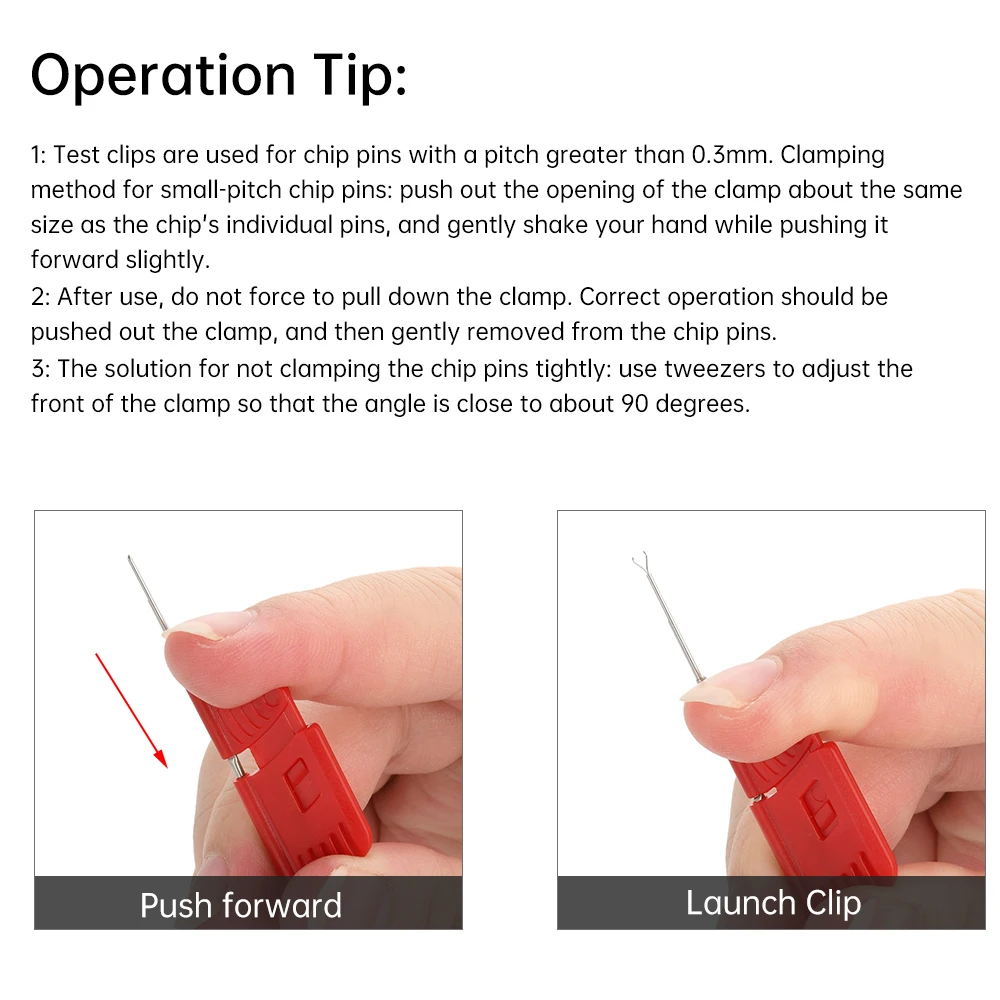

Operation Tips:

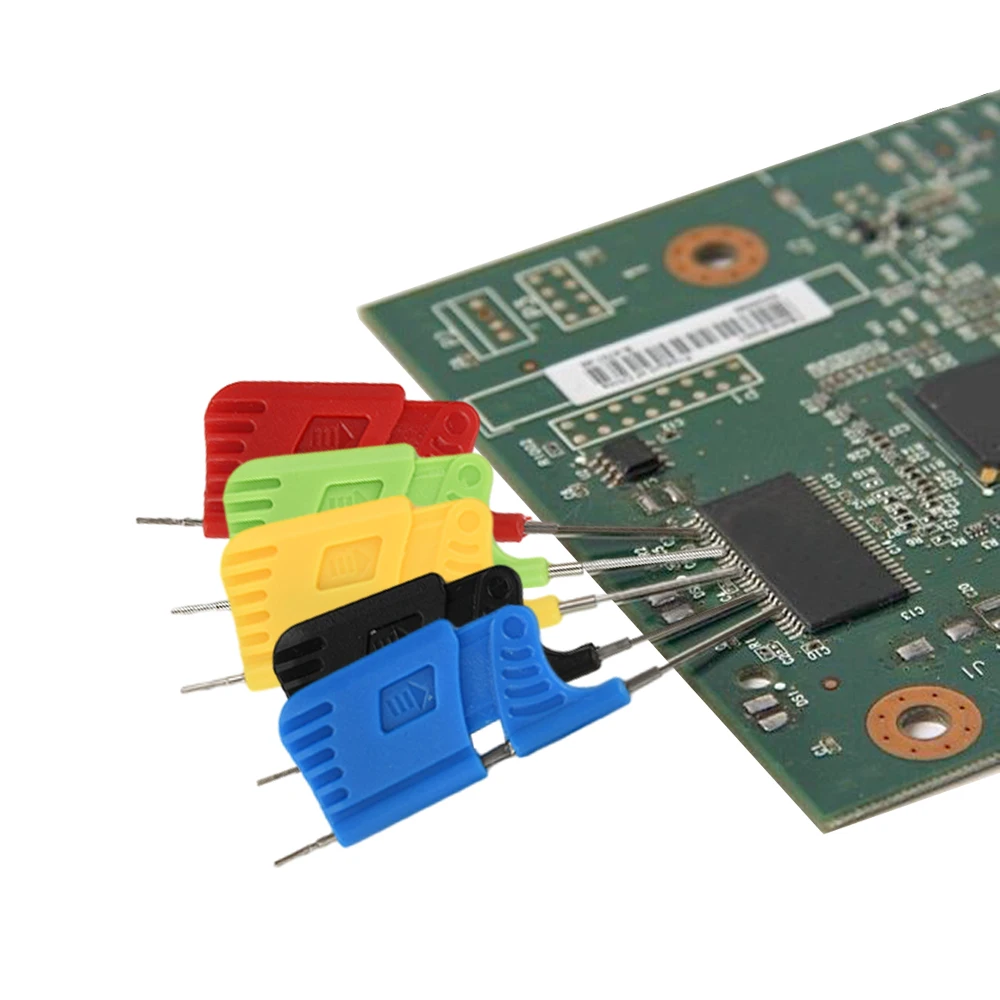

1: Test clips are used for chip pins with a pitch greater than 0.3mm. Clamping method for small-pitch chip pins: push out the clip opening with the chip individual pins about the same size, the hand while gently shaking, while slightly forward.
2: After use, do not force to pull down the clamp. Correct operation should be pushed out the clamp, and then gently removed from the chip pins.
3: Solution for not clamping the chip pins tightly: use tweezers to adjust the front of the clamp so that the angle is close to about 90 degrees.
Package include:
Test clip x 1

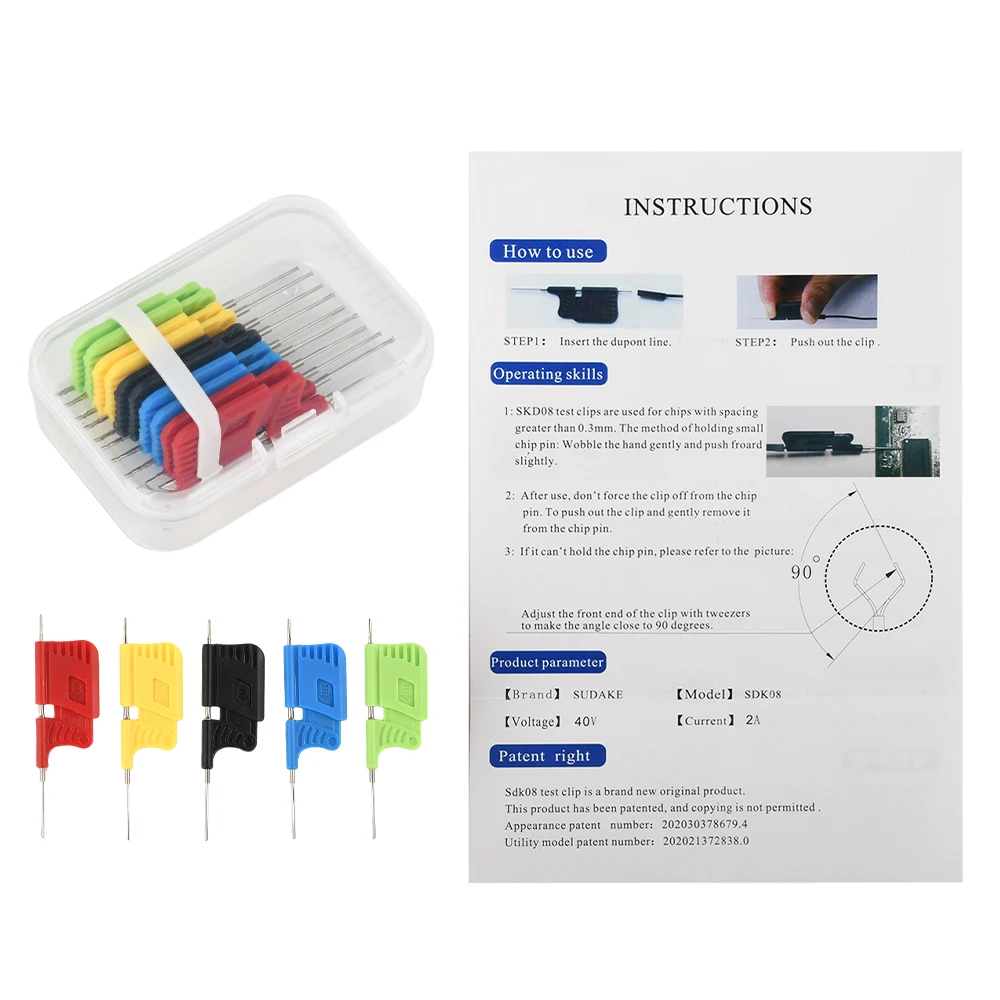

Instruction manual x 1
