Product description

Product description:
The DPS series products are a high-precision DC-regulated four-bit switching power supply with three windows, which can display voltage, current and power at the same time. Products are widely used in the maintenance of mobile phones, computers, schools and production lines. The output voltage and output current can be continuously adjusted between 0 and the rated value. The stability of the power supply and ripple coefficient are very good, with USB fast charging function and perfect short circuit protection circuit. It is small, beautiful in design, convenient to operate and can work for long hours under full load. It is loved by the large number of users.
Specifications:
Model: DPS305U/DPS3010U/DPS605U
Output voltage: 0-30V for 305U/3010U, 0-60V for 605U.
Output current: 0-5A for 305U/605U, 0-10A for 3010U
Output power: 150W for 305U, 300W for 3010U/605U

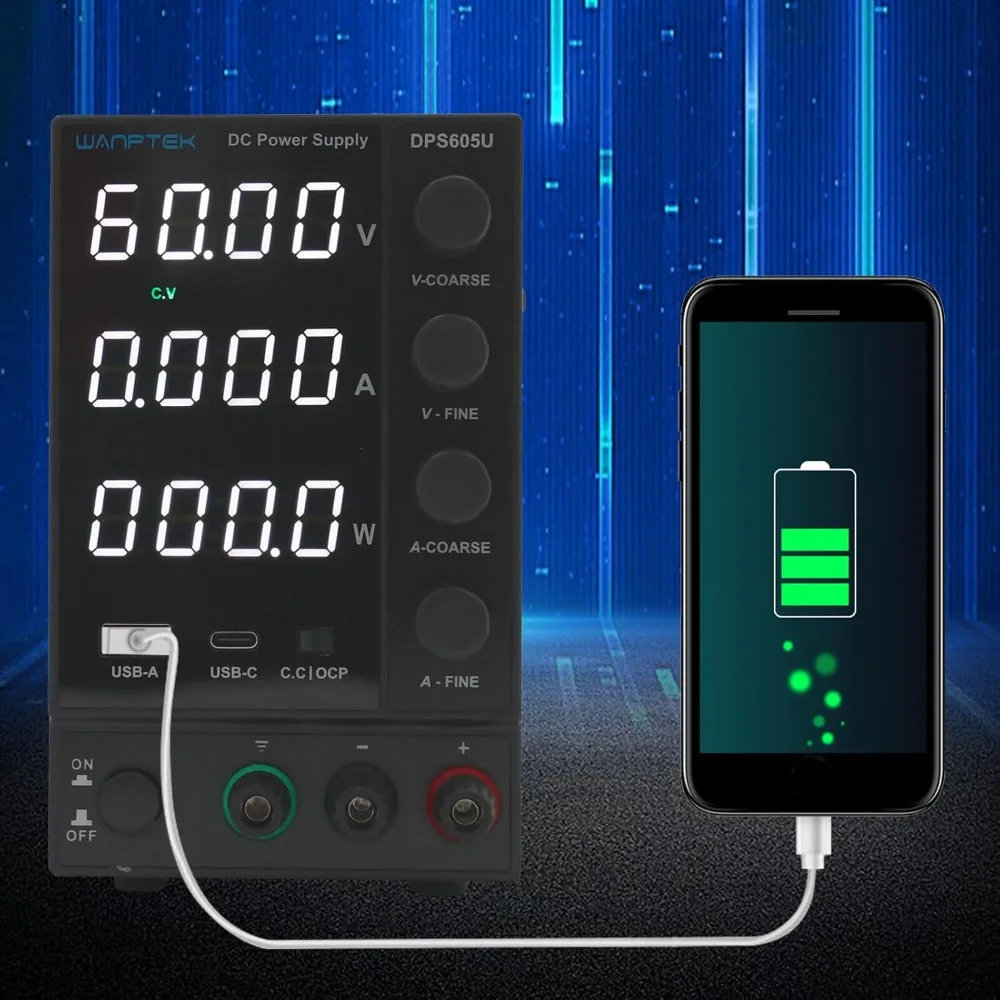

Auxiliary output: USB Quick Charge 18w, supports multiple quick charging protocols
Input voltage: AC 220 V, 50 Hz.
Working temperature 0-40 °C; humidity: 80% RH.
Storage temperature -10-70 °C; humidity: <70 % RH.
C.V: voltage stability ≤0.1% + 3mv; load stability≤0.1% + 3mv; ripple noise: ≤20mvrms (effective value).
C.C:Current stability ≤0.1% + 3MA; Load stability≤ 0. 2% + 3MA; Ripple noise: ≤5mArms (Effective value).
Protection mode:Current limiting protection / short circuit alarm stop output and self-recovery
Display: four-digit digital tube, three-window display.
Accuracy: 0. 5% + 3digit
Resolution: voltage 0.01 V; current 0.001 A.

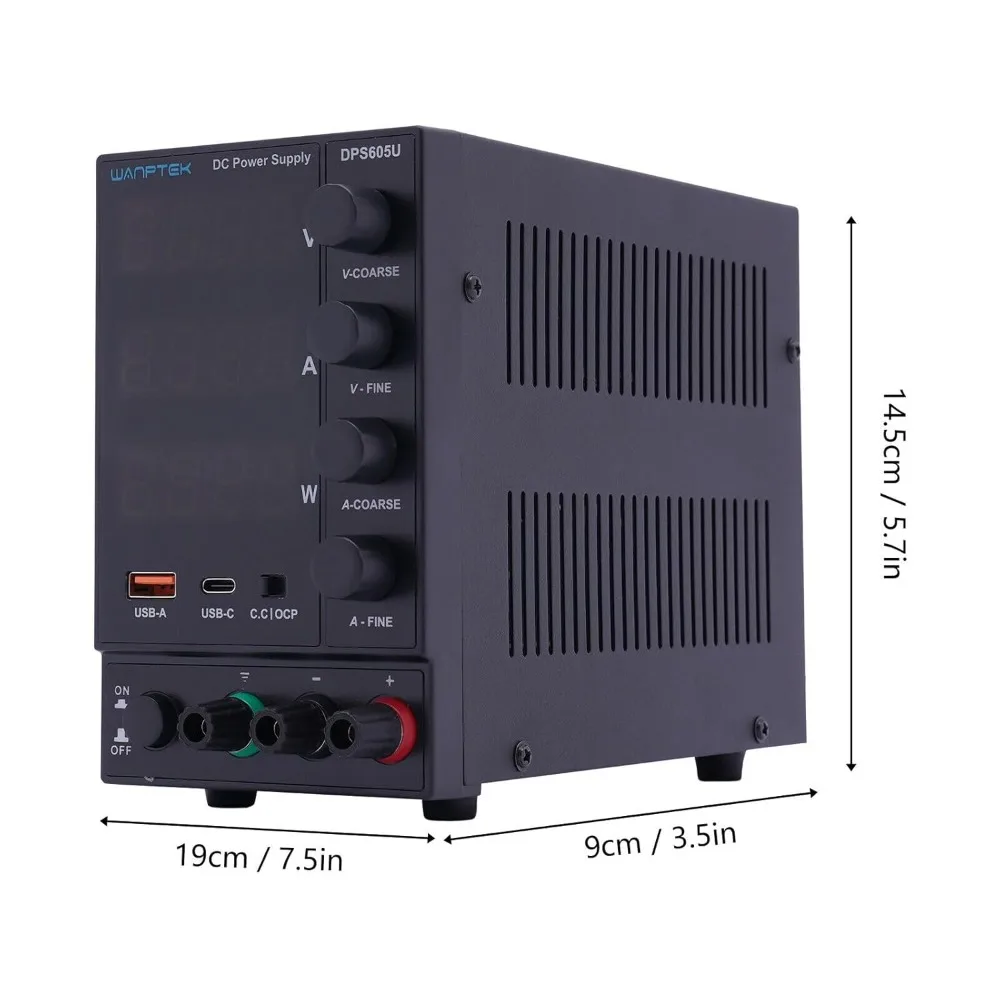

Product size: L225mm x W90mm x H145mm
Weight: 1.8 kg.
Fuse: 2A for DPS305U/3A forDPS3010U/3A forDPS605U

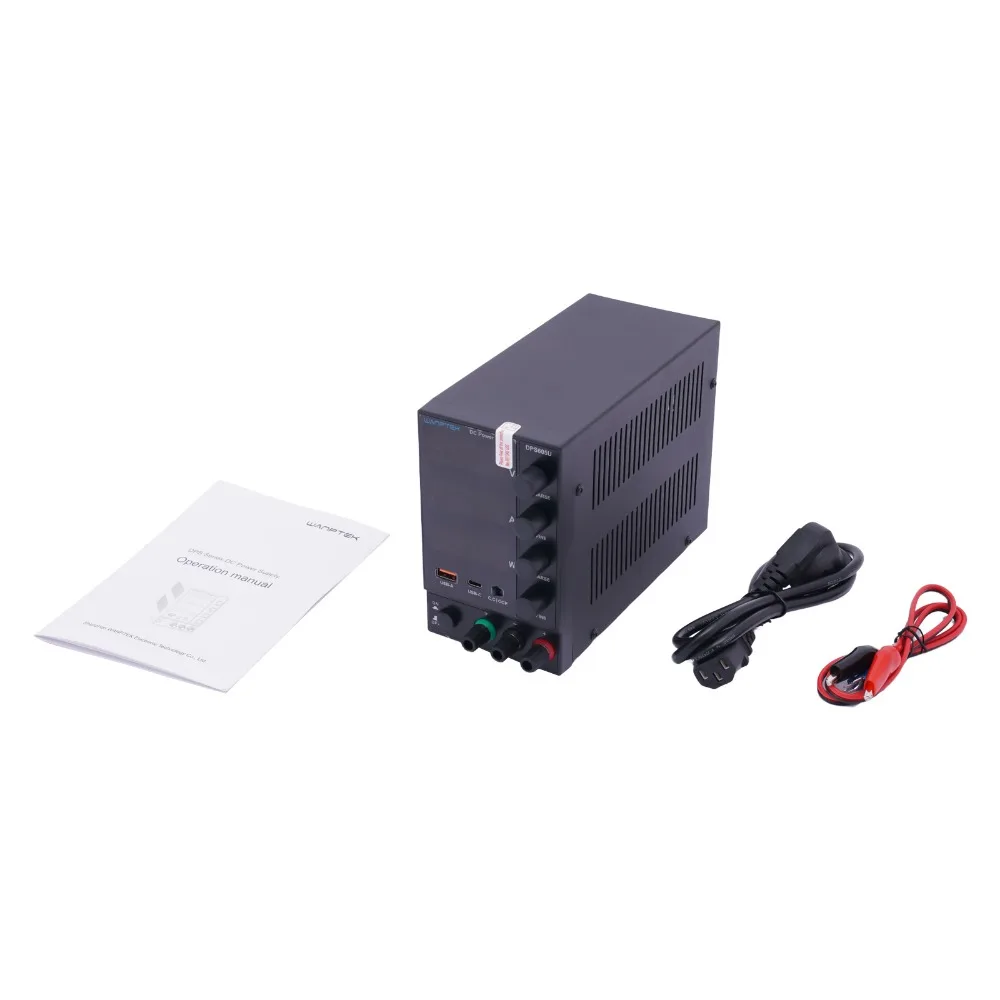

Packing list:
1 x whole machine.
1 x power cable.
1 x output load line.
1 x instructions (English language
