Function:

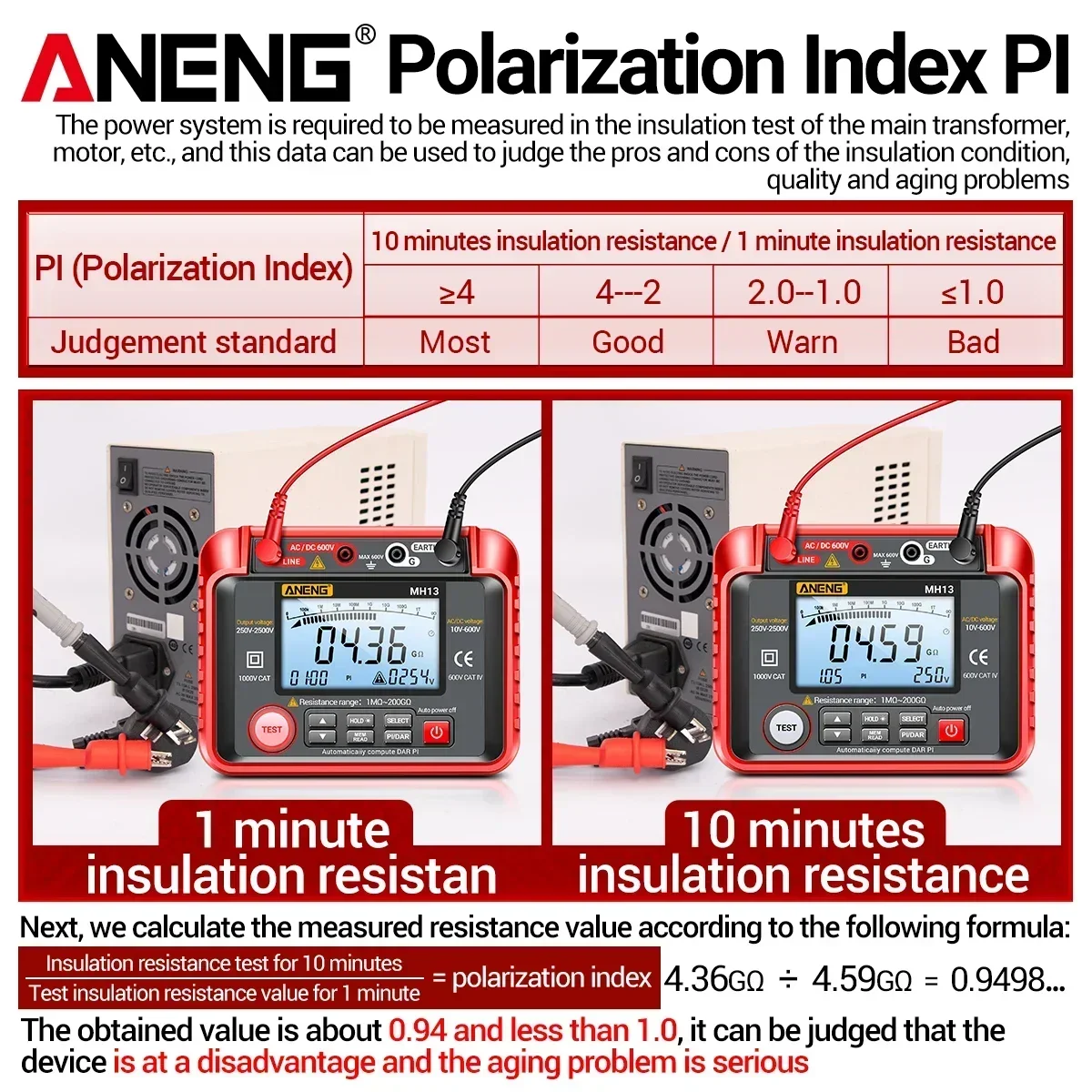

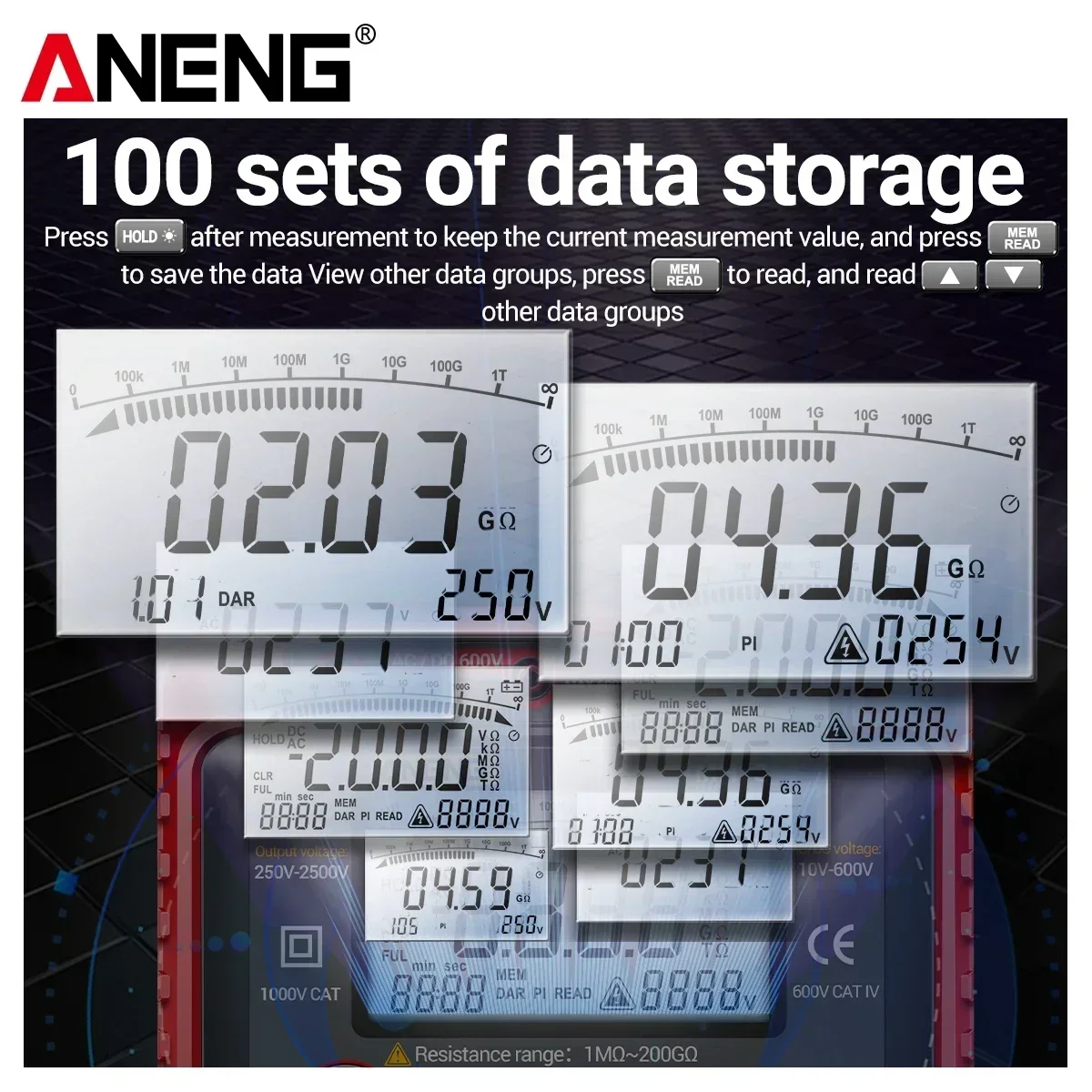

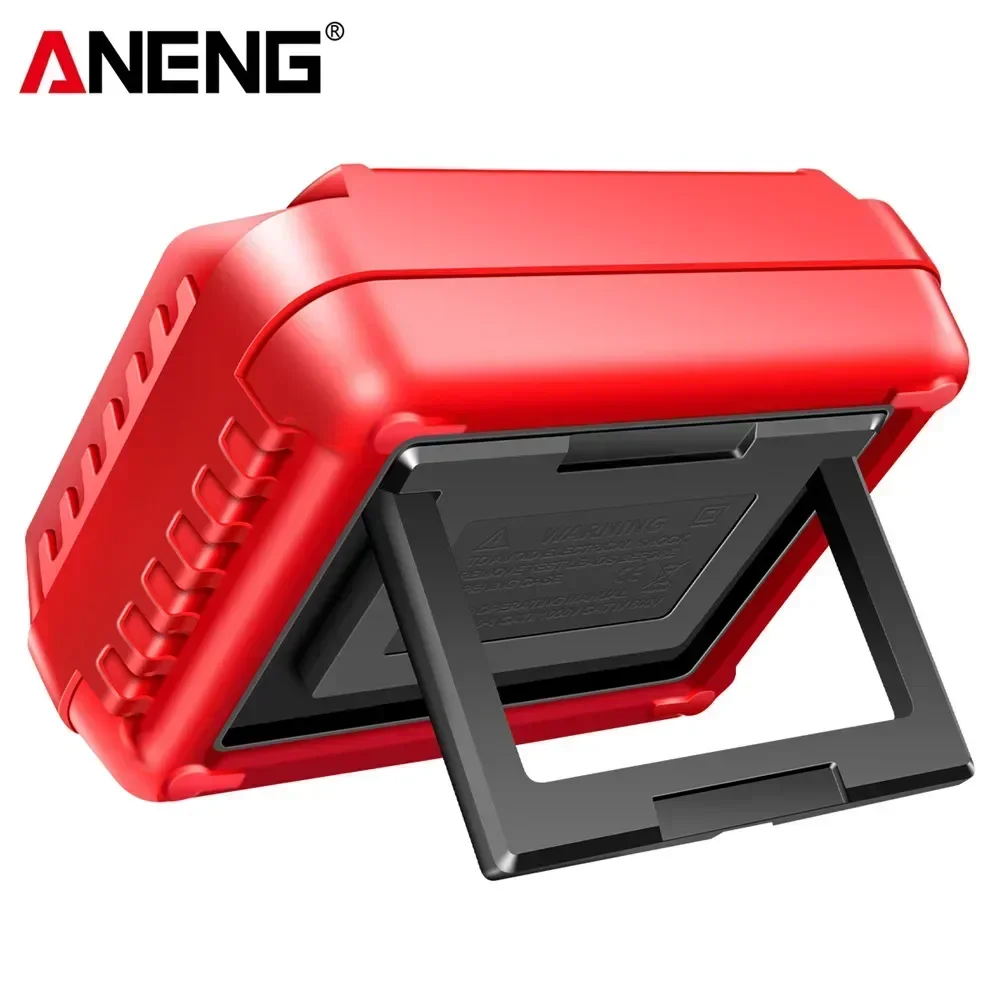

Back support, high voltage indication , measurement time display , test voltage display , 100 groups of data storage game , HD backlight screen , polarization index , auto range , auto unload , low voltage indication

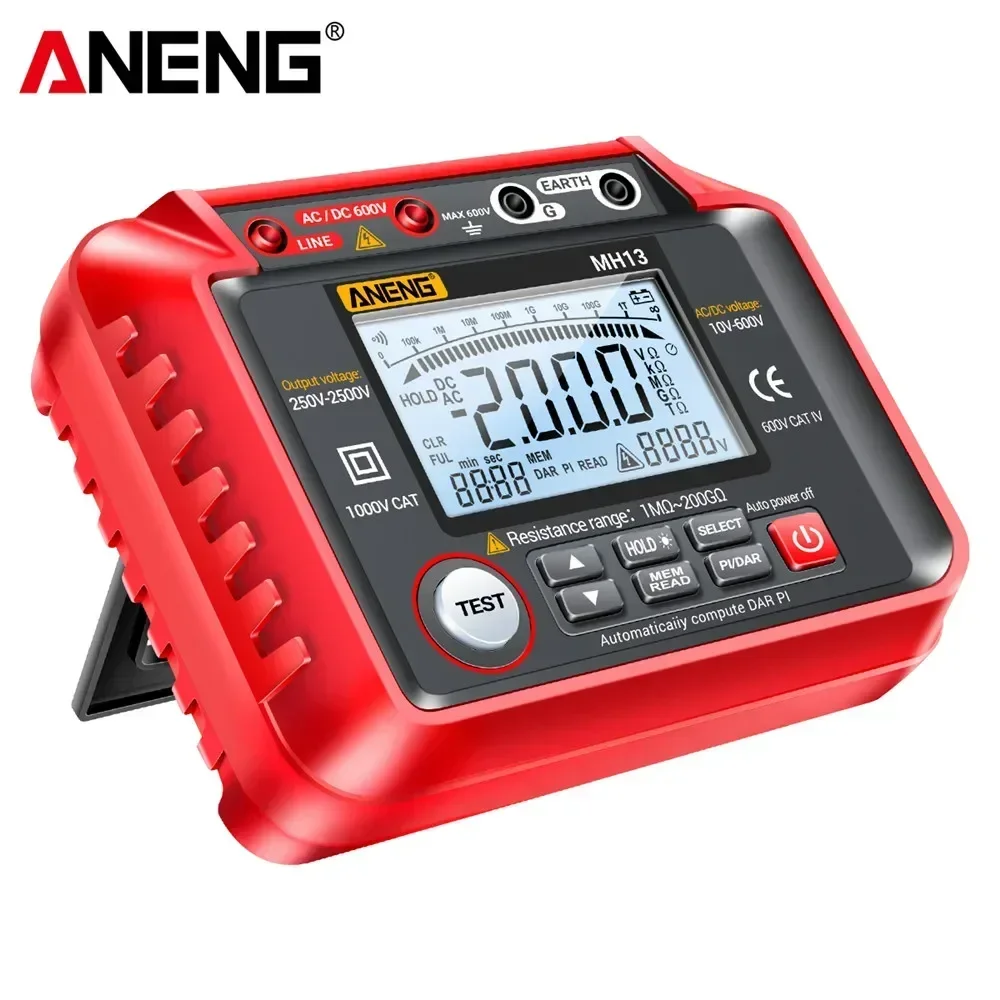

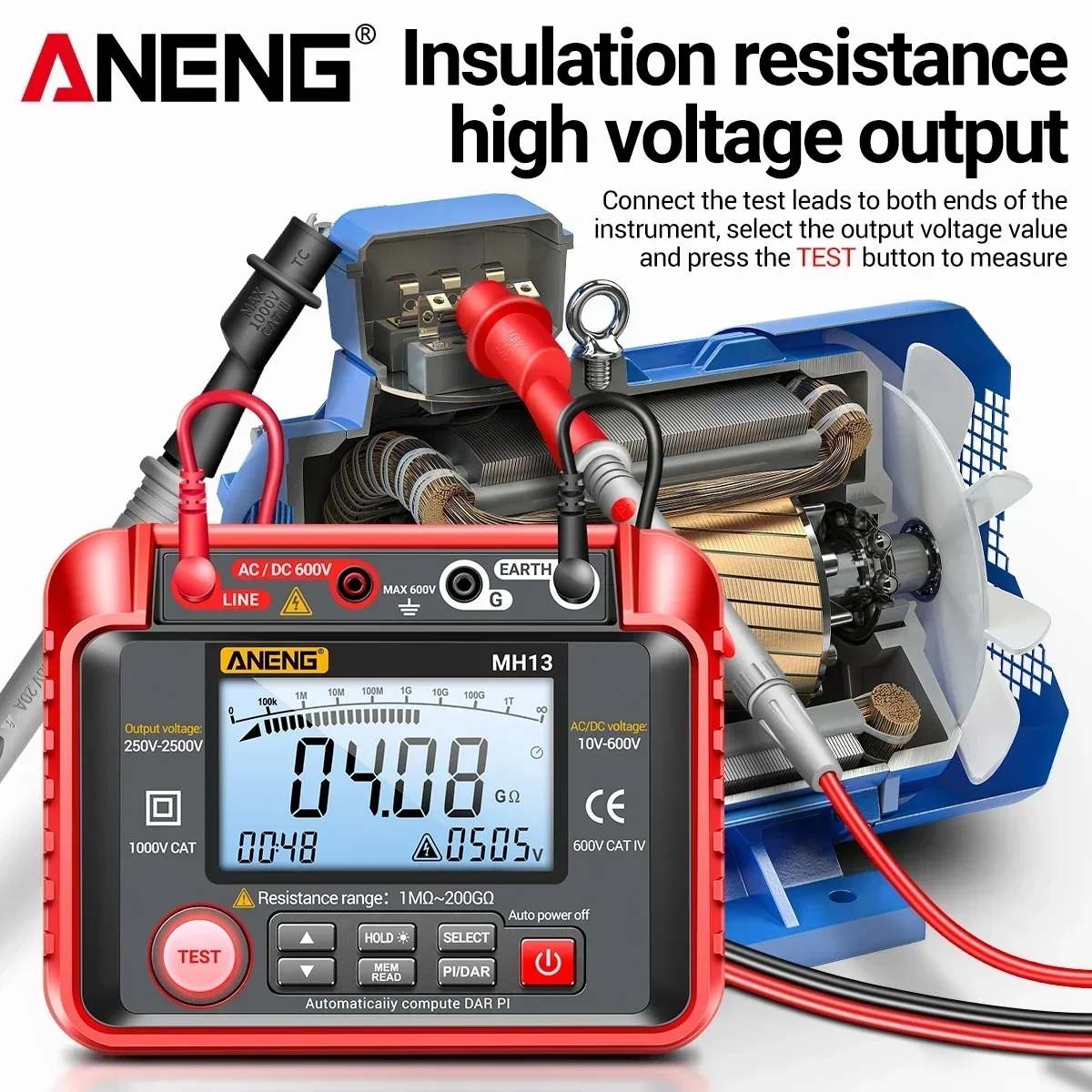

Insulation resistance tester (or high-voltage insulation meter) is a special instrument for measuring insulation resistance. It is an ideal test instrument for measuring the insulation resistance of large transformers, transformers, generators, high-voltage motors, power capacitors, power cables, fasteners, etc.
Output voltage Measuring range Precision Precision Short-circuit current:
250v-1 1mΩ-10gΩ ±(5% + 10d) 1.8 milliamp
500v/1000v 2mΩ-20gΩ ±(5% + 10d) 1.8mA
2000v/2500v 5mΩ-40gΩ ±(5% + 10d) 1.8mA

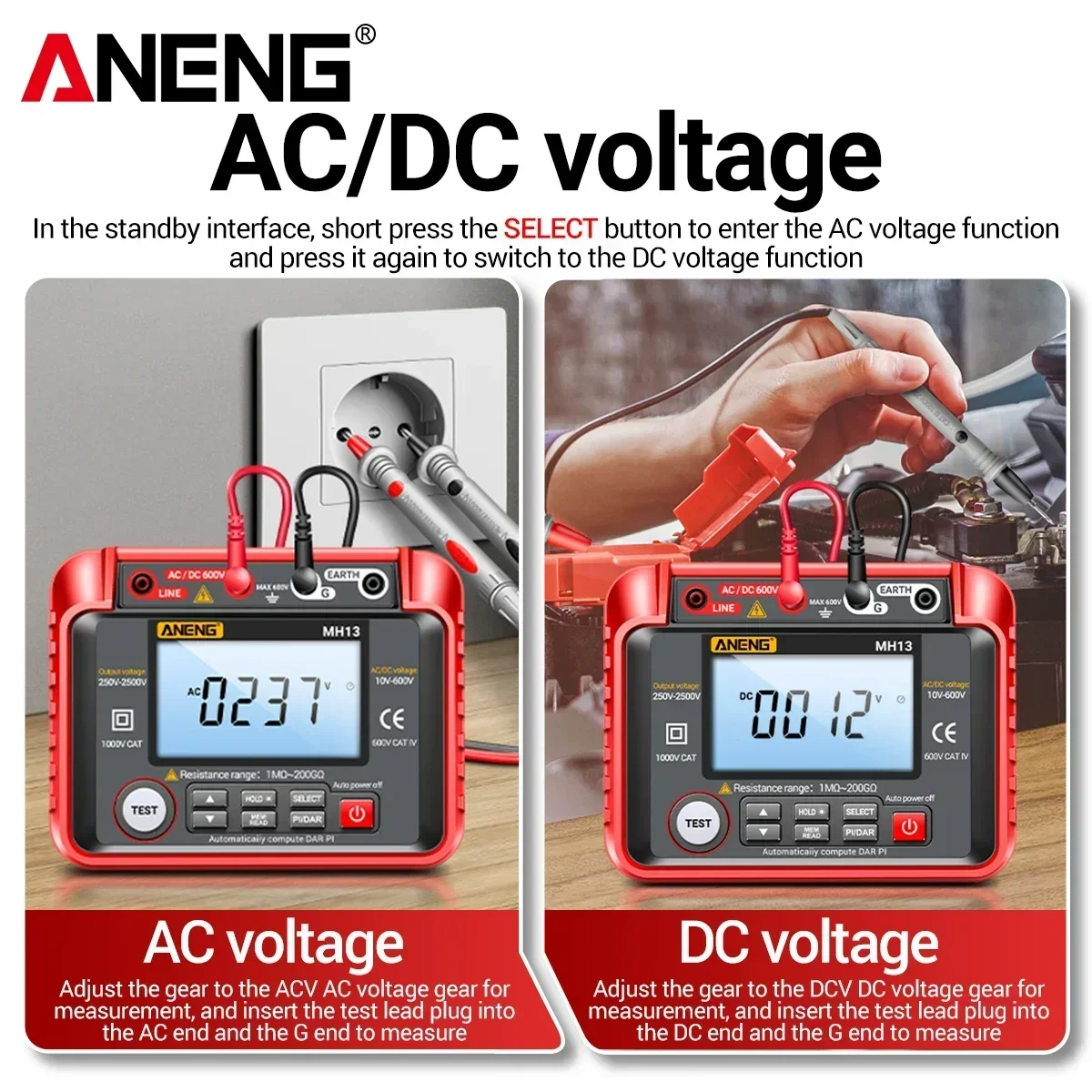

AC voltage 10-600v ±(1% + 5d) 1.8mA
DC voltage 10-600v ±(0.8% + 5d) 1.8mA
Resistance band 1mΩ-200gΩ
Maximum count: 2000 counts

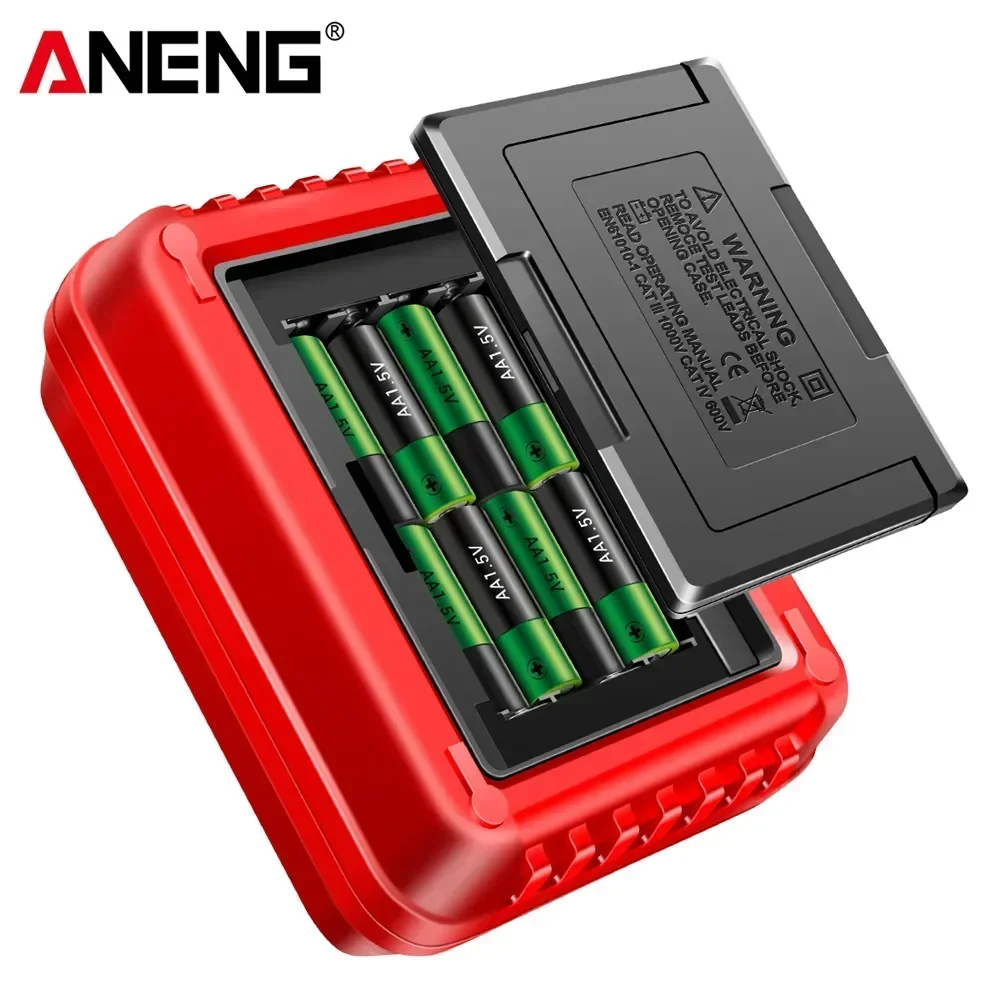

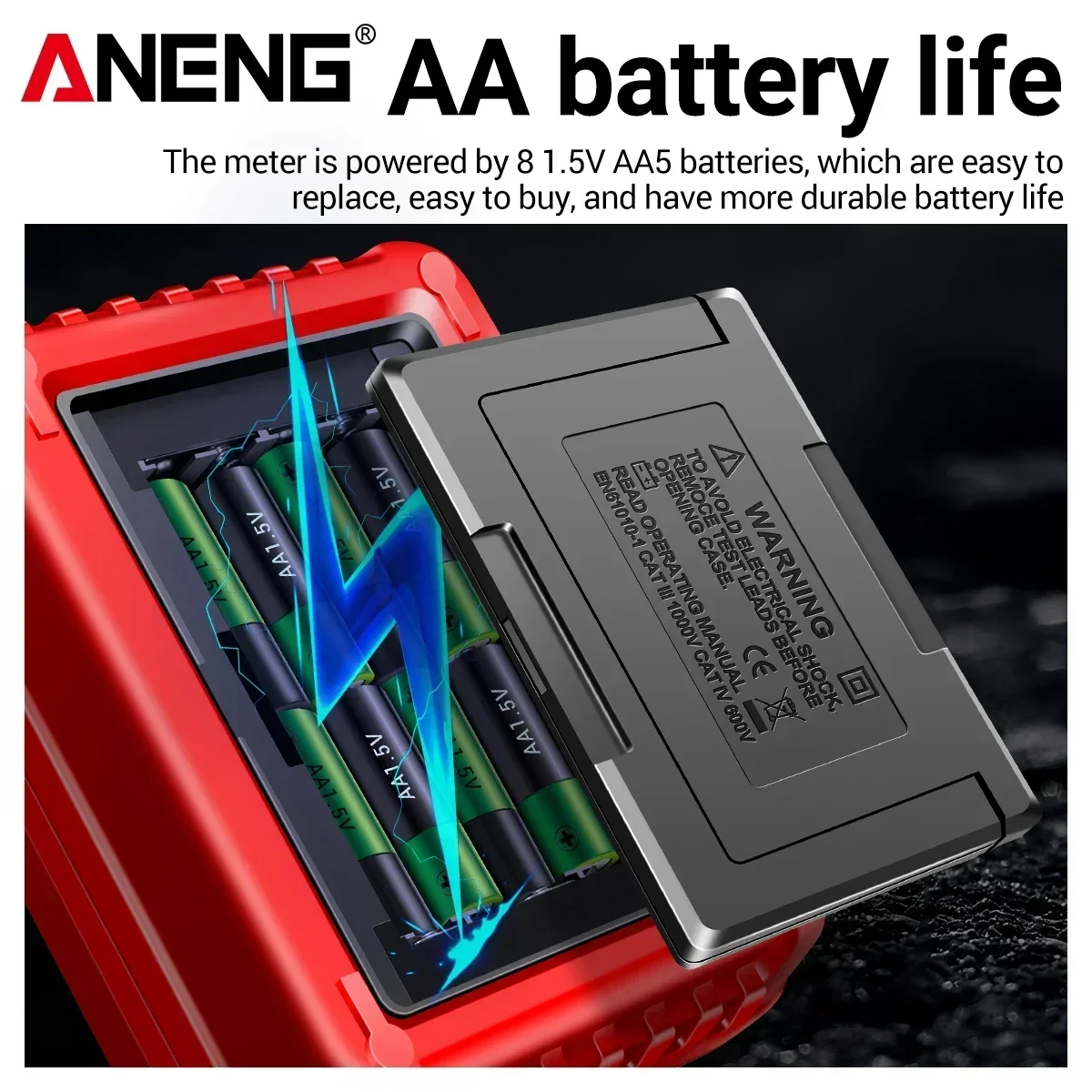

Use of batteries AA5 batteries * 8

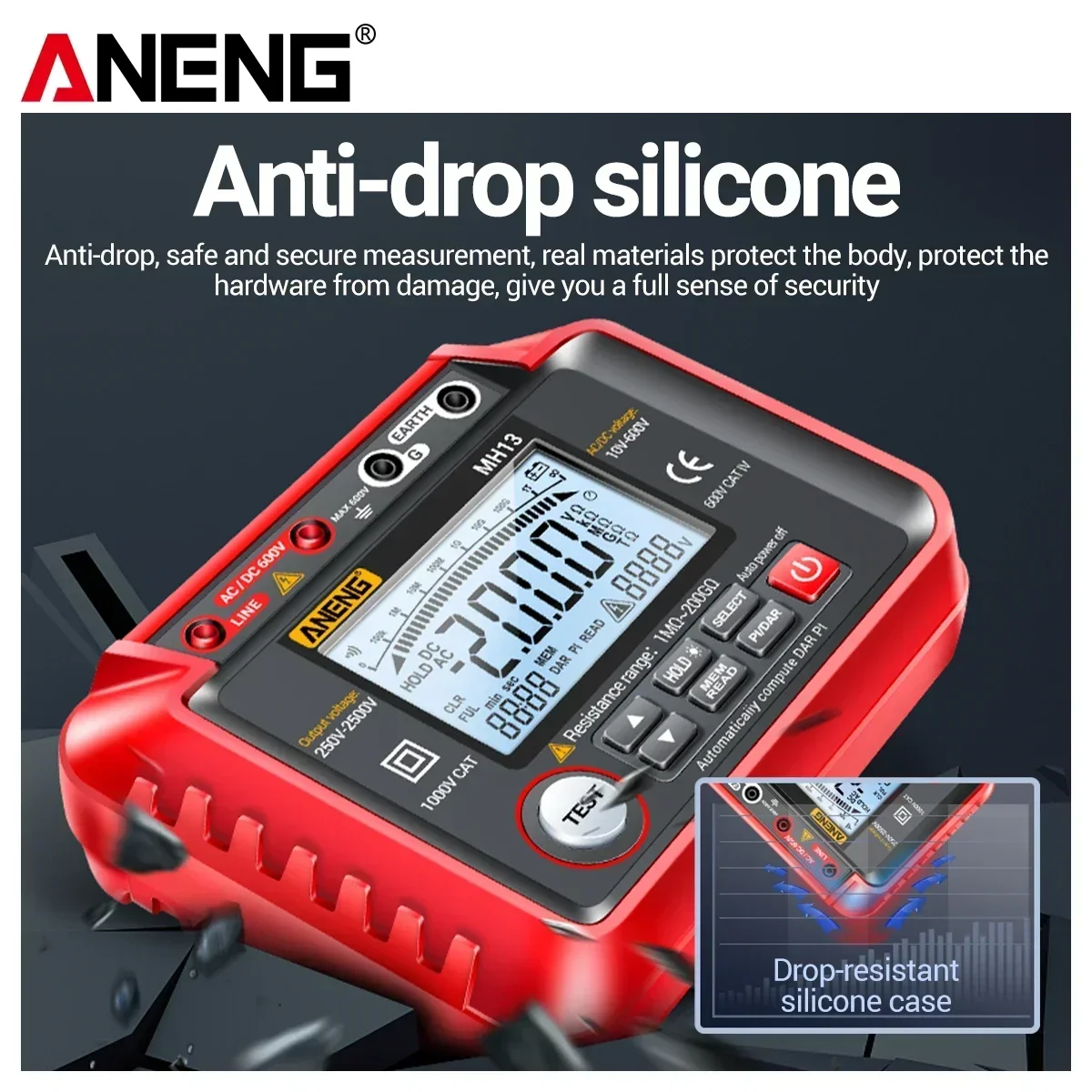

Material of material Silicone / ABS
Weight 640g.
Pen material Pen material Polyvinyl chloride / brass
Total length: 108cm

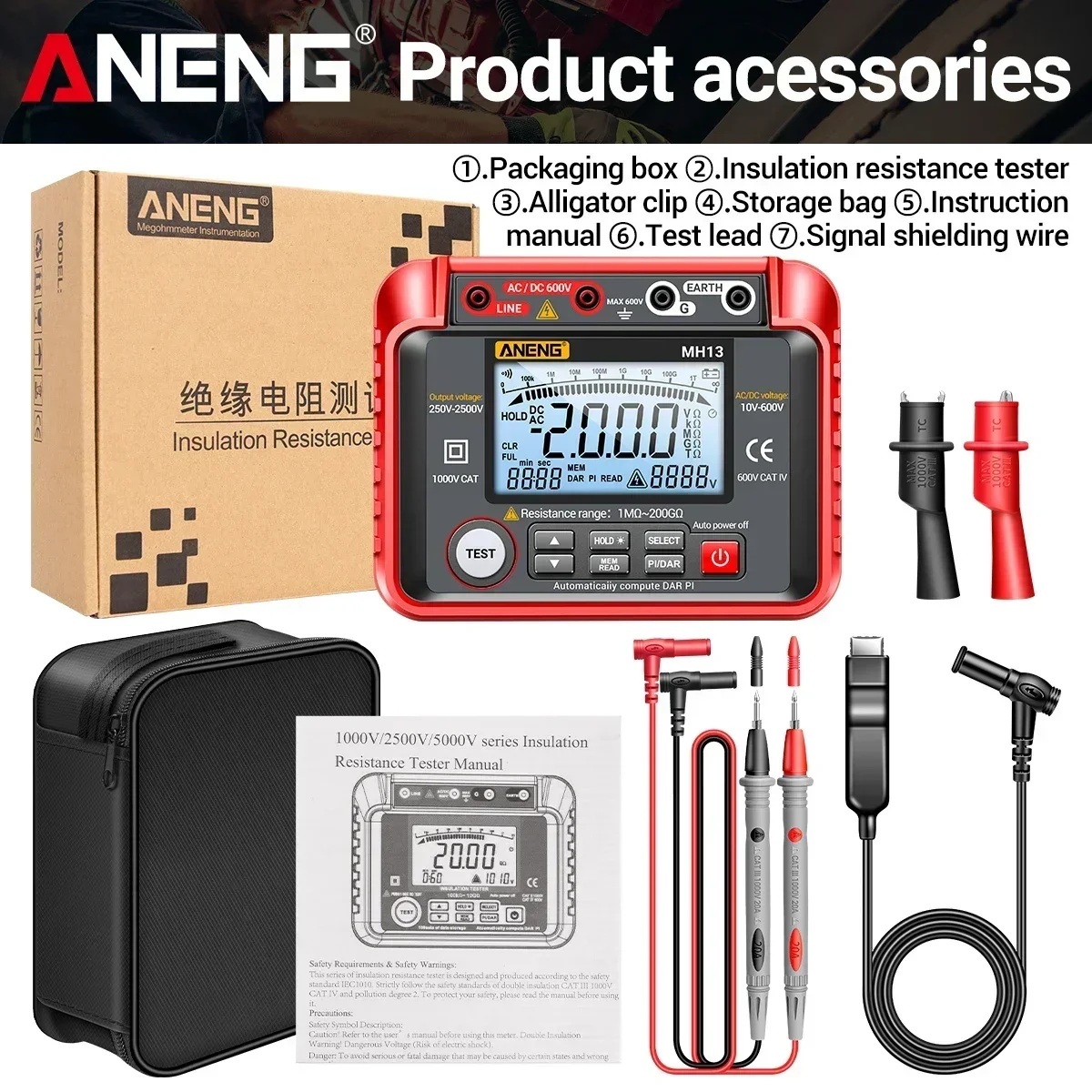

Package includes:
1*Packing box

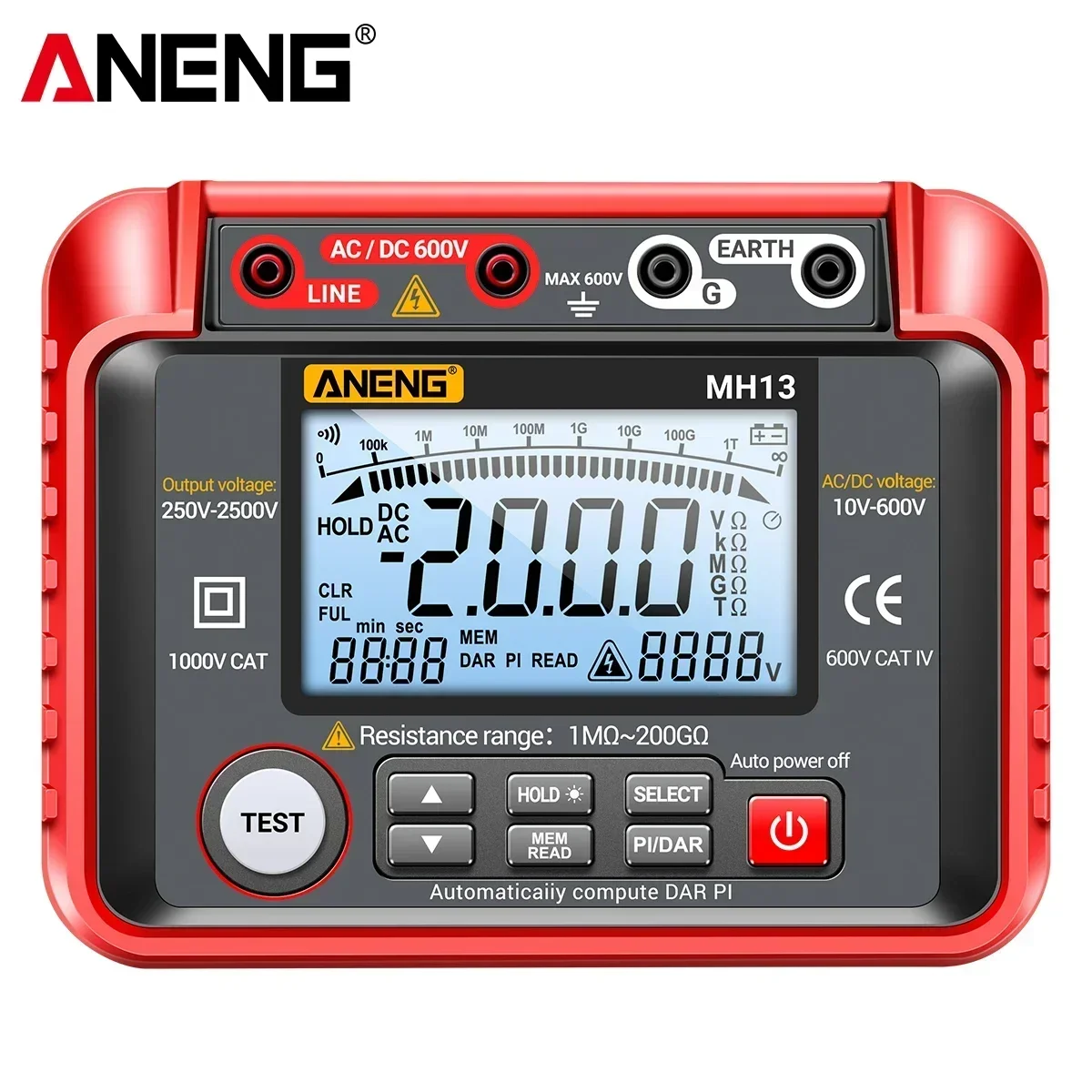

1*Resistance megohmmeter

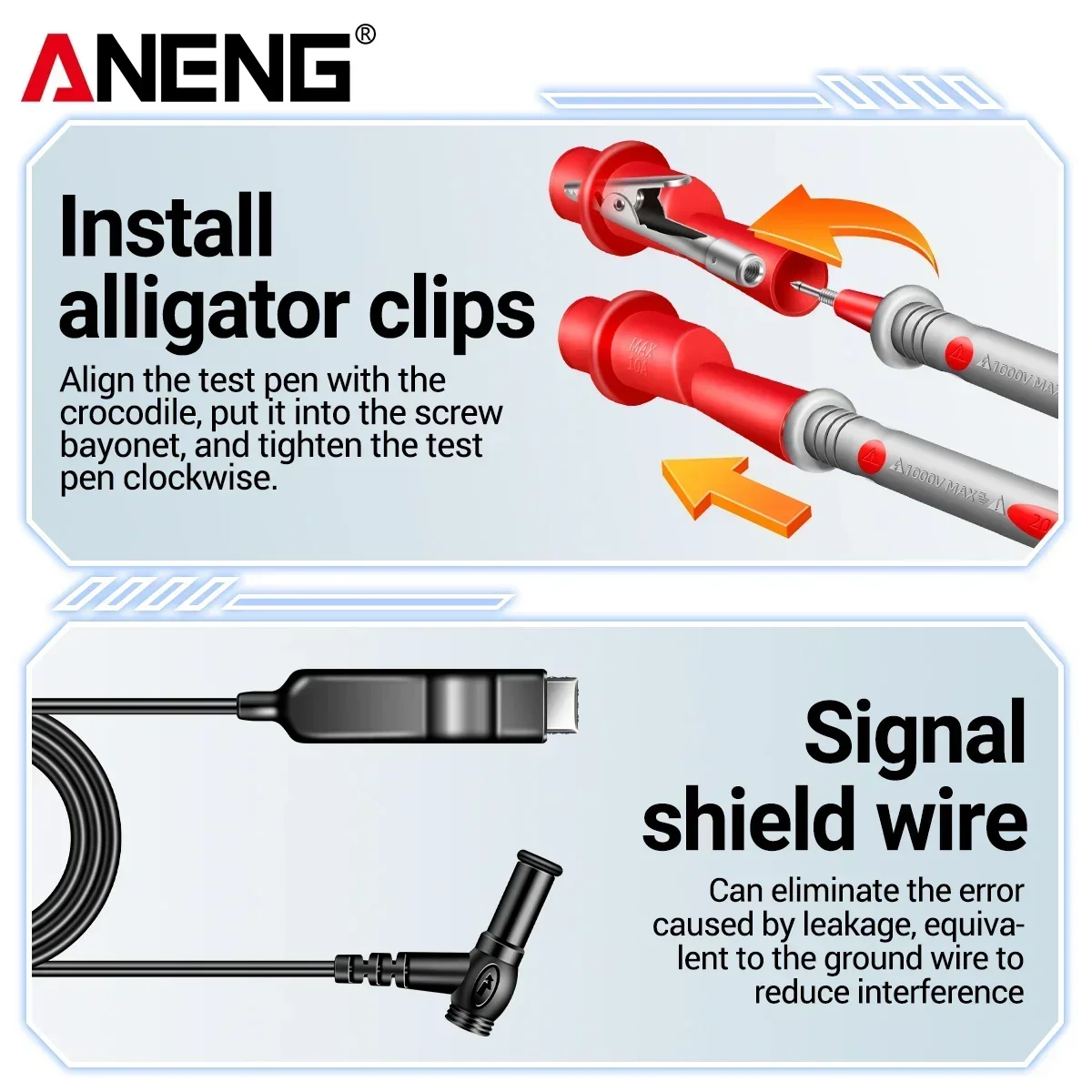

1*calibration clip
1*Storage bag
1*User's manual
1*test cable

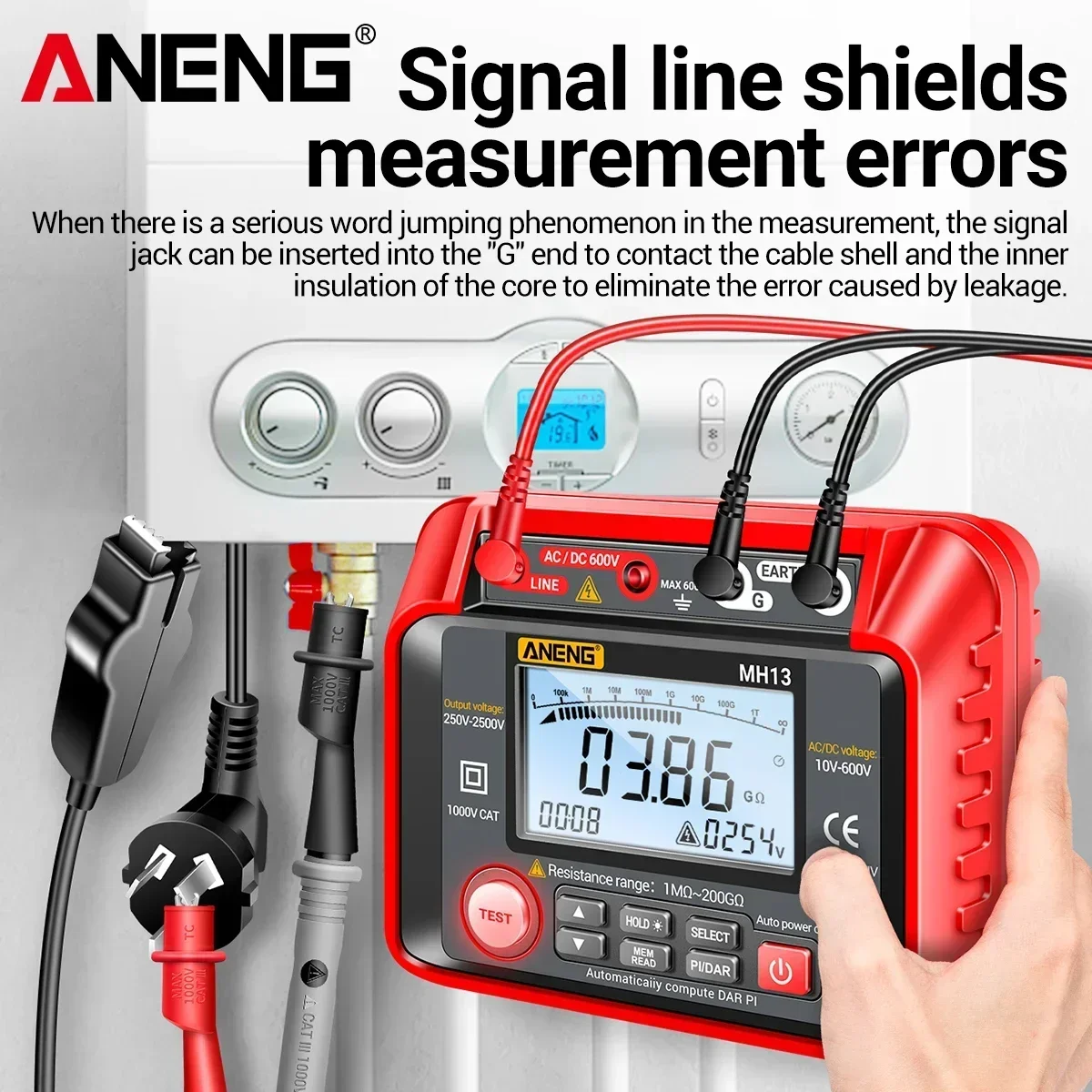

1*Signal protection cable
