Features:
Input voltage: 5-26V
Switching voltage: 5-12V (high and low level signal control)

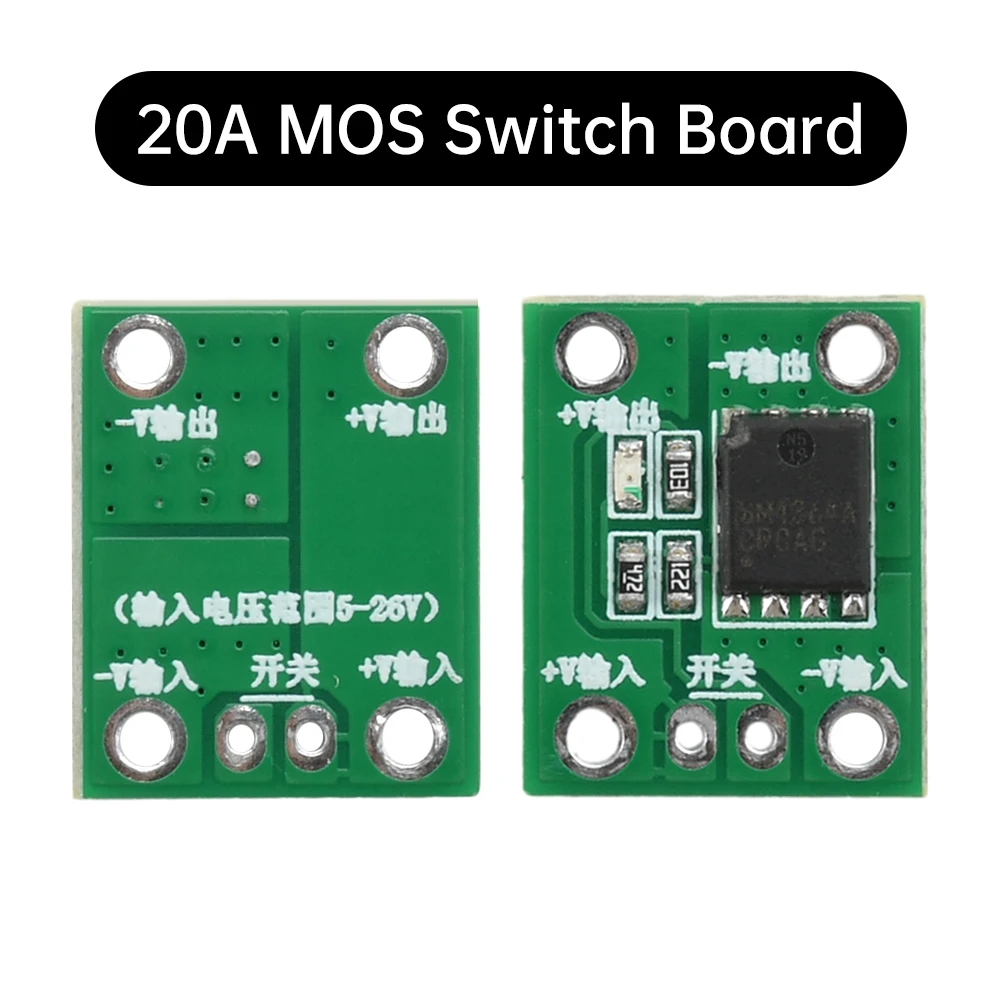

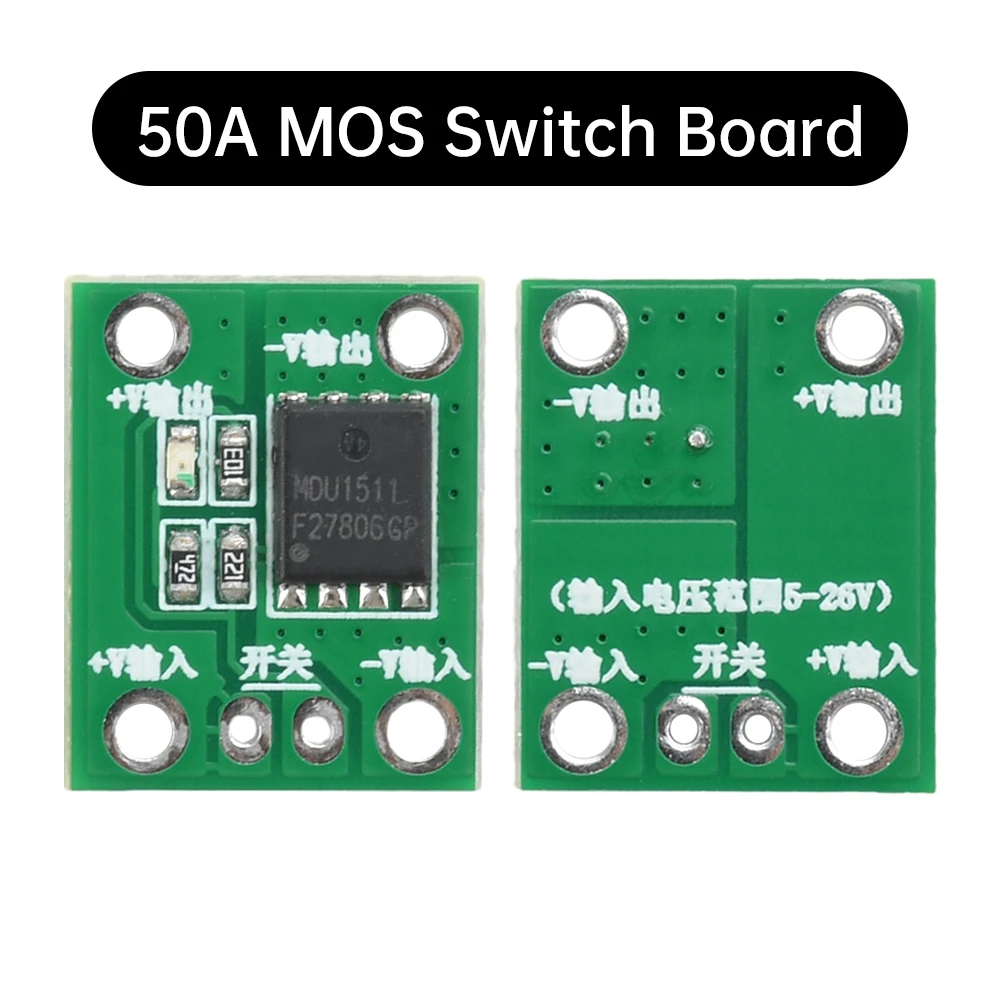

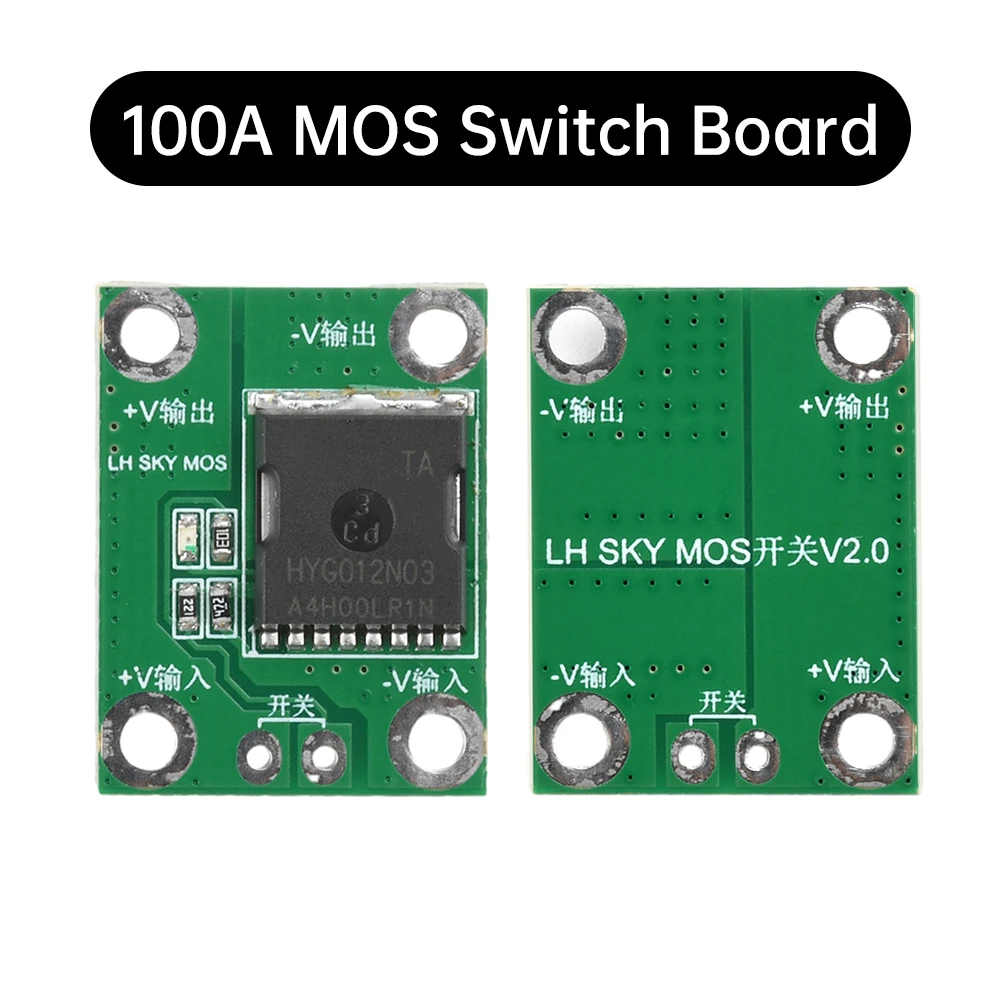

Current: 20A/50A/100A (self-selected)

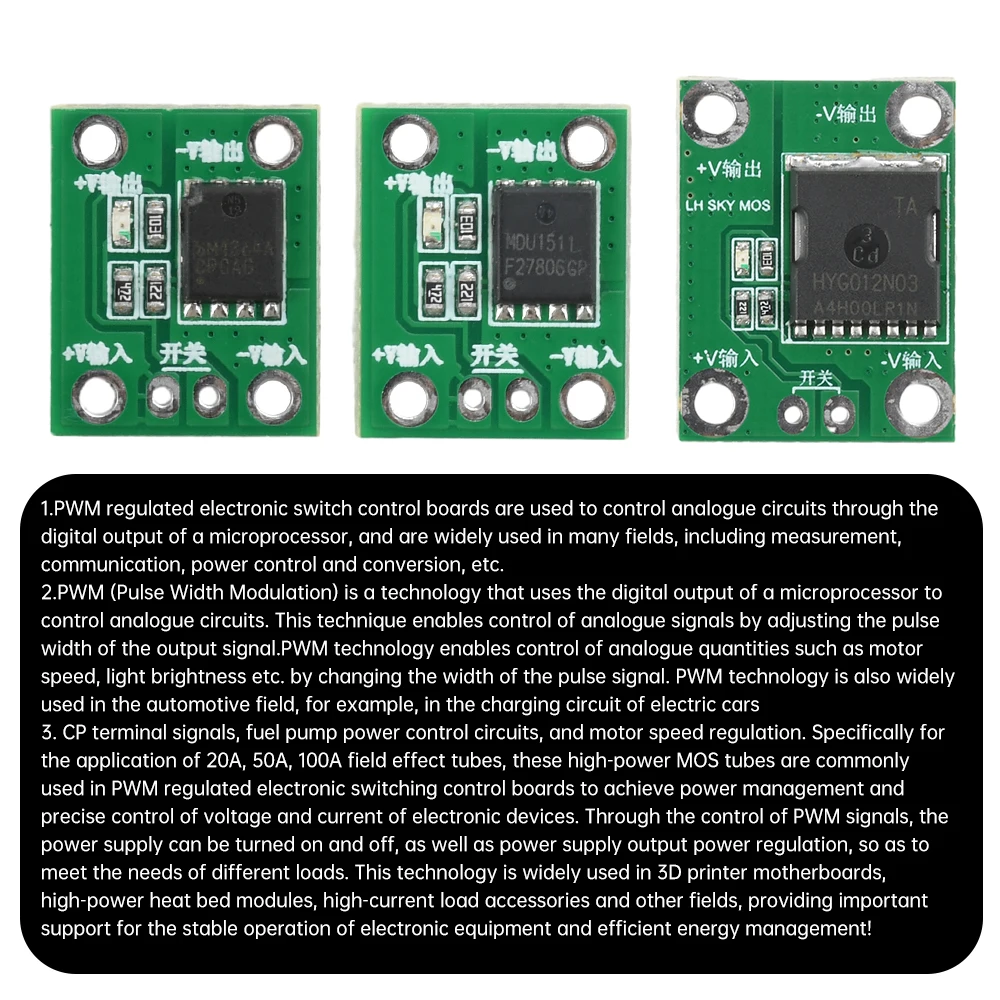

1.PWM regulation electronic switch control board is used to control analog circuits through the digital output of the microprocessor, which is widely used in many fields, including measurement, communication, power control and conversion, etc.
2.PWM (Pulse Width Modulation) is a technique that uses the digital output of a microprocessor to control an analog circuit. This technology enables control of analog signals by adjusting the pulse width of the output signal.PWM technology enables control of analog quantities such as motor speed, light brightness, etc. by changing the width of the pulse signal. PWM technology is also widely used in the automotive field, for example, in the charging circuit of electric cars
3. CP terminal signals, fuel pump power control circuits, and motor speed regulation. Specifically for the application of 20A, 50A, 100A field effect tubes, these high-power MOS tubes are commonly used in PWM regulated electronic switching control boards for the realization of electronic equipment power management and precise control of voltage and current. Through the control of PWM signals, the power supply can be realized on and off, as well as power supply output power regulation, so as to meet the needs of different loads. This technology has a wide range of applications in the field of 3D printer motherboards, high-power heat bed modules, high-current load accessories, etc., which provides an important support for the stable operation of electronic equipment and efficient energy management

Package include:
Driver Module*1
