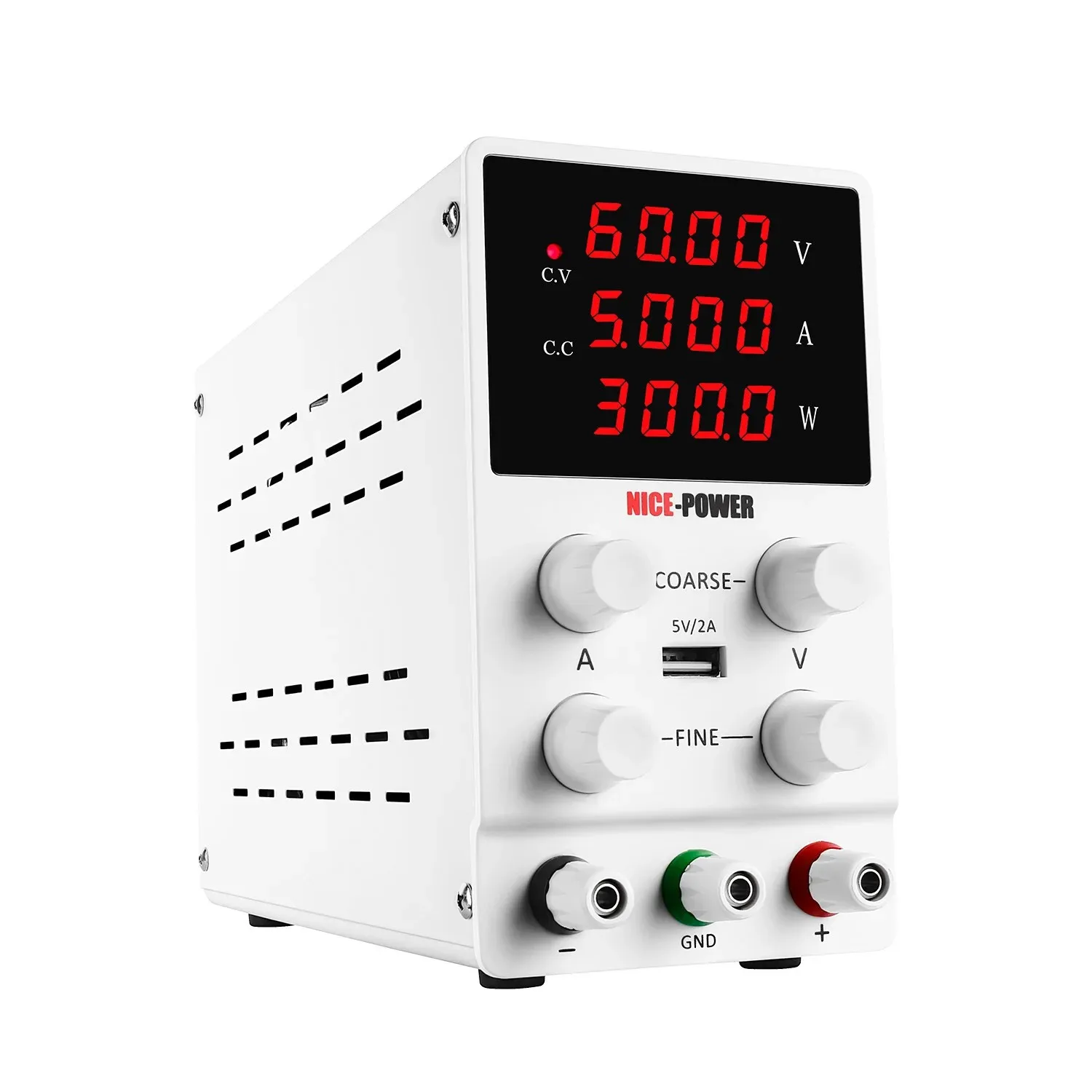

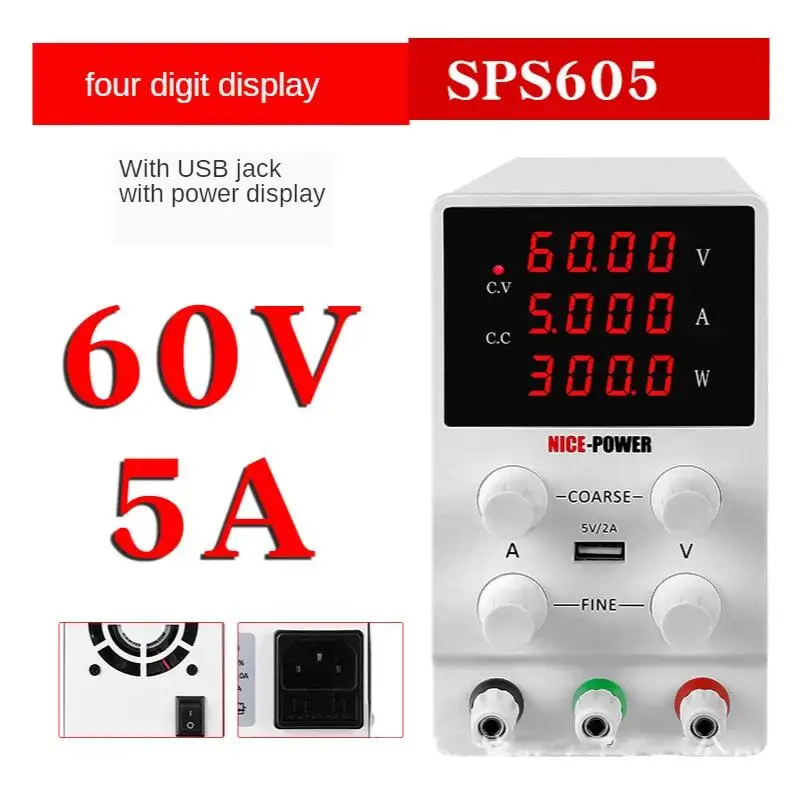

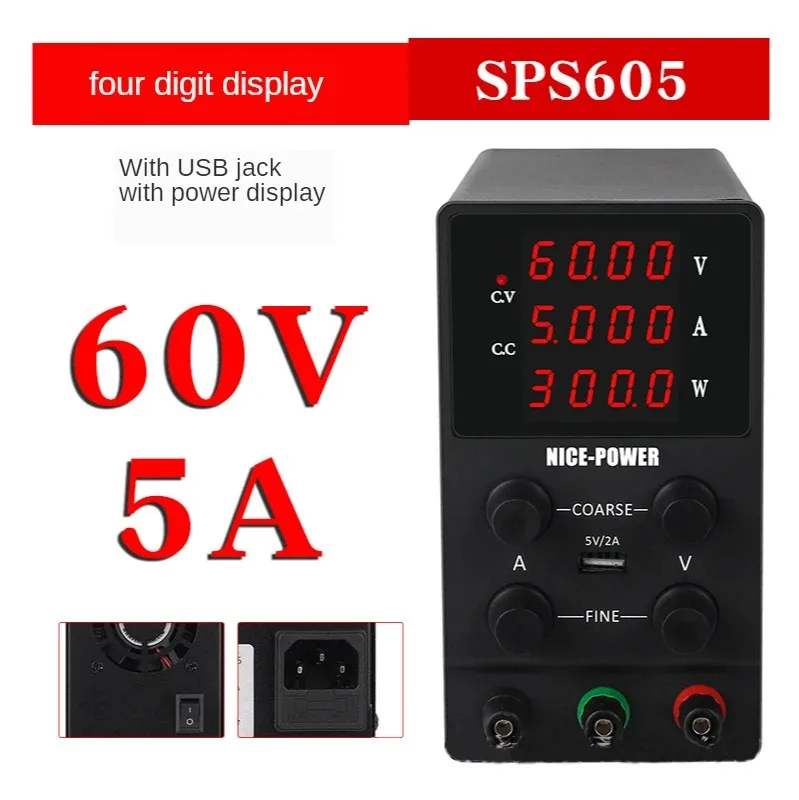

SPS 605 Four-digit display adjustable DC voltage Power Supply 60v 5a mobile phone maintenance power supply

Power Supply Advantage

1.Have complete operating protection function

2.Highly efficient, low ripple, small volume, light weight

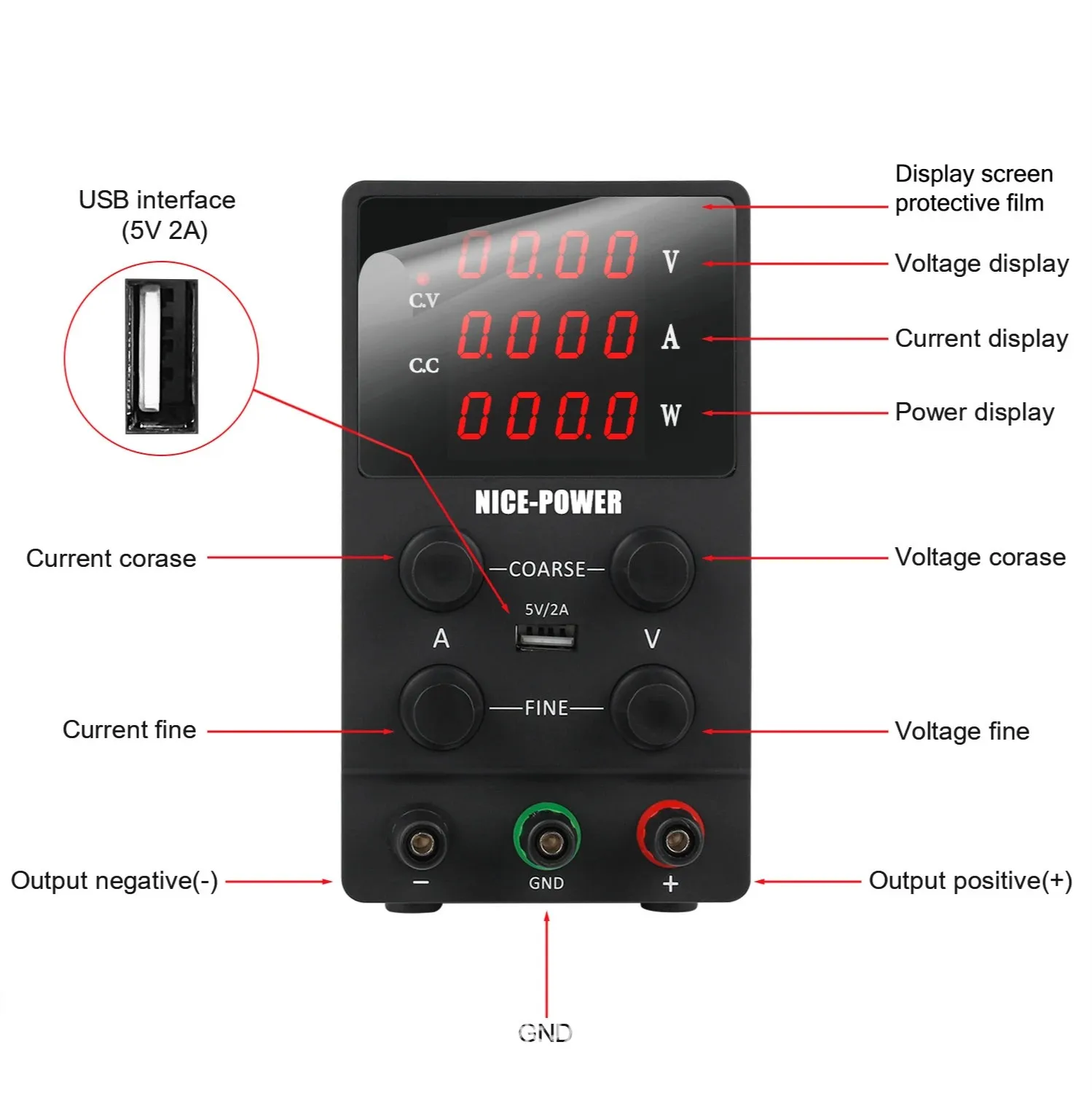

3.Double display voltage, current, and high precision

4.Voltage stabilization, current limiting, simple operation

5.Dual voltage input and convenient choice

6.Temperature control fan heat dissipation, low noise

7.Double potentiometer more precise adjustment

8.4Digits Display

9.Adjust voltage and current more accurately

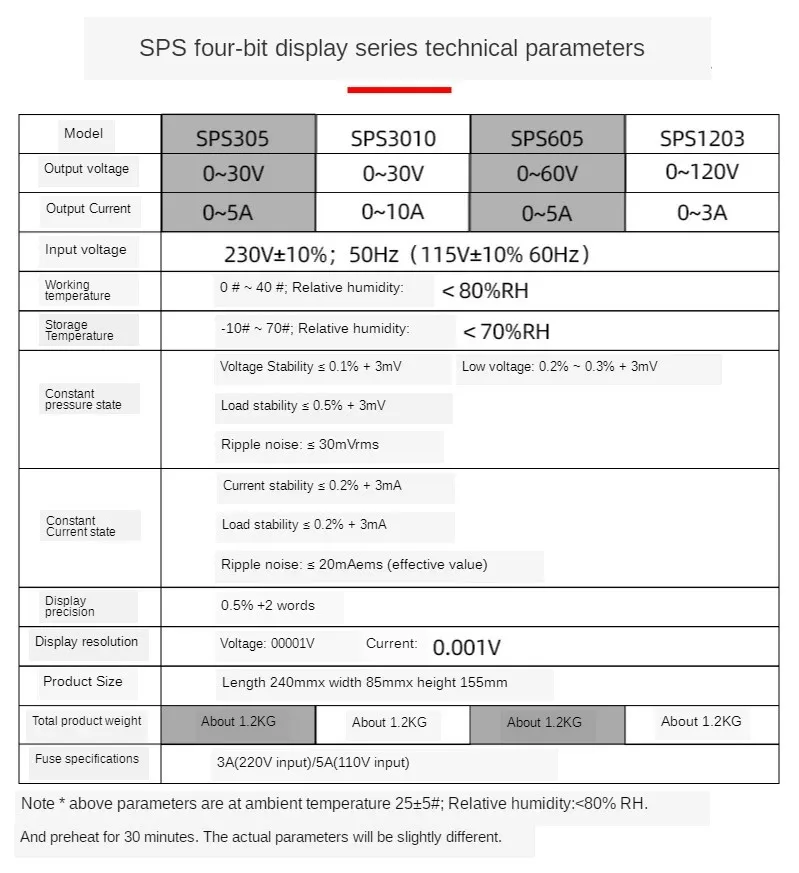

More Parameters

Input voltage:AC 110V 50HZ or 110V 60HZ

Output voltage:0 ~ 30V /60V/120V

Output current:0 ~ 10A /5A/3A

Voltage resolution:10mV

Current resolution:1mA

Output Voltage ranges from 0 to rating voltage with continuous adjustment .

Voltage regulation : Line regulation<5mV. Load regulation<5mV. Recovery time<500us(50% Load change, minimum load 0.5A)

Ripple & Noise<5m Vrms, 100m Vp-p

Temperature coefficient<100p pm/C.

Output current ranges from 0 to rating current with continuous adjustment

Current regulation line regulation<3mA. load regulation<3mA. Indicator Meter Voltage display precision: +-(0.5% of rdg + 2 digits).

Current display precision: +-(0.5% of rdg + 2 digits).

Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.

Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
