Product description
Description

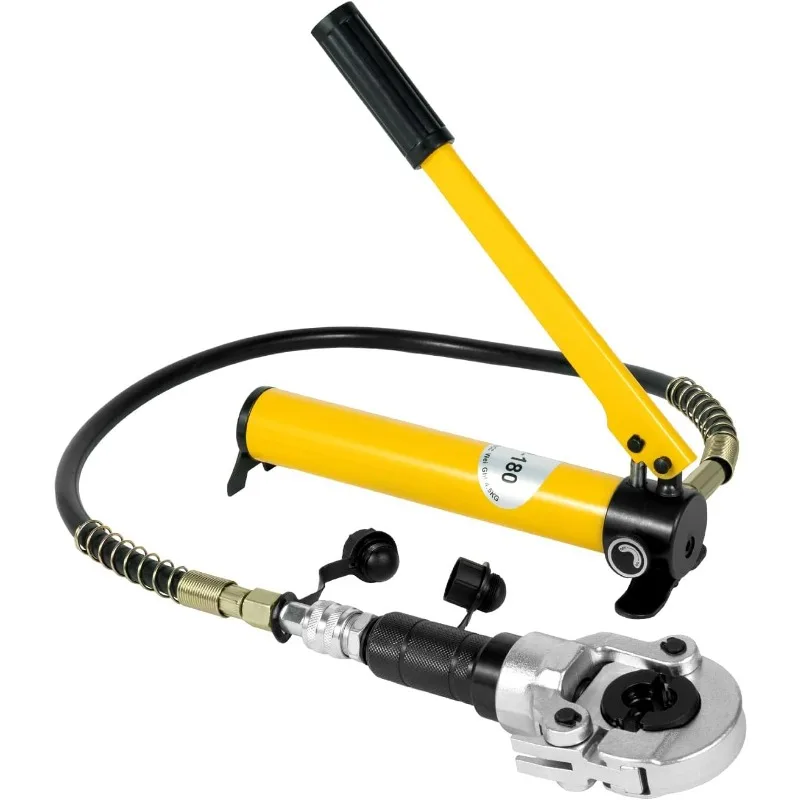

Having trouble pressing the pipes? Do you want to improve your work efficiency? Then you must not miss our hydraulic tool! Our hydraulic tool includes a forged and rotating hydraulic pliers head, manual hydraulic pump and long rubber hydraulic hose, which is durable and robust. Besides, it has 9 different sized interchangeable matrices that can incredibly improve your work efficiency.
Key Features
EASY TO CARRY The pliers are removable and weighs 16.97 pounds, making it easy to carry anytime, anywhere.
Easy Installation The hydraulic tool is pre-installed, and you just need to spend a little time and effort to connect the hydraulic pliers and manual hydraulic pump and enjoy a sense of achievement!
PROTECTIVE PACKAGING This product comes in a custom made sponge that resists the usual compression and falls to avoid product damage during transportation.
Details
Long hydraulic hose: the hose has a length of 44.48 inches and can connect the hydraulic pliers and manual hydraulic pump together, allowing easy operation.
Flexible handle: the extended handle is coated with rubber and has a length of 13.18 inches, which saves strength and prevents slipping.
TWO SMALL BLACK BUTTONS They are located on the surface of the pliers head and help you easily attach and disassemble the tools.
Push button: it is located on the manual hydraulic pump, which can be manually adjusted according to your needs. Adjust it clockwise to the "ON" position before crimping and counterclockwise to the "off" position after crimping.
Dust Cap It can prevent dust, water, oil, etc. from entering the hydraulic tool while reducing the need for daily maintenance as much as possible.
Pliers Head Lever It helps you open the pliers head to replace the dies easily and quickly.
Application:
These hydraulic pliers are suitable for pressing aluminium pipes, PEX pipes, PB pipes, copper pipes, stainless steel sleeves, etc. It can also be used for domestic water installation, heating installation, gas installation, electricity repair, etc.
Specifications
Colour: yellow.

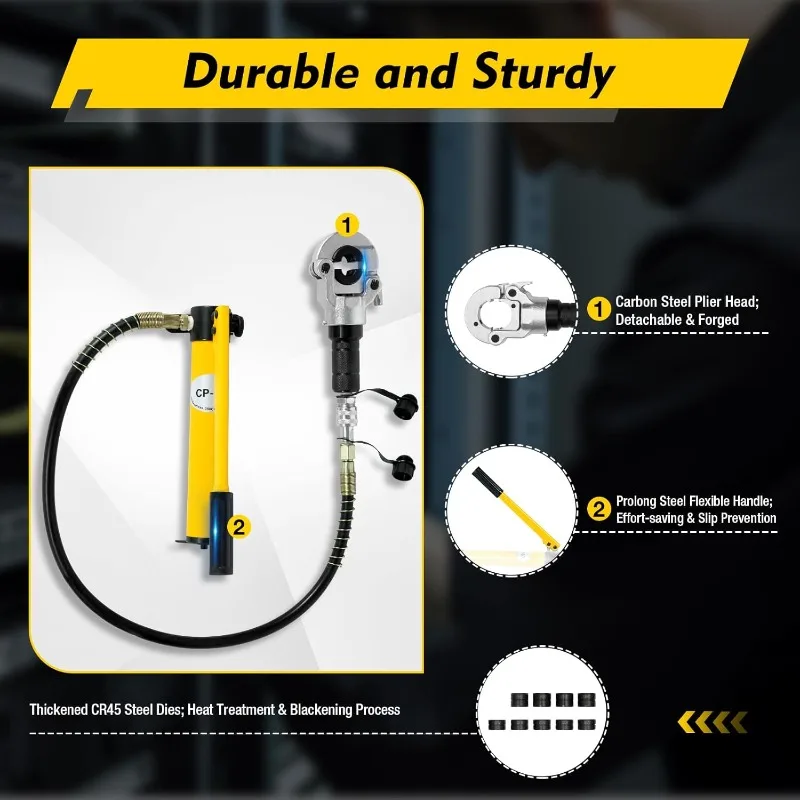

Material: carbon steel, CR45 steel, steel, rubber.
Surface treatment: heat treatment, blackening, forging, knurling.

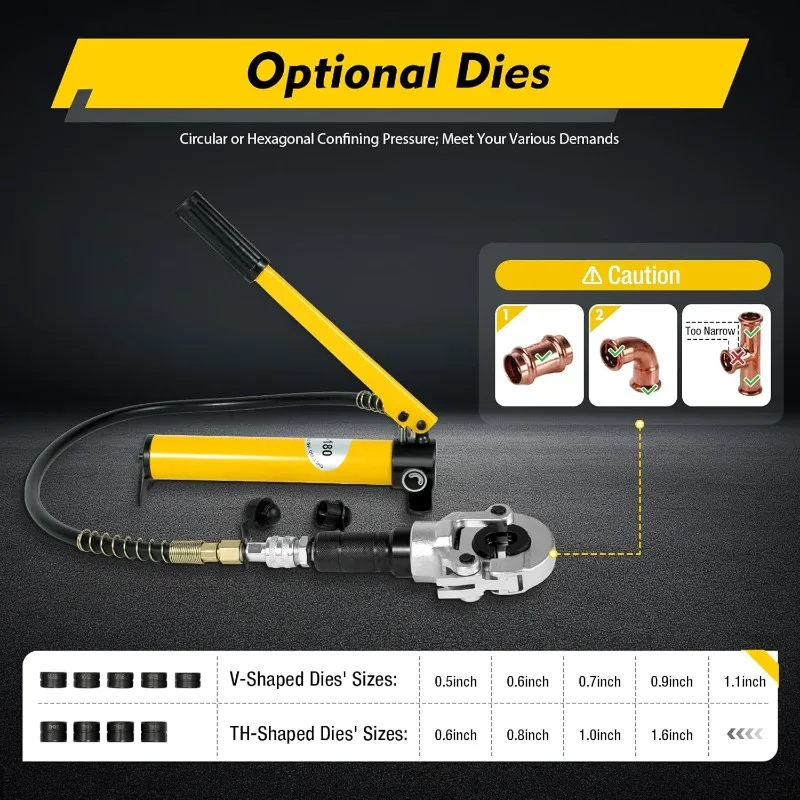

V-shaped shapes' sizes: 12 mm/0.5 inch; 15 mm/0.6 inch; 18 mm/0.7 inch; 22 mm/0.9 inch; 28 mm/1.1 inch.
TH-shaped dies sizes: 16 mm/0.6 inch; 20 mm/0.8 inch; 26 mm/1.0 inch; 32 mm/1.6 inch.

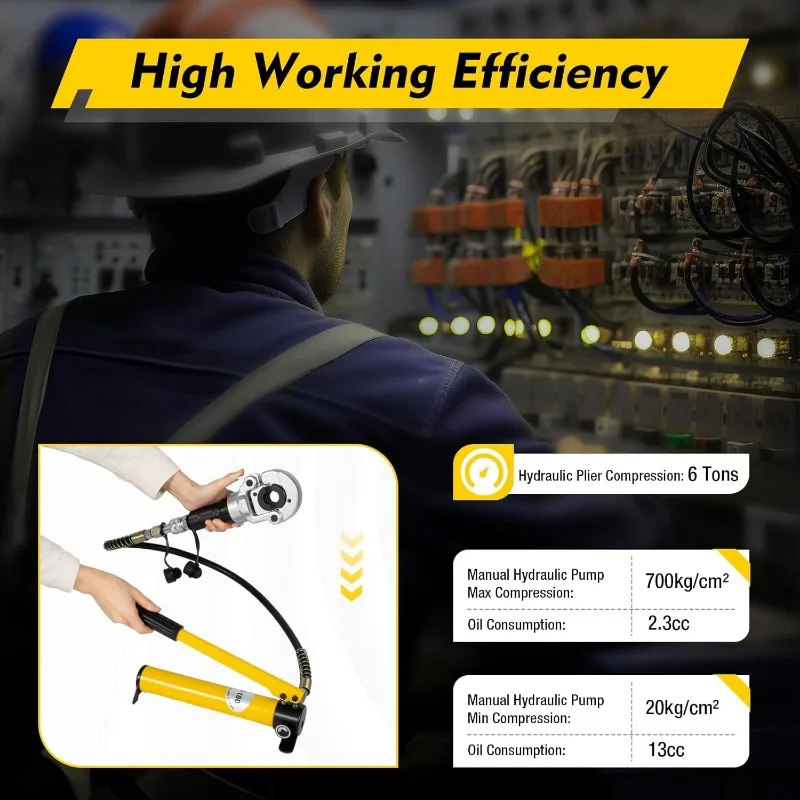

Manual hydraulic pump max compression: 700 kg/cm² (oil consumption: 2.3cc).
Hand hydraulic pump min. Compression: 20 kg/cm² (oil consumption: 13 cc).
Hydraulic cylinder max capacity: 150cc

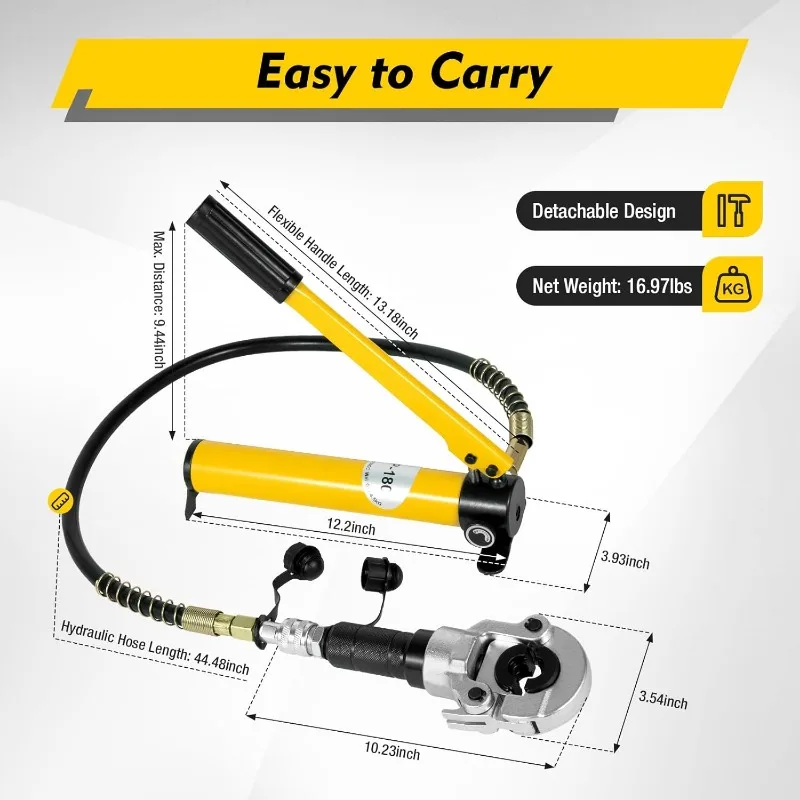

Hydraulic hose length: 113 cm/44.48 inches.
Length of flexible handle: 33.5 cm/13.18 inches.
Hydraulic pliers compression: 6 tonnes.
Gross weight: 8.2 kg/18.07 lbs.
Net weight: 7.7 kg/16.97 lbs.
Hydraulic pliers size: 26 x 9 cm/10.23 x 3.54 inches.
Hand hydraulic pump size: 31 x 10 cm/12.2 x 3.93 inches.
Package size: 37.5*22.5*16cm/14.76*8.85*6.29inch
Package includes:
1 x hydraulic pliers.
1 x hand hydraulic pump.
9 x cubes.
1 x English manual.
All accessories for assembly.
Notes:
1. The hydraulic pliers cannot be used well if the pipe distance dimension is very short.
2. Please allow for slight colour differences due to lighting and 1-3 cm error due to manual measurement, and make sure you do not mind this before ordering.
