Description

Our high-pressure air compressor with a transformer creates an efficient inflation solution designed to meet various inflation needs. The powerful cooling fan, multiple heat dissipation holes, and pressure relief design ensure the safe and stable operation of the machine. Portable design allows it to play an important role in outdoor activities or daily home maintenance, ensuring that the device is always in optimal condition and providing you with convenient and reliable inflation services.

Specification

Color: Orange
Process: Spraying
Material: Aluminum, Stainless Steel
Mount Type: Freestanding
Assembly Required: Yes
Power Source: Battery Powered
Noise: 75dB
Power: 250W
Motor Horsepower: 0.75HP
Capacity: Less Than 1L/1.06Qt
Power Supply: 110V AC/12V Car Battery (40+A)
Maximum Air Pressure: 300Bar/4500PSI
Cooling Fan Speed: 12500rpm
Filling Speed: 0.5L/0.53Qt, Takes about 18 Minutes
Connector Size: 8mm/0.315in
Air Compressor Size: 20*17*13.5cm/7.87*6.69*5.31in
Package Size: 30*26*26cm/11.81*10.24*10.24 in
Net Weight: 5.2kg/11.46 lbs
Gross Weight: 7.2kg/15.87 lbs

Package Included
1* Air Compressor
1* Transformer
1* Air Hose
1Pair* Battery Power Cables
1* English Manual
All Accessories for Use

Notes
1.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.
2.You need to check the air pressure value yourself.
3.Please confirm whether there are loose fasteners in various parts before use. Please confirm whether the fan operates normally after the machine is started and whether there are any abnormalities in the sound of the machine, such as friction sound, uneven operation sound, and air leakage sound.
4.You need to manually stop the inflation when the air pressure reaches the set point, when it has been inflated for 25 minutes, or when the temperature reaches 185℉. A beep will sound when inflation is complete.
5.After a full load, please keep the cooling fan running for a few minutes and then manually turn it off. The compressor switch and cooling fan switch need to be pressed briefly, not continuously.
6.The process of automotive use is similar to using home, red corresponds to "+" and black corresponds to "-". It is necessary to keep the car started while the compressor is working.
7.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Key Features

Sturdy and Durable: It is made of high-strength aluminum and stainless steel through the spraying process, which is wear-resistant and shockproof and can be adapted to various outdoor environments.

Efficient Pumping: A 250W high-performance motor can quickly complete the inflation task, and 0.53qt air can be filled in about 18 minutes at the pressure of 0 to 4500PSI, and about 6 minutes at the pressure of 2900 to 4500PSI, saving your precious time.

High Adaptability: Equipped with a transformer and a pair of battery power cables, this machine supports household electricity and 12V car battery power, which is suitable for various environments.

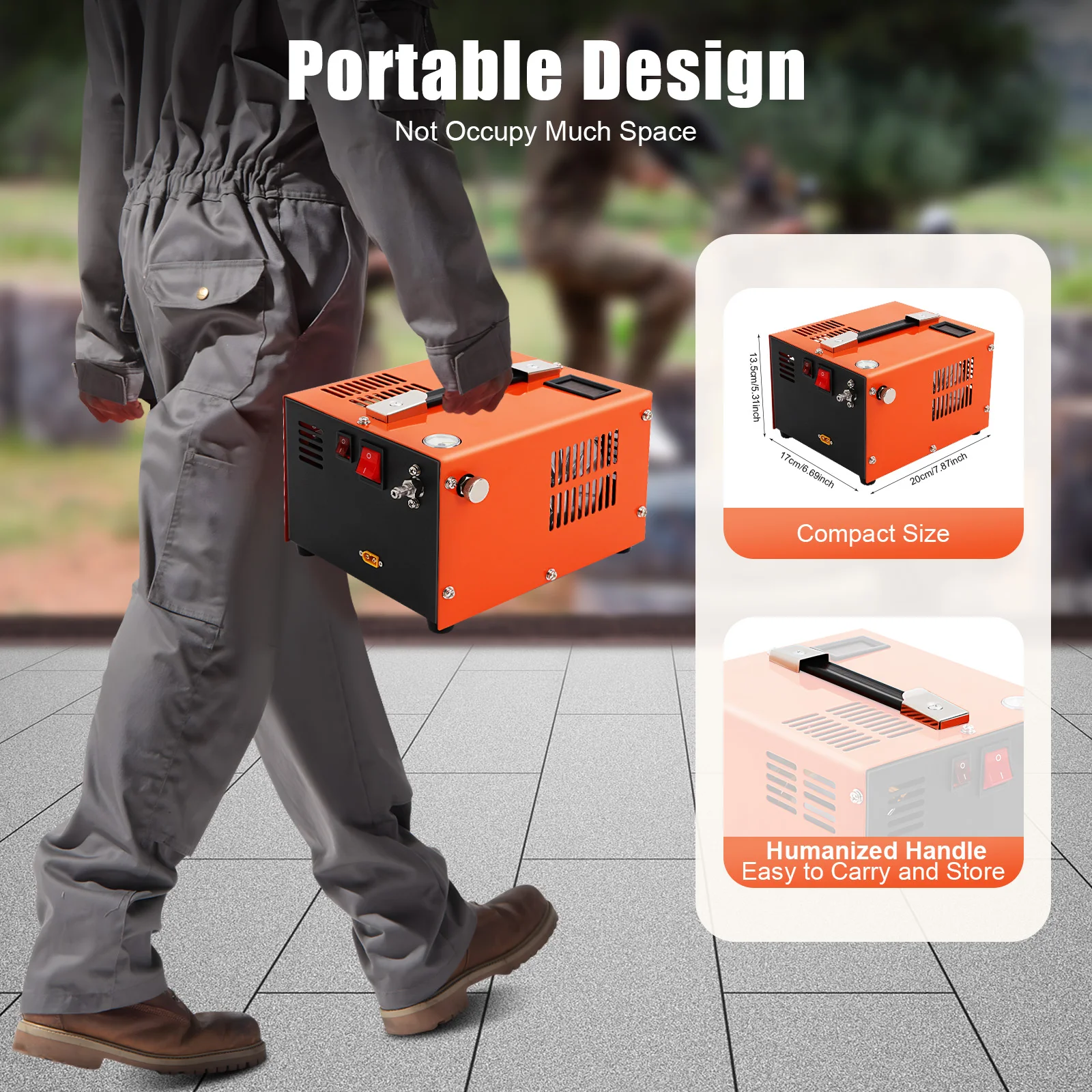

Portable Design: The compact design(11.81*9.84*9.84in) and humanized handle make it easy to carry and store this product and will not occupy much space.

Safe and Reliable: A high-power cooling fan (speed: 12500rpm) and multiple cooling holes on the shell can quickly dissipate the heat to ensure stable running and good performance of the machine. The pressure gauge and temperature display allow you to visually monitor the inflation process and avoid safety hazards caused by excessive inflation.

Intuitive Interface: The machine is designed with a cooling fan switch and compressor switch, high-pressure air outlet, pressure relief screw, power sockets, AC voltage selector dial (factory default is 110V - located at the bottom of the compressor), temperature display screen, and pressure gauge, which is easy to understand.
Good Sealing Effect: It contains filter cotton, filter sealing ring, and cylinder sealing ring to ensure a good sealing effect.

Bright Appearance: The distinct orange appearance is not only beautiful and vibrant but also improves the visibility of the product in use.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details
Thoughtful Accessories: We provide practical accessories, including air plugs, air nozzles, gaskets, rupture discs, check valves, etc., for your convenience and ease of use.

Anti-slip Feet: They keep the machine stand stable and also prevent the table from being scratched.

Quick-fit Connector: A 8mm quick-fit connector allows for convenient, easy, and quick connections.

Smooth Edges: The smooth edges without burrs enhance the beauty of the product and better care for your skin when cleaning and using it.

Application
It can quickly fill air bottles (up to 1.06 qt capacity). It fits most PCP airguns, air rifles, and paintball HPA tanks (<1.06 qt, e.g. 48/3000, 26/3000, etc.).

First Use Steps
1.Check the AC voltage at the bottom (default 110V).
2.Connect the power supply and air hose.
3.Turn on the cooling fan.
4.Tighten the release valve to the right.
5.Set air pressure.
6.Start the compressor.
7.After inflation, loosen the release valve.
Disconnect and save
