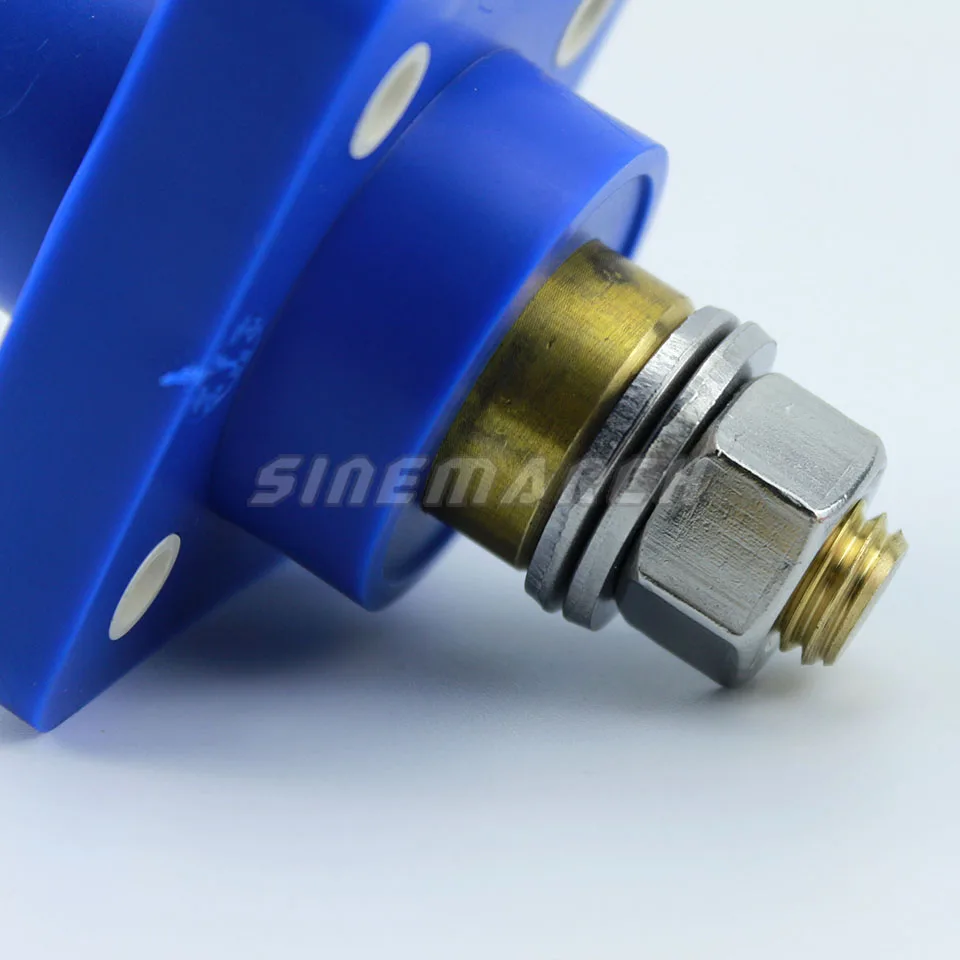

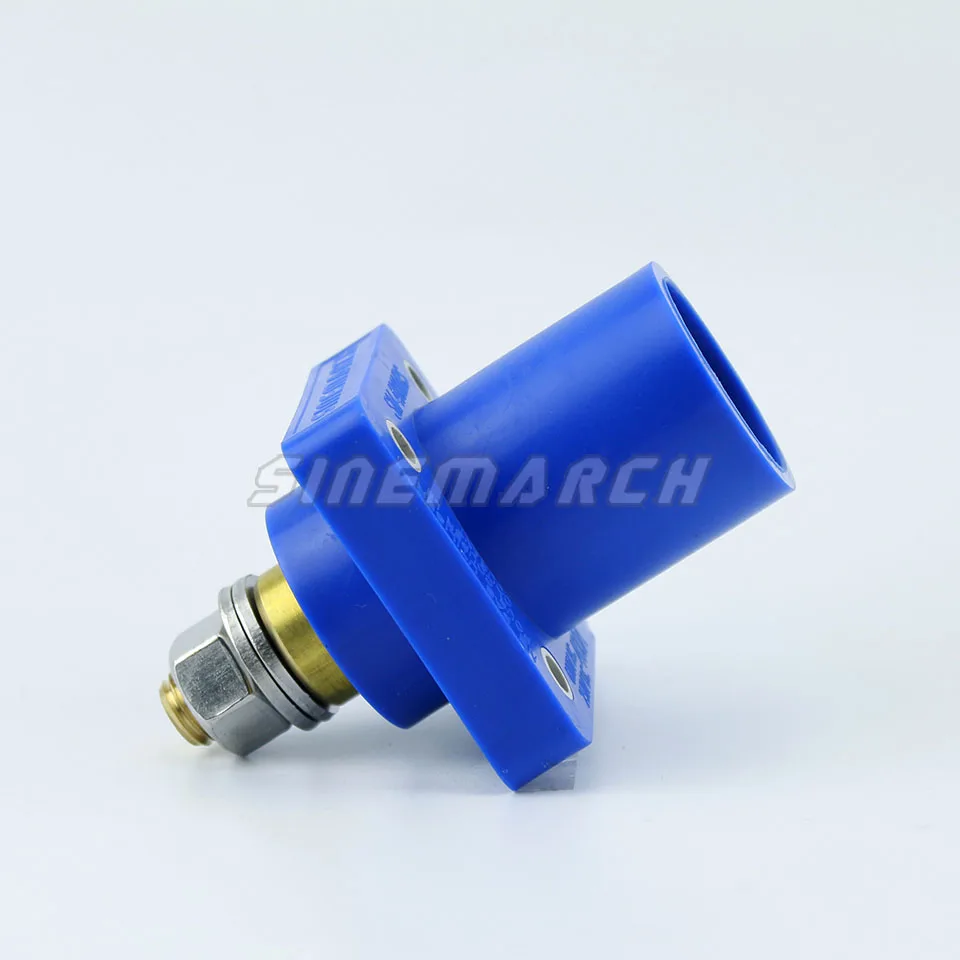

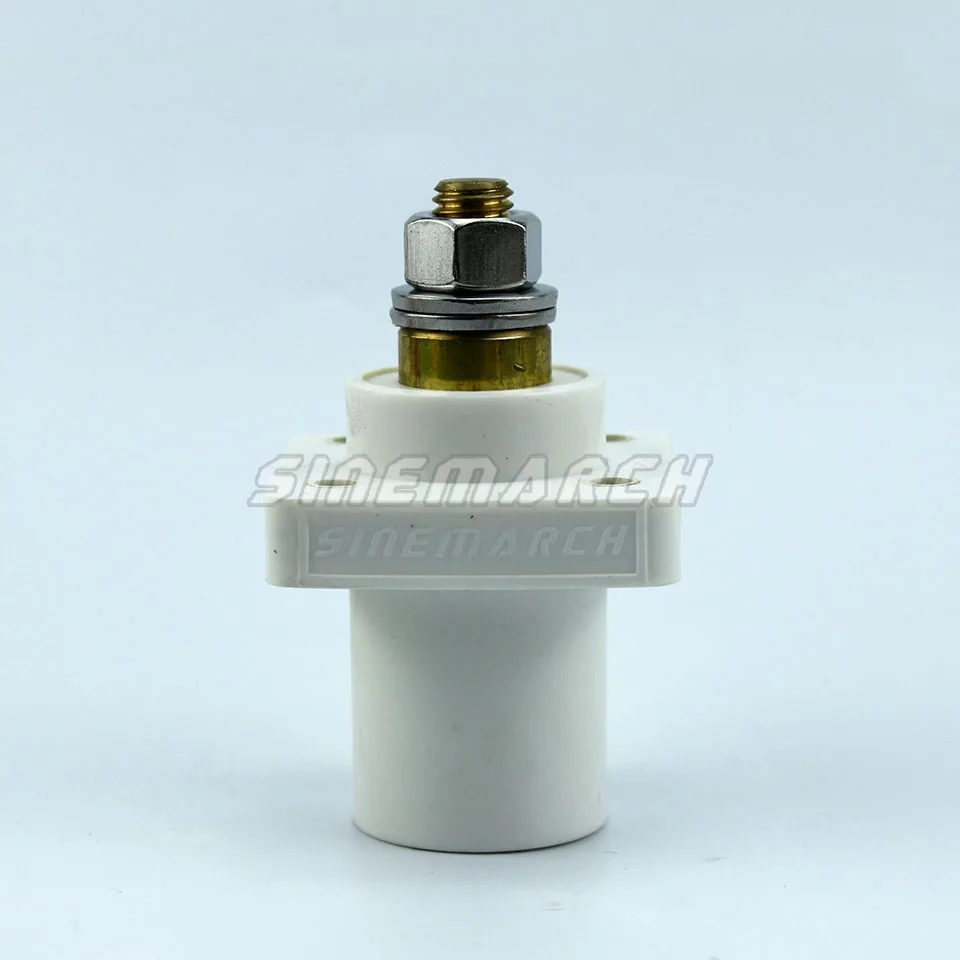

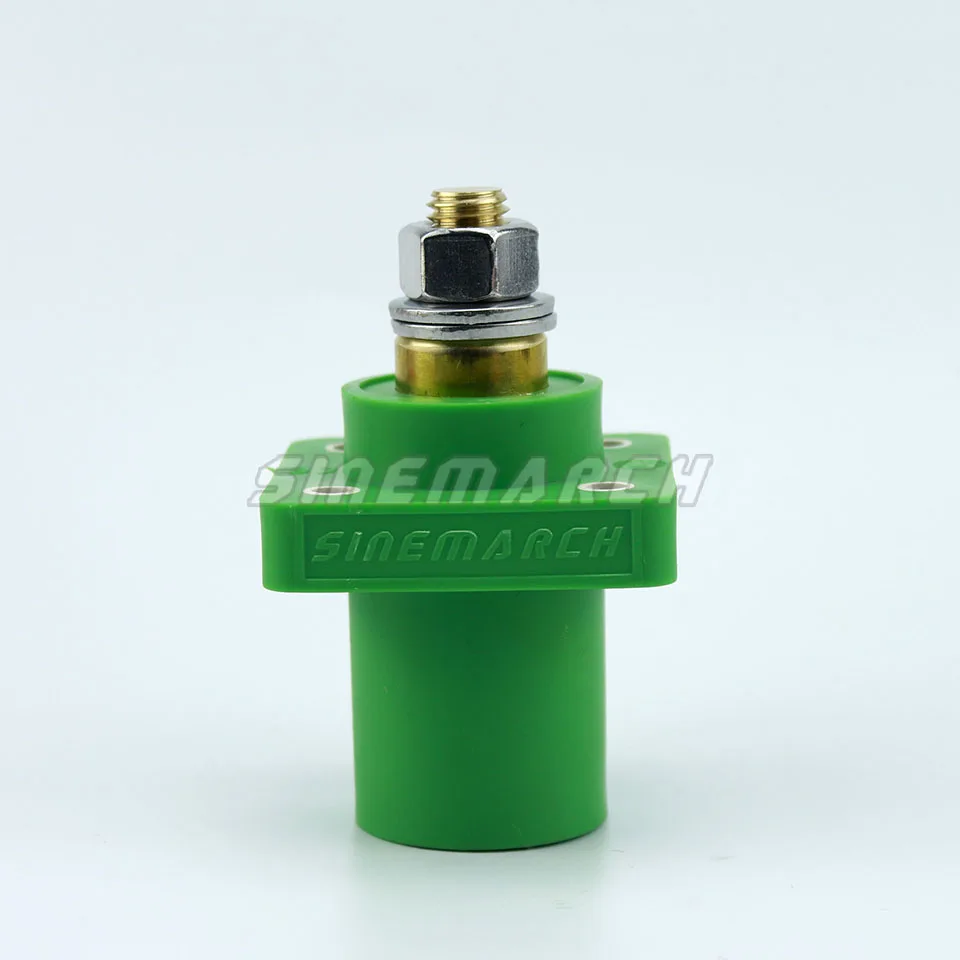

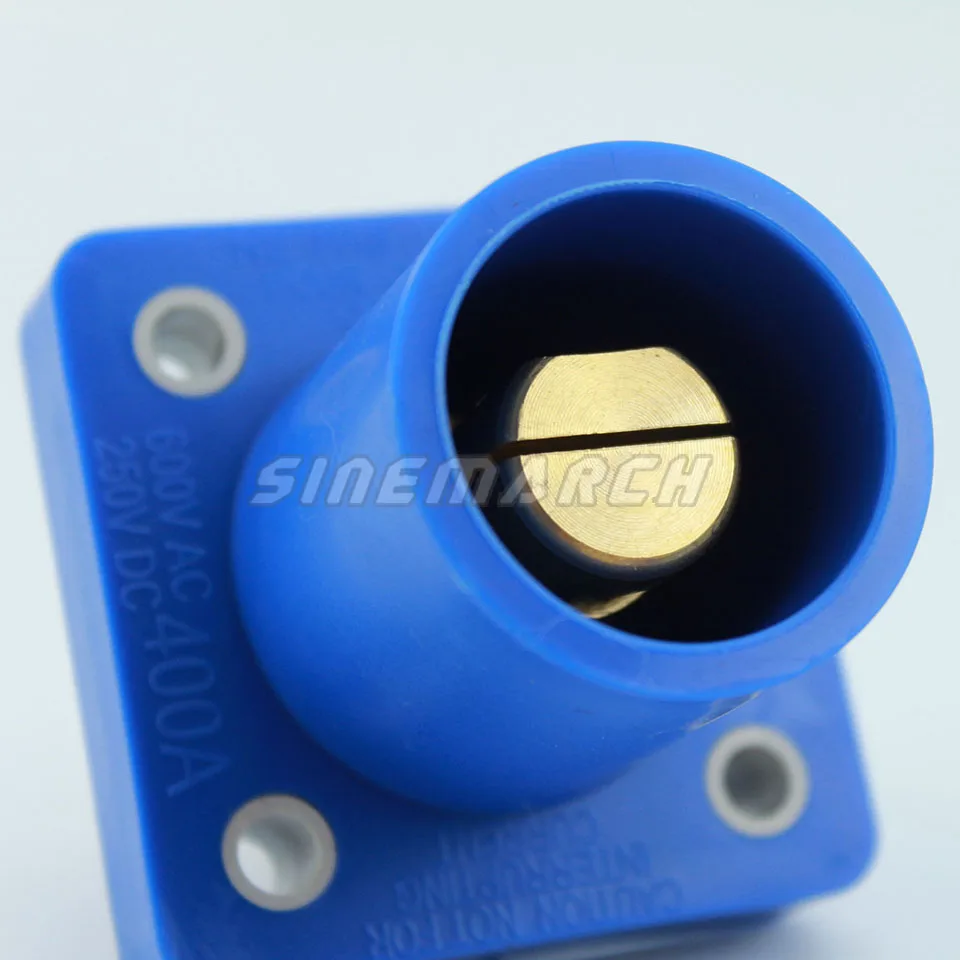

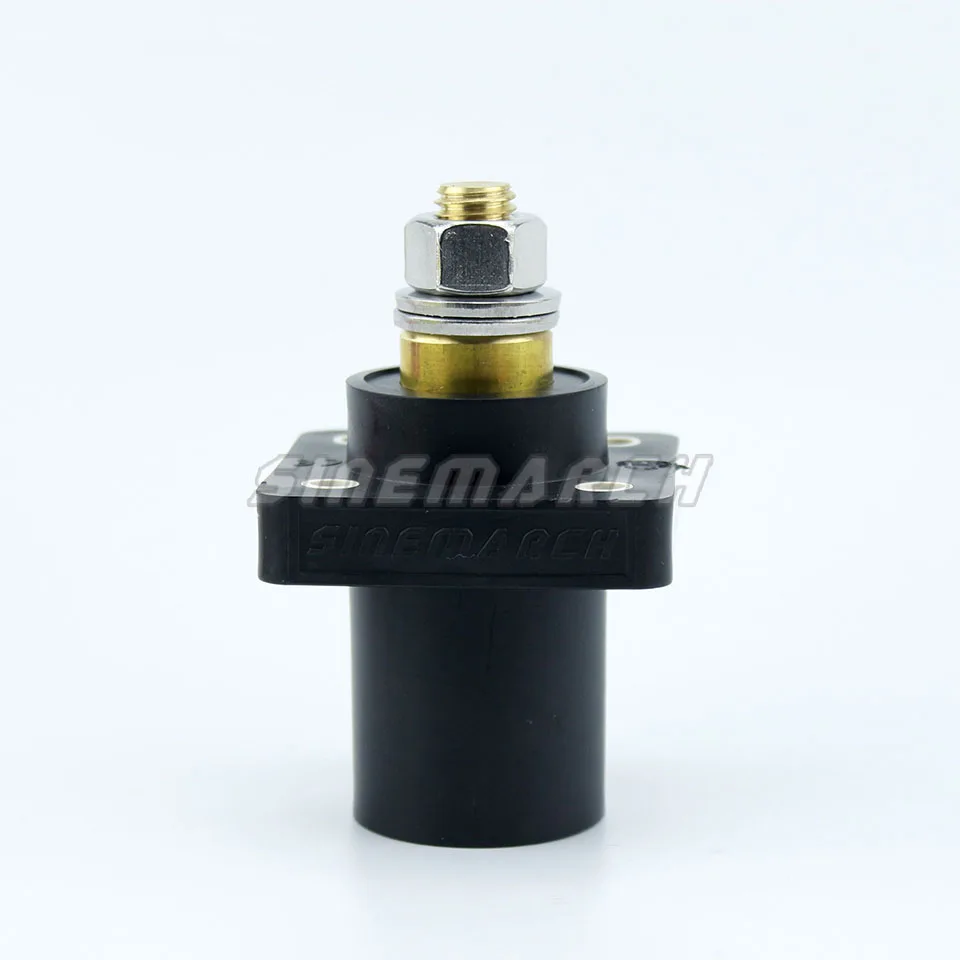

SINEMARCH 400A 600V Cam Type Connector 16 Series Male Socket Single Pole Panel Mount Camlock

Overview:

The 400A R-LOK series is an American Standard single pole power connector with double cam design. The housing is made from highly insulated and high heat resistant TPE. The contact is made of copper alloy, which has high conductivity. The 400A R-LOK series is suitable for temporary power supply such as indoor and outdoor stage performances, film shooting, exhibitions, etc.

1. Highly insulated and high heat resistant TPE housing

2. Copper alloy contact provides high conductivity

3. Color-coded for easy phase identification

Please note that do not reuse locating pin. Reusing locating pin might expose the operation to electrical danger.

Specifications:

Rated Voltage(AC): 600V (Max.)

Rated Current: 400A

Shell Material: TPE (Thermoplastic Elastomer)

Contact Material: Copper alloy

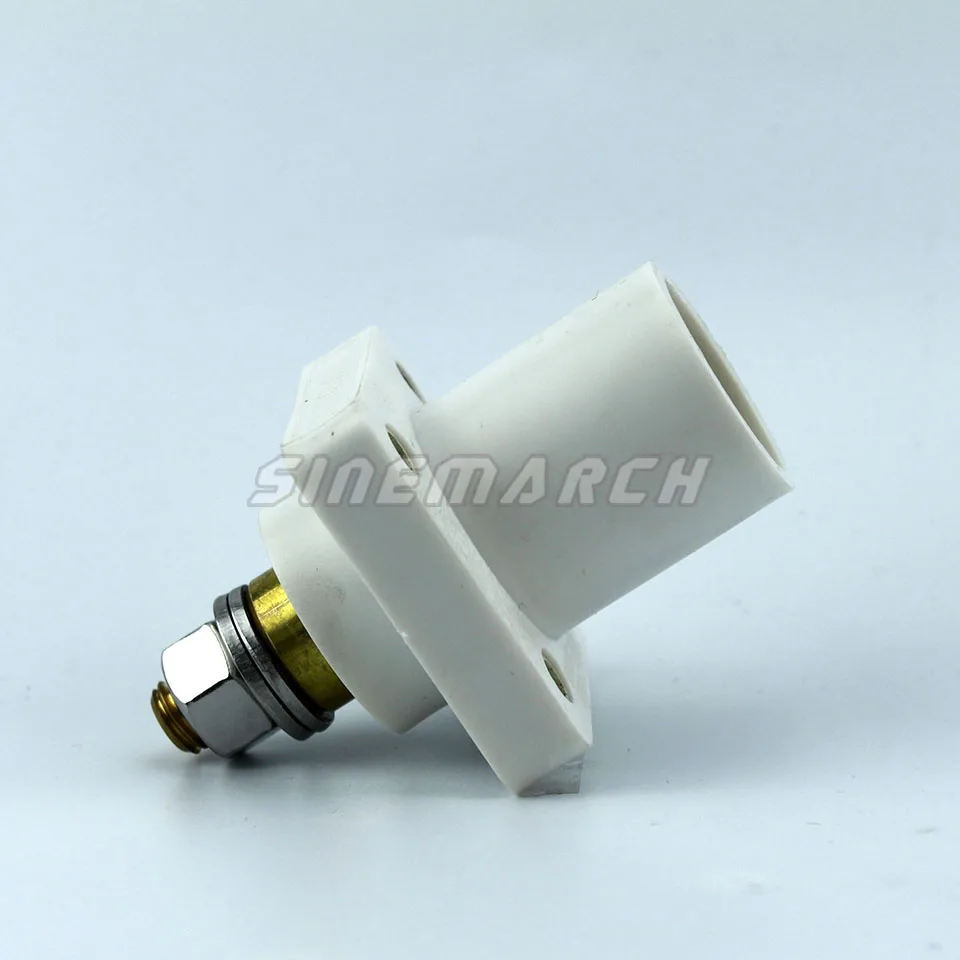

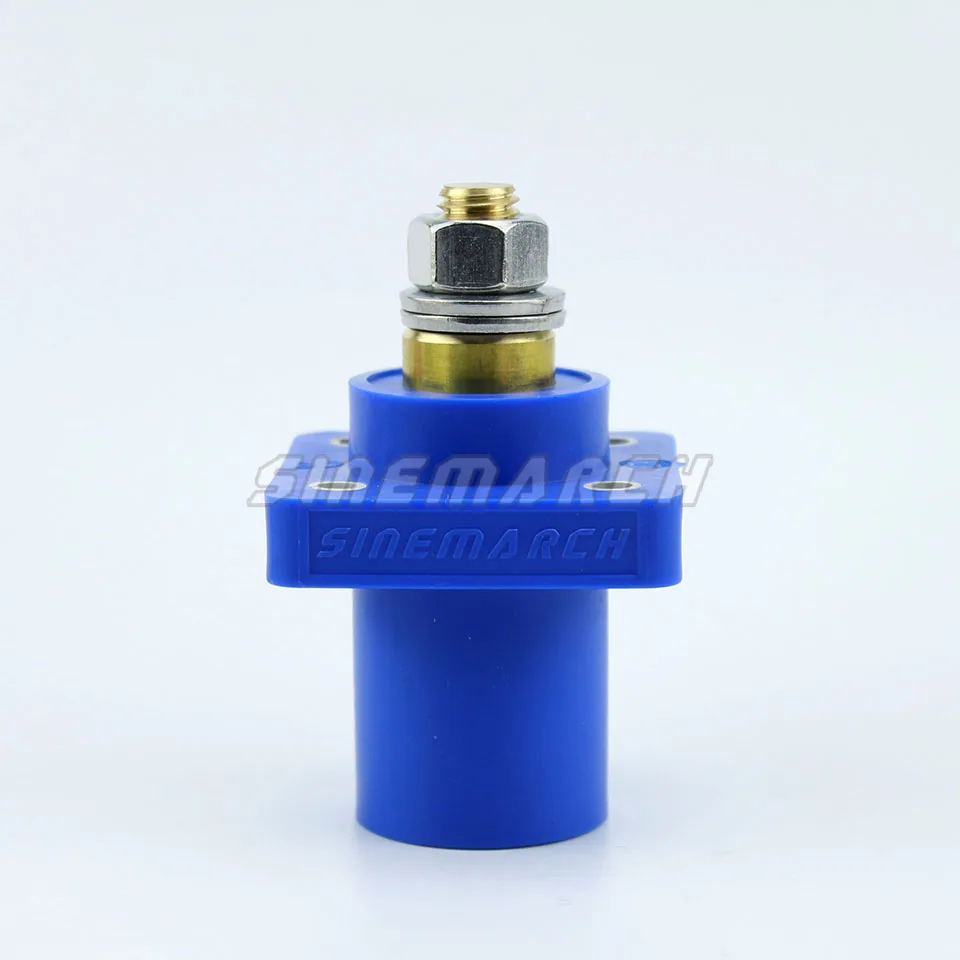

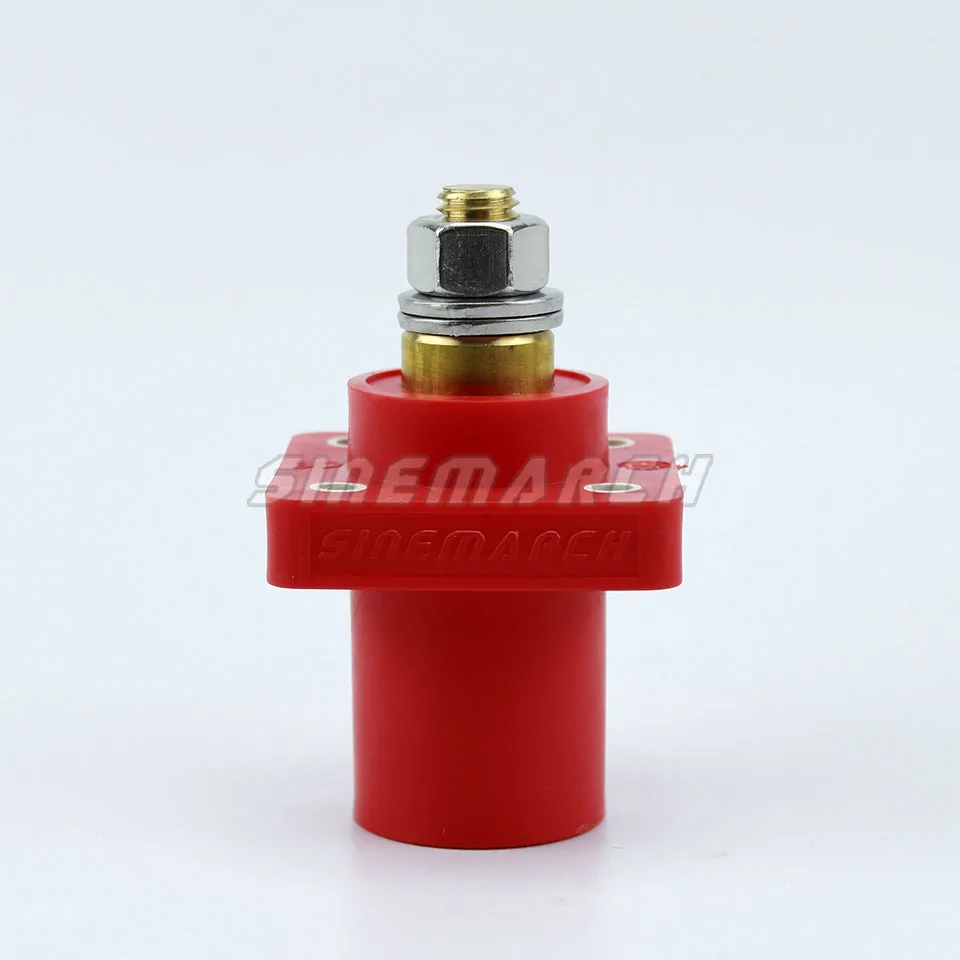

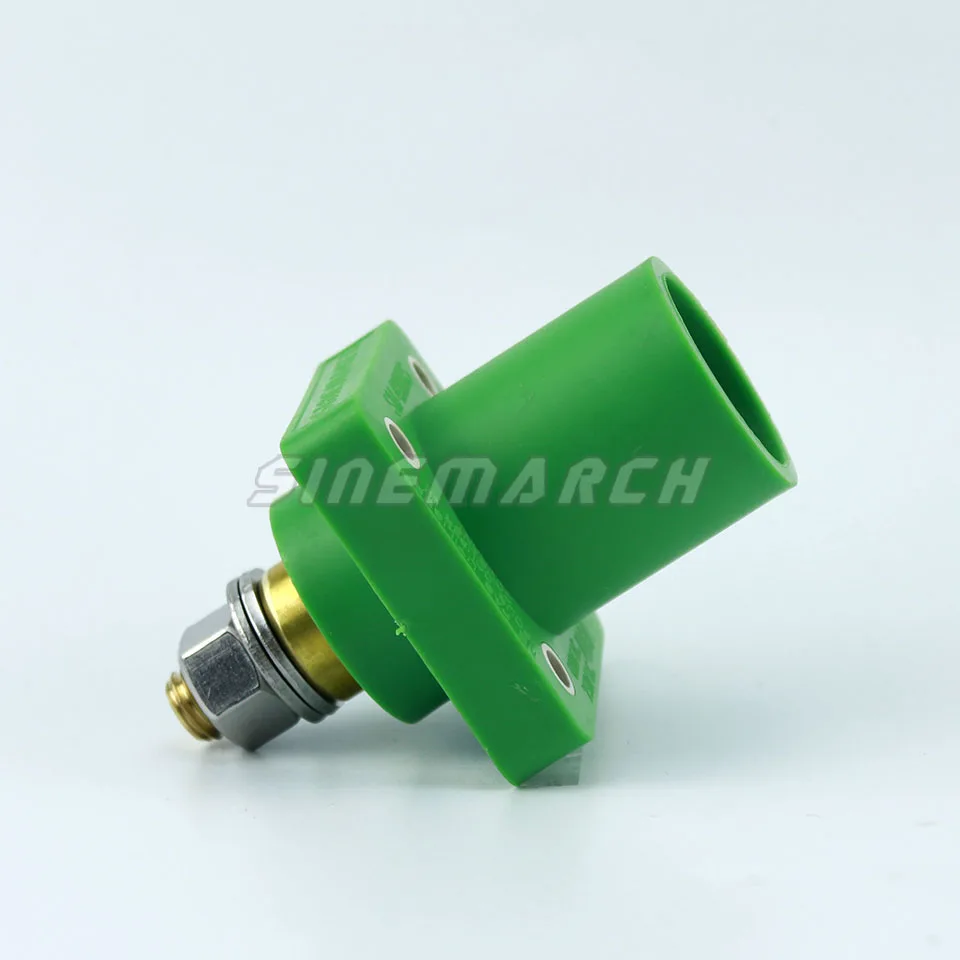

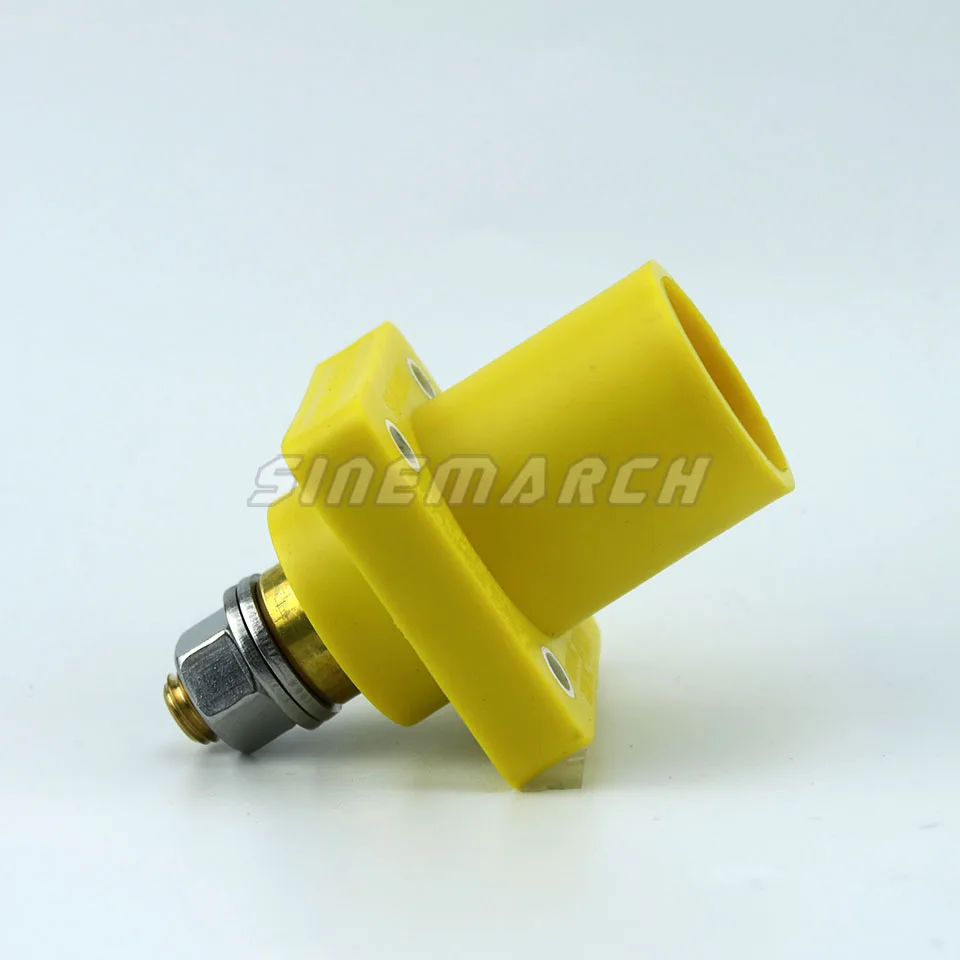

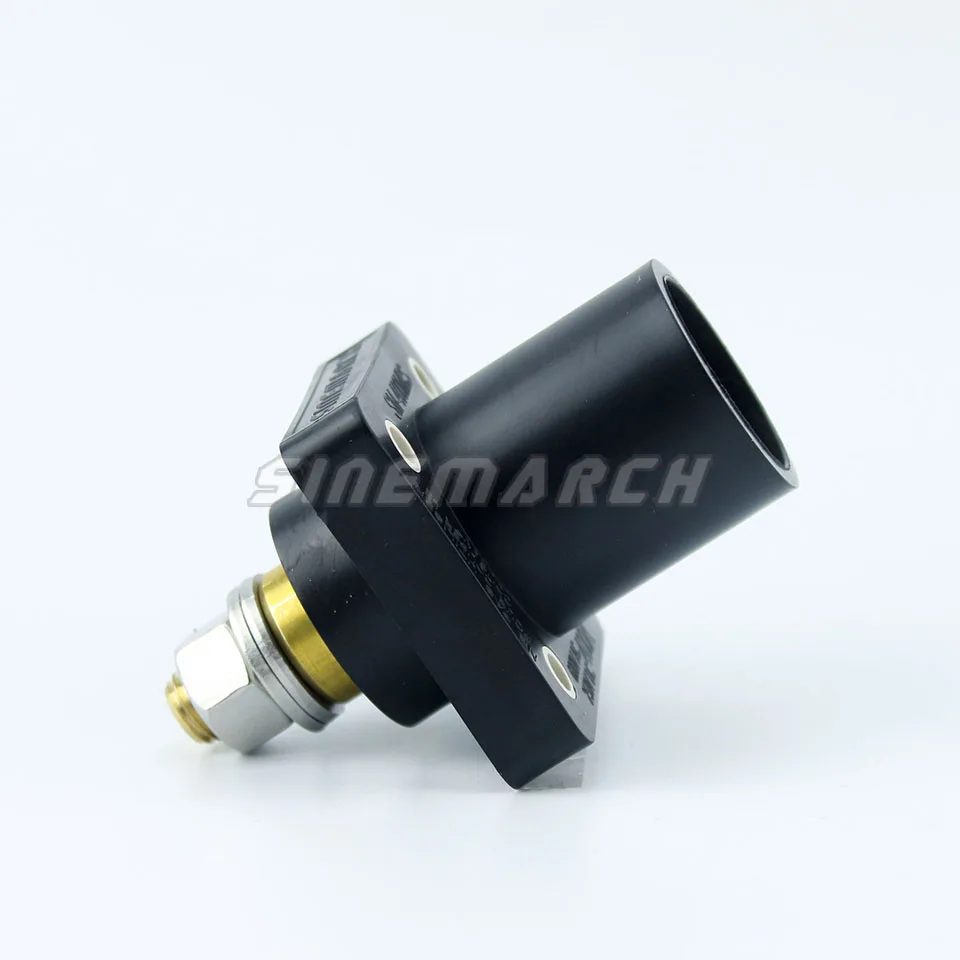

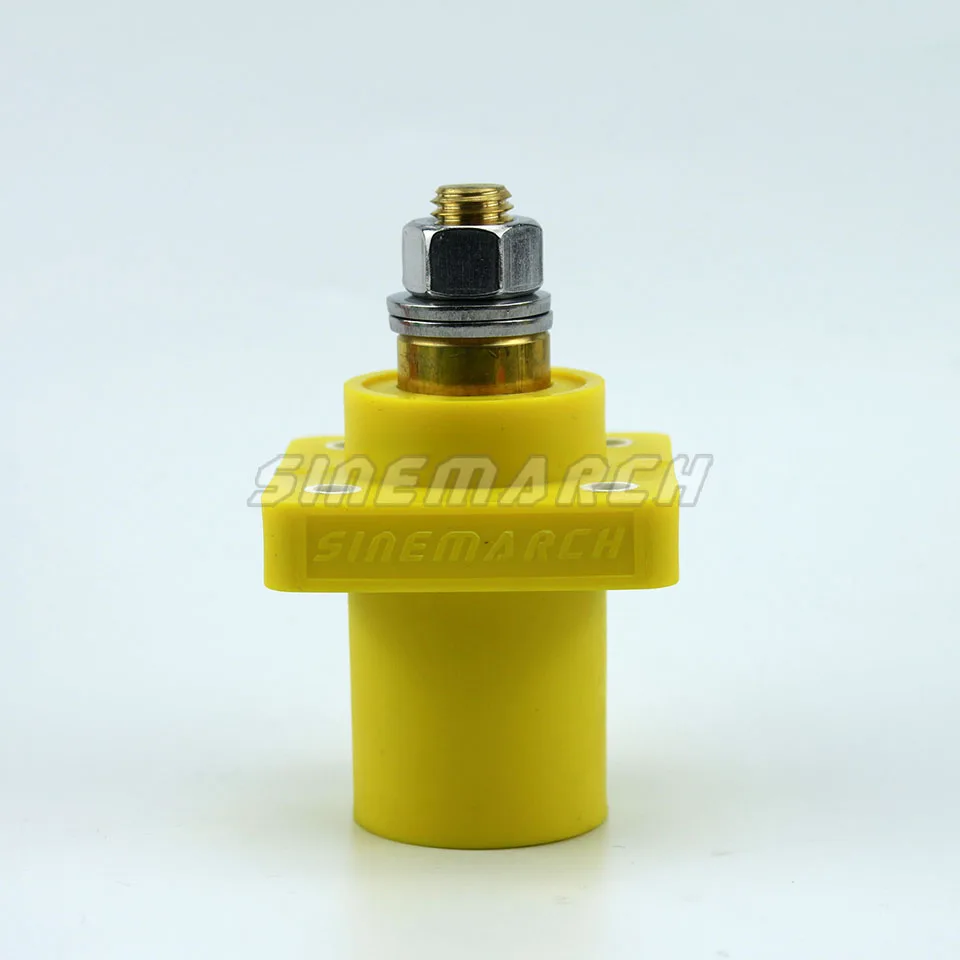

Color: Black, red, blue, white, green, yellow

Applicable Nut: M12

Link Mode: Screw crimping

Package Content:

1 x 400A R-LOK male socket
