????Specifications
Model: MD590
Color: Silver
Drill Guide Material: Aluminum Alloy 6061
Drill Housing Material: Nitride Tool Steel
Surface Treatment: Anodic Oxidation
Process: CNC Computer Engraving and Molding
Style: Practical
Power Source: Hand Powered
Side Hole Accuracy: ＜0.5mm/0.02inch
Clamping Board Thickness: ＜90mm/3.5inch
Connection Rod Length: About 32mm/1.26inch
Drilling Thickness: 10-180mm/0.4-7.08inch
Side Hole Diameter: 15mm/0.59inch
Positive Hole Size: 6mm/0.23inch, 8mm/0.315inch, 10mm/0.4inch
Slider Stroke: 5-90mm/0.2-3.54inch
Side Hole Stroke: 23-43mm/0.9-1.69inch

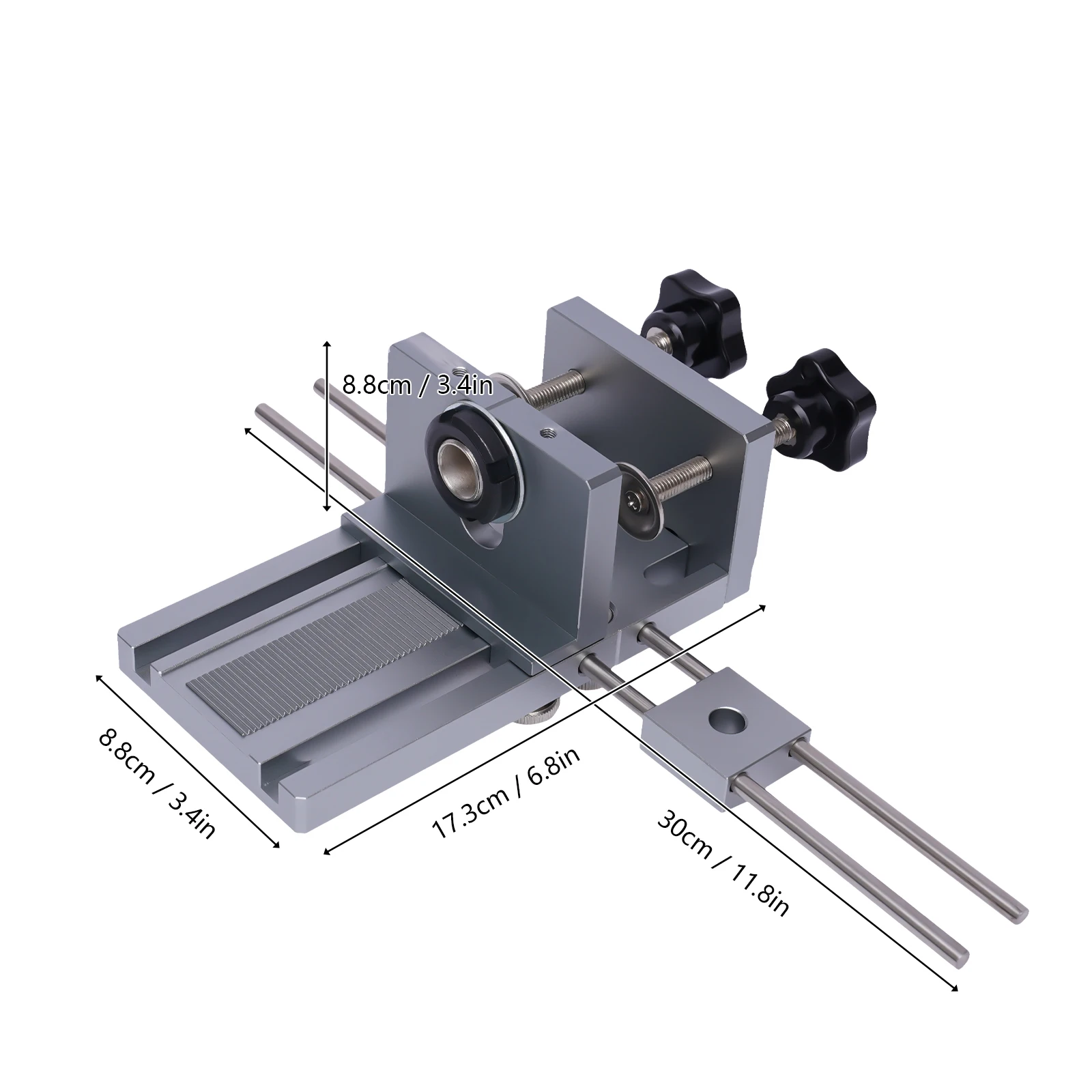

Guide Rail Length: 30cm/11.8inch
Clamp Plate Height: 88mm/3.46inch
Motherboard Size(L*W): 173*88mm/6.8*3.46inch
Package Size: 34*22*6cm/13.38*8.66*2.36inch
Net Weight: 1.6kg/3.5lbs
Gross Weight: 1.88kg/4.14lbs
????Details

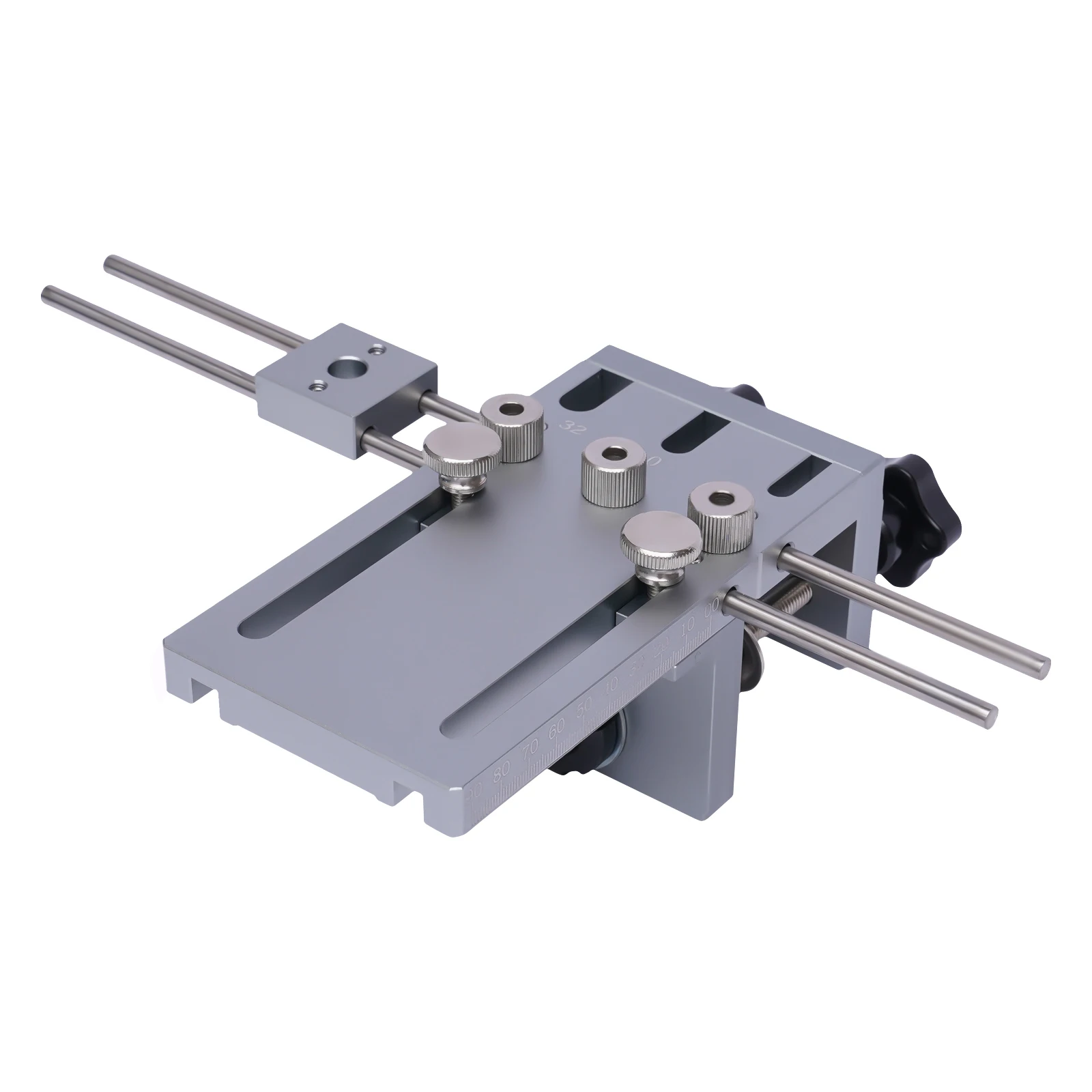

Clear Scale: The clear and precise metric scale makes it easy to find the center of a board’s edge every time without tedious trial and adjustments.

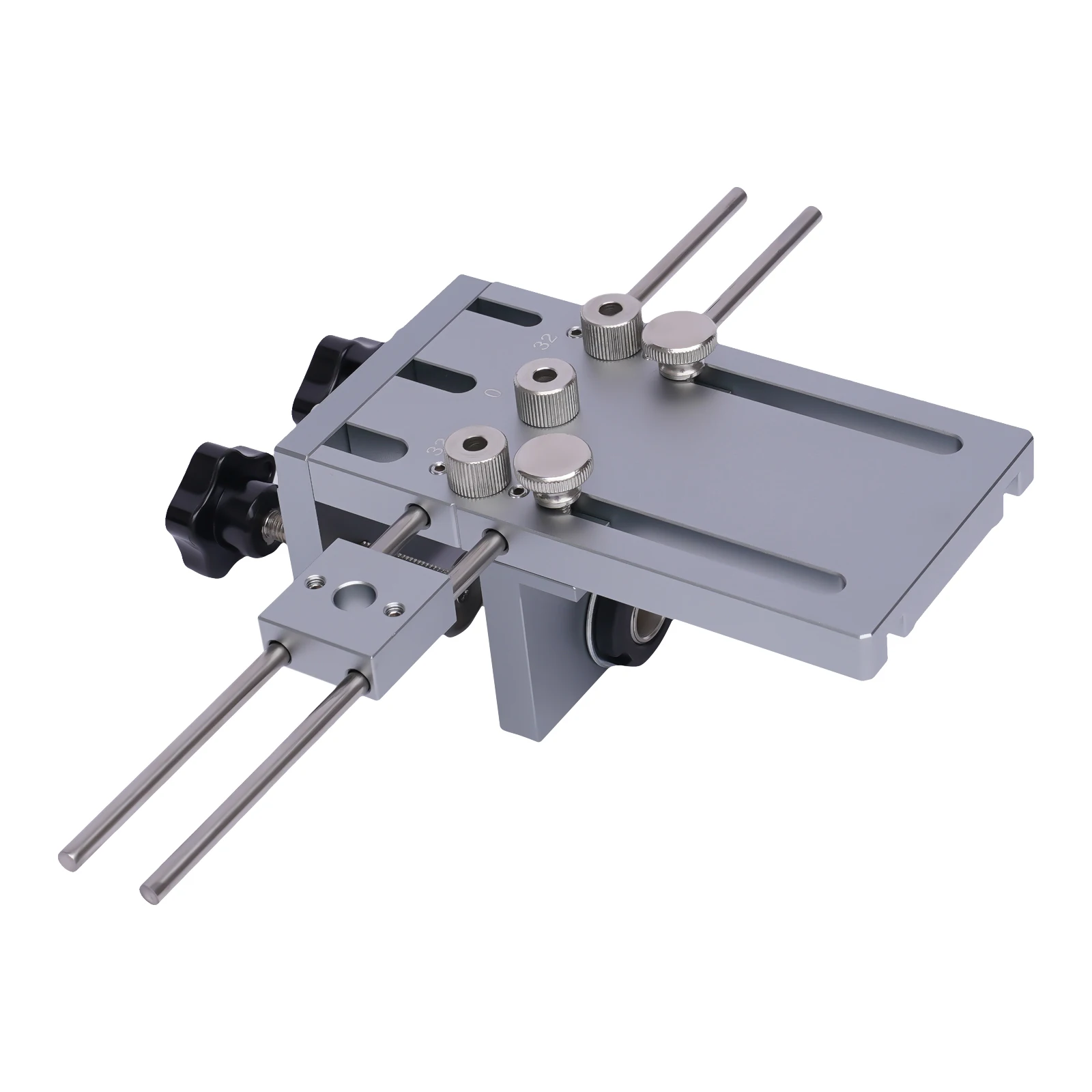

Parallel Arms: Two precisely machined parallel arms can be quickly adjusted to the stock thickness, and then the central bar is placed in the center of the material, making the operation easier.
Special Rail: It is not necessary to use locking pliers to clamp the board when punching the side with the equipped special rail.
????Application

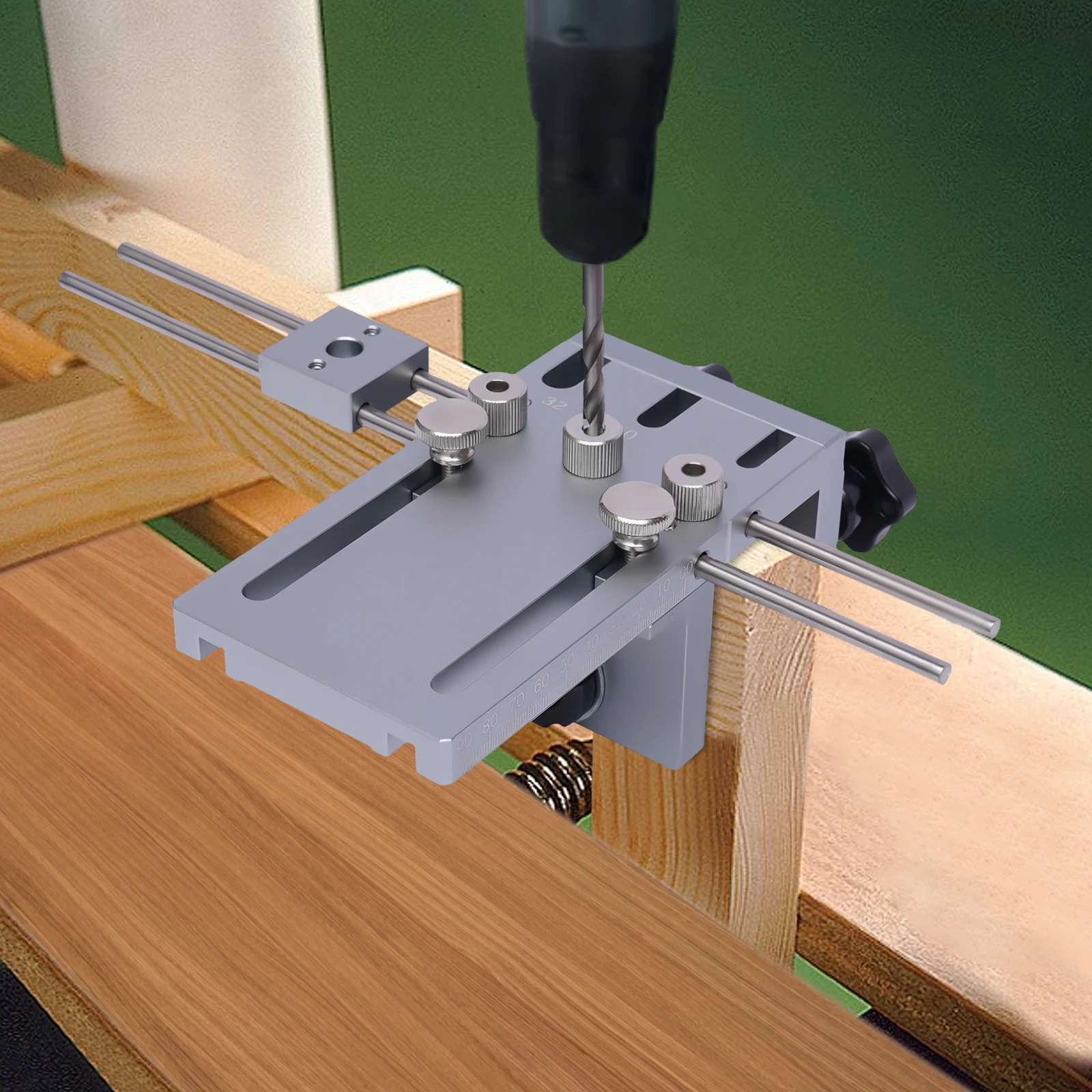

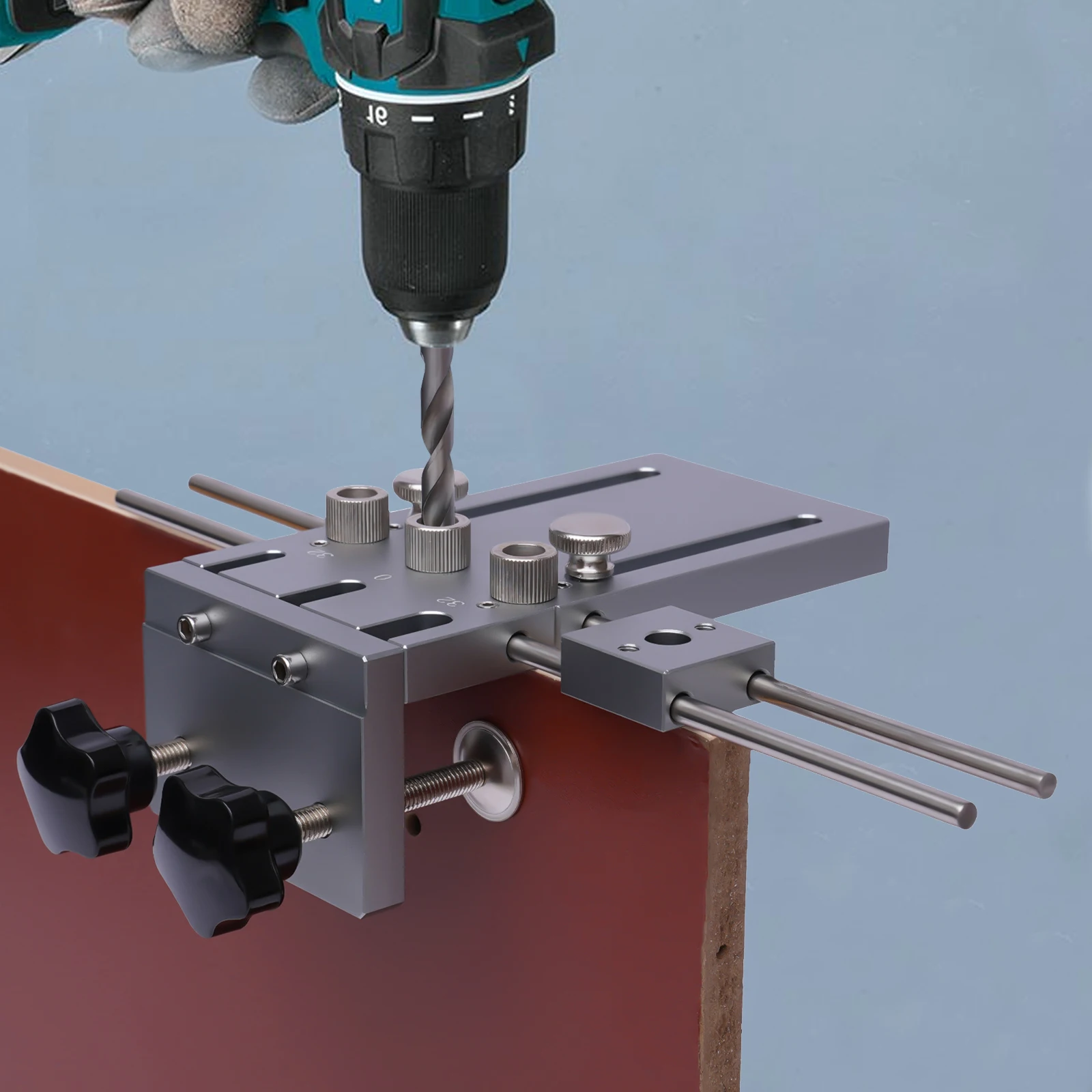

It is suitable for all kinds of furniture such as doors, windows, cabinets, tables, etc. And it is an ideal choice for clamping boards with a thickness of less than 3.5".
????How to Use
1.Measure the thickness of the plate to be punched.
2.Adjust the position of the eccentric drill sleeve according to the specification of the connecting rod.
3.Adjust the slider position scale, and the scale value is half of the plate thickness. If the corresponding scale cannot be aligned, add a shim of the corresponding size.
????Package Included

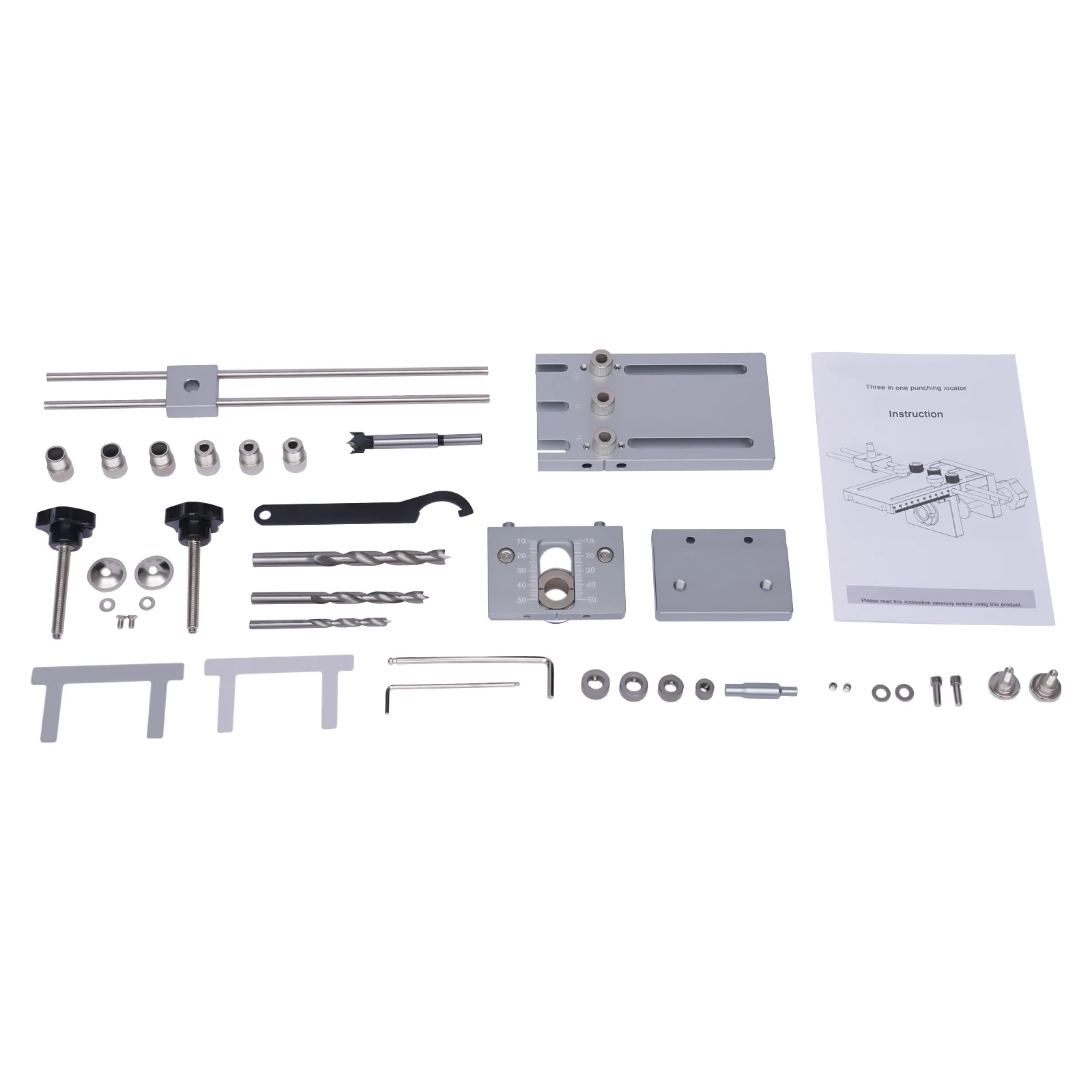

1* Punch Locator
3* 6mm Drill Sleeves
3* 8mm Drill Sleeves
3* 10mm Drill Sleeves
1* 6mm Border Ring
1* 8mm Border Ring
2* 10mm Border Rings
1* 6mm Drill Bit
1* 8mm Drill Bit
1* 10mm Drill Bit
2* Star Screws
1* 15mm Hole Opener
1* Half-moon Key
1* Clamp Plate
1* Slider Set
1* Motherboard
2* Wrenches
1* Chinese&English Manual
Other Accessories for Assembly.
????Notes
1.Since the slider slides 2mm each time, it can only be aligned with the center of the 10, 14, 18, 22mm, etc. thick plates. If the thickness of the plate is not suitable, it will not be able to align with the center to punch holes without adding a shim.
2.Please control the drilling depth by setting the border ring.
3.Please read the Chinese&English manual carefully before using it. If you need the operation video for reference, please contact us.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
