Coaxial Centering Indicator 0-0.15''/0.0005'' Dial Indicator Set with Storage Case Accurate Co-Ax Indicator for Milling Machine

Introduction

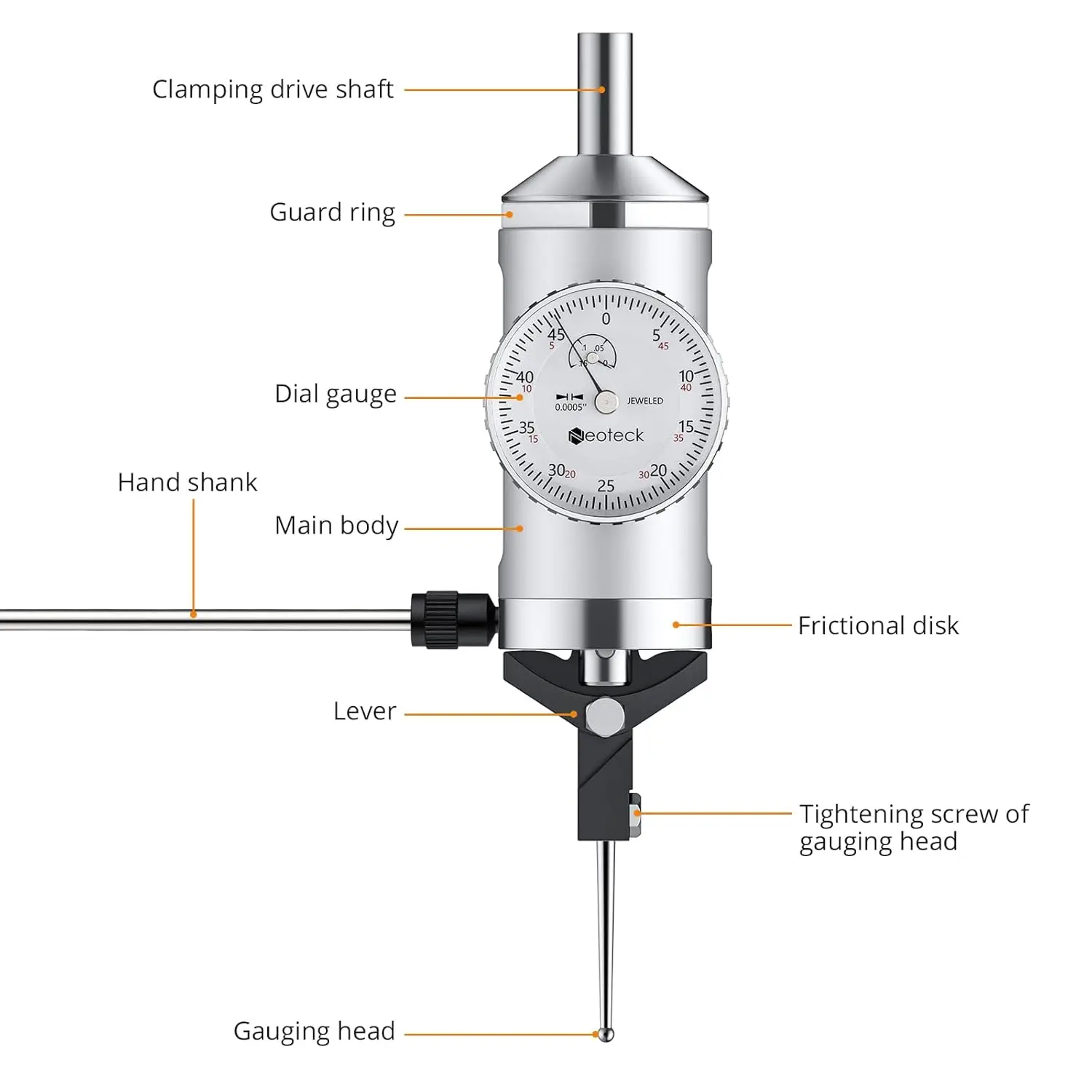

Centering dial test indicator is a new measuring tool using lever to transmit relative position of workpiece center to dial indicator and convert into pointer angular displacement. It is the accurate, easy and visible tool to find out the relative center such as excircle and inner bore of processed work piece in machining of fabricating machineries.

Features

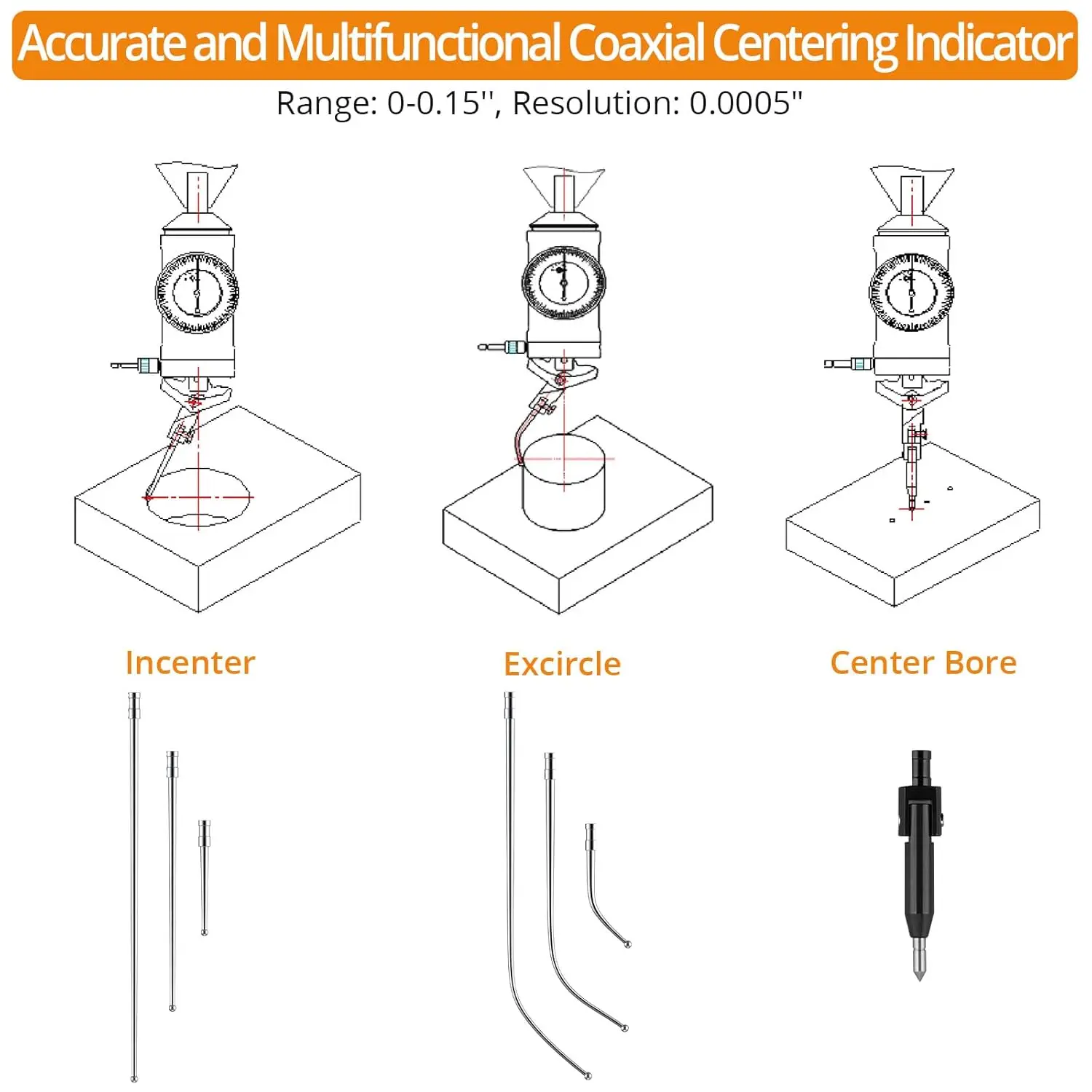

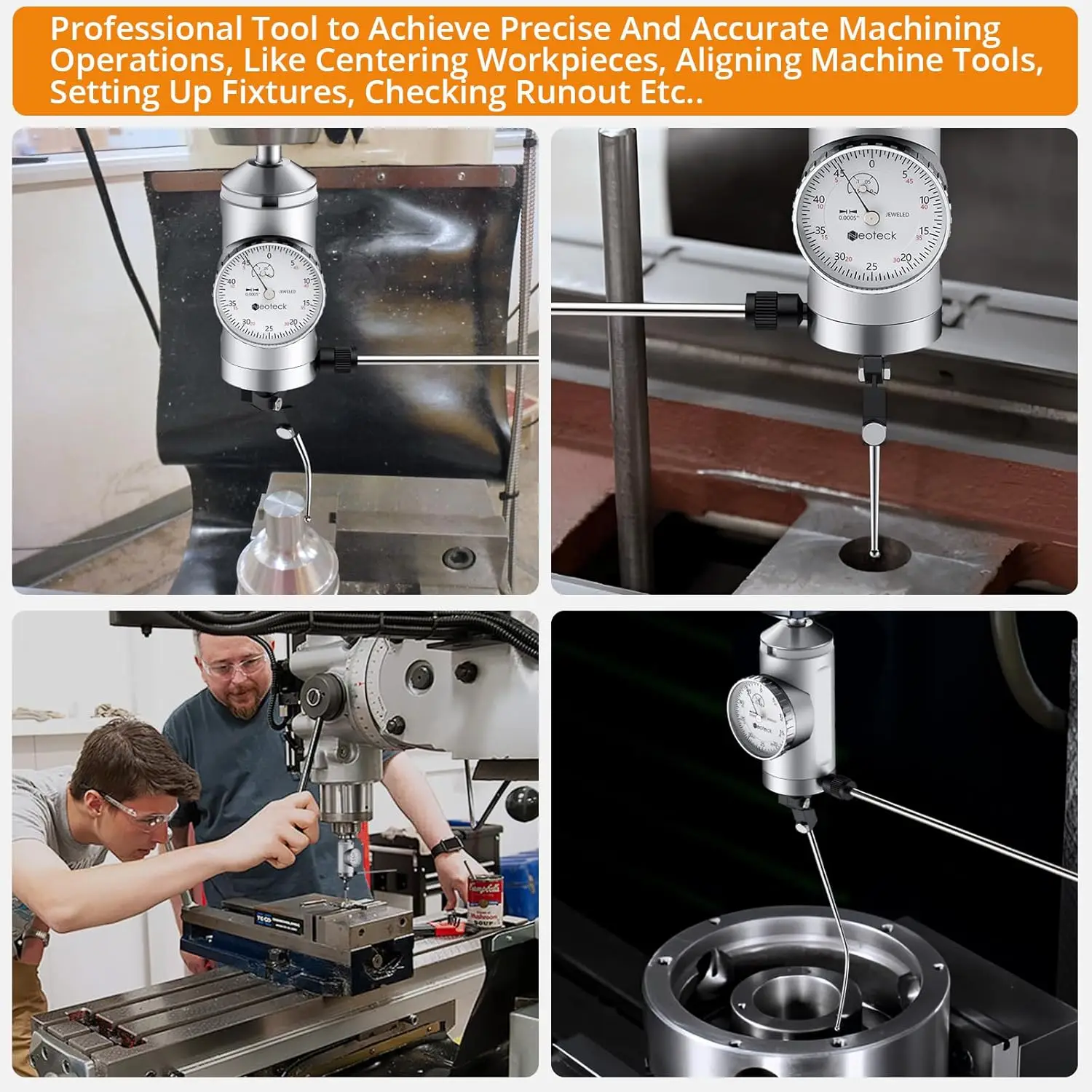

1. To find out center (alignment) of workpiece on jig on boring machine or milling machine.
2. When principal axis rotates, the dial plate faces operator throughout for him/her to center.
3. To center lateral diameters.
4. It can work at any angle from level to verticality.

Specifications
Measuring Range: 0-0.15"
Resolution: 0.0005"
Accuracy: 0.0002"

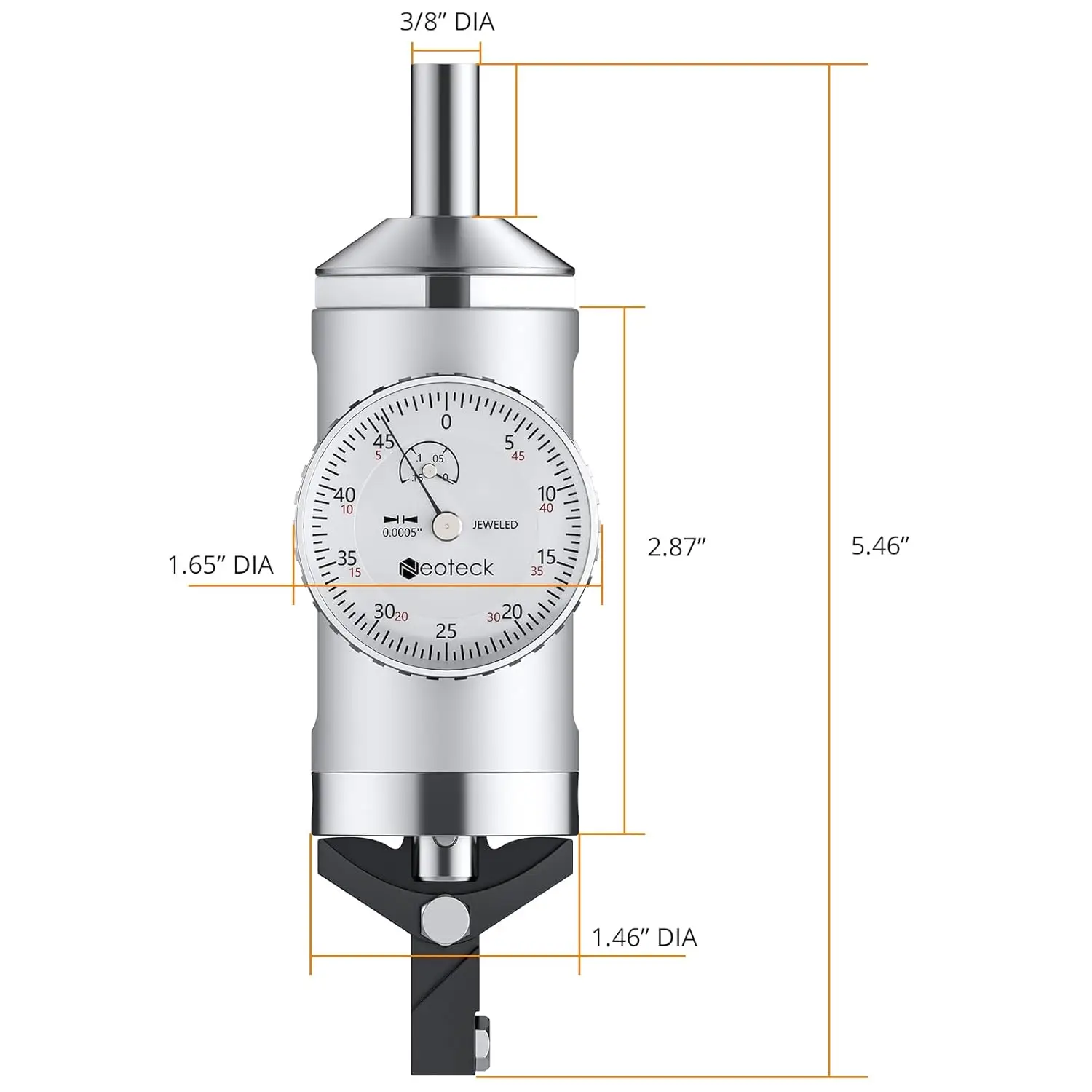

Clamping Mounting Shank: 3/8''
Capacity: Internal 5/32" to 4-1/4" dia. or External 0 to 4-1/4" dia.
Speed: spindle rotation up to 100 RPM. Exceeding this speed is not recommended.

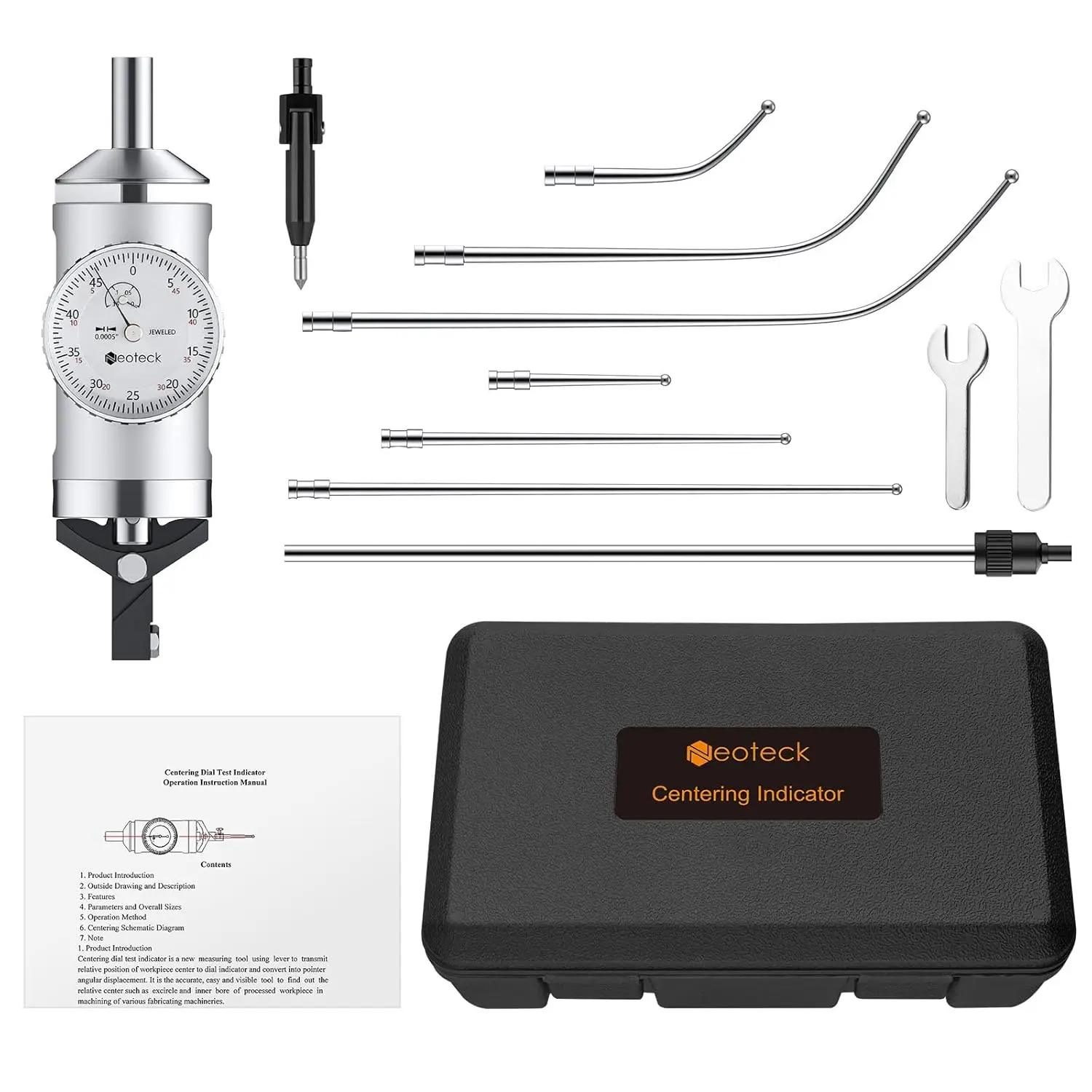

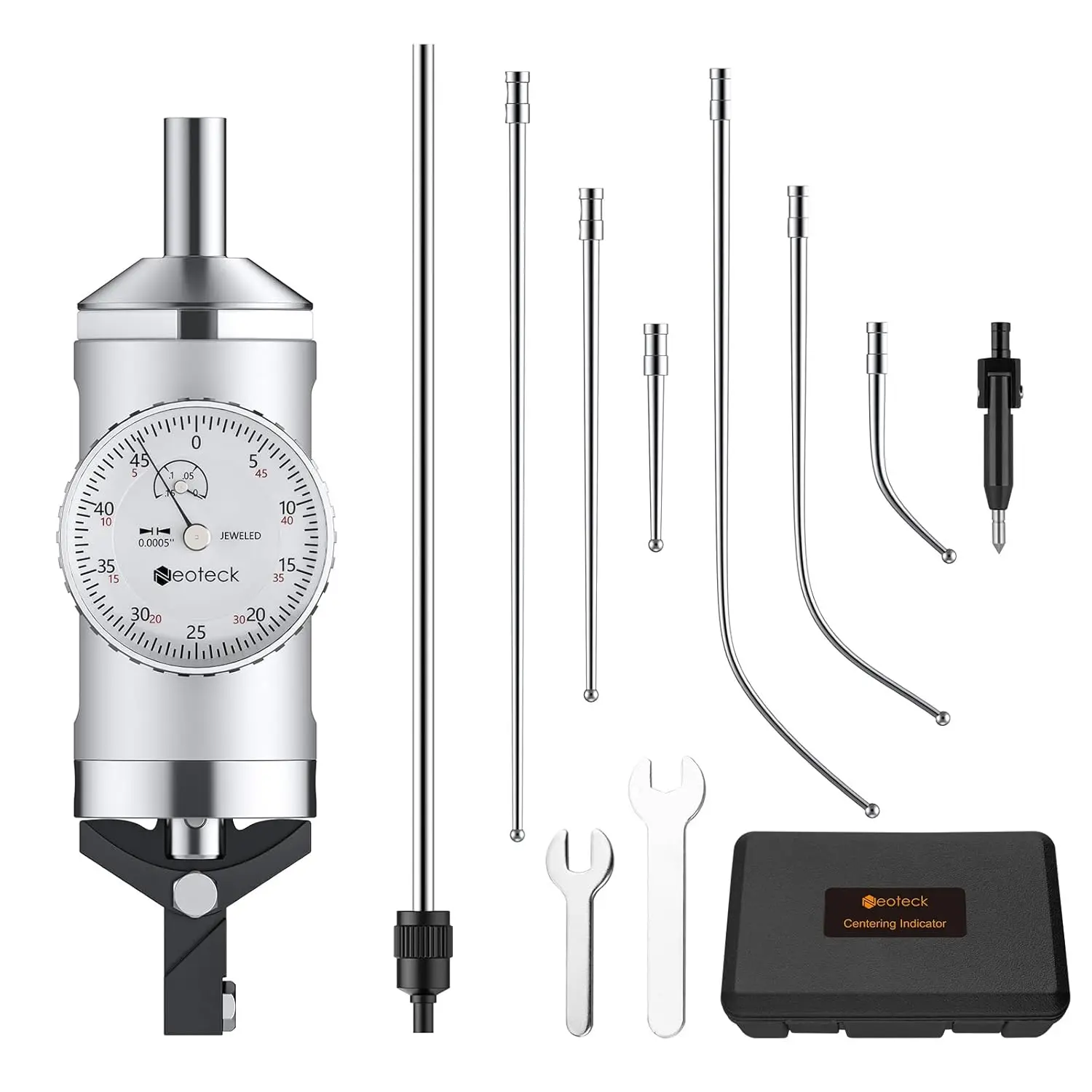

Package
Coaxial Centering Indicator x 1
Restraining Rod x 1
Center Point Feeler x 1
2", 4" & 6" straight feeler x 1
2", 4" & 6" curved feeler x 1
Wrech x 2
User Manual x 1
Storage Box x 1
