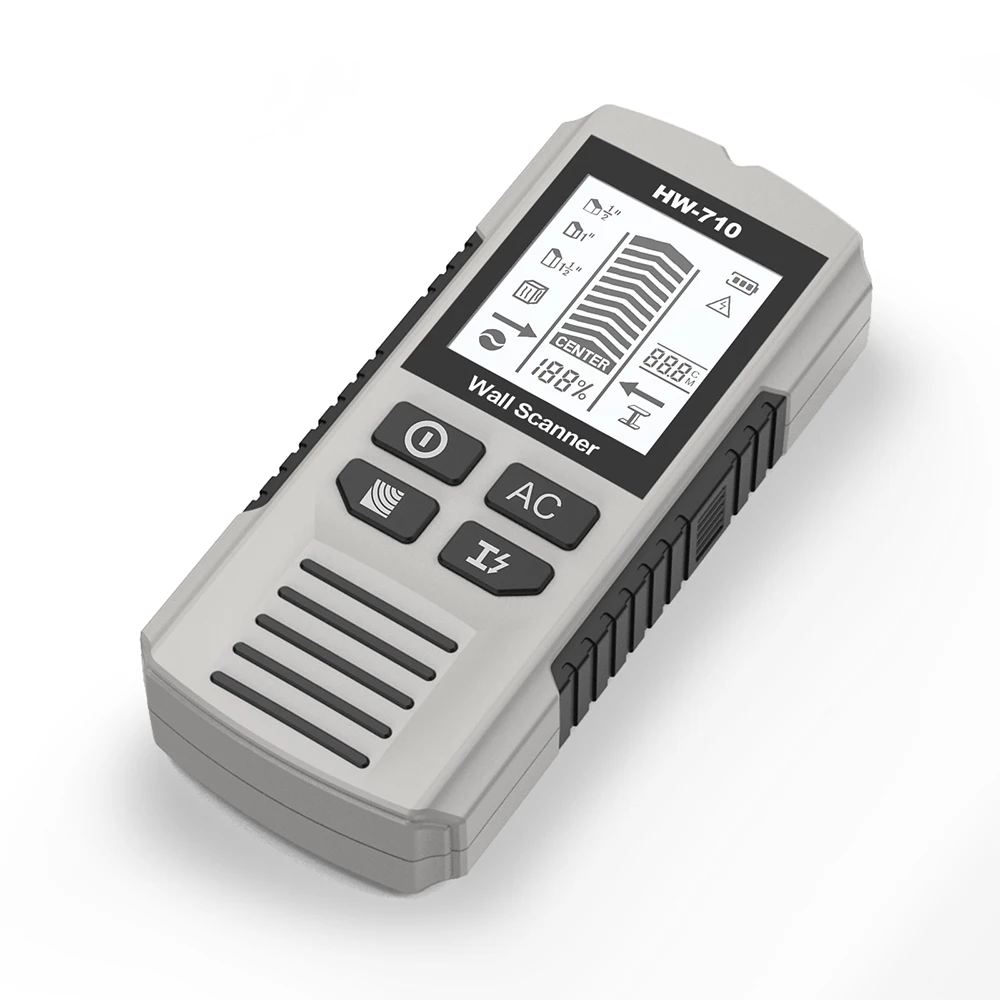

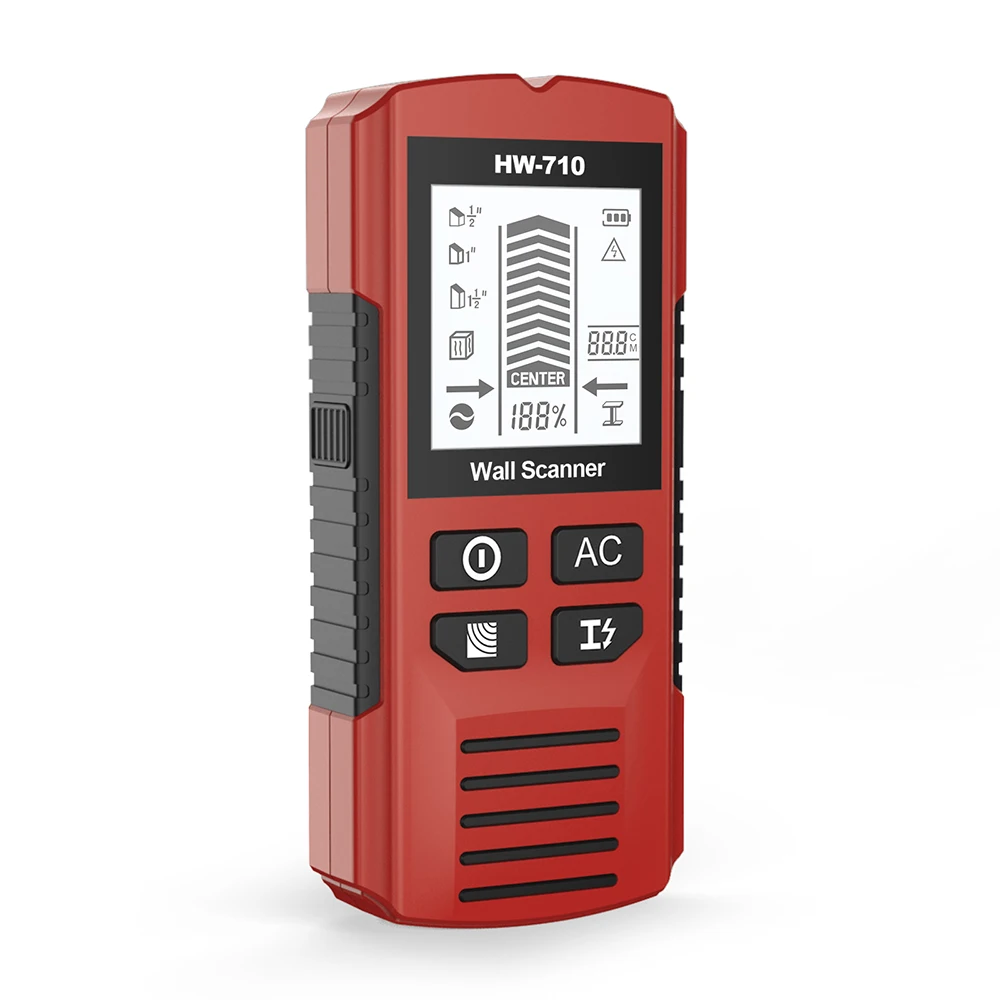

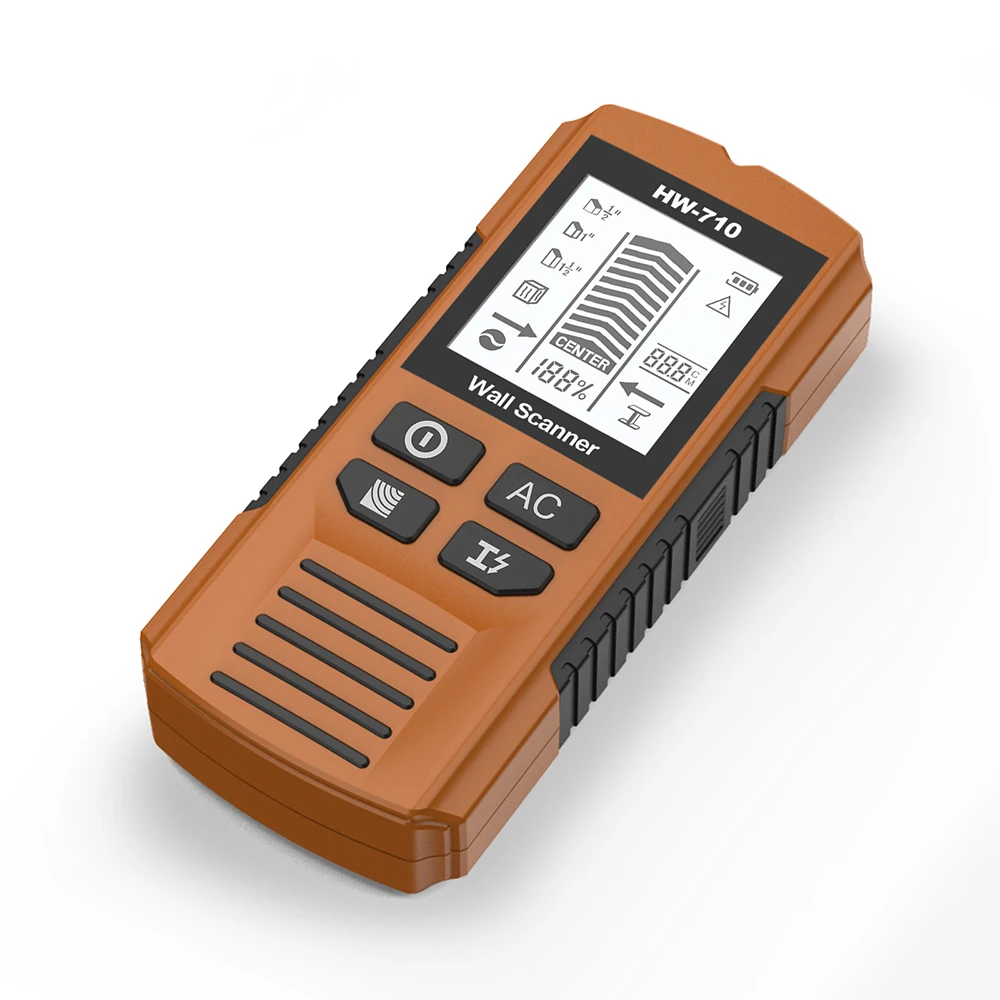

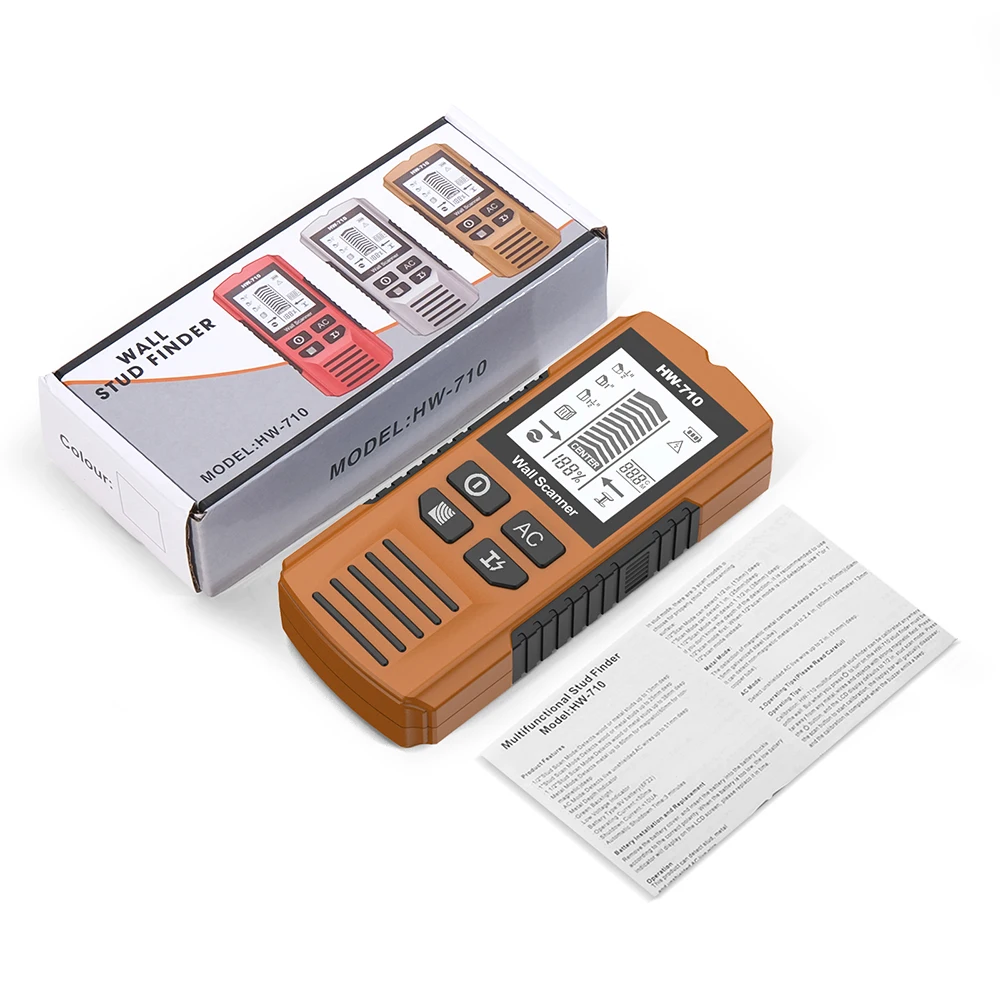

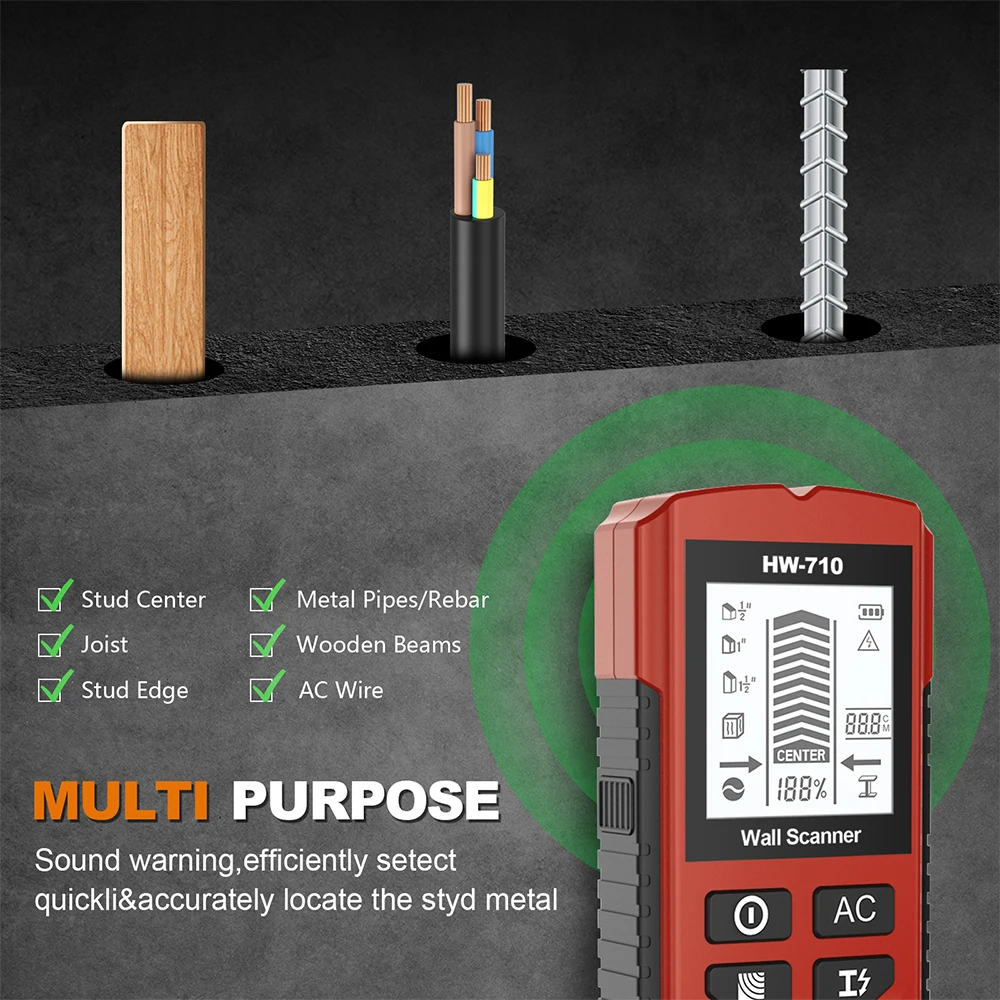

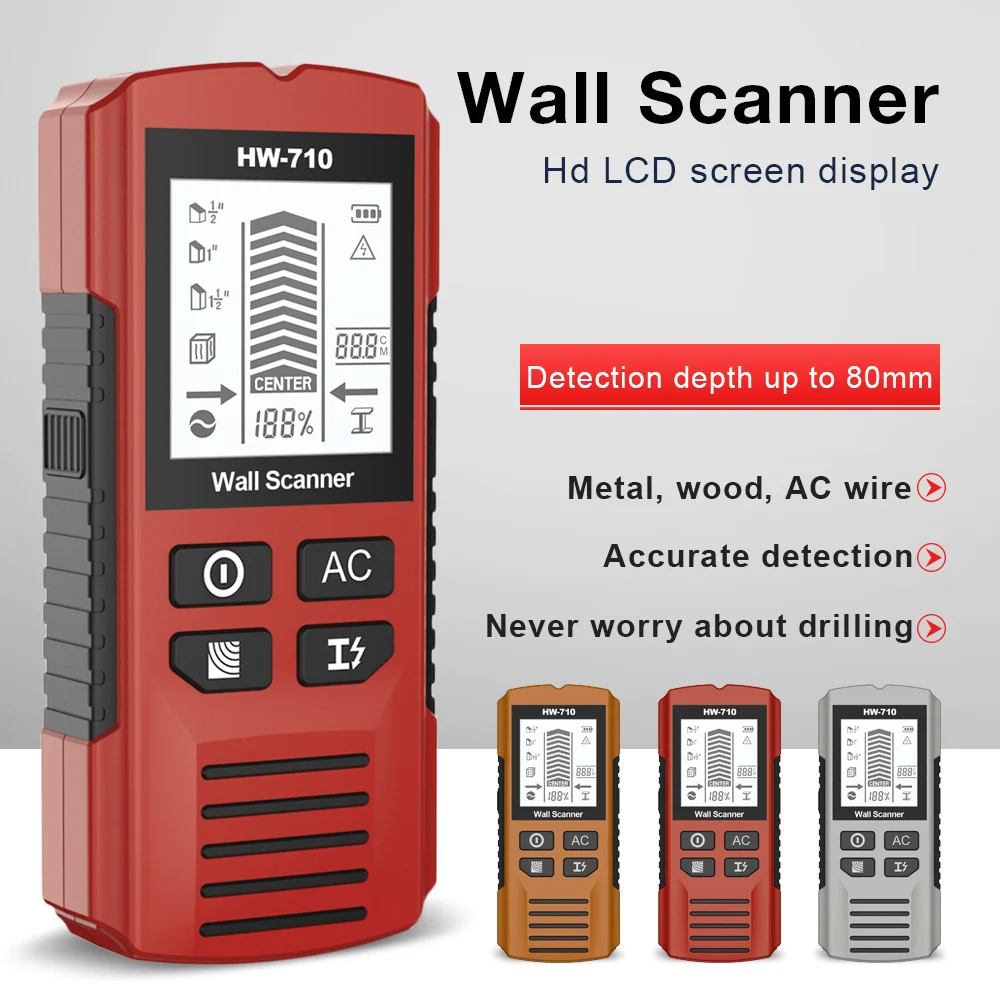

HW-710 Multi-functional Stud Finder Wall Scanner AC Cable Wires Depth Tracker Wall Metal Detector Electronic Wood Finder

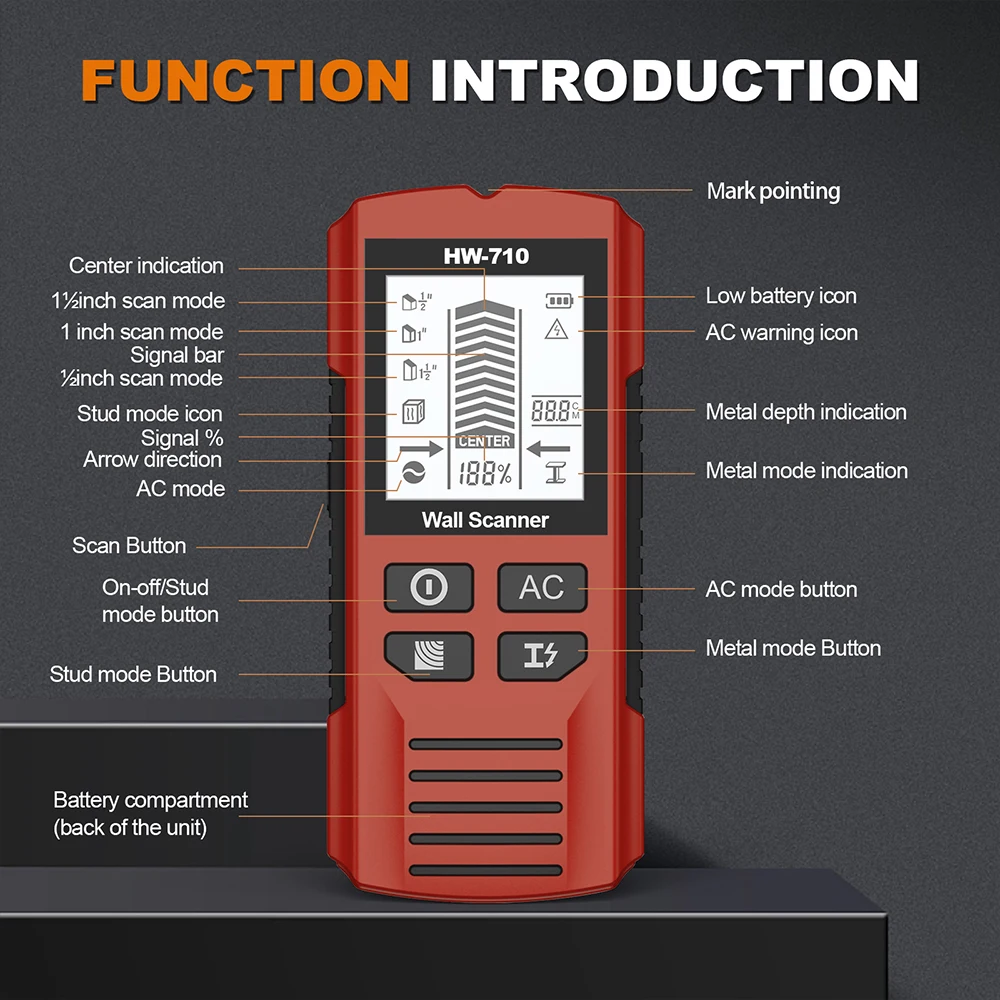

Features

·1/2"Stud Scan Mode:Detects wood or metal studs up to 13mm deep

·1"Stud Scan Mode:Detects wood or metal studs up to 25mm deep

·1 1/2"Stud Scan Mode:Detects wood or metal studs up to 38mm deep

·Metal Mode:Detects metal up to 80mm for magnetic(60mm for non-magnetic) deep

·AC Mode:Detects live unshielded AC wires up to 51mm deep

·Metal Depth Indicator

·Green Backlight

.Low Voltage Indicator

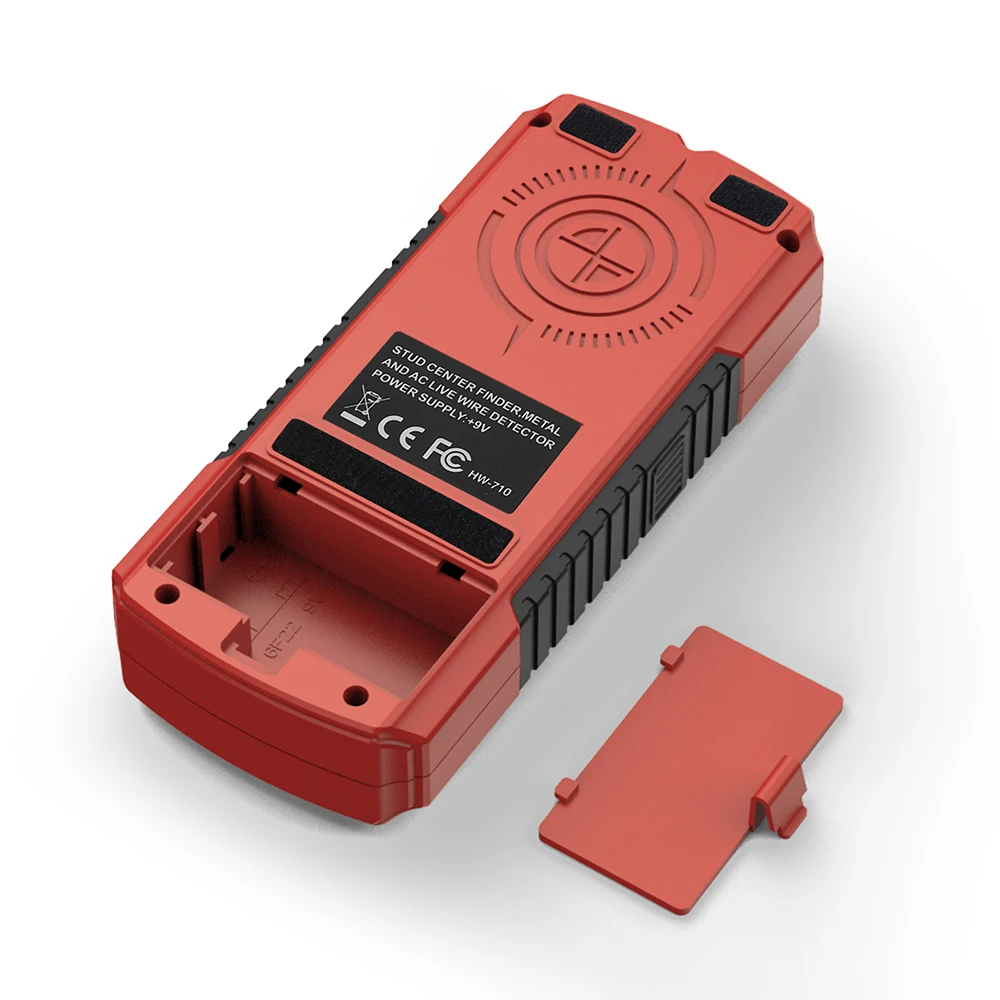

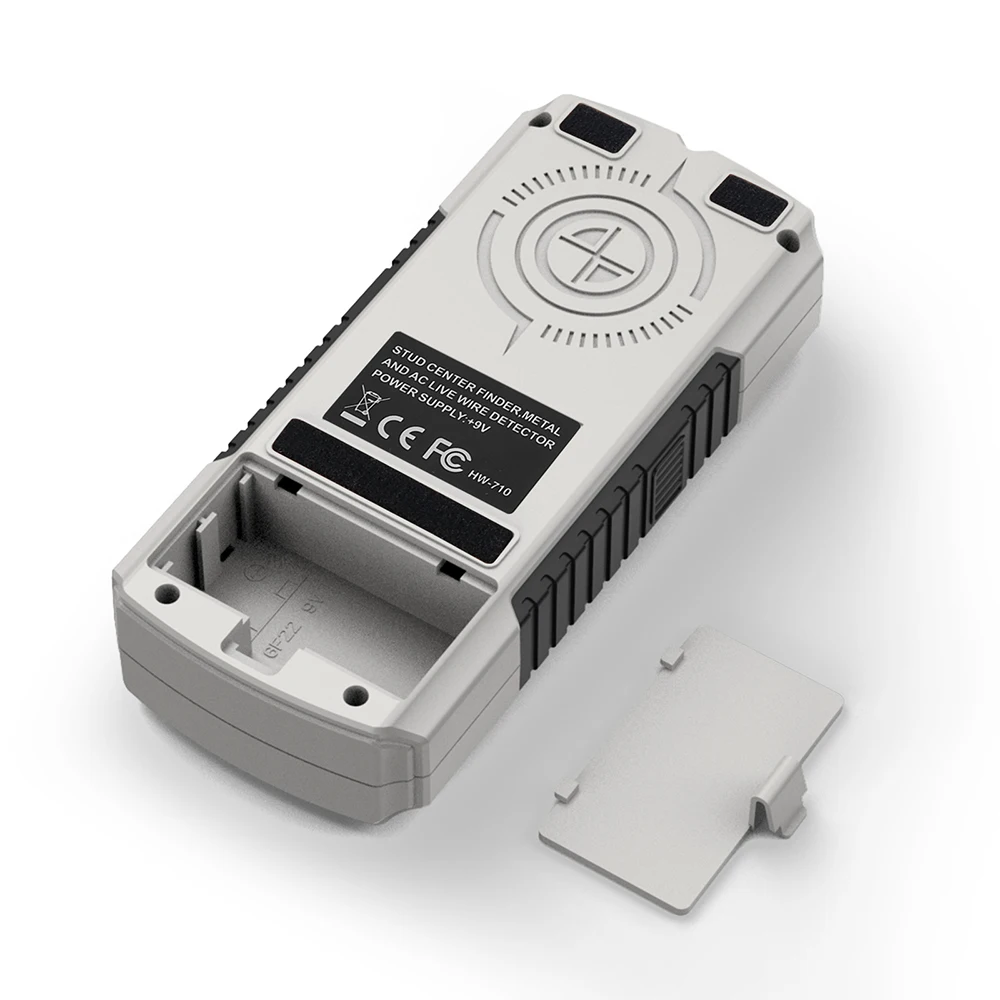

·Battery Type:9V battery(6F22) (Not included)

·Operating Current:<50ma

·Shutdown Current:<10UA

·Automatic Shutdown Time:3 minutes

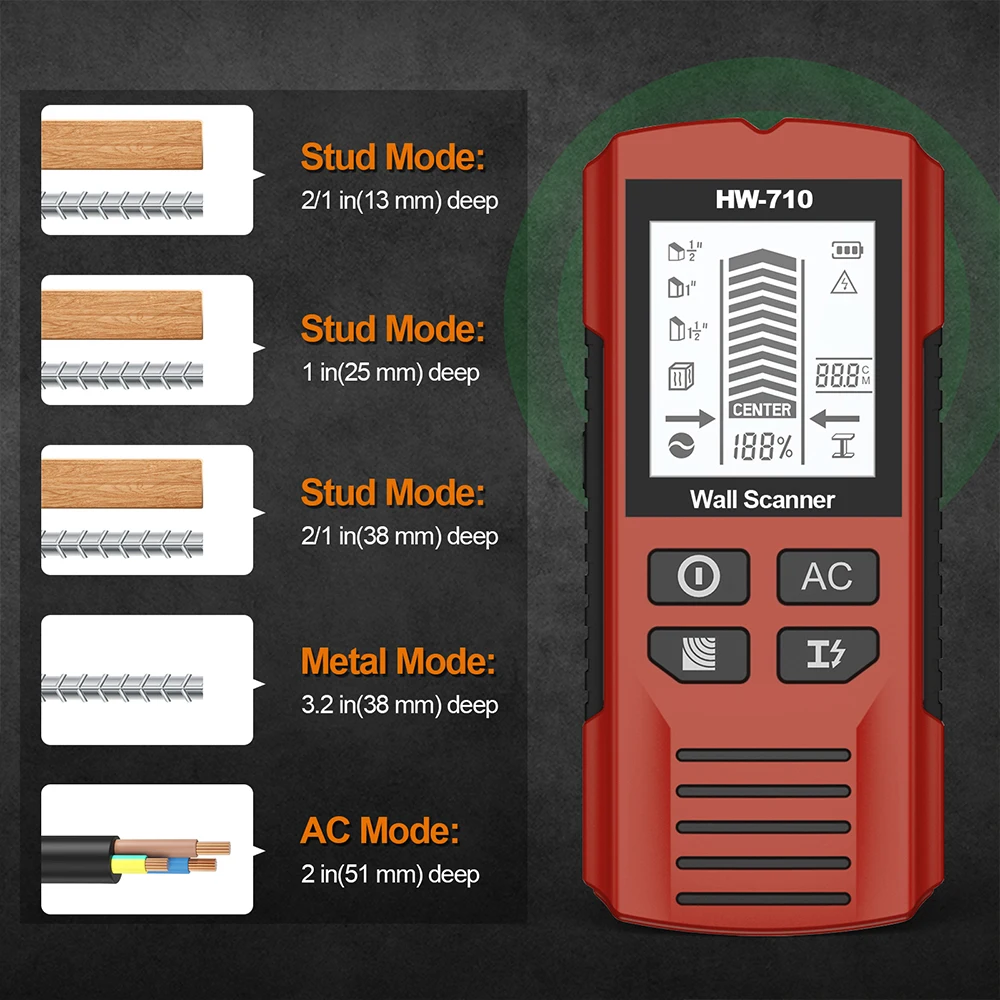

Detection Mode Selection

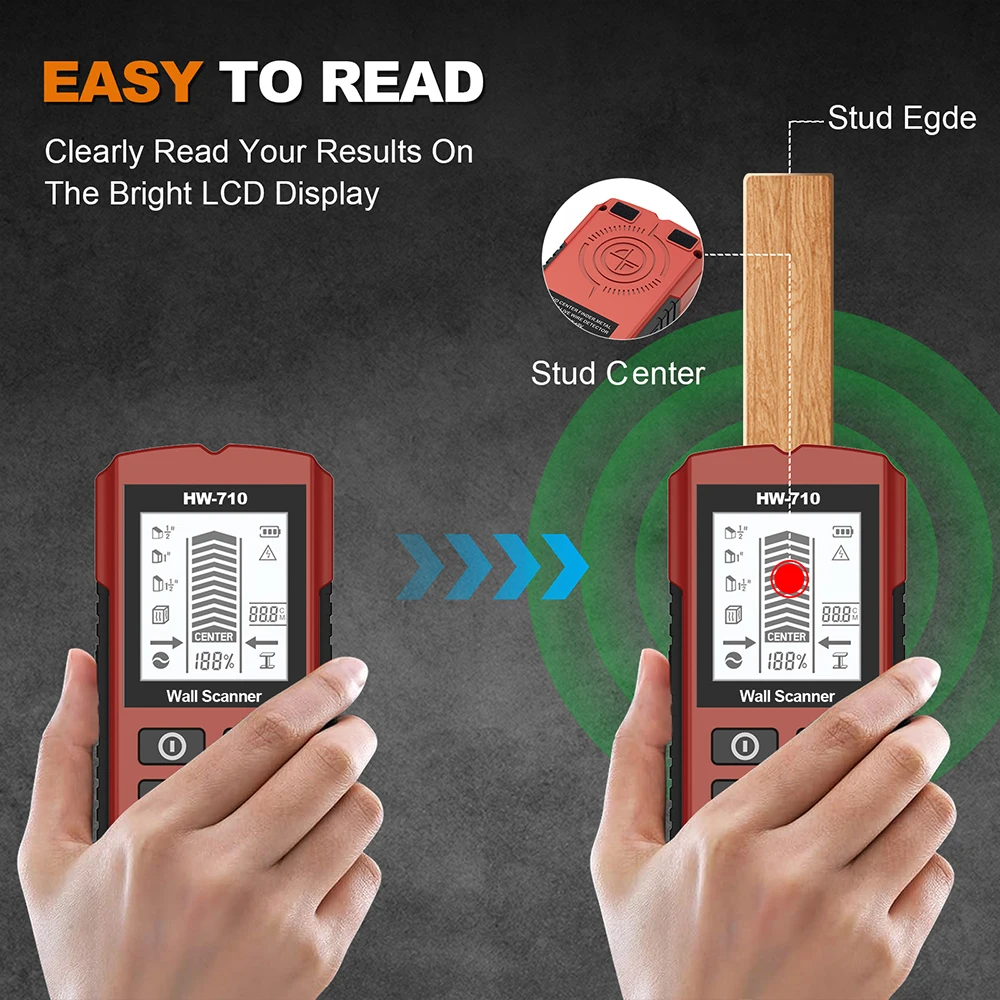

Stud Mode
In stud mode, there are 3 scan modes o choose for properly thick of the scanning surface:
1/2"Scan Mode can detect 1/2 in. (13mn) deep.
1"Scan Mode can detect 1 in. (25mm)deep.
1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.
If you don't know the depth of the detection, it is recommended to use 1/2"scan mode first.
When 1/2"scan mode is not detected, use 1"or 1 1/2"scan mode instead.

Metal Mode:
The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter 15mm galvanized steel tube)
It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm copper tube).

AC Mode:
Detect unshielded AC live wire up to 2 in. (51mm) deep.
