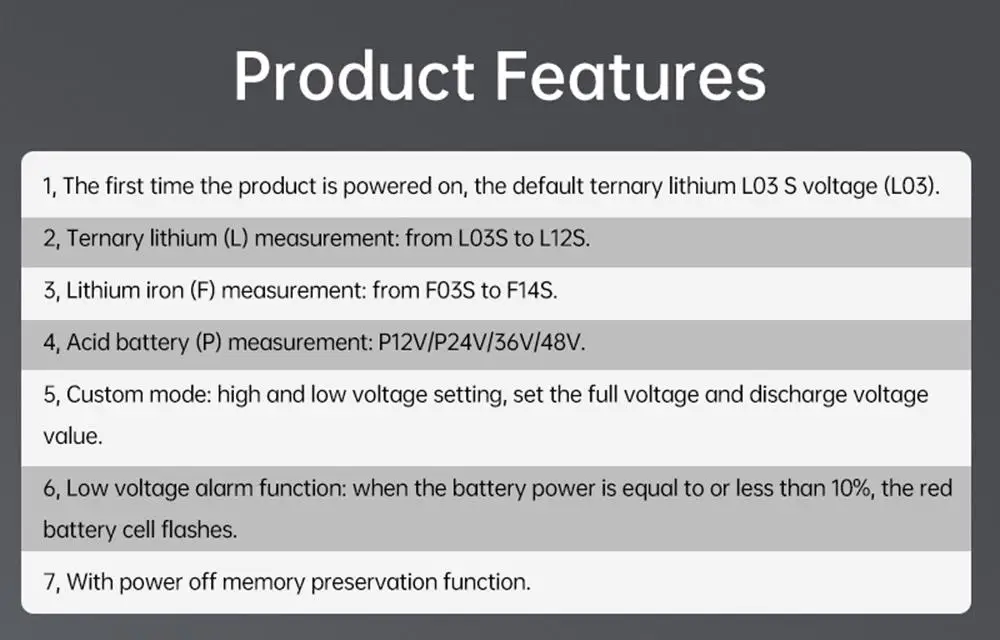

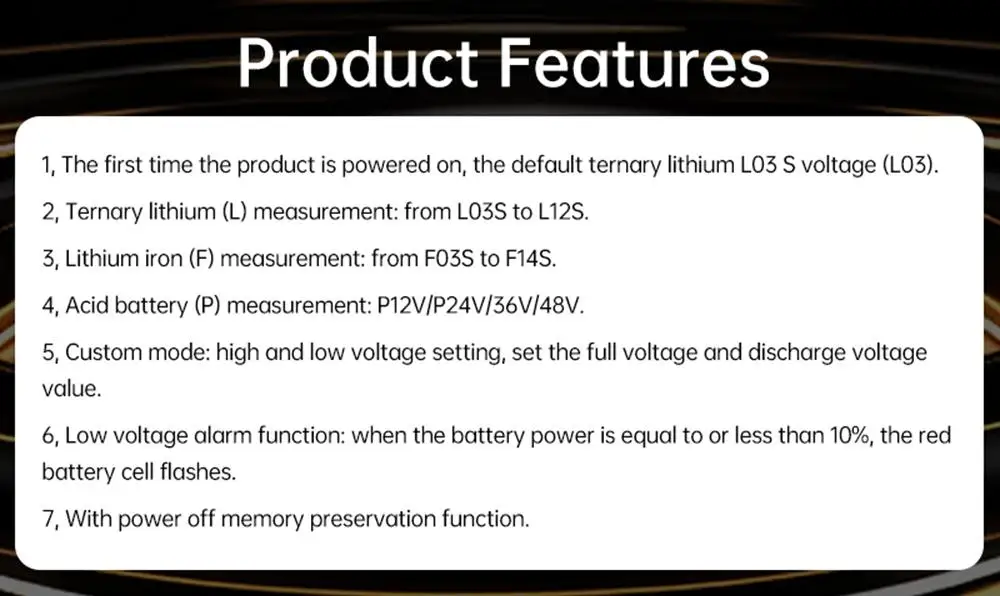

Product features:

1, the product first power-up default ternary lithium L03 S voltage (L03).

2, lithium ternary (L) measurement: from L03 S to L12 S.

3, lithium iron Shen battery (F) measurement: from F03 S to F14 S.

4, acid battery (P) measurement: P12V/P24V/36V/48V.

5, customized mode: high and low voltage settings, set the voltage of fully charged and discharged voltage value.

6, low voltage alarm function: when the battery power is equal to or less than 10%, the red battery grid flashes.

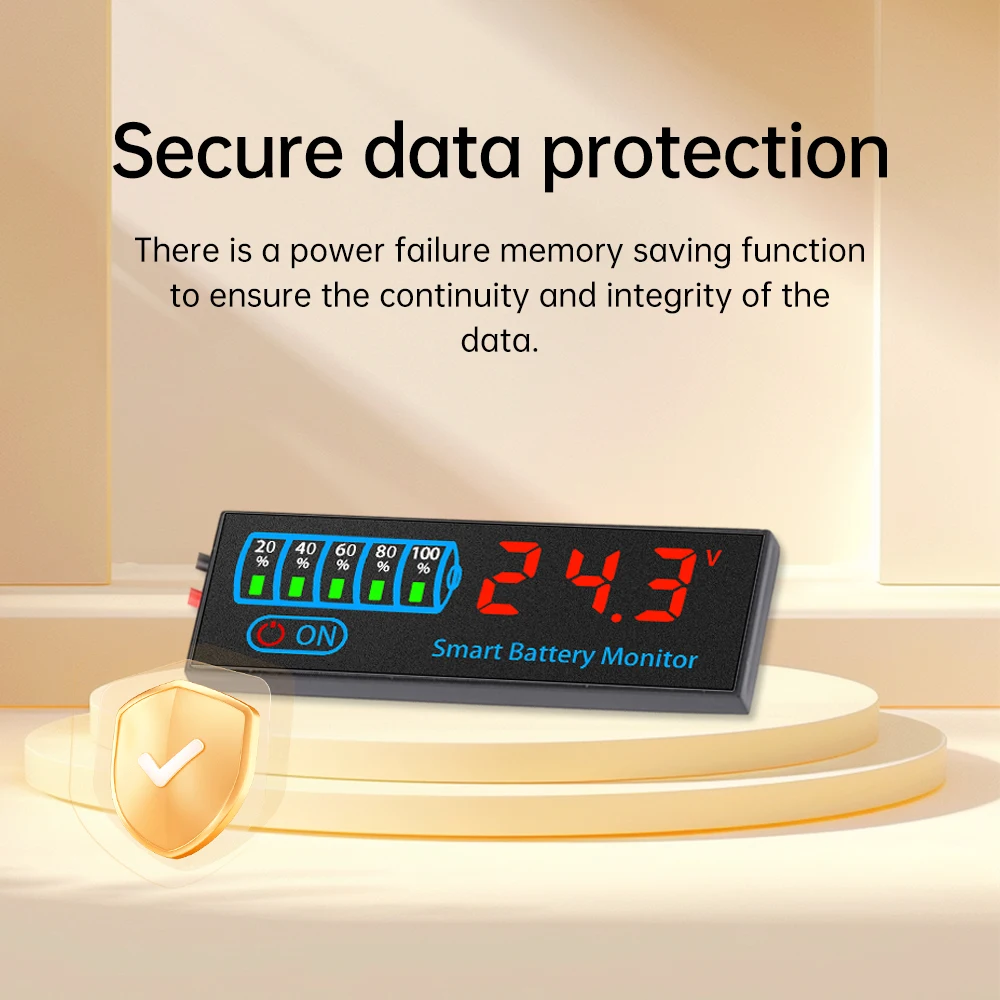

7、With power failure memory saving function.

Product parameters:

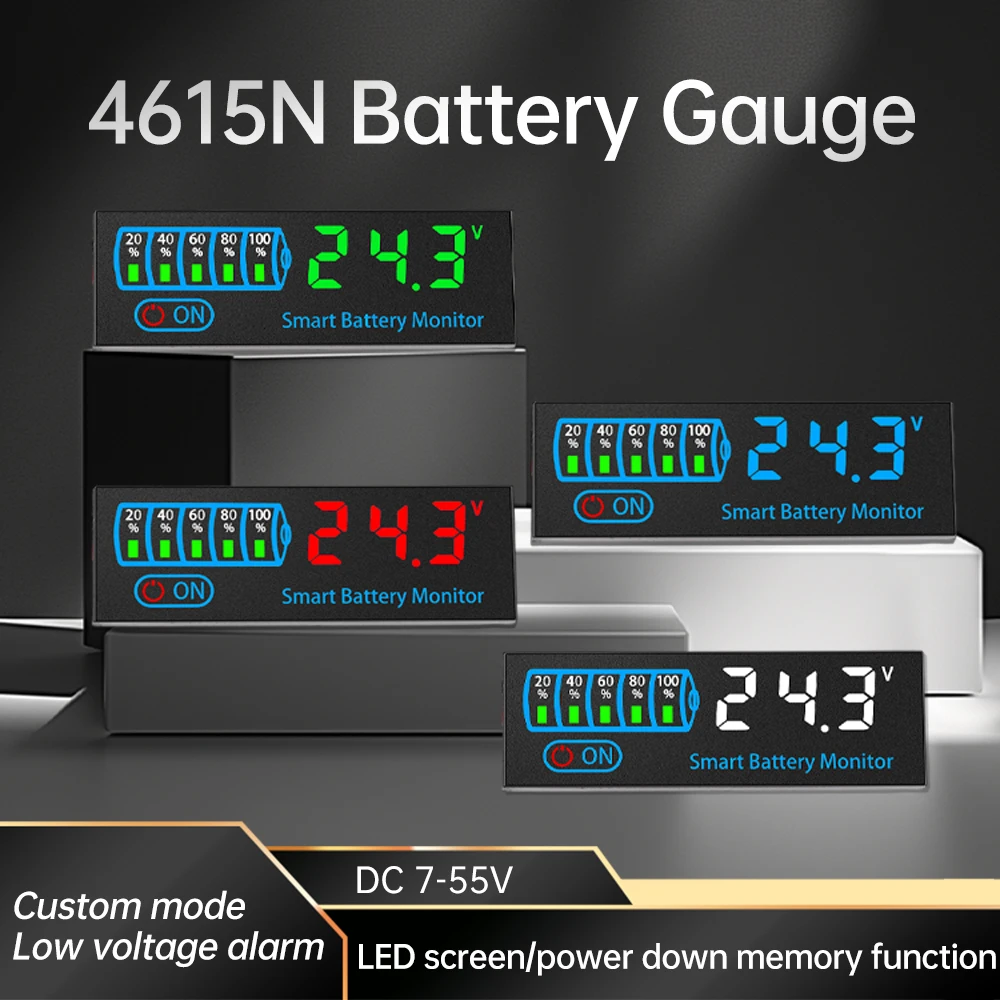

Voltage measurement range: DC 7-55V (red display: DC 7-40V))

Working current: ≤20mA

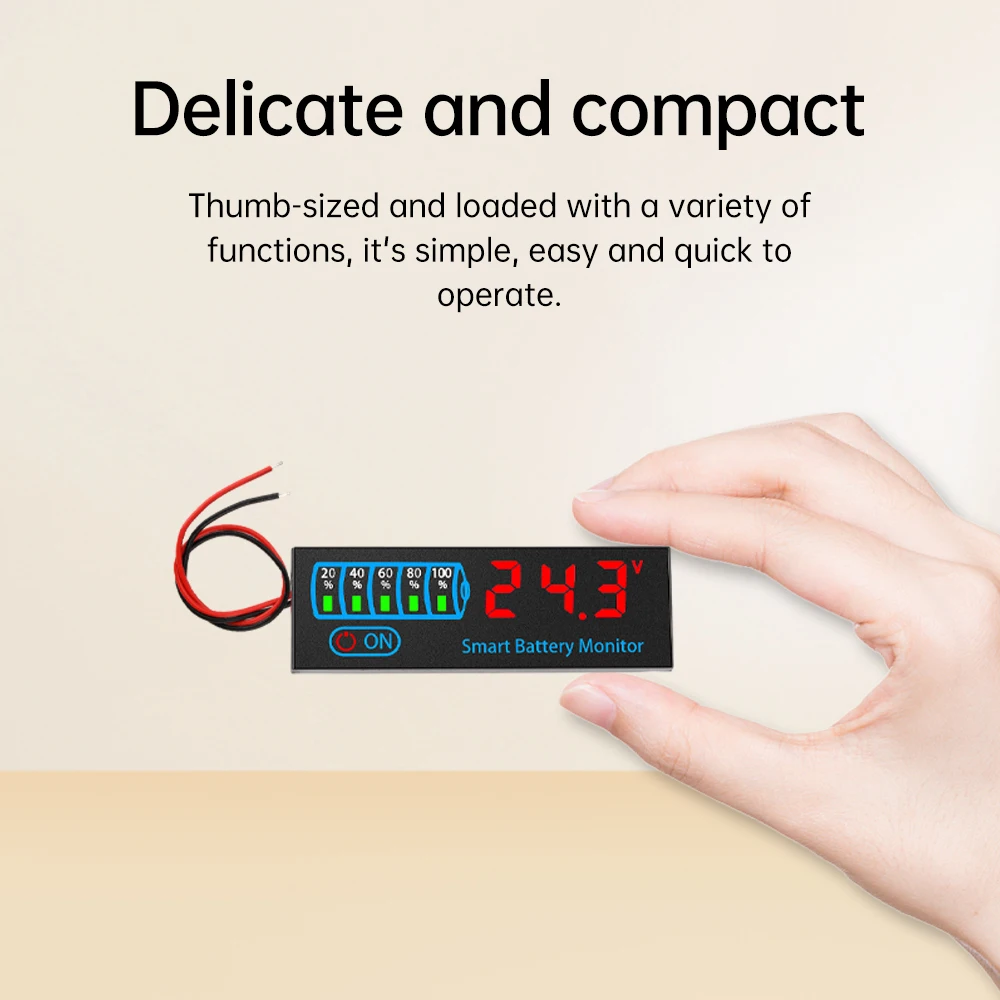

Display mode: LED screen

Lithium iron ternary battery measurement: 3S~12S

LiFePO4 measurement: 3S~14S

Acid battery measurement: 12V/24V/36V/48V

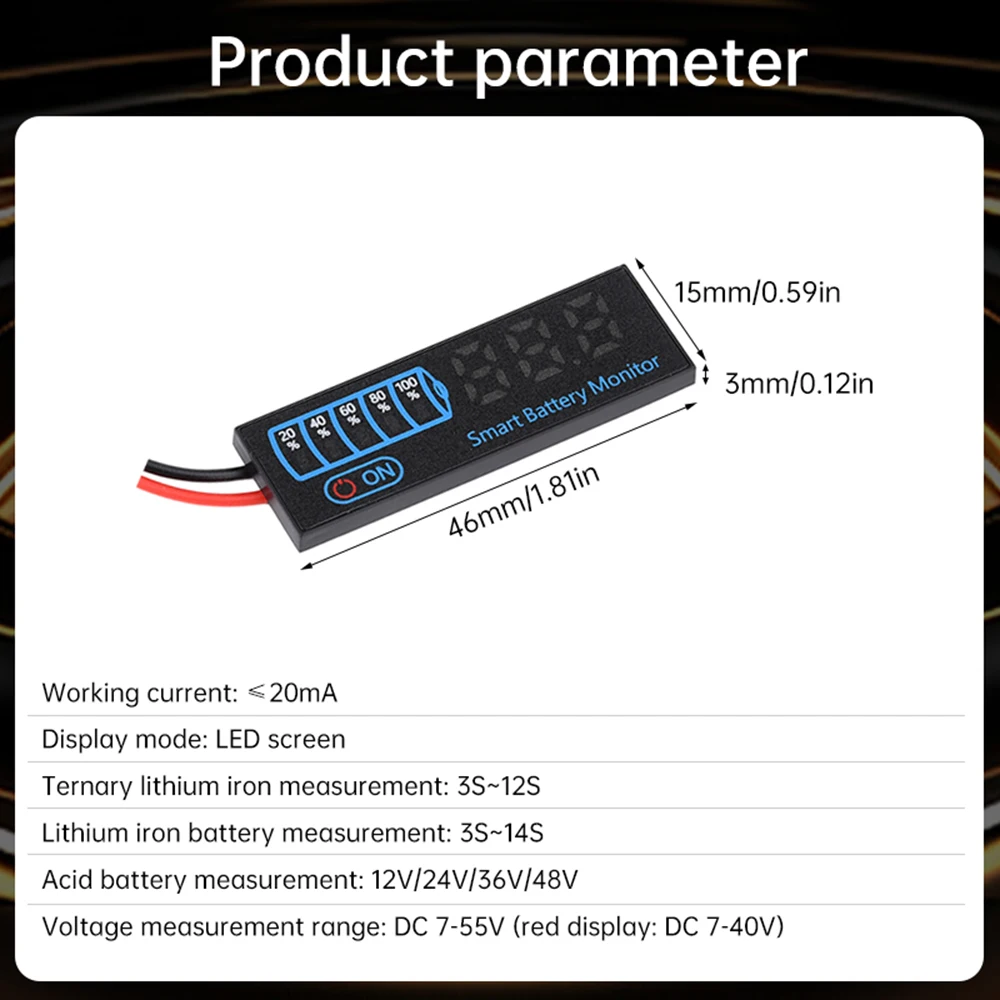

Product size: 46*15*3mm

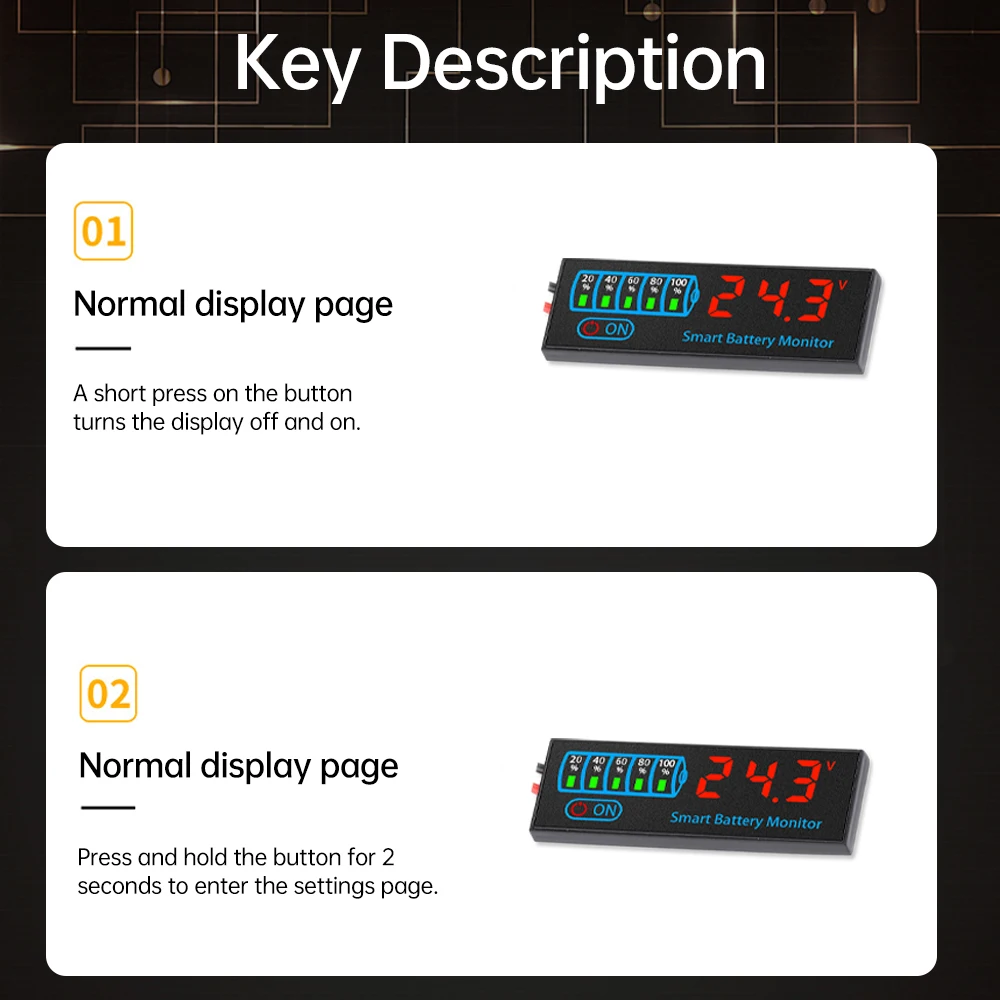

Button description:

1, In the normal display page, short press the key to turn off and on the display.

2, In the normal display page, long press the key for 2 seconds to enter the setting page.

Packing list:

Power indicator*1
