A good tool is indispensable for tedious vibration work. Our dental square quartet vibrator is mainly made of various high-quality materials and adopts a painting process to ensure that you can use it for a long time. Good performance(120W) can make your vibration work more efficient. It will be a good helper in your work
????Application：
This product can be widely used in dental clinics, hospitals, decoration industries, handicraft shops, factories, laboratories, and other places to make various plaster models and eliminate foam. It is an ideal choice for dentists, craftsmen, etc
????How to Use：

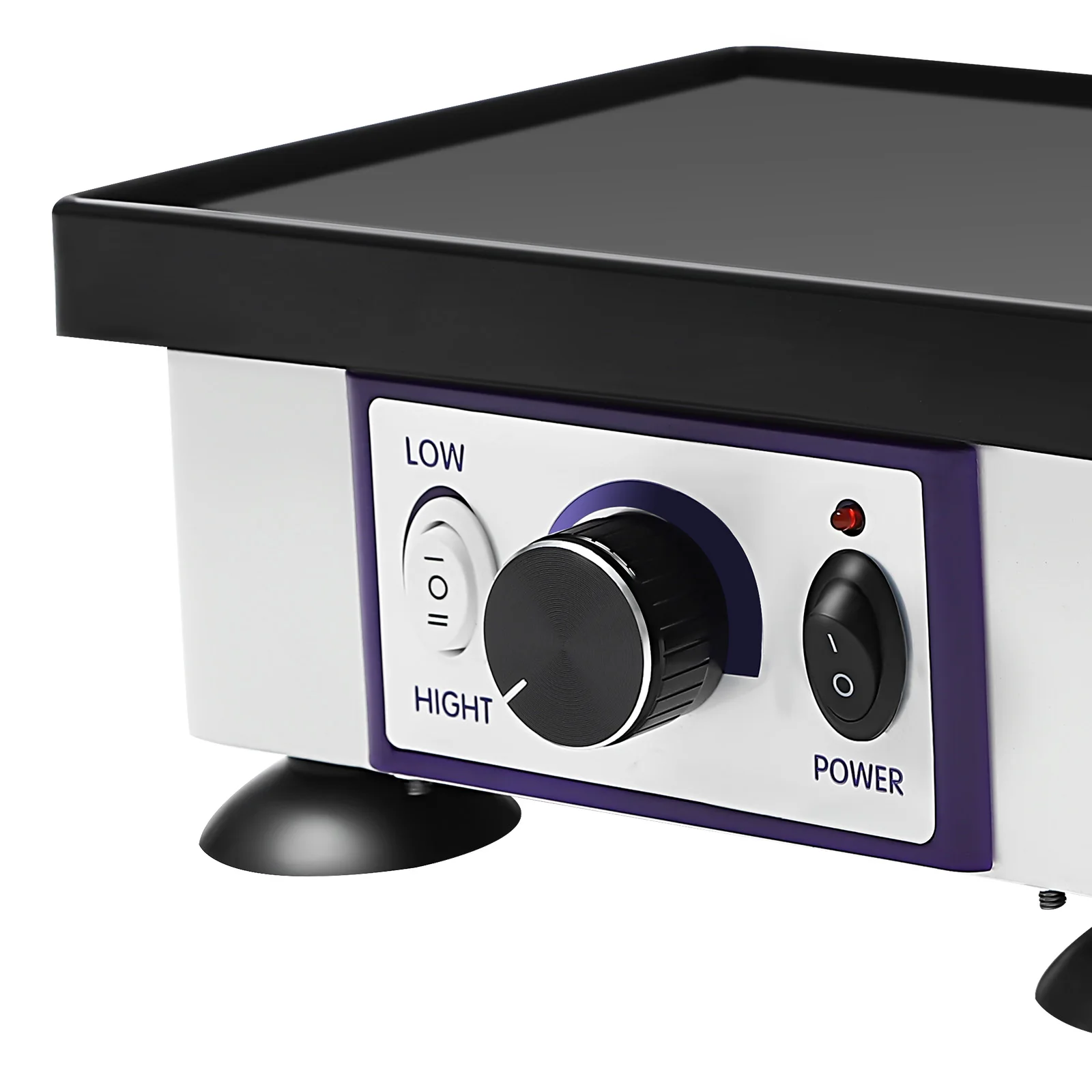

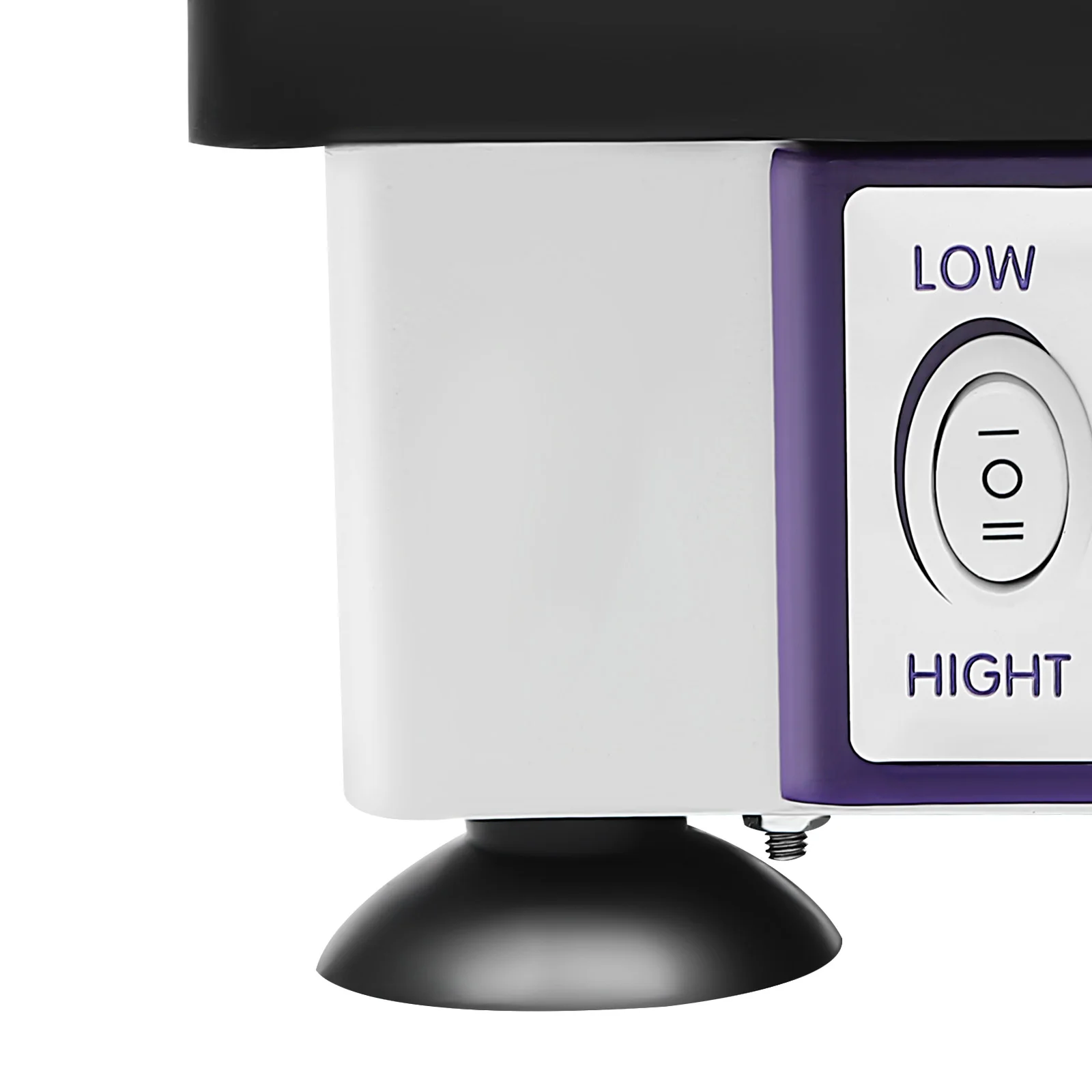

Before powering on, set the strong/weak switch to the middle position “O”
After turning on the power, press the power switch (the power indicator light is on), choose strong vibration or low vibration, and place the gypsum model that needs to be shaken on the vibration disk
Turn on the adjustment knob, adjust clockwise to increase vibration intensity, and counterclockwise to decrease vibration intensity
After the model oscillation is completed, turn off the knob to stop vibration and remove the model for use
????Key Features：

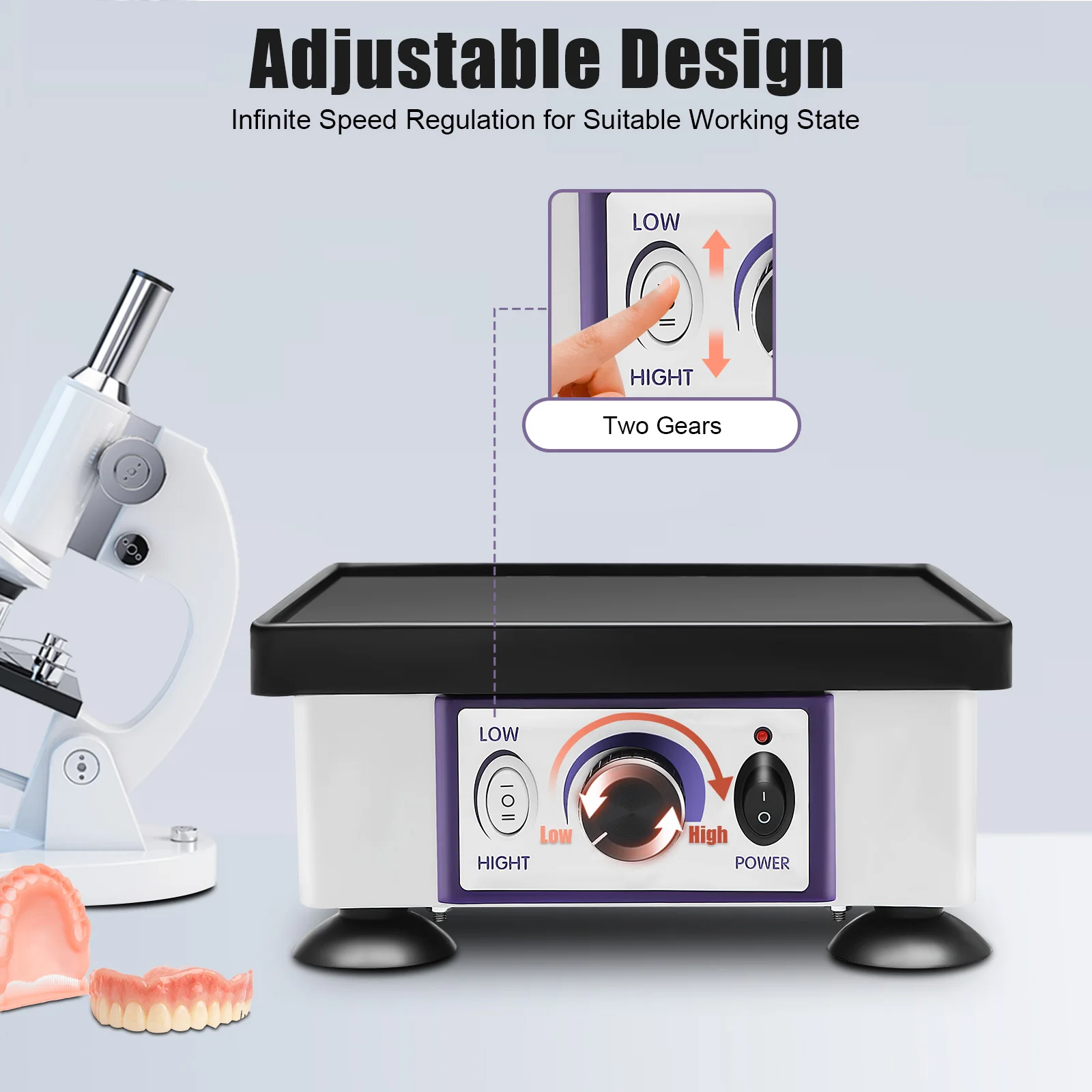

Adjustable Design: Through the corresponding knob, you can freely adjust the gear (two gears) and steplessly adjust speed to eliminate the foam of plaster model grouting and copy rubber packaging agar
Compact and Lightweight: A small size of 8.15*4.13*3.7inches and a net weight of 8.64 lbs let you easily store and take it to any workplace

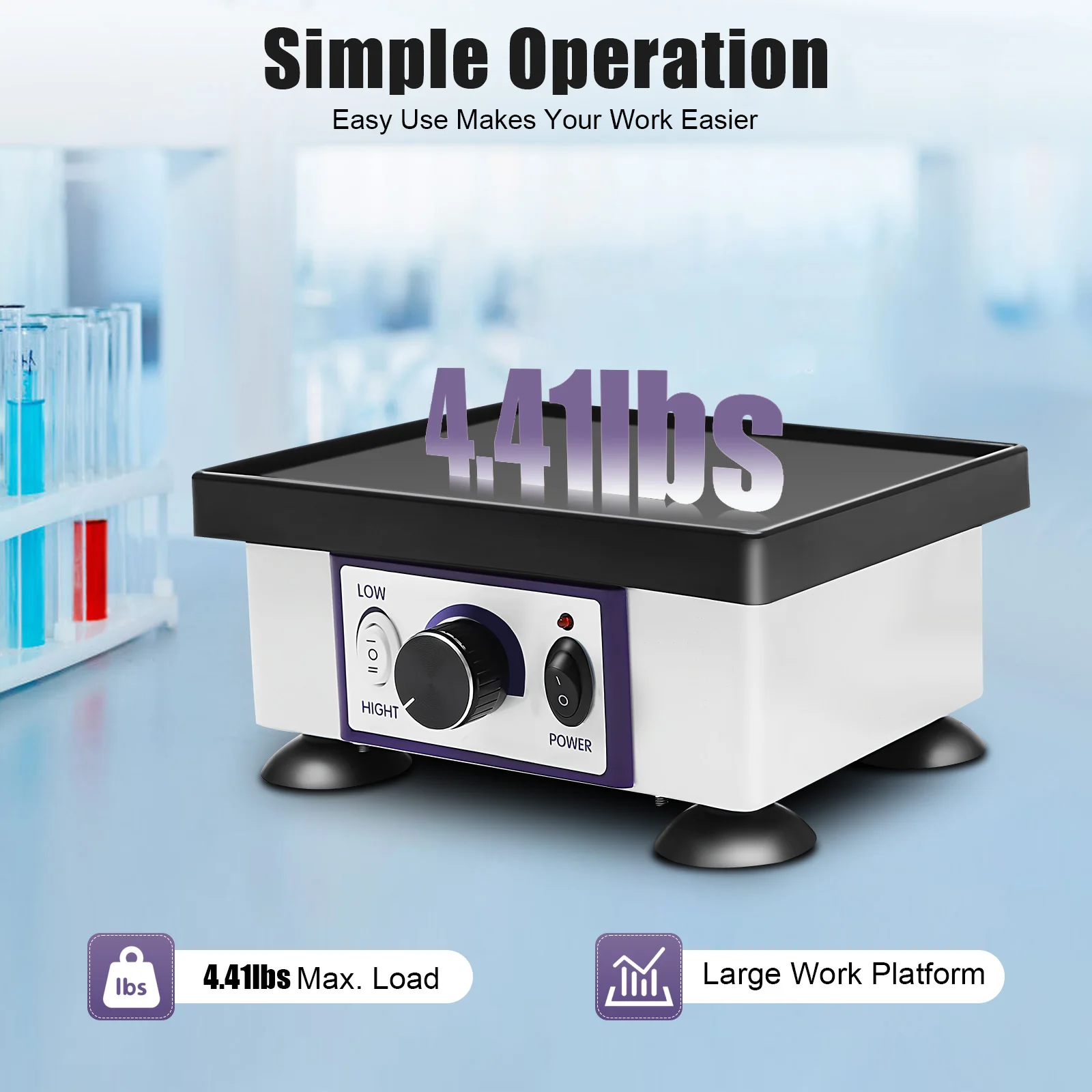

Simple Installation and Operation: You can use it directly without the need for installation. The simple structure, large work platform(8.15*4.13inch), maximum load of 4.41lbs, and convenient buttons with marks allow you to master it in a short period of time

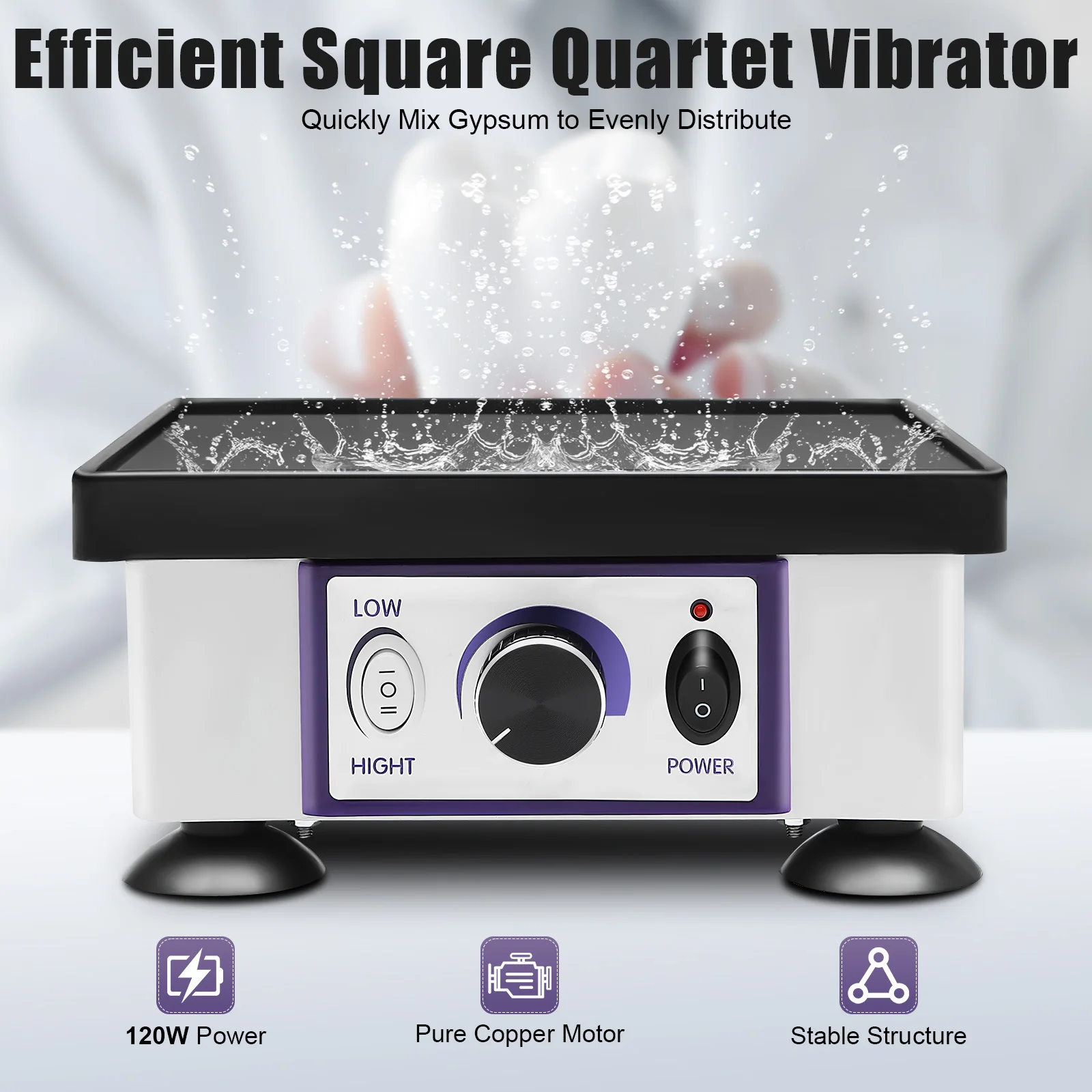

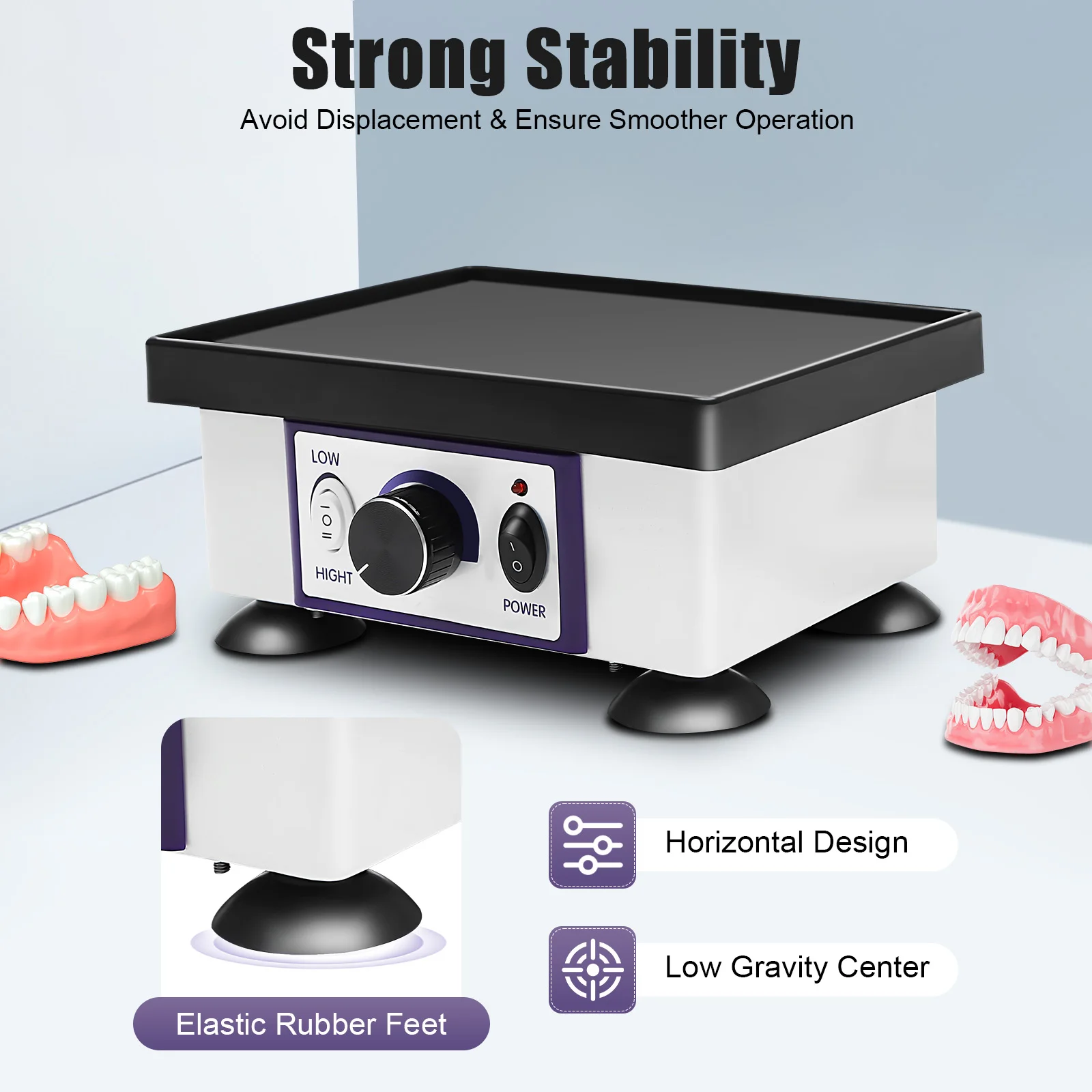

High Efficiency: The 120W pure copper motor with low energy consumption and less noise and a stable structure can provide strong power for your vibration work and quickly mix gypsum to evenly distribute it, thus providing patients with better services
????Specification：
Color: White, Black
Material: Metal, Copper, Rubber
Motor Type: Pure Copper Motor
Surface Treatment: Painting
Style: Modern
Shape: Rectangular
Number of Items: 1
Assembly Required: No
Mount Type: Countertop
Type: EU Standard
Model: JG-203
Power: 120W
Voltage: 220V 60Hz ±10%
Current: 3A
Maximum Loading Capacity: ≤2kg/4.41lbs
Gears: 2
Screw Type: M6
Gross Weight: 3.92kg/8.64lbs
Net Weight: 3.67kg/8.09lbs
Package Size: 21*13*25cm/8.27*5.12*9.84inch

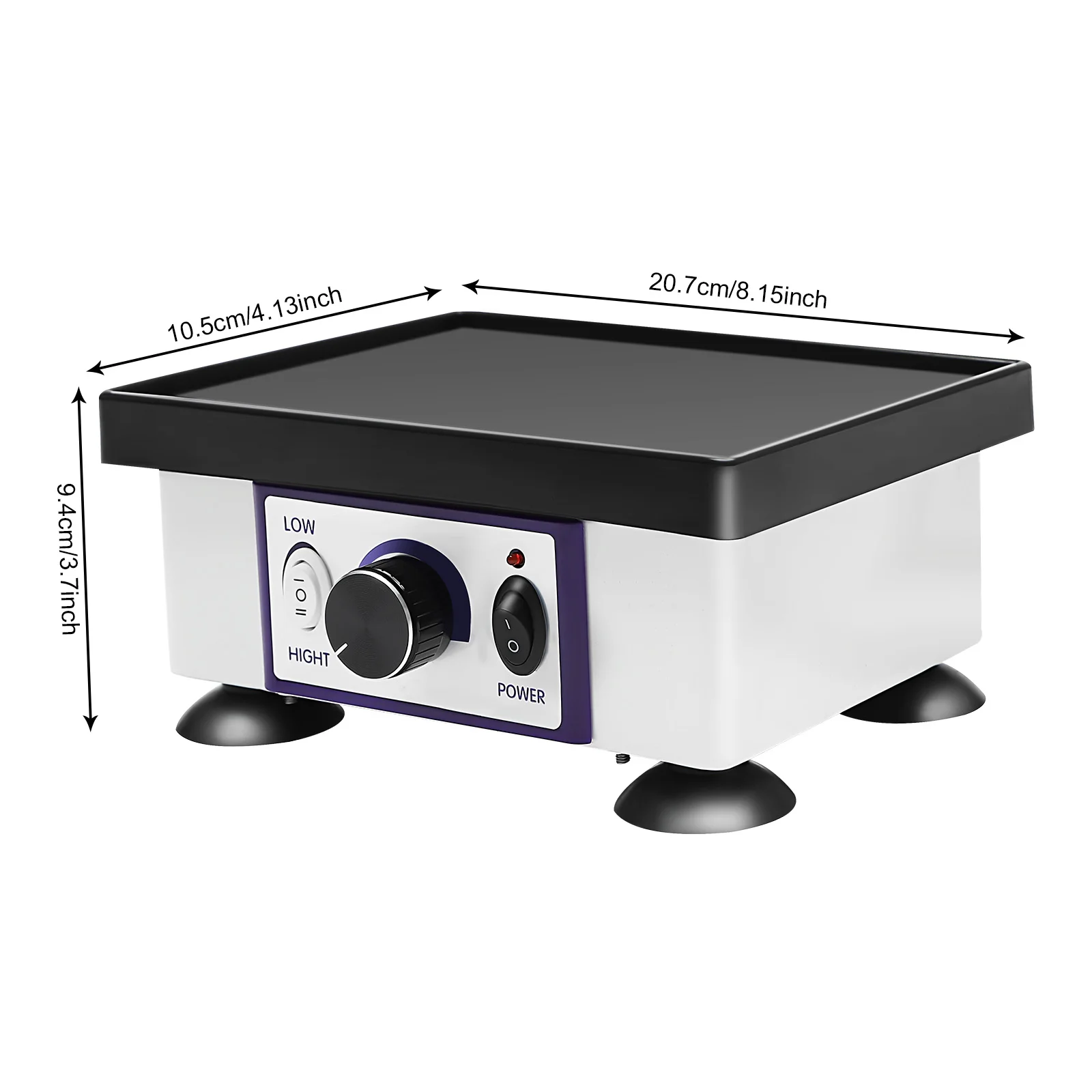

Product Size: 20.7*10.5*9.4cm/8.15*4.13*3.7inch
????Details：
Round Corners: The arc design can effectively care for your skin compared with the traditional square corners

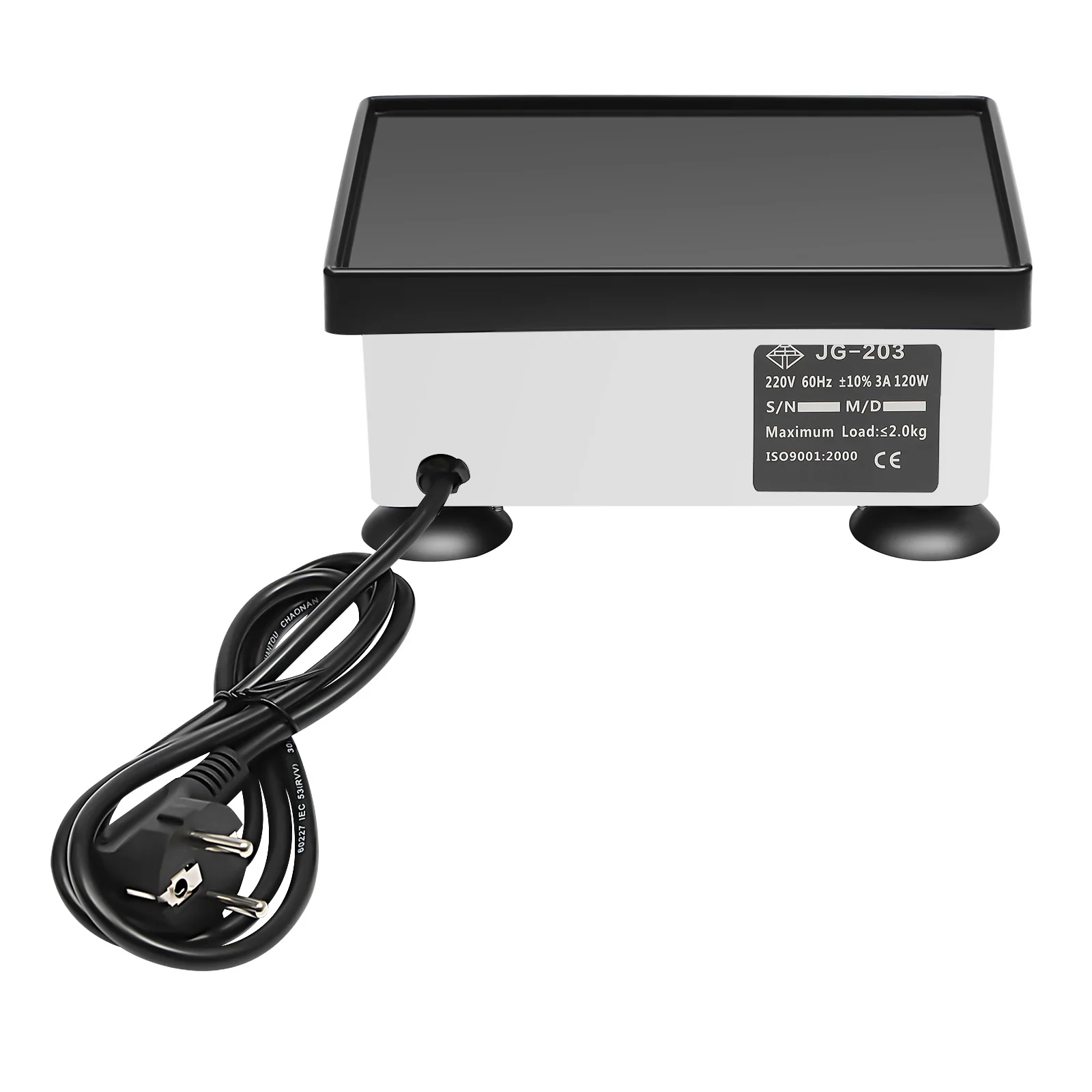

Long Power Cord: This cord reduces usage restrictions and further protects your safety

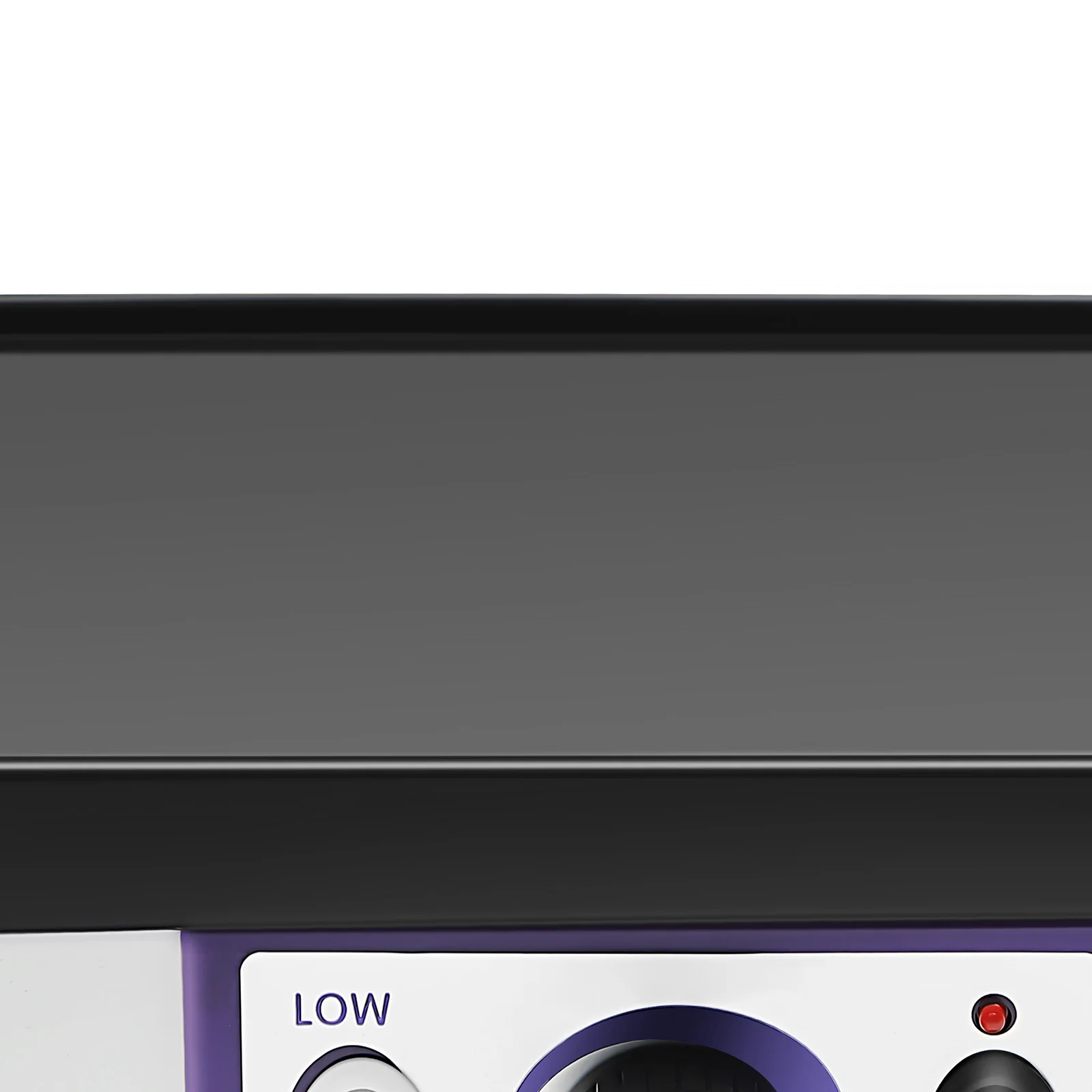

Protective Baffle: The protective baffle on the top can effectively reduce the sliding of items during vibration
????Package Included：

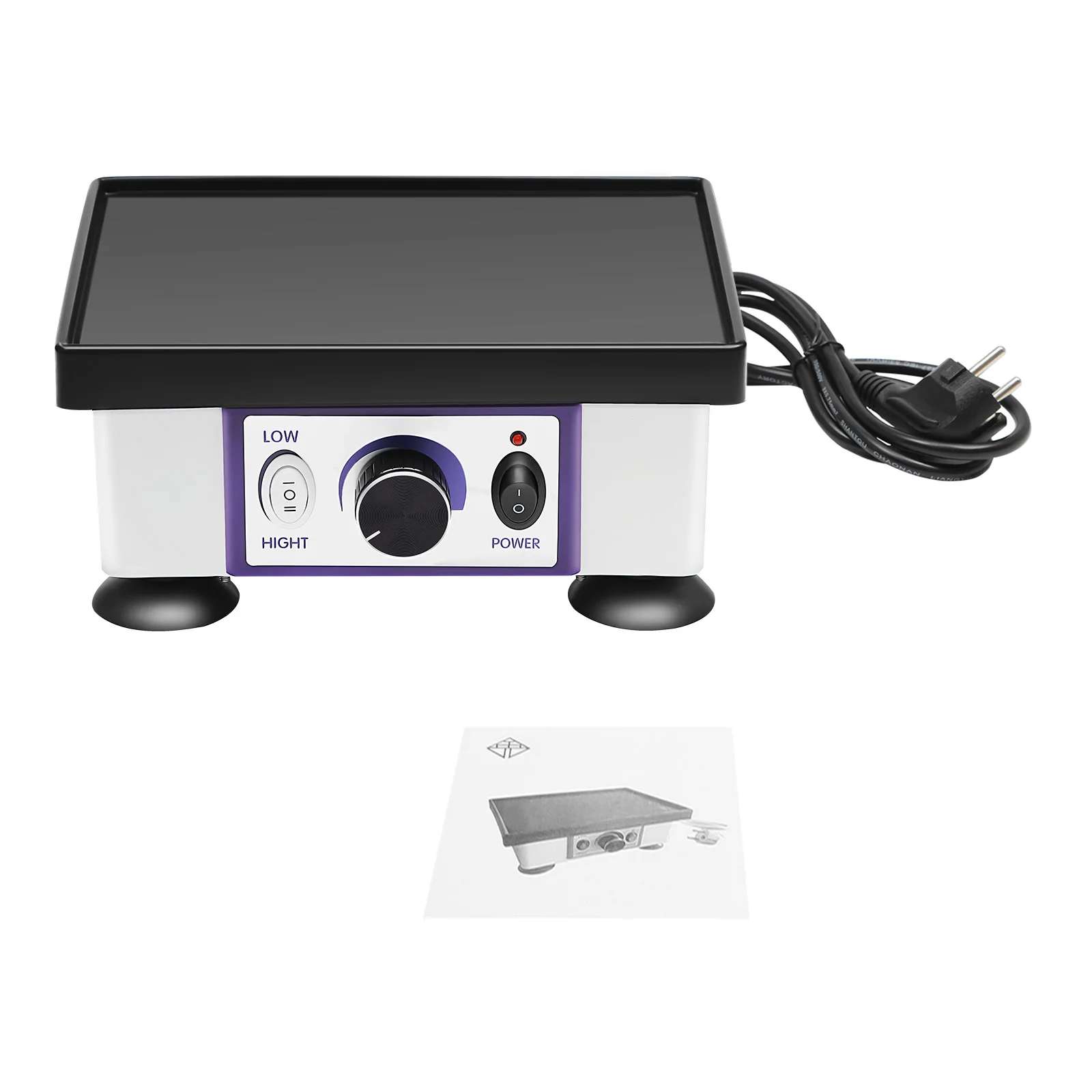

1* Dental Square Quartet Vibrator
1* Chinese Manual
????Notes：
1.Please note that the model is not included in the packaging
2.Please place the item on a flat surface. When adjusting the density, it should be adjusted in small amplitudes, slowly from small to large or from large to small
3.Please note that the power supply used for the oscillator should be reliably grounded. Please cut off the power and scrub the surface of the body in time after use to prolong the service life
4.When the vibration noise suddenly increases during work, accompanied by abnormal sounds, it may be due to abnormal clearance between the vibration platform and the transformer. You need to cut off the power supply, peel off the rubber platform, turn the device upside down, and use a cross screwdriver to remove four M6 screws to separate the vibration platform from the body. Then check each of the four vibration columns for looseness or improper height. It is advisable to adjust the height to 68mm/2.68 inch, keeping the height of the four columns consistent and locking them tightly. (Adjusting tool: 10mm/0.39 inch opposite hexagonal socket wrench)
5.Please pay attention to electrical safety, take personal protective measures, and keep the product away from children
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering
