Description

This spot welding machine is designed specifically for both beginners and professionals thanks to its user-friendly interface. You can easily adjust the power settings to achieve the ideal level for your welding needs. The included foot pedal allows for hands-free operation, allowing you to focus on precision and accuracy.

Specification

Color: Blue
Shape: ‎Rectangular
Style: Modern, ‎Electronic
Material: ABS
Usage: ‎Commercial/Residential
Number of Holes: 2
Power Source: Battery Powered
Battery Type: 4000mAh Battery(Included)
Power: 5000W
Gears: 10 Gears
Spot Welding Thickness: 0.1-0.3mm/0.004-0.012inch
Package Size: 19.5*13.5*10.5cm/7.68*5.31*4.13icnh
Product Size: 16.5*9.8*6cm/6.5*3.86*2.36inch
Gross Weight: 0.95kg/2.09 lbs

Key Features

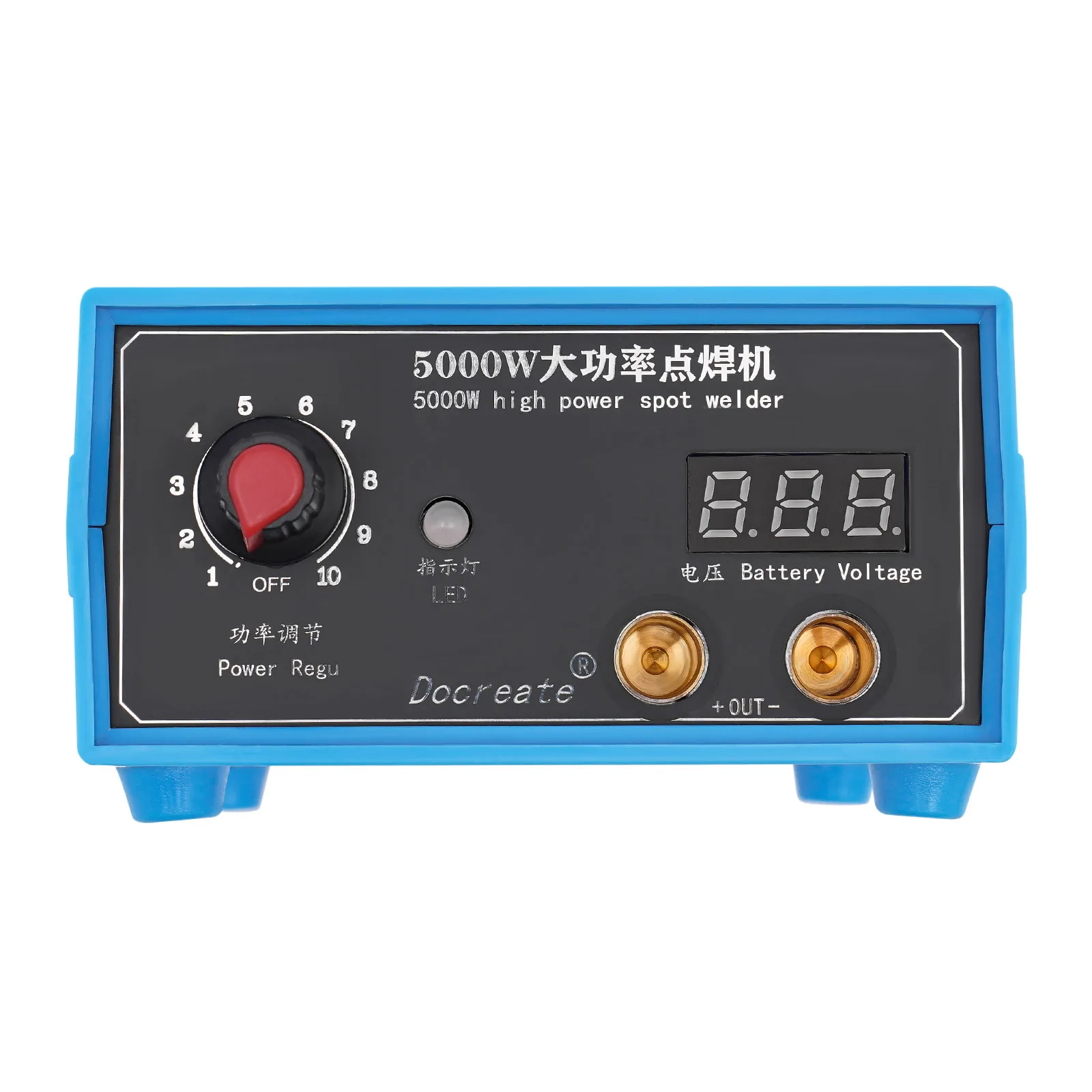

10 Gears Adjustable: It is equipped with adjustable power settings, allowing you to precisely control the intensity of the welding process for different materials and thicknesses(0.1-0.3mm ), ensuring high-quality and efficient soldering. The greater the value, the higher the power.

High Efficiency: You can achieve a solid spot weld in a shorter time because of the 5000W power, which is very efficient. In addition, the welding needle has good conductivity and low contact resistance, so it can achieve solid spot welding.

Build to Last: Its shell is made of high-quality ABS, which is sturdy, wear-resistant, beautiful, and rust-resistant, ensuring a long service life.

Easy to Use: With complete accessories, a clear display screen, a simple structure, and instructions, you can easily and quickly complete welding work.

High Safety: When the temperature is too high, it will automatically cut off the power supply to prevent the chip from being burned, letting you work in a safer environment.

Carry&Store in a Breeze: It's lightweight and compact(6.5*3.86*2.36inch), so you can easily carry it anywhere with less effort and store it without taking up much space.

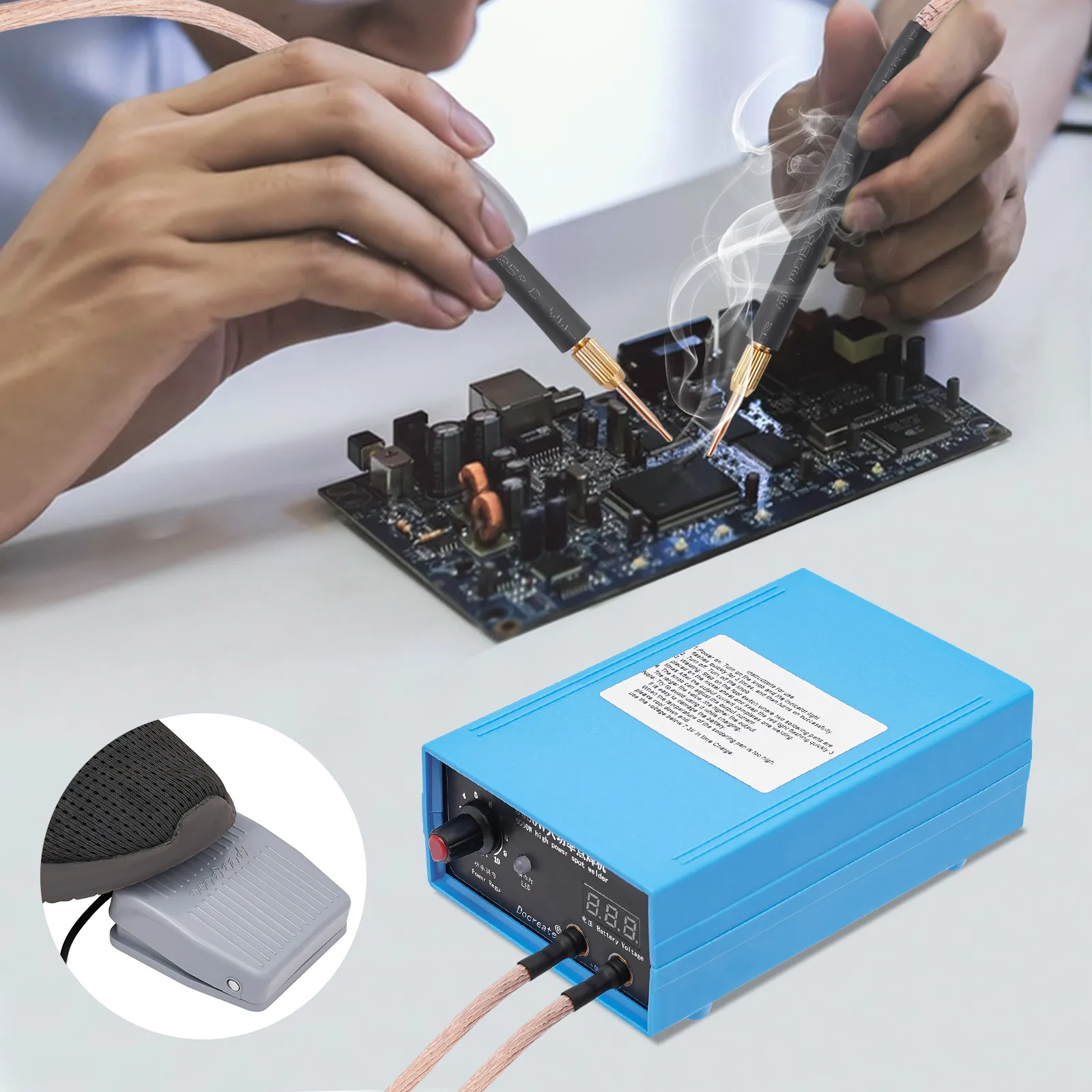

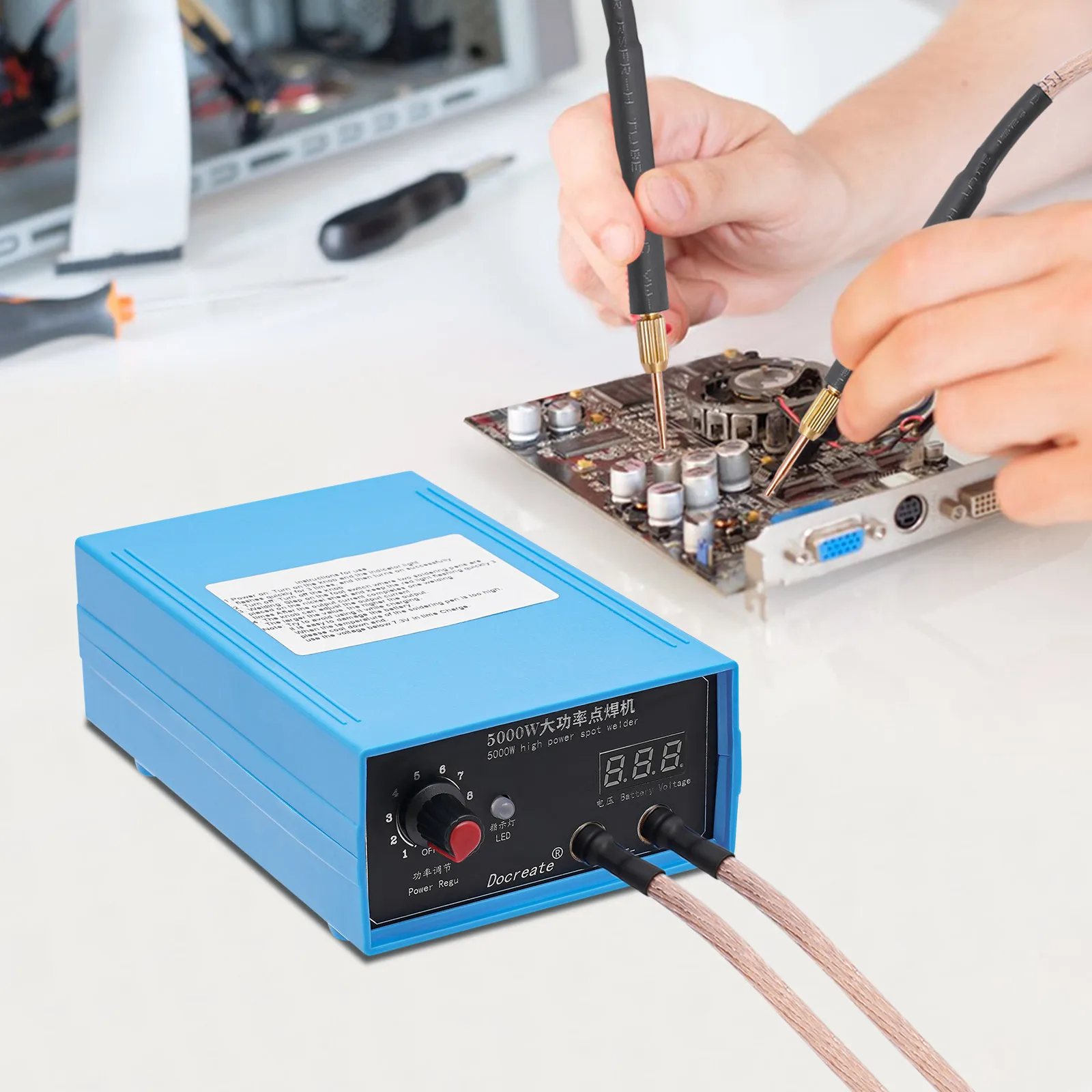

Easy Operation: Just place two welding pens at the nickel plate, then press the foot switch and do not release it, at this time, the light quickly flashes 3 times, indicating that the current is output and the welding is completed.

Effortless Cleaning: Thanks to its smooth surface and simple structure, you can easily wipe the dust from it with a cloth.

Application

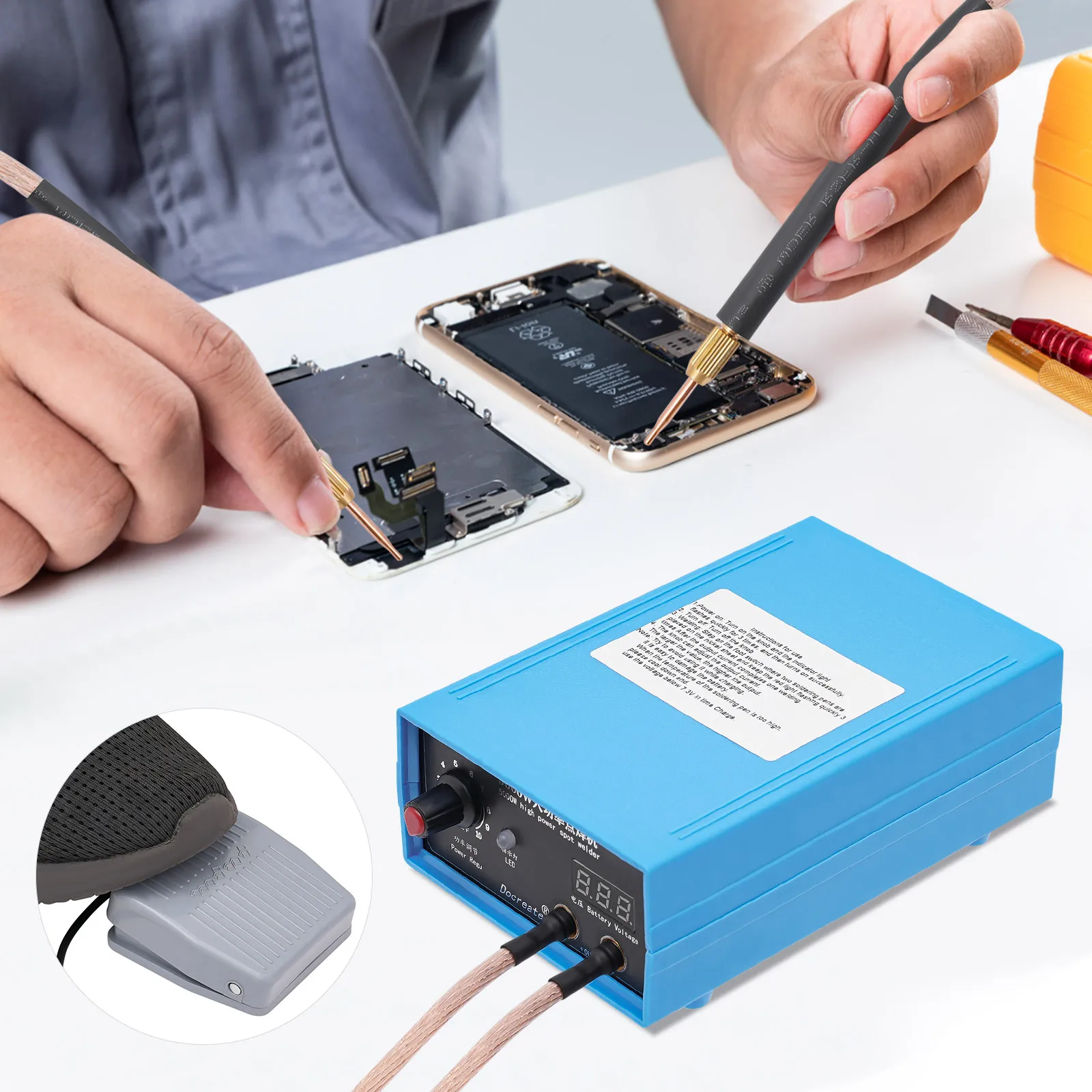

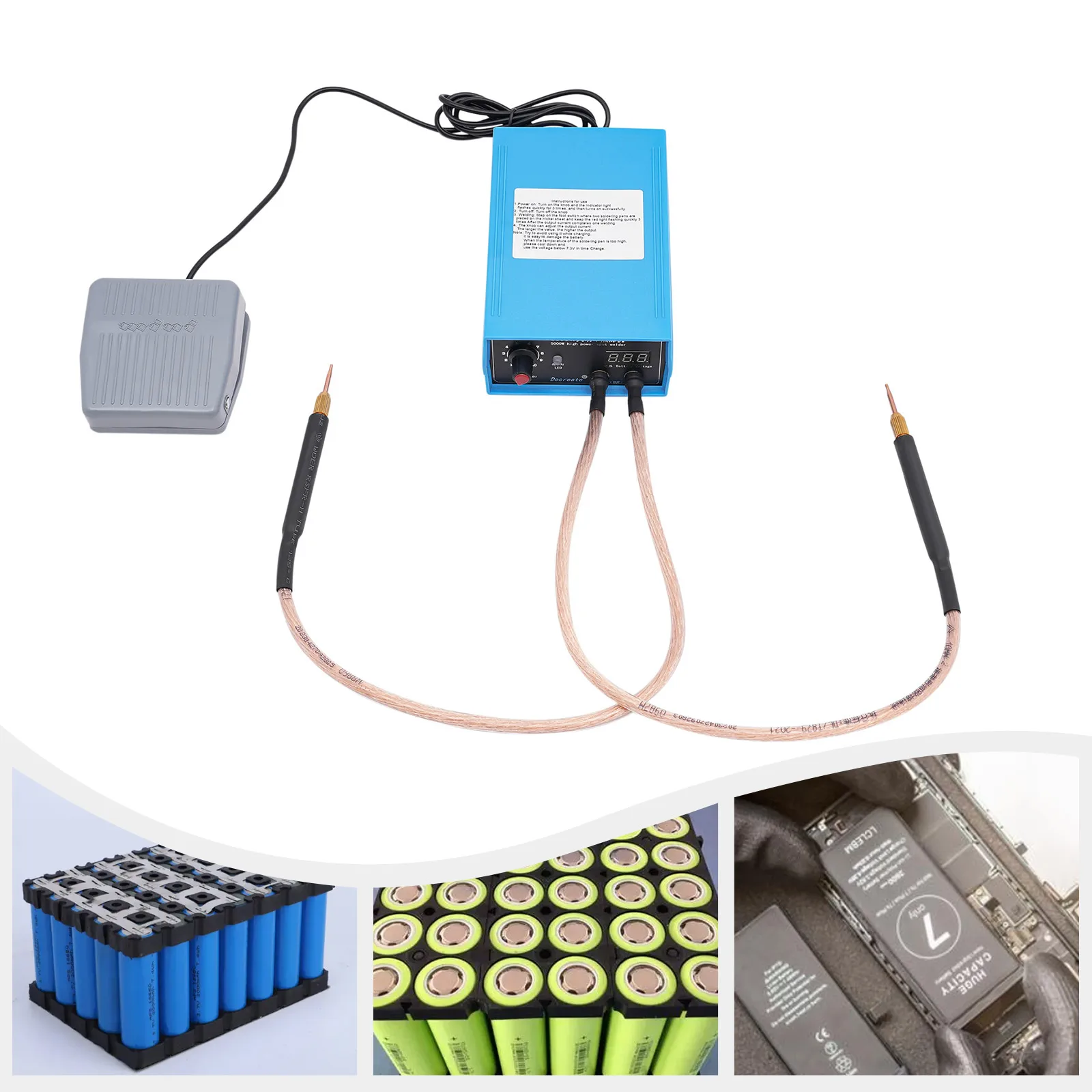

This product is suitable for domestic and commercial use. It can be used for spot welding nickel/steel/aluminum sheets, mobile phone batteries, 18650/26650/32650 batteries, etc. It applies to sheet welding with a thickness of 0.1-0.3mm.

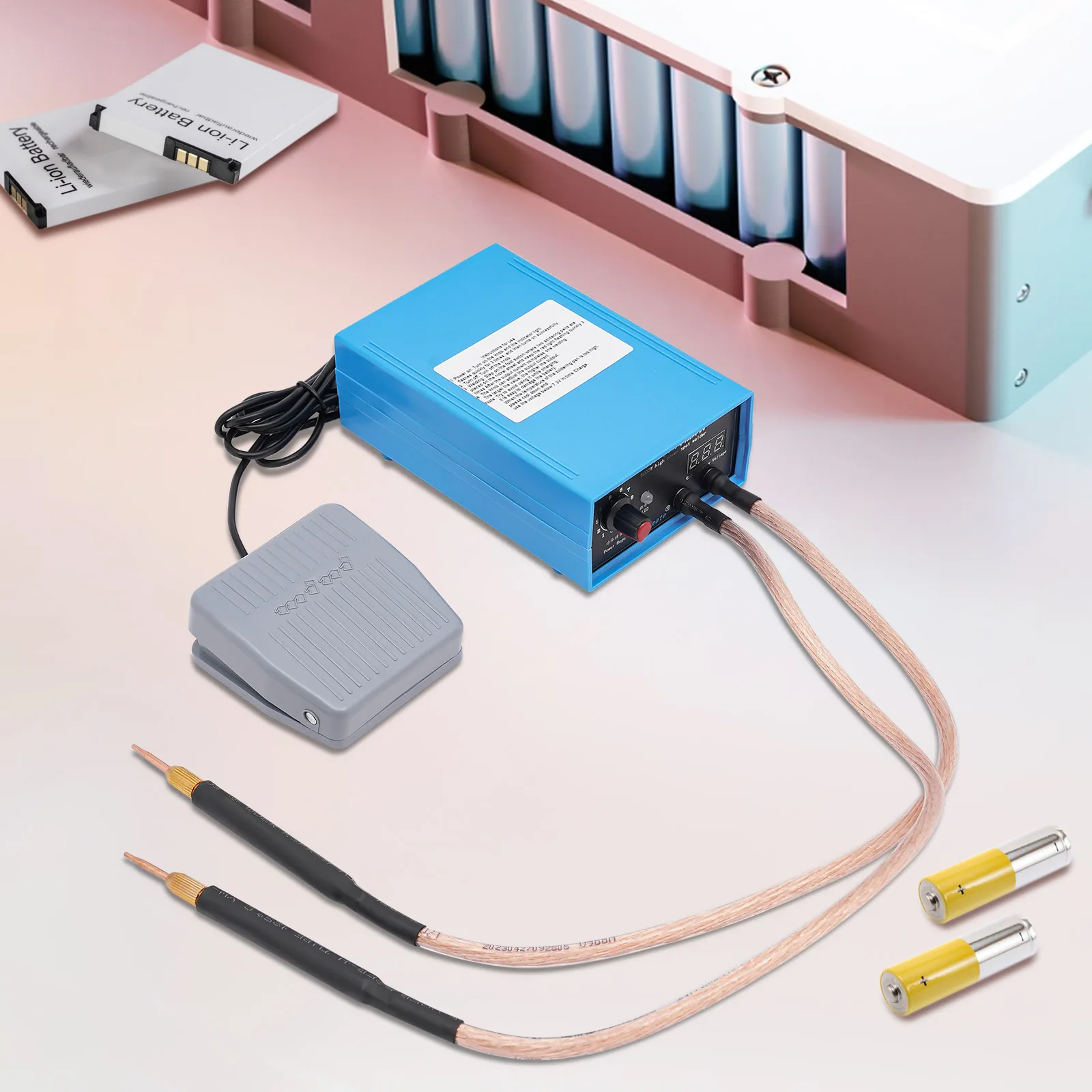

Package Included

1* Spot Welding Machine
1*Charger
1*Round Sandpaper
1 Roll* Nickel Belt
1*Foot Pedal
2* Spot Welding Pens
1* Chinese and English Manual

Notes

1.After receiving the product, please fully charge it first and check whether the soldering pen is in good contact and the contact head is not dented to ensure better spot welding effect. Please turn on the knob, when the indicator light flashes 3 times rapidly and then lights up normally, it means successful power-on.
2.When soldering, please make sure to use two pins to press the nickel piece and the battery tightly, please don't use too much force. Place the nickel plate on the battery, use the 18650 battery clamp to move and align the nickel plate, and step on the foot pedal. Please note that the welding pins should not touch each other, you can adjust the welding parameters accordingly according to the actual welding effect of the product until a satisfactory welding effect is achieved. Finally check whether there is any carbon on the welding needle, if so, remove it with a file or sandpaper.
3.Please do not use the machine while charging or when the temperature of the welding pen is too high, so as not to damage the battery, please use it after cooling down. Ensure enough power when using to ensure better spot welding.
4.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
