Features:

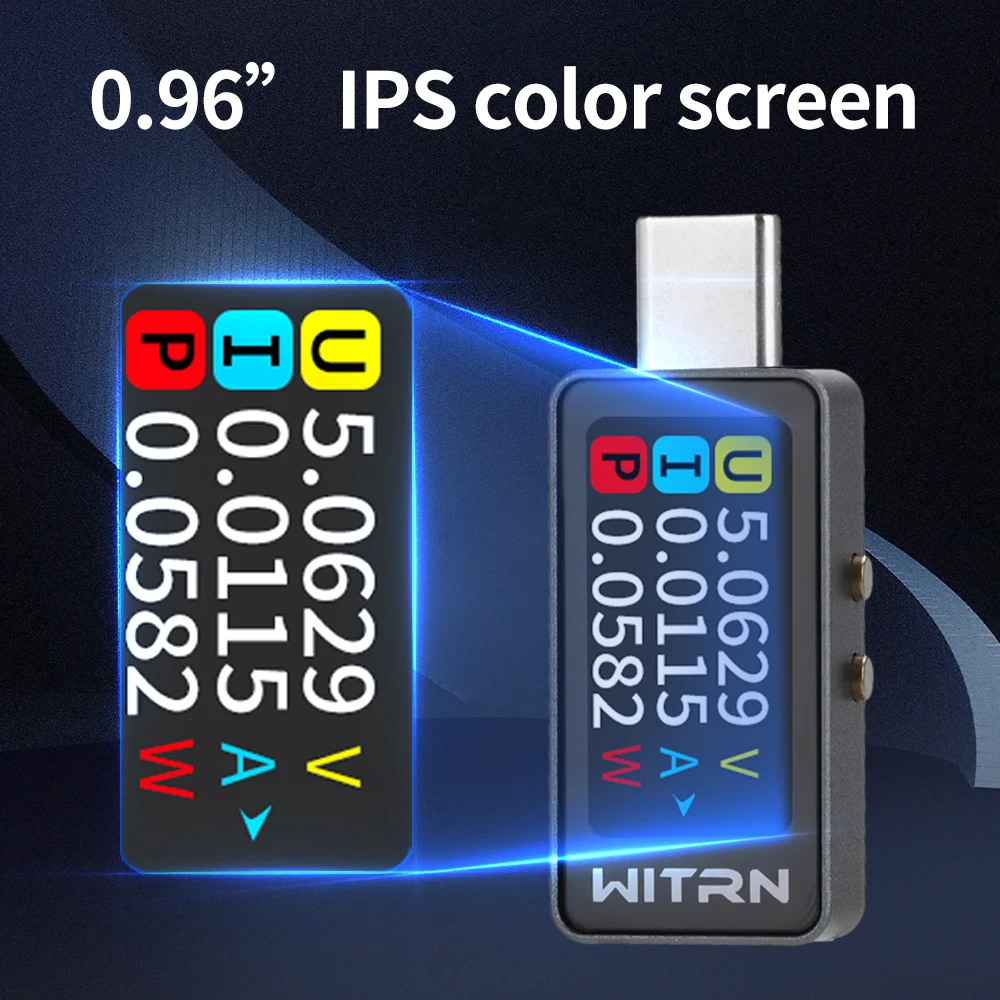

1.0.96 inch IPS color screen: wide viewing angle, clear reading even in dim room.

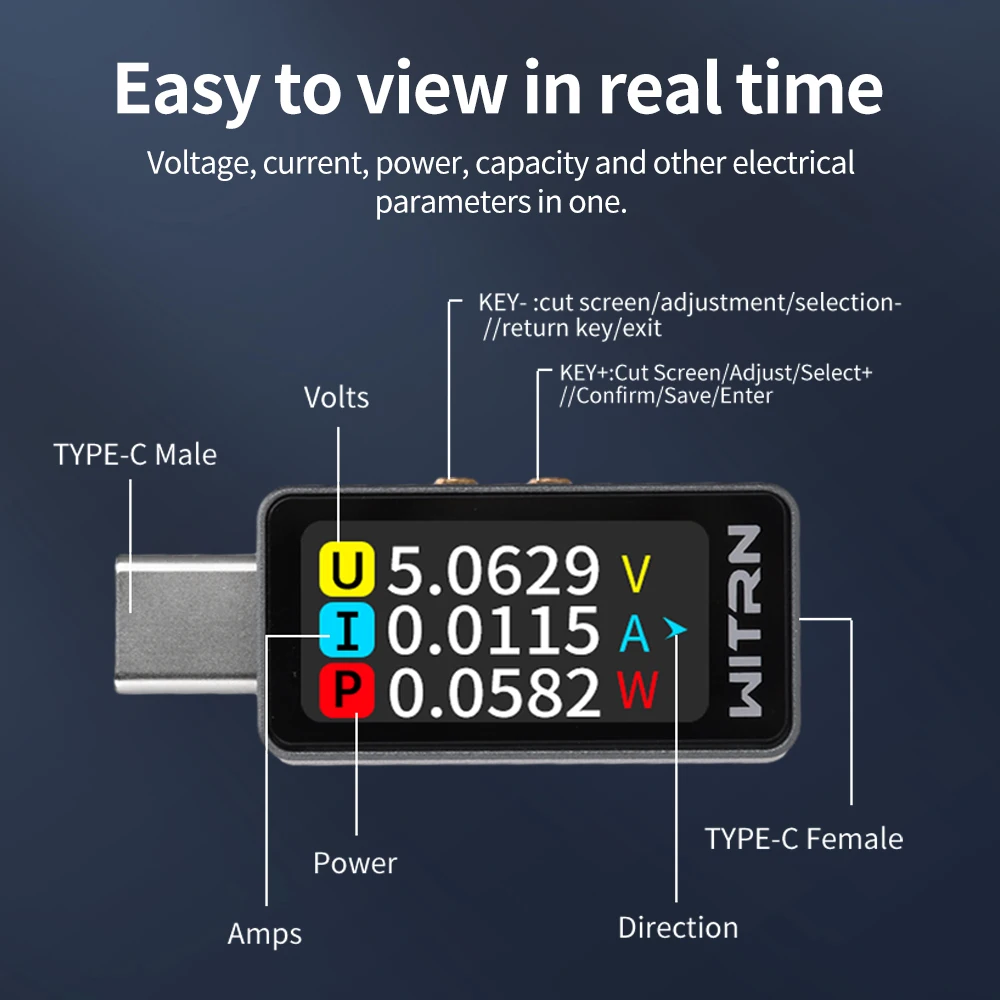

2.Voltage, current, power, capacity and other electrical parameters in one, easy to view in real time.
3. Current measurement: two-way current measurement function (reverse plugging will measure and display its own working current).

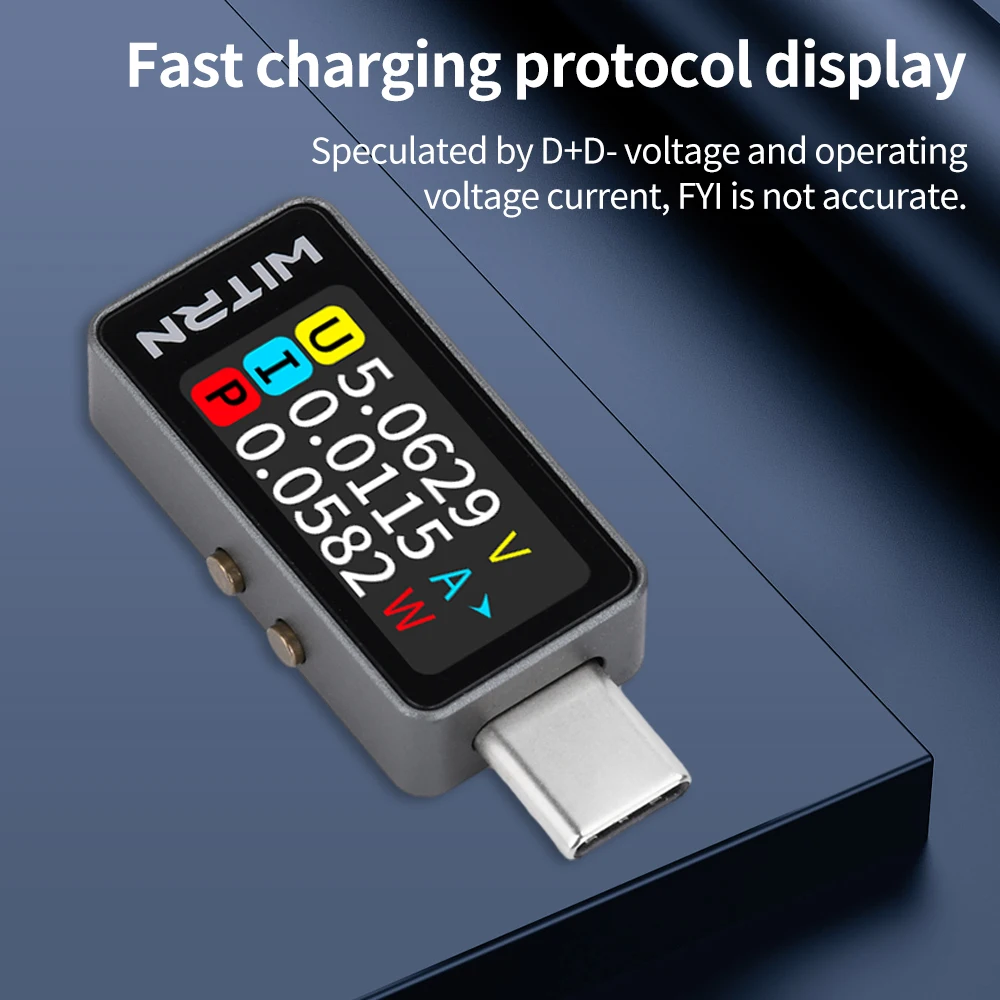

4. Fast charging protocol display: speculated by D+D- voltage and working voltage and current, for reference only.
5. Directly plugged into the PD charging head black screen, must be connected with a power device to work.

Parameter:
Product Screen: Color IPS screen Resolution 160*80
Input interface: USB-C (TYPE-C 24P)
Output Interface: USB-C (TYPE-C 24P)

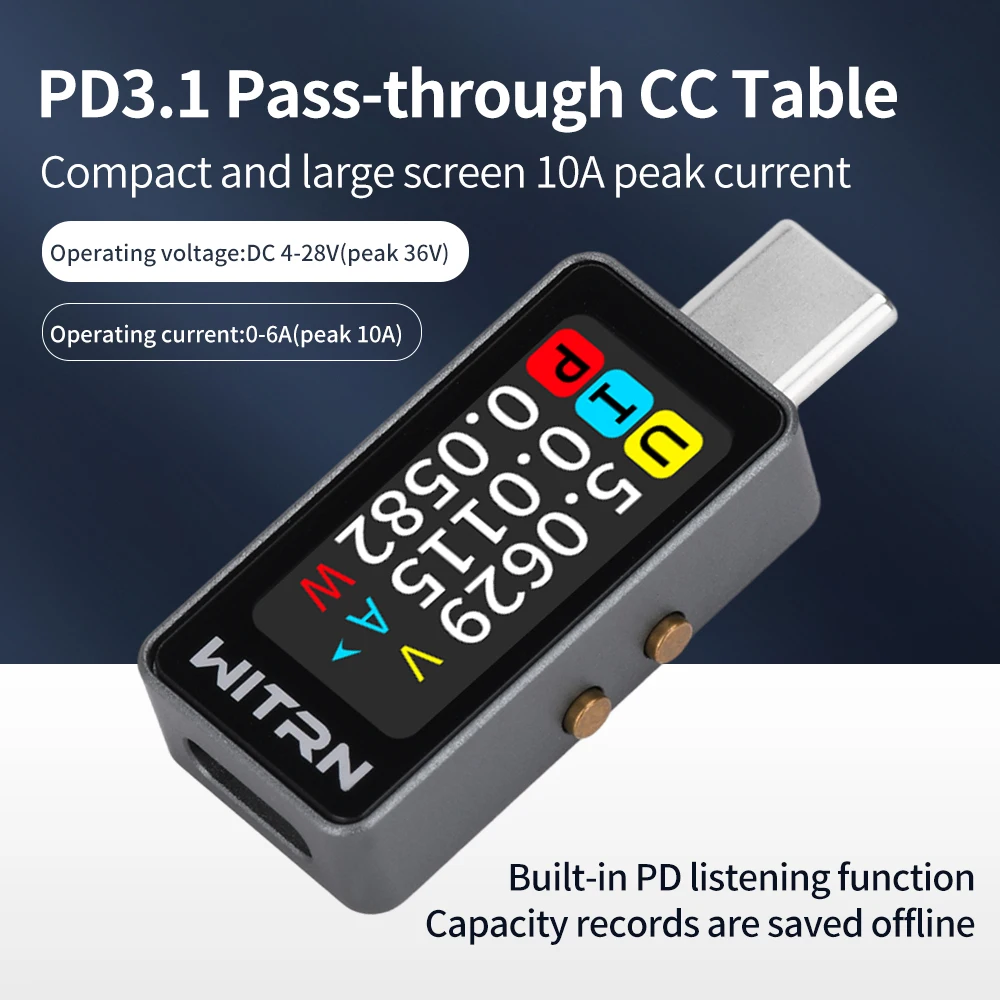

Operating voltage: DC 4-28V (peak 36V)
Operating current: 0-6A (short-time peak 10A)
Voltage resolution: 0.001V
Current resolution: 0.001A
Capacity record: 0-9999Wh
Measurement accuracy: range ± 1%

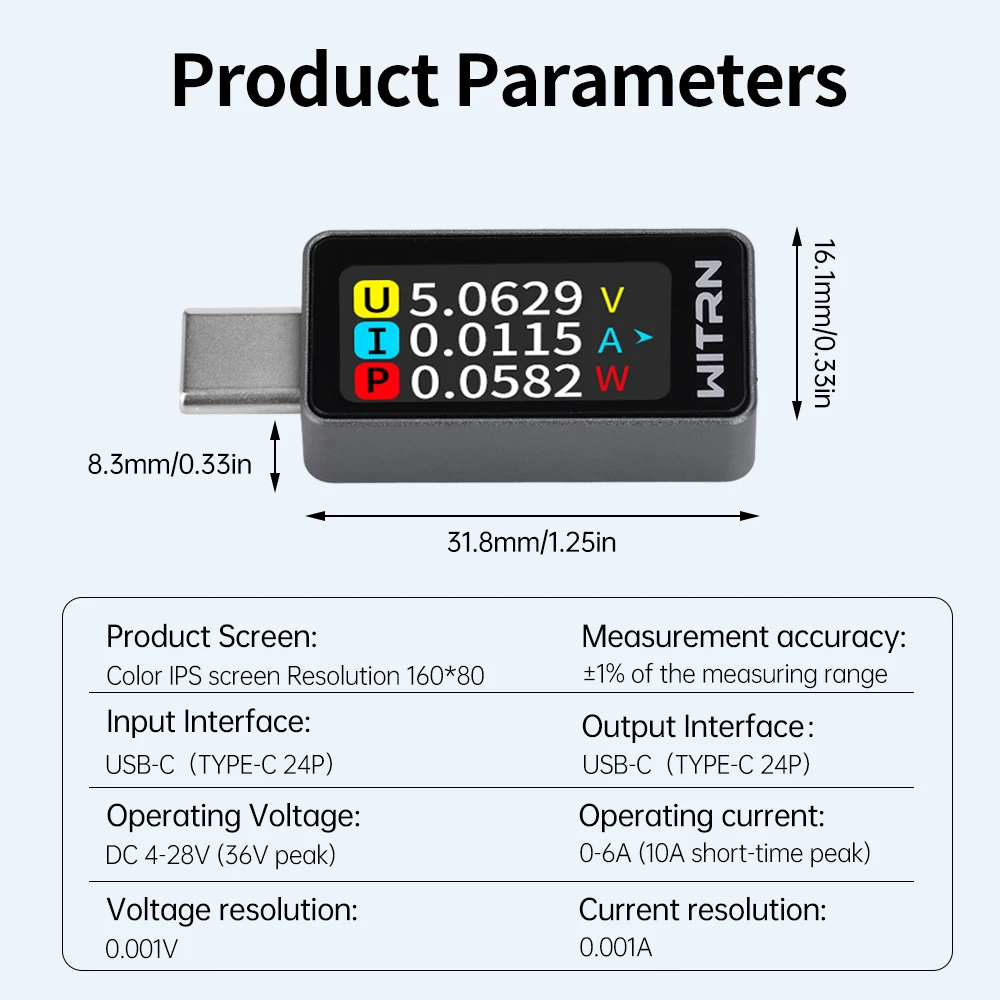

Product size: about 31.8x16.1x8.1mm (not including Type-C male)

Package include:
Tester*1
