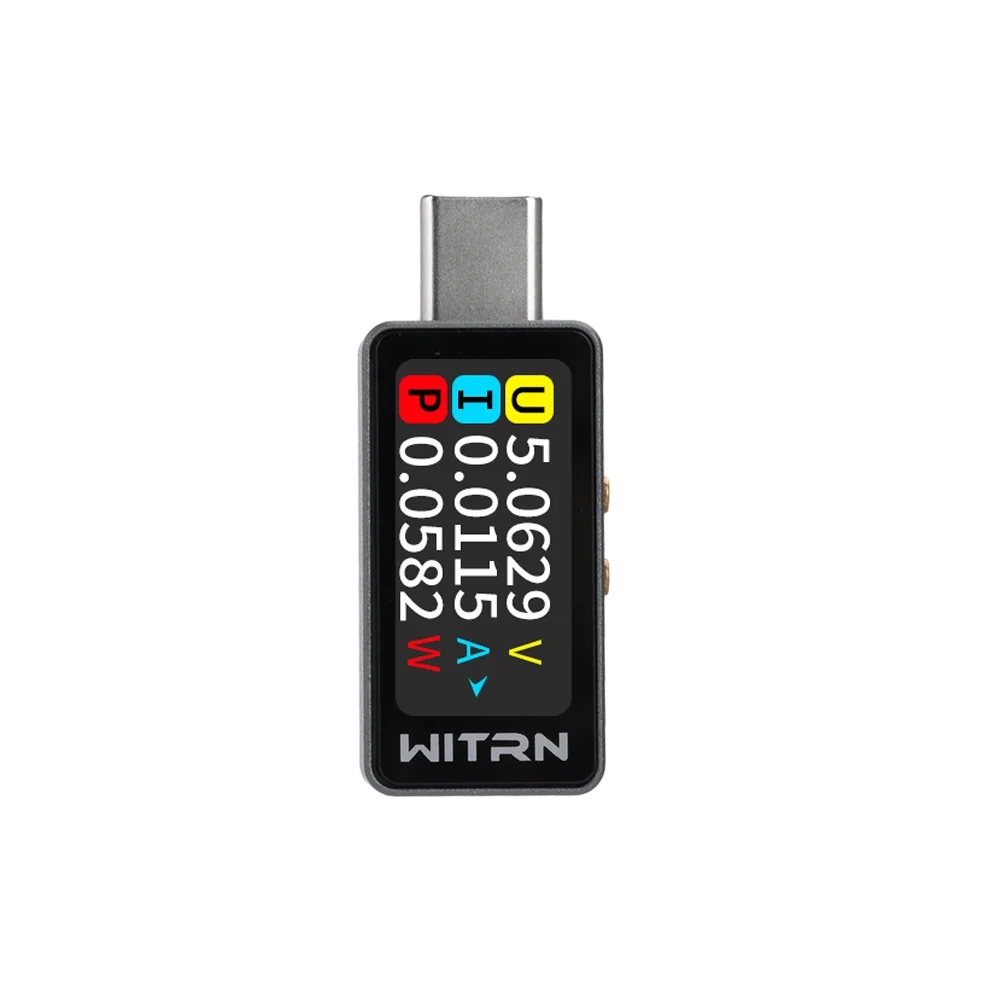

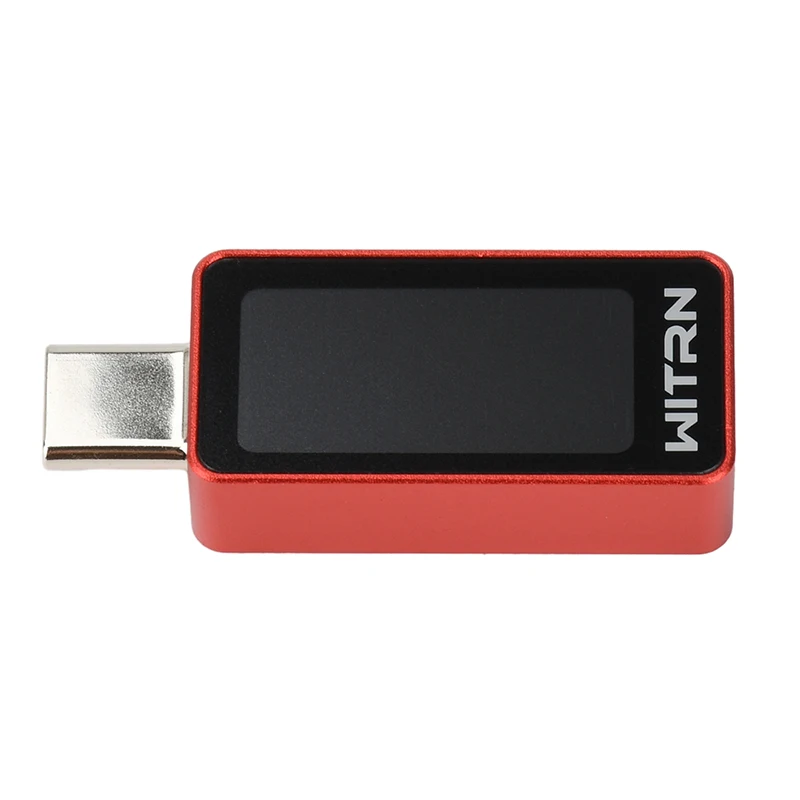

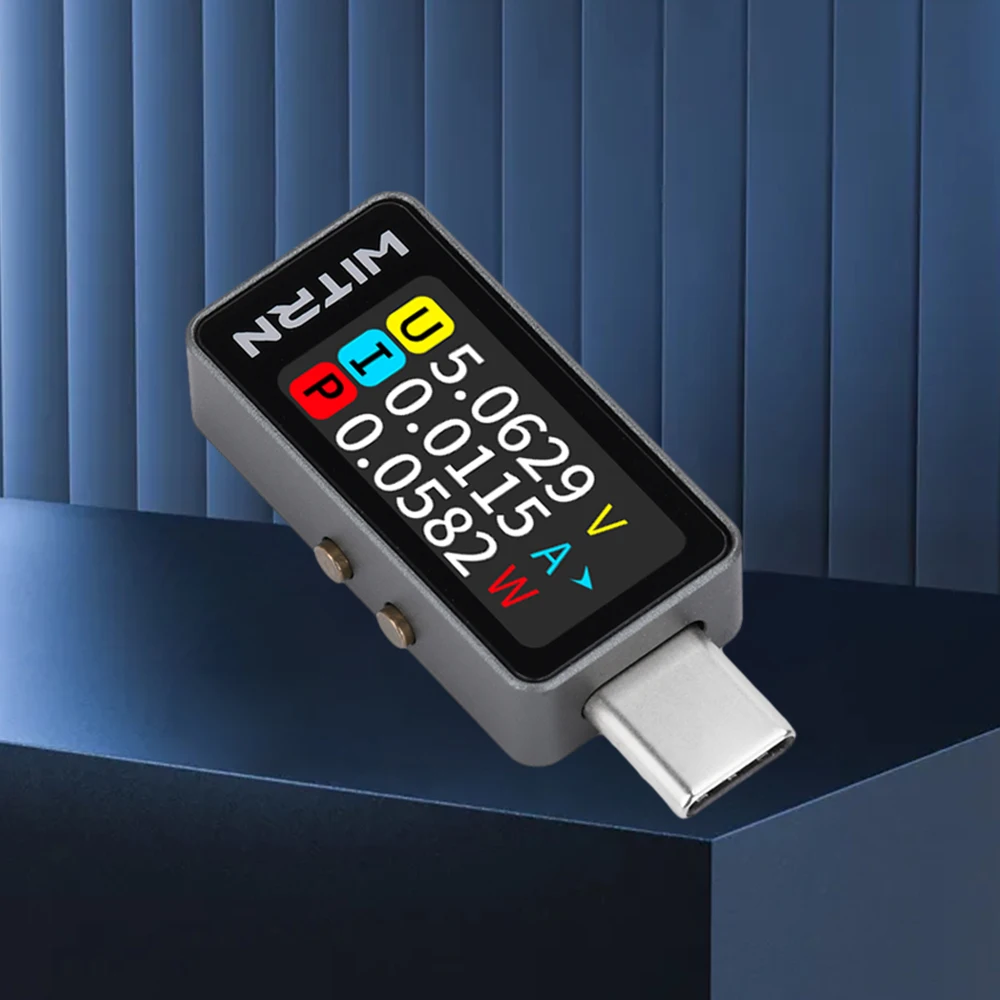

USB Type- C Tester with Real Time Voltages and Current Readout for Battery Performances Analysis for Electrician Tool

Feature:

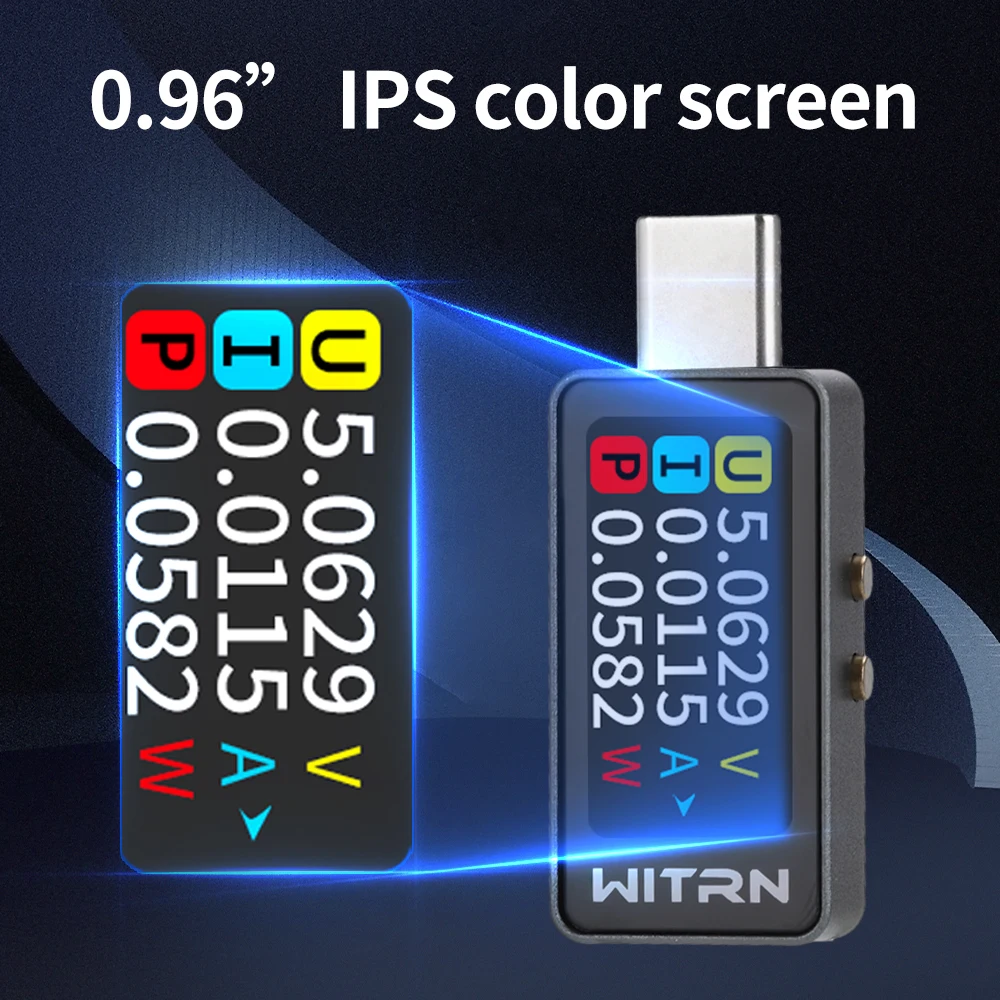

1.0.96-inch IPS color screen: wide viewing angle, clear readings even in a dim room.

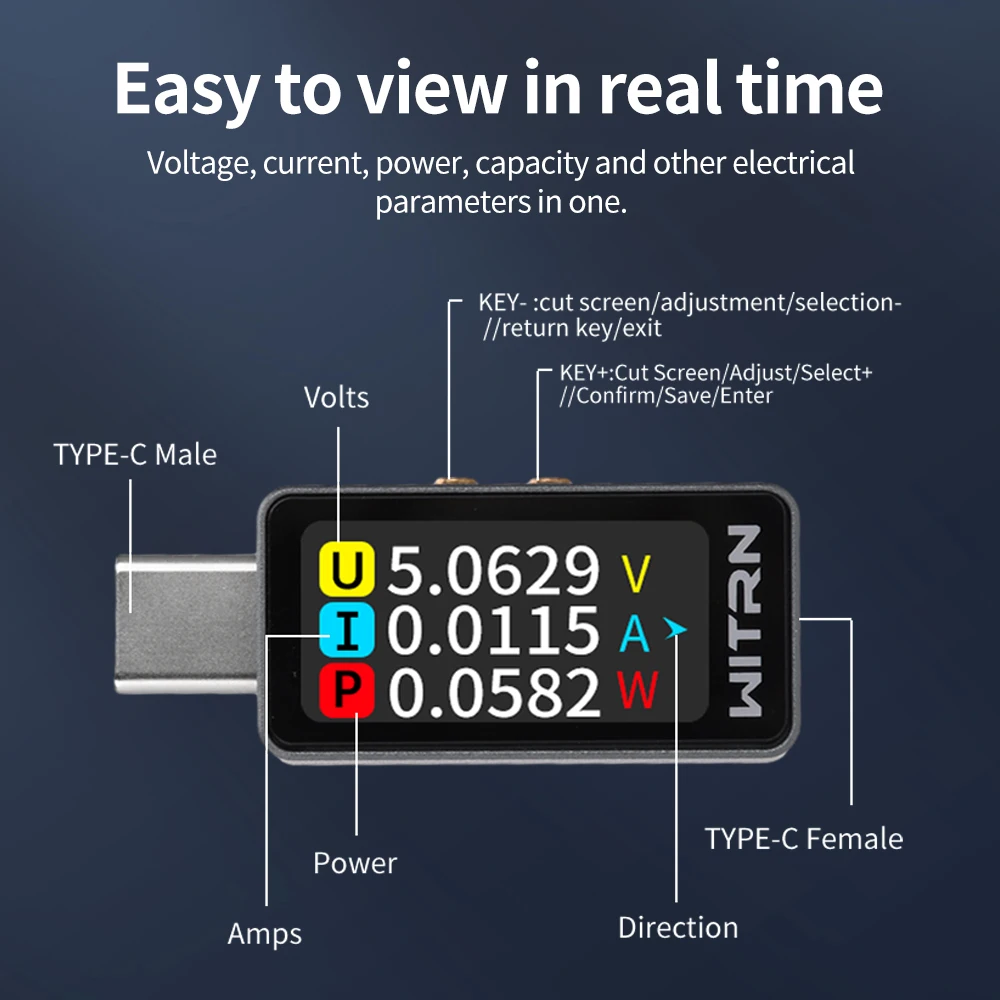

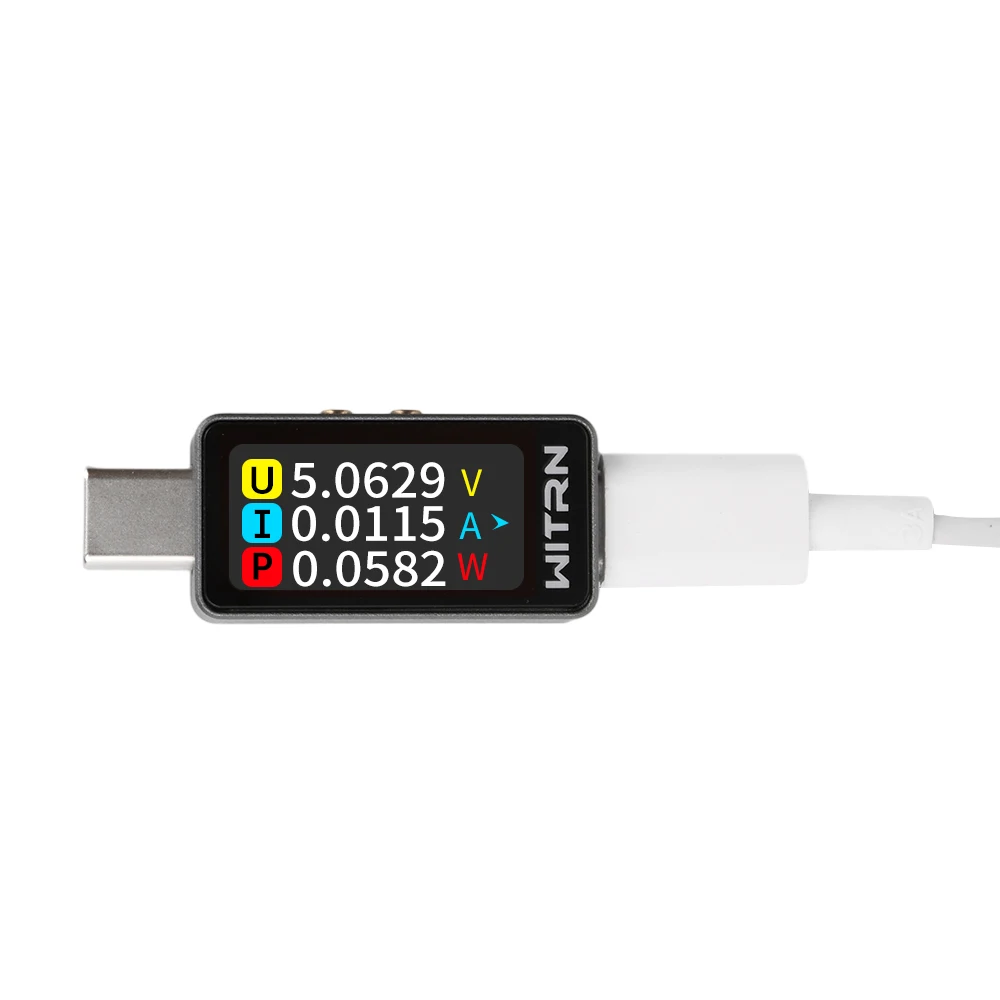

2. Voltage, current, power, capacity and other electrical parameters are integrated for real-time viewing.

3. Current measurement: bidirectional current measurement function (reverse insertion will measure and display its own working current).

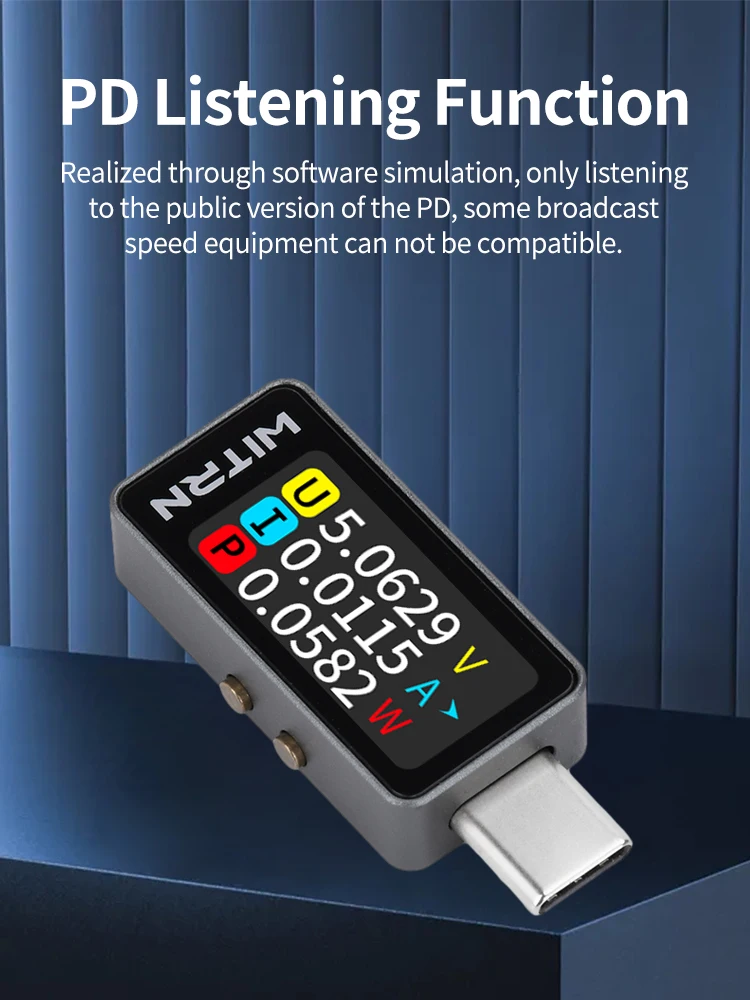

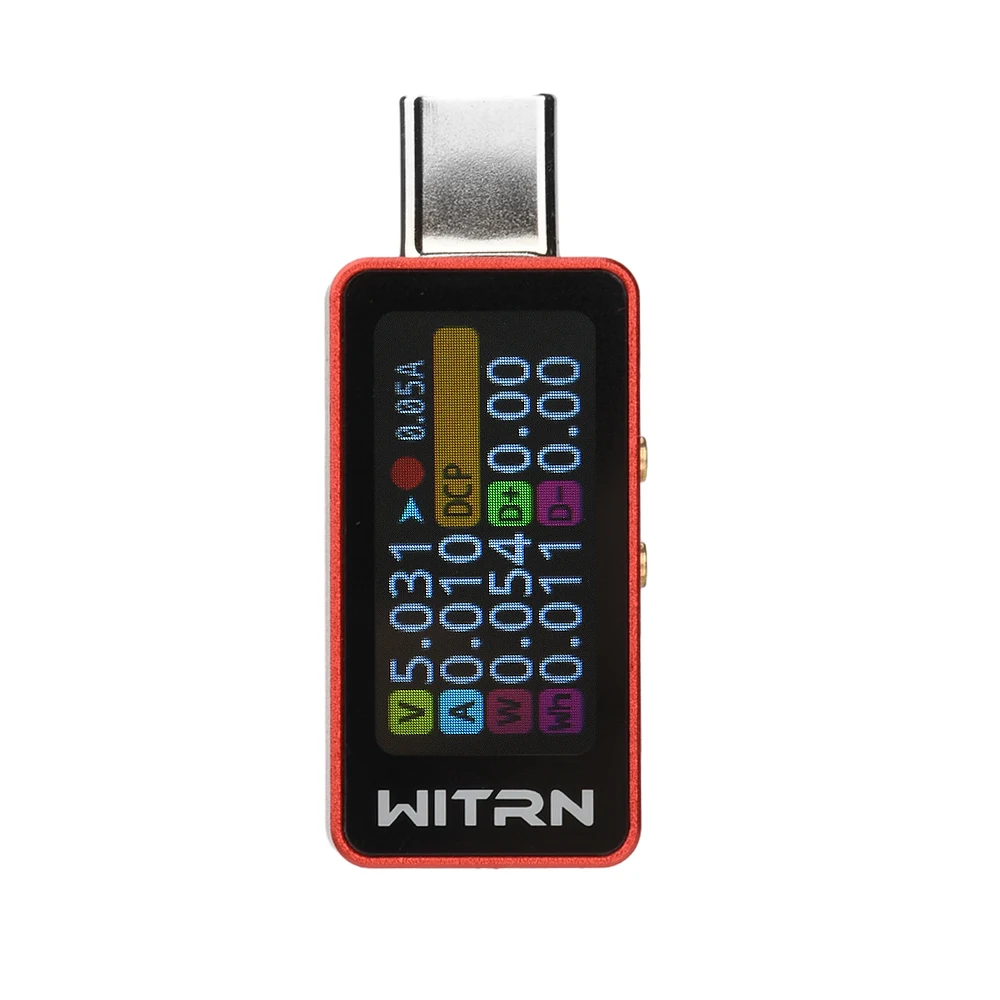

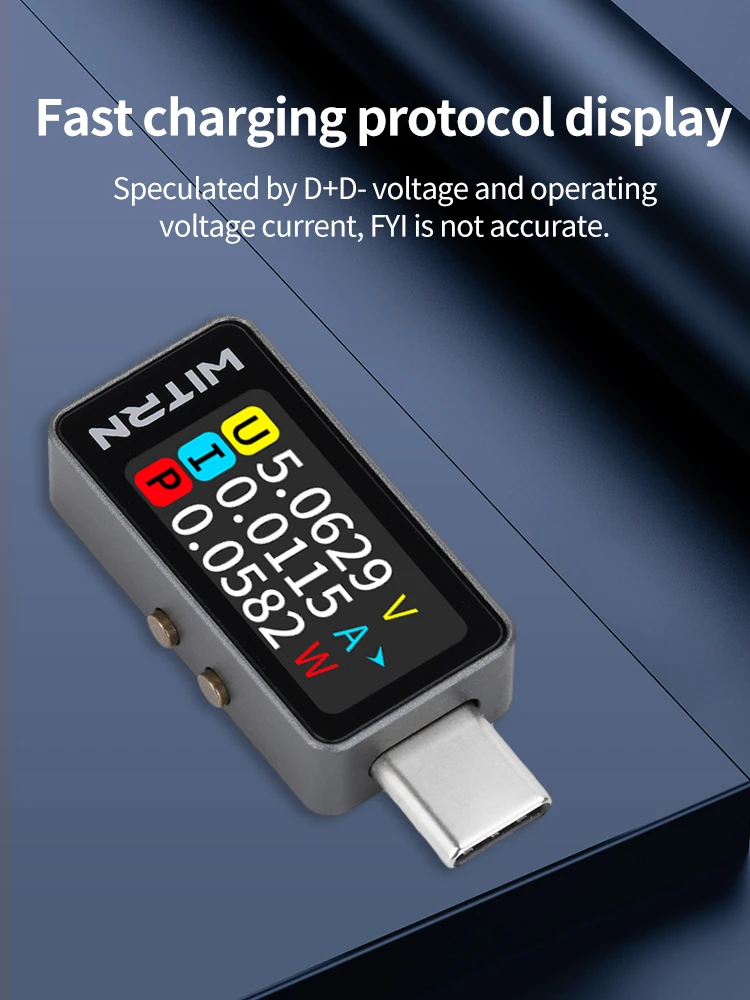

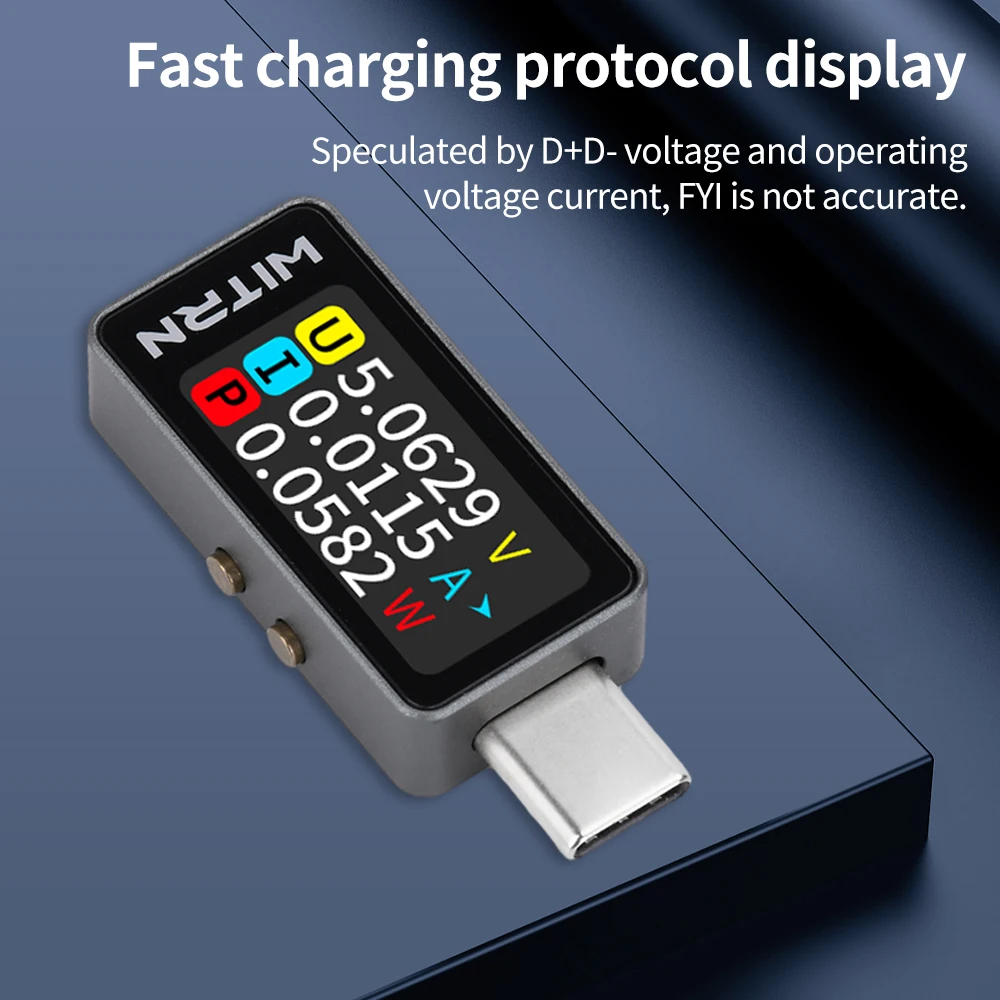

4. Fast charging protocol display: inferred by D+D- voltage and working voltage and current, for reference only.

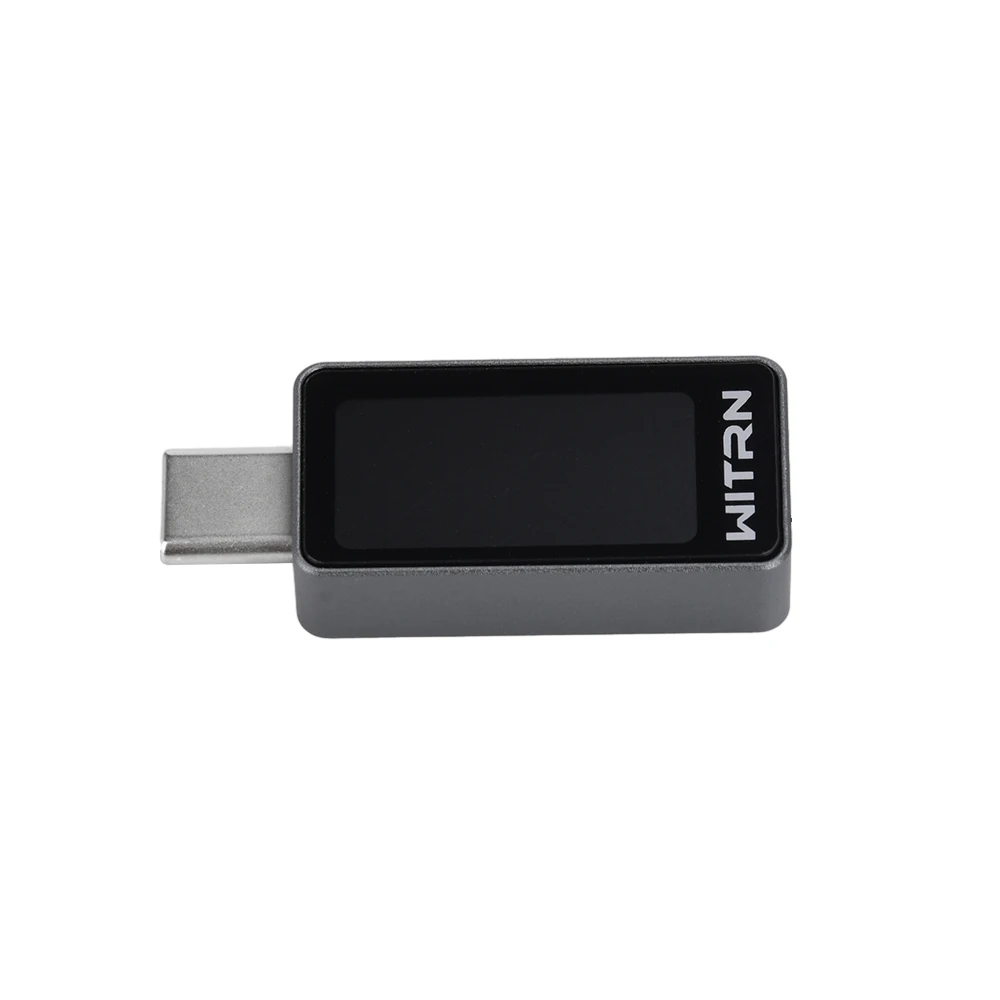

5. The screen is black when the PD charging head is directly plugged in, and it must be connected to a useful device to work.

Product parameters:

Product screen: Color IPS screen Resolution 160*80

Input interface: USB-C (TYPE-C 24P)

Output interface: USB-C (TYPE-C 24P)

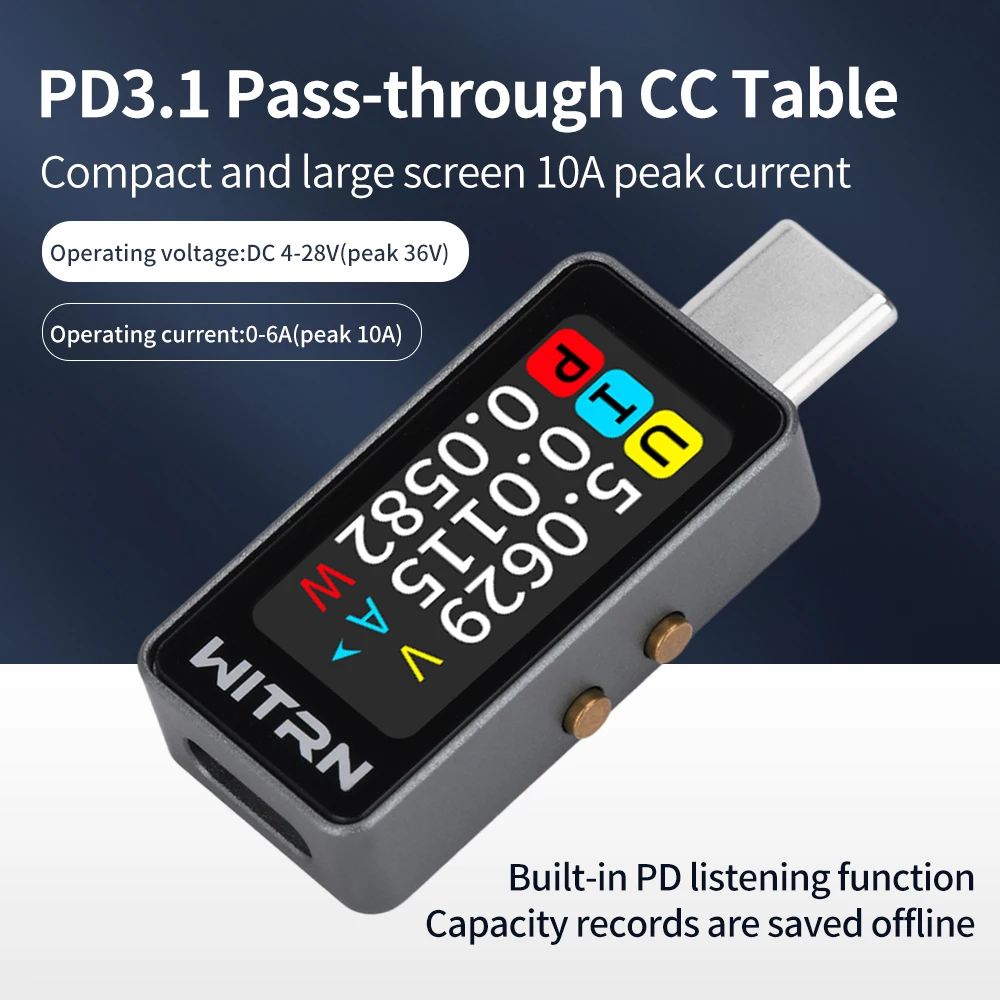

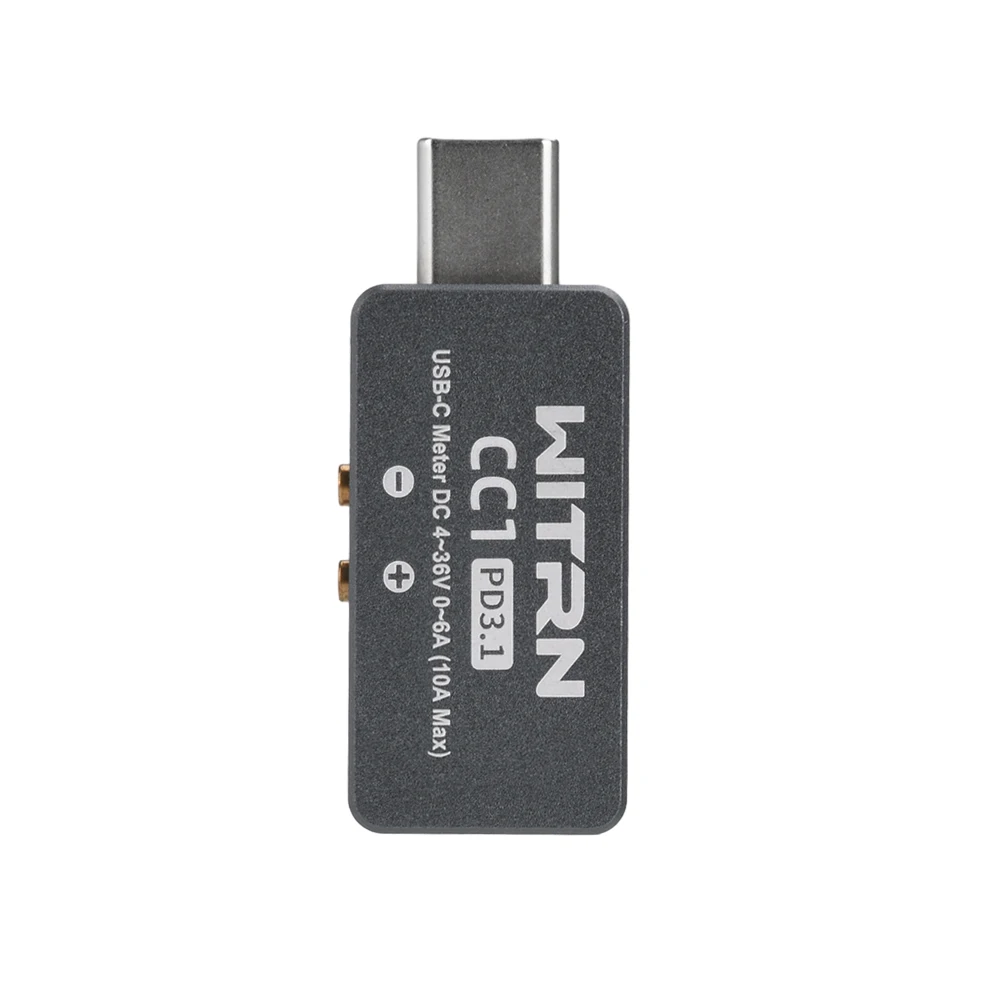

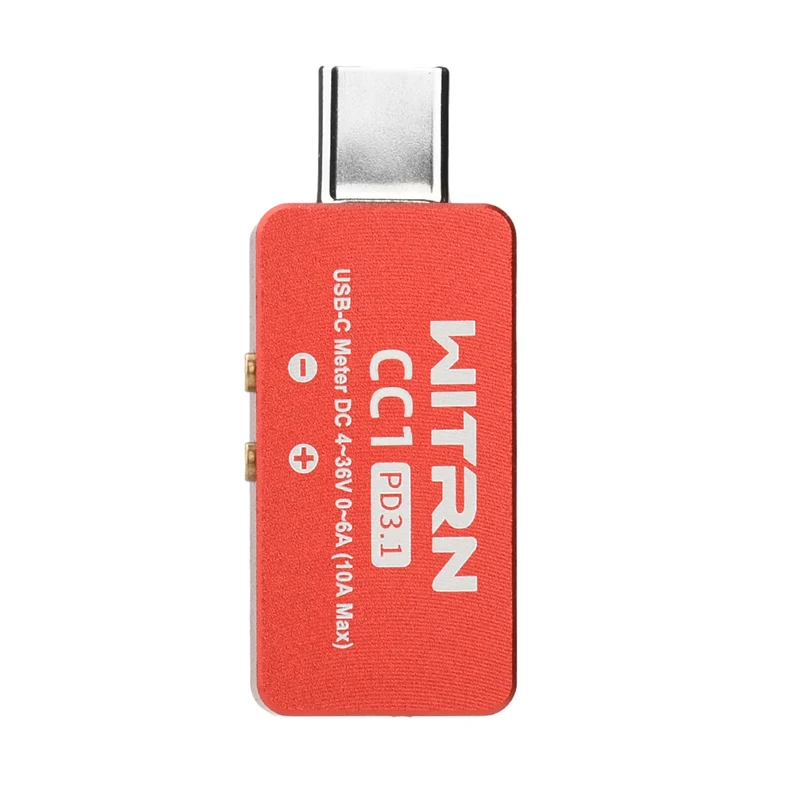

Working voltage: DC 4-28V (peak 36V)

Working current: 0-6A (short-term peak 10A)

Voltage resolution: 0.001V

Current resolution: 0.001A

Capacity record: 0-9999Wh

Measurement accuracy: Range ±1%

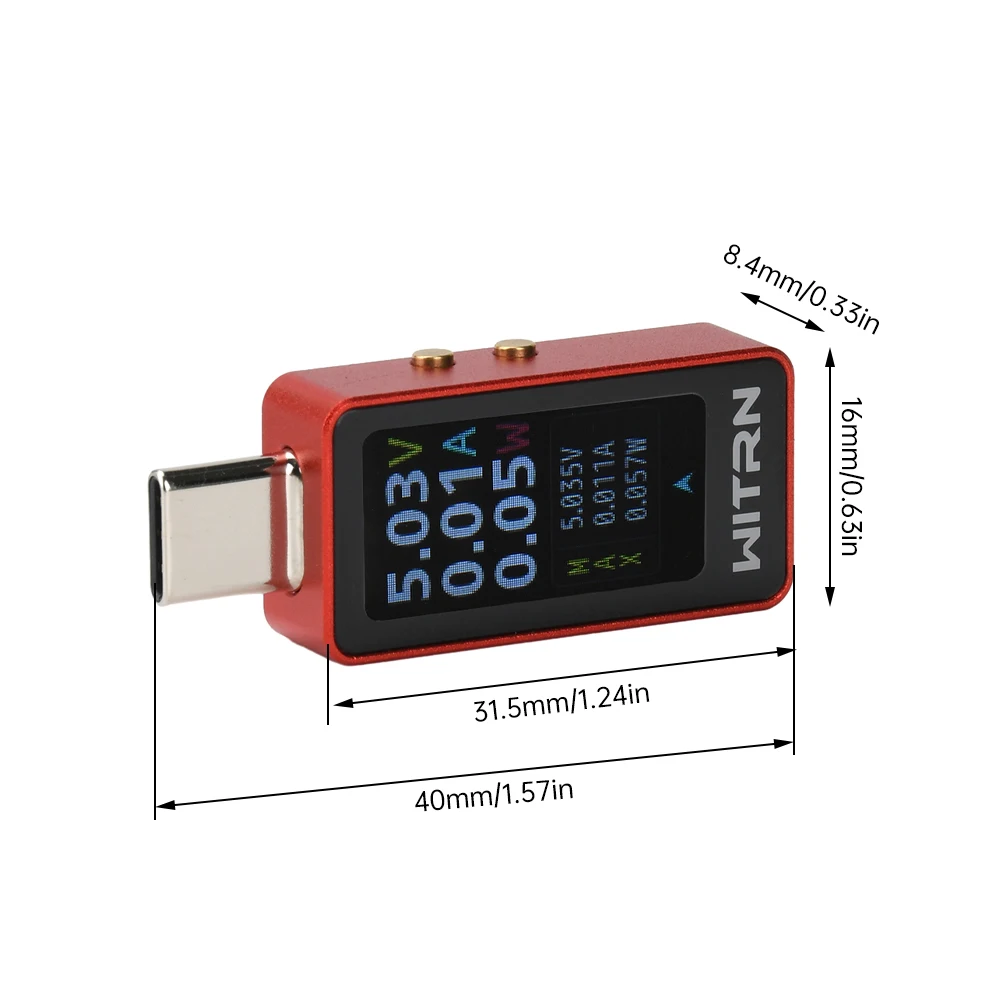

Product size: about 31.8x16.1x8.1mm (excluding Type-C male connector)

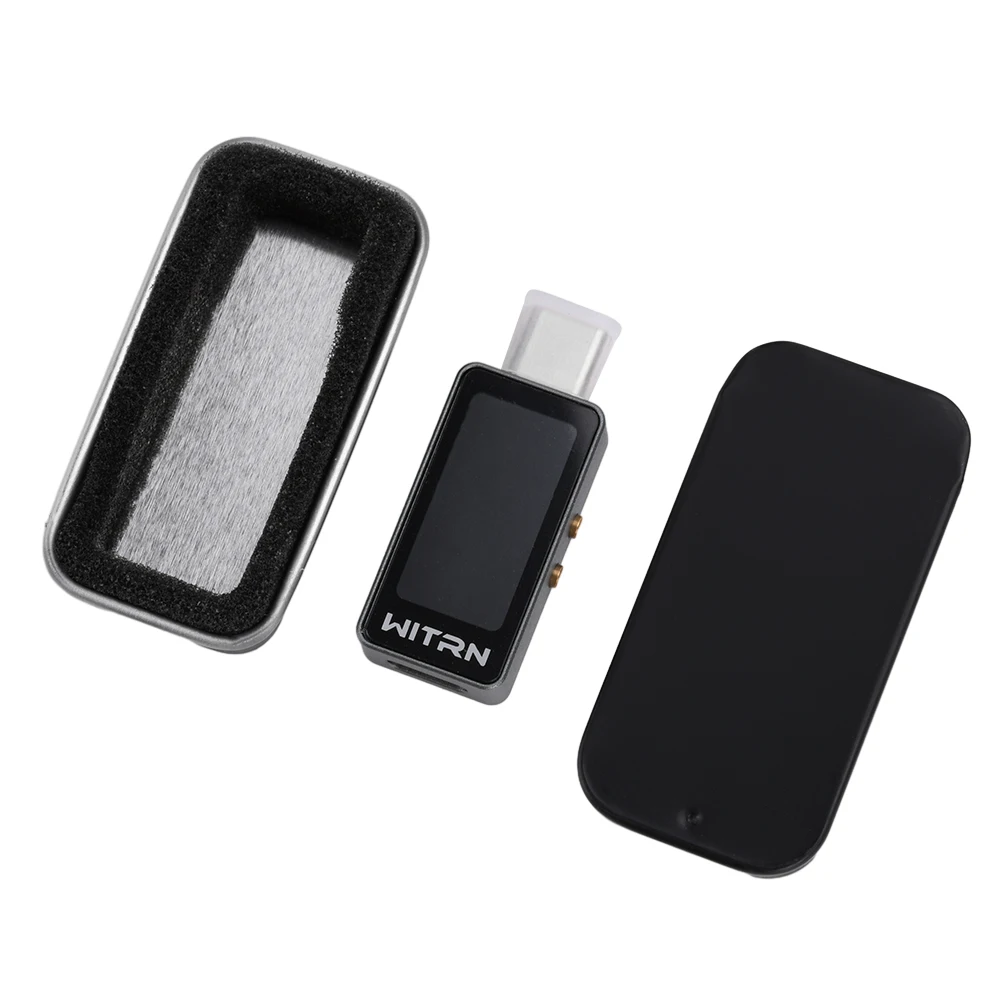

Package list:

Current and voltage tester*1
