Description
Drive the future, exquisite and powerful! Our DC motor leads the industry with high speed, torque, and load. Whether it's a car modification, forklift, or hydraulic power unit, it's the ideal choice, injecting unlimited energy into your work and needs. Simple installation and stable operation allow each project to start accurately and smoothly.
Key Features
High-quality Materials: This product is made of selected copper and aluminum, and undergoes high-temperature quenching and spraying treatment, which is rust-resistant, corrosion-resistant, and has a long service life.
High Efficiency: Pure copper coils have high conductivity, giving the motor a maximum speed of 2700 RPM and a torque of 8 N. m, providing stronger load force and improving work efficiency.
High Protection Level: The IP54 protection can prevent water or large amounts of dust from entering, together with F-grade insulation, extending the product's service life and allowing you to use it with more assurance.

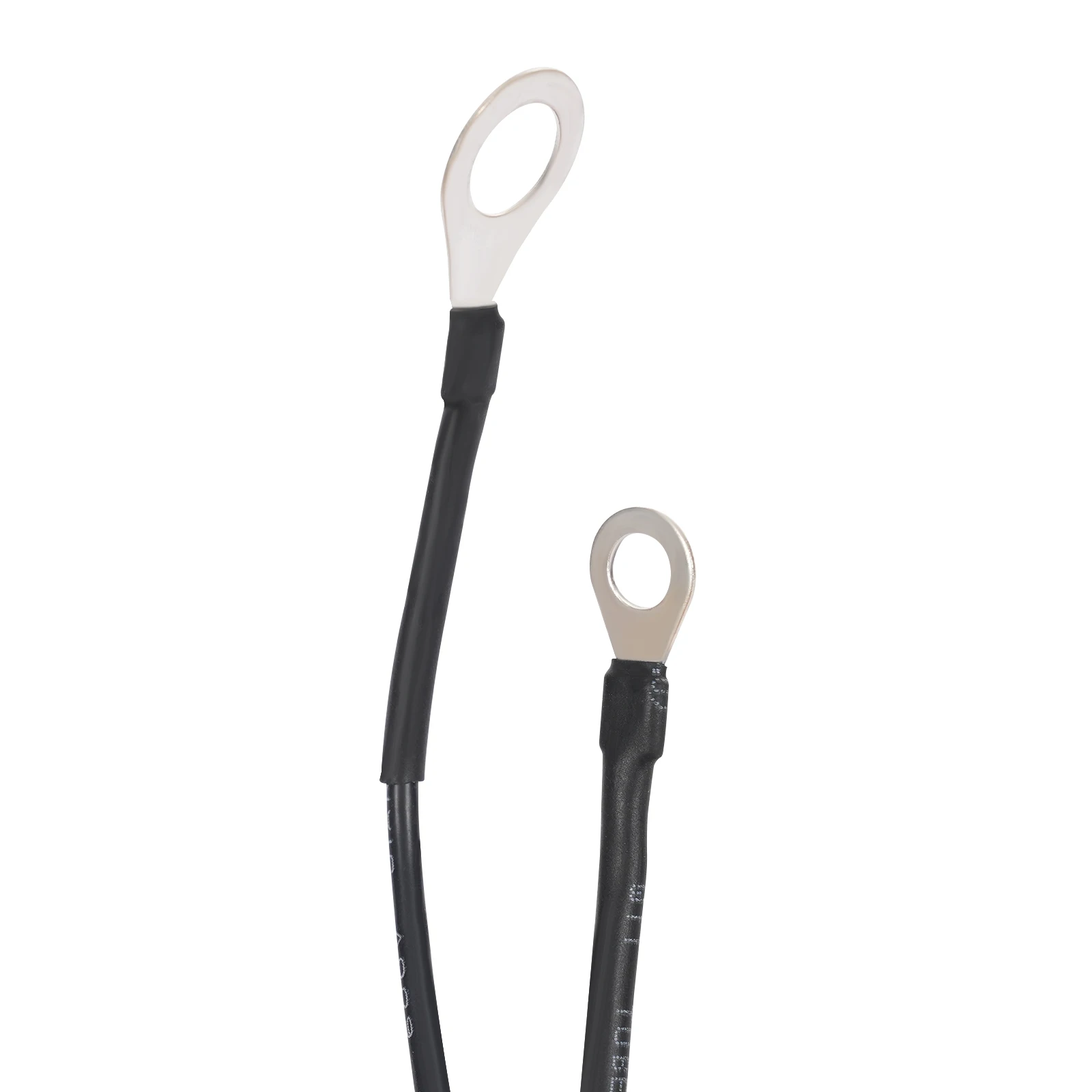

Security Guard: The product is equipped with overheat protection lines, avoiding potential hazards and effectively improving the safety and reliability of the motor.
Easy to Use: The product does not require a complex assembly process, and once you receive it, you can quickly wire and install it to start using.
Compact Design: The compact size(7.15*4.09in) makes it easy to install, providing more operating space and load capacity for the vehicle.
Simple Maintenance: The product adopts precision structures, which run smoothly, have a long service life, and reduce maintenance costs.
Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".
Details

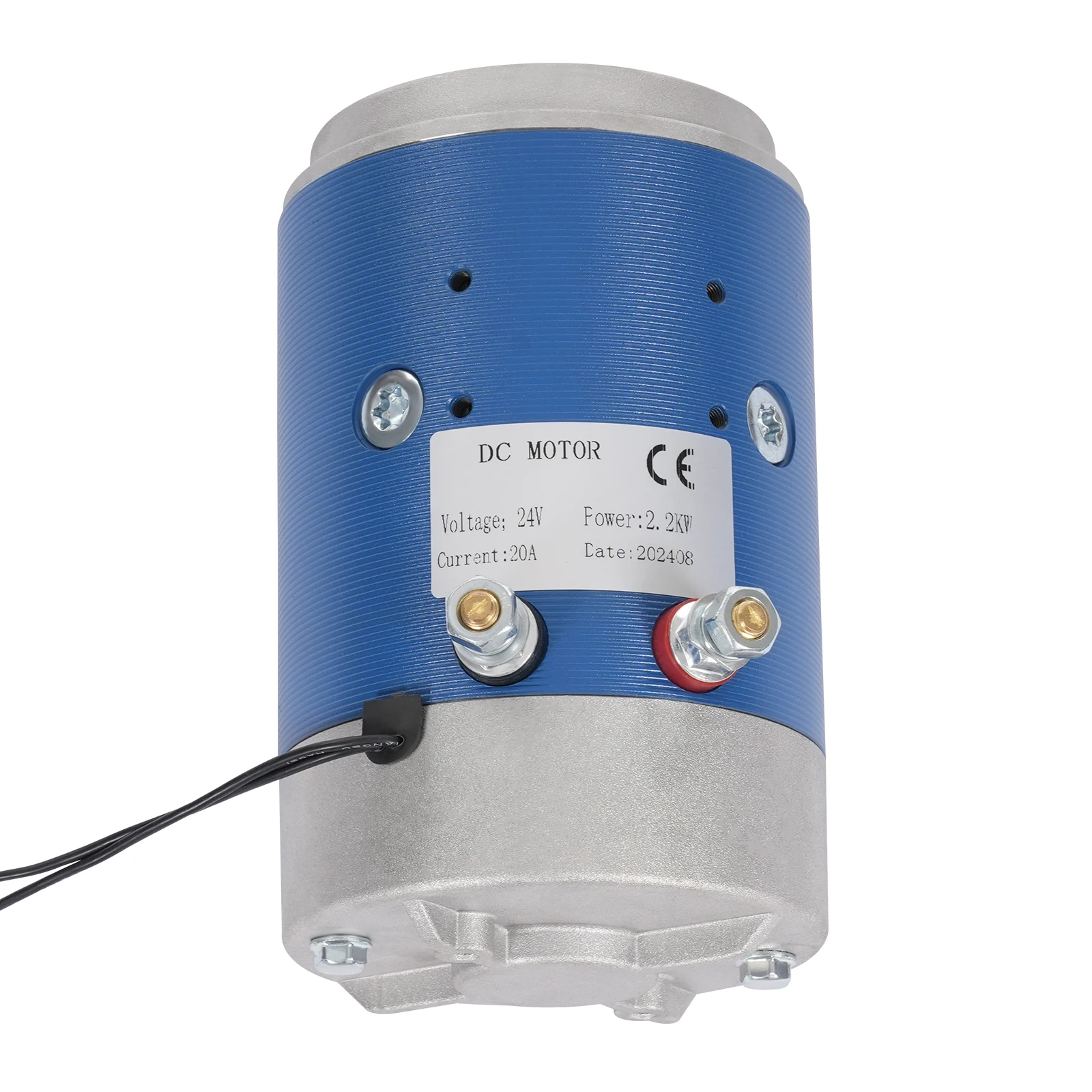

Wiring Posts: They are used to connect the power supplies. The red is for positive, and the black is for negative.

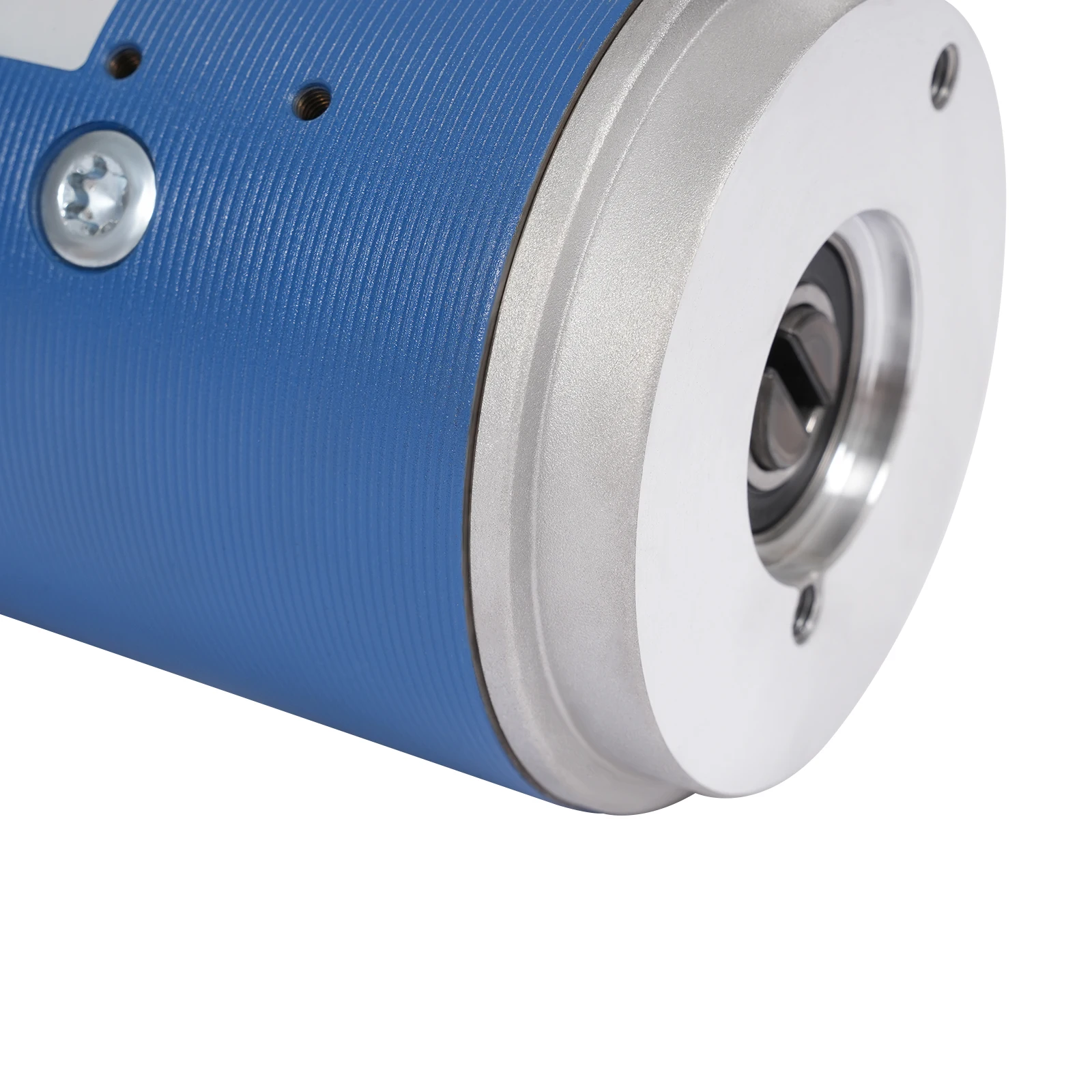

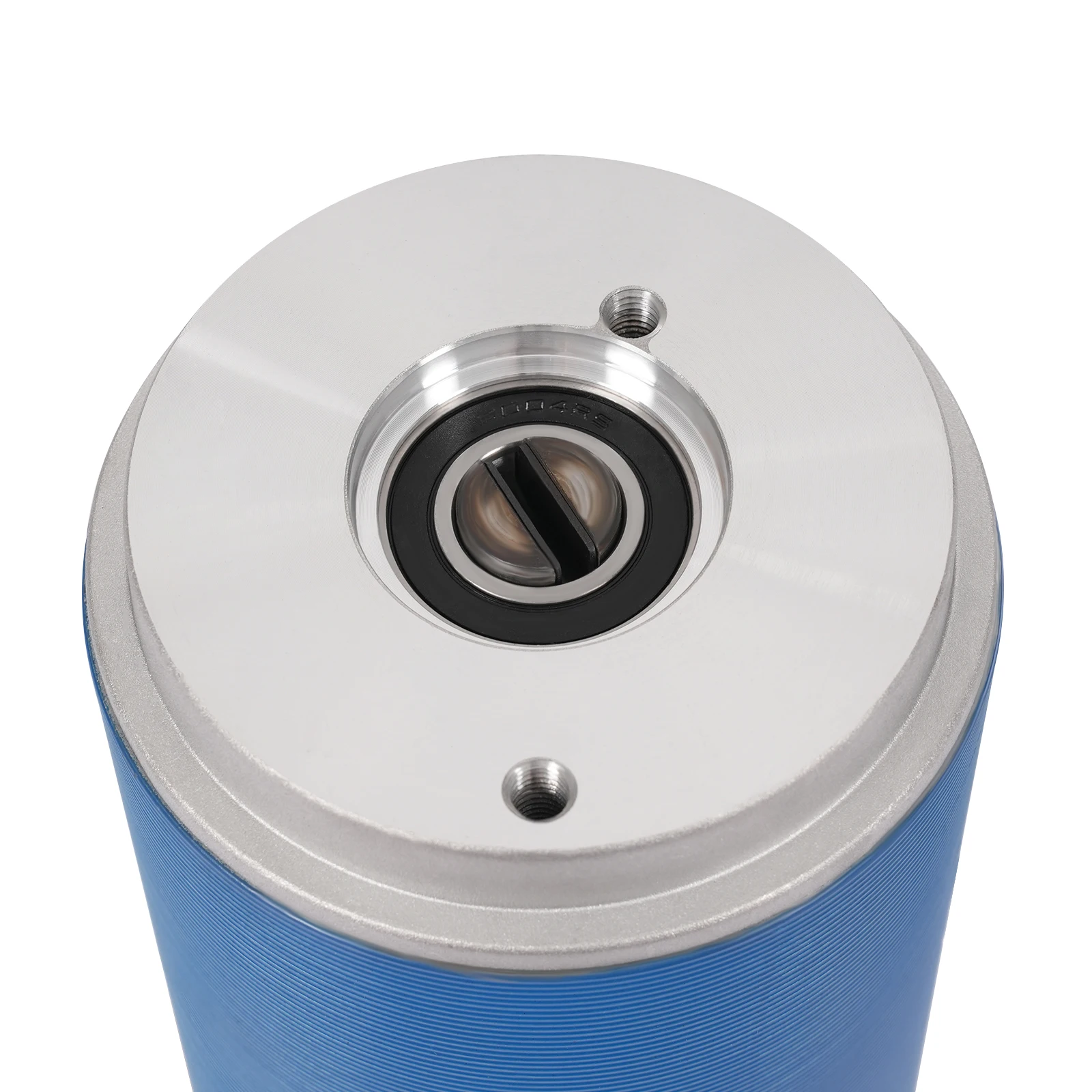

High-precision Rotor: After moisture-proof and rustproof treatment, it ensures smooth operation, low noise, and reliability.
Application
This product can be widely used in fields such as security equipment, car modification, forklifts, hydraulic power units, etc.
Specification
Color: Blue
Material: Copper, Aluminum
Process: High-temperature Quenching, Spraying
Motor Type: Pure Copper Motor
Work Mechanism: 2min-7%ED S2min-S3%
Insulation Level: F
Protection Level: IP54
Number of Teeth: 2
Turning: CW
Noise: 45-75dB
Max. Running Time: 3min
Voltage: DC 24V
Current: 20A
Power: 2.2KW
Max. Speed: 2700RPM
Rated Torque: 8N.m

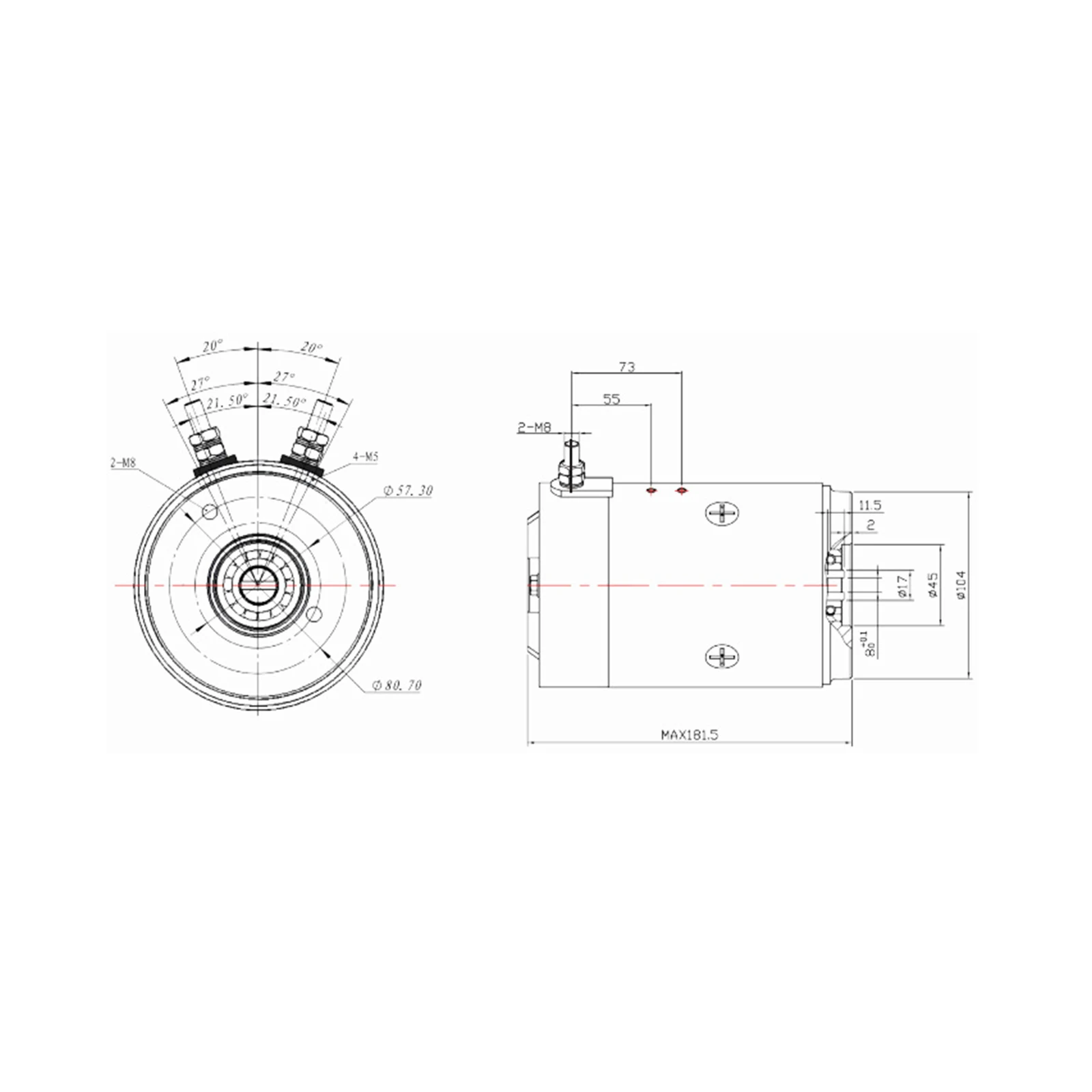

Product Size (D*L):18.15*10.4cm/7.15*4.09in
Package Size: 18*14*14cm/7.09*5.51*5.51in
Gross Weight: 7kg/15.43lbs
Net Weight:6.7kg/14.77lbs
Package Included
1* 24V DC Motor
Notes
1. Please note that this motor needs to be used in conjunction with a relay (not included).
2. To ensure product heat dissipation, please do not use it in a closed environment, or high temperatures and humidity.
3. This motor cannot work continuously for a long time. Please take a break after working for a period of time to ensure the normal lifespan of it.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
