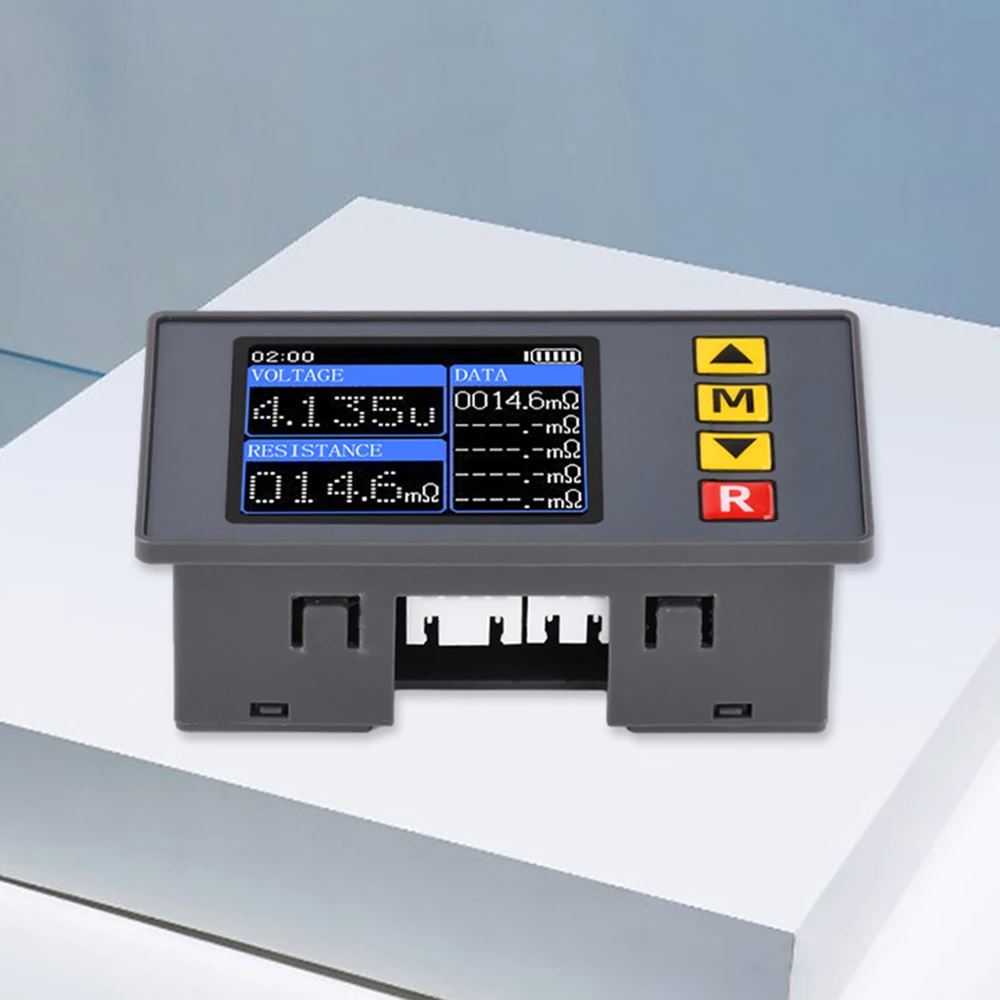

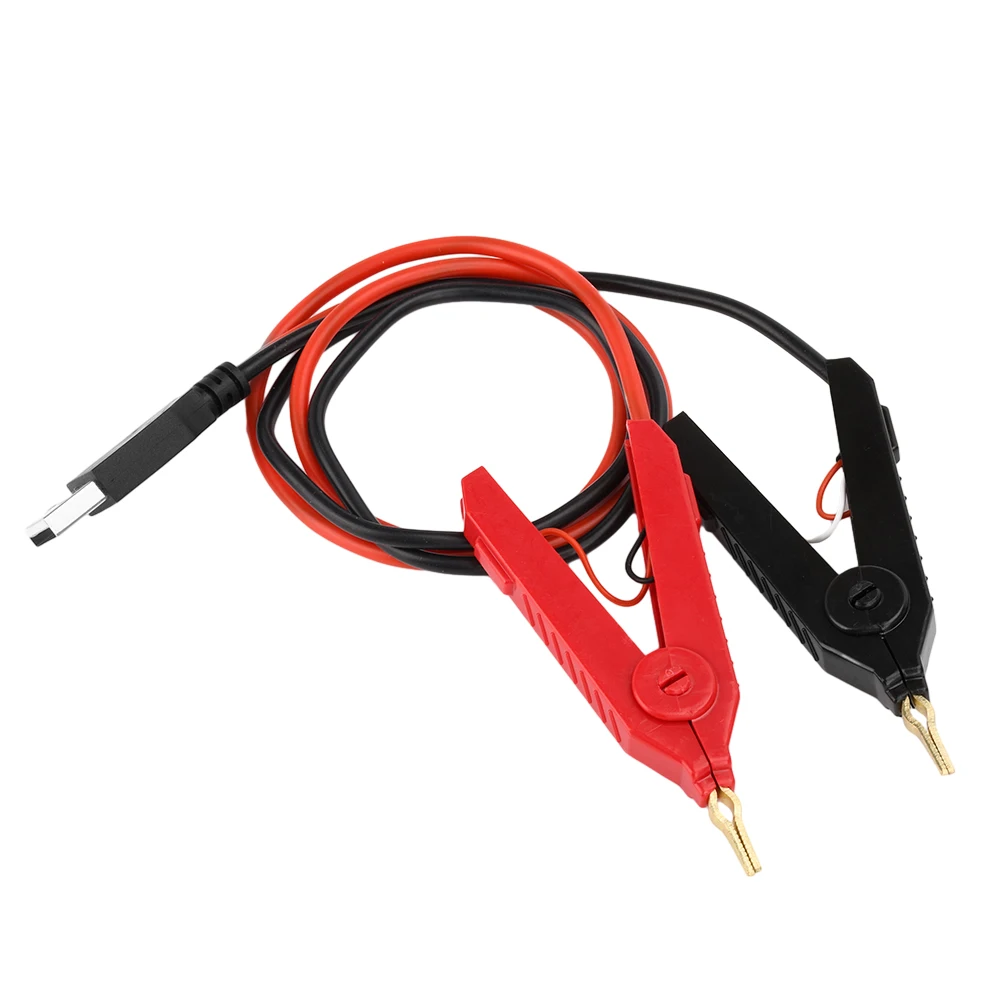

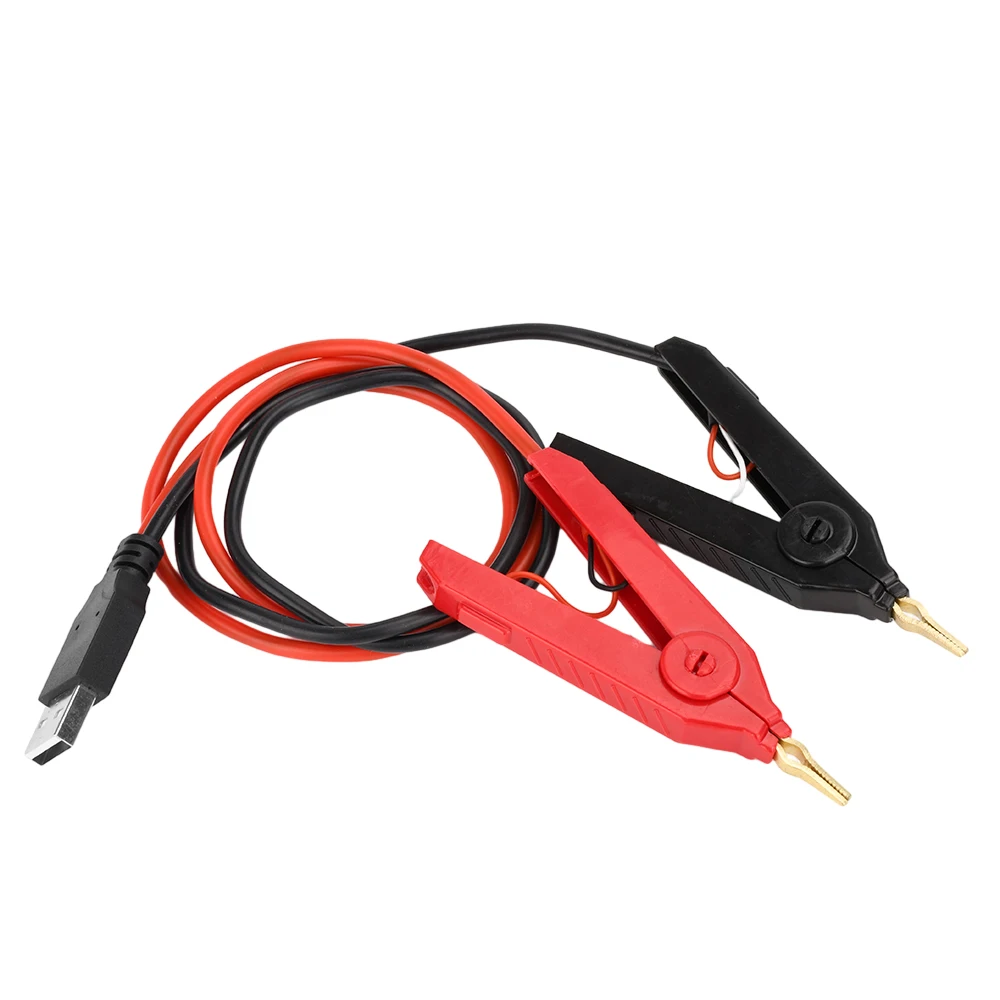

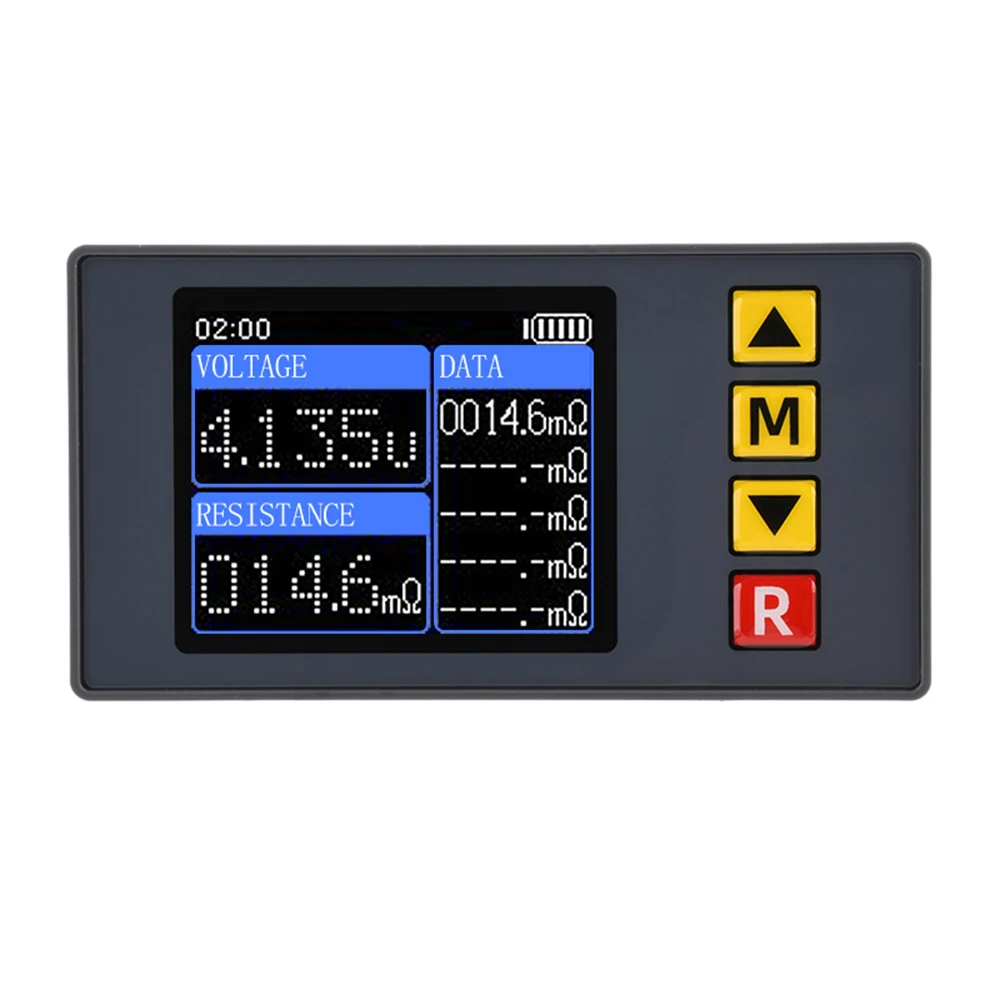

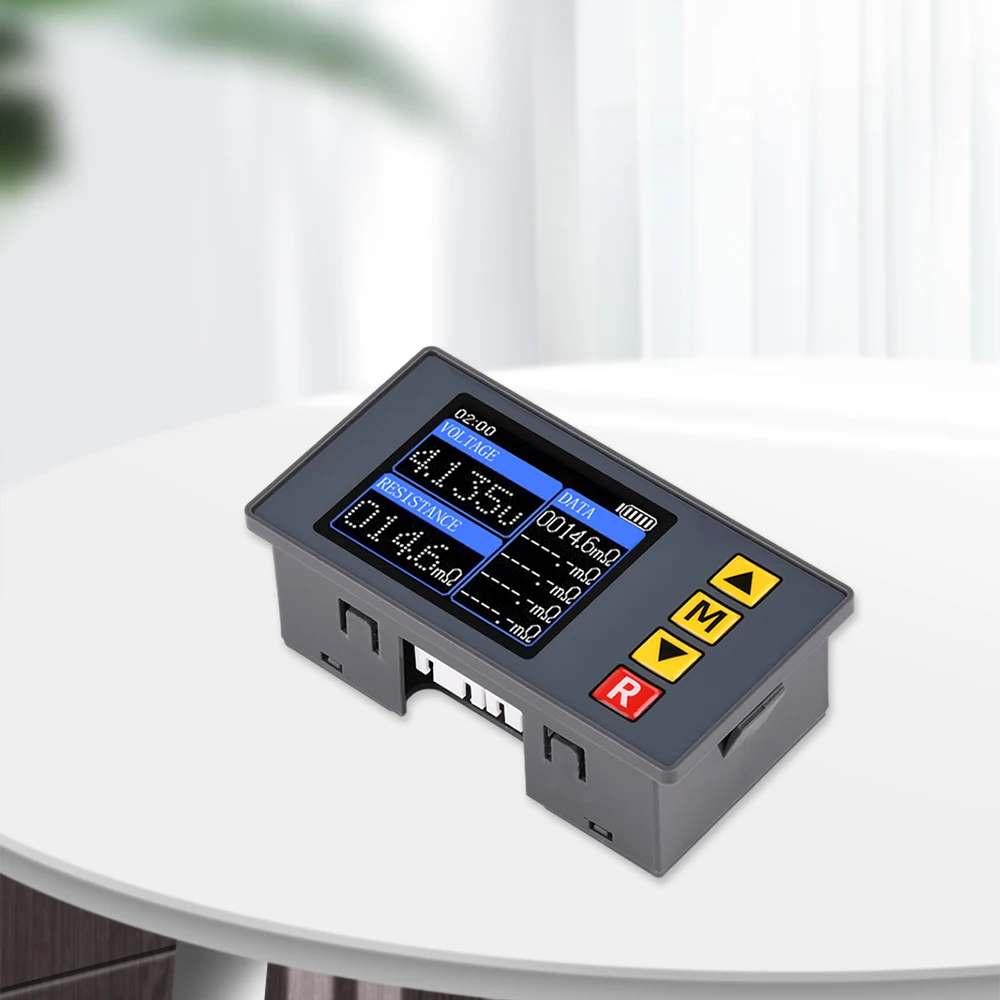

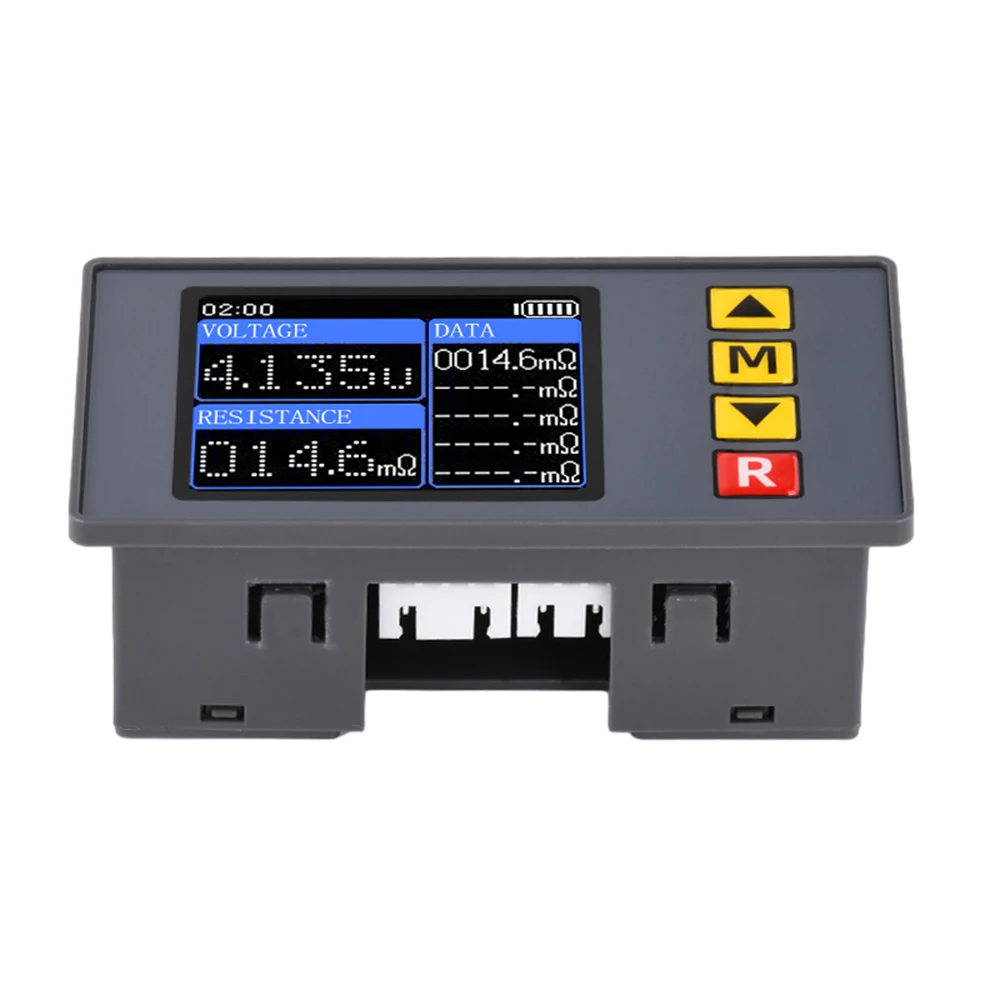

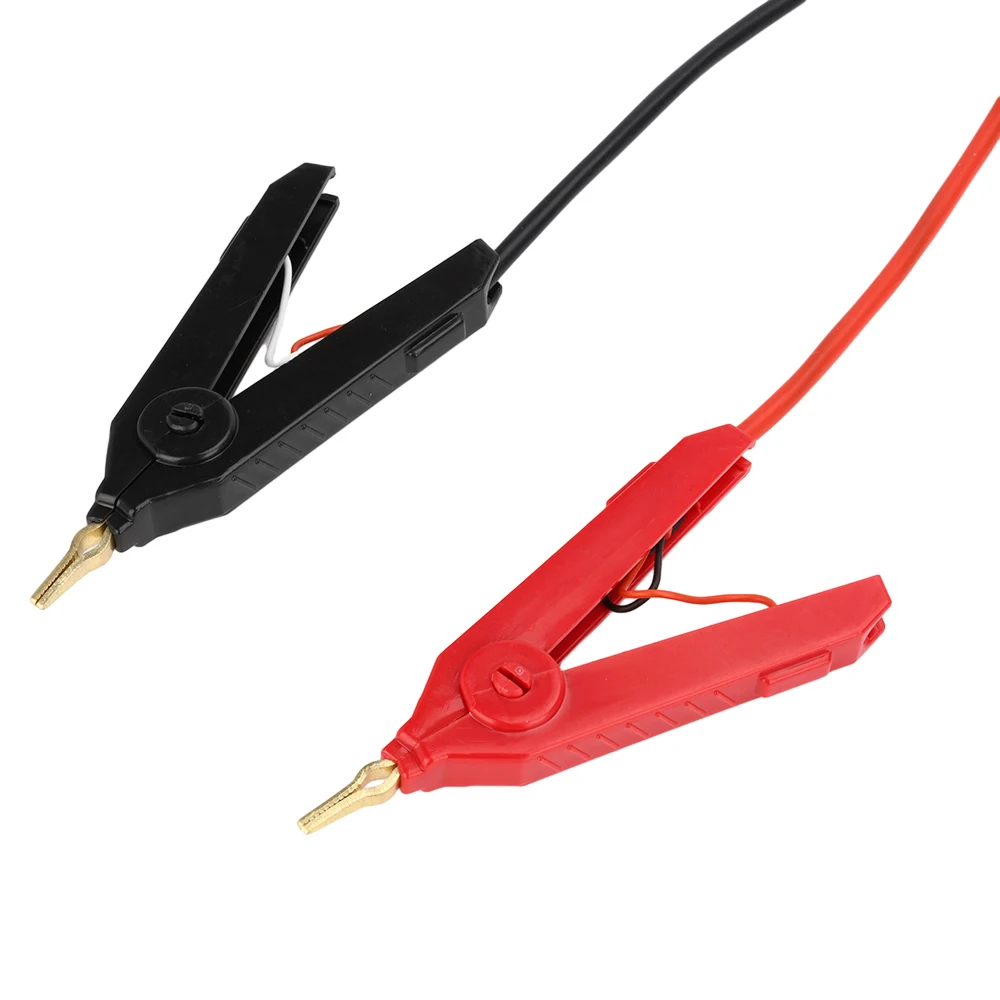

TS457 DC5V Voltmeter Internal Resistance Tester Detector Voltage Meter 2/4 Pin Cable With Kelvin Clip

Feature:

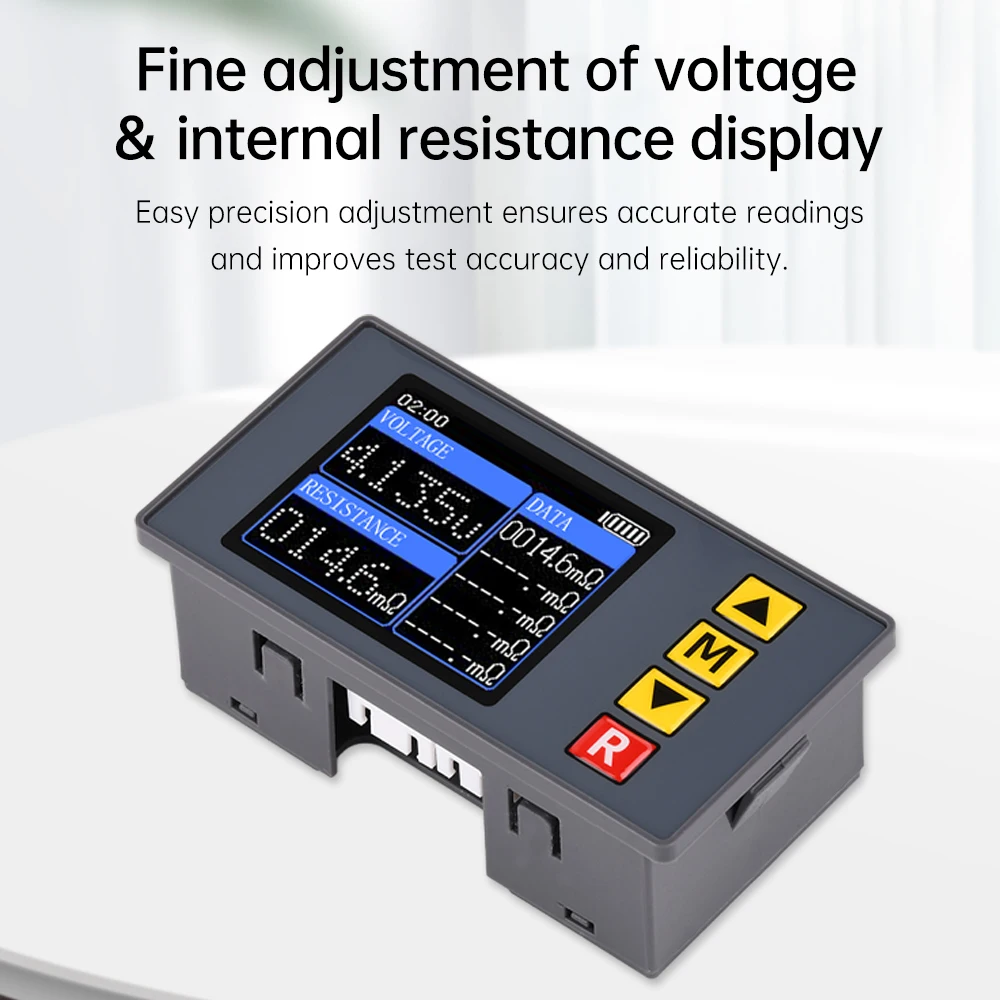

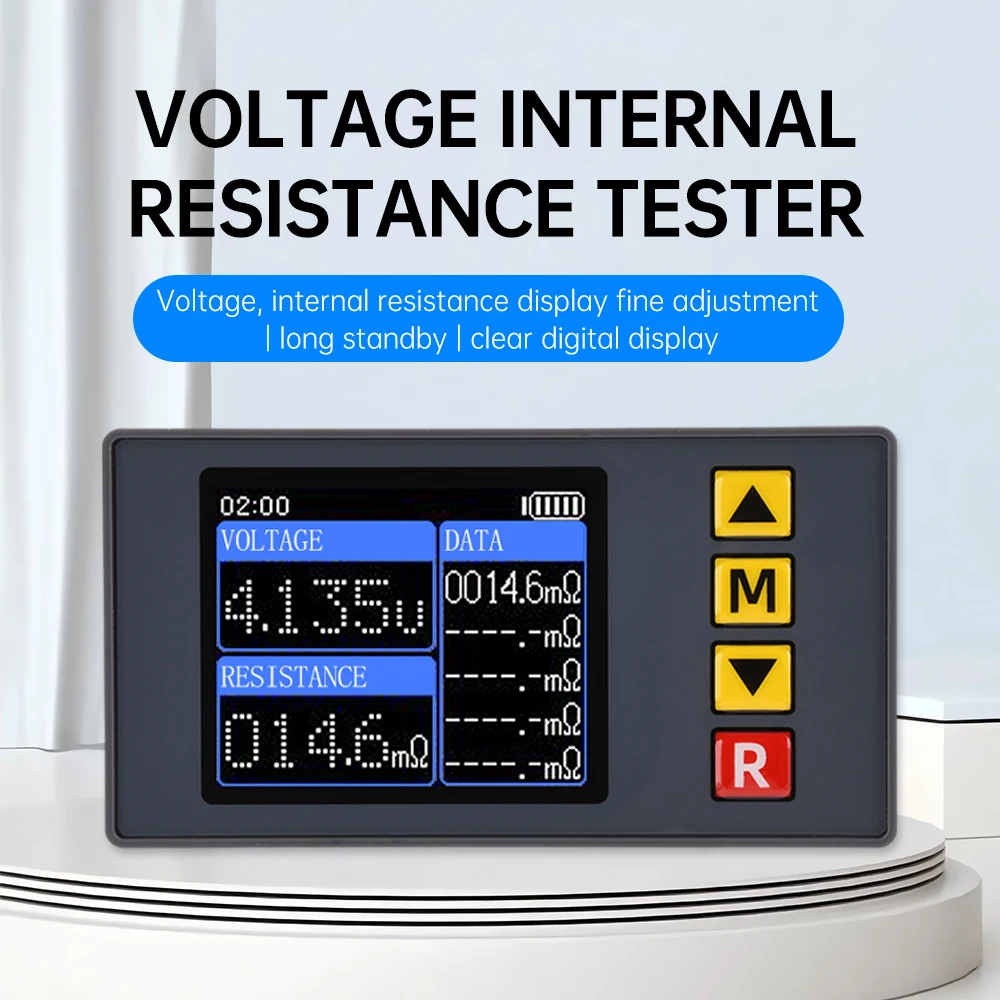

1. Voltage display fine-tuning: Our voltage internal resistance tester supports voltage display fine-tuning function, allowing users to make subtle adjustments to the measurement results to ensure accurate readings and meet professional-level testing needs.

2. Internal resistance display fine-tuning: It also has the internal resistance display fine-tuning function. Whether it is a small resistance or a large resistance value measurement, it can easily achieve precise adjustment to improve the accuracy and reliability of the test.

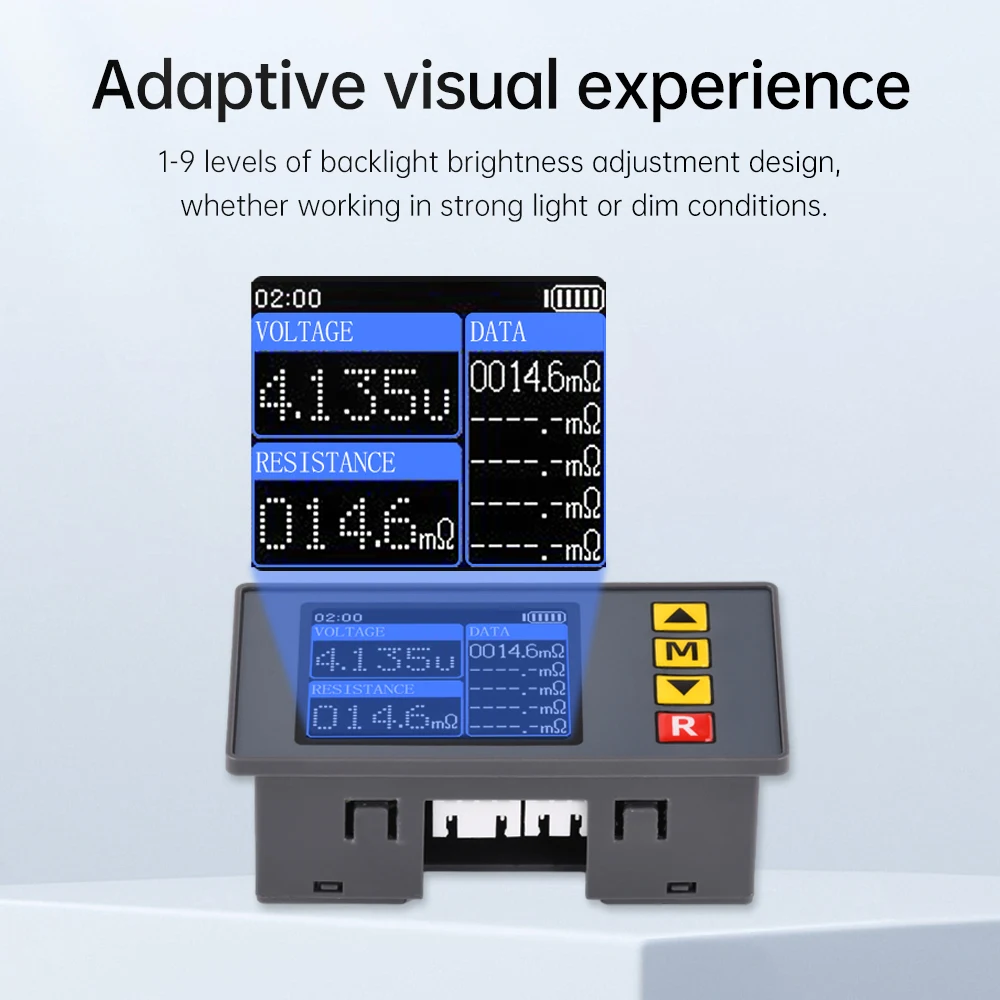

3. Adaptive visual experience: 1-9 levels of backlight brightness adjustment design, whether working in a strong light environment or dim conditions, users can adjust the screen brightness to the most comfortable state according to actual conditions, protect eyesight and improve operation convenience.

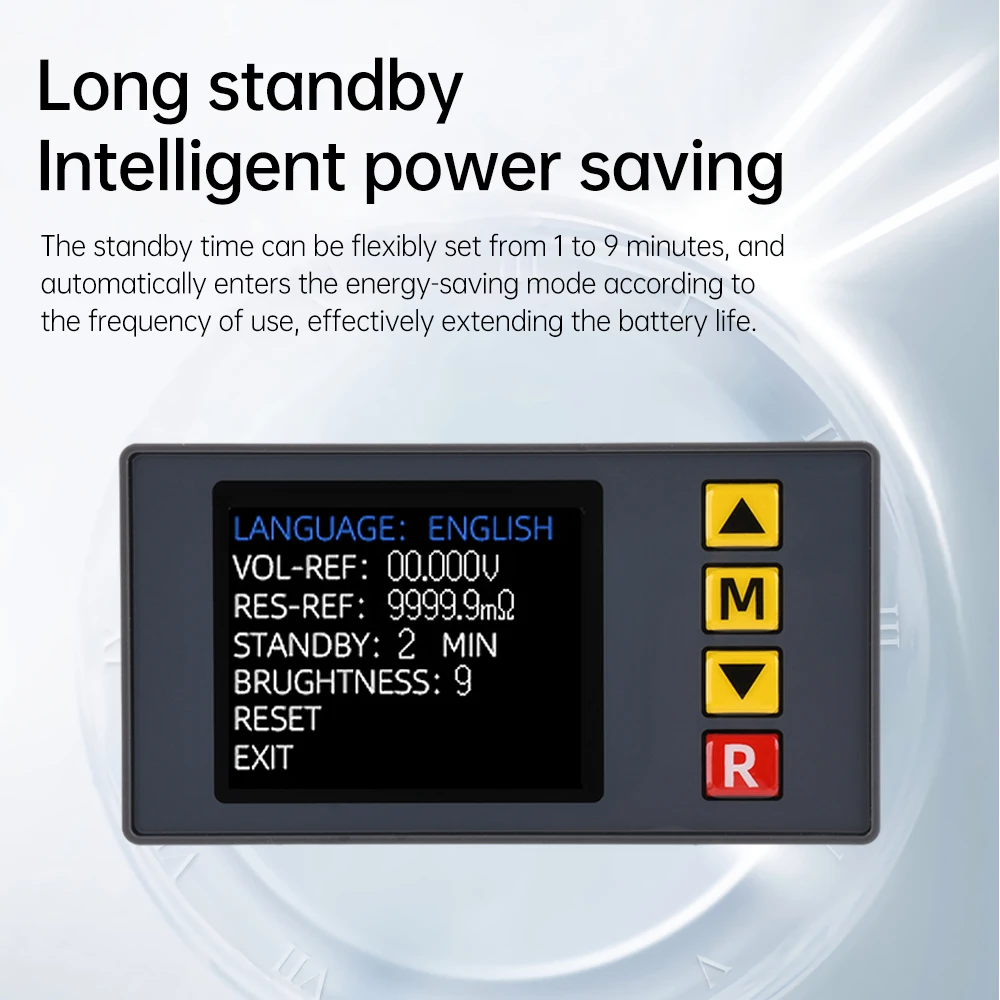

4. Intelligent power saving, long standby: The standby time can be flexibly set from 1 to 9 minutes, and automatically enters the energy-saving mode according to the frequency of use, effectively extending the battery life, suitable for continuous use needs in various occasions.

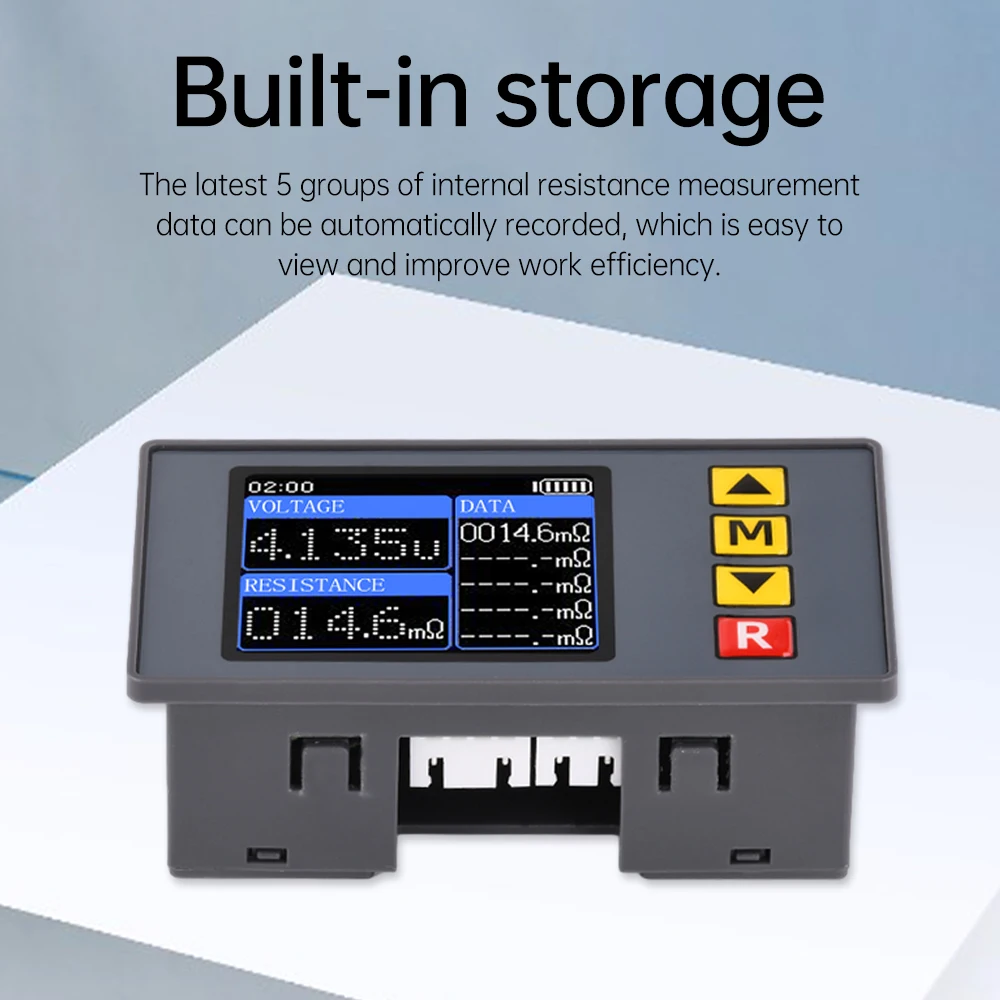

5. Data traceability, efficient management: Built-in storage function, which can automatically record the last 5 sets of internal resistance measurement data, which is convenient for on-site comparative analysis or subsequent review, improves work efficiency, and provides valuable data support for quality control and fault diagnosis.

Product parameters:

Note: Do not test AC power, do not test voltage above 45V

Working voltage: DC5V (do not overvoltage power supply)

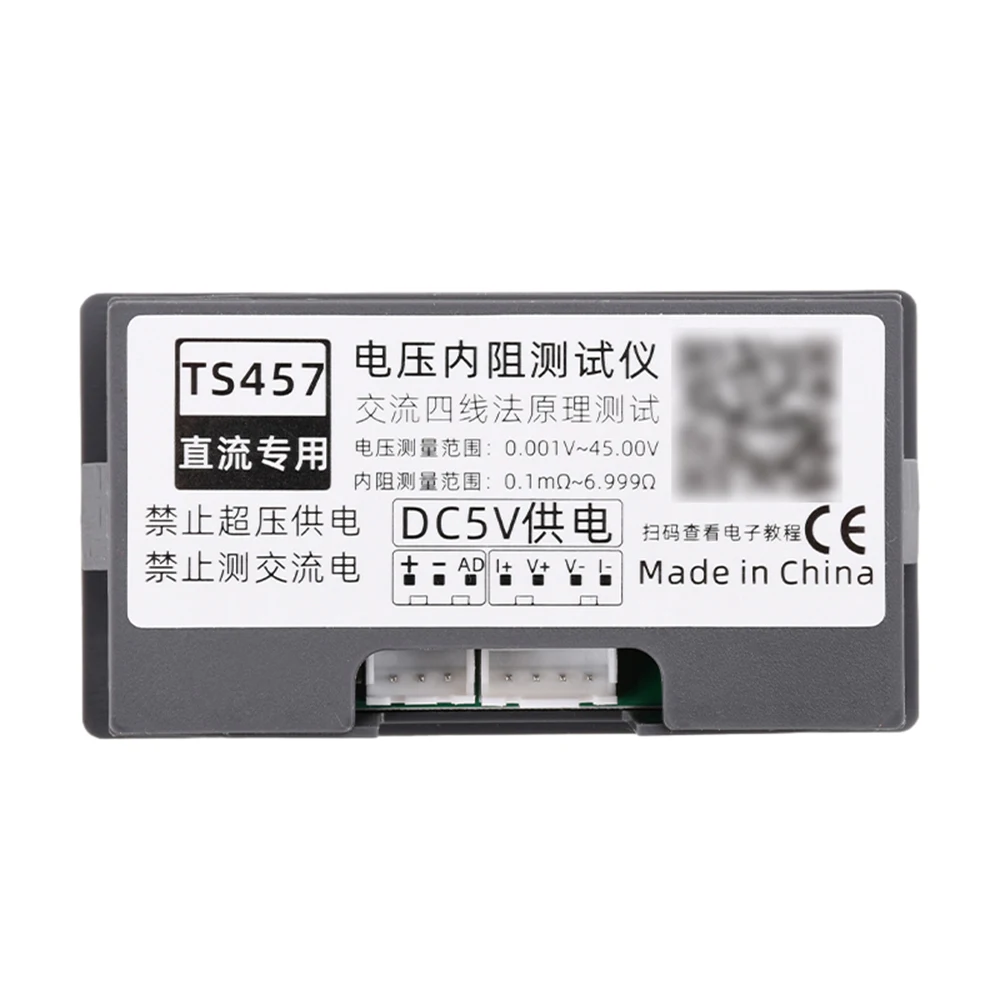

Test principle: AC 4-wire method

Voltage test range: 0.001V~45.00V Maximum resolution 0.001V

Internal resistance measurement range: 0.1mΩ~6.999Ω Maximum resolution 0.1mΩ

Data recording: Supports recording 5 sets of internal resistance measurement data

Voltage display fine-tuning: Support

Internal resistance display fine-tuning: Support

Auto shutdown: Support 1~9 minutes standby time adjustment

Backlight brightness: Support 1~9 levels of display backlight brightness adjustment

Accessory ①: XH-2.54-3P red, black and yellow power supply line, length 150mm

Accessory ②: XH-2.54-4P signal acquisition line Length 400mm

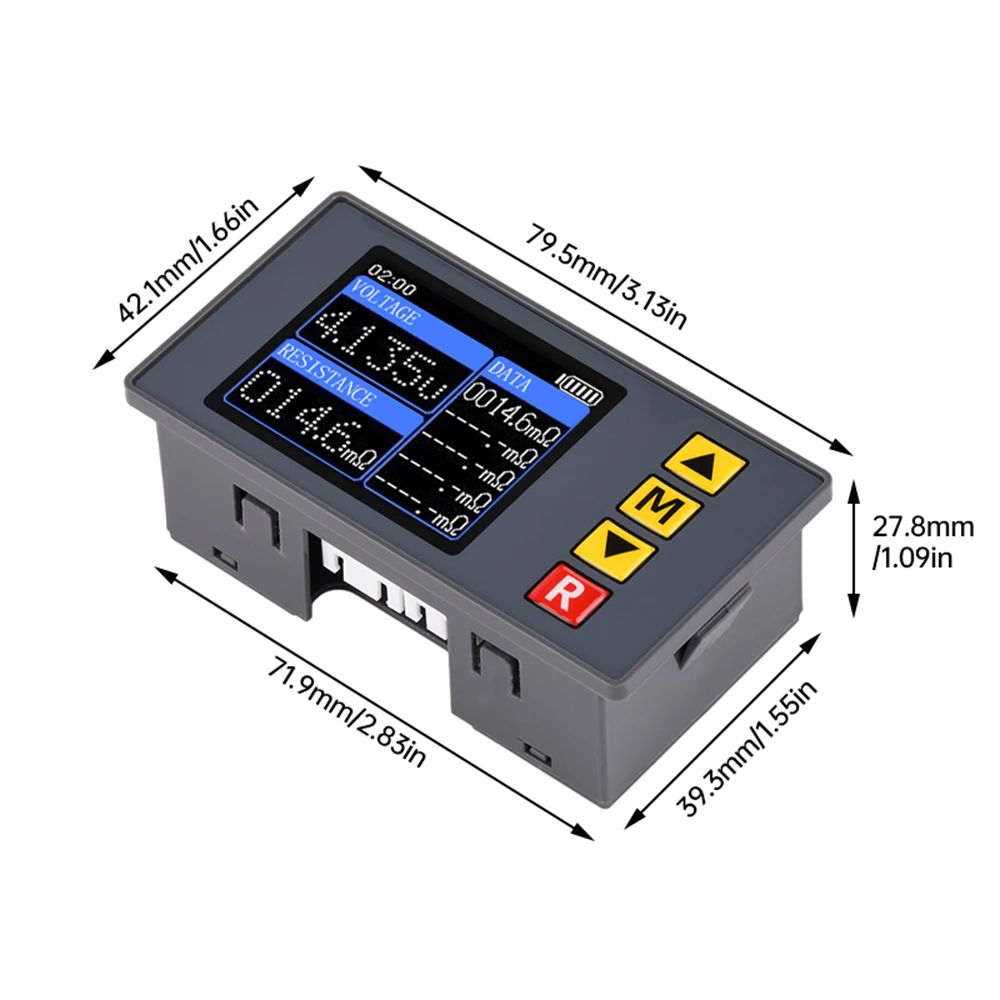

Product size: 79.5×42.1×27.8mm

Installation opening: 77×39.3mm

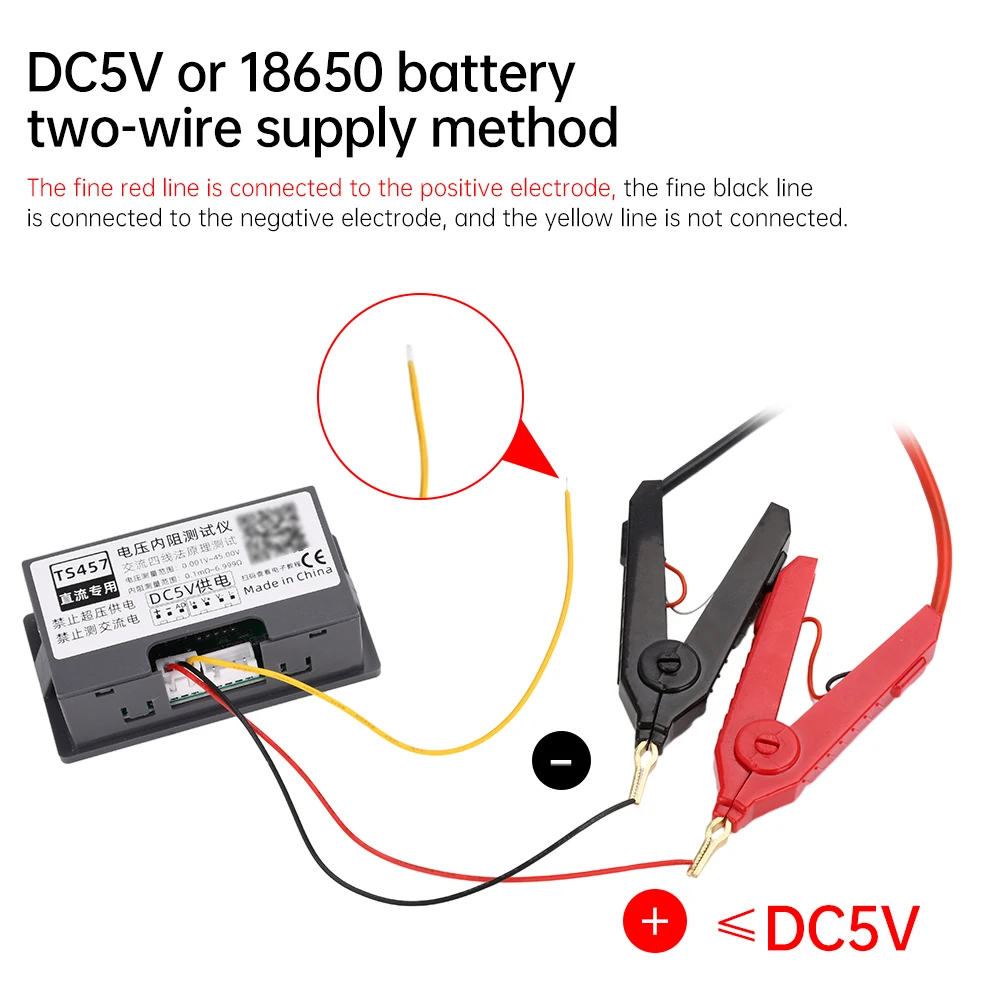

Power supply method:

DC5V power supply

18650 battery power supply

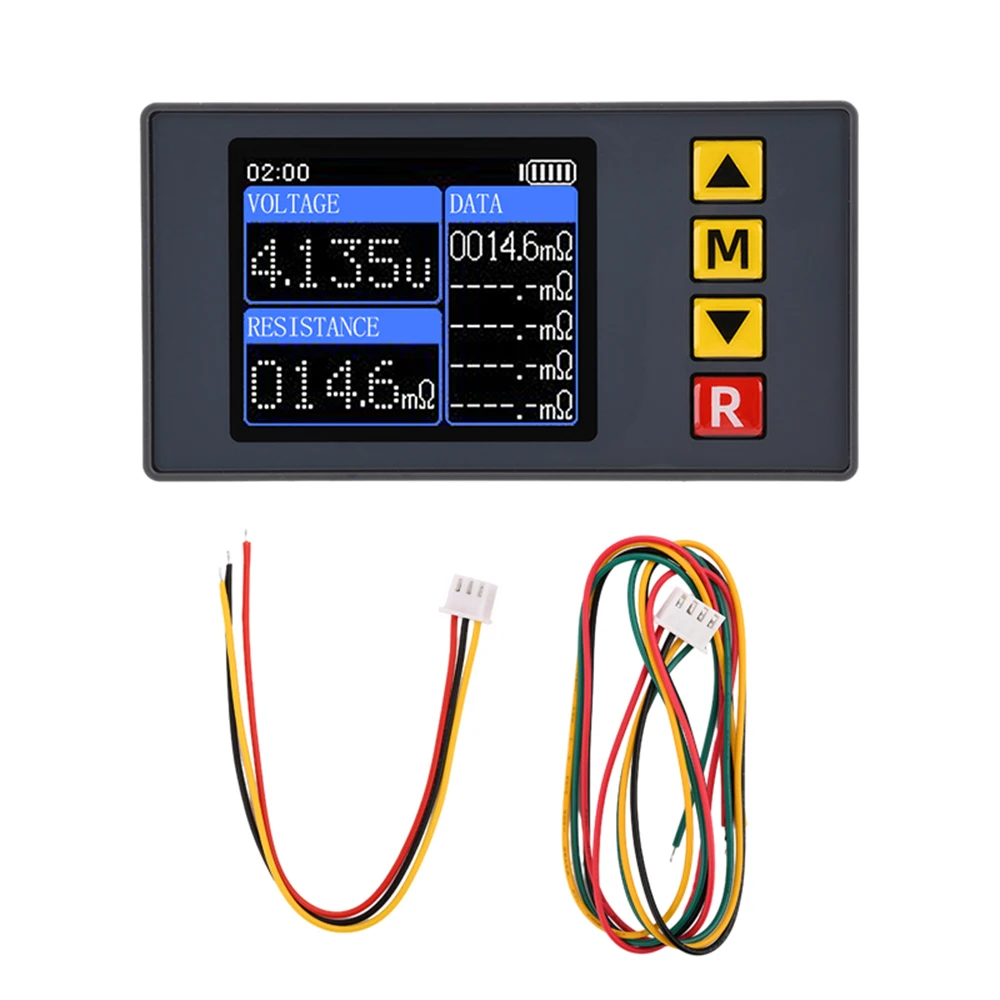

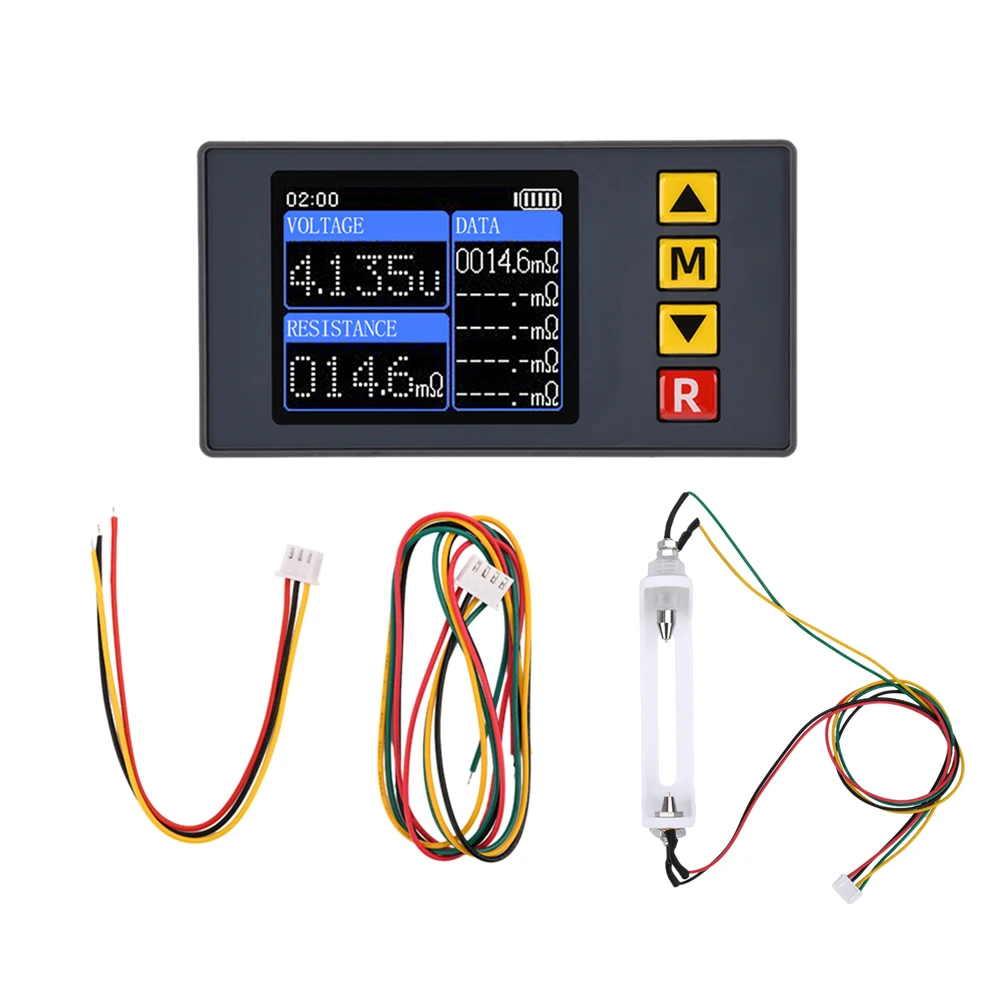

Package list:

Internal resistance tester*1

XH-2.54-3P red, black and yellow power supply line*1

XH-2.54-4P signal acquisition line*1

18650 battery + power adapter board (purchased separately)
