GM245 Fuel Injector Seals Tools EN-49245,EN-51105 Or EN-49248 6706 Fuel Injector Rail Assembly Remover Tool For GM Engines
Function:
Made of high quality iron. Durable, Anti-Corrosion, Providing effective wear resistance and aging resistance, and will not wear and leak over time.
Used for replacing the fuel injector teflon seals. This tool set helps install the seal on the injector for leak-free operation.
For the Hitachi Sidi System used for 2010-later LF1 3.6L V6 and for LAF 2.0L Ecotec has 2 seals in the tip of the injector. These seals must be installed into their grooves, and then sized to the engineered dimension before the injectors are installed into their bores in the cylinder head.

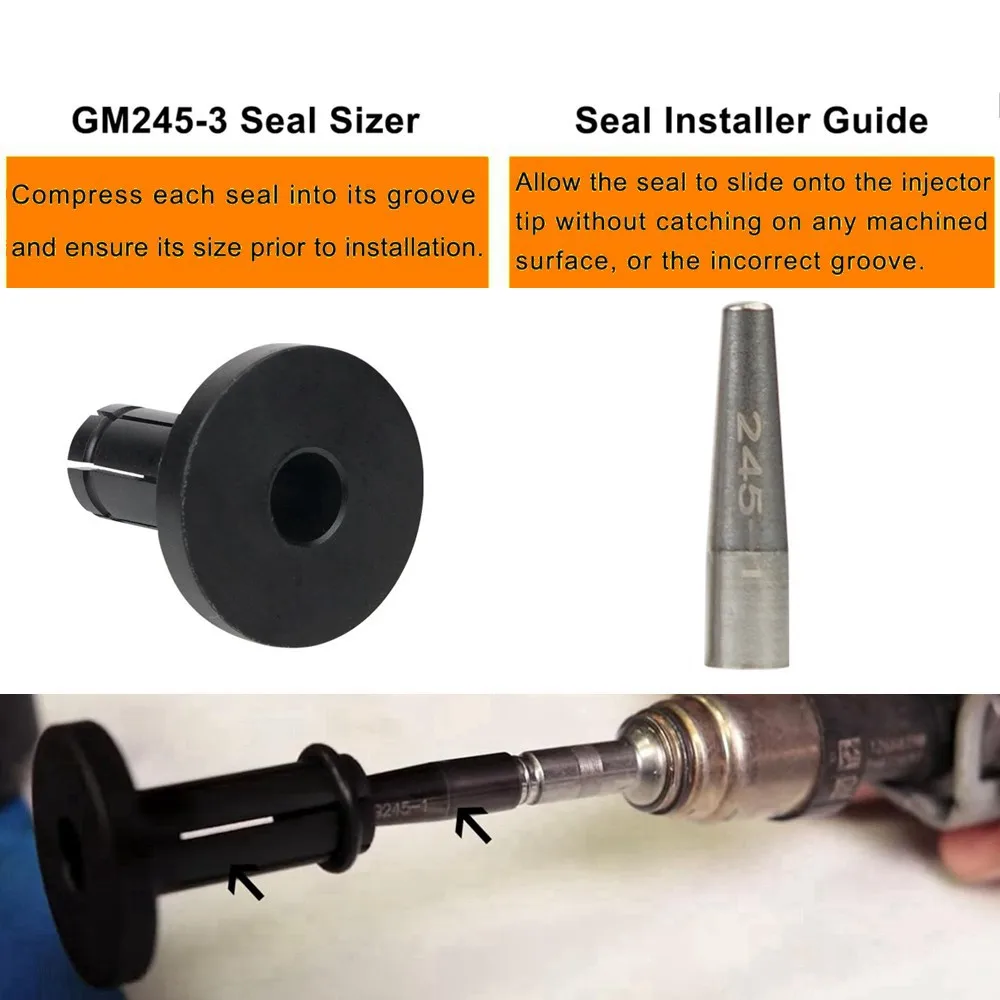

EN-49245 includes two seal installation pilots (one for each groove), allows the seal to slide onto the injector tip without catching on any machined surface or the incorrect groove.

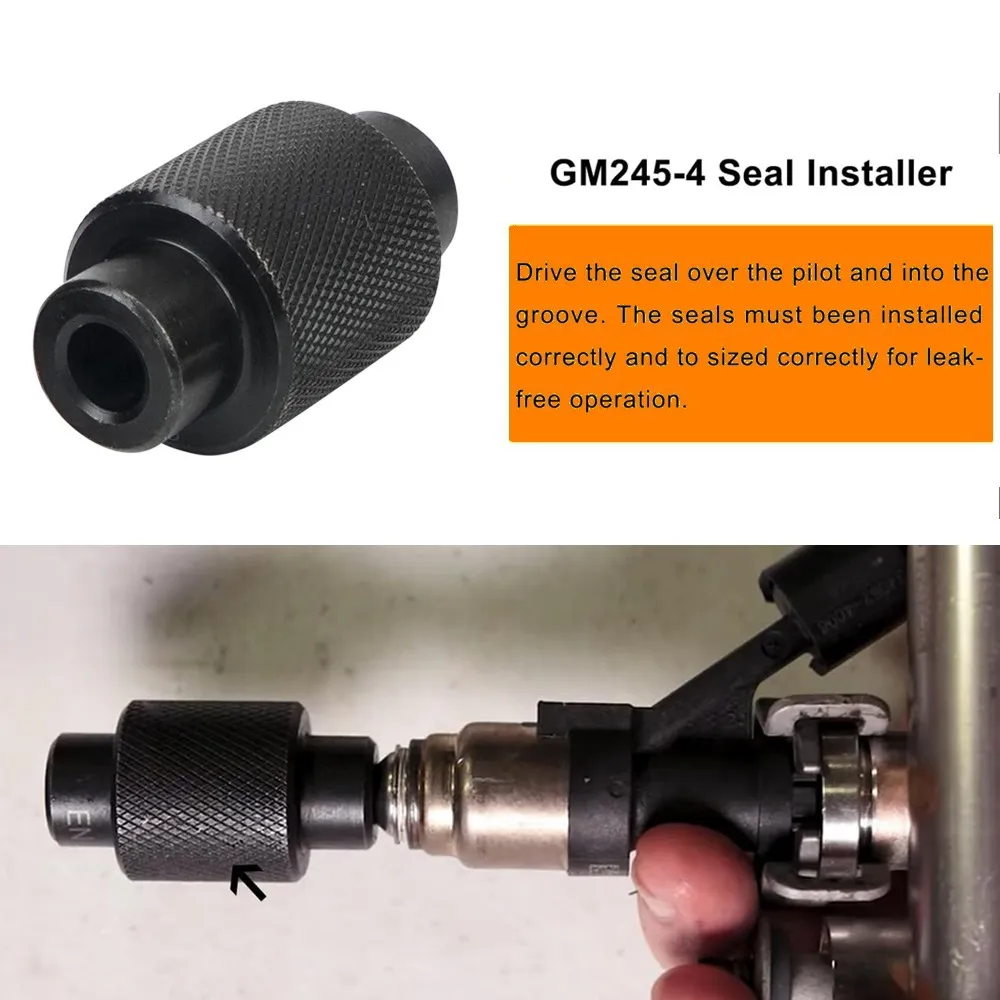

EN-49245 also includes a seal installer to drive the seal over the pilot and into the groove, and a sizer to compress each seal into its groove and ensure its size prior to installation.
EN-49245 must be used to install the seals correctly and to ensure they are sized correctly for leak-free operation.
Warm Tips: 2013-newer injectors for Bosch, Continental and Delphi feature slightly larger injector tips, and require the protector ramps from EN-51105 Injector Seal Installer Adapter set. These are used with the installer and sizer from EN-49245.

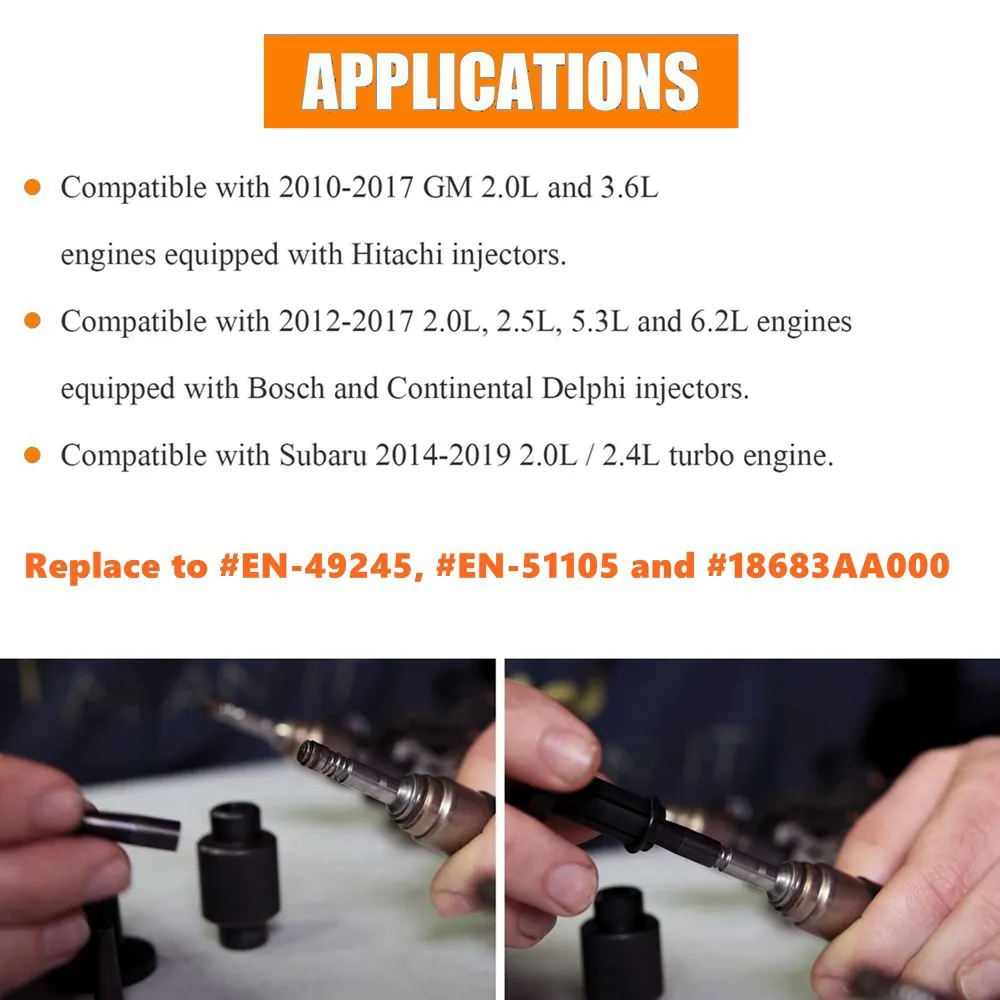

Application:

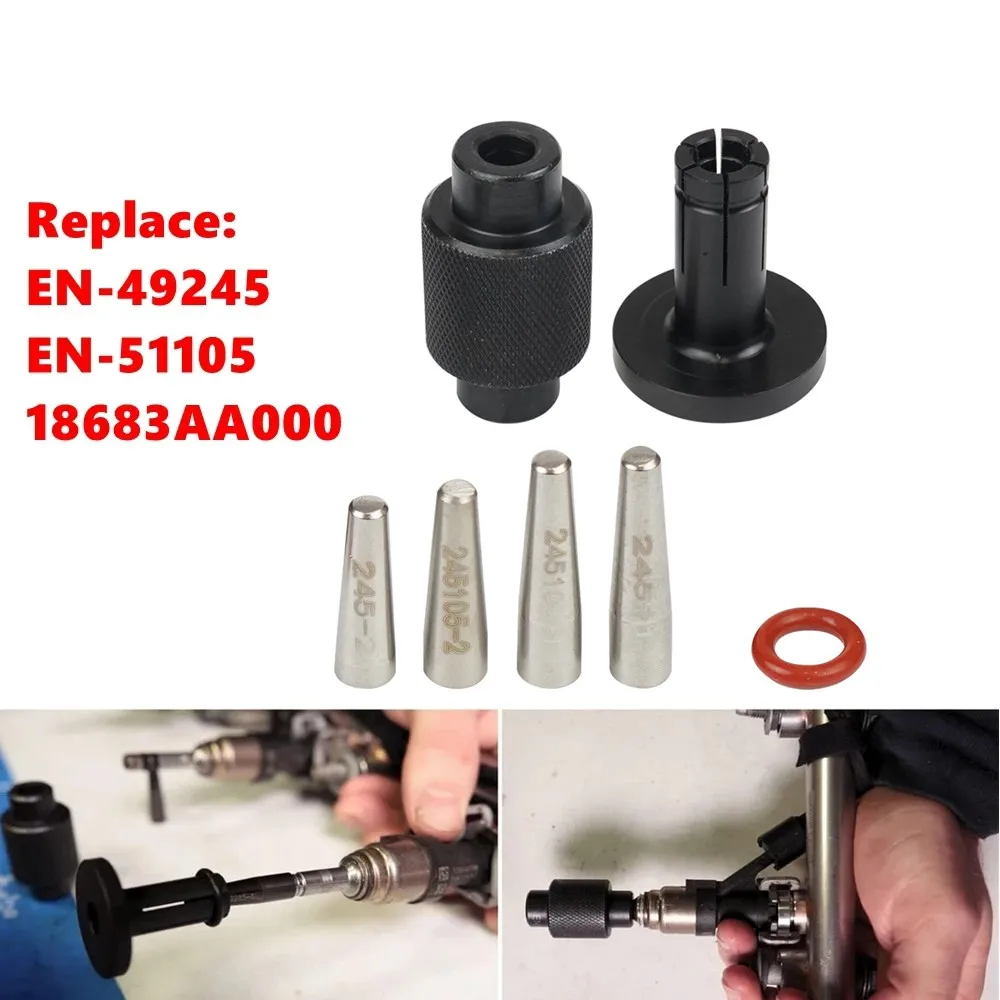

OE Replace Part: #EN-49245, #EN-51105 and #18683AA000.
Fits for Holden Colorado 7 [2016]
Fits for Subaru 2.0L 2.4L turbo engines [2014-2019]
Fits for General Motors 2.0L 3.6L engines with Hitachi fuel injectors [2010-2017]
Fits for GM 2.0L 2.5L 5.3L 6.2L engines with Bosch, Continental Delphi fuel injectors [2012-2017]

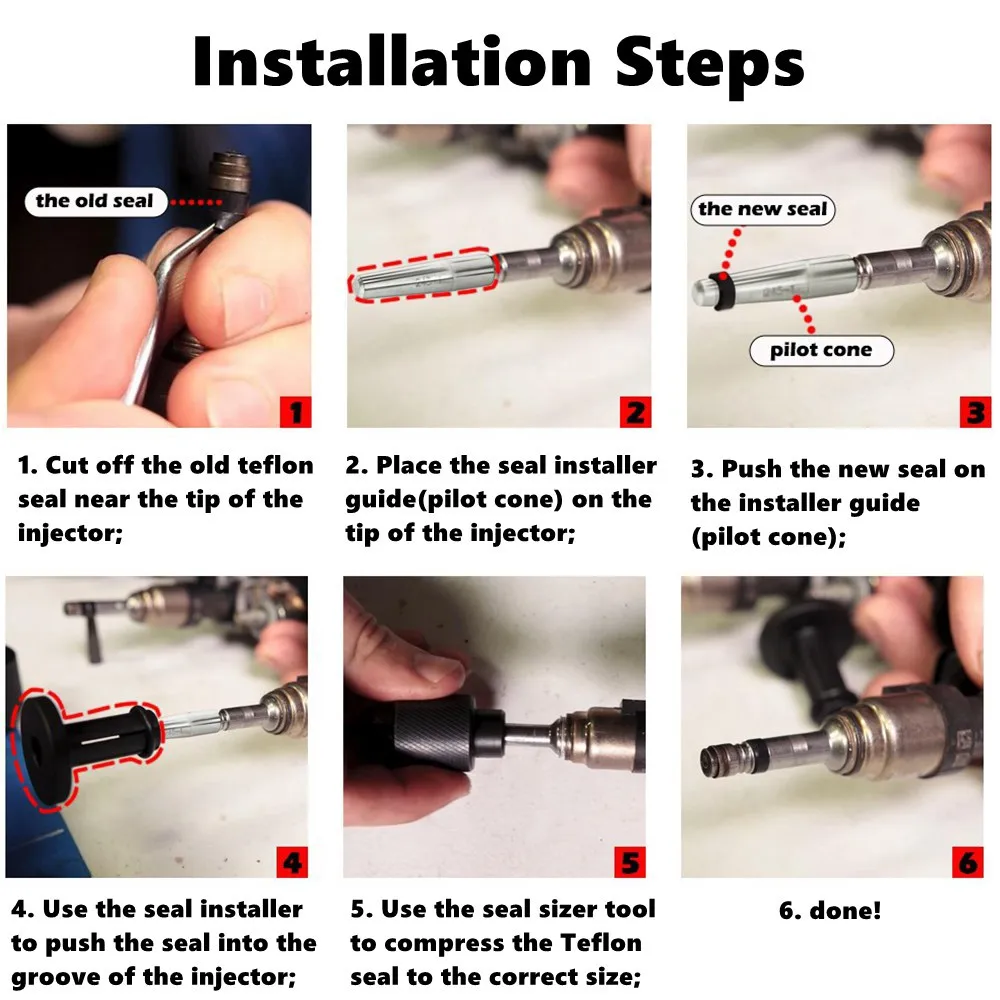

Installation Steps Tips:
1. Cut off the old Teflon seal near the tip of the injector.
2. Place the seal installer guide(pilot cone) on the tip of the injector.
3. Push the new seal on the installer guide(pilot cone).
4. Use the seal installer to push the seal into the groove of the injector.
5. Use the seal sizer tool to compress the Teflon seal to the correct size.
6. Done! (Kindly Noted: EN-49245 must be used to install the seal correctly and ensure that its size is correct.)

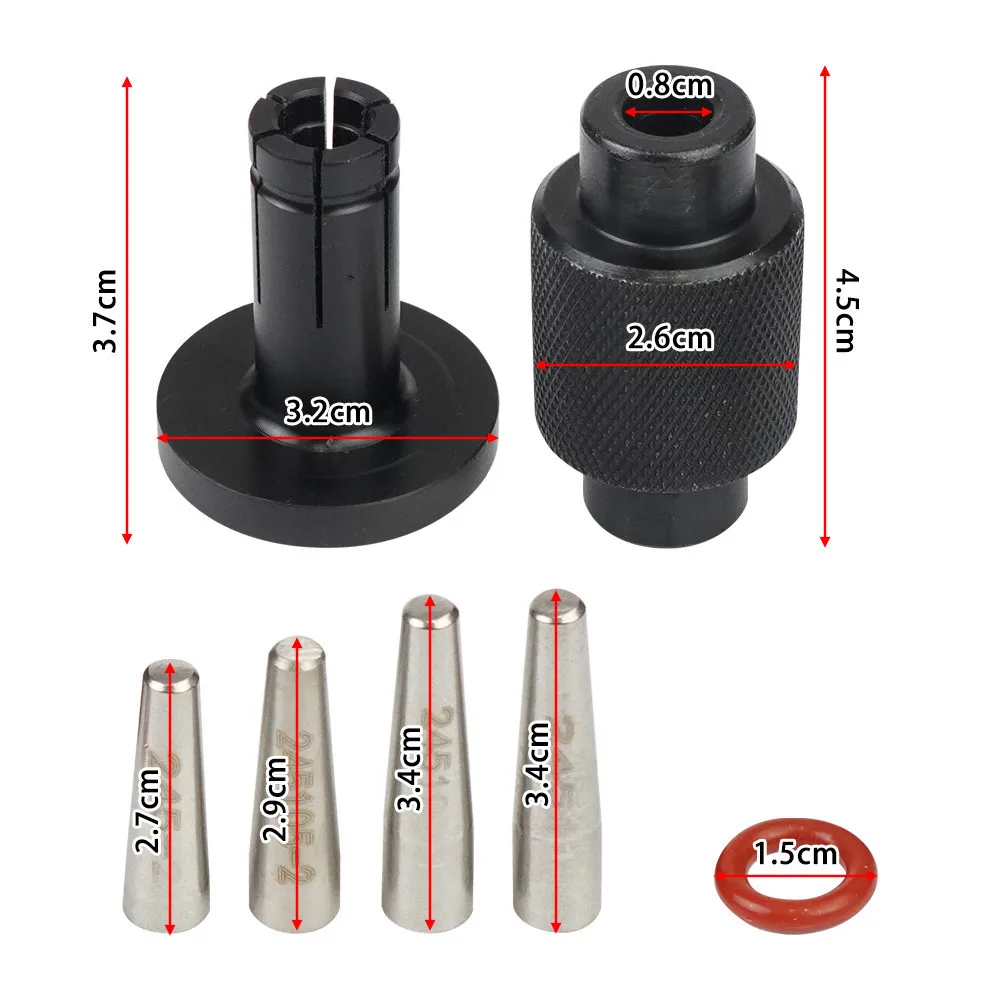

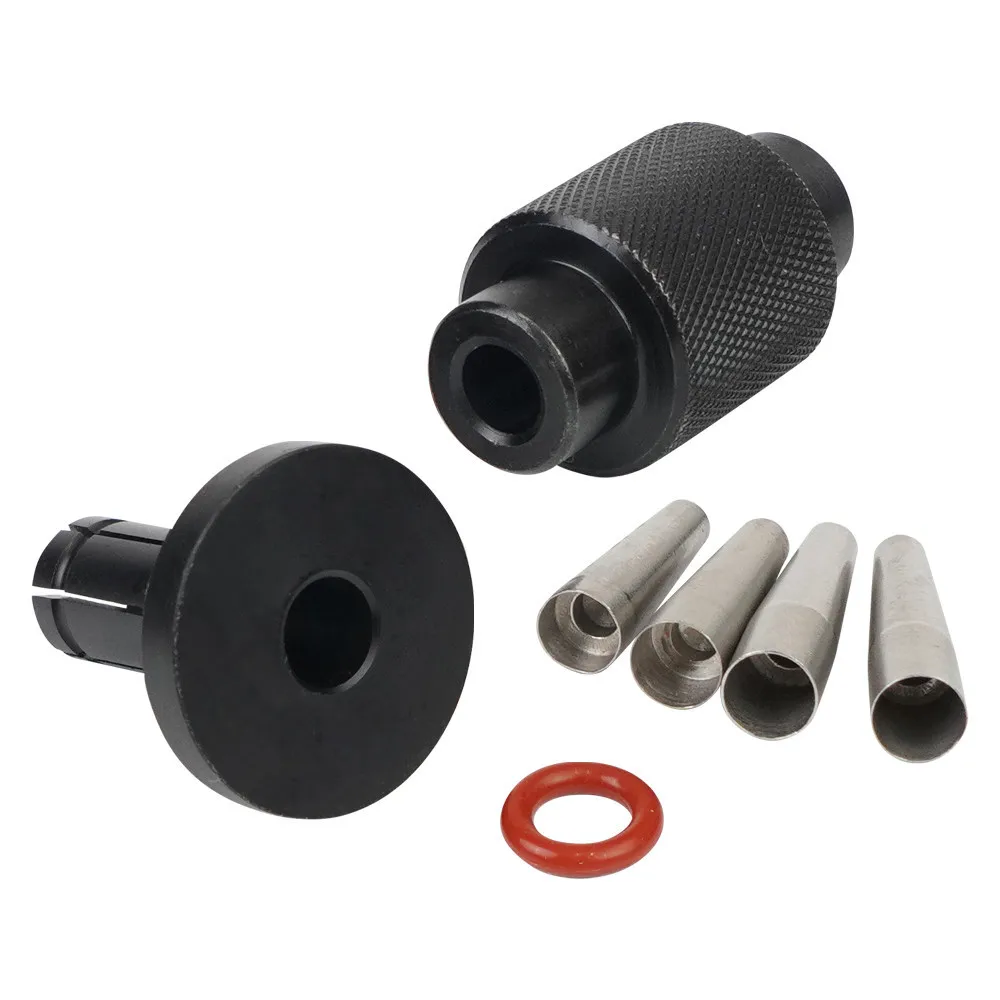

Package Included:
1 x EN-49245-3 Seal Installer Pusher
1 x EN-49245-4 Seal Sizer Tool
1 x EN-49245-1 Long Seal Installer Guide
1 x EN-49245-2 Short Seal Installer Guide
1 x EN-51105-1 Injector Seal Installer Adapter for 2013-Newer Bosch, Continental, Delphi Sidi
1 x EN-51105-2 Injector Seal Installer Adapter for 2013-Newer Bosch, Continental, Delphi Sidi
