Product Description:

The Operation Of Magnetic Drive Circulating Pump Is That The Coupling Shaft And Impeller Are Respectively Equipped With Magnetic Materials To Attract And Couple With Each Other. It Does Not Need To Be Equipped With Traditional Mechanical Shaft Seal. It Is a Completely Sealed Structural Water Pump. Completely Avoided The Corrosion Defects Caused By Liquid Leakage Caused By The Traditional Mechanical Seal Pump, And Selected a Specially Designed Special Formula Ceramic As Bearing, Which Has Strong Abrasion Resistance And Corrosion Resistance. Its Advanced Performance And Quality Are The Most Rational Liquid Delivery Pumps On Industrial Equipment.

Specifications：

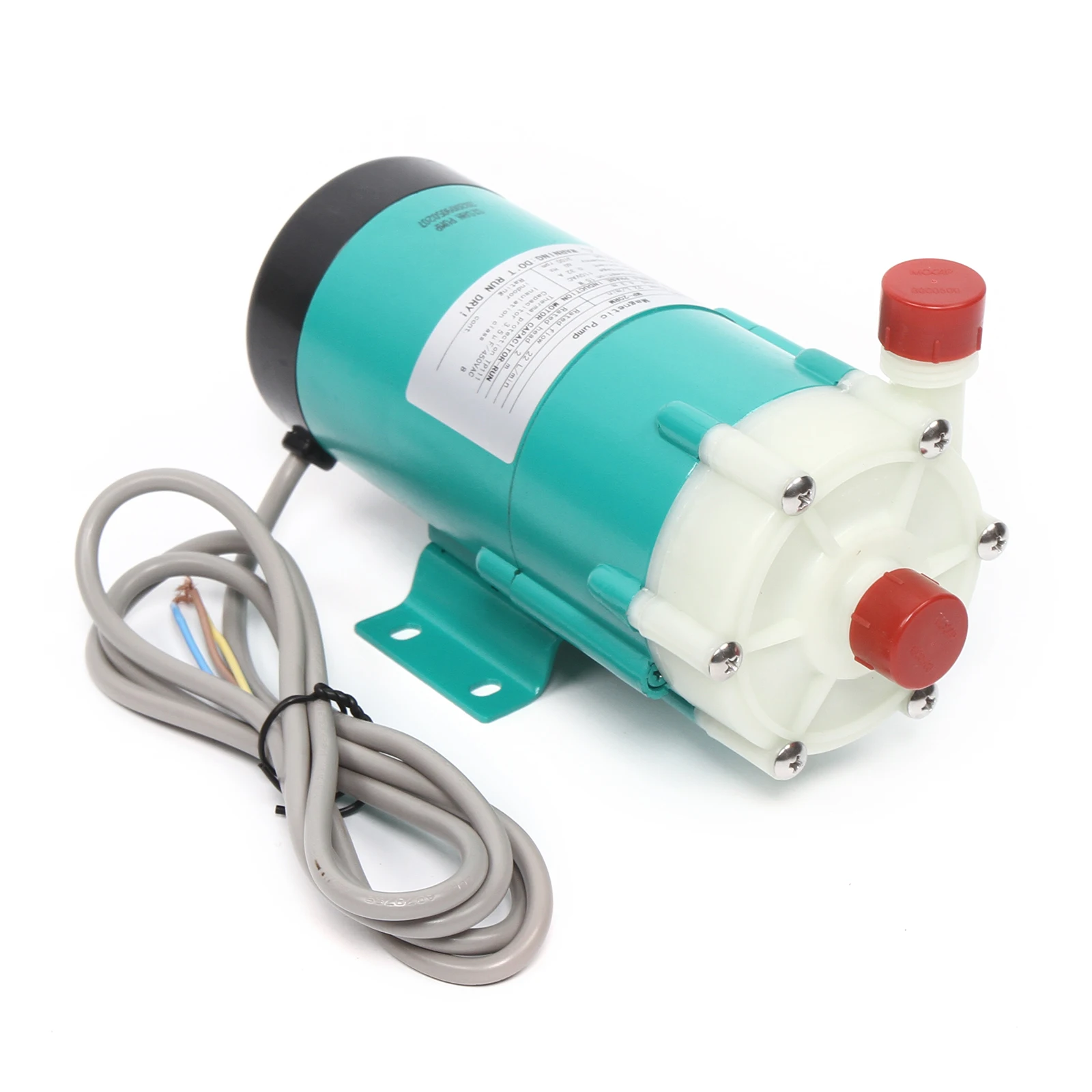

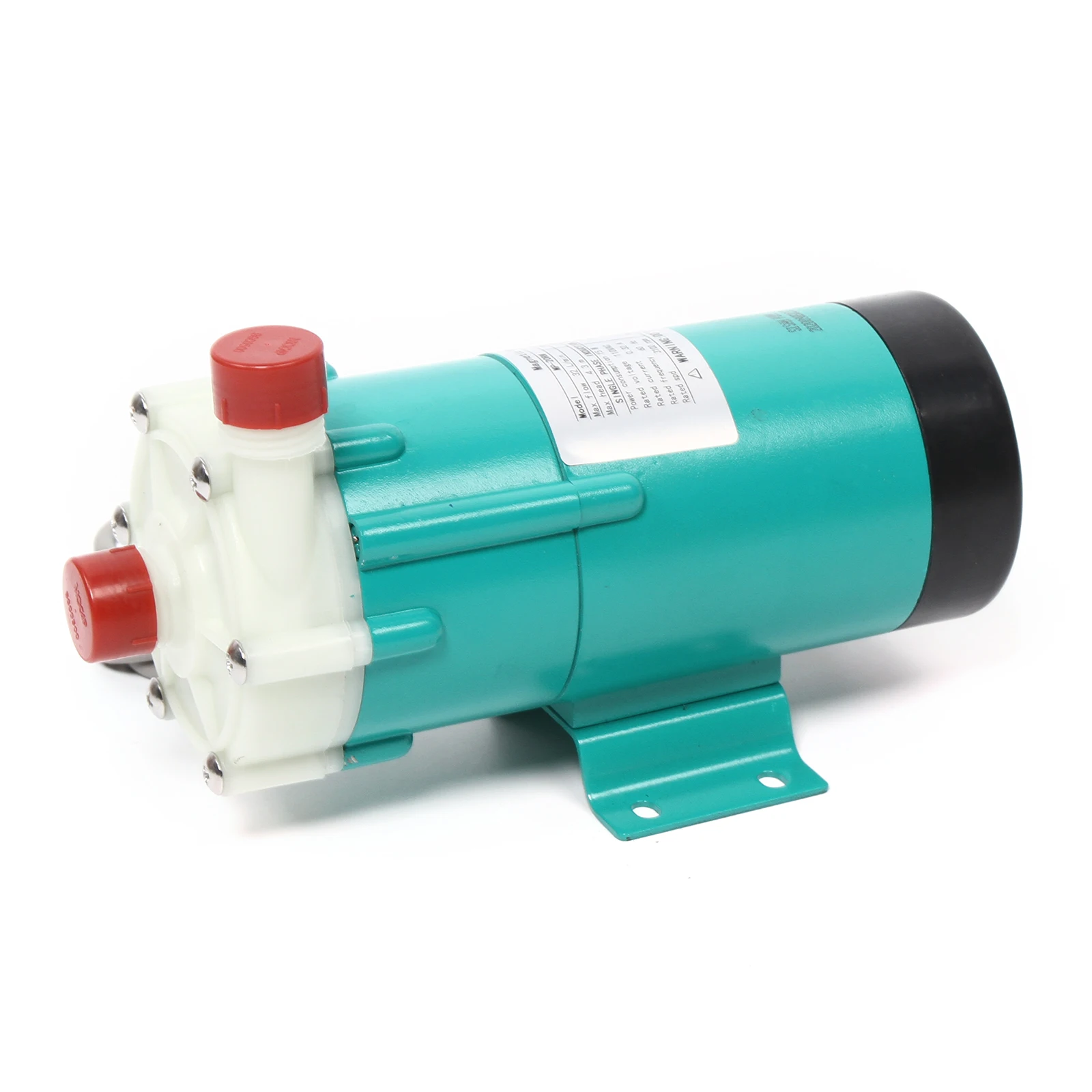

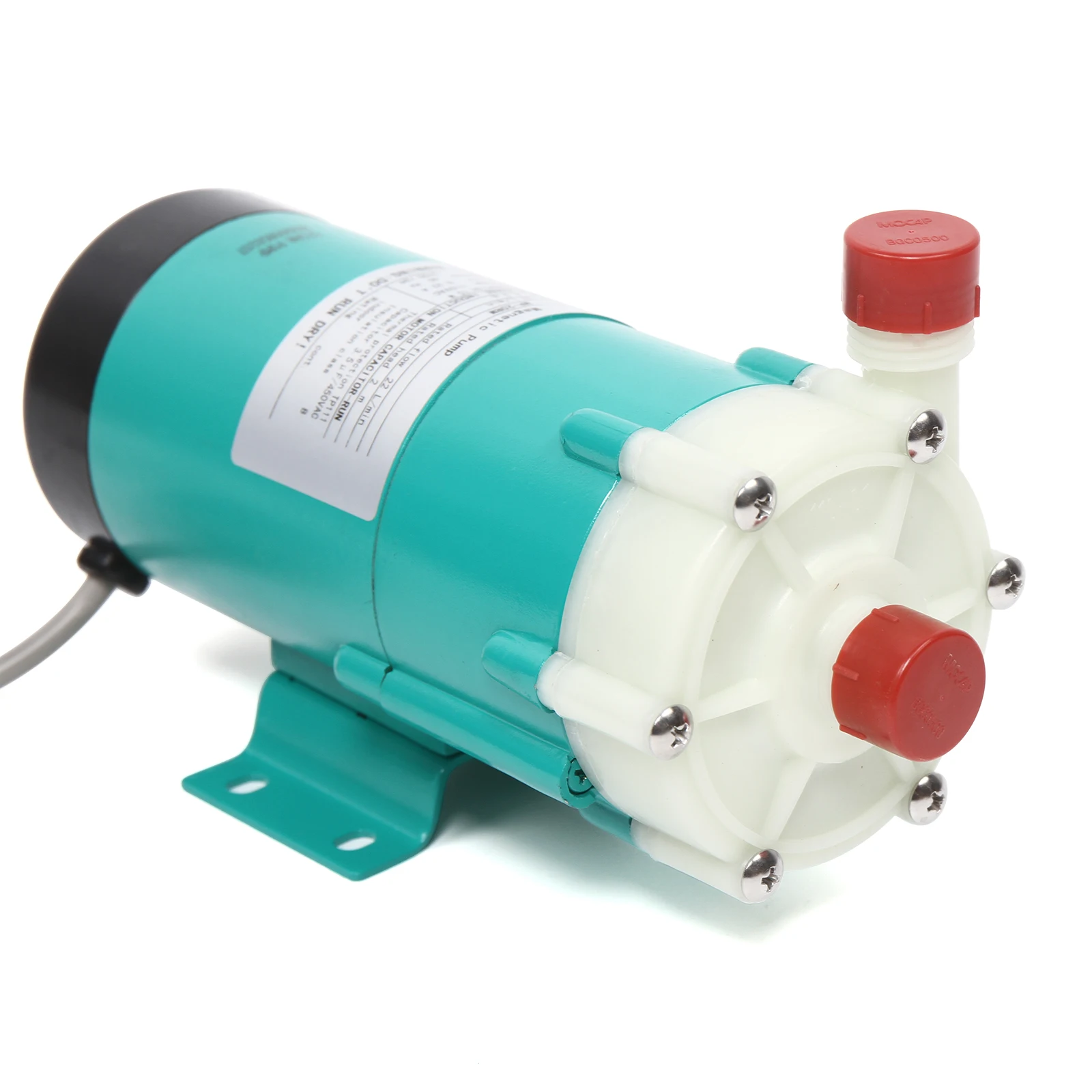

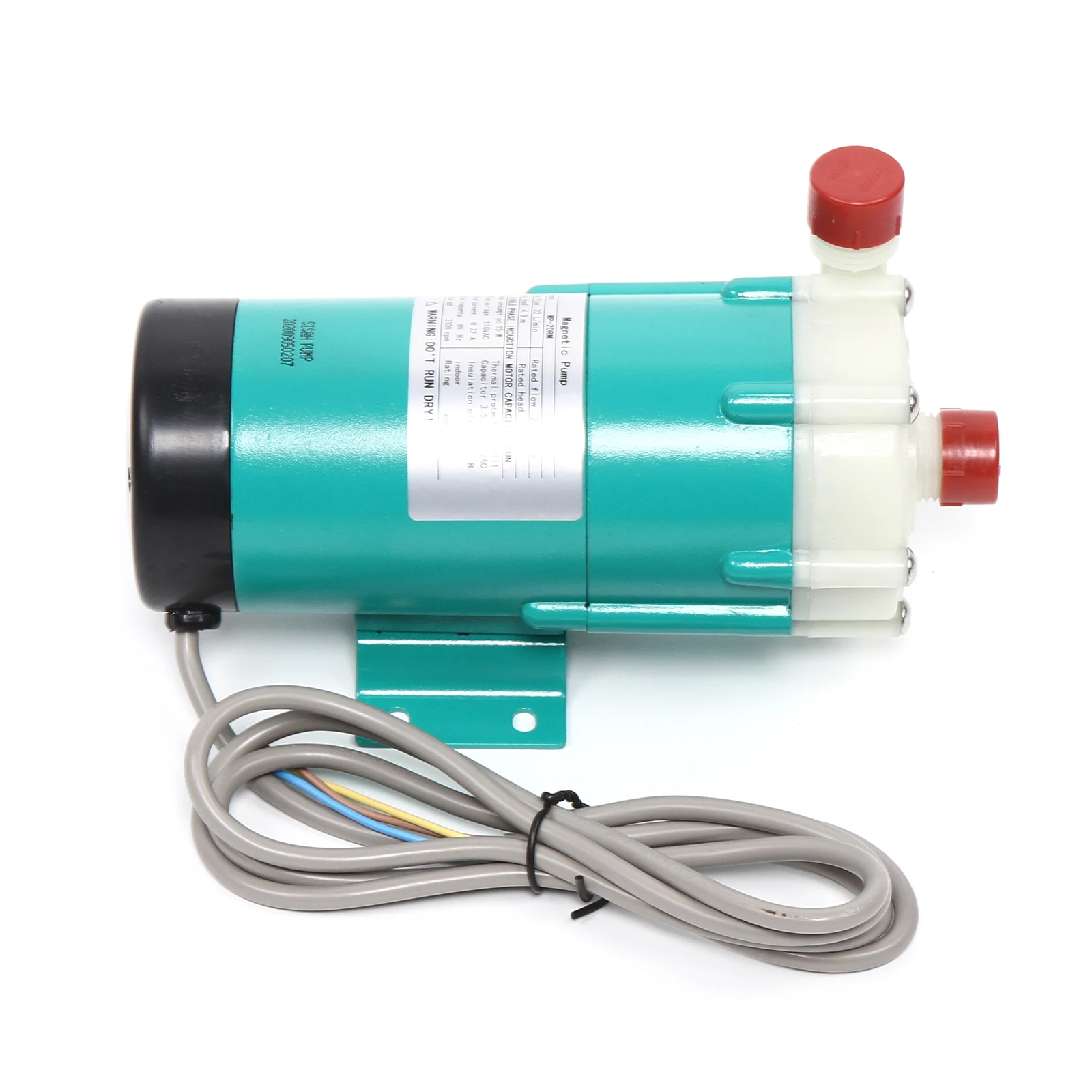

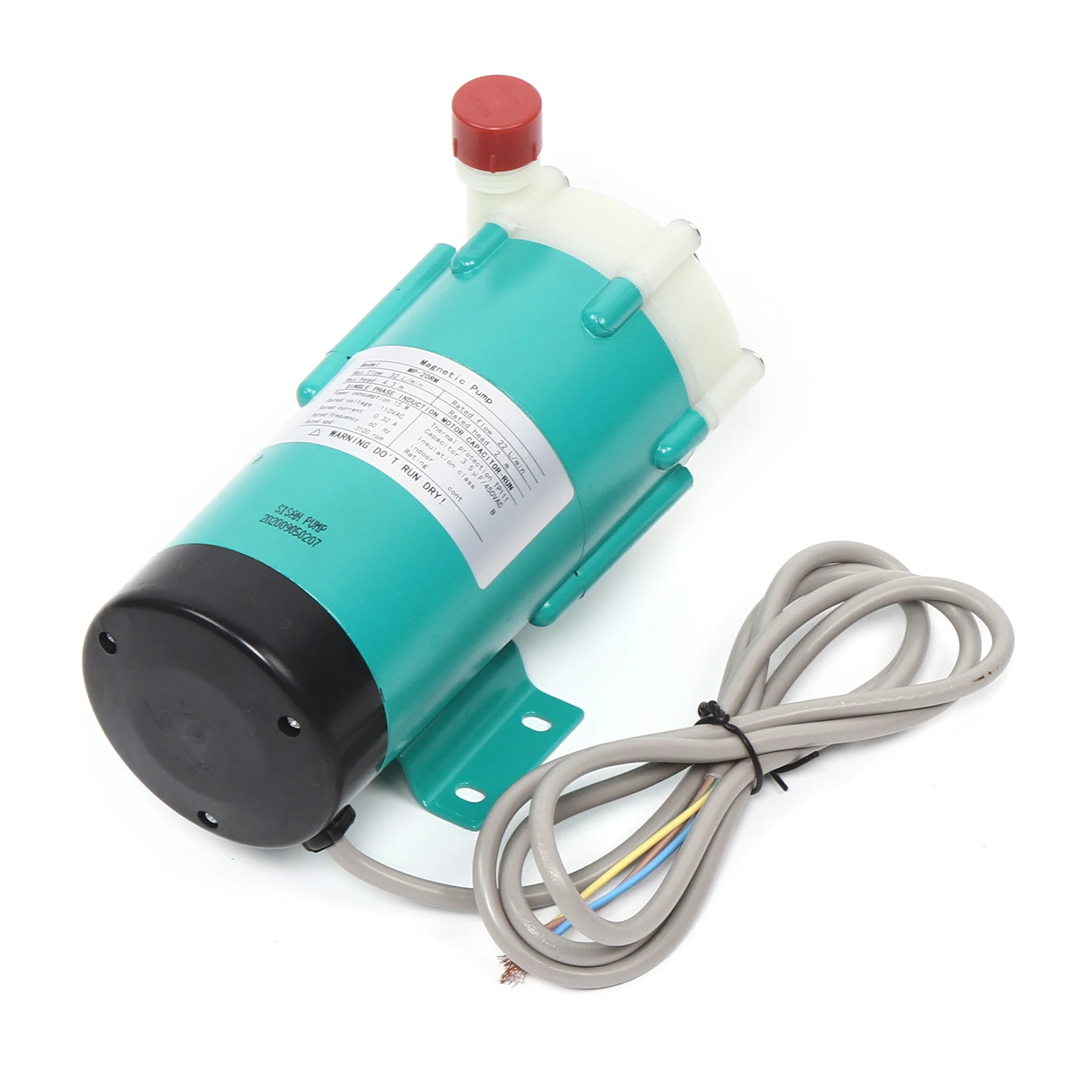

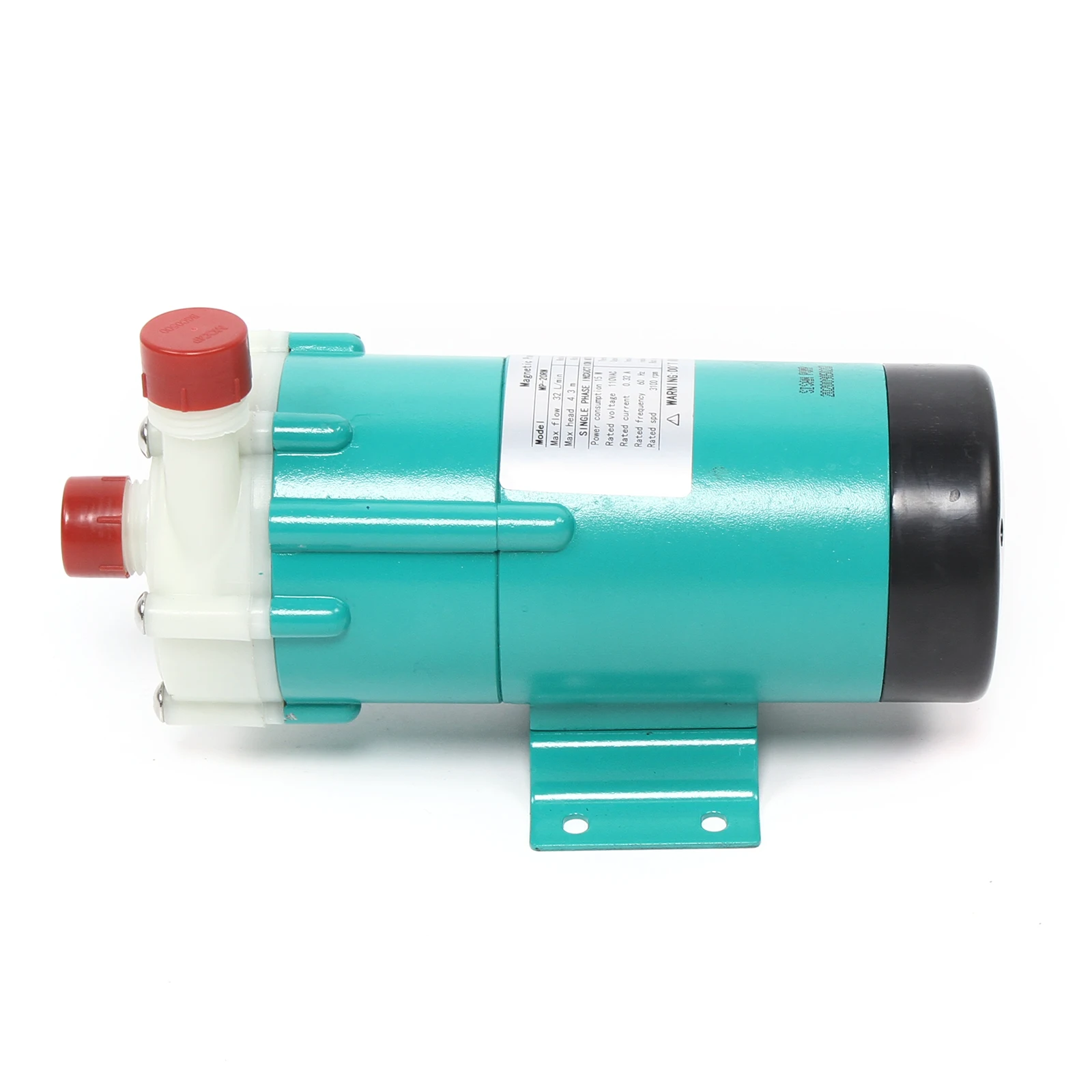

Model: Mp-20R

Rated Voltage: 110V, 60hz

Rated Power: 15W For Mp-20R

Rated Current: 150ma For For Mp-20R

Maximum Flow: 27L/Min For Mp-20R

Rated Flow: 17L/Min For Mp-20R

Maximum Lift: 3.1m For Mp-20Rr

Rated Head: 2m For Mp-20R

Rated Speed: 2600r/Min For Mp-20R

Tube Interface: 18mm For Mp-20R

Capacitance: 2uf / 400V Ac

Thermal Protection Type: Tp111

Insulation Class: B

Material: Engineering Plastics

Driving Mode: Electromagnetic

Pump Shaft Position: Horizontal

Impeller Classification: Single Suction

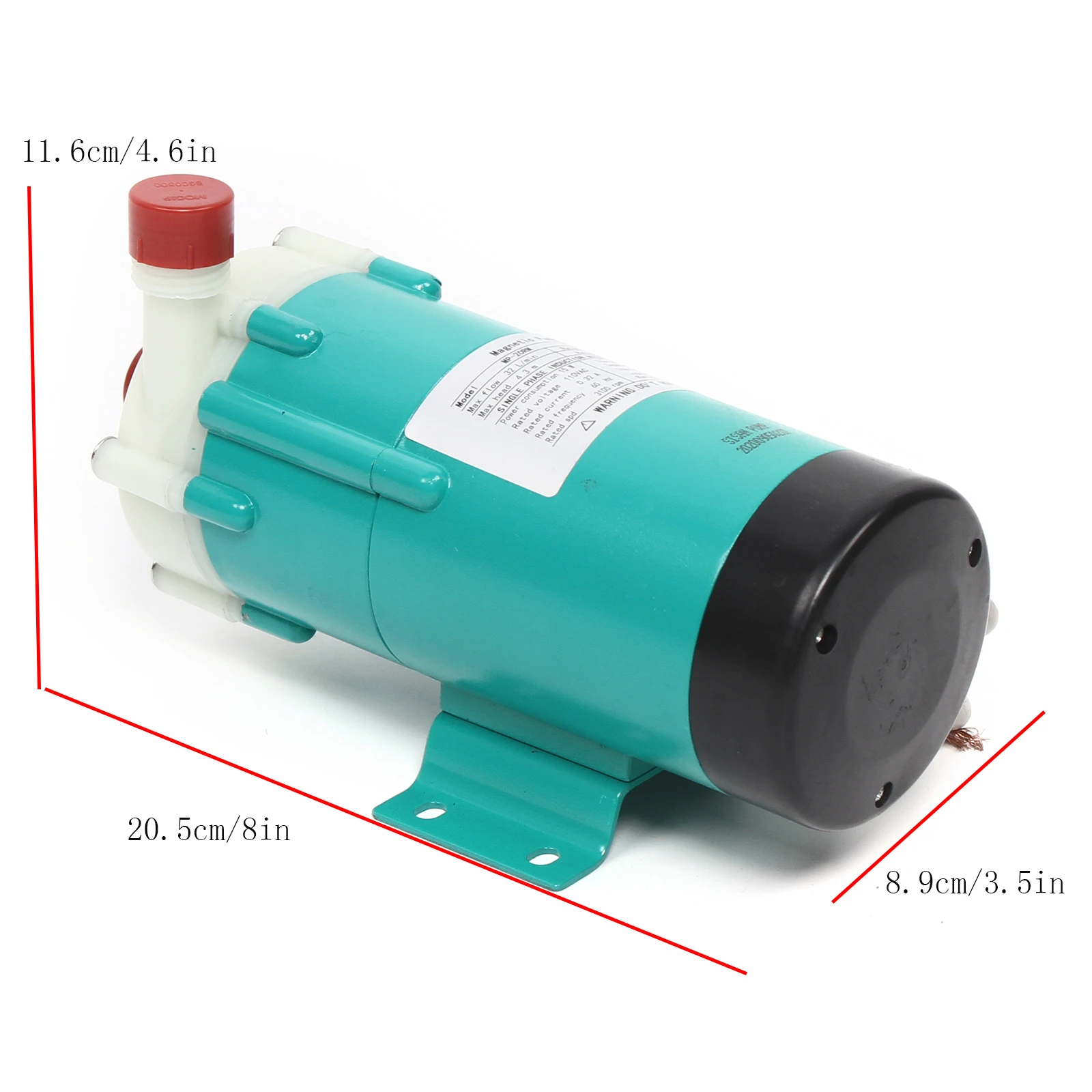

Product Size: 20.5*8.9*11.6cm(8*3.5*4.6inch)

Net Weight: 2kg

Features:

Magnetic Drive Circulating Pump Is Equipped With Magnetic Materials On The Coupling Shaft And Impeller Respectively To Couple With Each Other, Without The Traditional Mechanical Shaft Seal, So It Is Completely Sealed.

The Rotation Torque Of The Motor Is Driven By The Gravitational Force Of The Active And Driven Magnets.

It Has Strong Abrasion Resistance And Corrosion Resistance

It Is The Most Ideal Liquid Delivery Pump In The Industrial Equipment.

Applications：

Magnetic Driven Circulating Pump Is Made Of Polypropylene, Which Has Chemical Resistance And Wide Application.

Chemical Industry: Sodium Carbonate Chemical Industry; Production Of Fluoride And Chemical Fertilizer; Reaction Liquid Circulation Of Gas Absorption Tower; Oil Extraction (Sulfuric Acid); Recovery And Regeneration System Of Waste Acid; Transportation Of Strong Acid Between Chemical Plant And Transport Vehicle.

Pharmaceutical Industry: Semiconductor Luminescent Chemicals (El), Pesticides, Pharmaceuticals, Water Treatment Chemicals Production.

Electroplating Industry: Circulating Filtration Of Various Electroplating Solutions.

Photo Industry:Photographic System; X-Ray Film, Black And White, Color, Stereoscopic Photo Development.

Electrical Appliances Industry: Production Of Electrolyte Capacitors; Transport Electrolyte During The Manufacturing Of Dry Cells And Batteries; Etching Of Circuit Board; Transport Of High Purity Chemical Solution In Semiconductor Production.

Metal Industry: Alumina Membrane Treatment Equipment; Wire Drawing, Steel Rolling Oil Removal And Pickling; Vehicle Painting Oil Removal And Pickling; Titanium Oxide, Rare Earth Elements Production, Etc.

Mining Industry: Metal Smelting (Transportation And Circulation Of Electrolyte); Washing Treatment Of Waste Liquid.

Food Industry: Production Of Gluconic Acid (Hydrochloric Acid); Extraction Of Edible Oil (Sulfuric Acid); Canned Fruit Industry (Hydrochloric Acid).

Medical Treatment: Artificial Kidney, Heart And Lung, Ultrasonic Cleaning Machine And Various Medical Equipment.

Water Treatment: Cleaning Ion Exchange Resin; Pure Water Production Equipment; Seawater Desalination Equipment. Pollution Control: Adding Sewage Treatment Chemicals To Liquid Tank; Collecting And Transporting Waste Liquid; Waste Gas Absorption Equipment.

Others: Used In Silver Recovery, Wafer Manufacturing, Experimental Factory, Ice Making Machine, Beverage Machine, Domestic Boiler, Heat Exchanger, Solar Energy System, Bleaching And Dyeing, Laser System And Recycling Of Spray Pool, Fish Pool And Ornamental Fish Tank.

Packing List

1x Mp-20R Circulating Pump
