Description

Our boring head set is designed to meet the demanding needs of precision boring of all types of materials. It is durable and adaptable to the processing needs of different diameter holes. Choosing it is to choose professionalism, precision, and efficiency so that each of your operations becomes a great artistic creation!

Specifications

Boring Range: 10-125mm/0.39-4.92 in
Maximum Offset: 1.59 cm/ 5/8"
Boring Head Dia: 5cm/2"
Boring Head Height: 6cm/2.4"
Boring Bar Hole Diameter: 1.27 cm/ 1/2"
Cross Bore Diameter: 1.27 cm/ 1/2"
Accuracy Range: 0-40mm/0-1.57 in
Minimum Scale: 0.01mm/0.0004 in
Gross Weight: 6.75kg/14.88 lbs

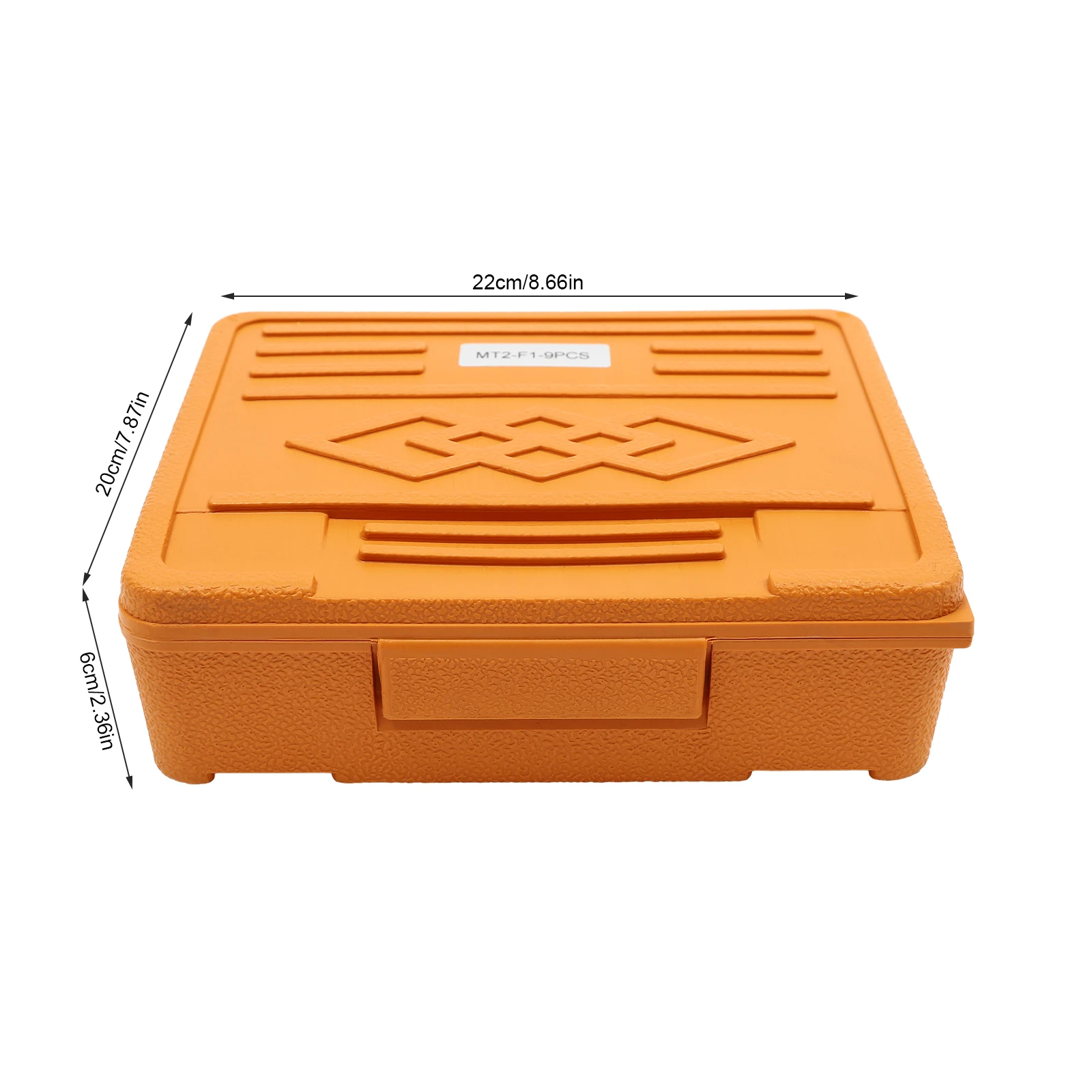

Product Size: 22*20*6cm/8.66*7.87*2.36 in
Package Size: 25*21*10cm/9.84*8.27*3.94 in

Key Features

Sturdy and Durable: The product is made of high-quality steel, using polishing technology, with high strength, wear resistance, excellent precision, and long service life.

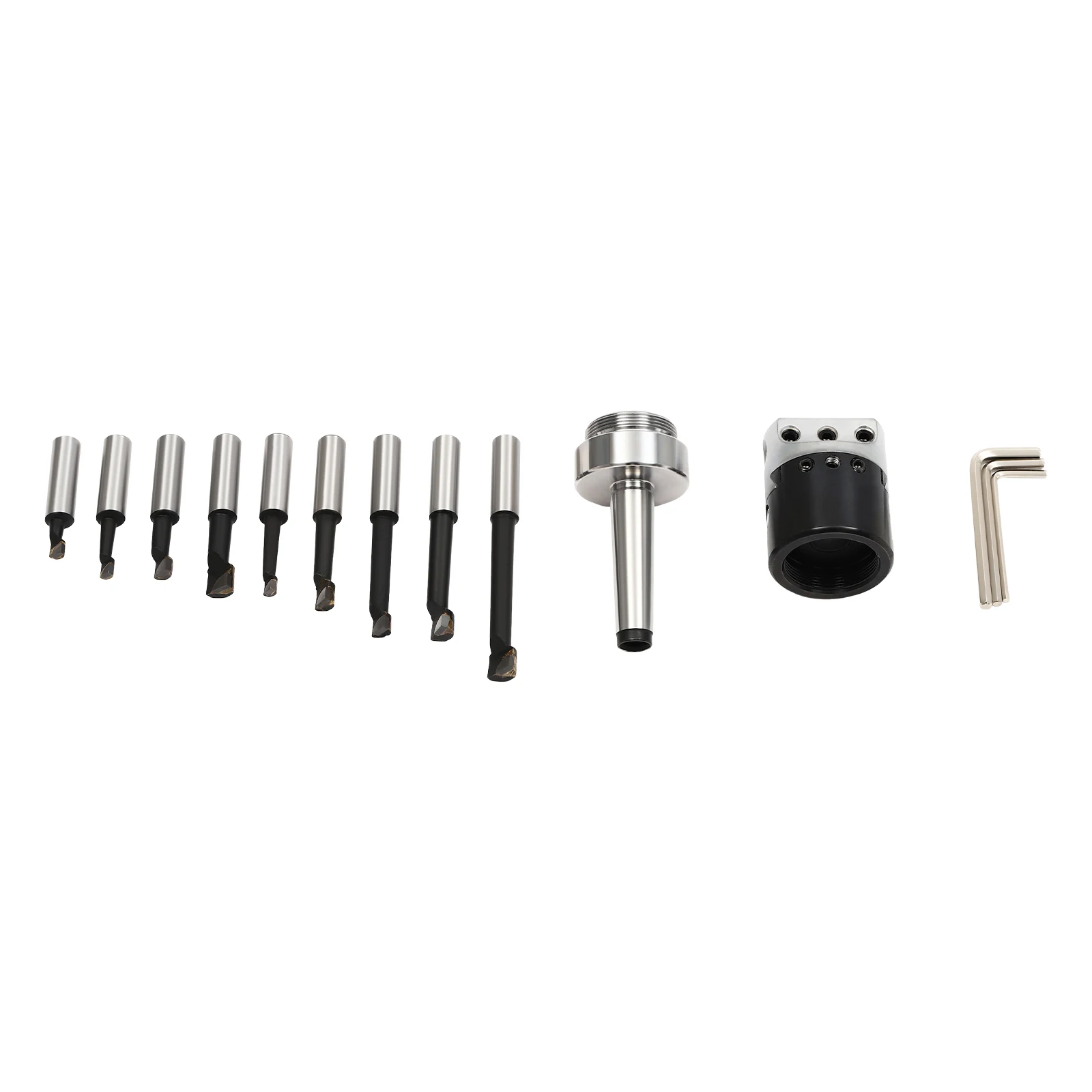

9 Pieces: The set includes 9 pieces of boring bars of different sizes for different diameter ranges, which are capable of boring ranges from 0.39-4.92 in, meeting your versatile needs.

Wide Compatibility: The product is designed with interchangeable interfaces, which can adapt to a variety of standard taper shank systems such as R8, BT40, NT, MT, etc., making it easy to work with different machine tool spindle interfaces.

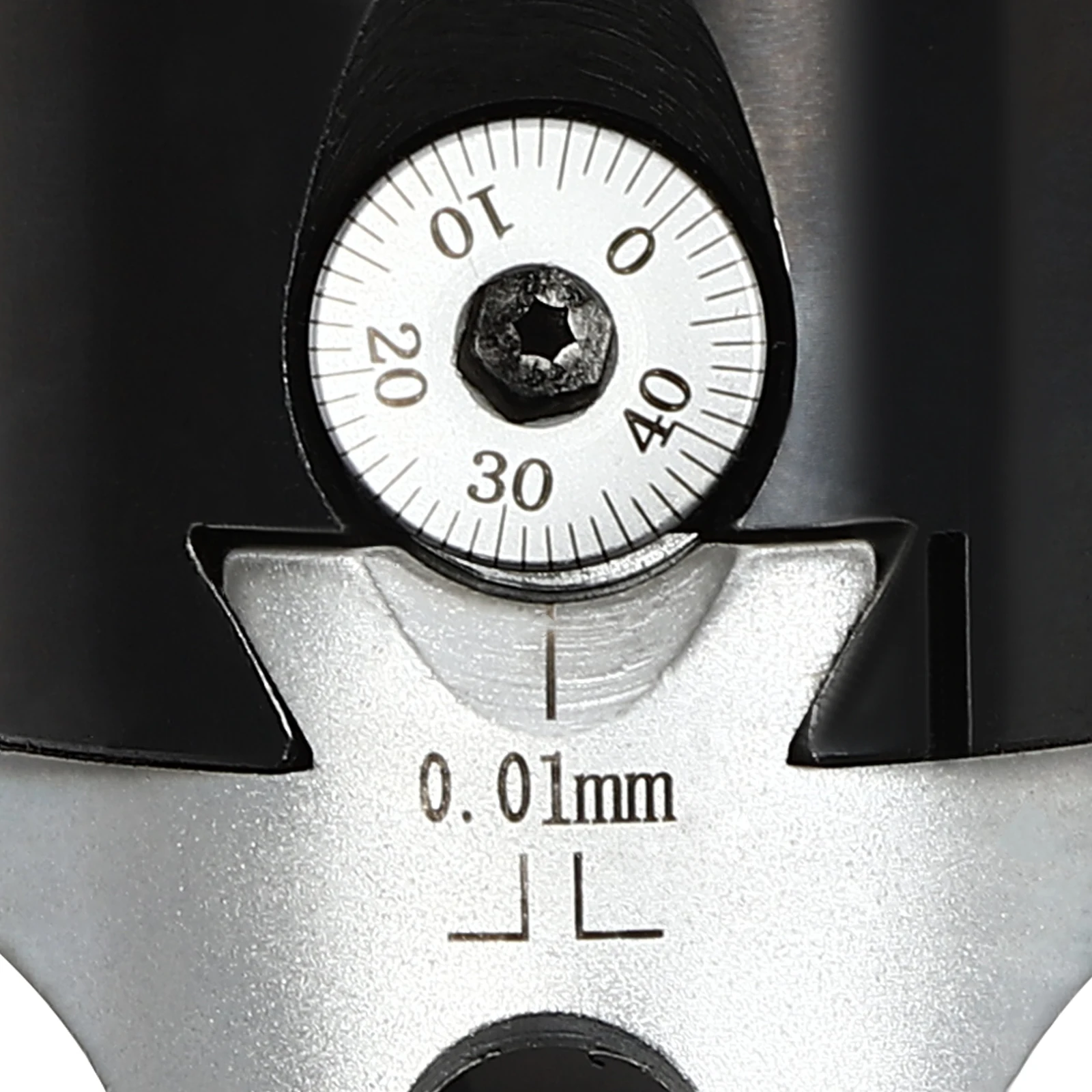

Precise Adjustment: Equipped with a precision scale dial, it can realize the function of micro-adjustment (0-1.57 in), and the precision of each frame can be up to 0.0004 in, which ensures the high-precision control of machining dimensions.

Easy to Clean: With its simple construction and smooth surface, you can wipe away surface stains with a damp rag.

Ready to Use: When you receive the product, you can directly install it to the machine tool (not included) according to your need and use it, which is very convenient!

Application

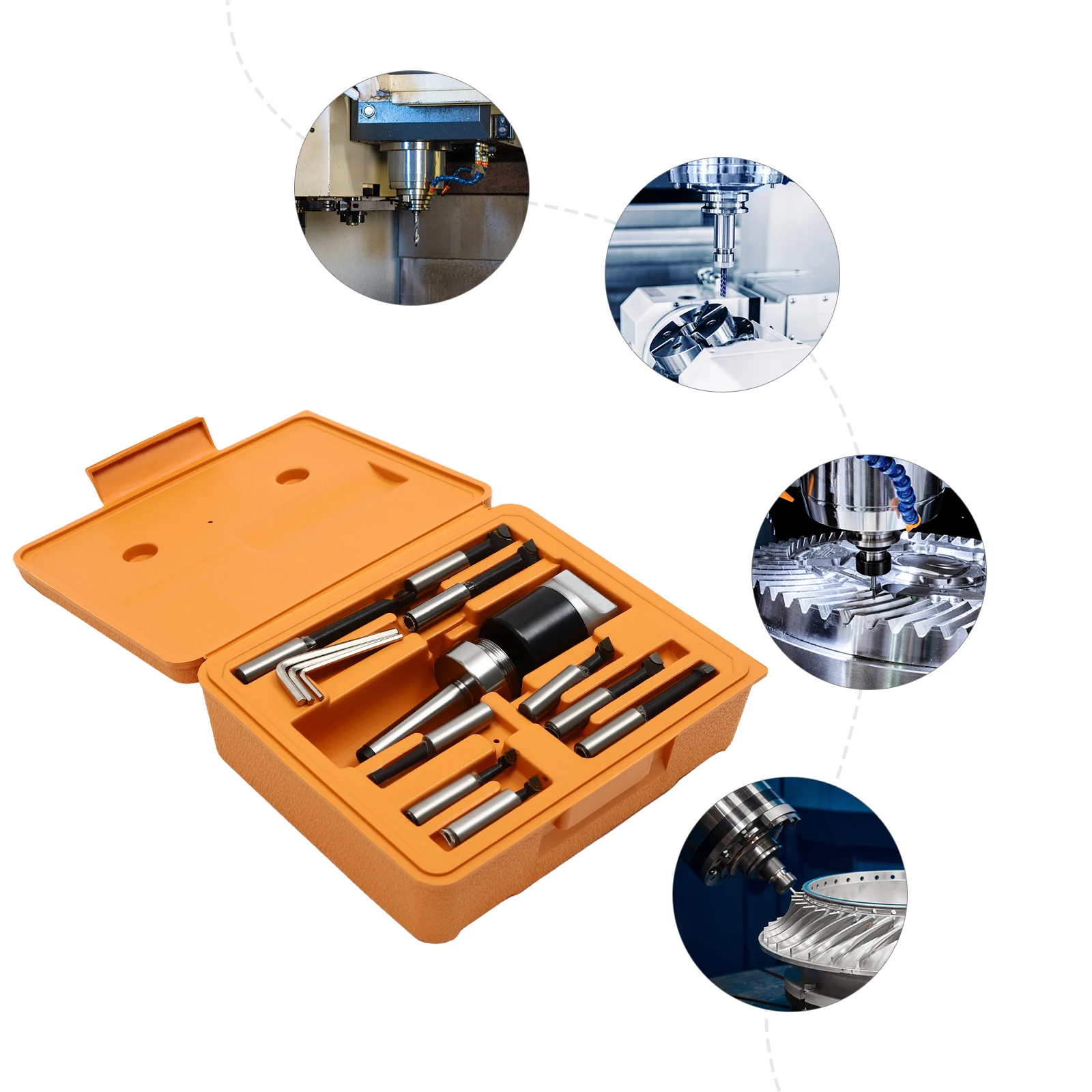

This product is the main accessory of boring machines and CNC milling machines such as coordinate boring machines, horizontal boring machines, and general boring machines. It can be used for boring holes, boring the outer circle of holes, boring the end face of holes, boring ladder holes, boring the end face of holes, cutting holes and grooves of the outer ring.

Package Included

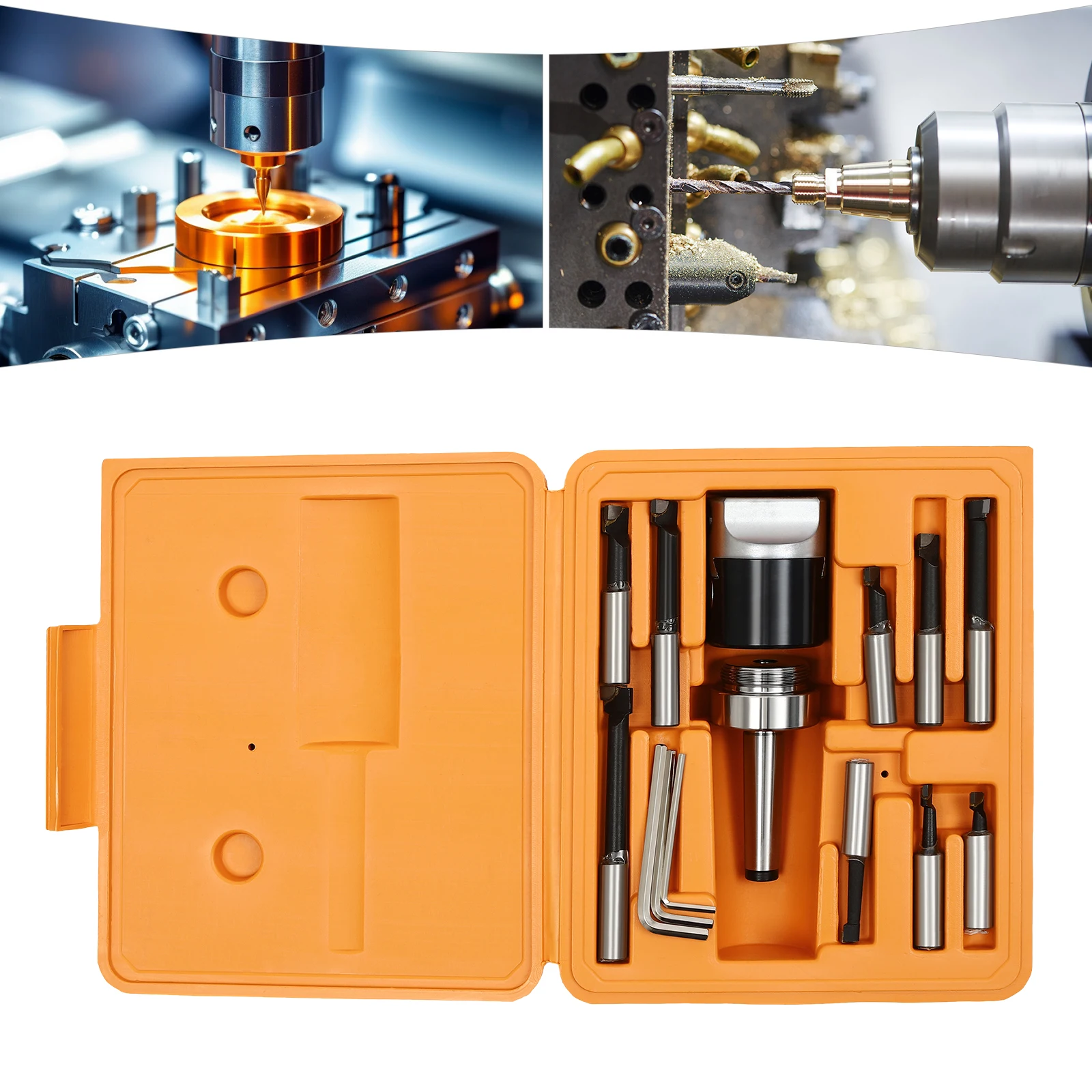

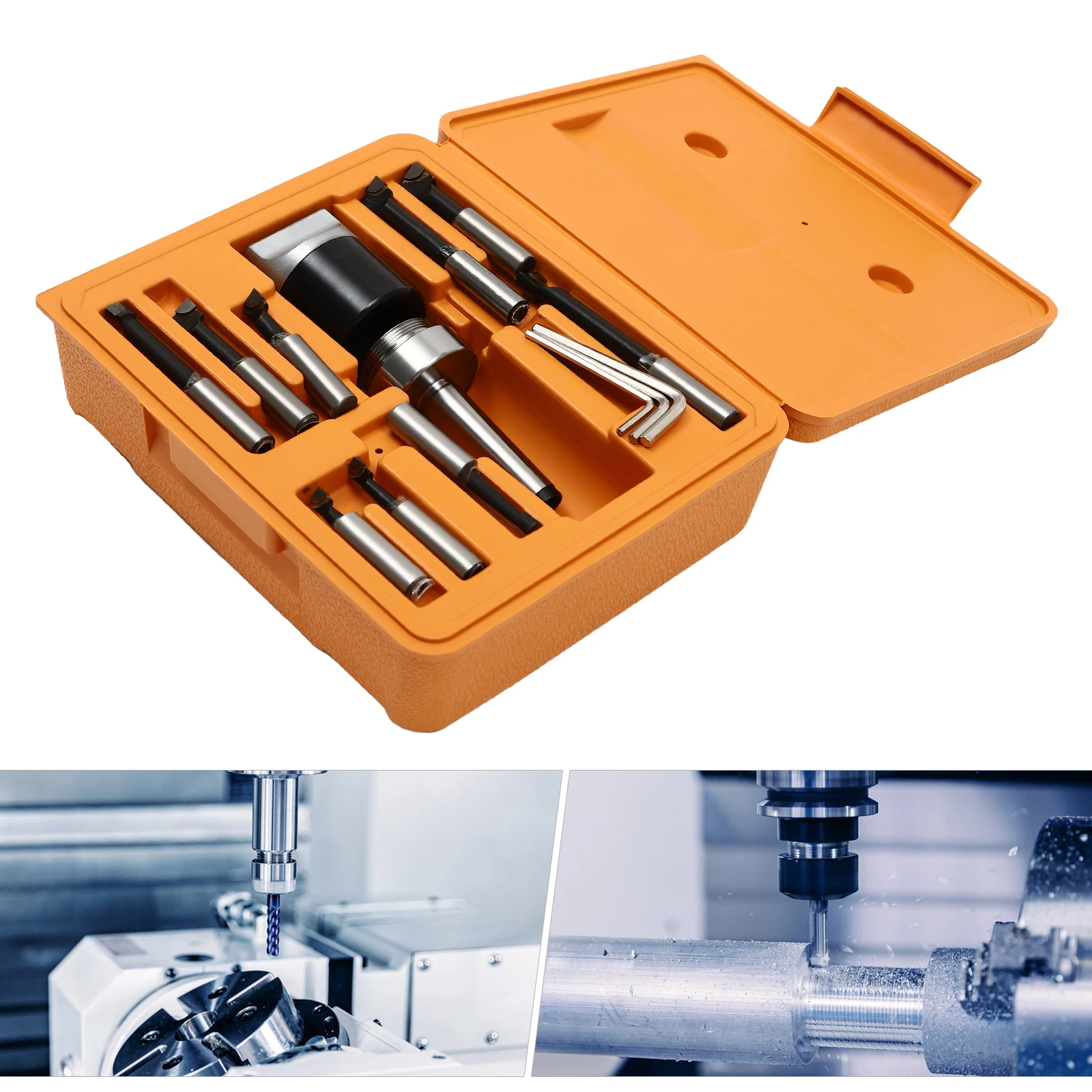

1* Boring Head Set
3* Allen Keys
1* Carrying Case
