Grinder housing: Aluminum
Color: Silver
Total height: 266mm(10.2In)
Type: Grain crusher
Crank handle: 114mm(4.7In)
2 rollers: Carbon steel
Capacity Volume: 4L
Condition: New and good quality
Hoppers: Stainless steel
Speed:manual

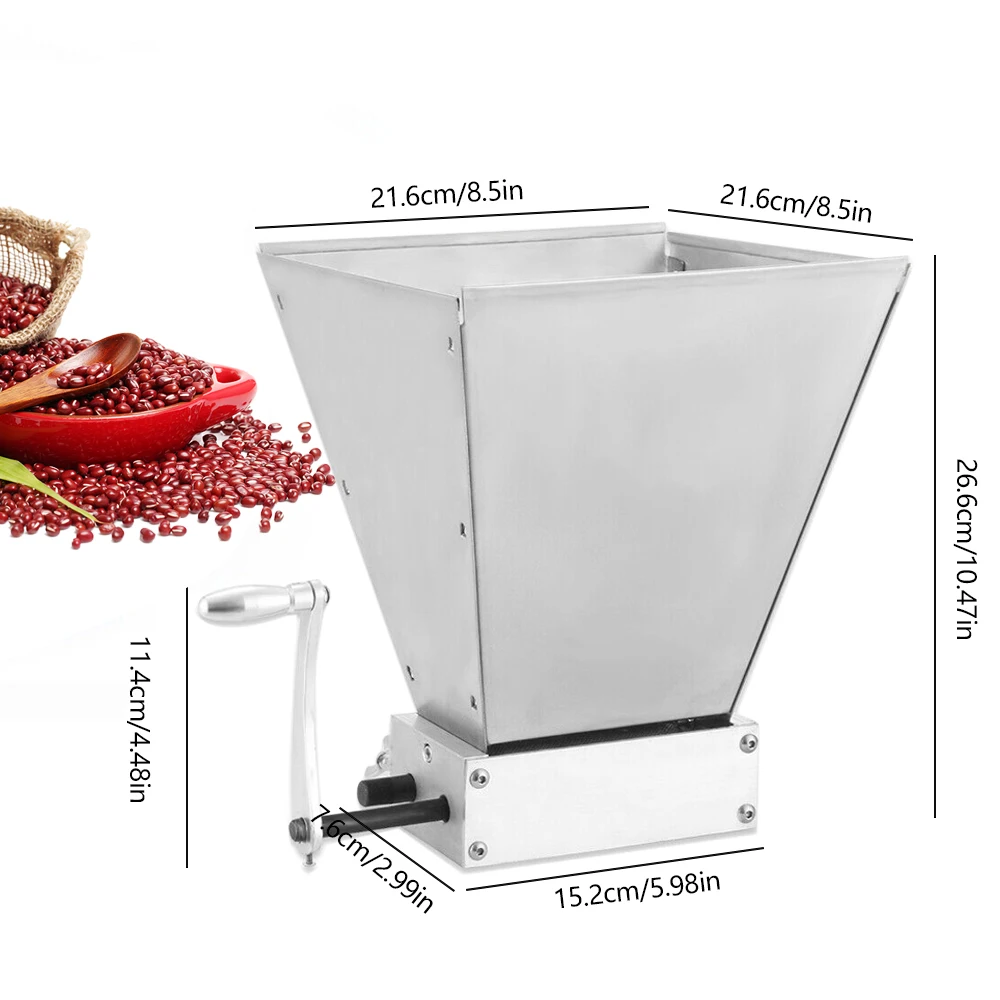

Hopper dimensions at top: 220 x 210mm((8.7In x 8.3In)
Footprint size of grinder: 140 x 80mm(9.4In x 3.1In)
Roller dimension: 76 x 150 x 50mm(3In x 6In x 2In)
Single roller: ø 38 x 150mm (1.5In x 6In)
Adjustable distance: 0-30mm(0In - 1.18In)
Package size: 310 x 265 x 150mm(12In x 10In x 6In)
G.W.: 3.1kg(6.8lbs)

Features

Width and roller diameter is optimized for use with power drill
Adjustable rollers at both ends to give uniform crush
12 TPI knurl to efficiently pull grain through rollers while leaving hull intact to form an excellent filter bed for sparging
6In long adjustable gap
Fully adjustable mill
0.060In fixed primary gap, 0-0.065" fully-adjustable secondary gap
Dual eccentric adjusters built from stainless steel for no galling
8 lbs / minute is average throughput
6" x 1.5" diameter stainless steel rollers
Crankshaft can be turned clockwise or counterclockwise
Durable alloy frame
Heavy-duty two-roller mill with adjustable secondary gap-spacing
Integral drive shaft and axles
Mill can be hand-cranked or motorized with a corded electric drill
You will need to supply or build a base

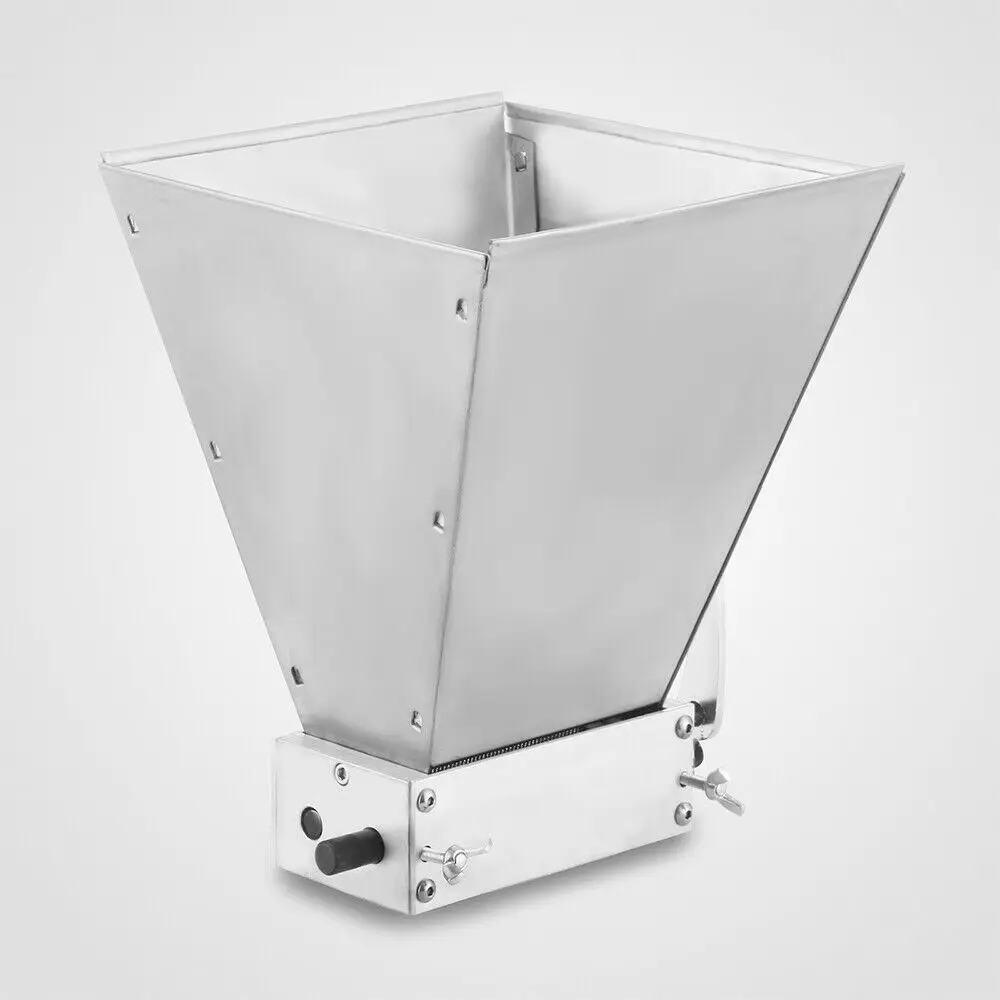

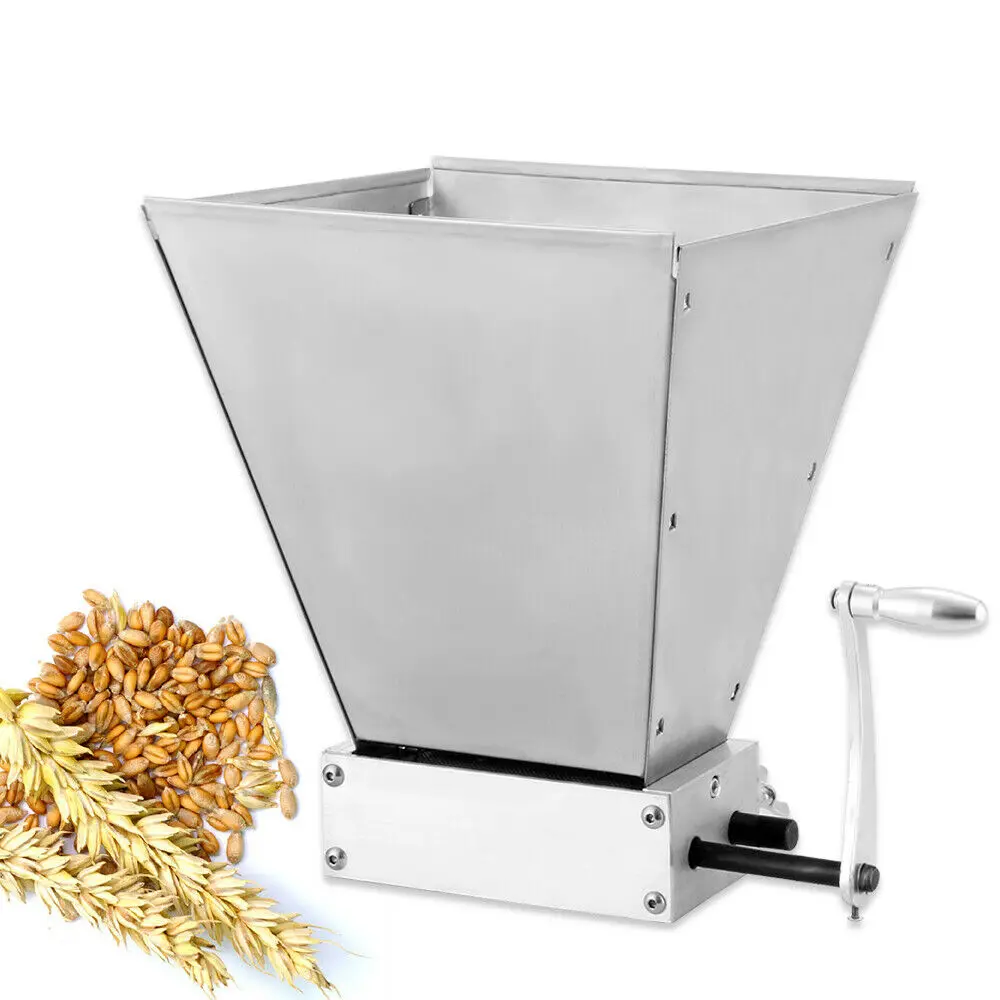

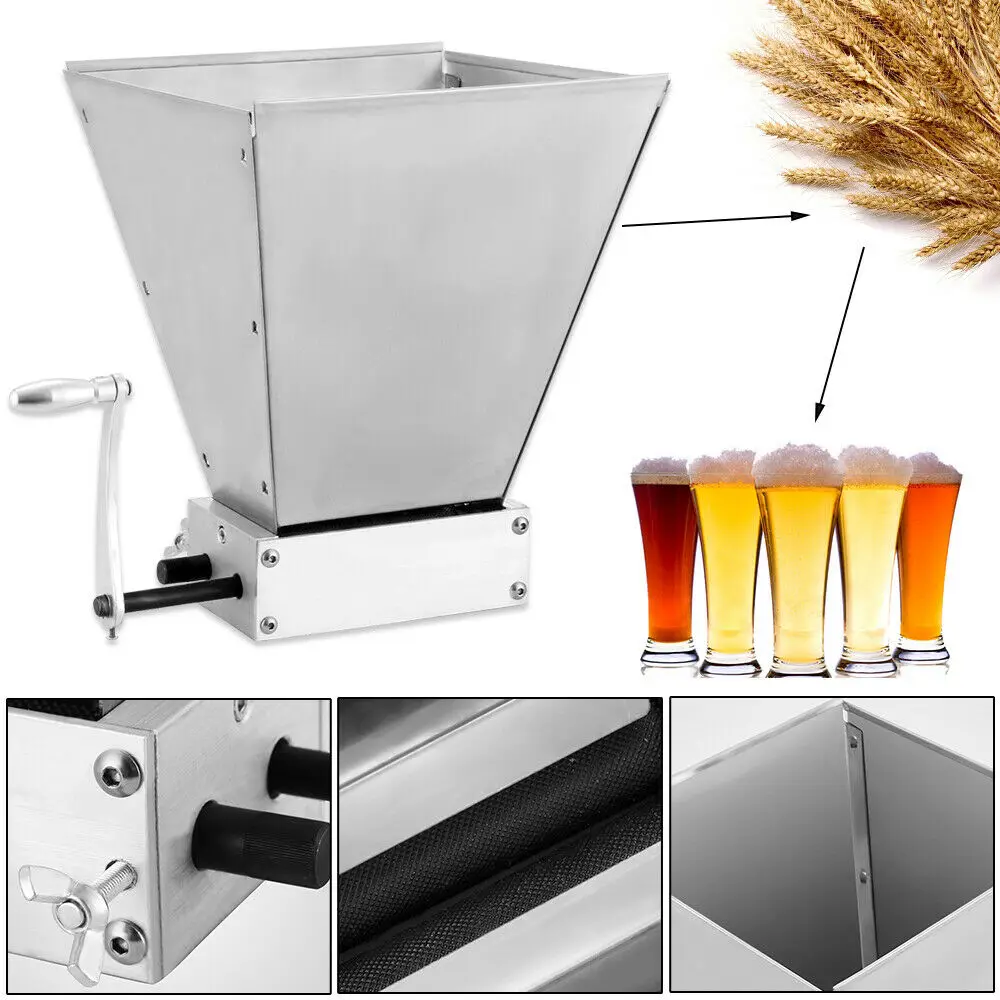

This Grain Mill is constructed using materials that will last a lifetime. Cold rolled steel for the rollers, and aluminum for body and Stainless steel hopper and oil impregnated brass bushings. The grain mill is professional in grinding barley, wheat and other cereals. It is provided with adjustable 2 rollers which can be crushed cereal well and peeled shell off perfectly, so as to be good for brewing beer in future. The 2 rollers design has the main advantage that it draws the grain better and gives improved throughput.

This equipment is perfect for large batches and high efficiency milling. With two rollers, all your grain will be crushed twice in one cycle. The crush is through the fixed gap between the top two rollers. The initial pass slightly flattens the grain, getting it ready for the next crush that breaks apart the grains and loosens the starch with minimal husk damage.

The hopper can hold up to 11 lbs of grains and the roller body features an alloy block frame that houses three steel rollers on oil-impregnated bronze bushings. The drive shaft and all axles are integral to the roller, which makes clockwise or counter-clockwise drive possible. A hand crank is included, but the mill can be easily motorized with a corded electric drill. You don't need any additional attachments, just stick the drill on and go. Stainless knurled knobs allow a gap spacing adjustment range of 0.070". Adjusting is simple - just loosen the adjustment screws, adjust the gap and tighten the adjustment screws.

Notice

You will need to supply or build a base to set the mill over a grain bin or 5 gallon bucket.
