Features:

HBS86H adopts the latest dedicated motor control DSP chip and vector closed-loop control technology to completely overcome the problem of open-loop stepping motor lost step, and at the same time significantly improve the high-speed performance of the motor, reduce motor heating and reduce motor vibration, improve machining speed and accuracy, and reduce Machine energy consumption. When the motor is continuously overloaded, the driver will output an alarm signal in time, which has the same reliability as the AC servo system. HBS86H is equipped with 86 series closed-loop stepping motors, which is convenient for traditional stepping system upgrades. The cost is only 50% of the AC servo system.

Specification:

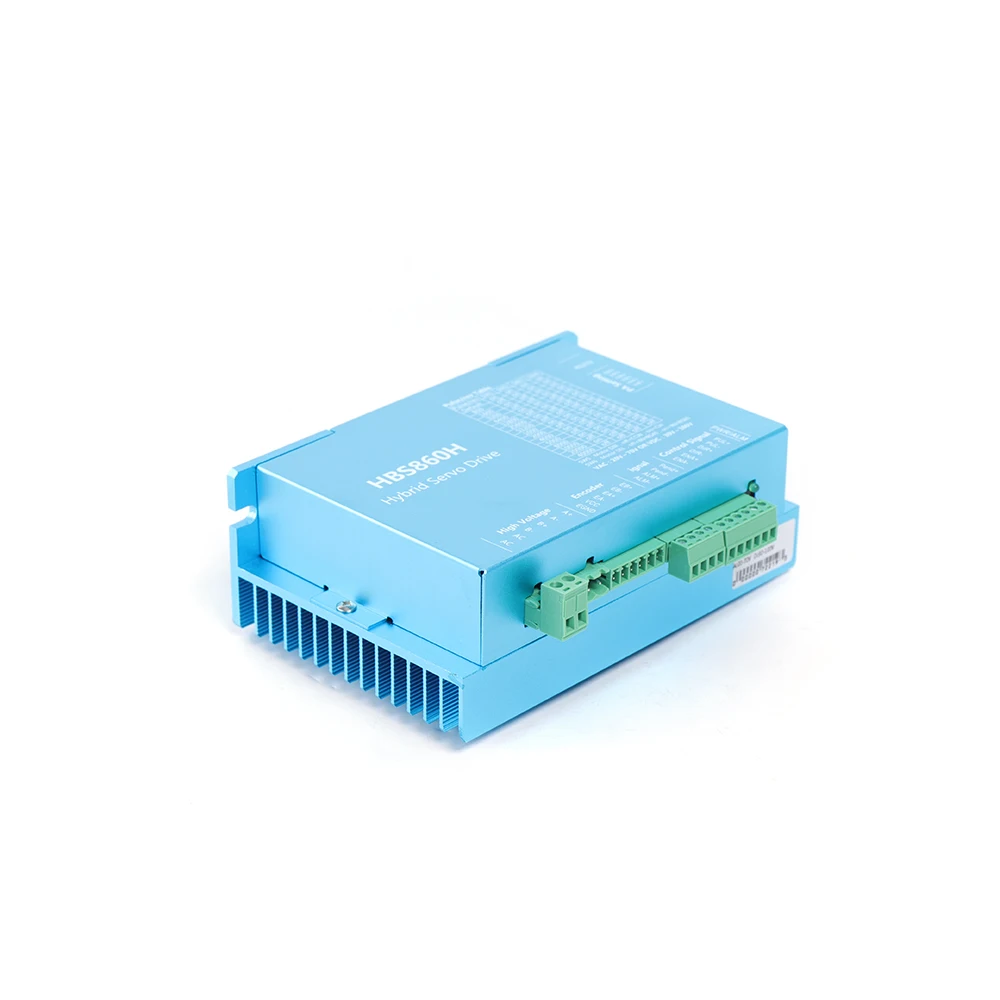

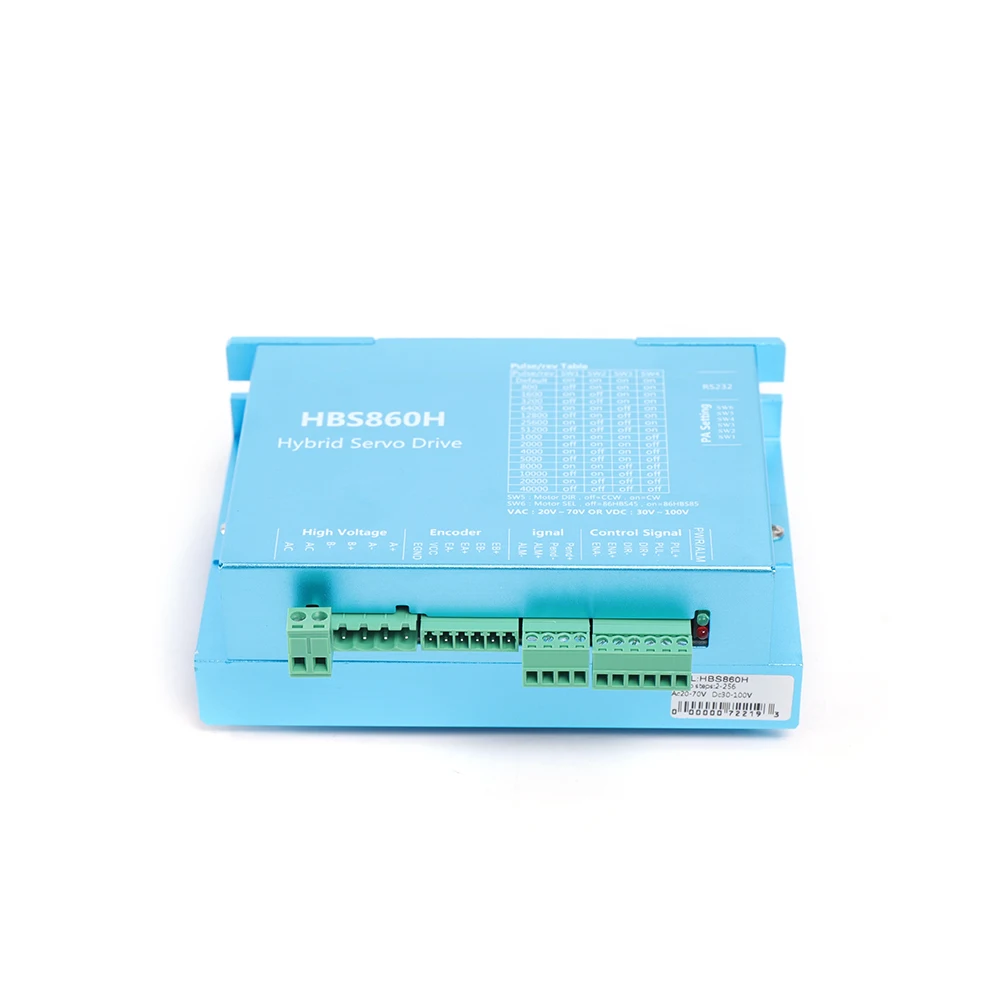

Driver Model: HBS86H

Voltage: AC20-80V/DC24-100V

Phase current: 8A/Pha (peak current)

Subdivision: 2-256 subdivision Maximum 51200 steps / lap

Processor: 32-bit DSP digital

Pulse voltage: 5V-24V signal compatible

Response frequency: up to 200KHz

Pulse mode: single pulse (default) double pulse (software adjustable)

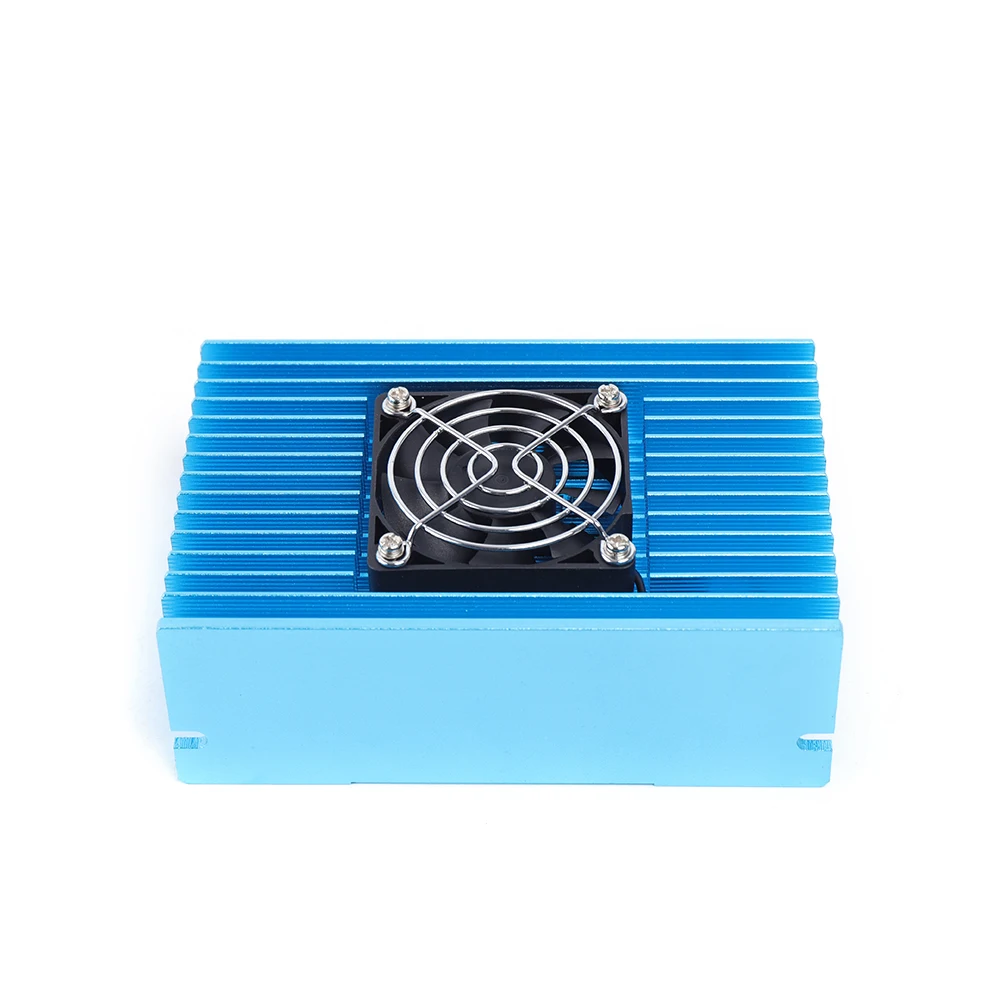

Cooling method: fan cooling

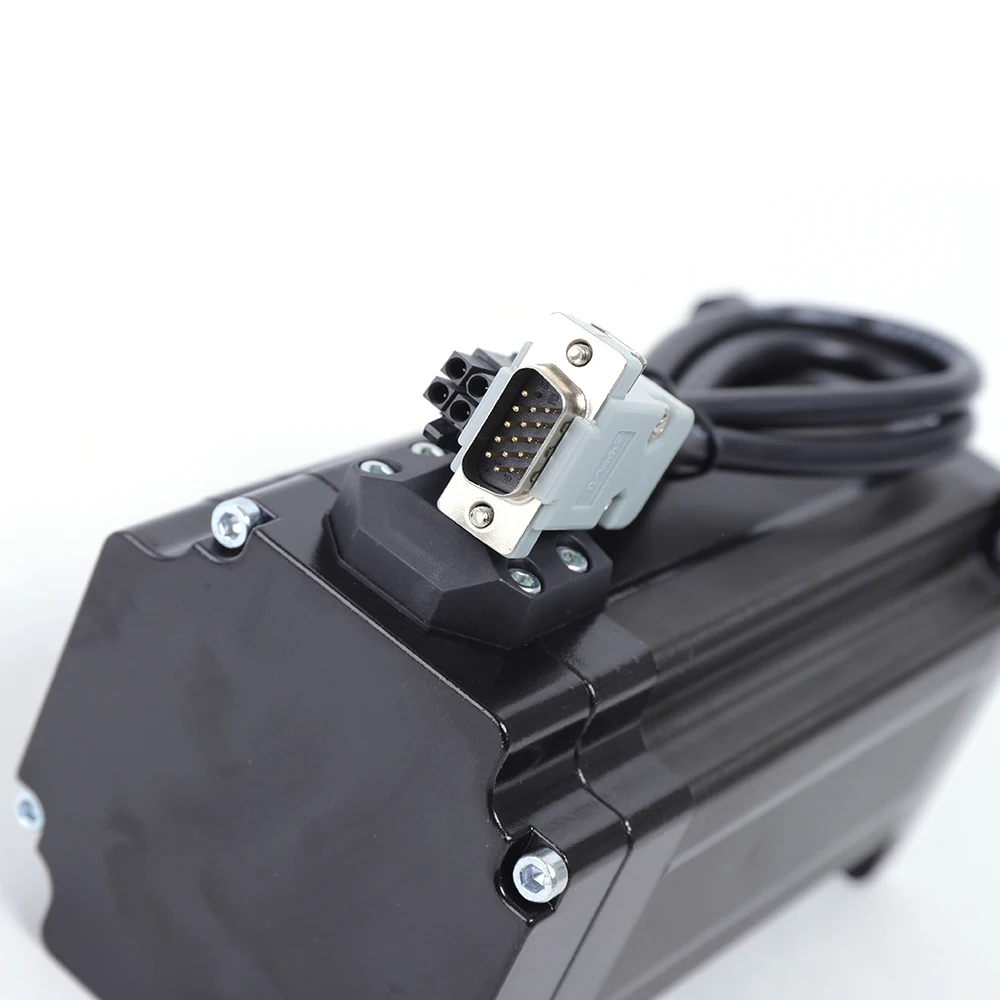

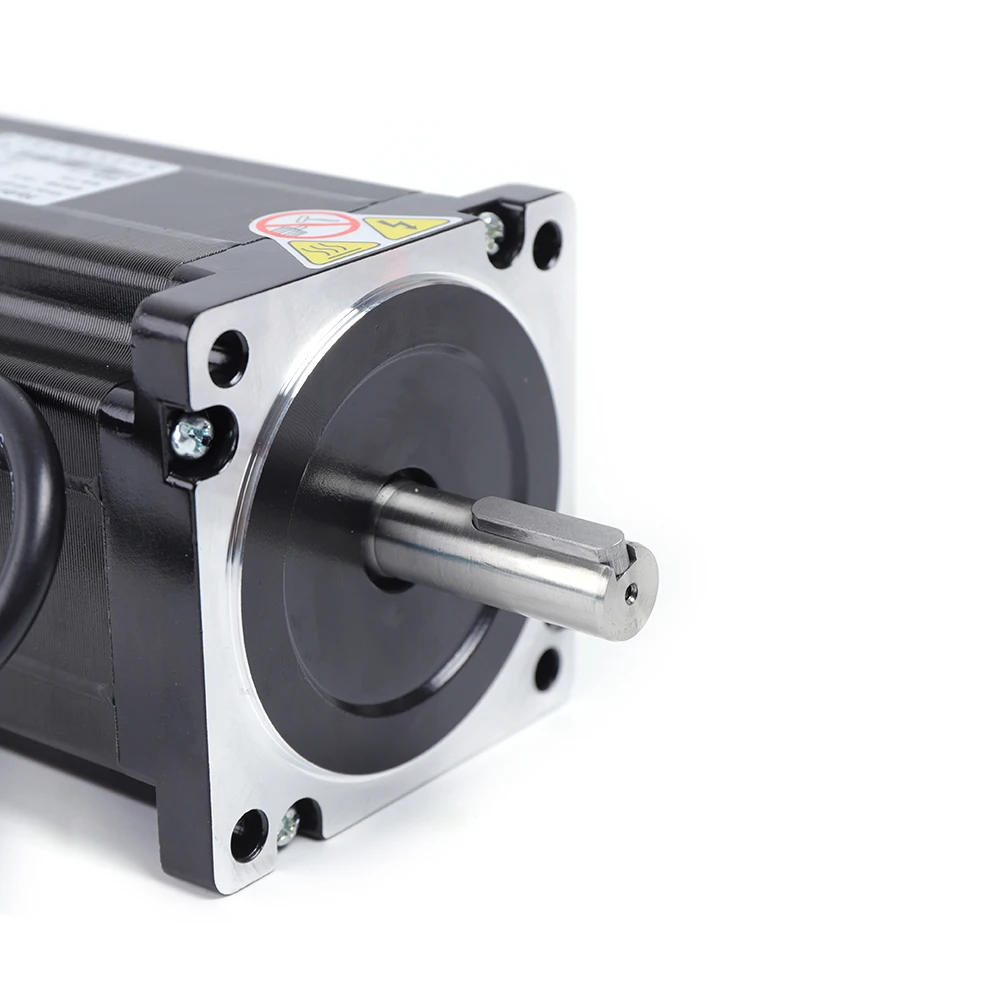

Motor Model: 86HBS120

Phase current: 5.6A/Pha

Torque: 12N.m

Shaft diameter: 14mm

Shaft length: 40mm

Step angle;:1.8°

Step angle accuracy: ±5%

Surface temperature: 80℃ or less (rated current)

Motor line: 3m

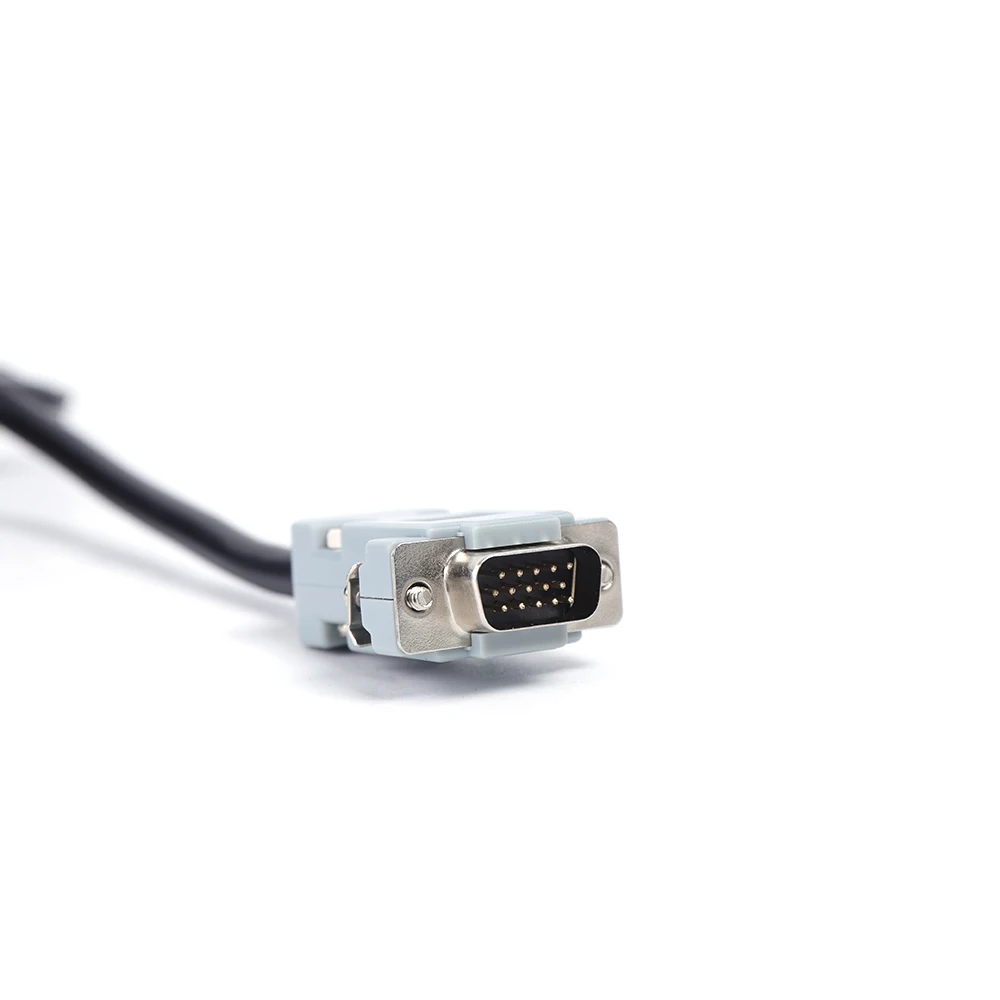

Encoder line: 3m

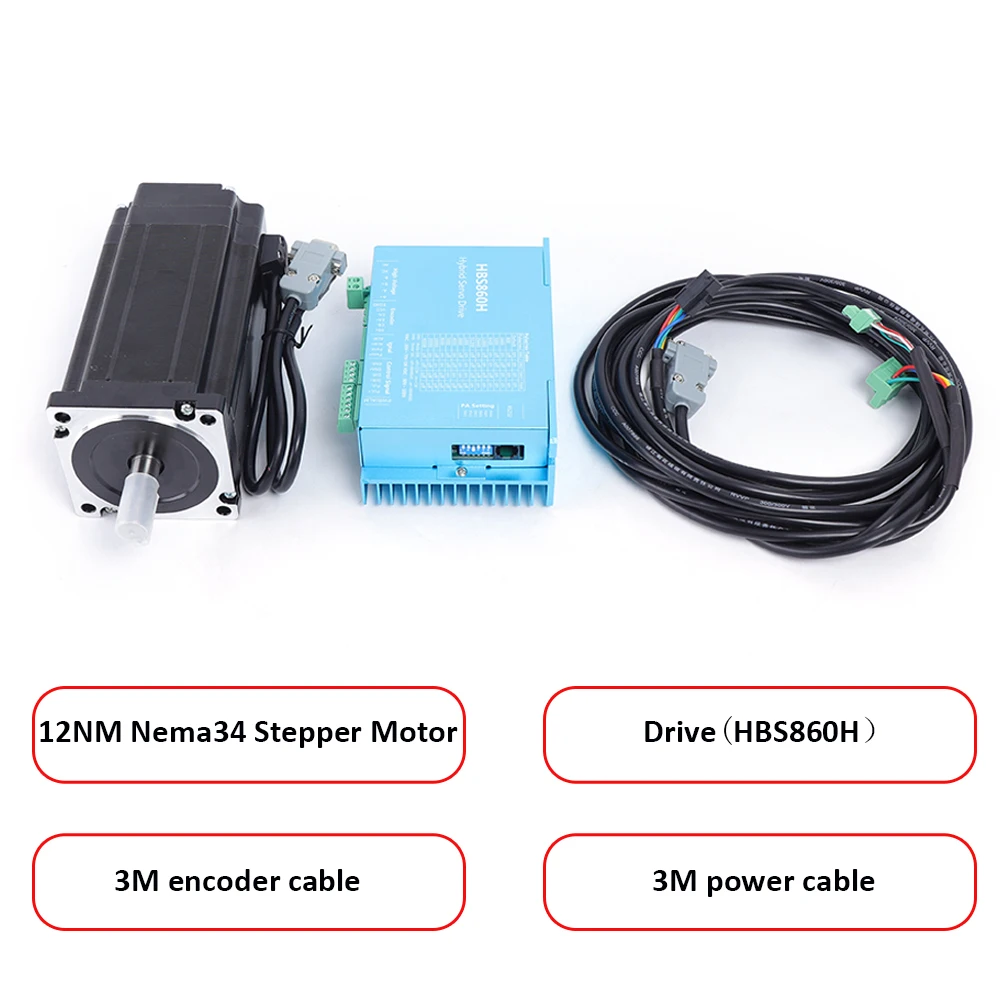

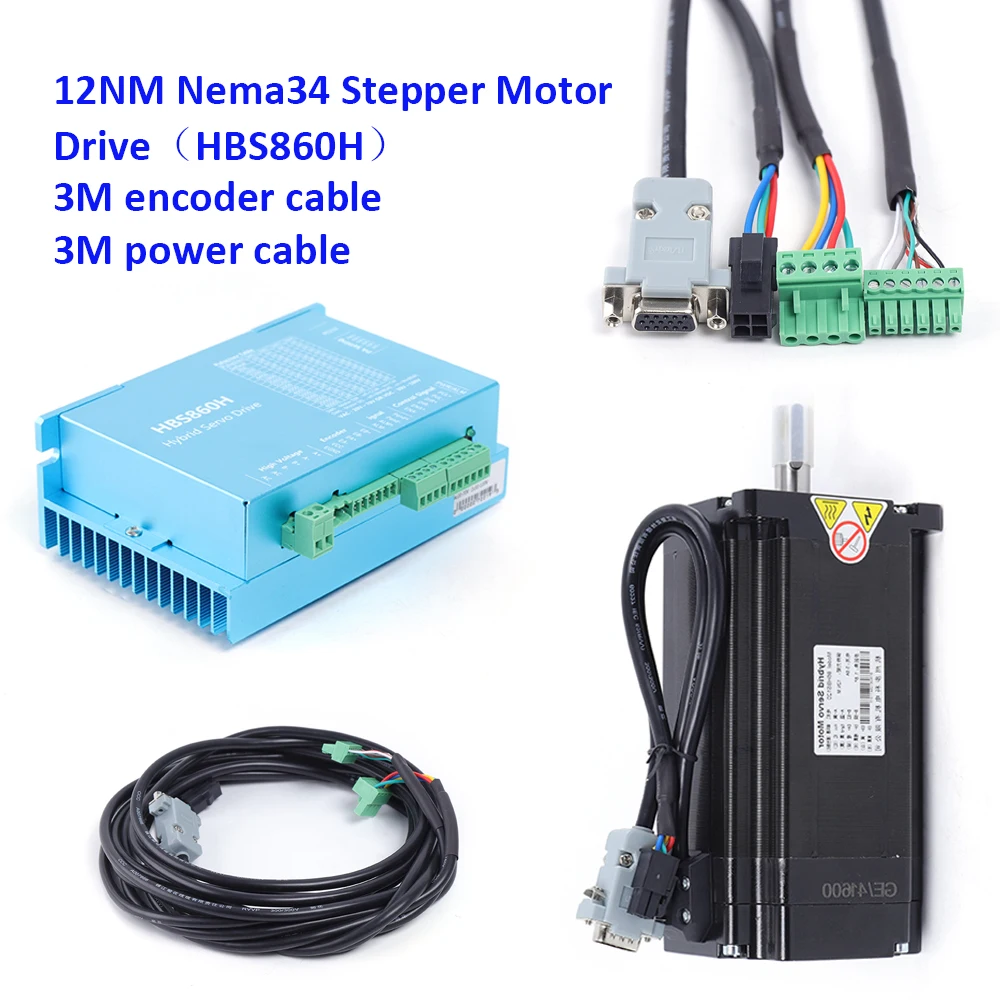

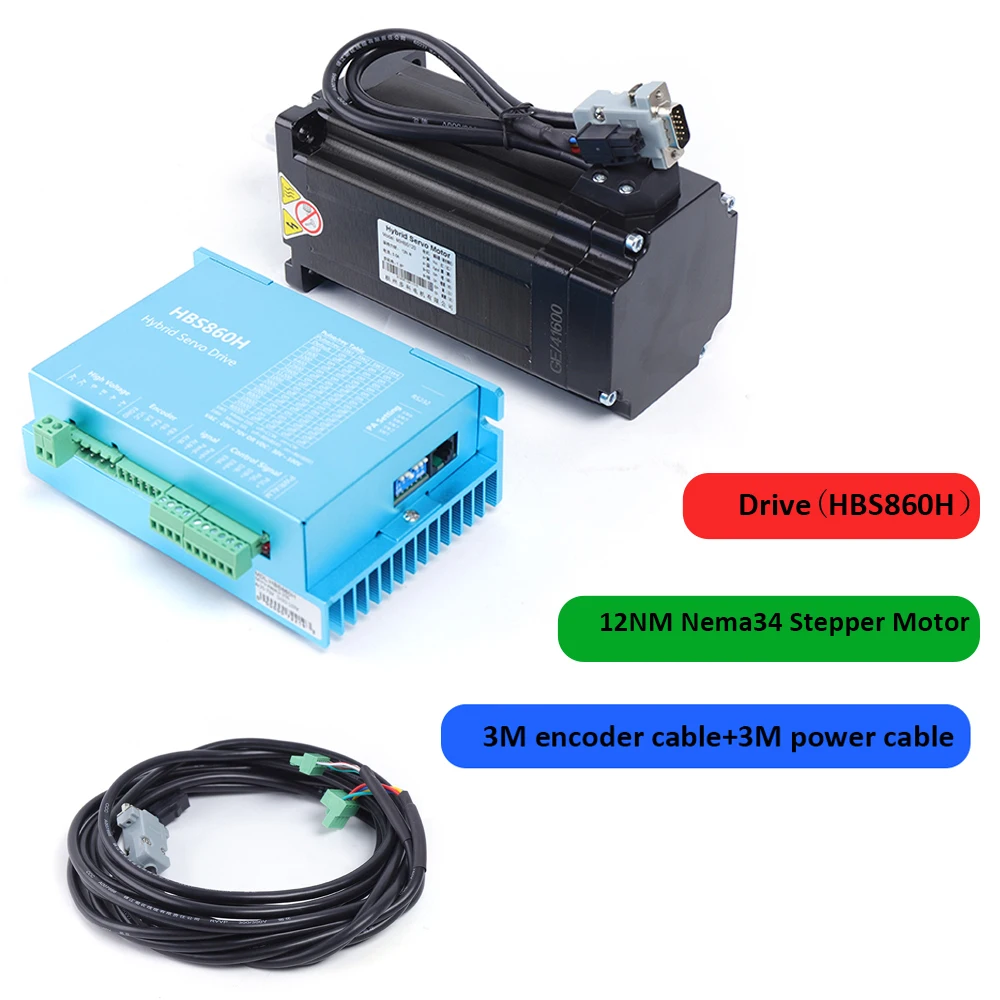

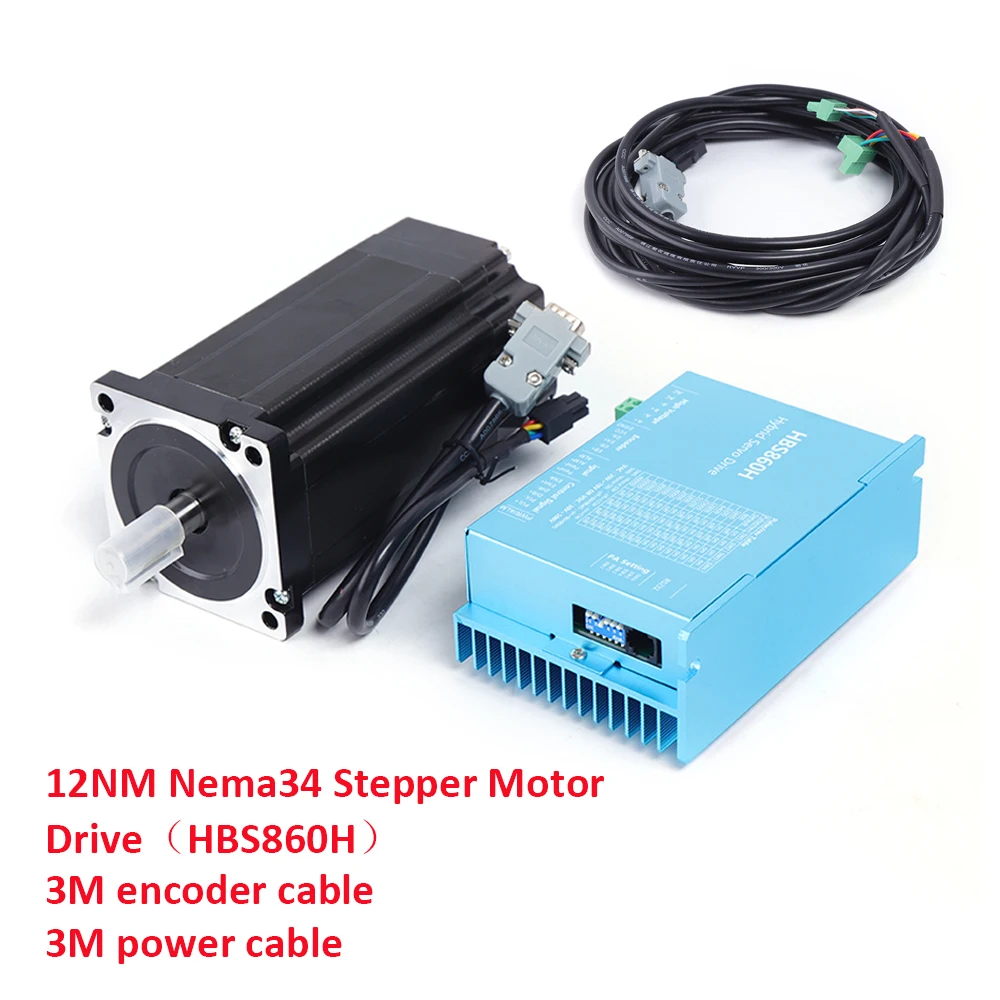

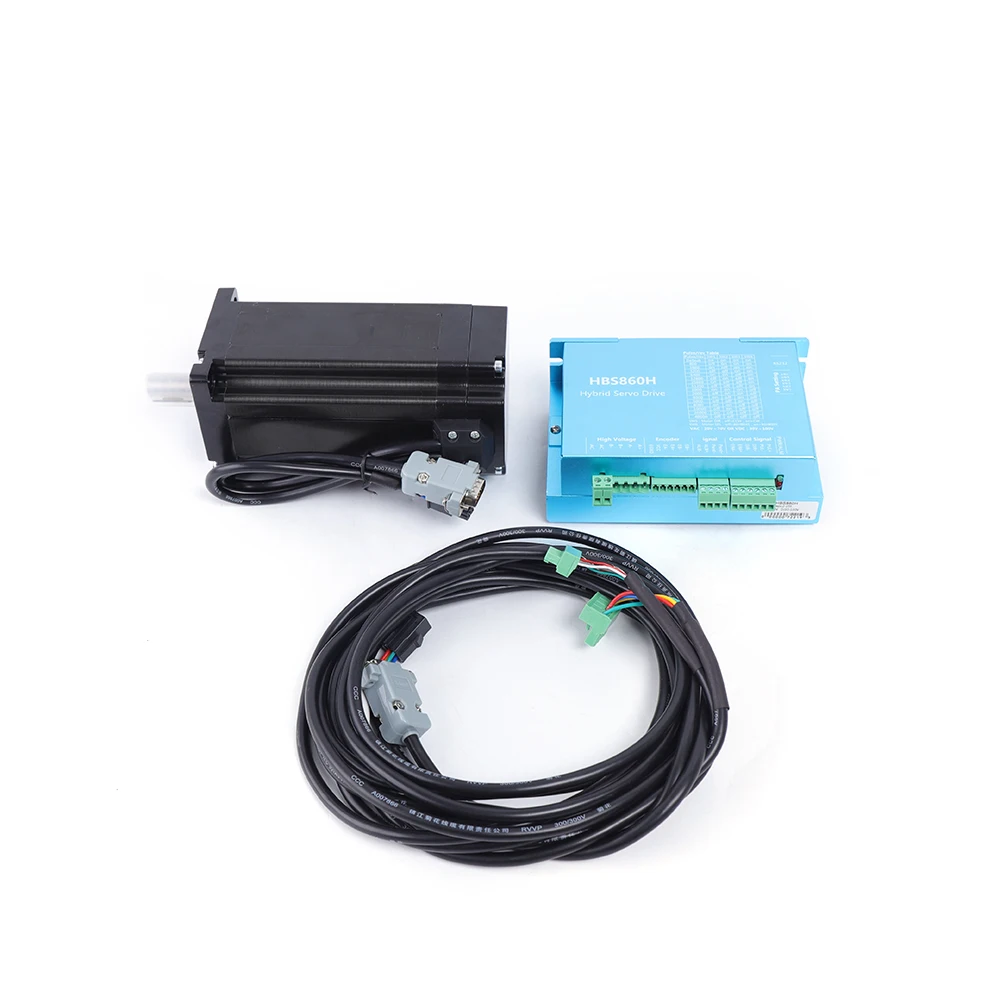

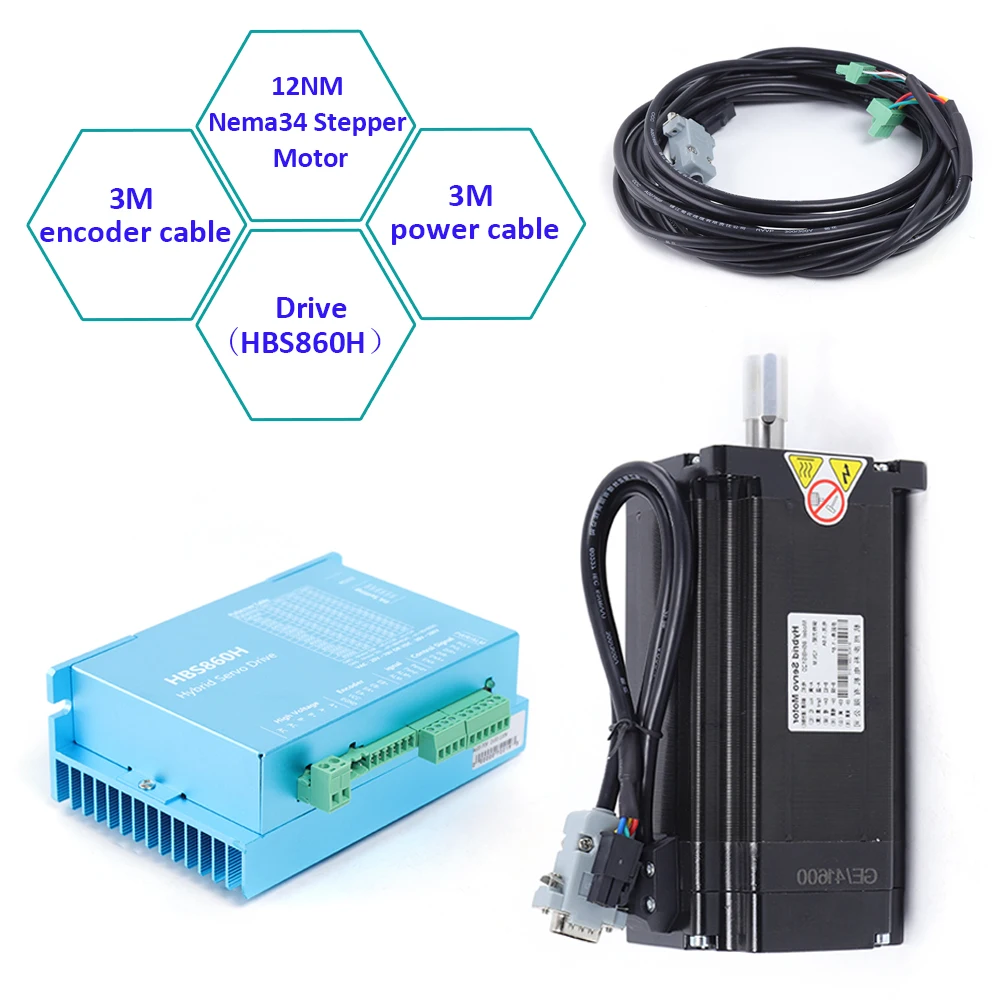

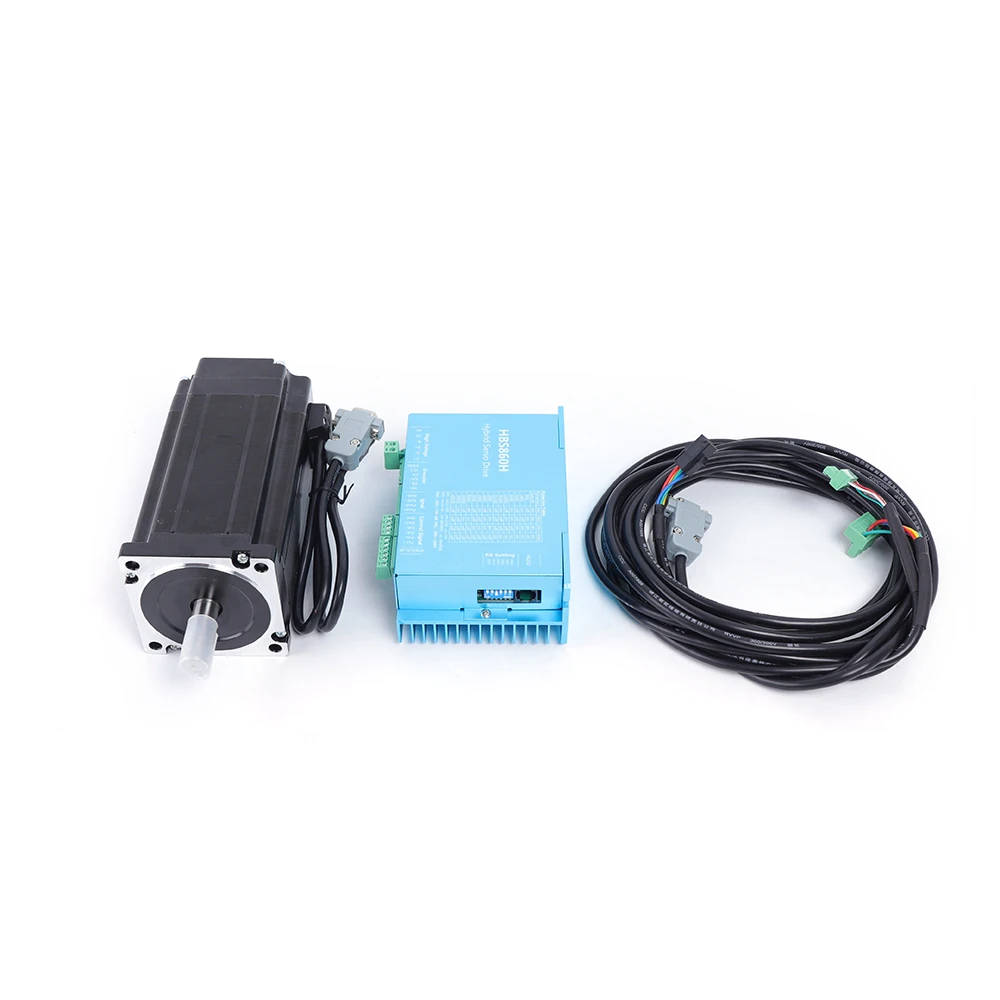

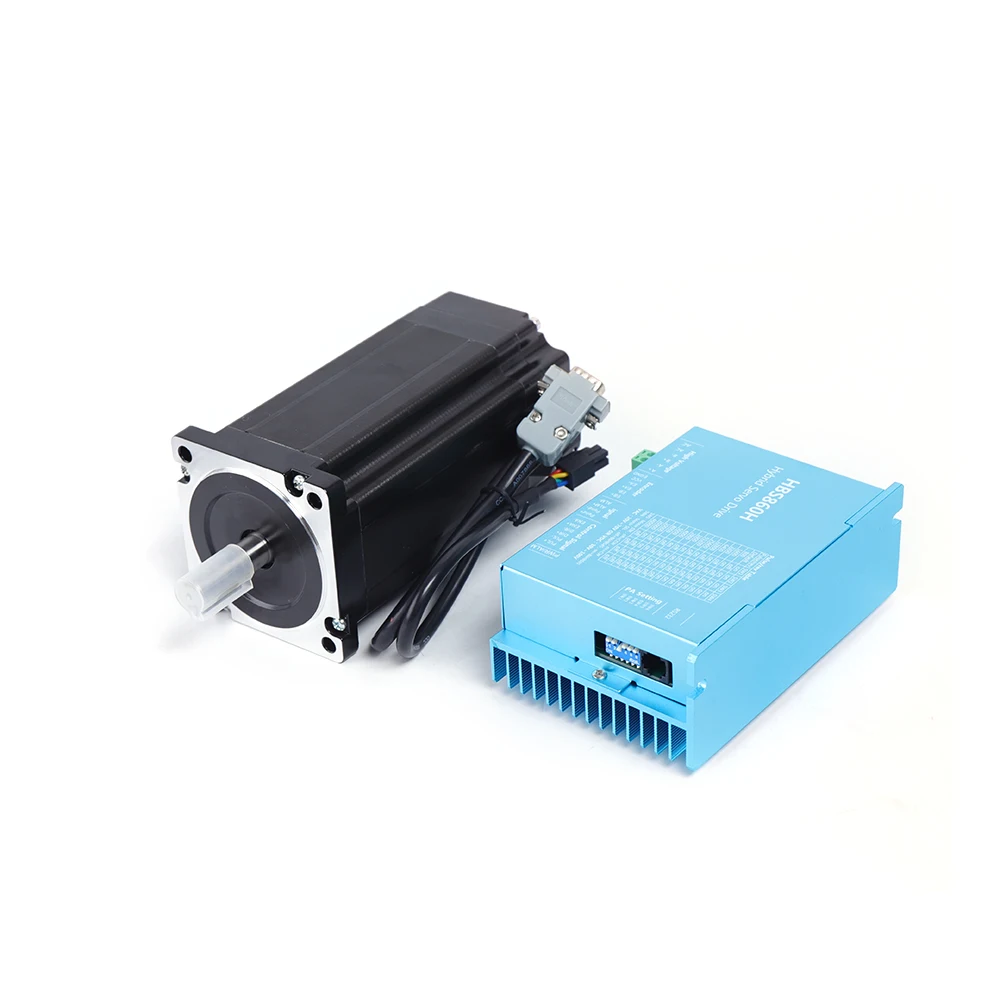

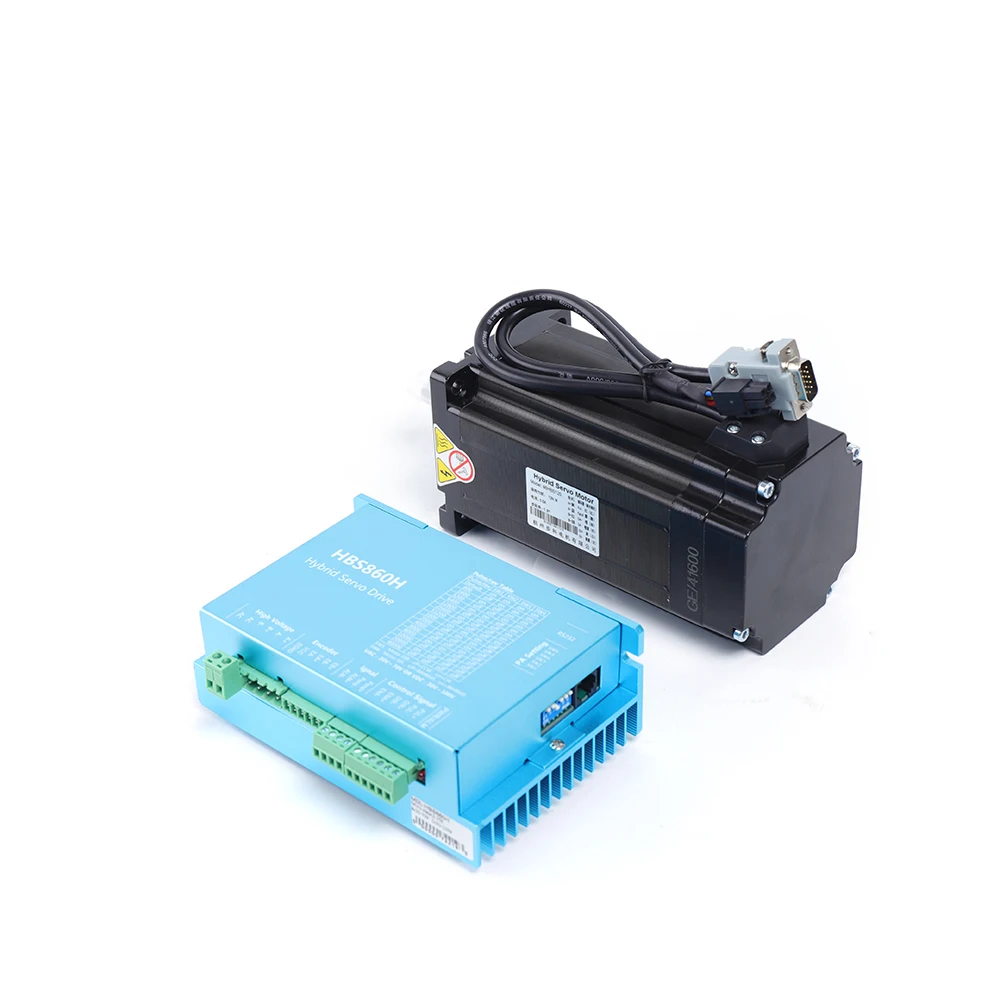

Include:

1x HBS86H driver

1x 86HBS120 motor

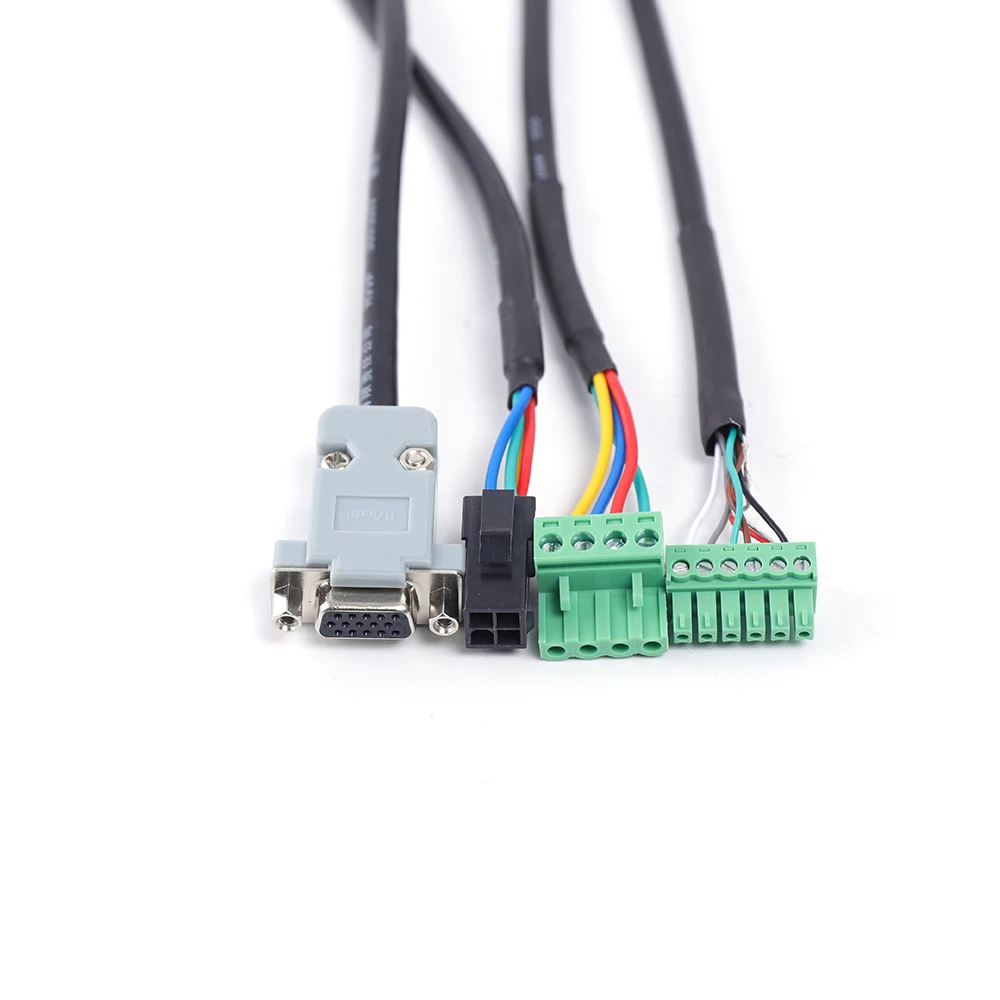

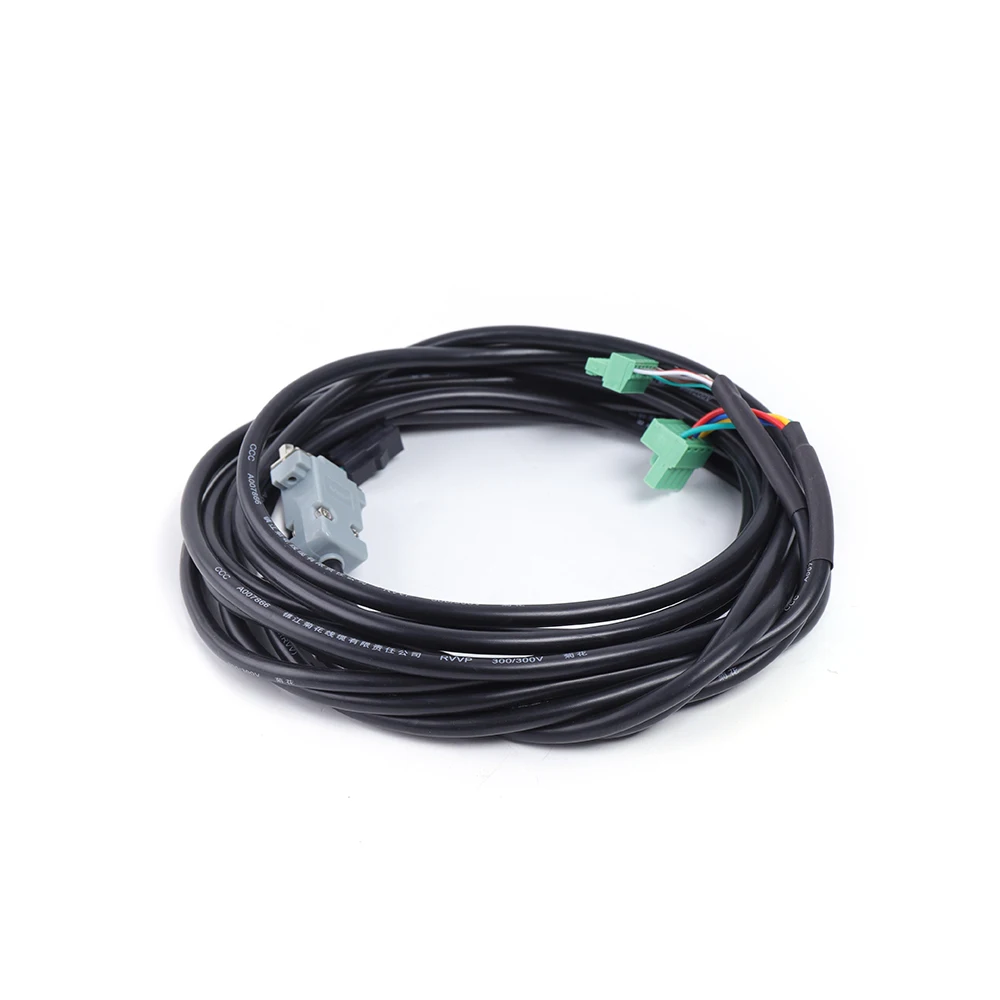

1x 3m motor line

1x 3m encoder line
