Description
If you are looking for a high-performance spot welding machine, our product is an ideal choice. Adjustable power and the principle of double pulse can realize a good spot welding effect in a shorter time, bringing you professional, smooth, and solid welding. It is an excellent partner for family DIY and general maintenance work!
Key Features
Sturdy and Durable: The product is made of high-quality ABS, using frosting technology, with high strength, heat resistance, wear resistance, excellent insulation properties, and long service life.
Powerful Functions: This product is powered by two Farad capacitors, controlled by powerful MCN, comes with constant current and constant voltage charging, supports automatic working mode, capacitor equalization, delay setting, board temperature monitoring, high-temperature reminder, and other functions for your convenience.
Excellent Performance: Adopting the principle of double pulse and 1-120W adjustable power, this welding machine ensures smooth solder joints with uniform texture, thus improving welding efficiency.
DIY Operation: According to the size of the workpiece (0.004-0.012in), solder joint, and the process requirements, you can precisely adjust the output power through the knob, ensuring smooth and efficient welding. Moreover, removable replacement pens are available for you to choose the amount of replacement, you can also later replace other pens to meet your needs.
Good Heat Dissipation: Multiple cooling holes ensure stable welding performance and prevent it from burning out after long-term operation, making the machine able to perform 12 hours of efficient welding without heating up.
Easy to Use: With a convenient switch button, adjustment knob, various sockets, and complete accessories, you can easily use this machine.
Easy to Clean: The smooth surface and simple structure allow you to easily remove dust from the surface of the machine with a towel.
Space-saving: It has a small footprint (9.05*5.51*2.79 inches) and can be placed on the desk without delaying the rest of your work.
Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.
Details
Practical Handle: It allows you to carry this machine to various work sites just as easily as carrying a briefcase.

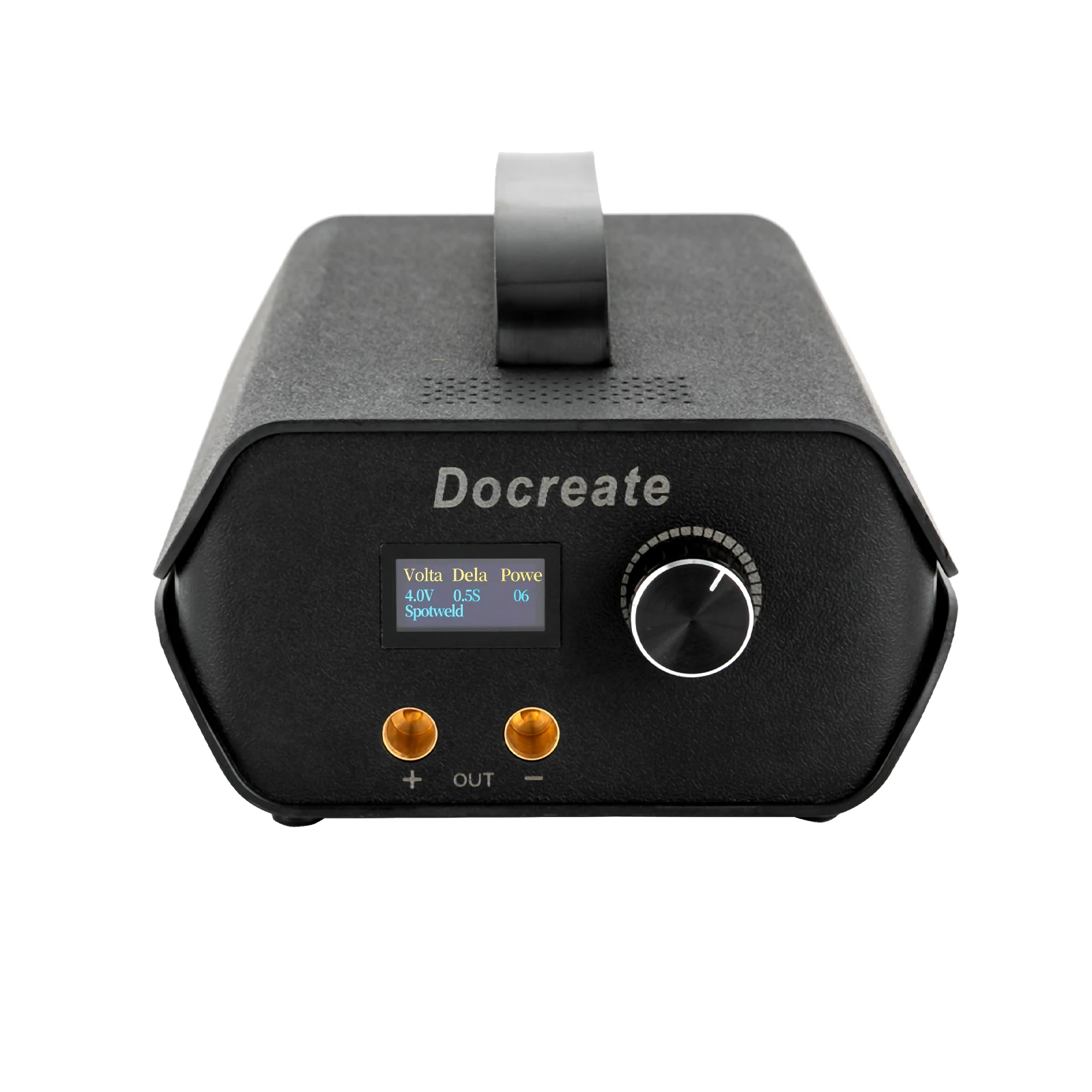

LCD Display: It visually displays the status of the machine's voltage, power, and delay so you can use it conveniently.
Anti-slip Feet: Four non-slip feet can better maintain the stability of the product, raise the bottom to avoid moisture, help dissipate heat, and protect your countertop from scratches.
Application

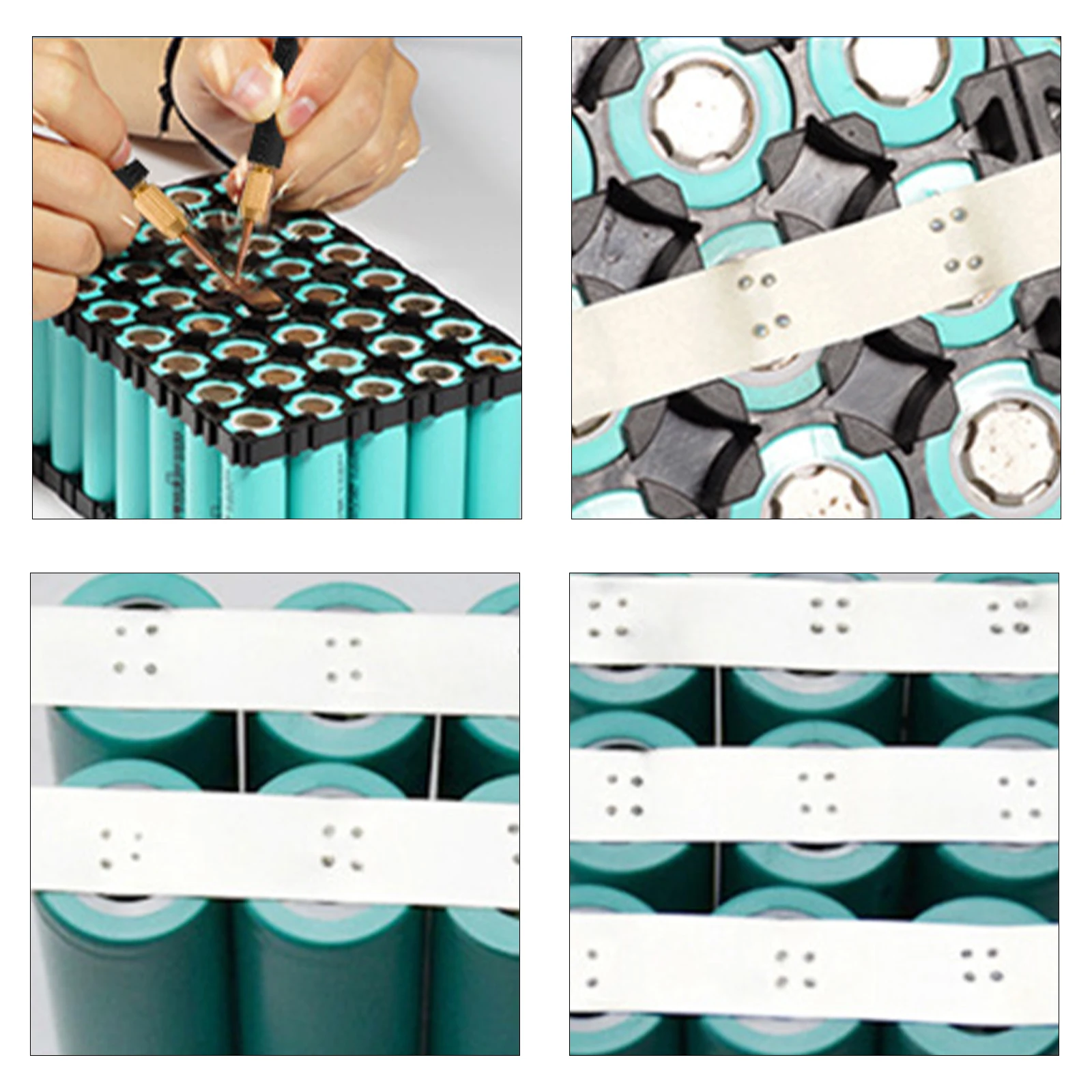

This product is suitable for the welding range of 0.004-0.012in nickel-plated steel strips. It is suitable for spot welding of batteries, cylindrical batteries, NiMH/CdNi batteries, hardware, and electronic components, and is capable of welding 0.008in pure nickel, 0.012in nickel plated, and 0.016in stainless steel.
Specifications
Style: Modern
Shape: Rectangular
Color: Black
Material: ABS
Surface Treatment: Frosting
Plug Standard: EU Standard
Power Source: Corded Electric
Mount Type: Tabletop
Assembly Required: Yes
Output Voltage: 5.4V(Max)
Input Voltage: 12V, 3A
Power: 1-120W
Delay Range: 0.5-3 Seconds
Operating Temperature Range: 0~+75℃/ 32-167℉
Farad Capacitance Capacity: Each 2.7V 3000F
Two capacitors are connected in parallel, and the voltage increases while the capacity decreases
Welding Workpiece Range: 0.1-0.3mm/0.004-0.012in Nickel-plated Steel Strip
Welding Thickness: 0.2mm/0.008in (Pure Nickel), 0.3mm/0.012in (Nickel Plated), 0.4mm/0.016in (Stainless Steel)
Power Cord Length: 1m/3.28ft
Gross Weight:2kg/4.41 lbs

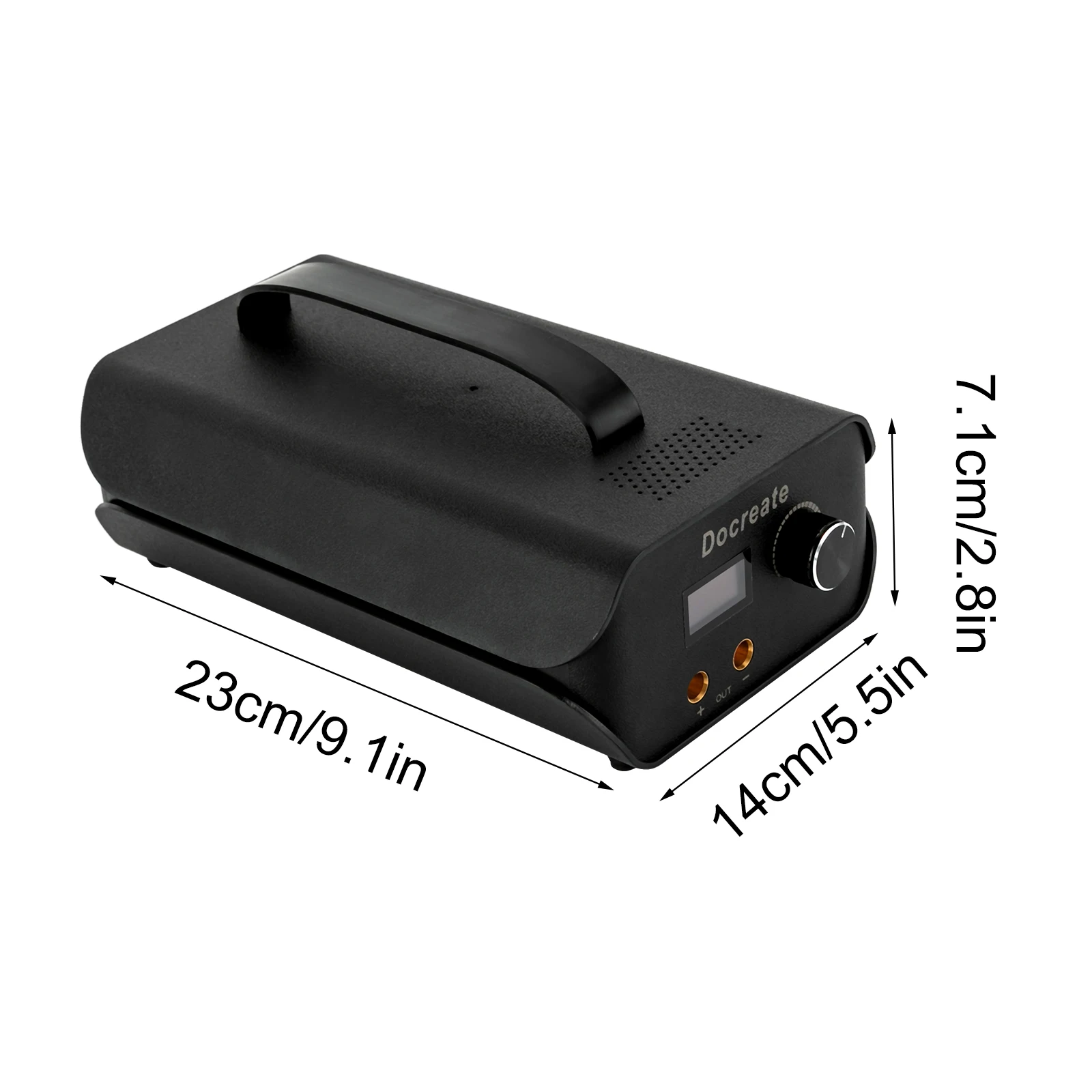

Product Size: 23*14*7.1cm/9.05*5.51*2.79 in
Package Size: 23*14*8cm/9.05*5.51*3.15 in

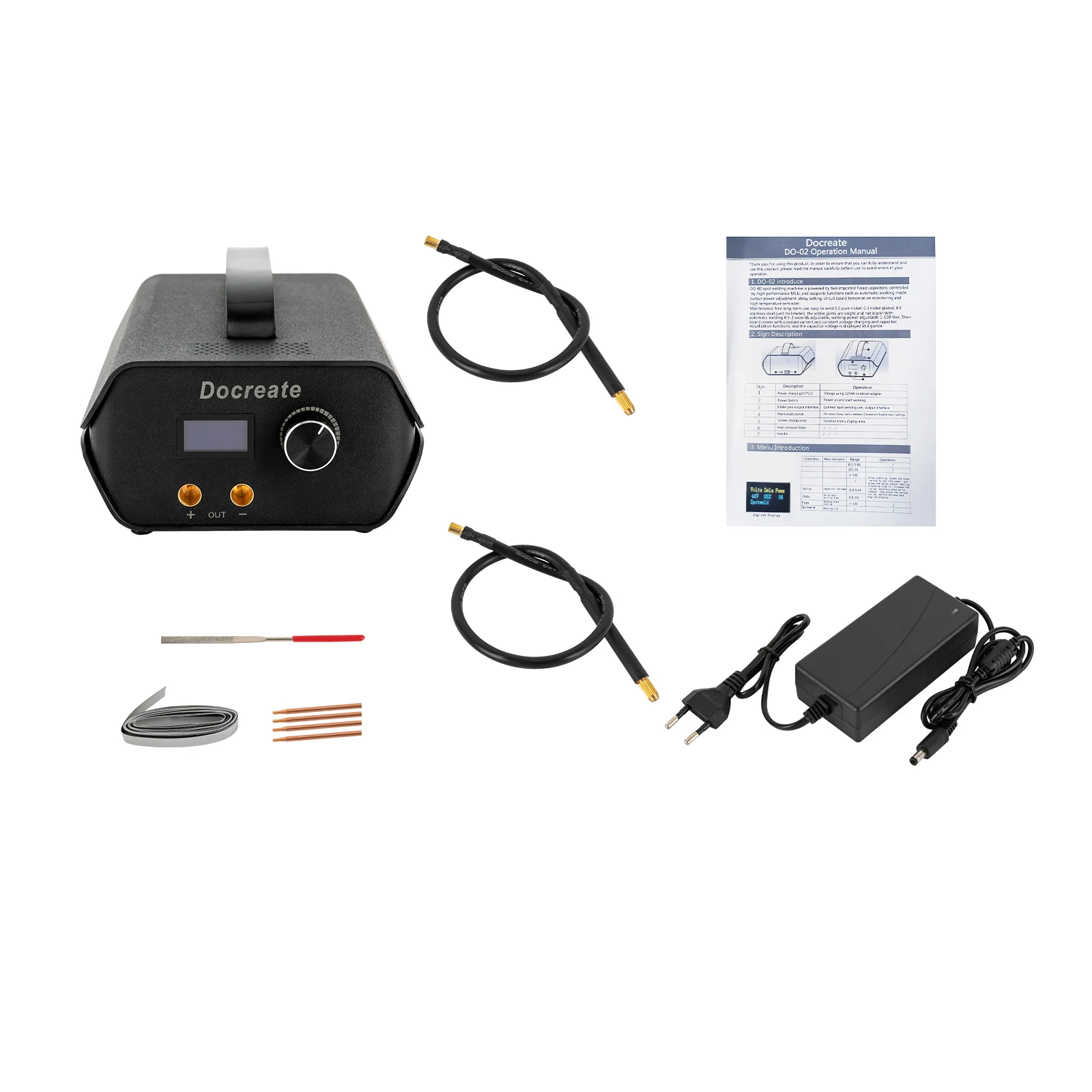

Package Included
1* Spot Welder Host

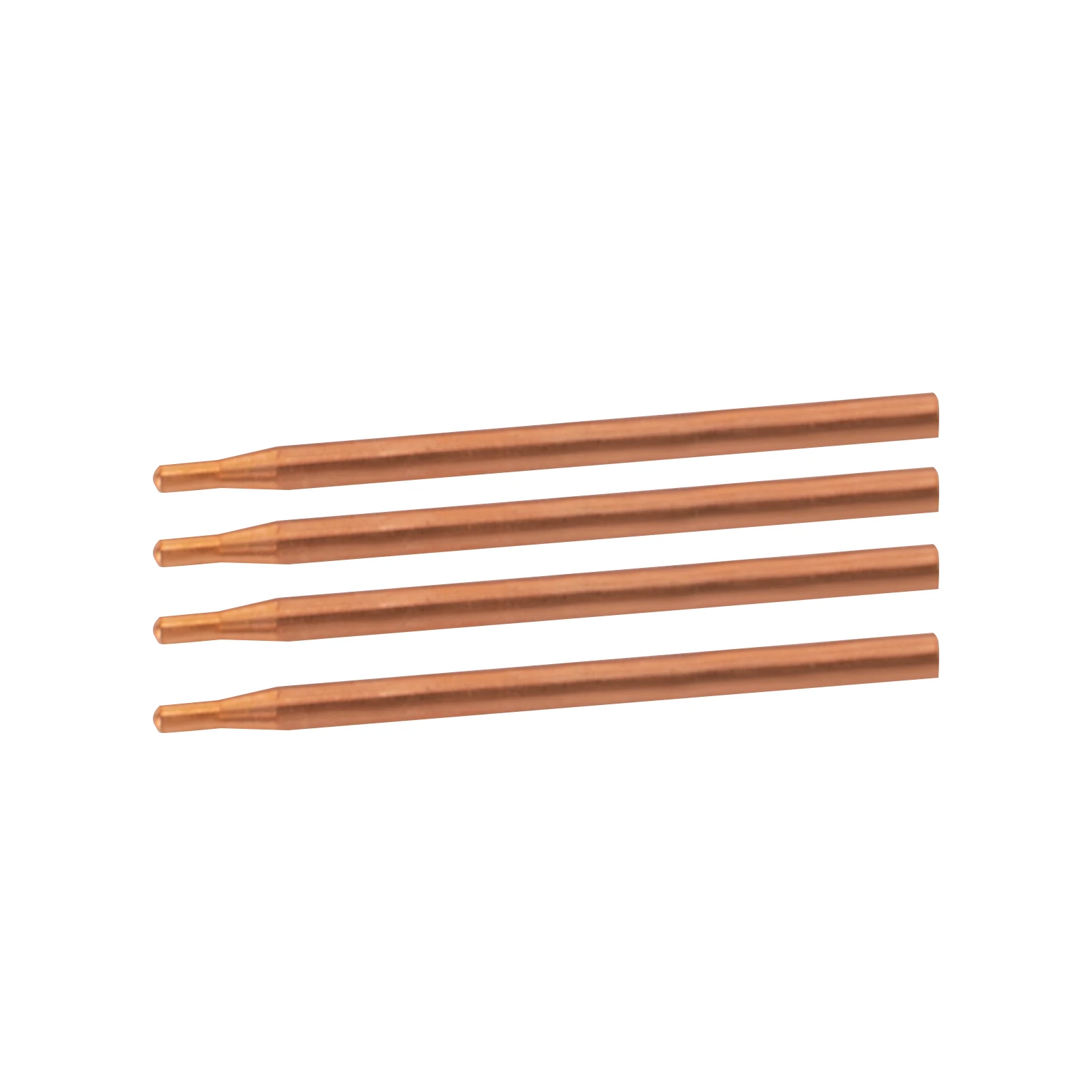

4* Spot Welding Needles

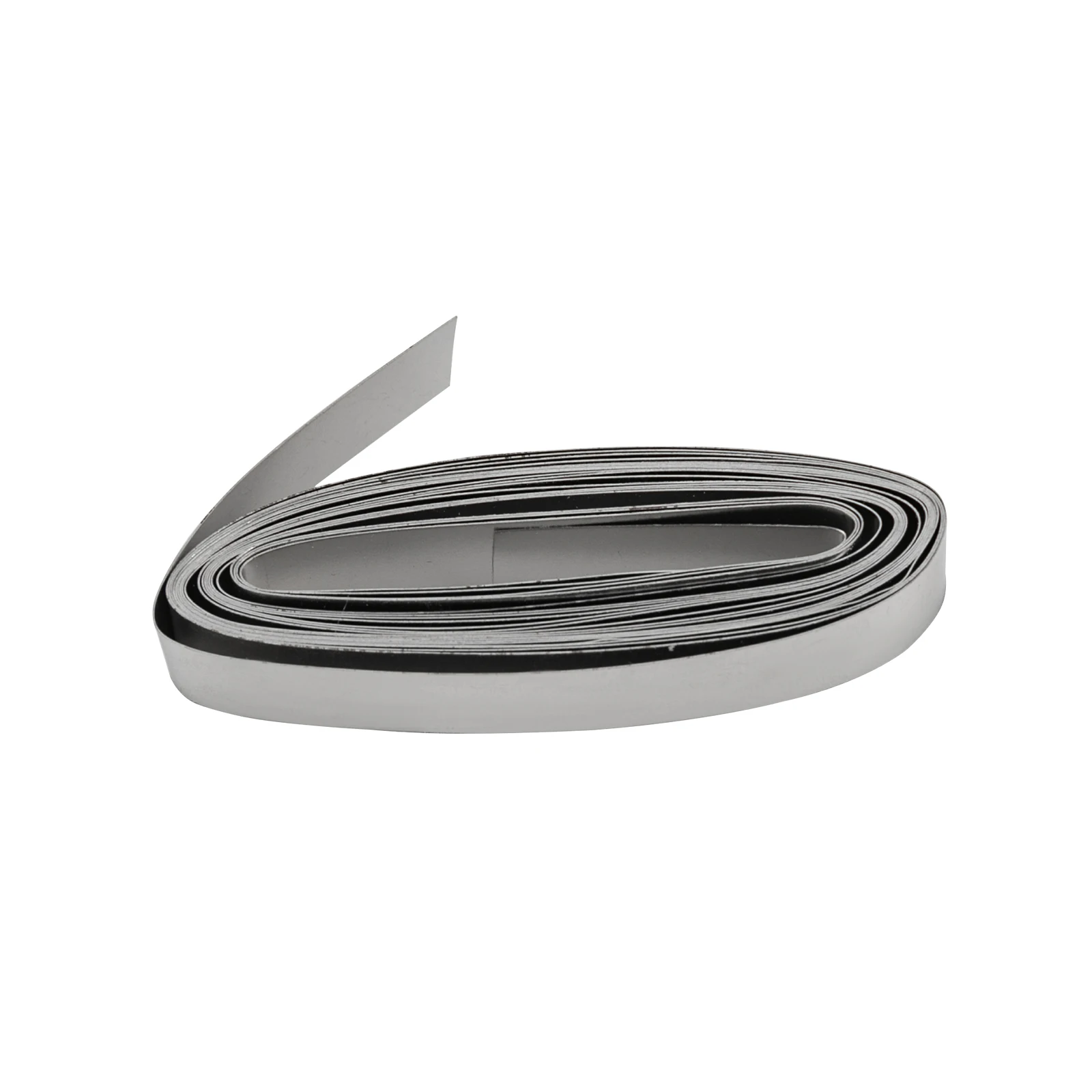

1* Nickel Strip

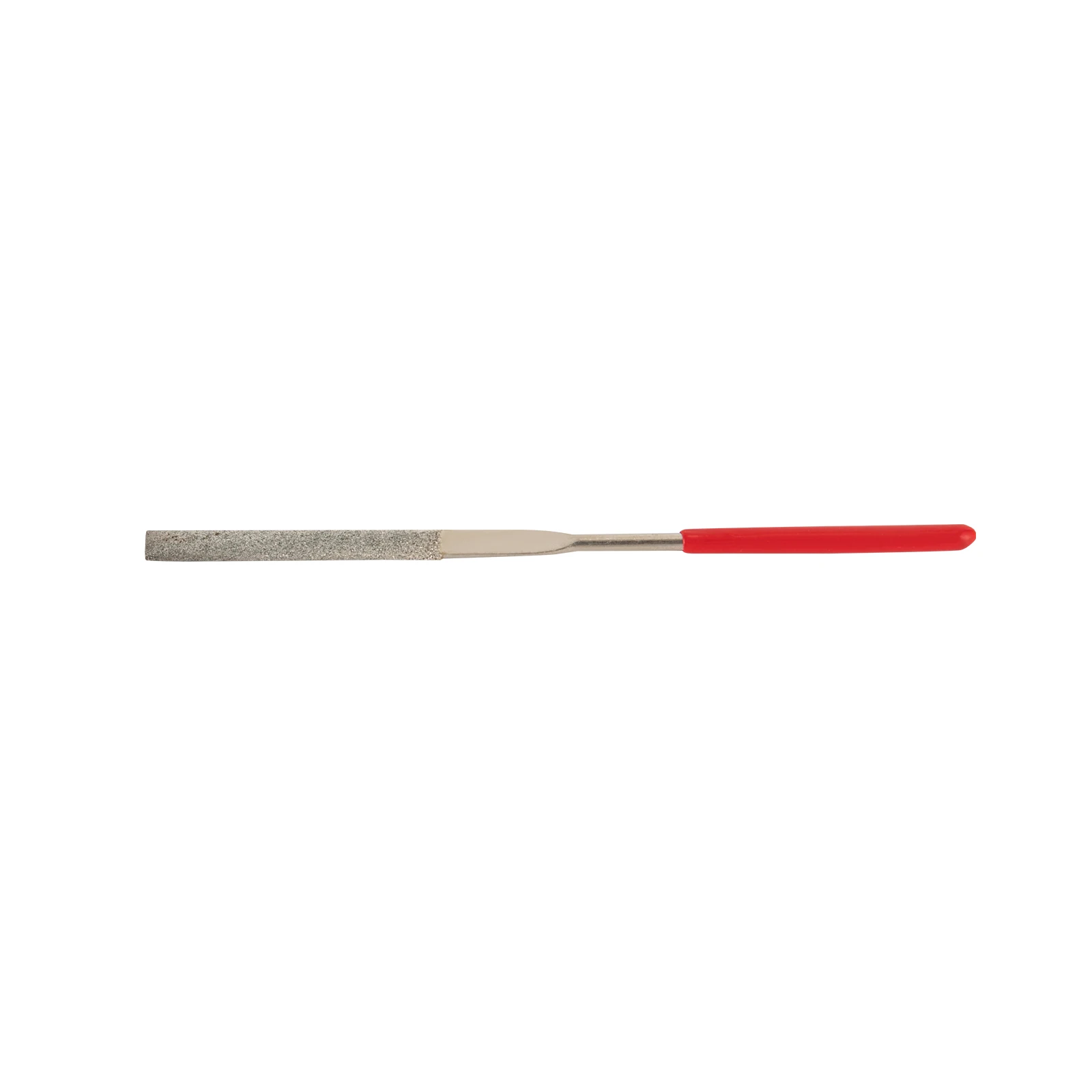

1* File

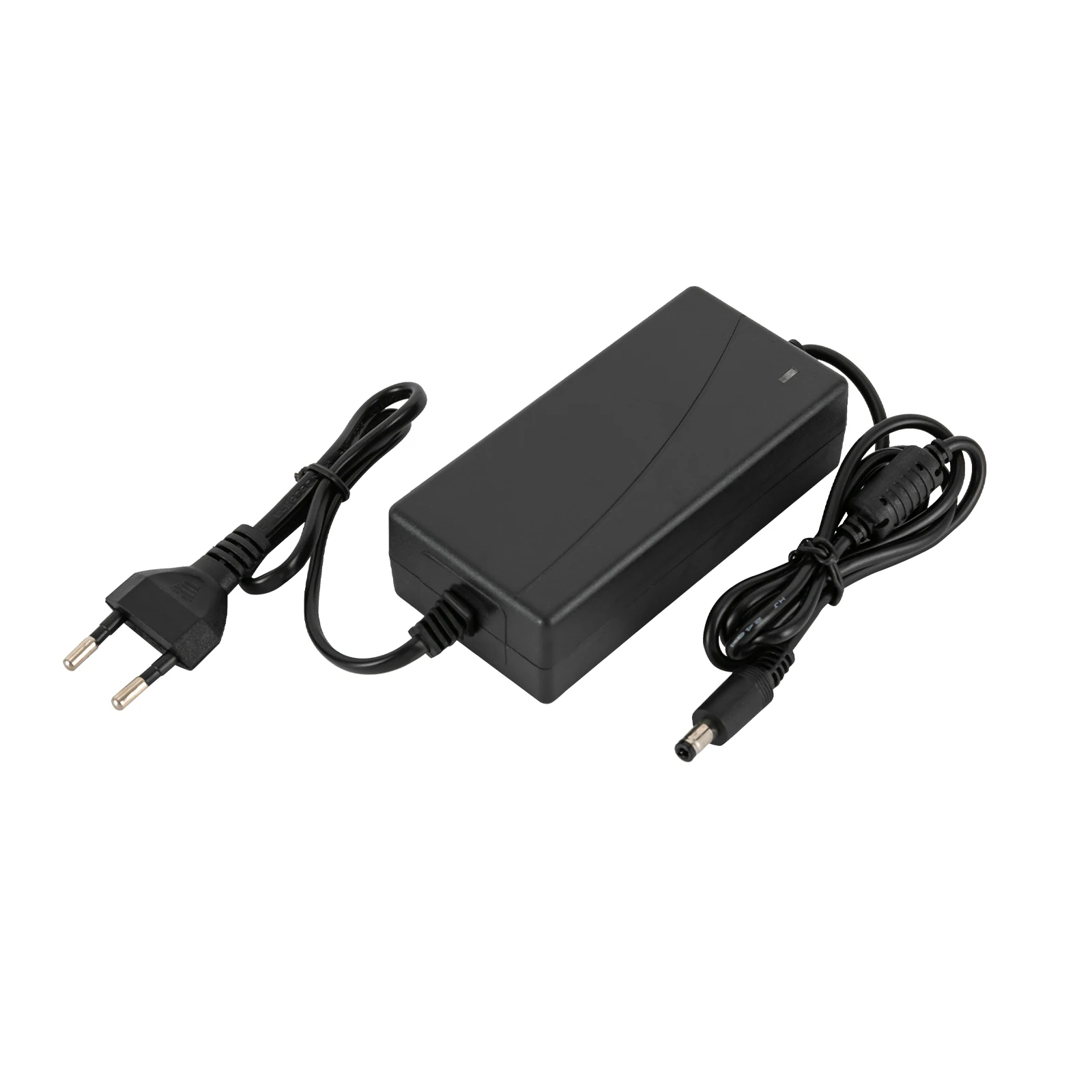

1* Power Supply

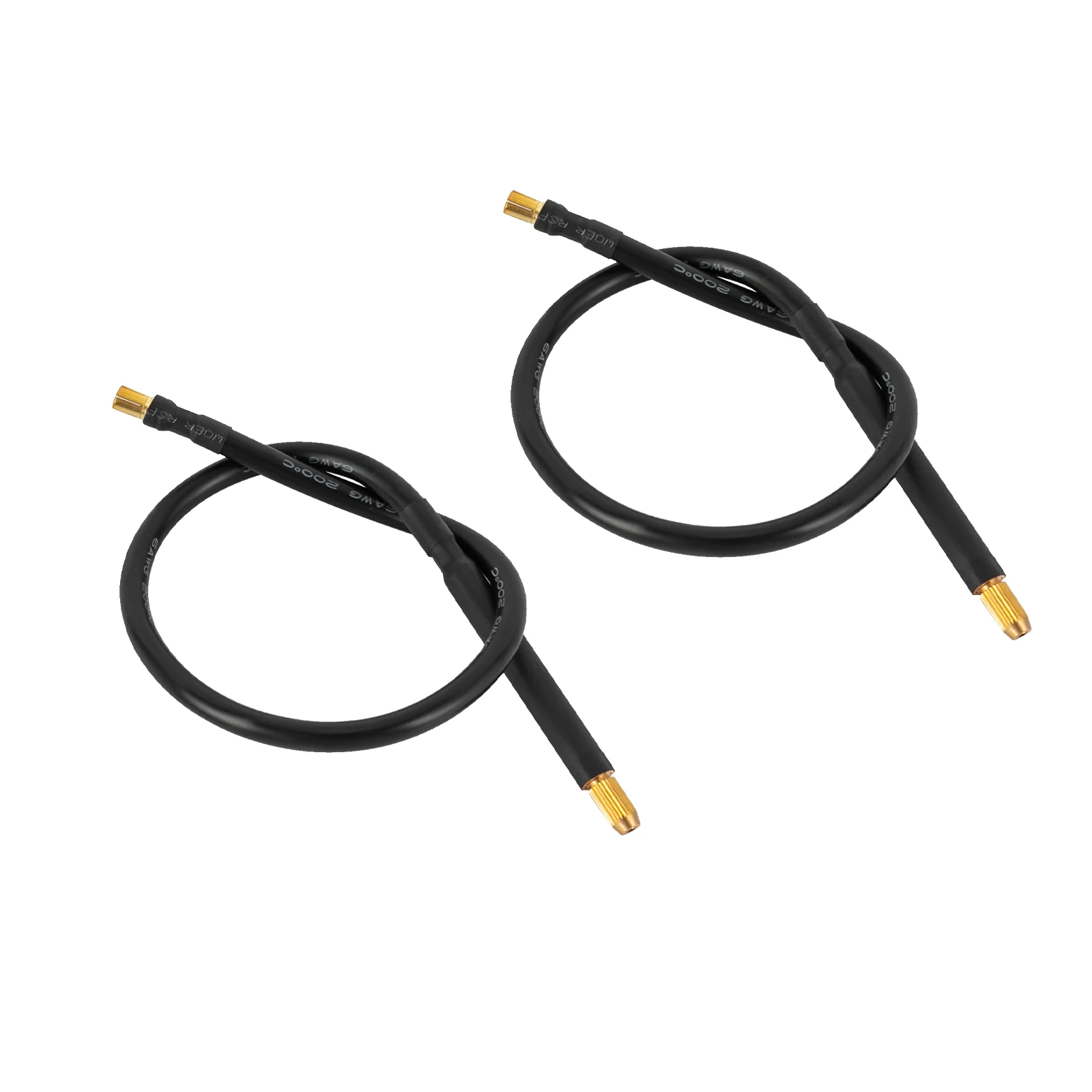

2* Soldering Pens
1* Chinese Manual
Notes
1. Please note that the machine needs to be charged for 20 minutes until the voltage is charged to 5V or more, and then it can be spot welding.
2. Beginners should start testing from gear 1 before use, and gradually increase the gear if not enough.
3. When spot welding, it is necessary to press the pen firmly against the nickel plate, which is the correct operation. And please ensure that the two soldering pens are not in contact before turning on the machine power. Welding operations cannot be carried out after unplugging the power plug, which will damage the machine.
4. Please note that when not in use, you just need to close the main switch and do not discharge the capacitor. Please directly store this machine in a dry environment.
5. Please note that the machine needs to be plugged into the power supply to use.
6. Please note that non-professionals should not disassemble the shell.
7. Please use the power supply and accessories that meet the safety standards, and it is recommended to use the original accessories.
8. Please note that the machine should be switched off after use and stored in a place that is not easily accessible to children.
9. Please note that when you use the machine for the first time, the "Power" setting is set to the default 5ms for spot welding, according to the actual welding results gradually set the appropriate pulse time, to obtain good spot welding results.
10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
