pay attention to
if you chose Front Forks,you will get 1set Front Forks
if you chose Black Triple Tree,you will get 1PC Black Triple Tree Fork Clamp
if you chose Slievr Triple Tree,you will get 1PC Slievr Triple Tree Fork Clamp
if you chose Cylinder,you will get 1PC Cylinder
if you chose 14" Front Wheel ,you will get 14" Front Wheel
if you chose Forks+Triple ,you will get 1PC Front Forks+1PC Black Triple Tree Fork Clamp
if you chose 3pc ,you will get 1PC Front Forks+1PC Triple Tree Fork Clamp+1pc Cylinder
if you chose 1set ,you will get Front Forks+Slievr Triple Tree Fork Clamp+Cylinder+14" Front Wheel+1x front wheel axle

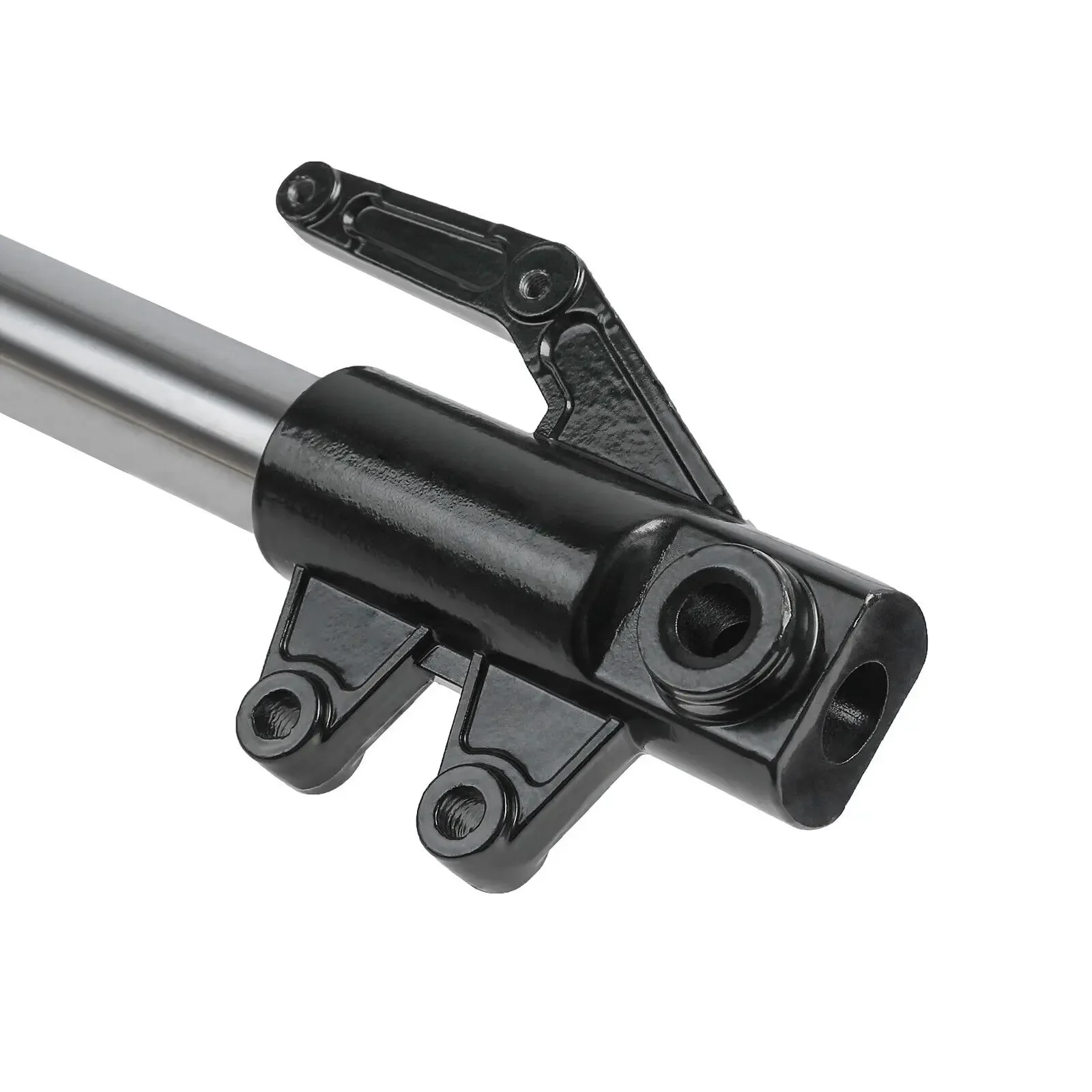

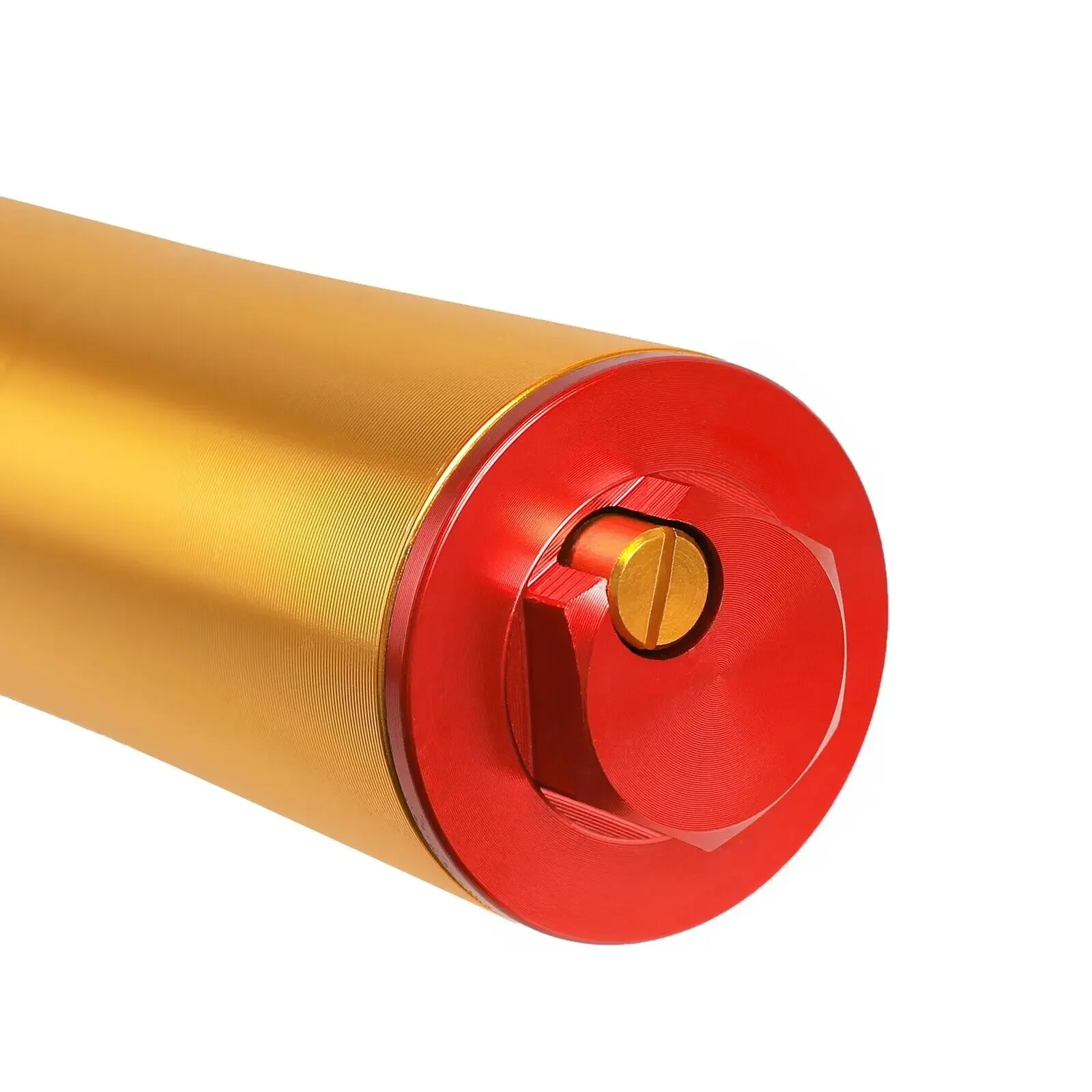

Front Shock Absorber Fork 70cc 90cc 110cc 125cc 150cc Chinese Dirt Bike

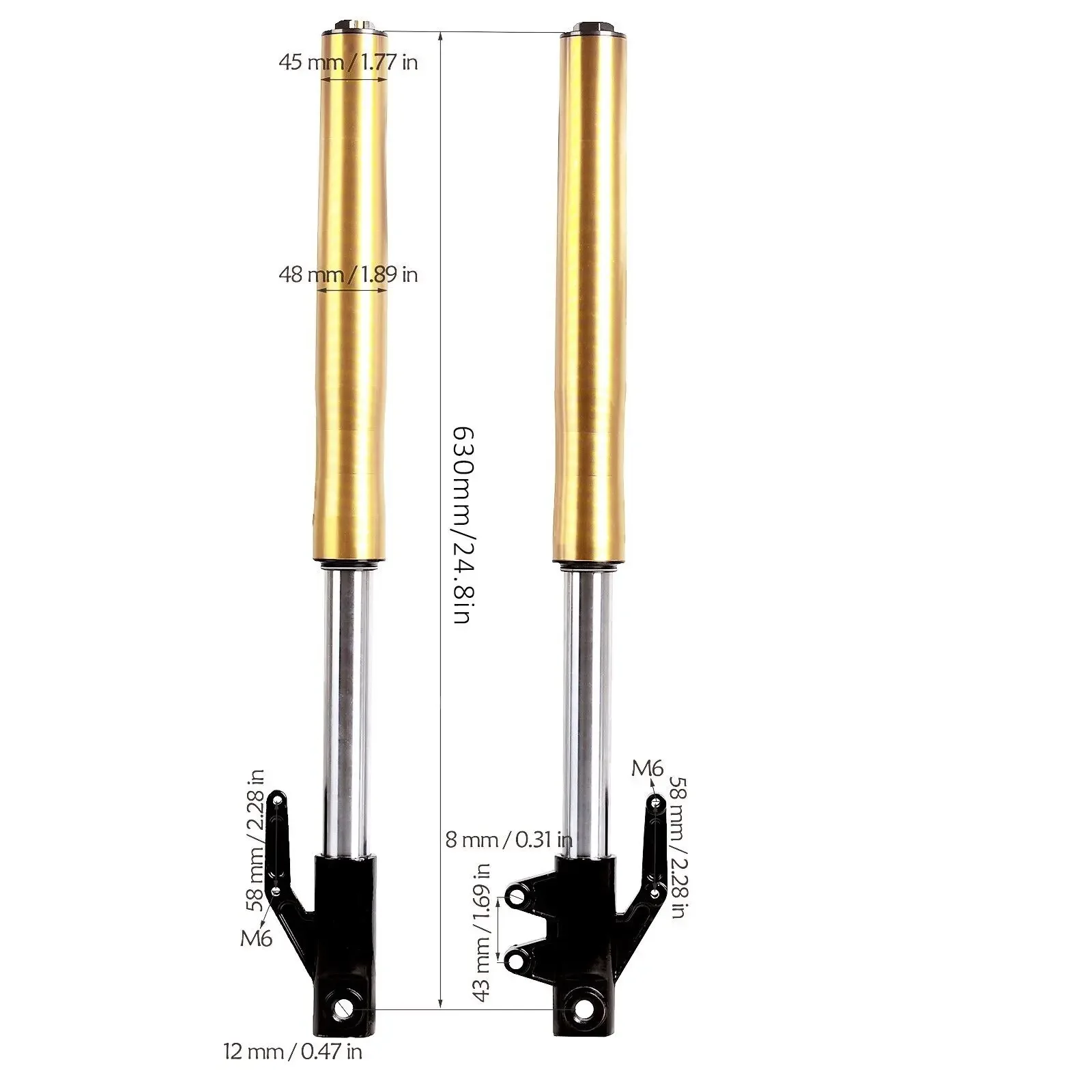

Size Spec: Length -- 630mm (from leg top to wheel axle centre)
Upper Leg Diameter -- 45mm (Triple Clamp Inner Diameter should be 1-1.5mm bigger than this figure)
Lower Leg Diameter -- 48mm
Fit: Chinese motor bike: Tianzhong, Zongshen, TTR, Taotao etc..
Package: A pair of Front Fork Assembly

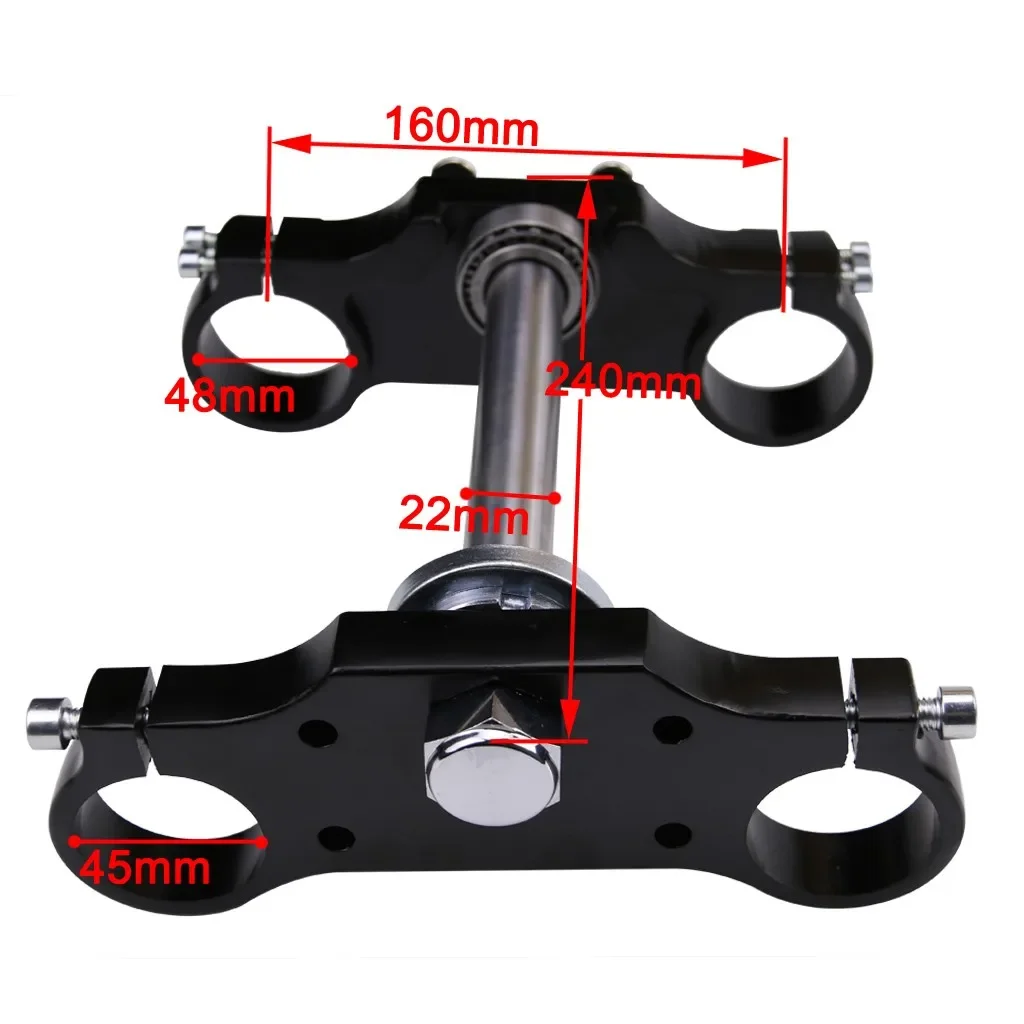

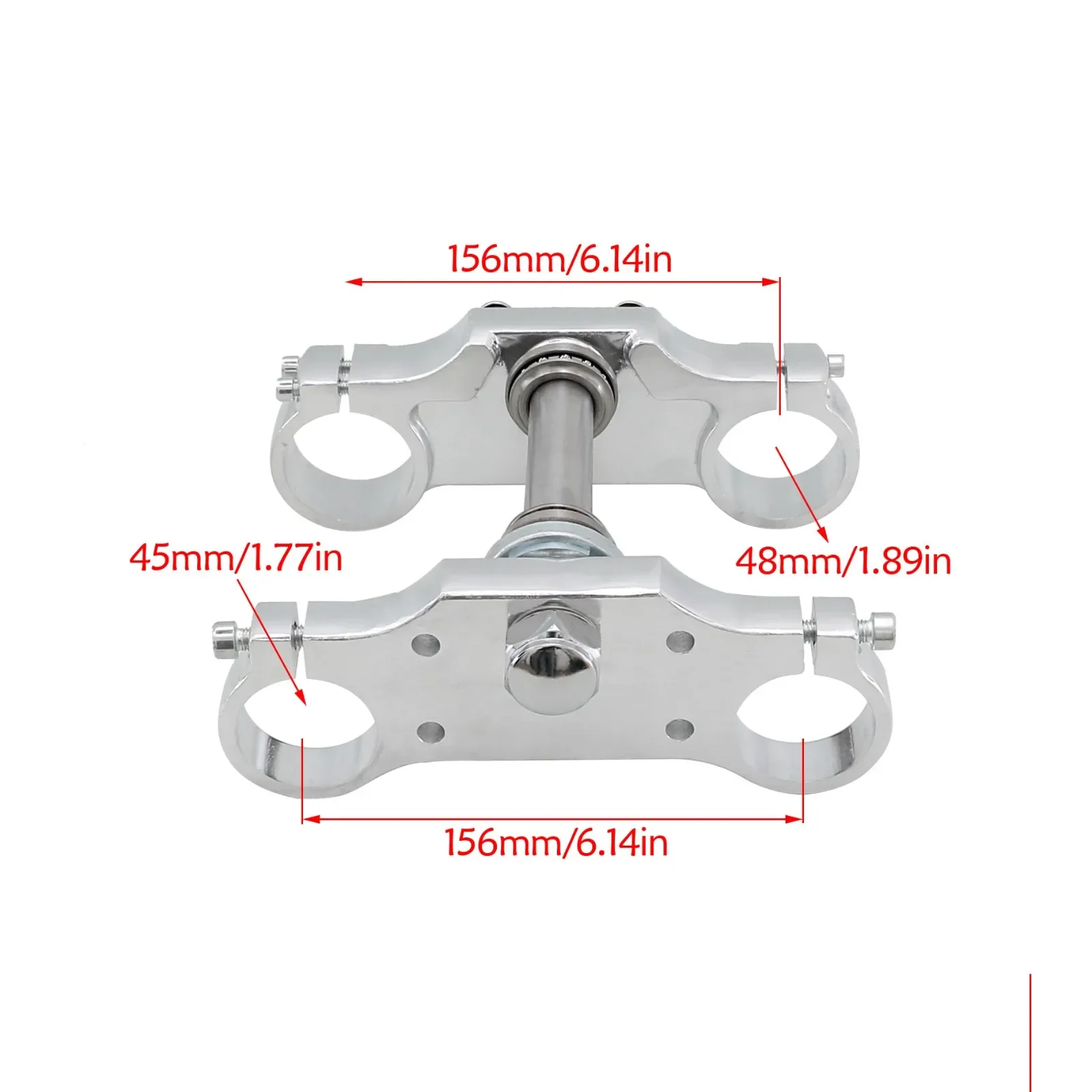

45mm/48mm Fork
22mm Handlebar Mount
Steering column
Bearing size : 41-22.5-24mm
To fit upside down front forks.
Fits Small & Midsize & Bigwheel Chinese Pit bikes
45mm top clamp,
48mm bottom clamp

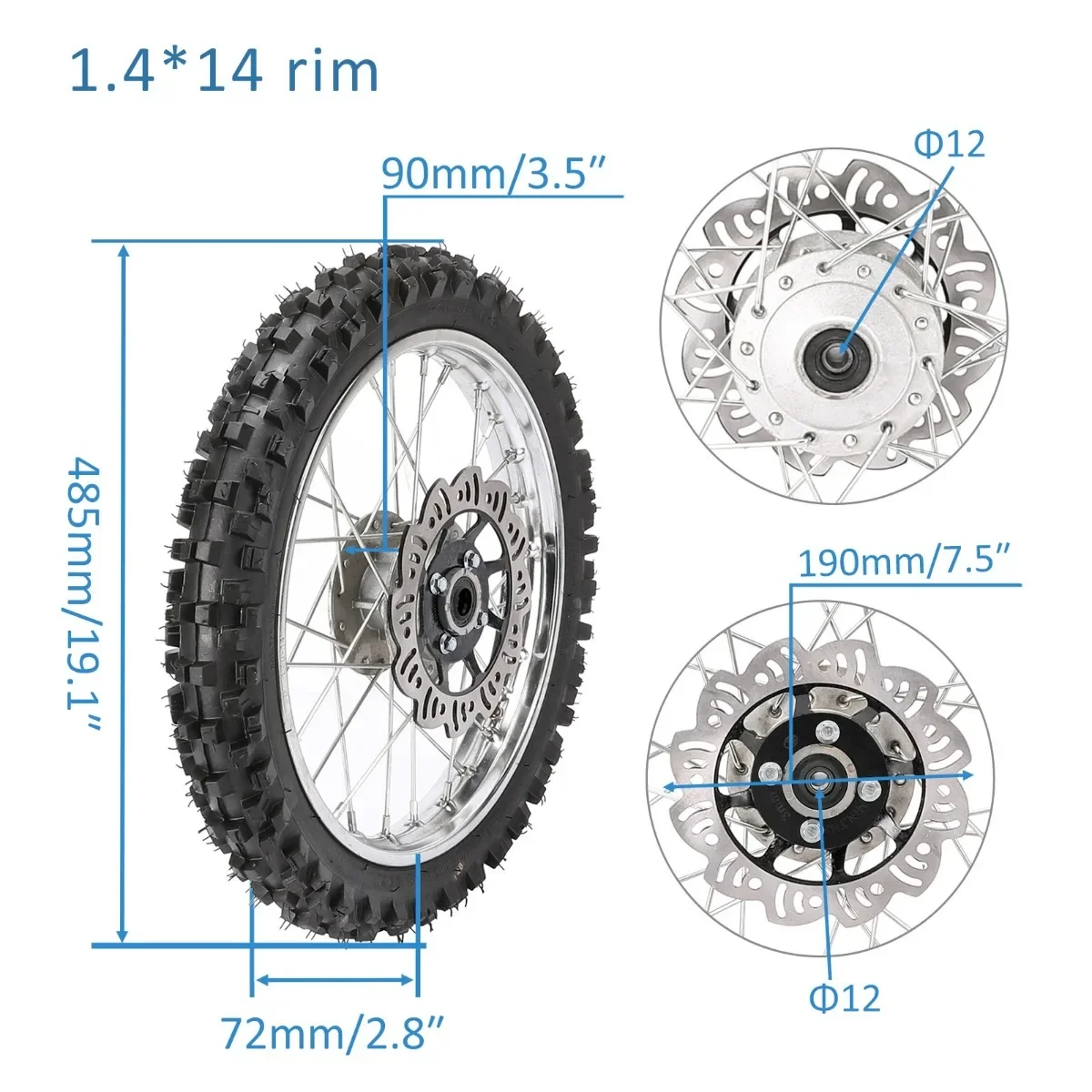

SIZE: Tire 14" / The inner diameter of the wheel bearing is 12mm
Please check measurements before purchase!

Heavy duty spokes and anodized iron rim.
It makes the bike more stable at high speed, stops wobbling, the bike will ROLL over obstacles easier, and it will also have more ground clearance. This is probably the best performance upgrade for the money.
This rim is for DISC brake only and should fit most Chinese made pit bikes.
