Specifications:

Product: Motor + Controller

Application: Light Medium Electric Tricycle And Carriage And Old Car Instead Of Walking

Gross Weight: 6.1Kg

Motor

Rated Voltage: 48V Dc

Output: 750W

Rated Current: 15A

No Load Current: ≤3.0A

Rated Speed: 516Rpm

No Load Speed: 3100Rpm

Gear Ratio: 1:6

Drive Sprocket: 420-14T

Rated Torque: 2.56 N.m

Efficiency: ≥83%

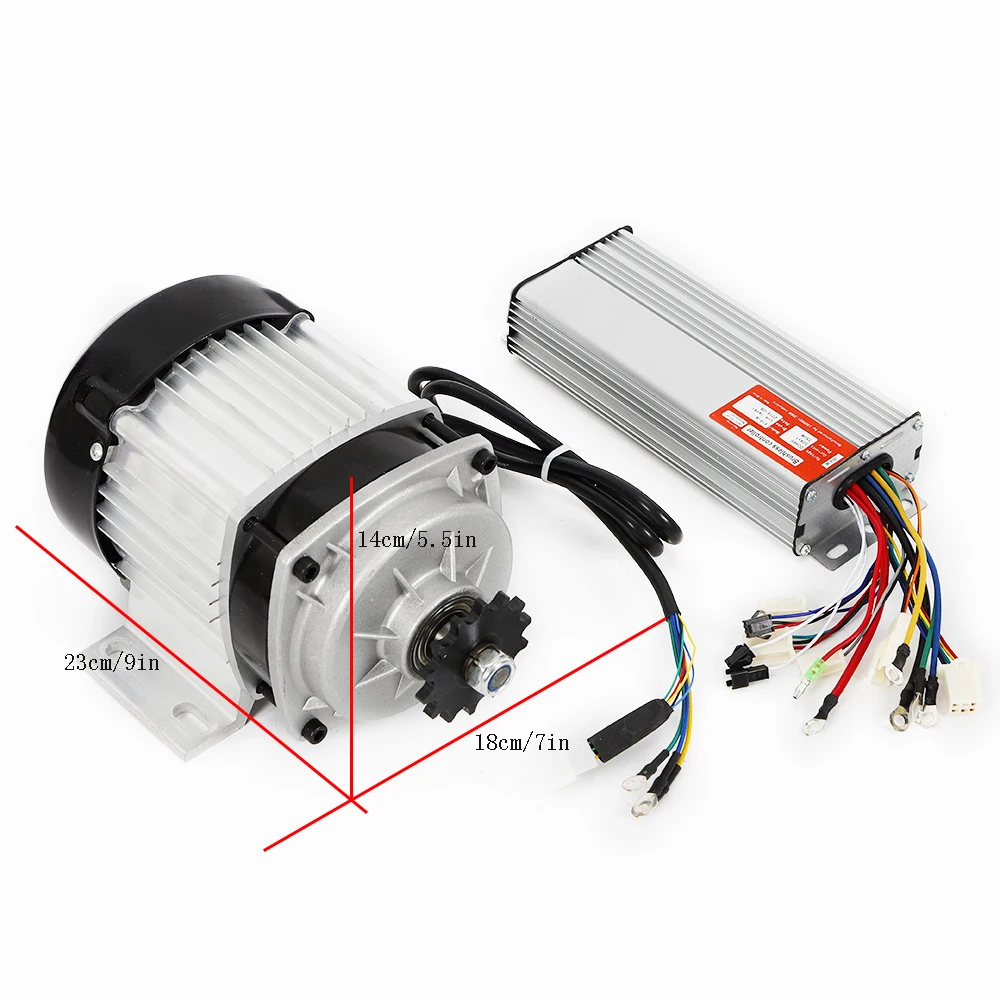

Motor Size: 23*18*14cm/9*7*5.5in

Net Weight: 5.2kg

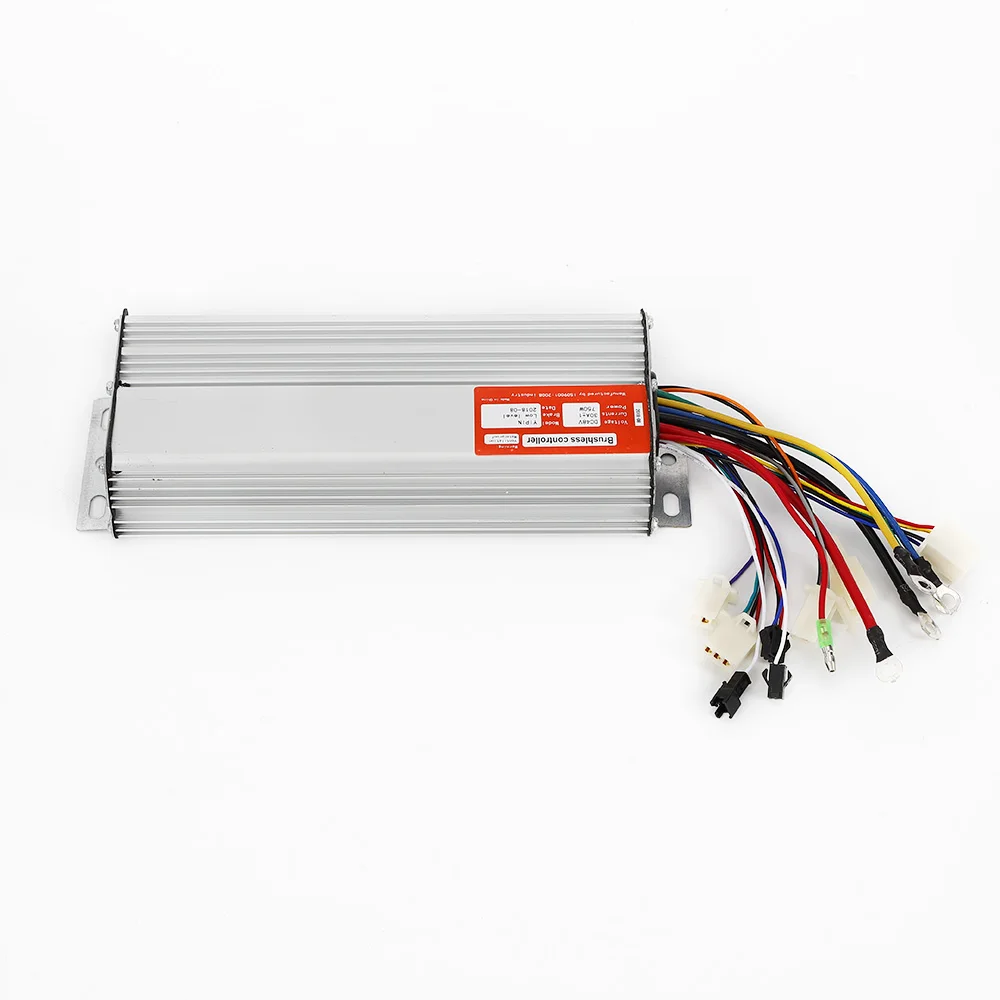

Controller

Matching Motor: 48V 750W

Rated Voltage: 48V Dc

Under Voltage Protection: 42±0.5 V

Speed Regulator (Throttle): 1-4 V

Features:

A Set Of Reliable Universal Brushless Electric Motor

48V Dc 750W With Controller

600 Rpm Rated Speed

14 Tooth Gear For # 420 Chain

Brand New With Top Quality

Electric Scooter Brushless Motor

Chain Drive Electric Scooter Motor

Reduction Permanent Magnet Motor

Suitable For Diy Tricycle, E-Bikes, Electric Scooters

Compatible With Many 48V Bikes With Up To 750W Motors

Application:

This Motor Compatible With Many 48V Bikes With Up To 750W Motors. Suitable For Diy Tricycle, E-Bikes, Electric Scooters. Compatible With Many Other Electric Scooter Makes And Models. Medium Size Tricycle, Bicycle, E-Scooter And All Other Similar Brushless.

Note

Please Check Connector Type And Motor Size And Specs Before Buying As Replacement.

Packages:

1 x Brushless Motor 48V 750W

1 x Controller
