This oscilloscope probe is top quality of oscilloprobes and very practical for testing the oscilloscope. It is provided with several accessories designed to make probing and measurement simpler.

Features:

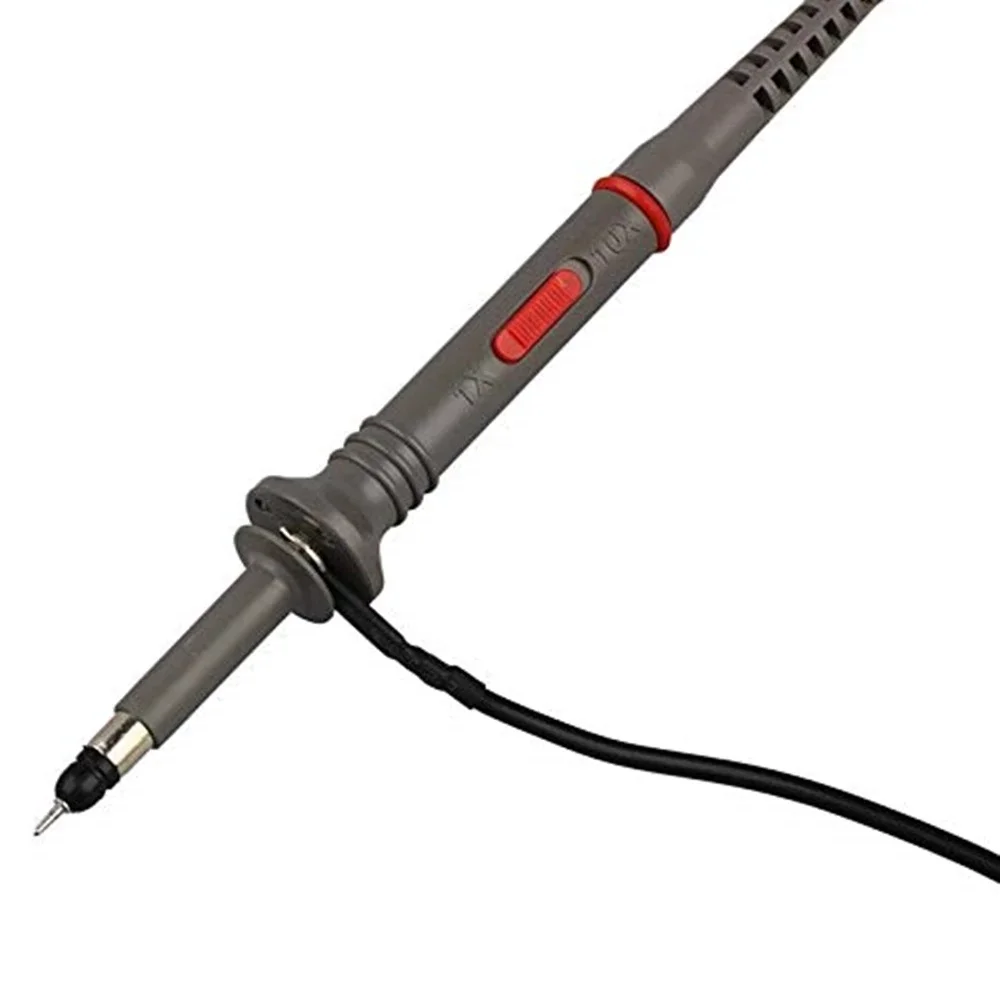

Use the slide switch to set probe attenuation ratio.
Use the alligator clip to attach the probe to a ground reference.
Use the adjustment tool for probe compensation adjustments.
Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point.

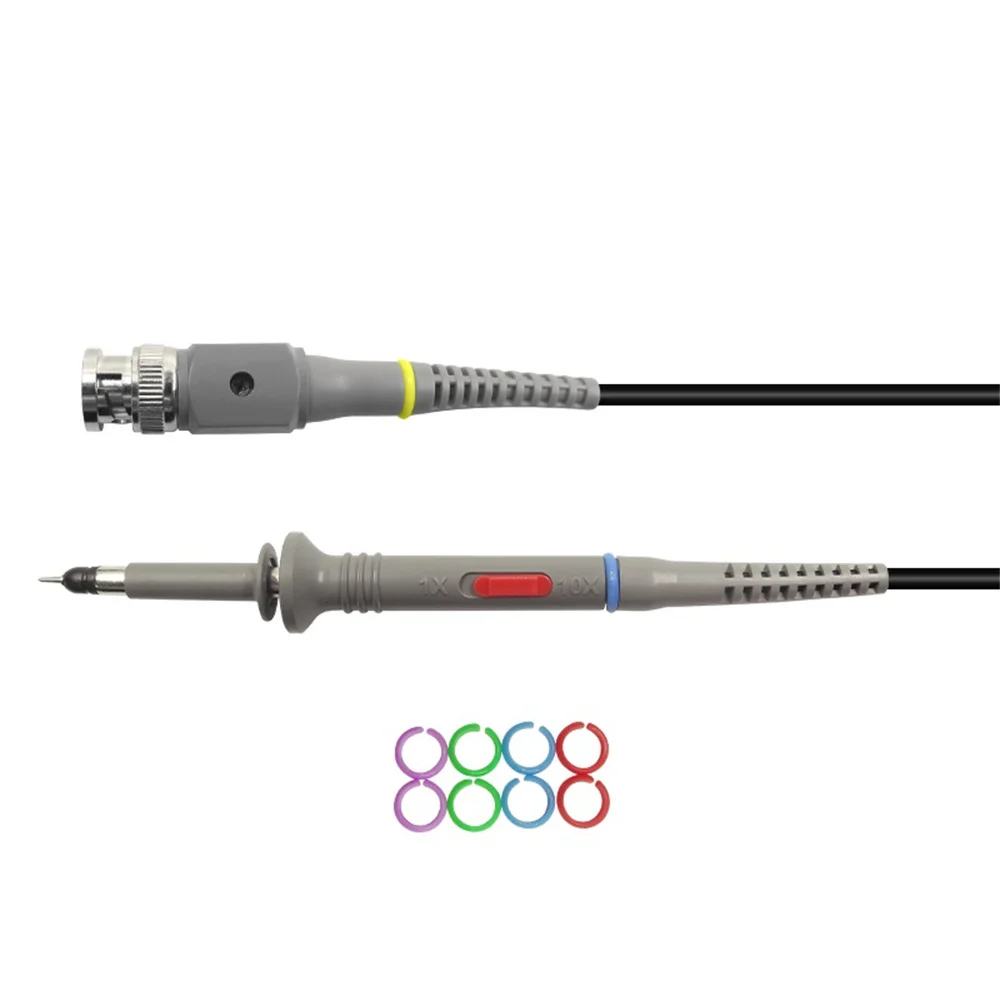

Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels.
Considerate design and efficient assist tools.

Specifications:
Bandwidth: 60MHz
Rish Time: 5.8ns
Attenuation Ratio: 1X & 10X
Input Resistance: 1X: 1MΩ±2% 10X: 10MΩ±2%
Input Capacitance: 1X: 70pF～120pF 10X: 14pF～18pF
Maximum Input: 1X: 200 Working Voltage (Vp-p) 10X: 600 Working Voltage (Vp-p)

Compensation Range: 15～45pF
Operation Environment: 0～50℃, 0～80%RH
Storage Environment: -20～60℃, 0～90%RH
Color: Grey + Black
Material: PVC, Copper Pipe
Length of the Item: Approx. 123cm / 48.4in
Item Weight: 98.1 / 3.4oz
Package Size: Approx. 22 * 14 * 2cm / 8.7 * 5.5 * 0.8in
Package Weight: 128g / 4.5oz

Shipping list:

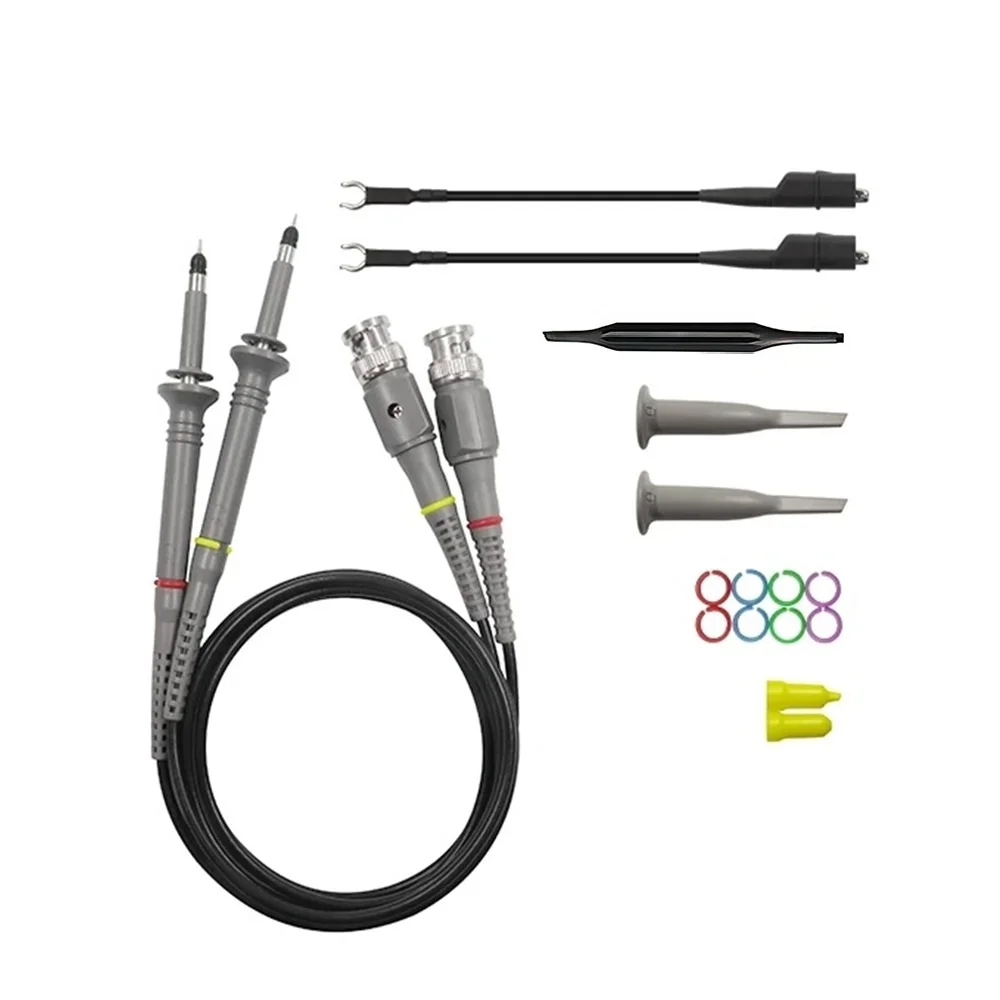

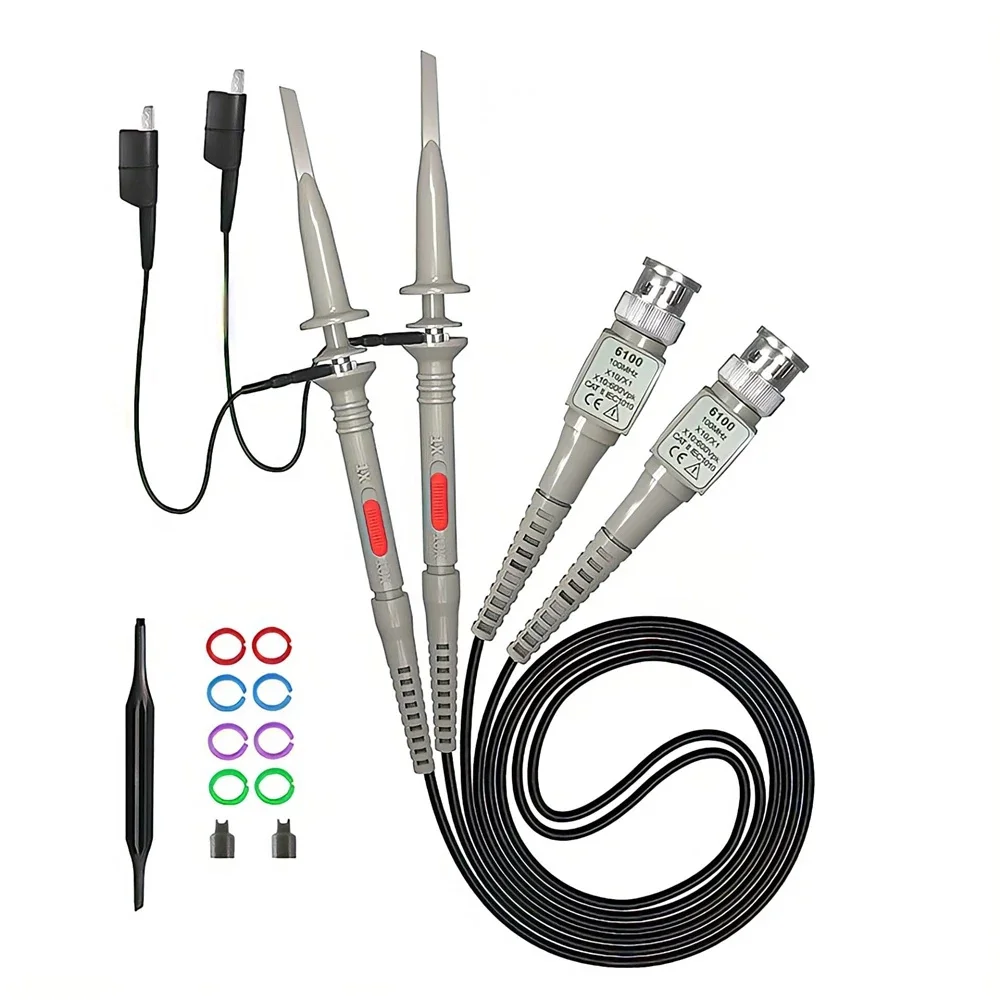

Package includes(P6060-2pcs):
• 2 x Probes
• 8 x Marker rings
• 2 x Ground leads
• 2 x IC Test Protection Cap
• 1 x Adjustment tool

Package includes(P6060-1pcs):

• 1 x Probes

• 1 x Ground leads

• 1 x IC Test Protection Cap

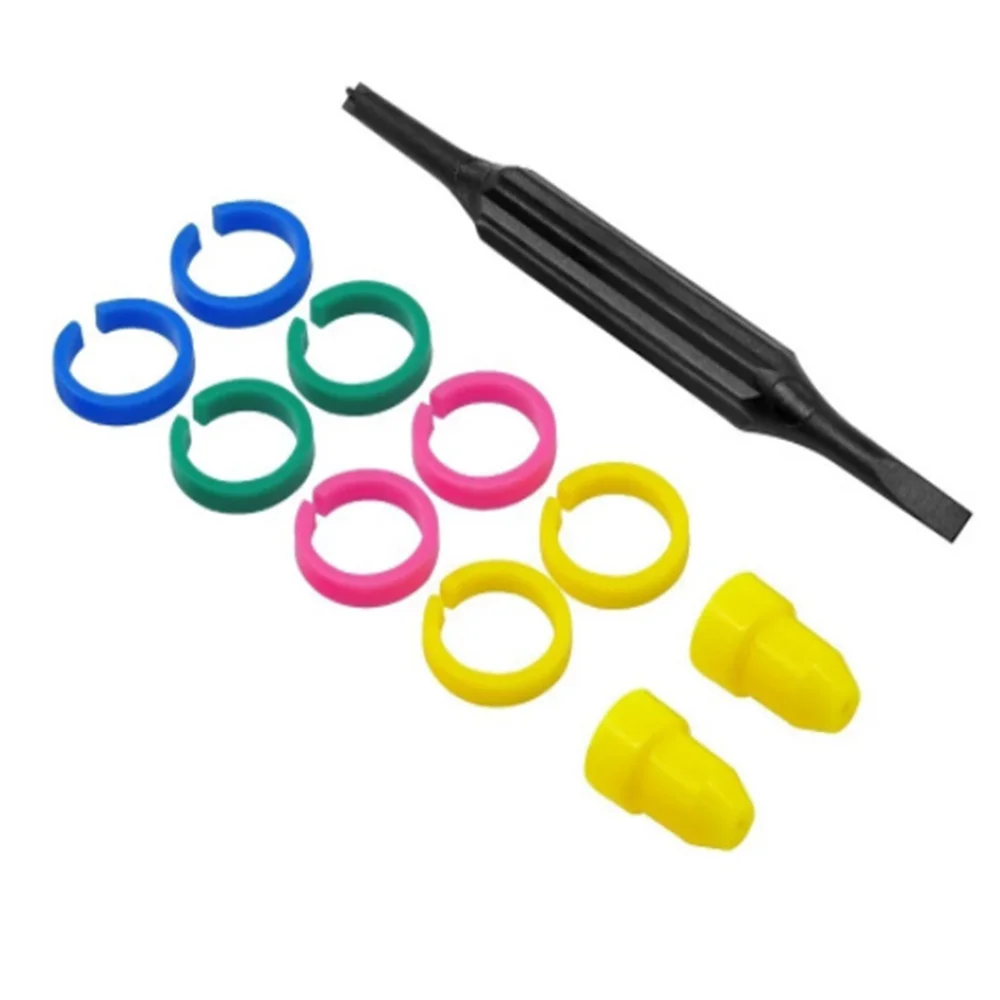

Package includes(Adjustment tool):
• 8 x Marker rings
• 1 x Adjustment tool（Colored ring）
