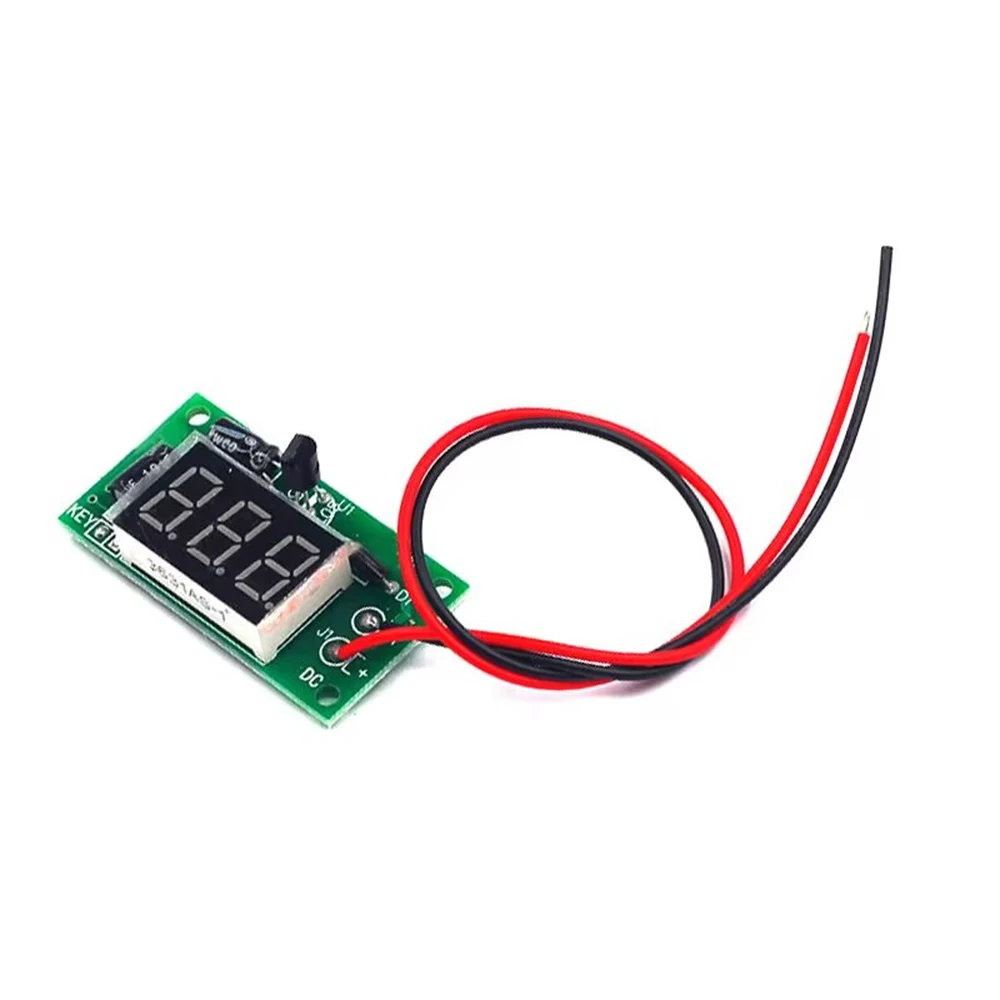

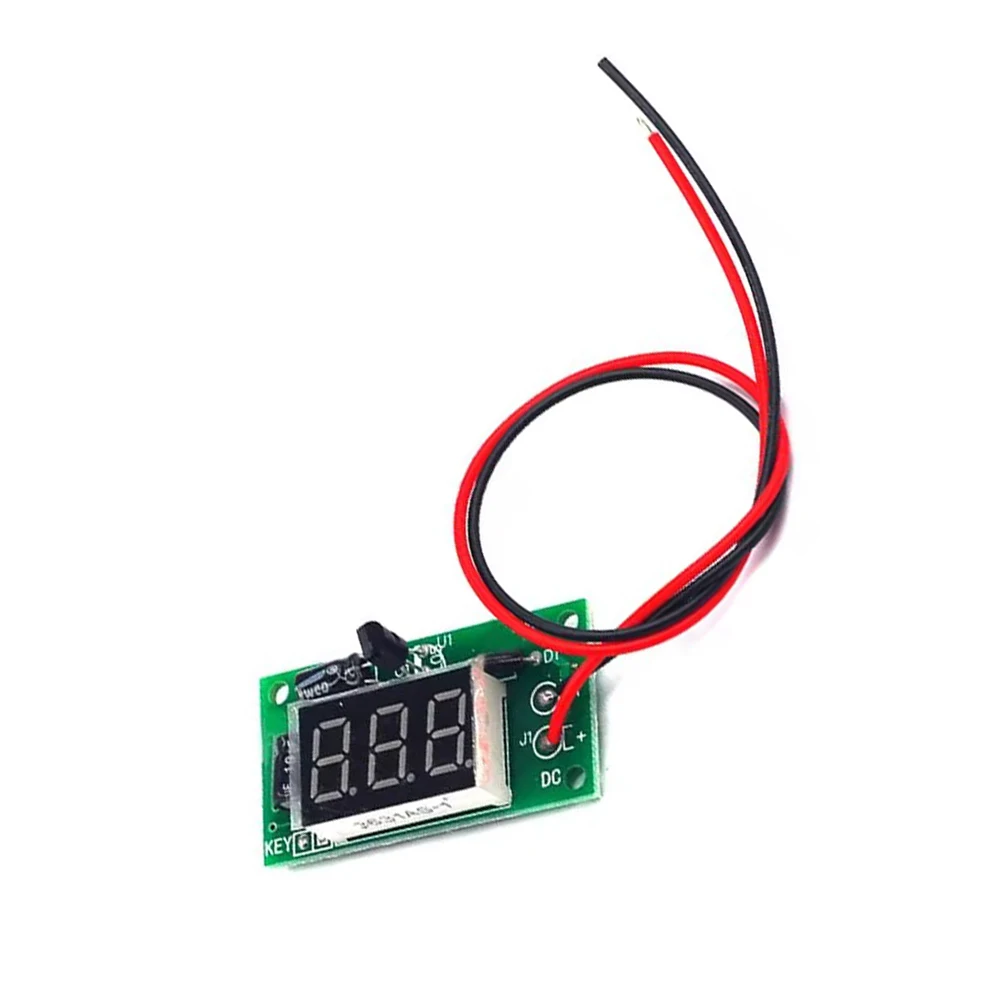

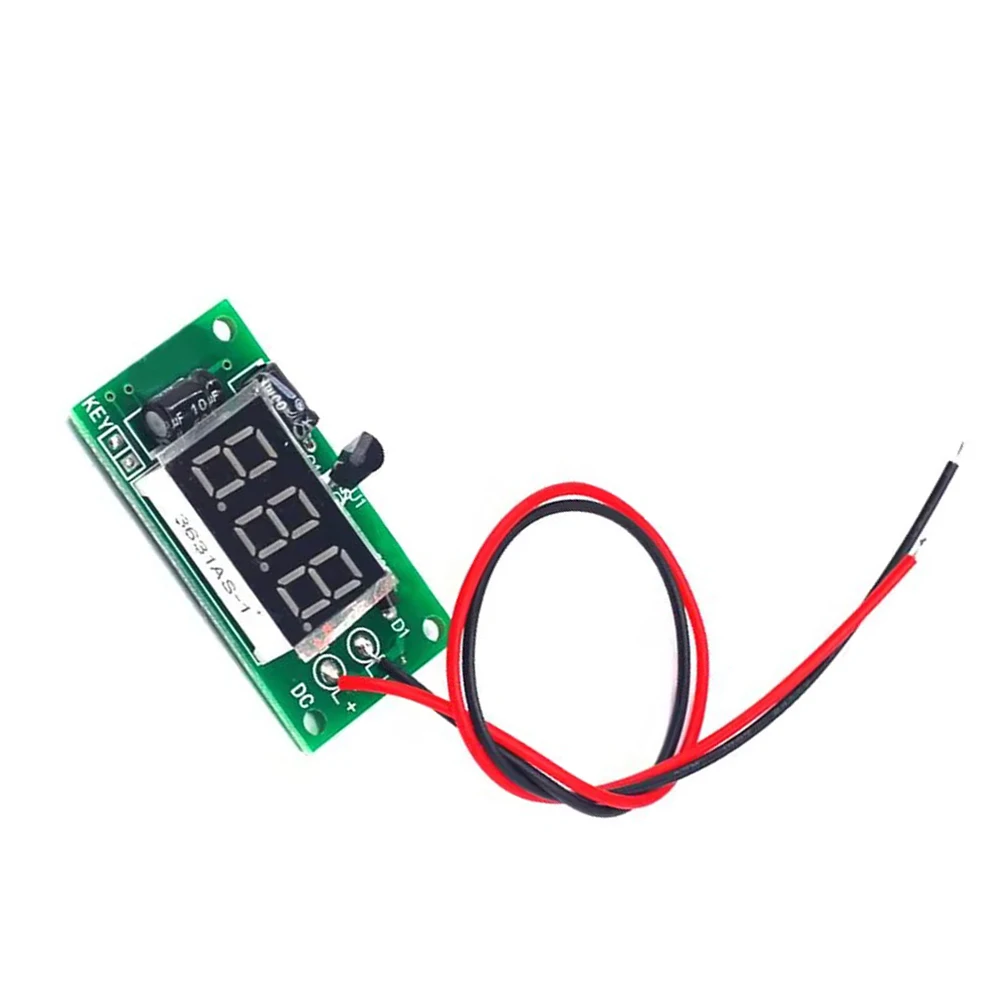

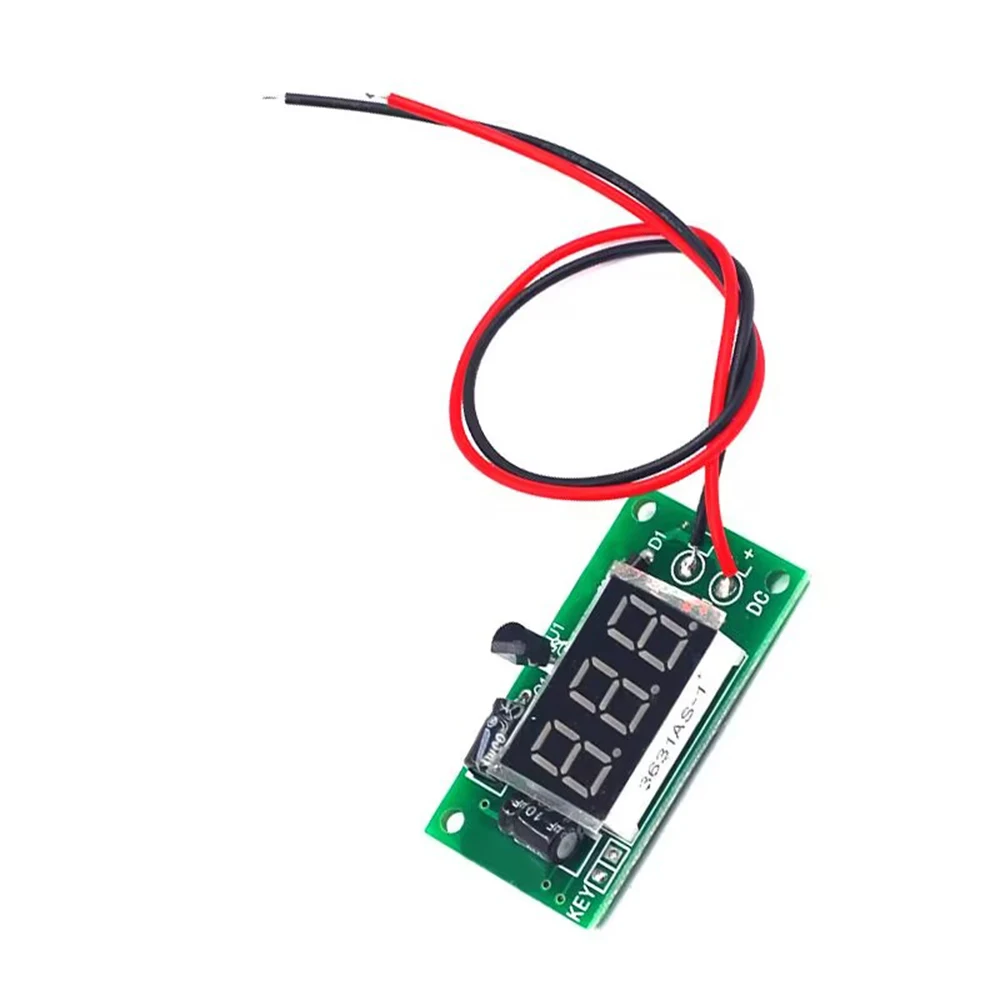

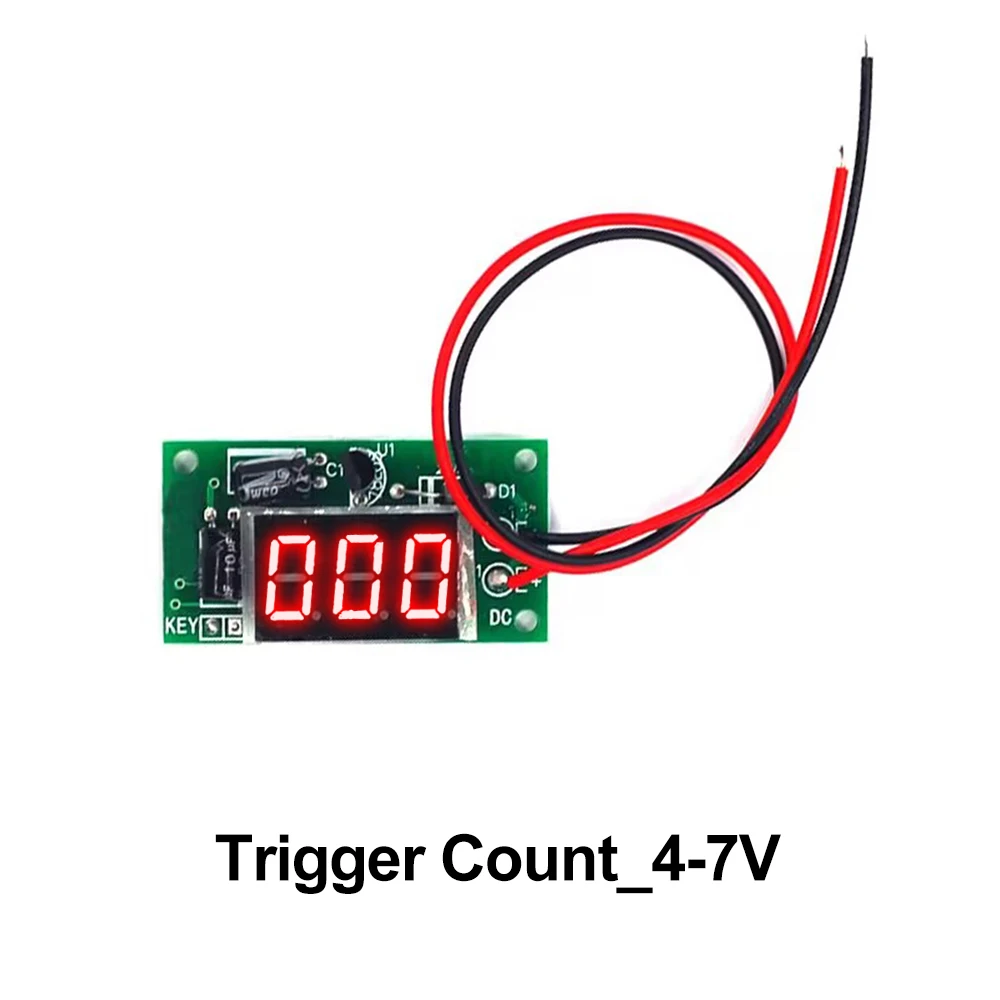

DIY Digital Counter 3-Bit Accumulator 0.36“ inches Tube Trigger Counter Module Accumulator for Electronic Component Accessory

Features:

1. Use high quality material, durable

2. Exquisite appearance, beautiful arrangement of components

3. Small size and simple application, free choice of different modes

4. Efficient and stable performance, long working life

5. Wide range of citations

parameter:

Working voltage: DC4-7V/DC7-16V/DC15-26V (freely choose the voltage range)

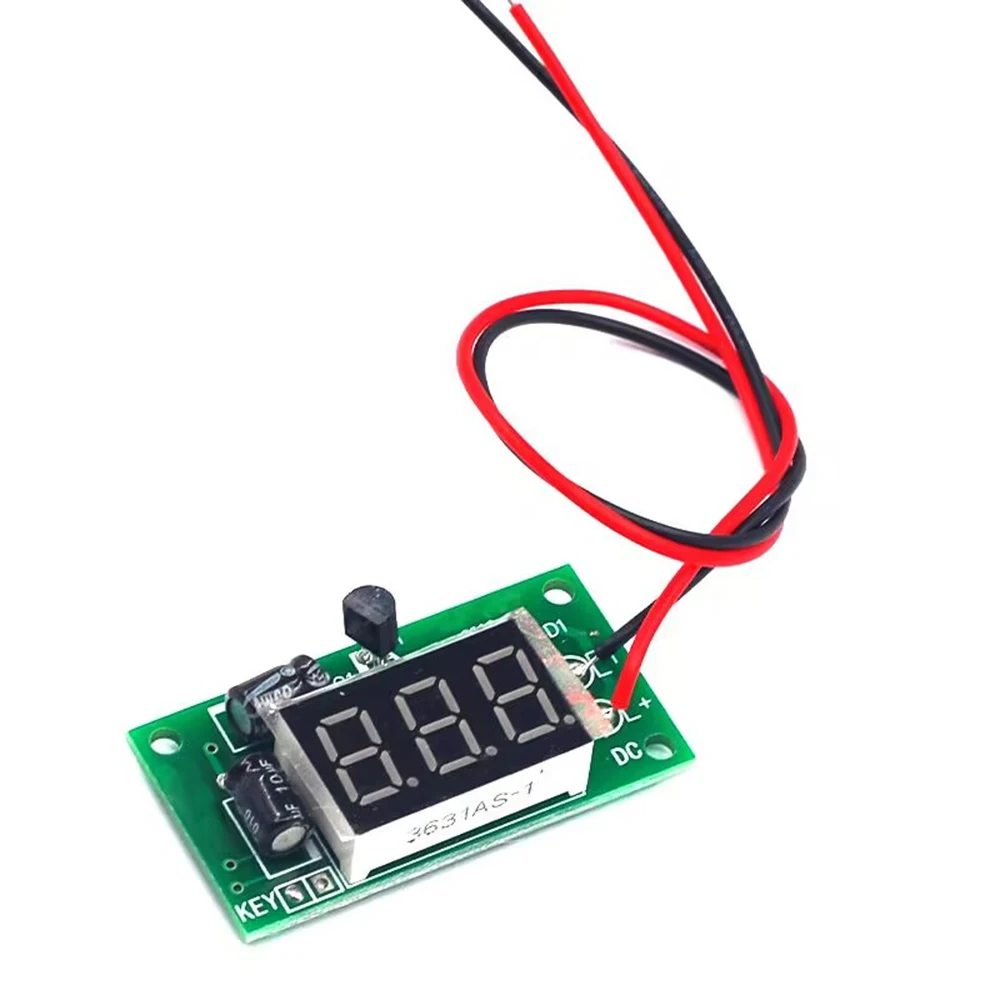

Display: 3-digit digital tube, 0.36 inches, red

Function:

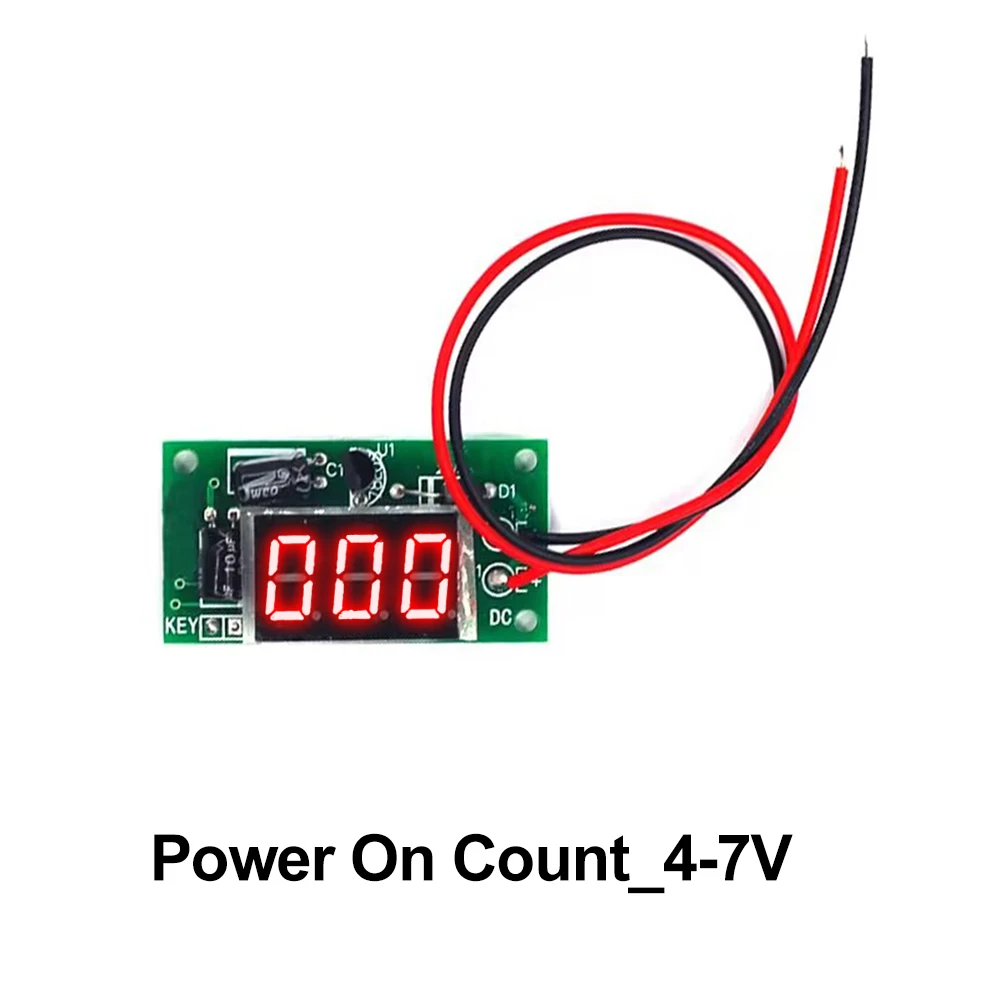

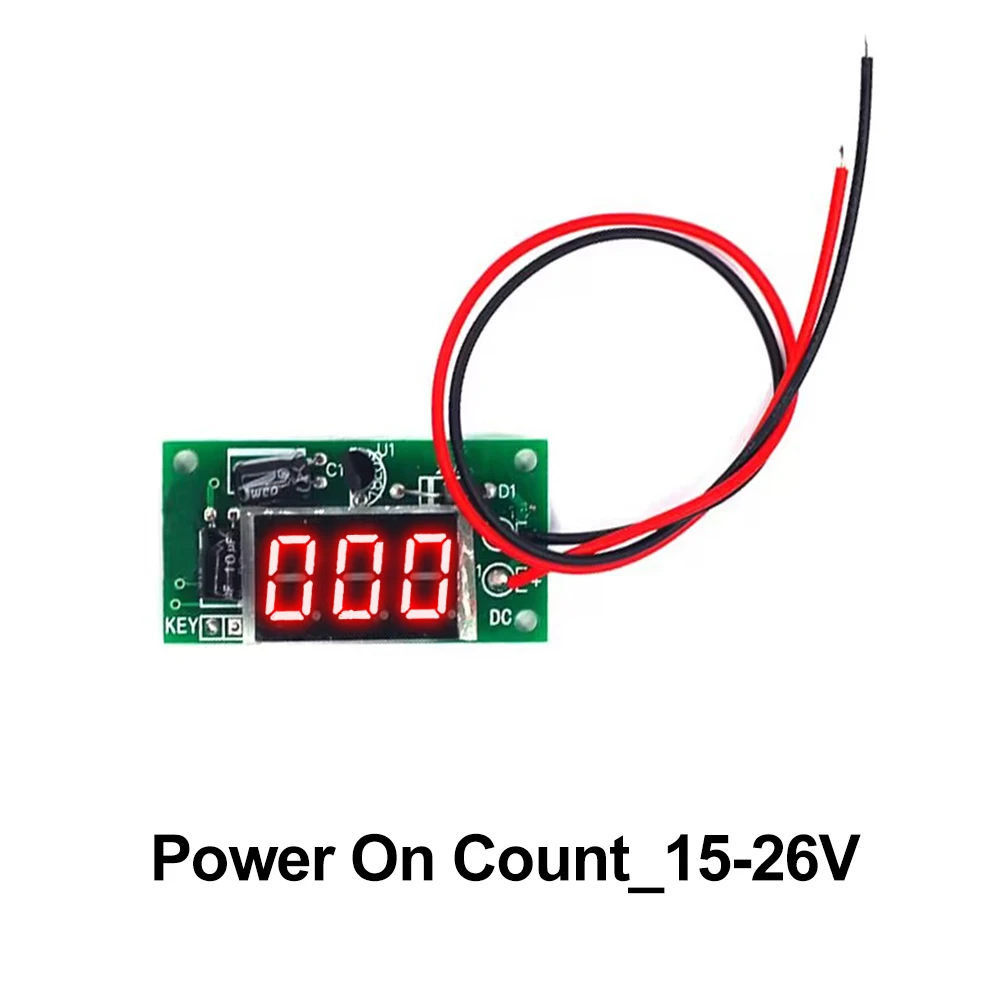

MC03-1: Count +1 every time the power is turned on, the maximum value is 999, and it will start from 0 if it exceeds the maximum value, and the data will be saved when the power is turned off

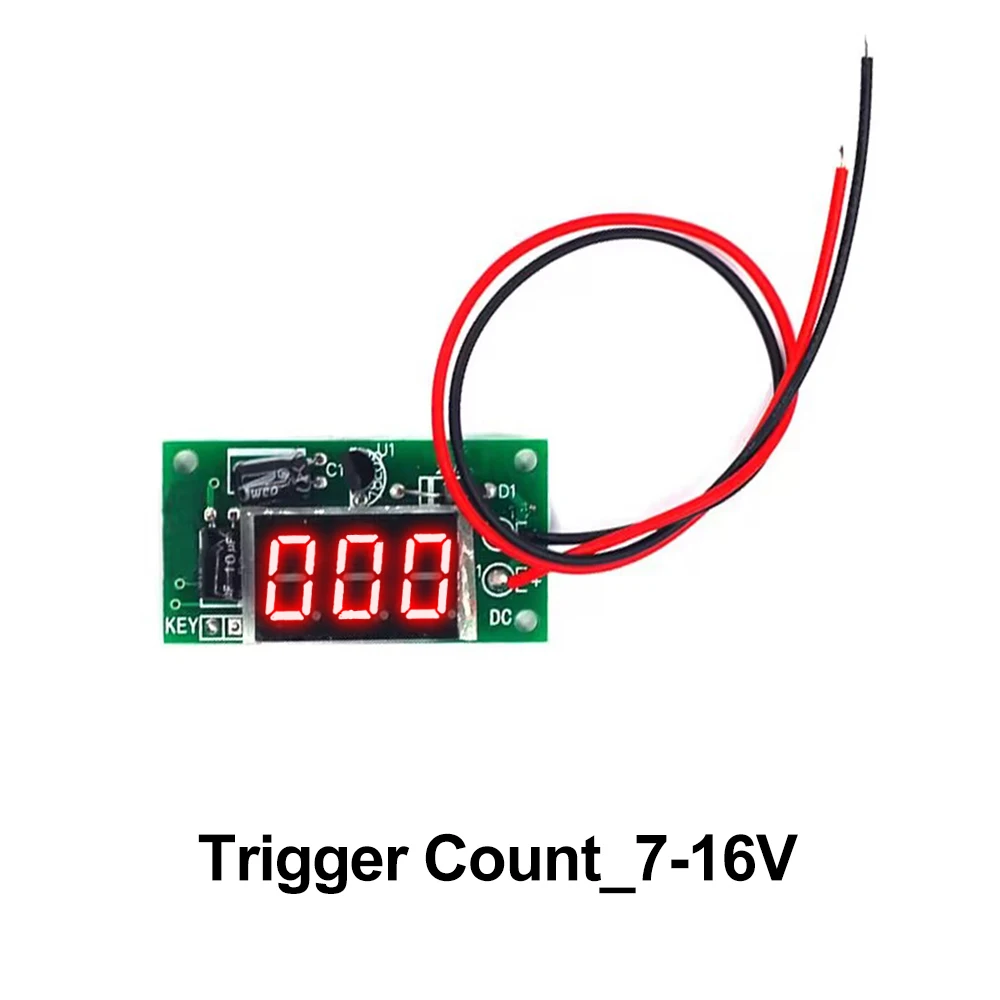

MC03-02: It will not automatically add 1 when the power is turned on, and the KEY count will be +1 every time it is short-connected, with a maximum value of 999. If it exceeds the maximum value, it will start from 0, and the data will be saved when the power is turned off

Instructions:

1. Every time the power is turned on, the count will automatically increase by 1 (if you do not need the power-on count plus 1 function, please choose MC03-02)

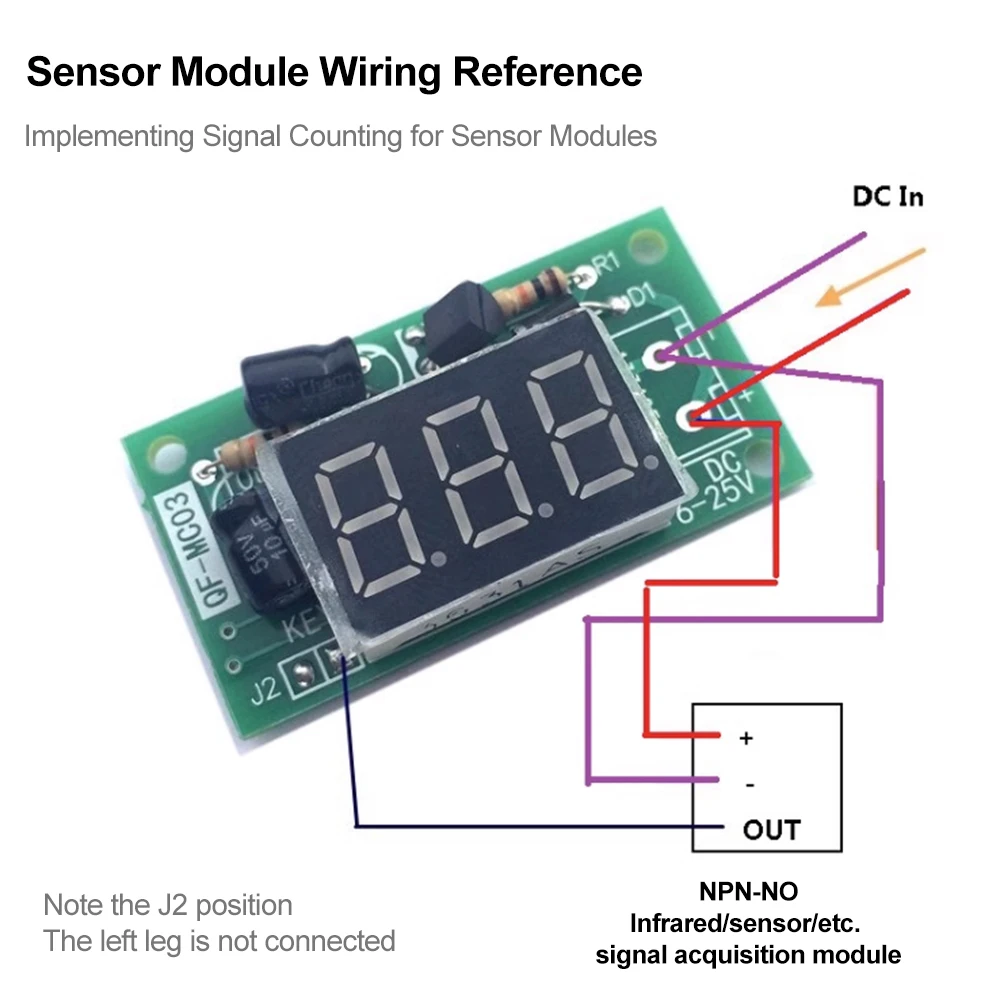

2. The two solder joints at the KEY position will add 1 each time they are shorted.

3. How to reset back to 0? Short-circuit the two solder joints at the KEY position for 3 seconds when the power is on, and it will be cleared immediately when you release it, and the value will return to 0

Package list:

Counter module*1

Enhance your DIY projects with the Digital Counter 3-Bit Accumulator Module for Electronic Components. Crafted with top-quality materials, this counter module boasts an elegant design with a 0.36" red digital tube display. Enjoy the simplicity of operation with multiple voltage options and various counting modes. Whether you prefer automatic counting on power-up or manual control with short circuits, this module offers flexibility for your needs. Easily reset the counter to zero by short-circuiting the designated points. Add this efficient and durable module to your electronic accessory collection and elevate your projects.
