Describe
This product cannot be used in non sinusoidal AC circuits such as silicon
controlled voltage regulators, inverters, and frequency conversion equipment, which may cause damage

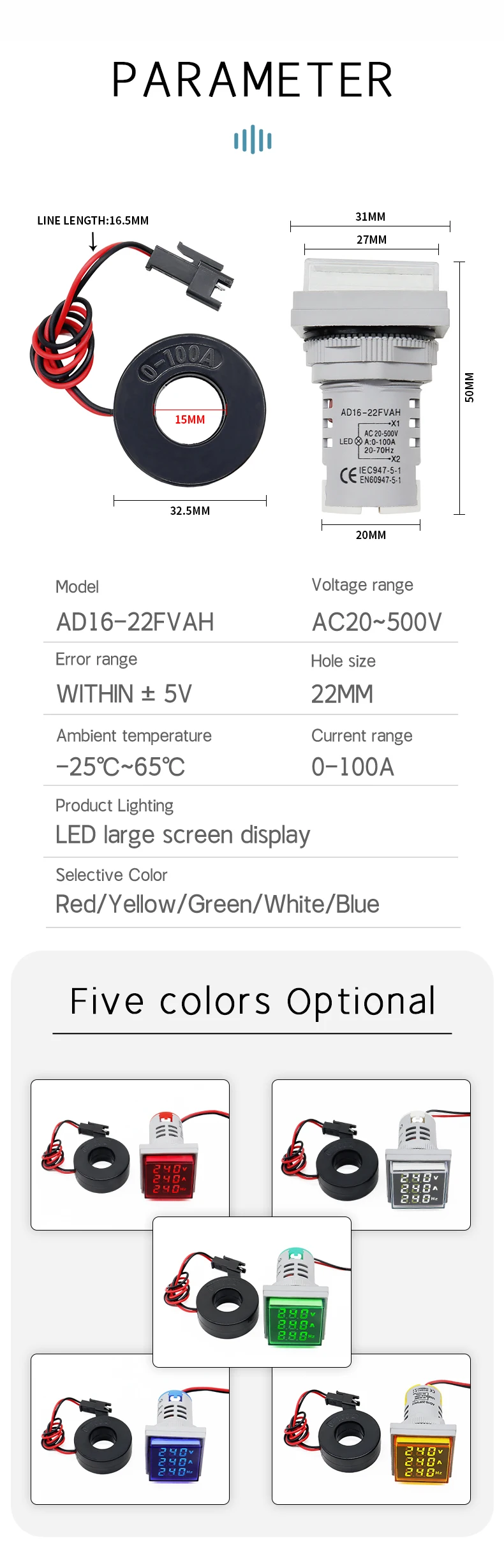

Specifications

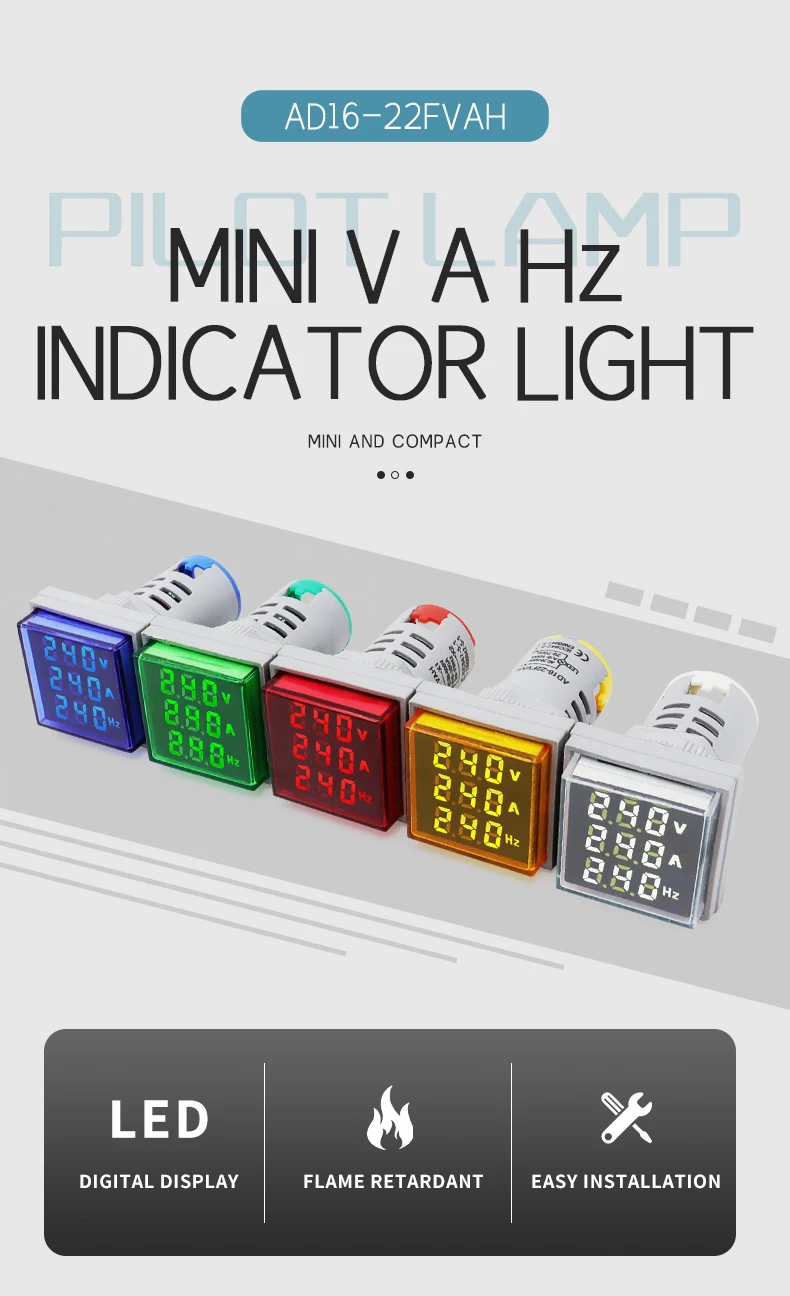

Product Name: Digital Display AC Voltmeter
Product model: AD16-22FVAH
Available colors: red/yellow/blue/green/white
Opening size: 22mm
Current range:0-100A
Voltage range: AC20~500V
Frequency: 0-99Hz
Ambient temperature: -25℃~65℃
Relative humidity:<98%
Product lighting: LED display
Error range: within ± 5V, error is normal
Package Included
1 × 3-in-1 digital display meter
