Description:

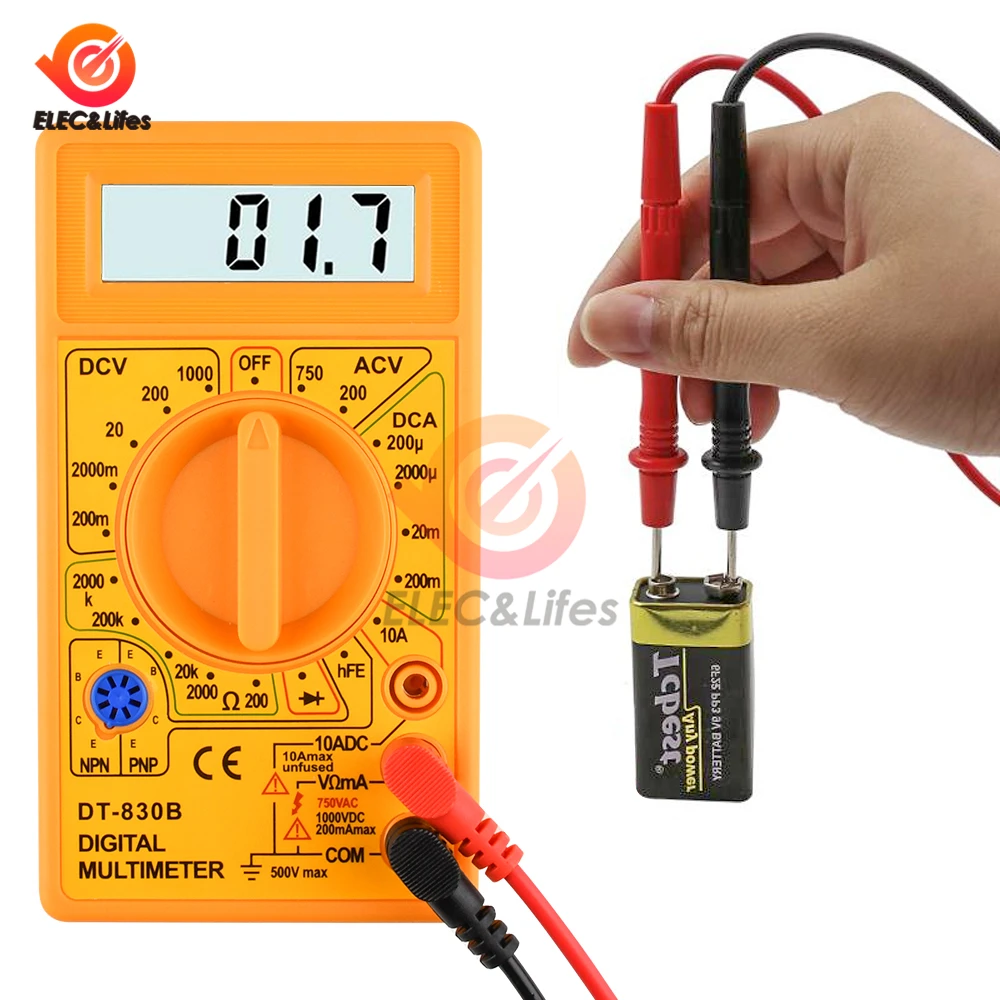

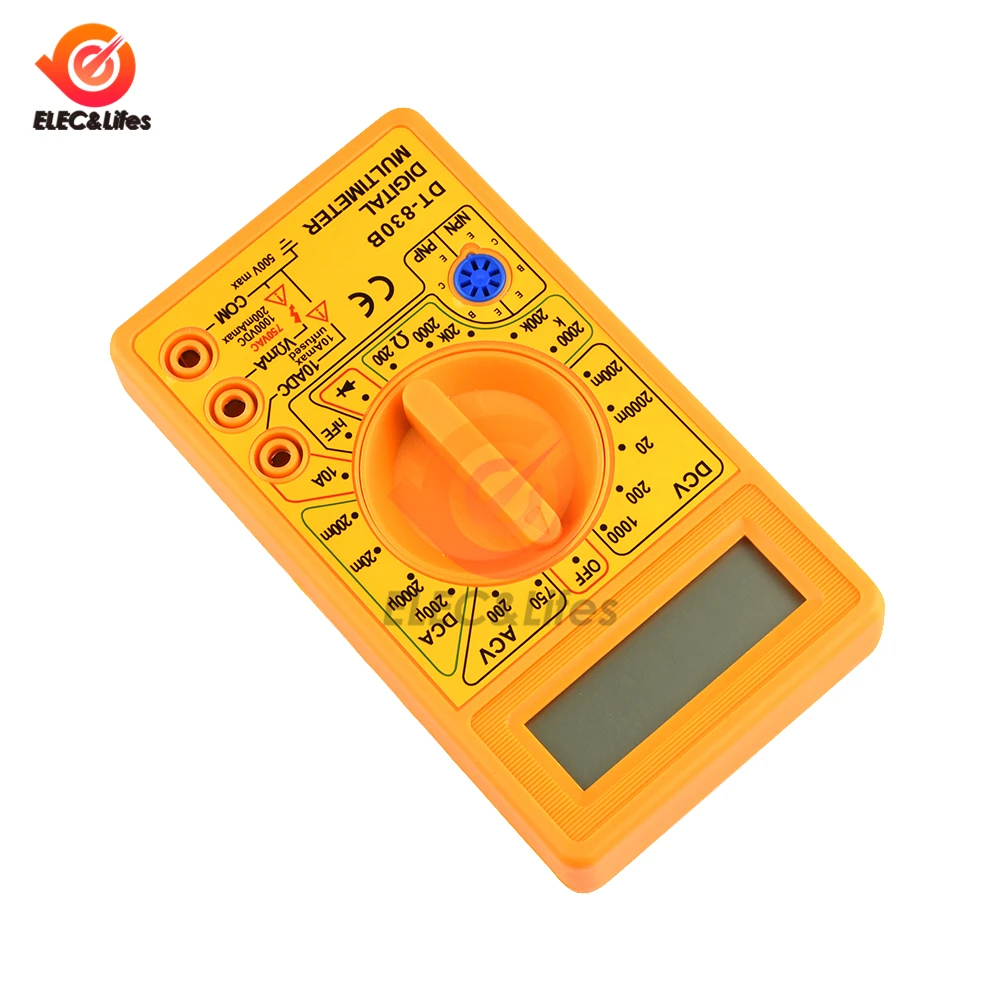

The DT830 digital multimeter is a three-and-a-half-digit LCD display small digital multimeter. It can measure AC, DC voltage and DC current, resistance, transistor β value, diode conduction voltage and circuit short circuit, etc. A rotary band switch can change the measurement function and range, with a total of 19 levels.

The maximum display value of this multimeter is ±1999, which can automatically display "0" and polarity, and display "1" or "-1" when overloaded, and the diode gear for short-circuit check.

Specifications:

1. Measuring range

⑴ AC and DC voltage (AC frequency is 45Hz～500Hz); DC ranges are 200mV, 2000mV, 20V, 200V and 1000V respectively; AC ranges are 200V and 750V respectively; DC accuracy is ±(0.8% of reading + 2 words )

⑵ DC current

The measuring ranges are 200μA, 2000μA, 20mA, 200mA and 10A. The DC accuracy is ± (1.2% of reading + 2 digits), and the maximum voltage load is 250mV.

⑶ Resistance:

The ranges are respectively: 200Ω, 2000Ω, 20kΩ, 200kΩ, and 2000kΩ. The accuracy is ± (2.0% of reading + 3 words).

⑷ Diode conduction voltage:

The range is 0～1.5V, and the test current is 1mA±0.5mA.

⑸ Triode β value detection:

The test conditions are: VCE=2.8V, IB=10μA.

⑹ Short circuit detection:

Test circuit resistance＜20Ω±10Ω

2. Sampling time: T S = 0.4S.

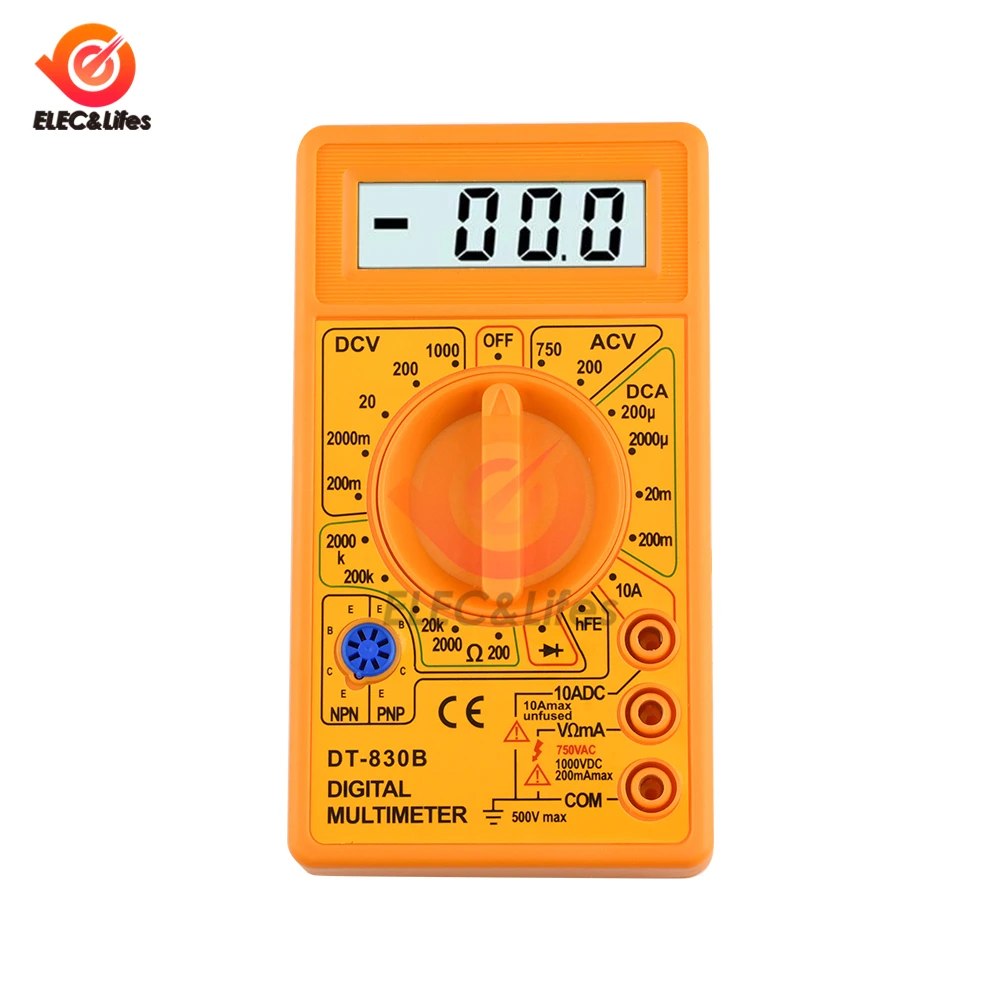

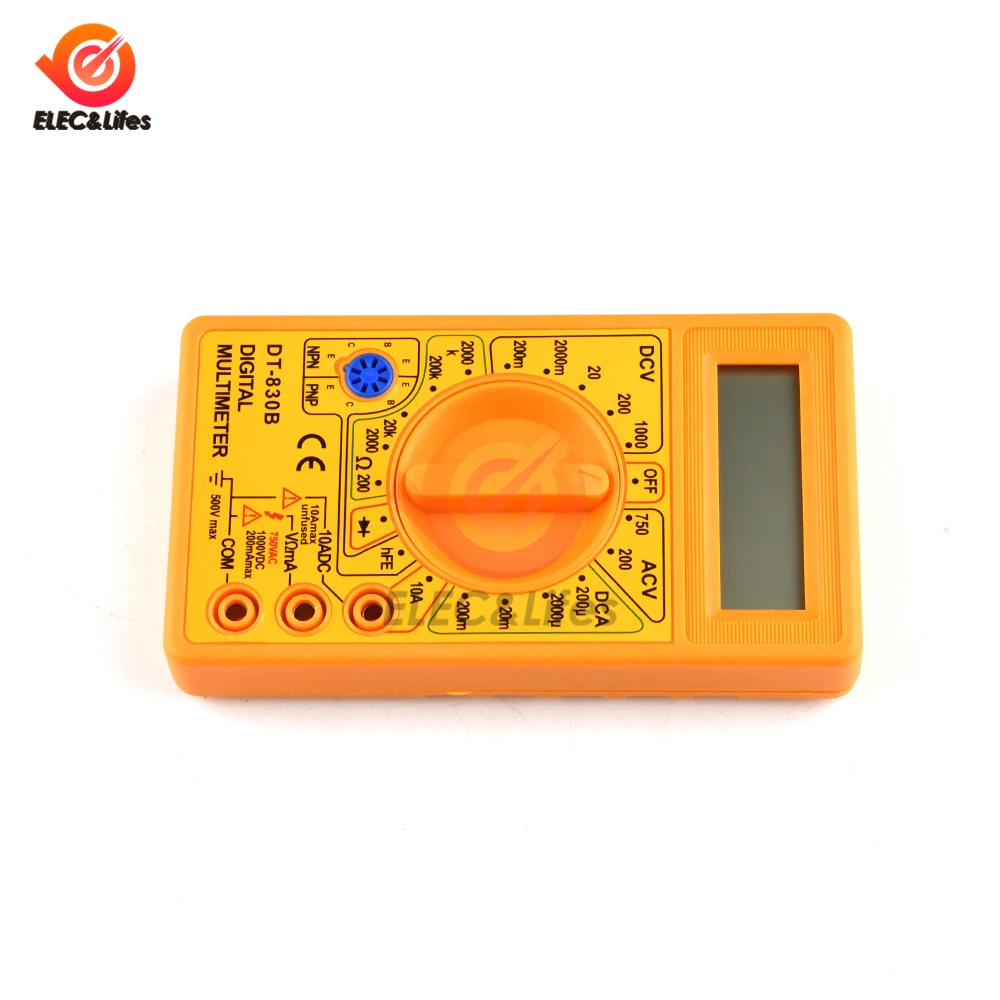

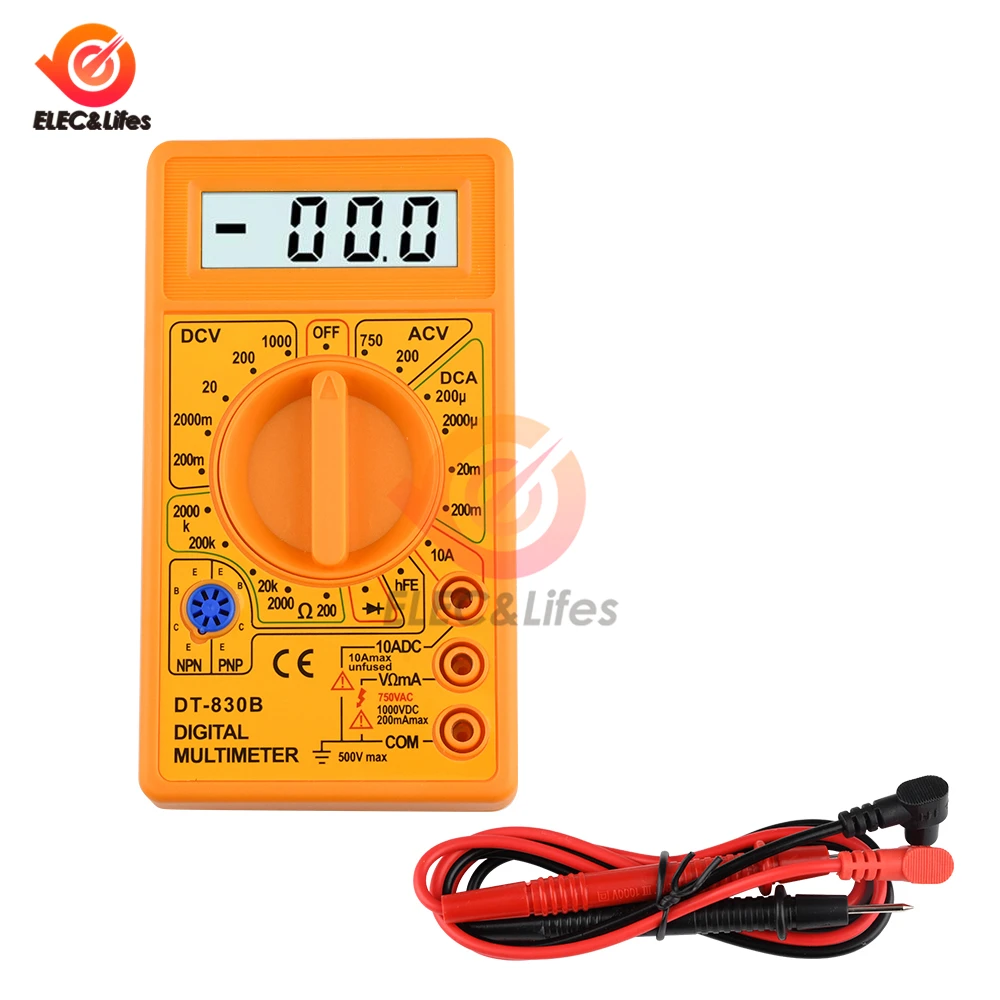

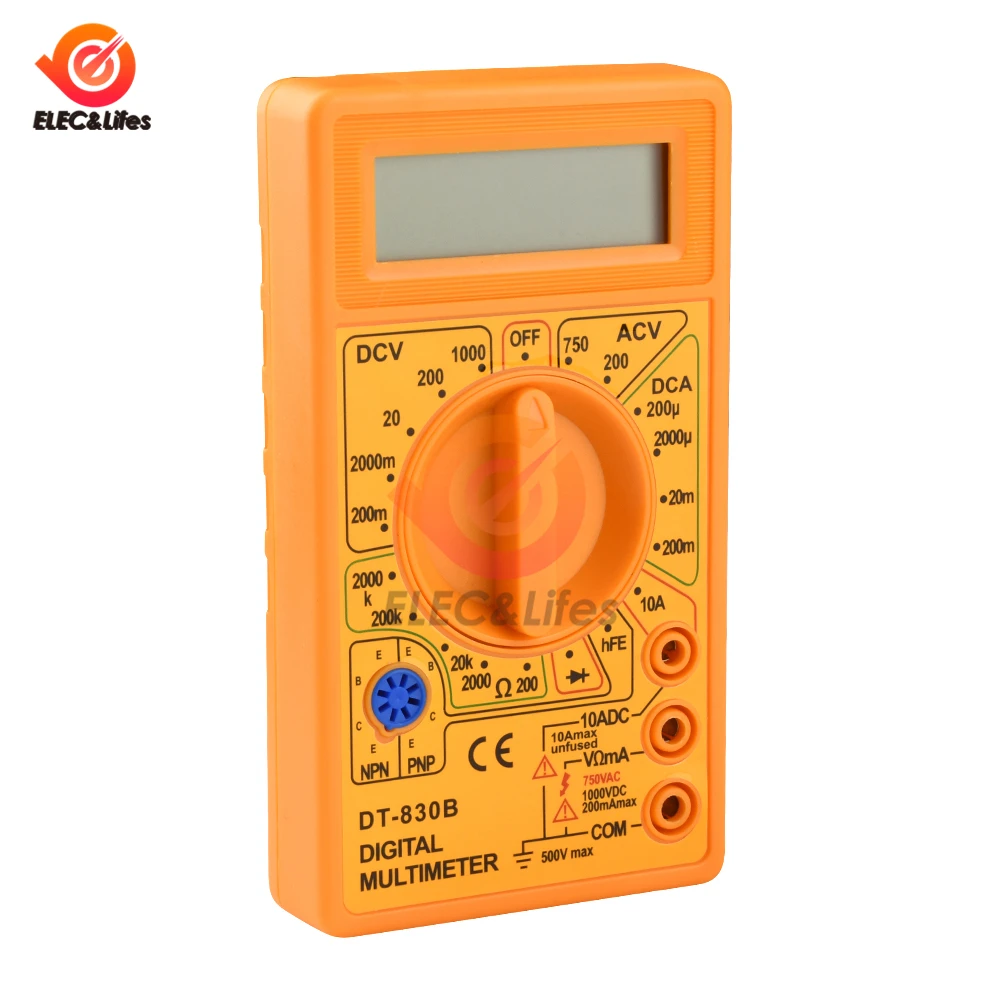

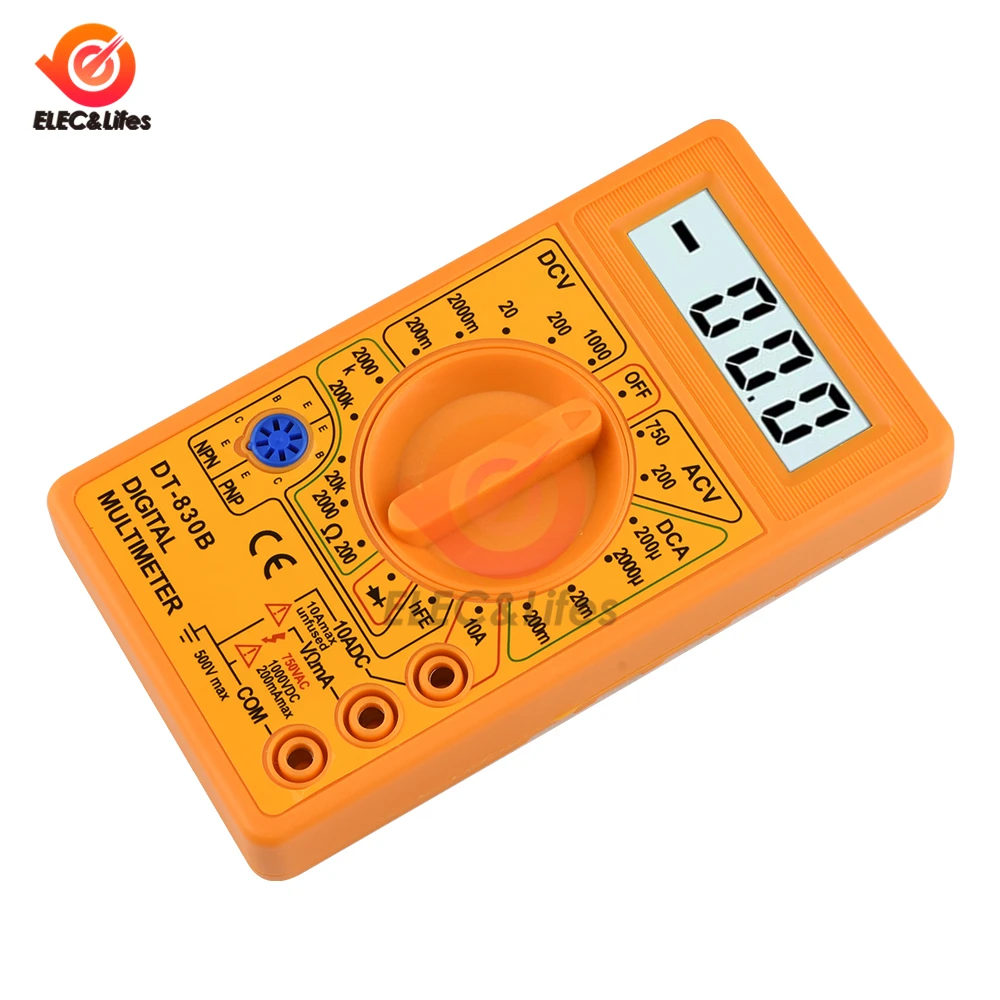

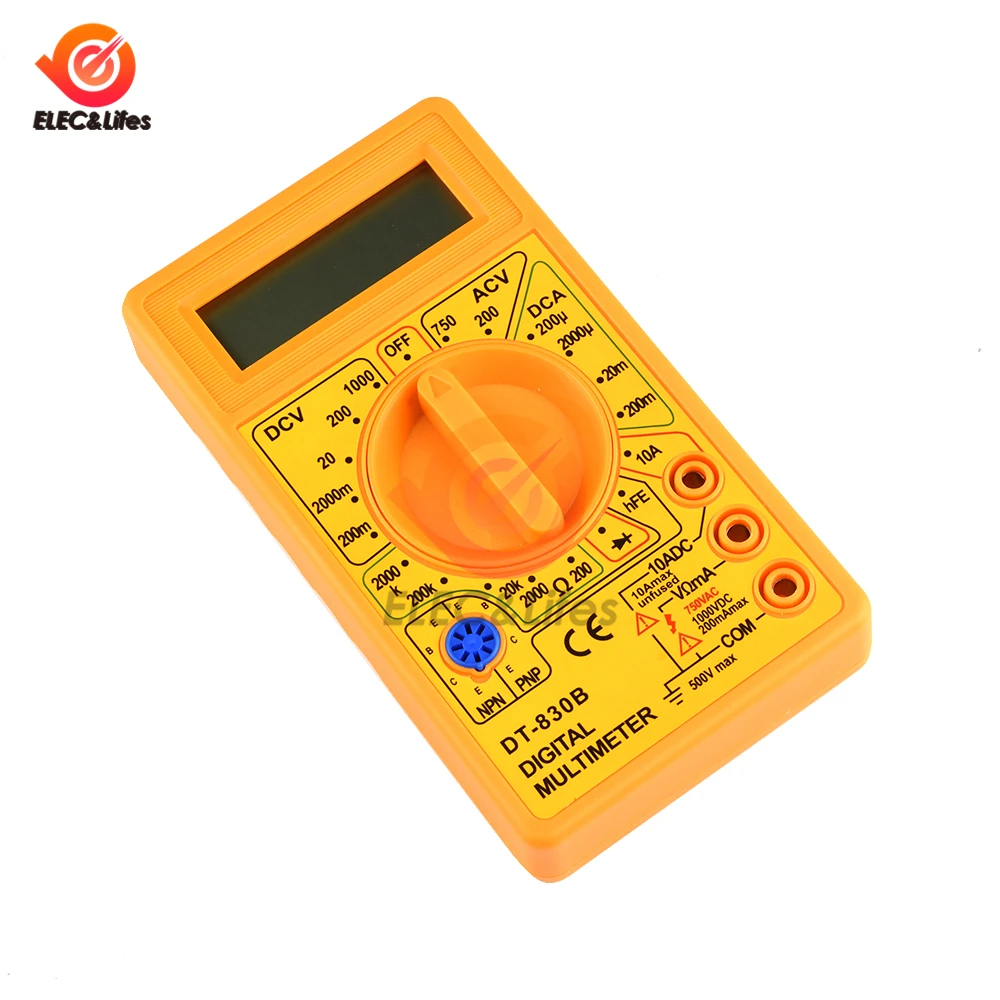

Panel and Operating Instructions:

1. monitor

Three and a half digital LCD display

2. switch

Press it to turn on the power, and turn it off when not in use.

3. Capacitance measuring socket

This watch has no capacitance test function.

4. Function range switch

Choose different measurement functions and ranges.

5. 10A current jack (cannot measure current greater than 10A)

When measuring AC and DC currents greater than 200mA and less than 10A, the red test lead should be inserted into this 10A current jack.

6. Current jack

When measuring AC and DC currents less than 200mA, the red test lead should be inserted into this current jack.

7. V/Ω jack

When measuring AC and DC voltage, resistance, diode conduction voltage and short-circuit detection, the red test lead should be inserted into this V/Ω jack.

8. The black test lead from the "COM" jack of the grounding common terminal is always inserted into this grounding jack.

9. Beta test socket

Insert the collector, base, and emitter of the transistor under test into the "C", "B", and "E" jacks respectively, and pay attention to distinguish whether the transistor is an NPN type or a PNP type.

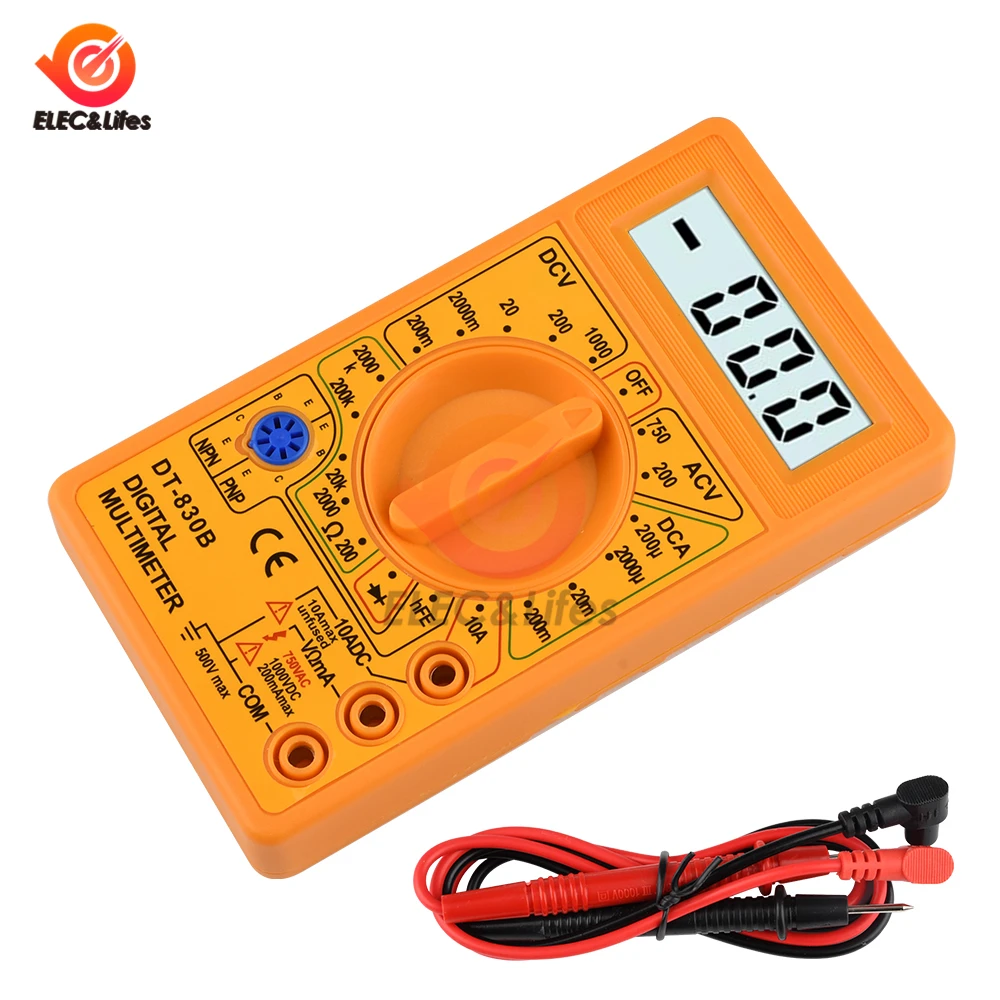

Package Included:

Multimeter x1(Batteries not included)

Test lead x1

Manualx1

Warranty cardx1

Notice:

When you select "Multimeter test pen", multimeter is not included

This multifunctional digital multimeter DT-830B is a versatile tool for electricians and DIY enthusiasts. With the ability to measure AC and DC voltage, DC current, resistance, transistor β value, diode conduction voltage, and circuit short circuits, this multimeter offers accurate and reliable readings for various electrical tasks. The rotary band switch allows easy changing of measurement functions and ranges across 19 levels, catering to a wide range of applications. Equipped with a three-and-a-half-digit LCD display, this multimeter accurately shows readings up to ±1999, automatically displaying "0" and polarity. The diode gear enables short-circuit checks while the included test leads ensure convenient and safe usage. With measuring ranges for voltage, current, and resistance, this multimeter provides precise results with DC accuracy levels specified for each measurement type. Featuring a compact design and easy-to-use controls, this multimeter is a practical tool for testing and troubleshooting electrical systems. The package includes the multimeter, test lead, manual, and warranty card, making it a comprehensive solution for your electrical measurement needs. Get your hands on the LCD Digital Multimeter DT-830B today and experience reliable performance and accurate readings for all your electrical projects.
