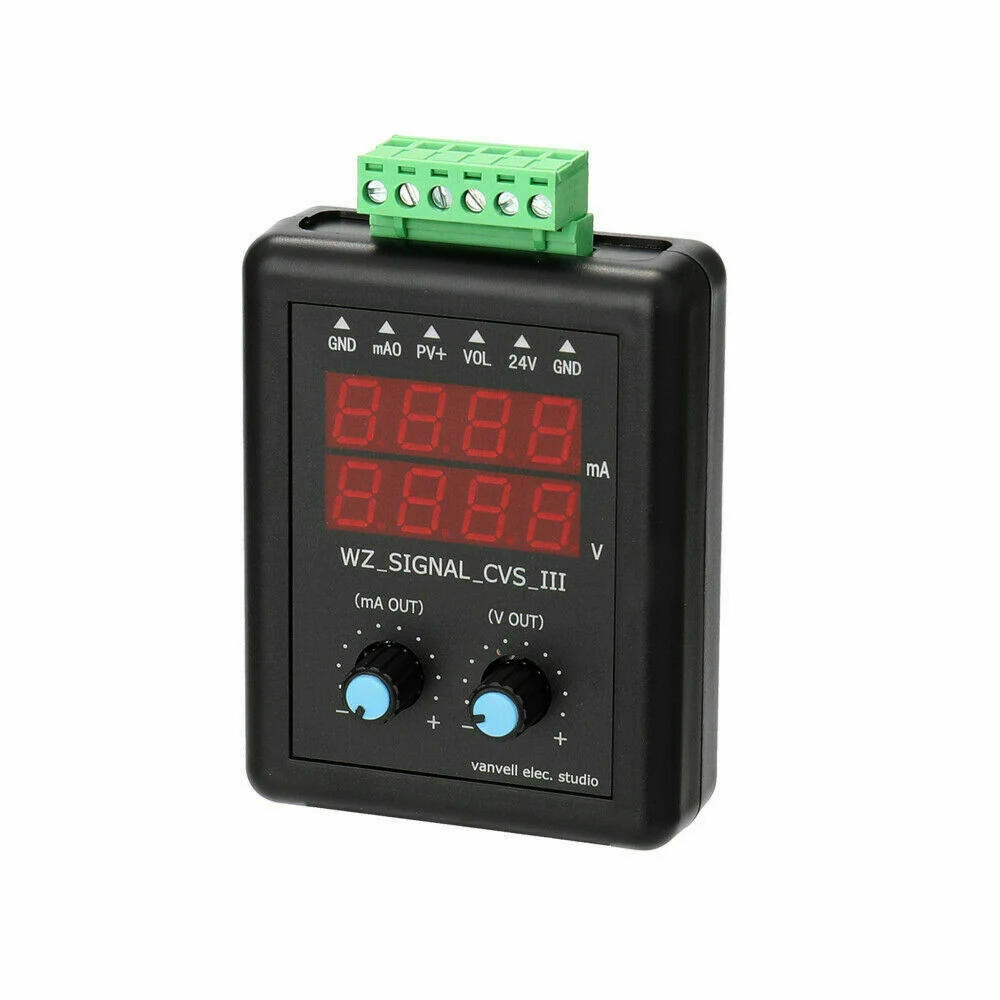

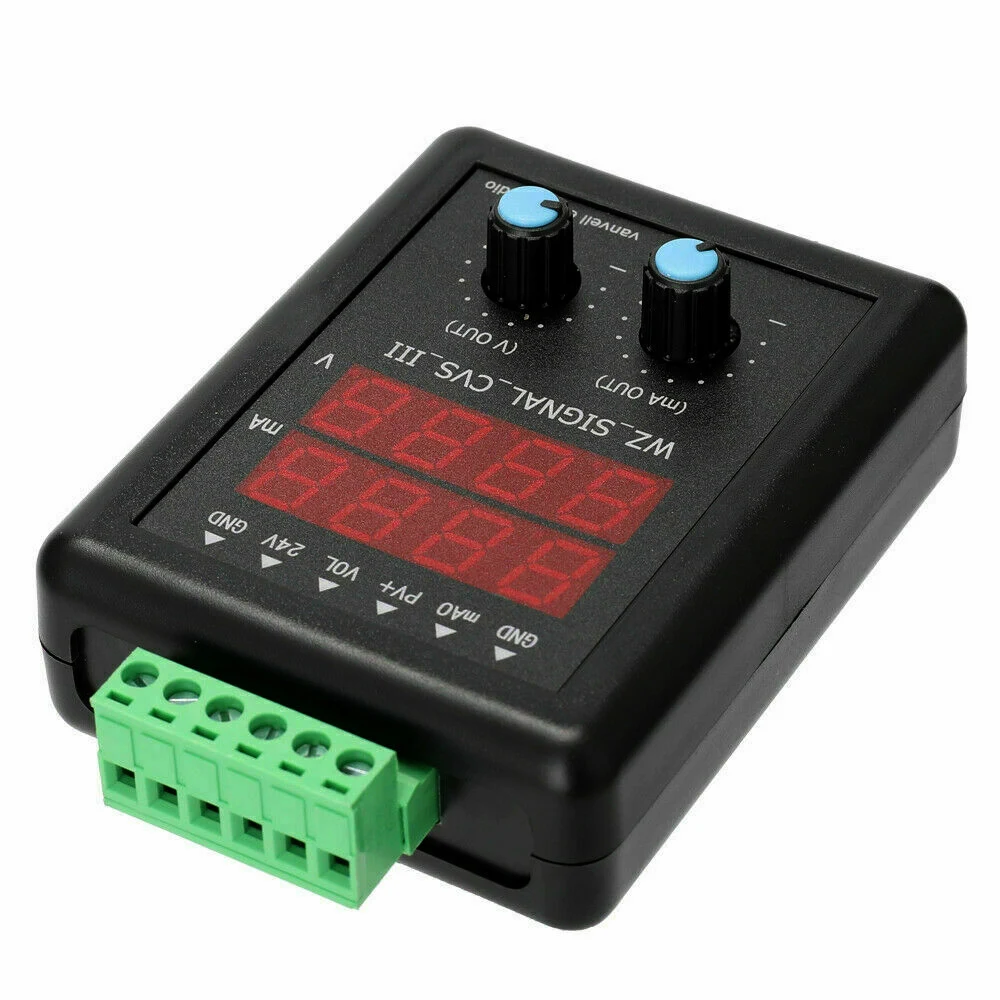

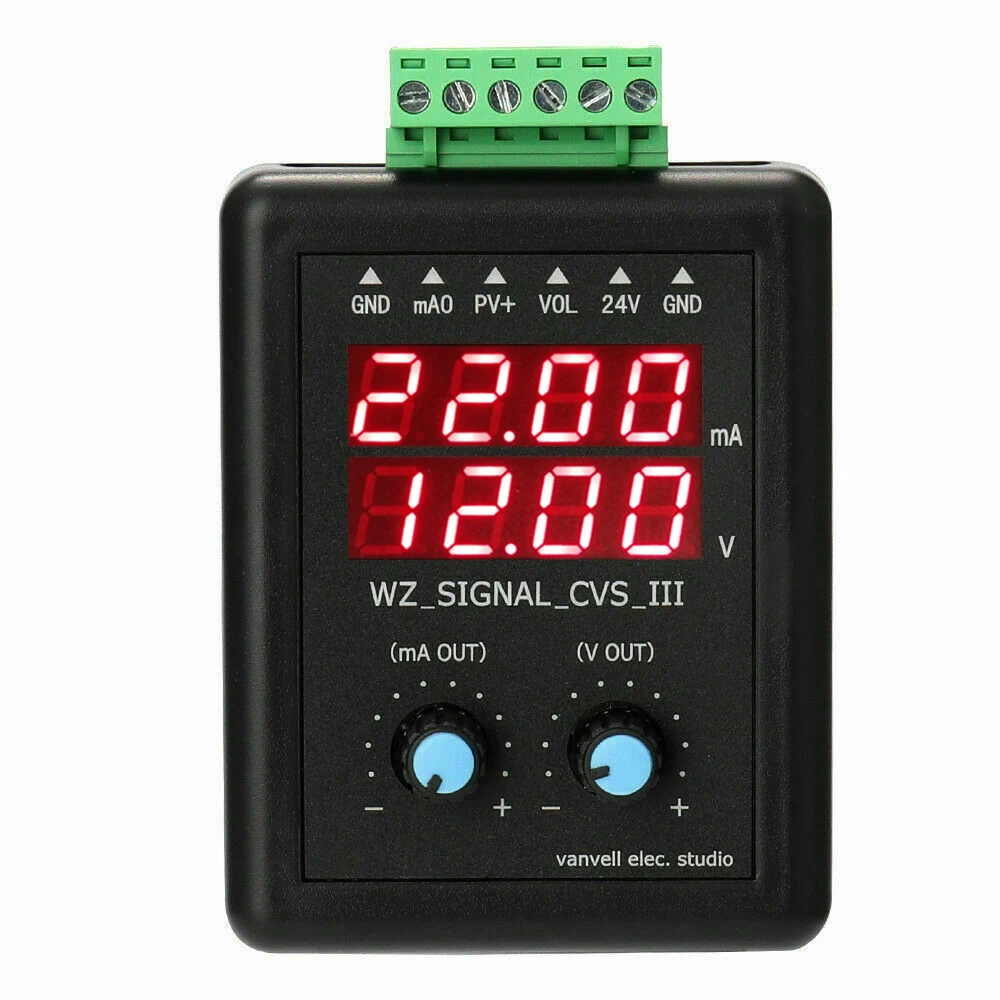

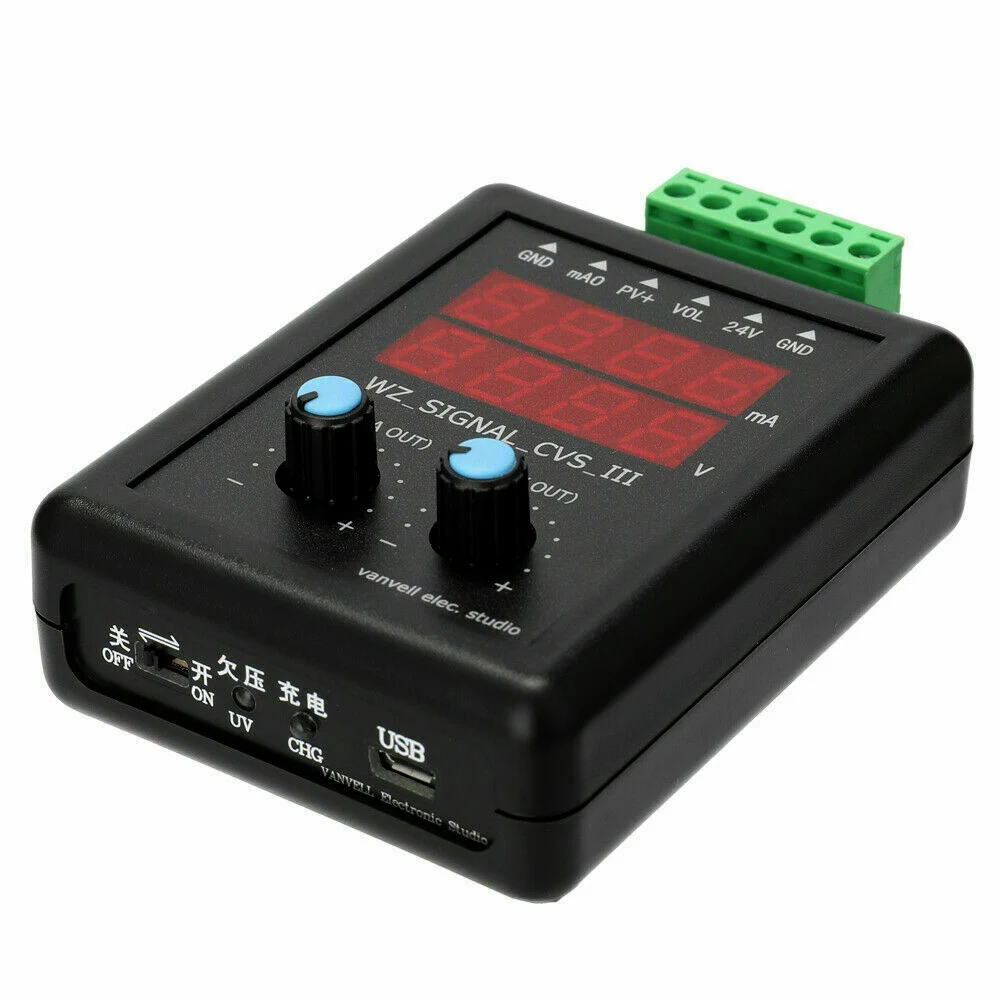

Adjustable 4-20ma Signal Generator 24V Current Voltage Transmitter Calibrator 0-10V Constant Current Source Simulation Tool



Feature :
1. Use high quality materials, durable
2. Compact size and exquisite appearance
3. Easy to use
4. High efficiency, reliable and stable performance
5. Wide range of applications
Parameters:

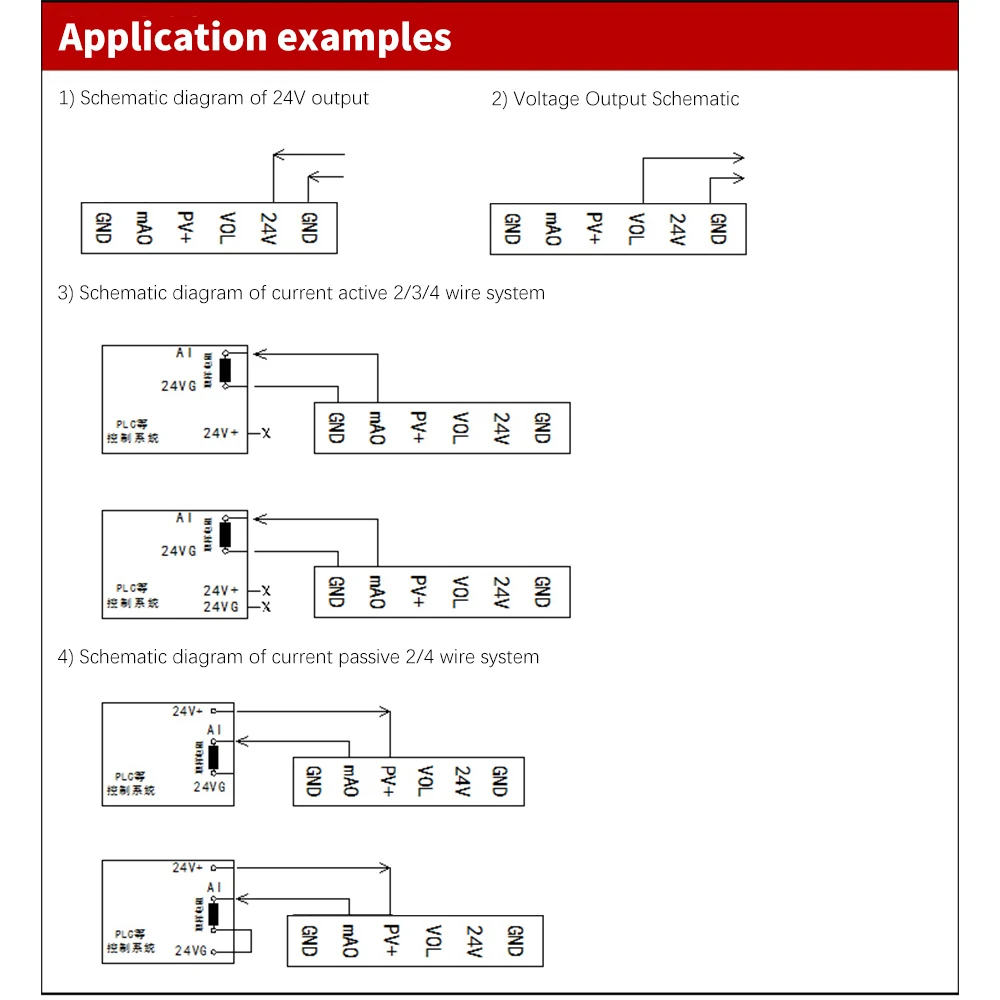

Active current output: 0-22mA (minimum output is about 0.1mA), load 0-550Ω
Passive current output: 0-22mA (minimum output is about 0.1mA), external power supply 15-30 V, load 0-550Ω
Voltage output: 0V-12V (minimum output is about 0.05V)
24V output voltage: Drive current 35mA, do not use more than 35mA
Battery version lithium battery power supply, rechargeable; No battery version directly plug into the 5v charger for use

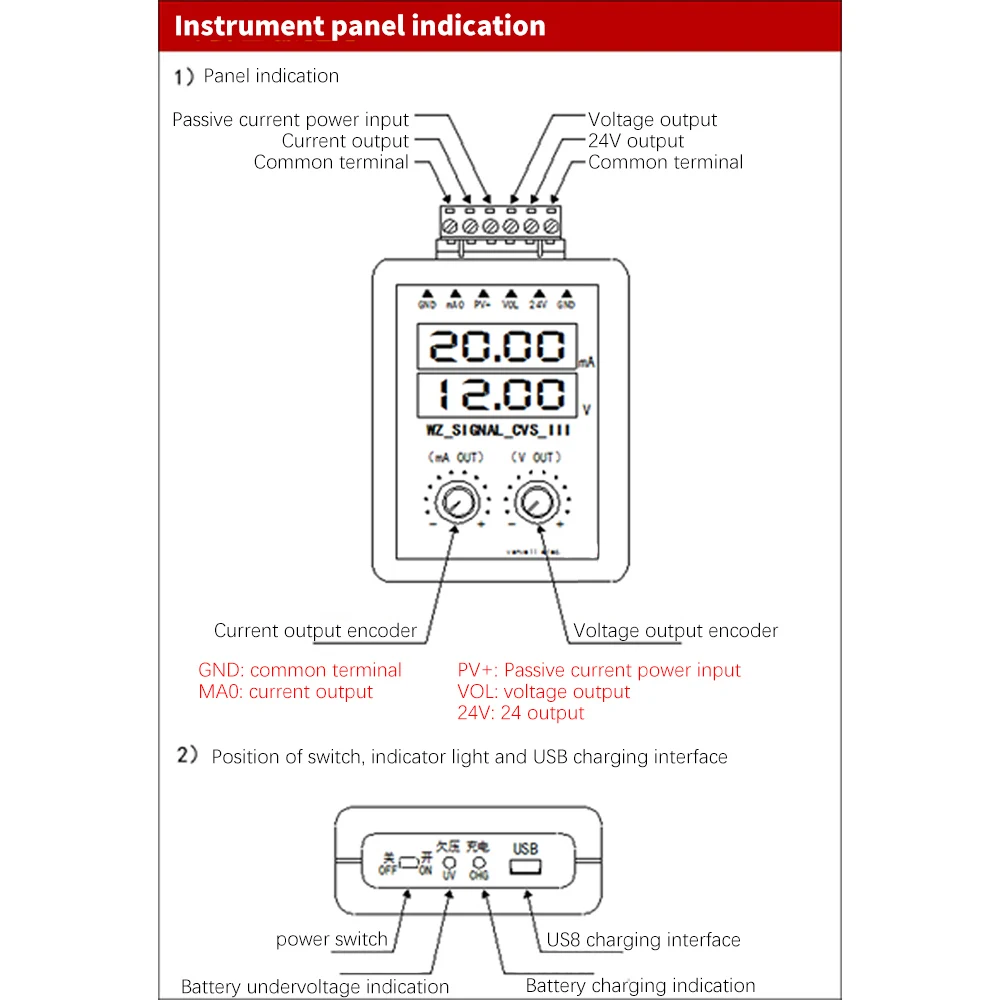

Battery undervoltage prompt. When the undervoltage indicator lights up, please shut down and charge it in time
If you do not use it for a long time, charge it at least once every 2 months to prevent battery damage

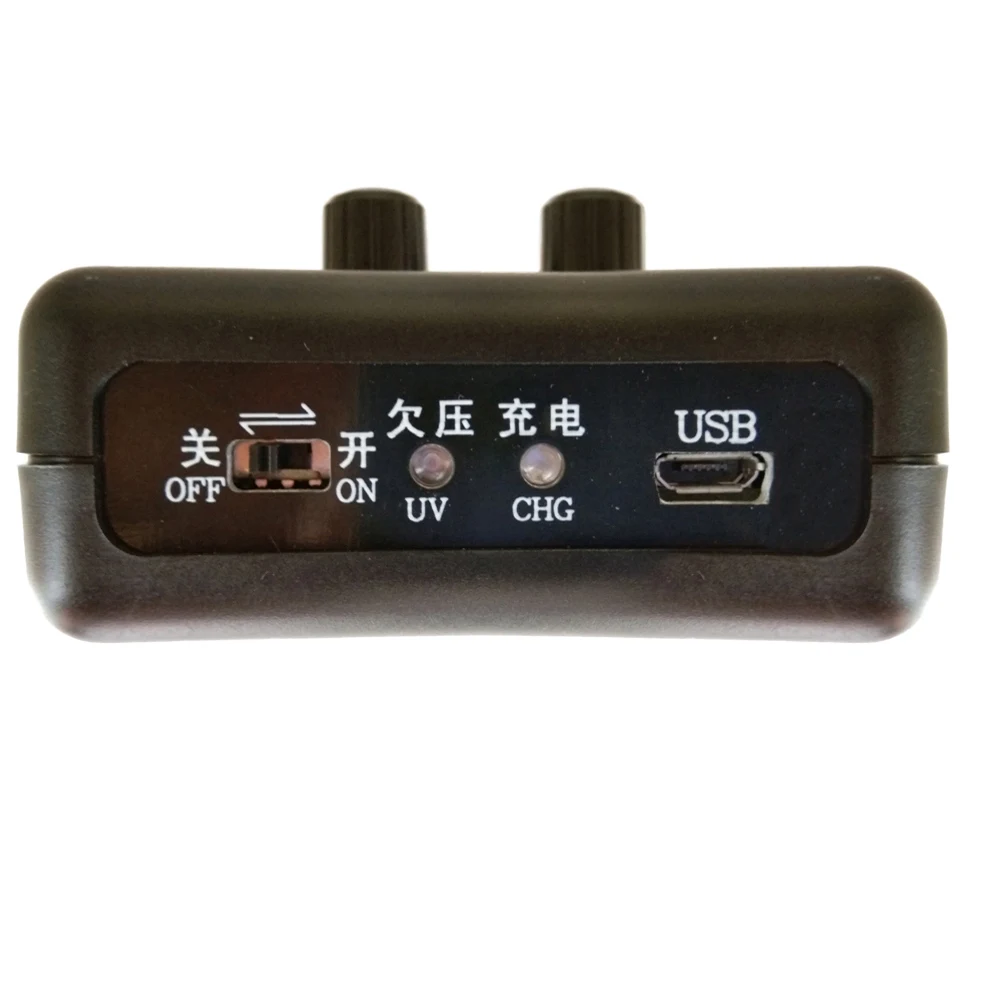

MICRO USB interface for power supply or charging
Use ring mirror: 0° C-50 °C without condensation
Package List:
Signal generator *1
