Product selling point:

1. Using high-quality materials, the quality is guaranteed

2.2 line interface, fast speed and stable work

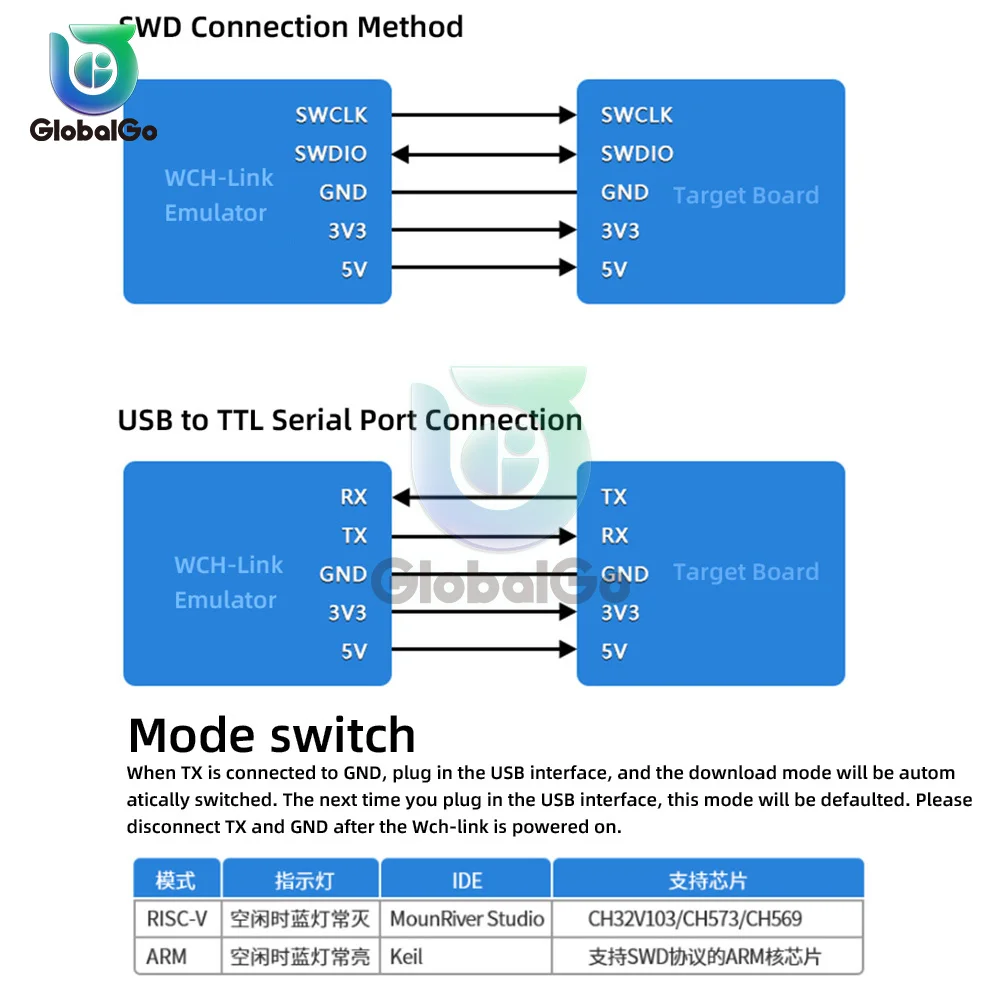

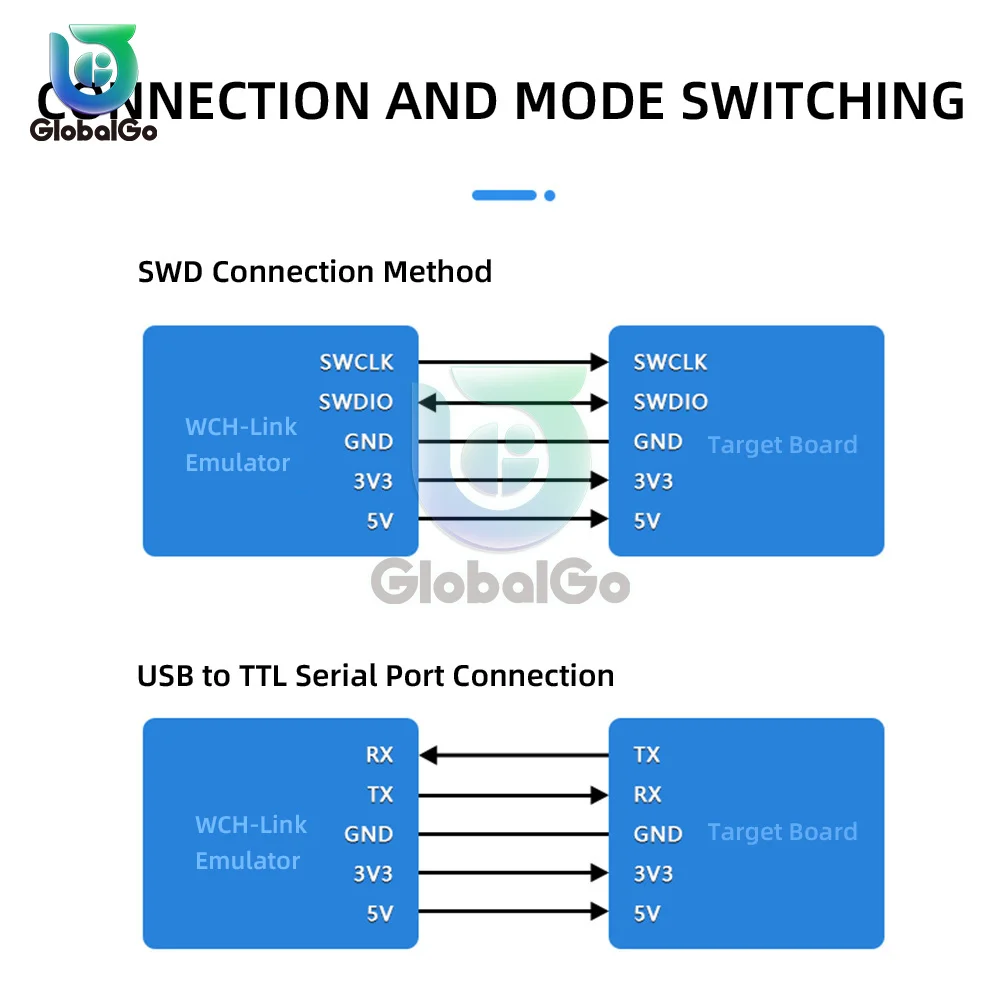

3. Supports USB to TTL serial port function, supports a wide range of baud rates, and is convenient to view debugging information through the serial port assistant

4. Support 3.3V/5V dual power output

5. Red and blue LED indicator light, easy to check the working status

6. Pure copper 2.54 pitch interface, used with DuPont line, can deal with different target board line sequences, flexible wiring

7. Use a special transparent shell to protect the motherboard, easy to carry, not afraid of falling

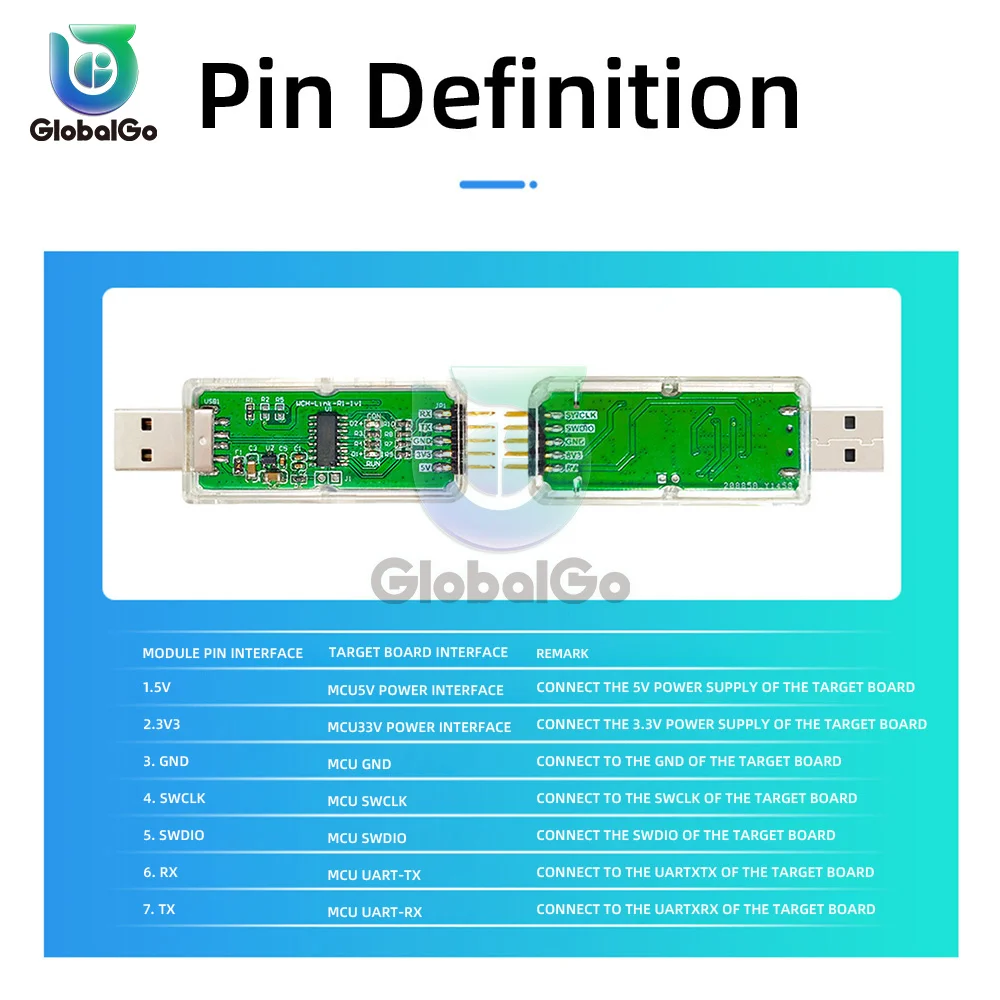

8. It is directly marked on the interface definition board, which is clear at a glance and easy to use

Parameter;

Storage temperature: -55℃~+125℃

Working temperature: -40℃~+85℃

Size: 73*14*24mm

Package list:

Download debugger*1
