The Universal Hinge Jig by SMATOLS

【High Quality】Made from a high-tech engineering polymer & high quality environmental protection metal, this hinge hole drill guide are durable, which can use long time with great touch.

【Easy to Use】The hole position is accurate,no need to draw a line,convenient and fast, the drill bit is razor sharp, easily drill the new holes with minimal effort, suitable for your own home operation without professional skills.

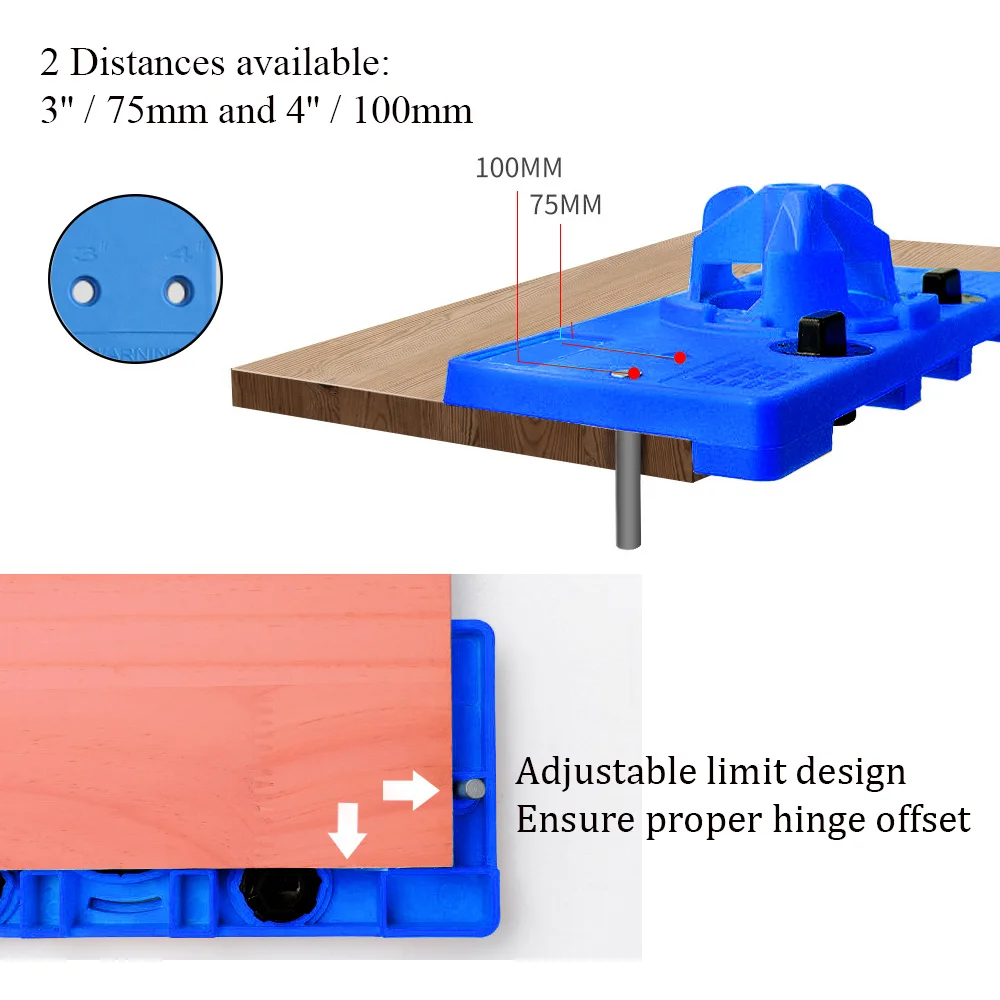

【Widely Application】Suitable for 35mm hinges and 26mm hinges. It has function to drill the pivot holes for the screws of the hinge which are 46mm, 47mm, 48mm or 52mm distance each other.

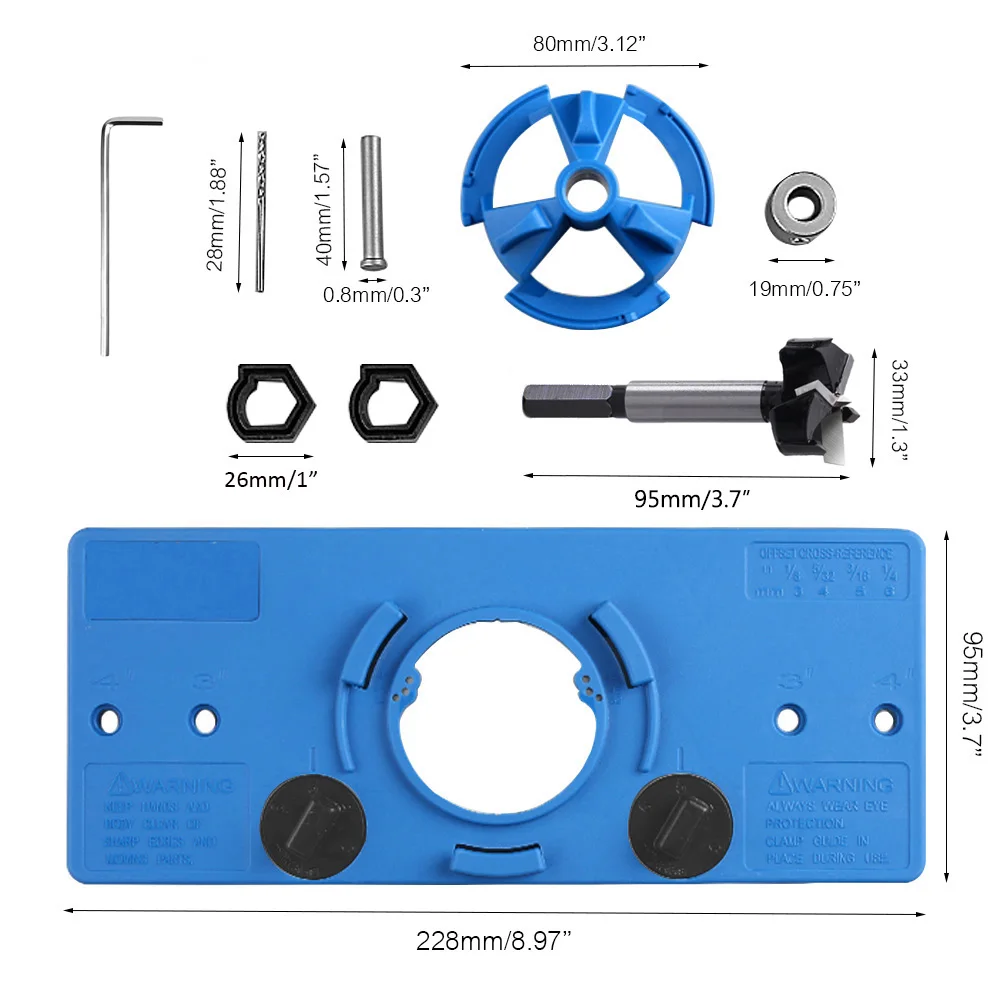

【Package Contents】1 x main panel, 1 x Cutter, 1 x Wrench, 1 x Drill, 1 x Stick, 1 x Bracket, 1 x Checking ring, 2 x 26mm Accessories

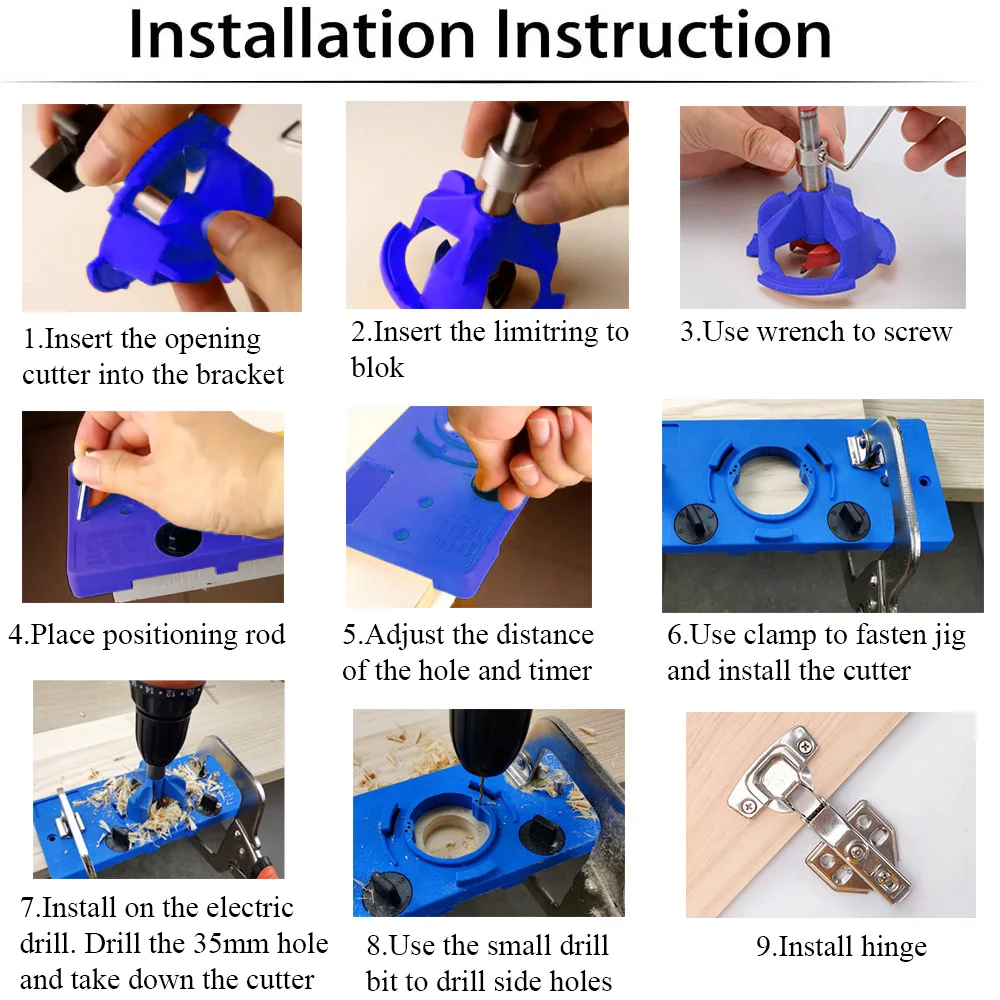

How to Use:

1. Insert the opening cutter into the bracket
2. Insert the limitring to blok
3. Use wrench to screw
4. Place positioning rod

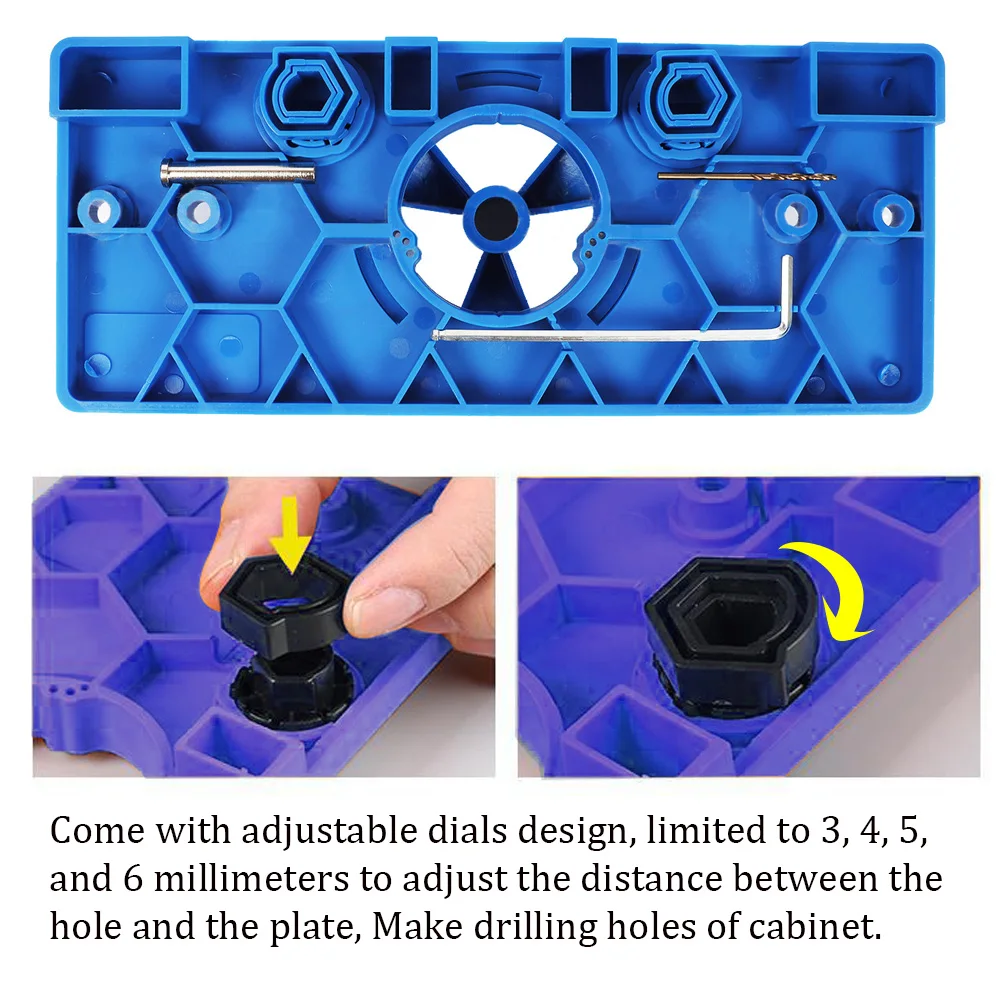

5. Adjust the distance of the hole and timer

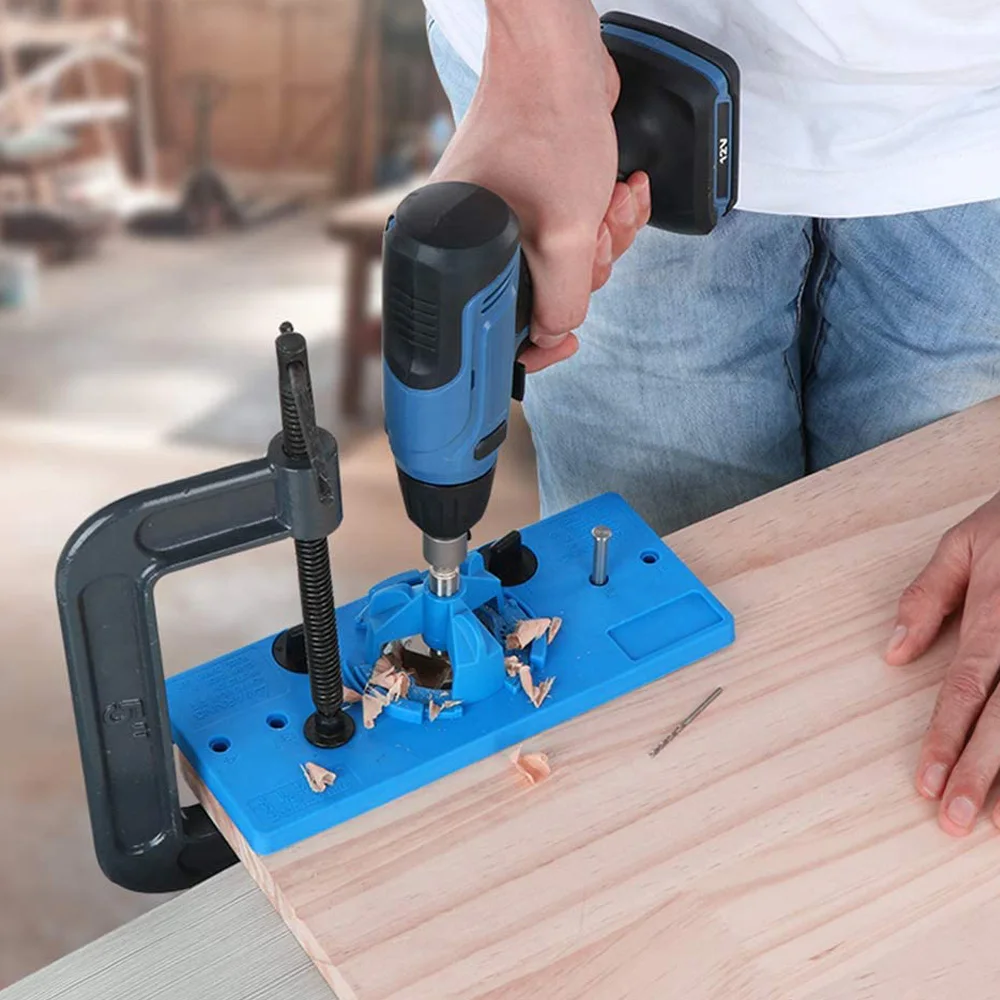

6. Use clamp to fasten jig and install the cutter

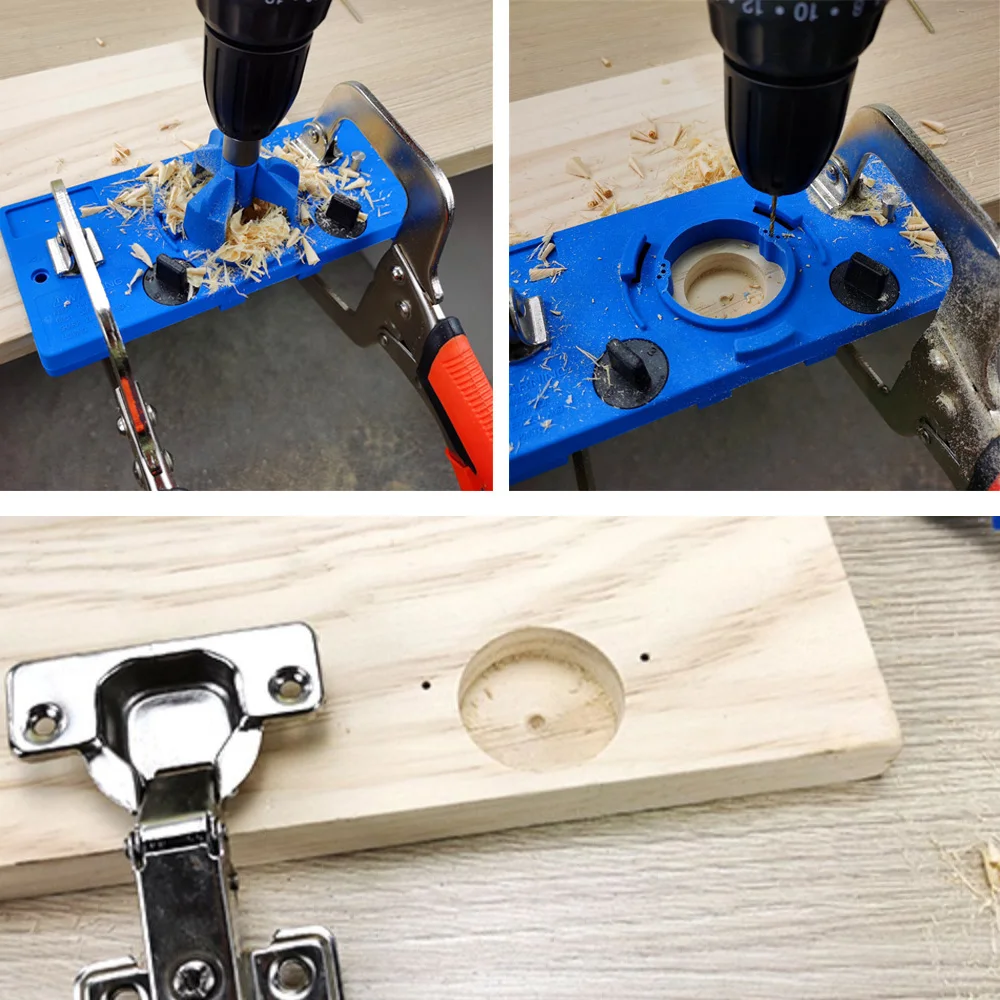

7. Install on the electric drill. Drill the 35mm hole and take down the cutter
8. Use the small drill bit to drill side holds
9. Install hinge
