Product Introduction

Application
It can be widely used in machinery manufacturing, sheet metal processing, automobile maintenance, guardrail, iron processing, hardware, and other fields for welding iron rods within a diameter of 2.5mm/0.09inch.

Specification
Model: ARC-120
Color: Black
Material: Plastic
Style: Modern
Plug Voltage: 110V
Rated Output Voltage: 24.8V
Output Current: 20-120A ((1-Step=20A / 2-Step=40A / 3-Step=60A /4-Step=80A /5-Step=100A / 6-Step=120A)
Rated Input Power: 4.6KW
Enclosure Protection Grade: IP21
Electrode: φ1.6-φ3.2
Power Factor: 0.76
Insulation Class: F
Duty Cycle at 40℃/104℉: 20%
Working Temperature: -10~40℃/-50~104℉
Efficiency: About 85%
Power Type: Plug-in
Plug: American Standard
Net Weight: 2kg/4.41lbs
Gross Weight: 2.4kg/5.29lbs
Package Size: 25*20*10cm/9*7*3inch
Toolbox Size: 37*25*12cm/14.6*9.9*4.7inch
Suitable Welding Rod Diameter: 2.5mm/0.09inch

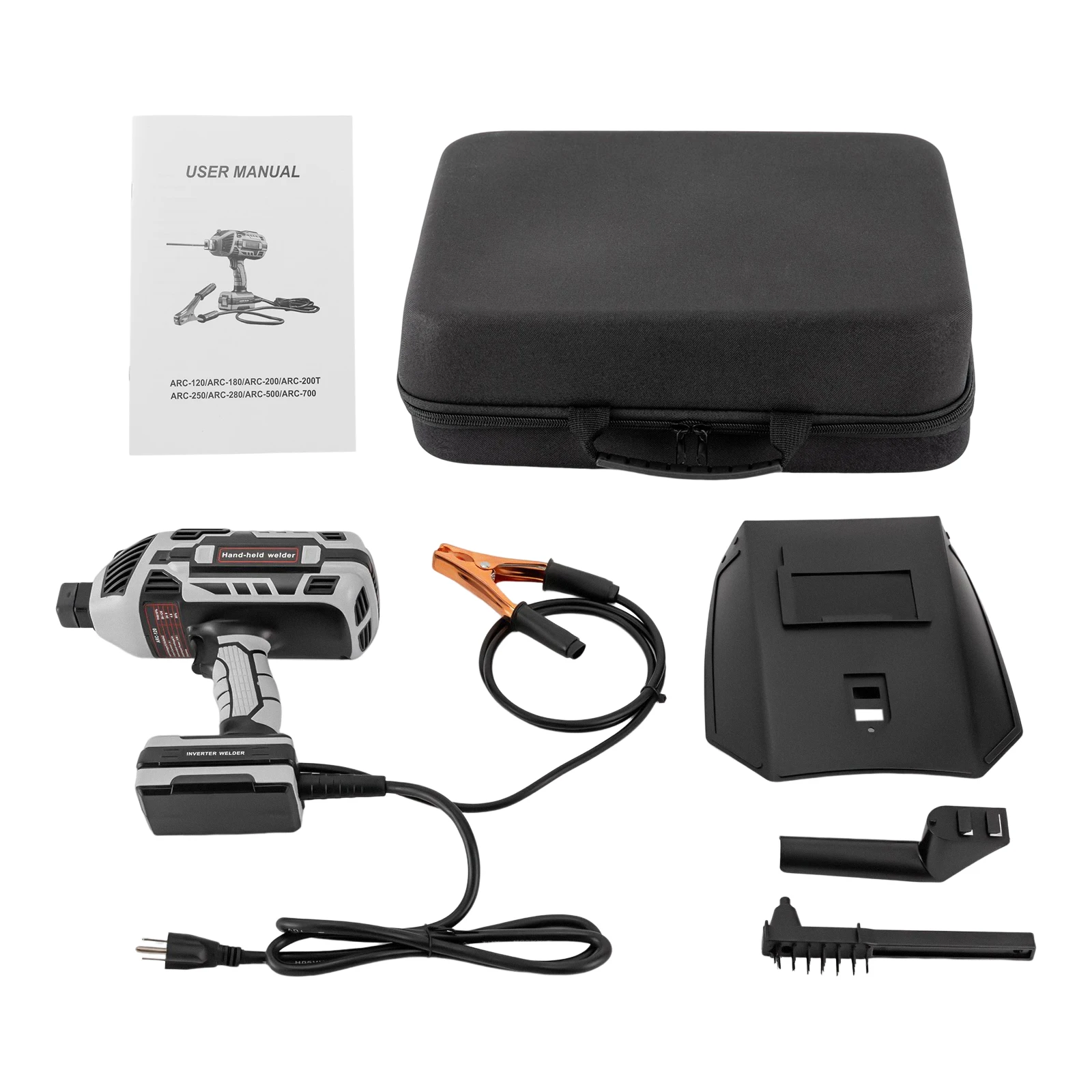

Package Included

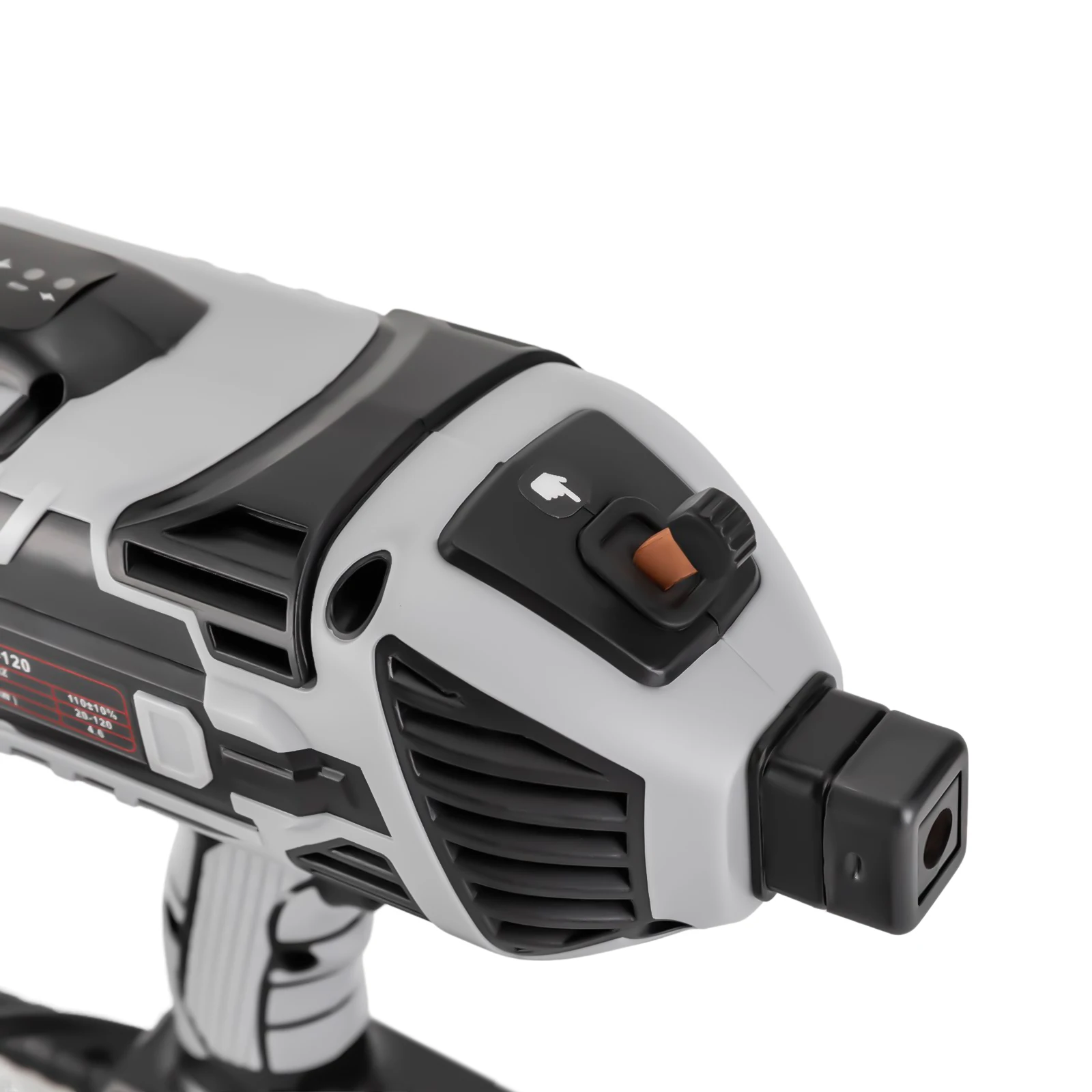

1* Hand-held Welding Machine
1* Clip
1* Steel Brush

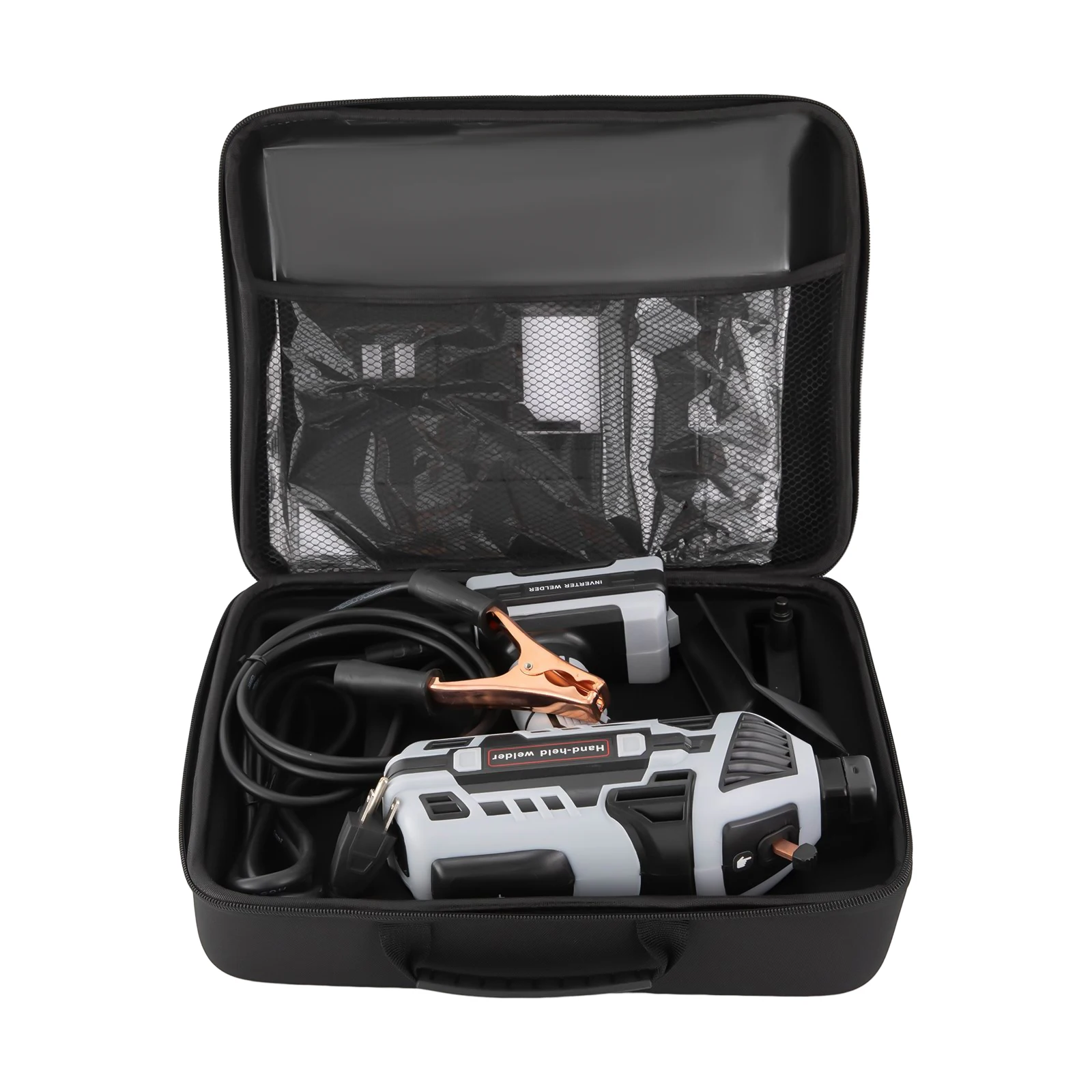

1* Toolbox
1 Set* Protective Masks
1* English Manual

Notes
1.Please make sure the heat dissipation holes are uncovered and unblocked. Good ventilation is of critical importance to the normal performance and service life of the machine.
2.Please keep hands, hair, and tools away from the cooling fan to avoid personal injury or machine damage. The minimum distance between the machine and nearby objects should be 30cm/11inch.
3.Clean the dust periodically with dry and clean compressed air. If welding in an environment with heavy smoke and pollution, the machine should be cleaned daily. The pressure of compressed air should be at a proper lever lest the small parts inside the machine will be damaged.
4.Please avoid rain, water, or vapor infilter the machine. Only when there are no abnormal phenomena can welding be continued.
5.Check periodically whether the inner circuit connection is ok (esp. plugs). Tighten the loose connection. If there is oxidization, remove it with sandpaper and then reconnect. Check periodically whether the insulation skin of all cables is in a good station. If there is any dilapidation, wrap it or replace it.
6.Put the machine into the toolbox in a dry location if it is not to be used for a long time.
7.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
