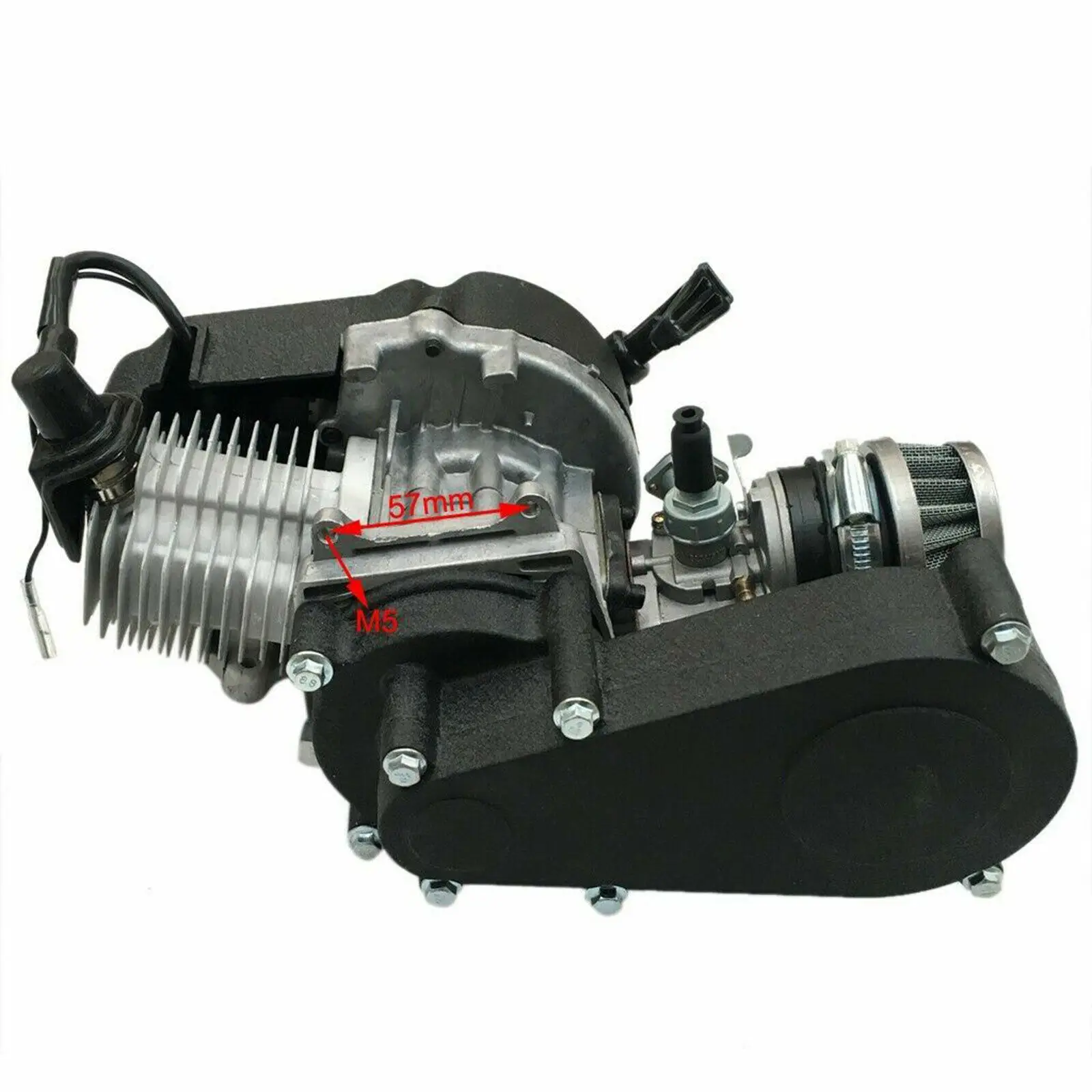

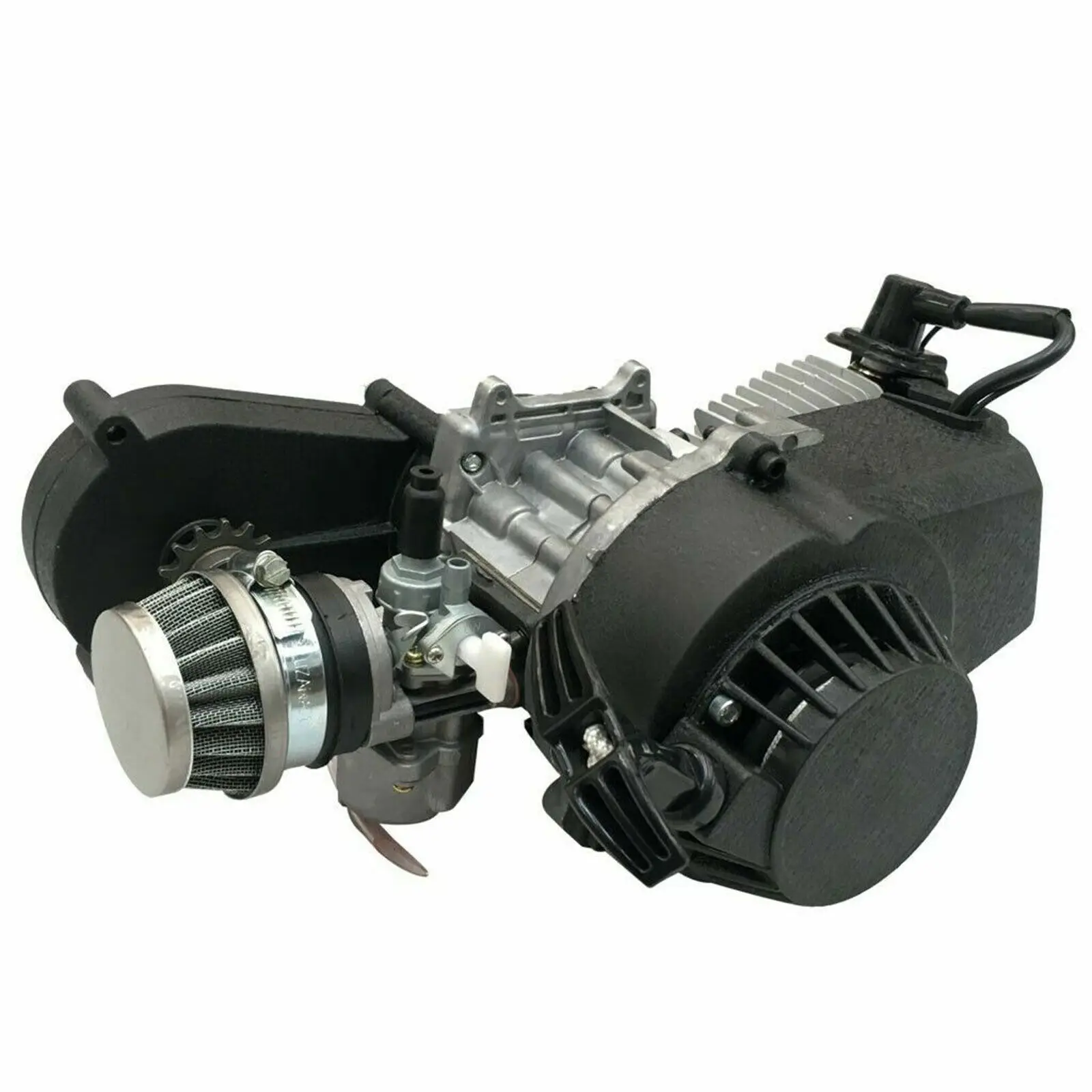

49CC 2 Stroke Engine Motor Kit Pull Start For Pocket Mini Dirt Bike ATV Scooter Air-Cooled

Application

It is fit for 49.85cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV, or scooter.

Specification

Engine Type: Single Cylinder, 2 Stroke, Air-cooling

Material: Aluminum

Color: Silver, Black

Ignition System: Electronic Ignition

Start Mode: Pull Rope Start

Displacement: 49.85CC

Max. Power: 1.9kw/7000rpm

Rated Power: 1.7kw/6000rpm

Continuous Power: 1.6kw/5500rpm

Overload Power: 1.83kw/6500rpm

No-load Speed: 12500rpm

Max. Torque: 2.7N.M/6500rpm

Max. Horsepower: 3PS

Min. Fuel Consumption: ≤610g/kW.h

Spark Plug: L6T or MB6A

Spark Plug Gap: 0.5mm/0.02in

Bore * Stroke: Φ44*32.8mm/1.7*1.3in

Carburetor Type: H117B

Reduction Ratio: 1:1

Noise Level: 100.7dB (SPL); 116.9dB (SWL)

Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)

Fuel Tank Capacity: 1.2L/0.32gal

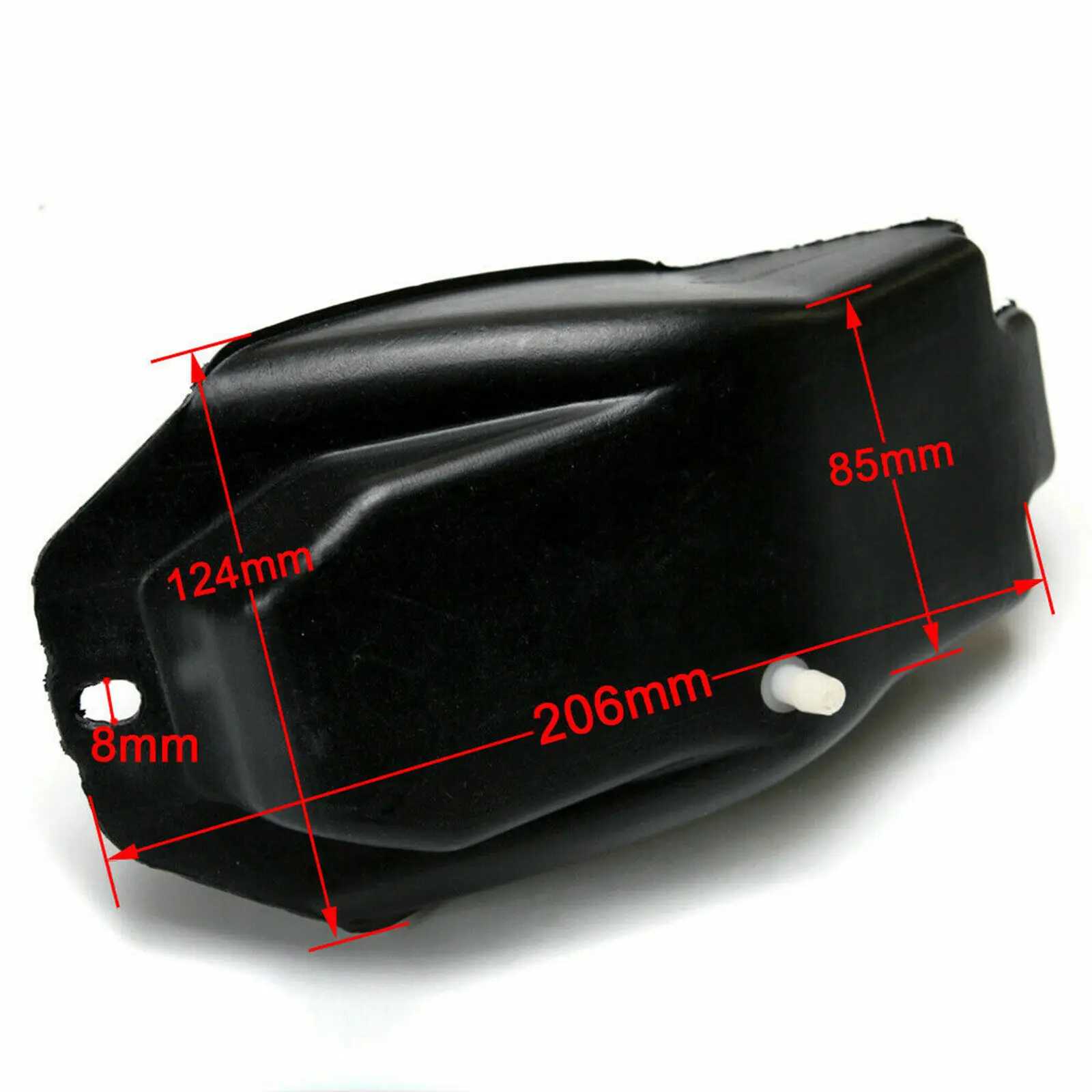

Fuel Tank Size: 22*12*13.5cm/8.7*4.7*5.3in

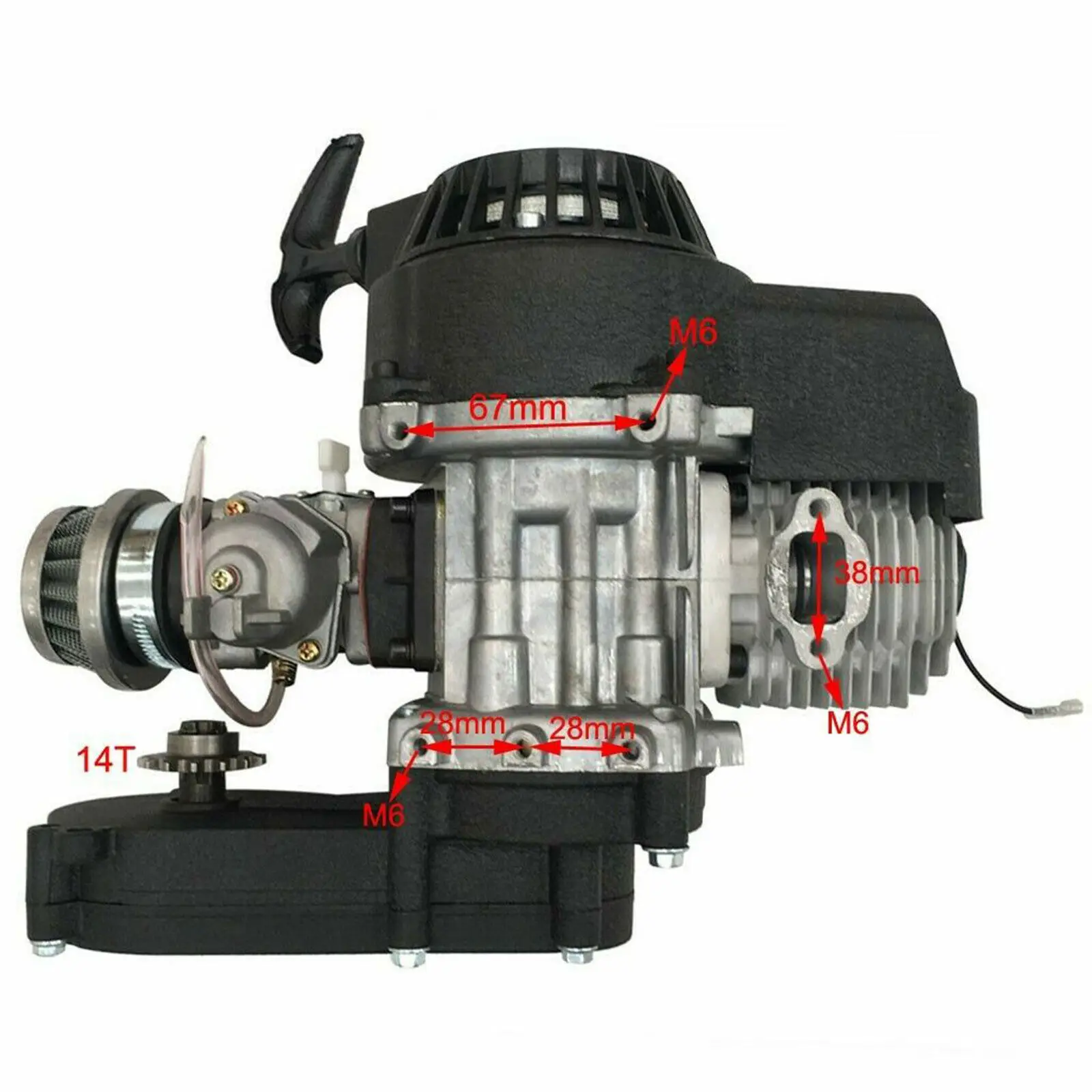

Engine Dimensions: 28.7*23*13cm/11.3*9.1*5.1in

Package Size: 35*20.5*23.5cm/13.8*8.1*9.3in

Net Weight: 4.55kg/10lbs

Gross Weight: 4.95kg/10.9lbs

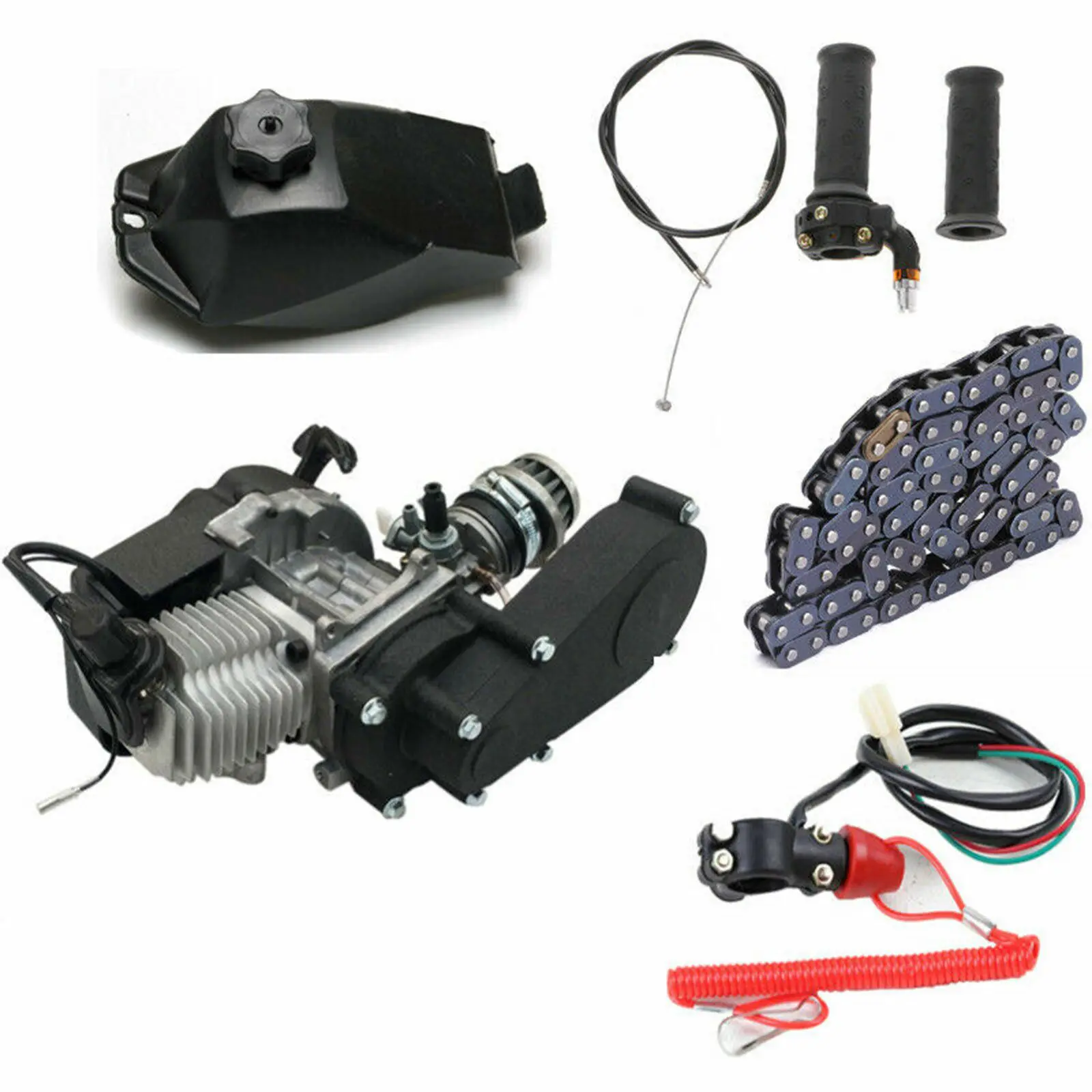

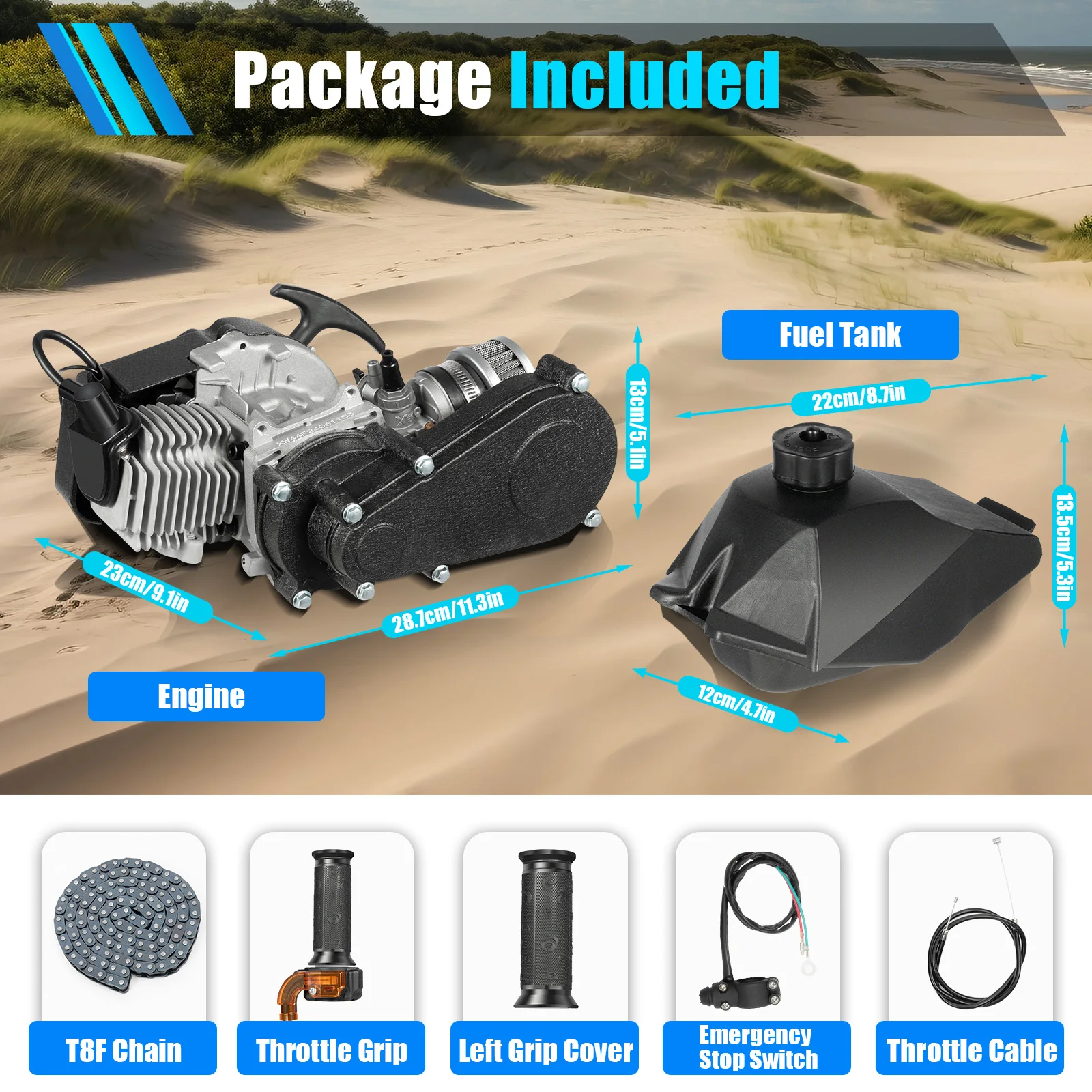

Package Included

1* Engine

1* T8F Chain

1* Emergency Stop Switch

1* Throttle Grip

1* Left Grip Cover

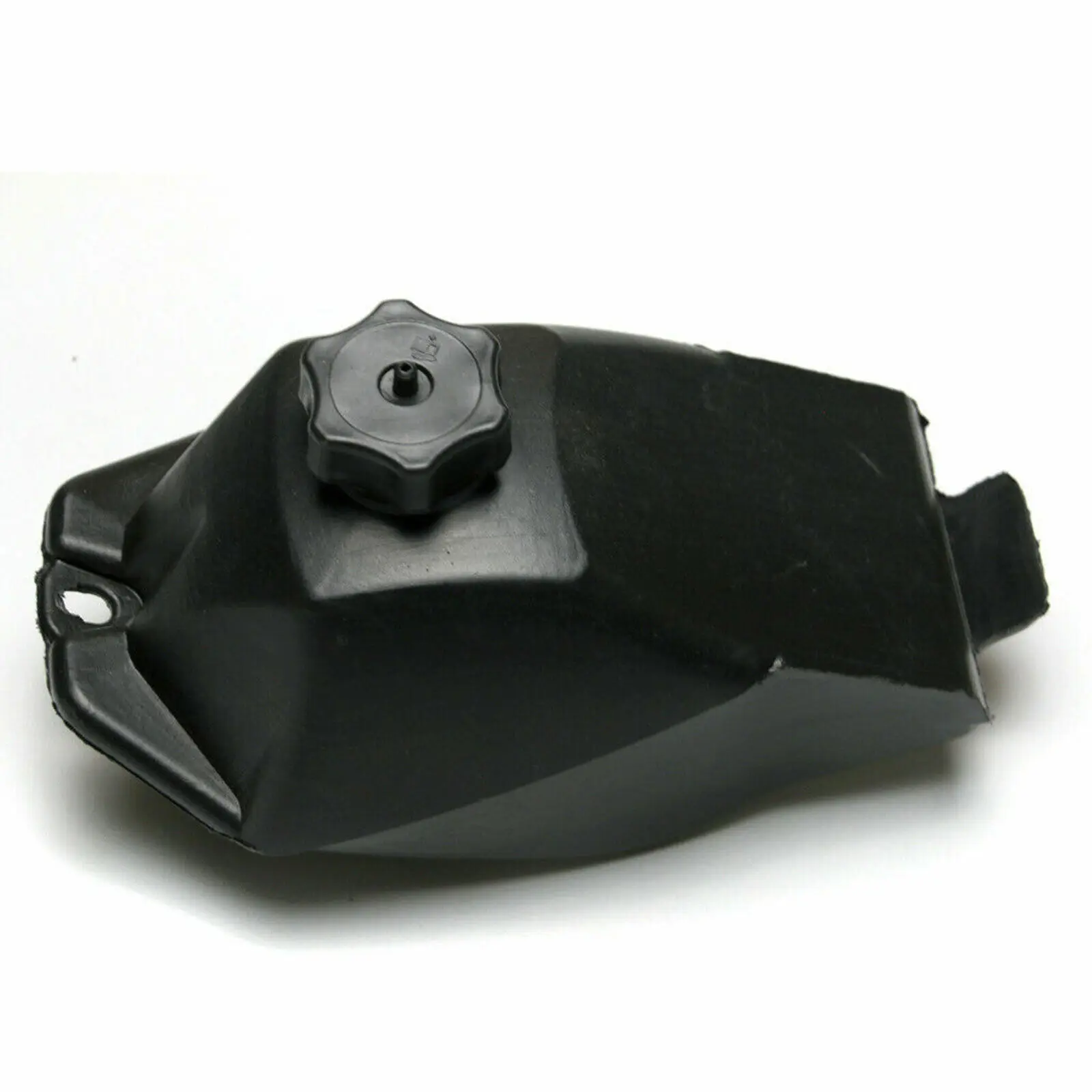

1* Fuel Tank

1* Throttle Cable

Feature :

1.49cc mini motor air cooled racing engine capable of achieving 40mph dependant on user weight and terrain.

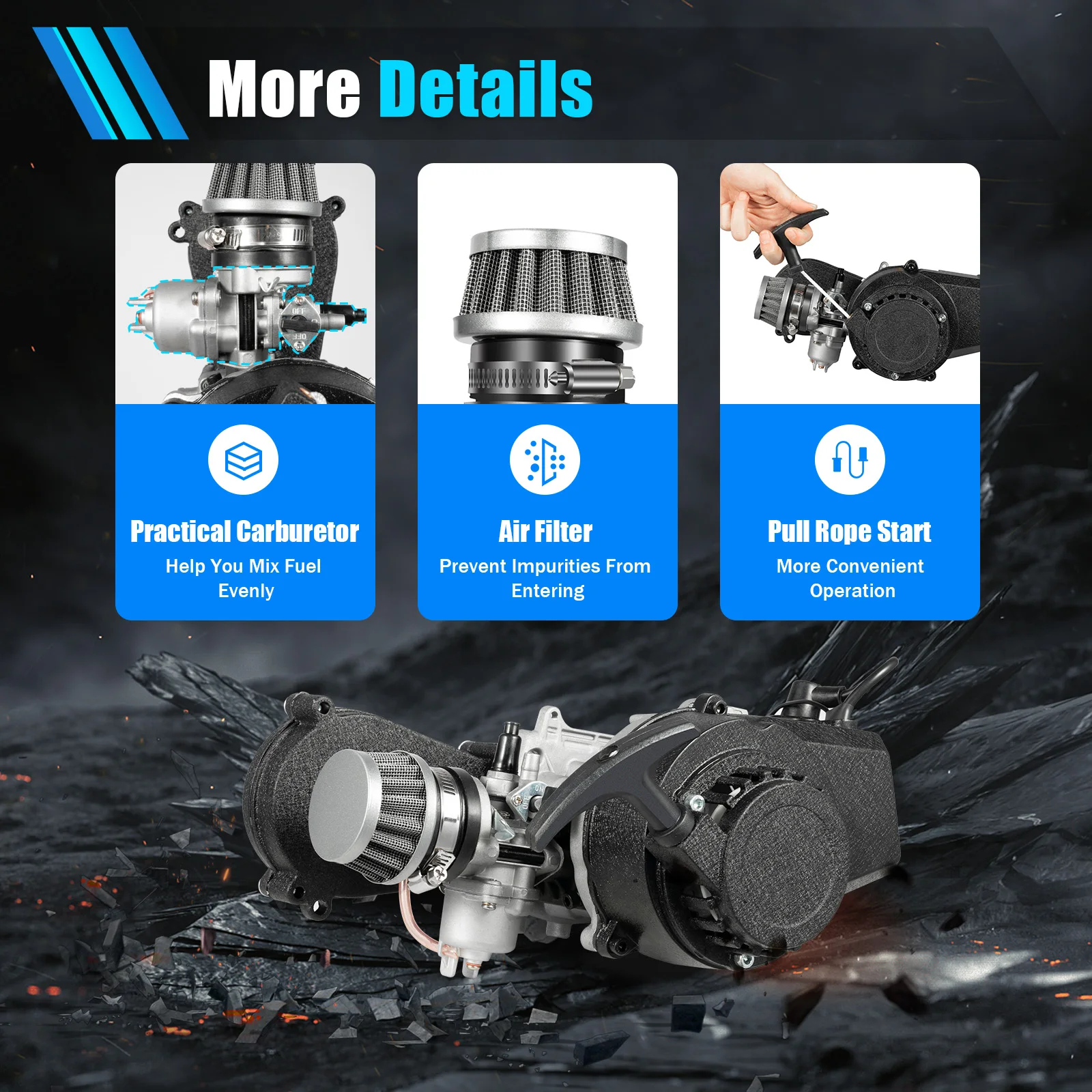

2.Engine is COMPELTE WITH High performance cylinder head, plug, powder coated metal pull start, air filter and 14mm carburettor,Balanced crank, balanced flywheel, ported piston windows, Uprated Gear transmission unit.

3.For 49CC 2 Stroke Pocket Bike, Mini Dirt Bike, ATV or Scooter.

Note:

Does not include instructions, it is strongly recommended that professionals install.

Please be sure to use professional two-stroke oil, do not use four-stroke or other stroke oil, otherwise it will cause engine loss.

Notes

1. Please check the parameters carefully before making payment.

2. It is strongly recommended that professionals carry out the installation.

3. Please use professional 2-stroke engine oil and do not use other-stroke engine oil, otherwise it will damage the engine.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
