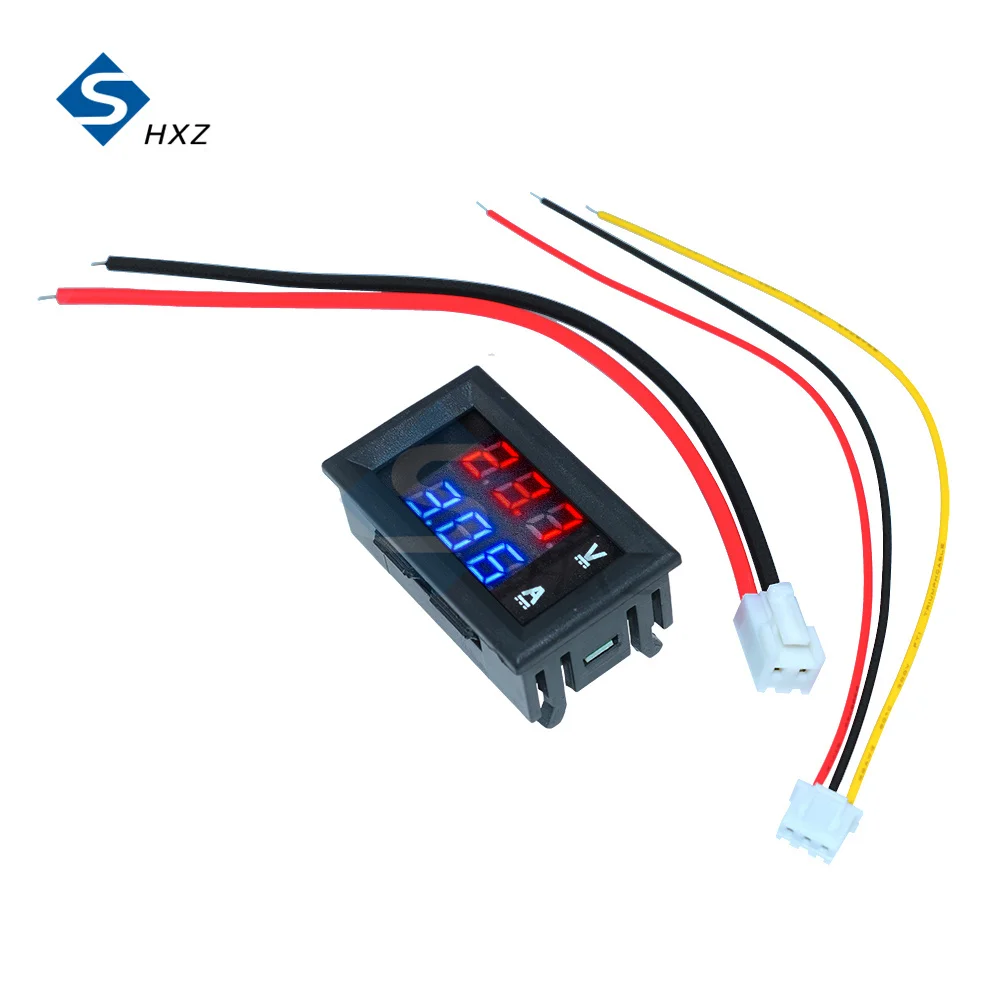

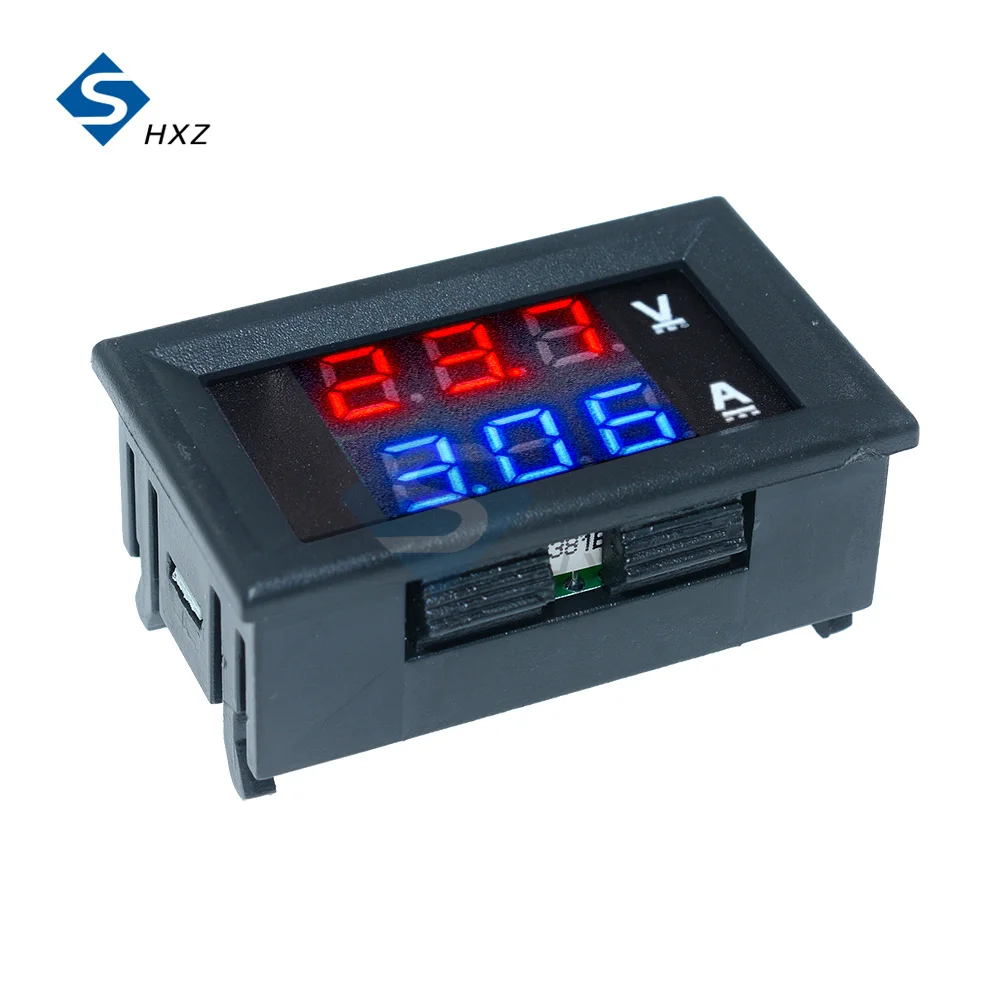

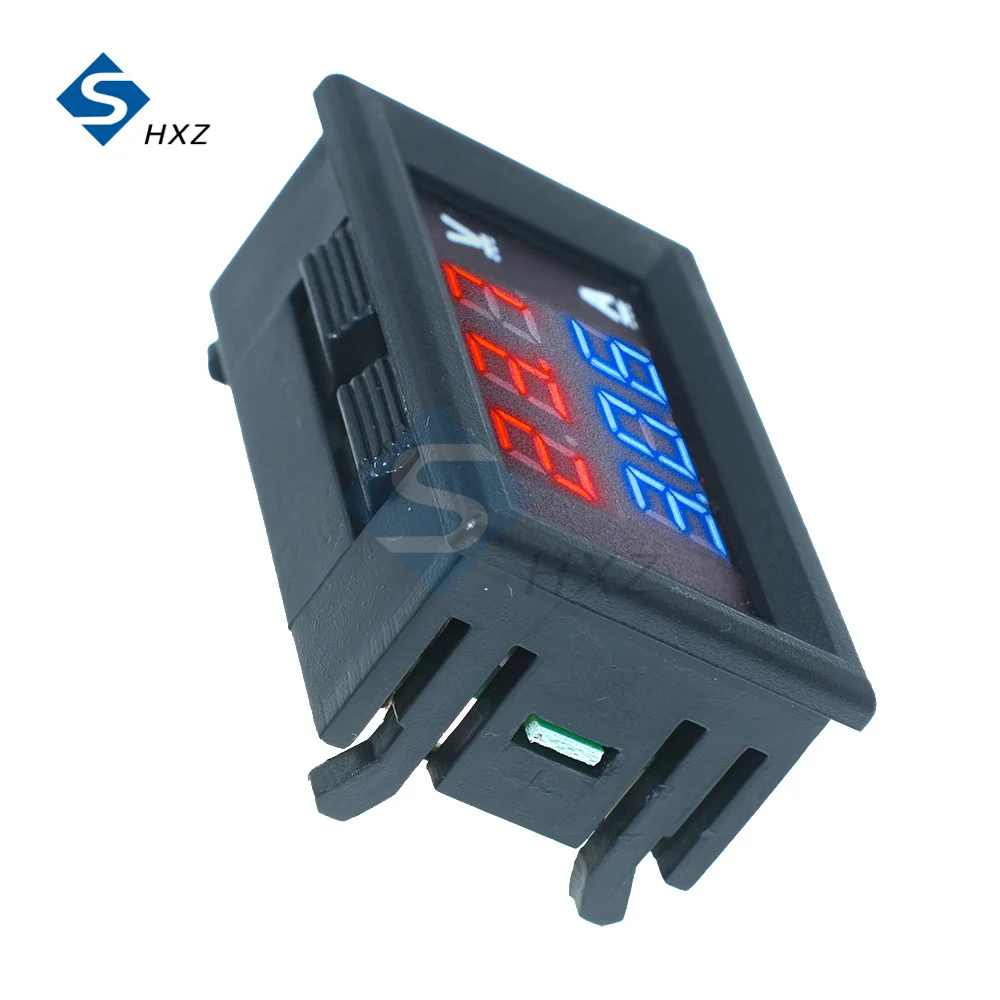

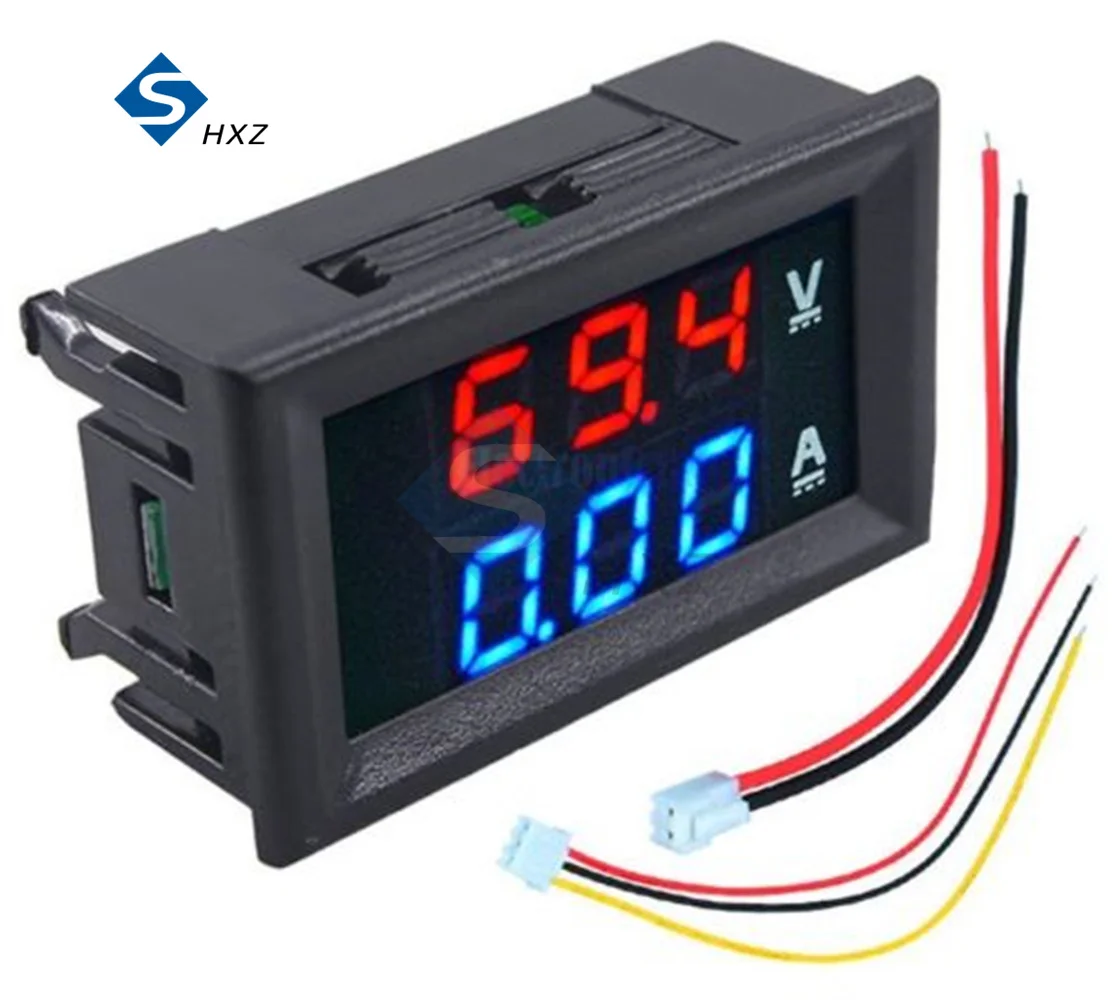

DC 0-99.9V 10A Digital Voltmeter Ammeter LED Amp Dual Digital Volt Meter Gauge LED Display Voltage Detector Current Meter Panel

Specifications:

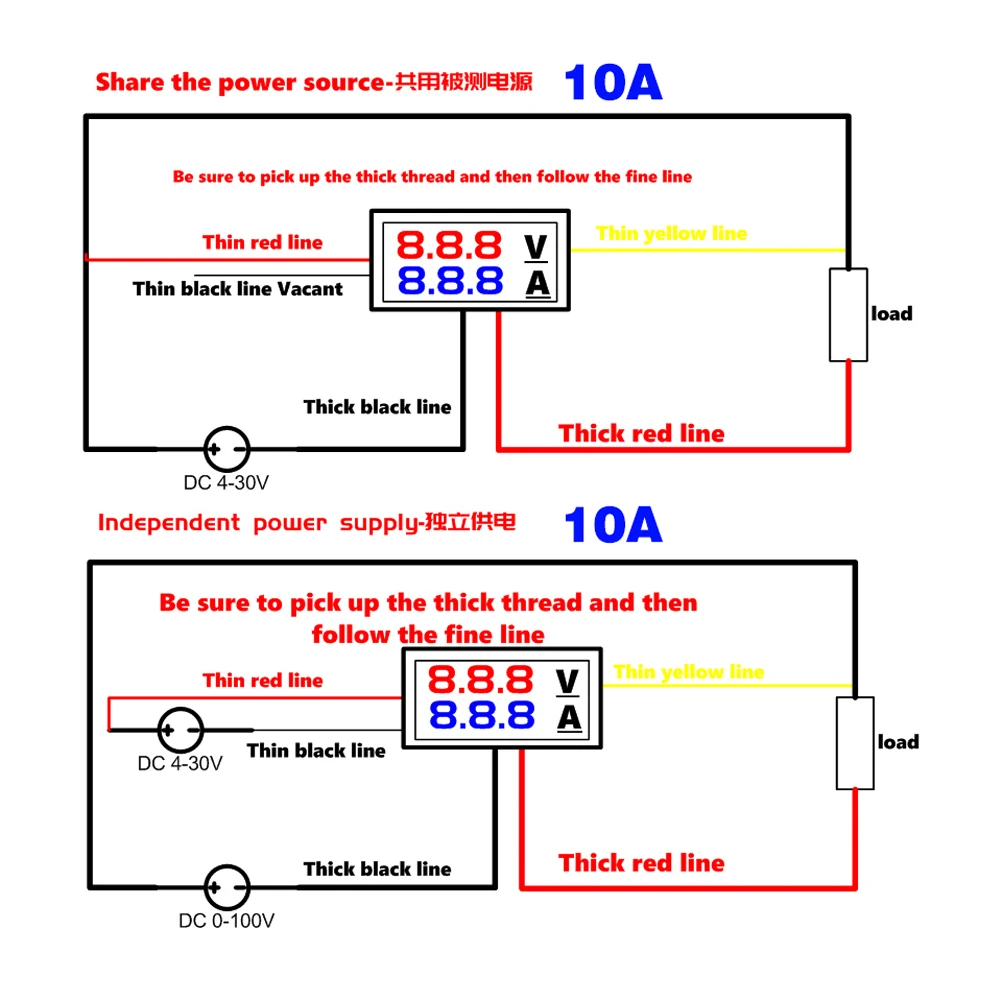

The working voltage of the instrument itself: DC 4-30V (the maximum input voltage cannot exceed 30V, otherwise the instrument will burn out)

The working current of the instrument itself: ≤20mA

Voltage measurement range: DC 0-99.9V

Current measurement range: DC 0-10A

Voltage resolution (V): 0.1V

Current resolution (A): 0.01A

Measurement accuracy: 1% (±1 digit)

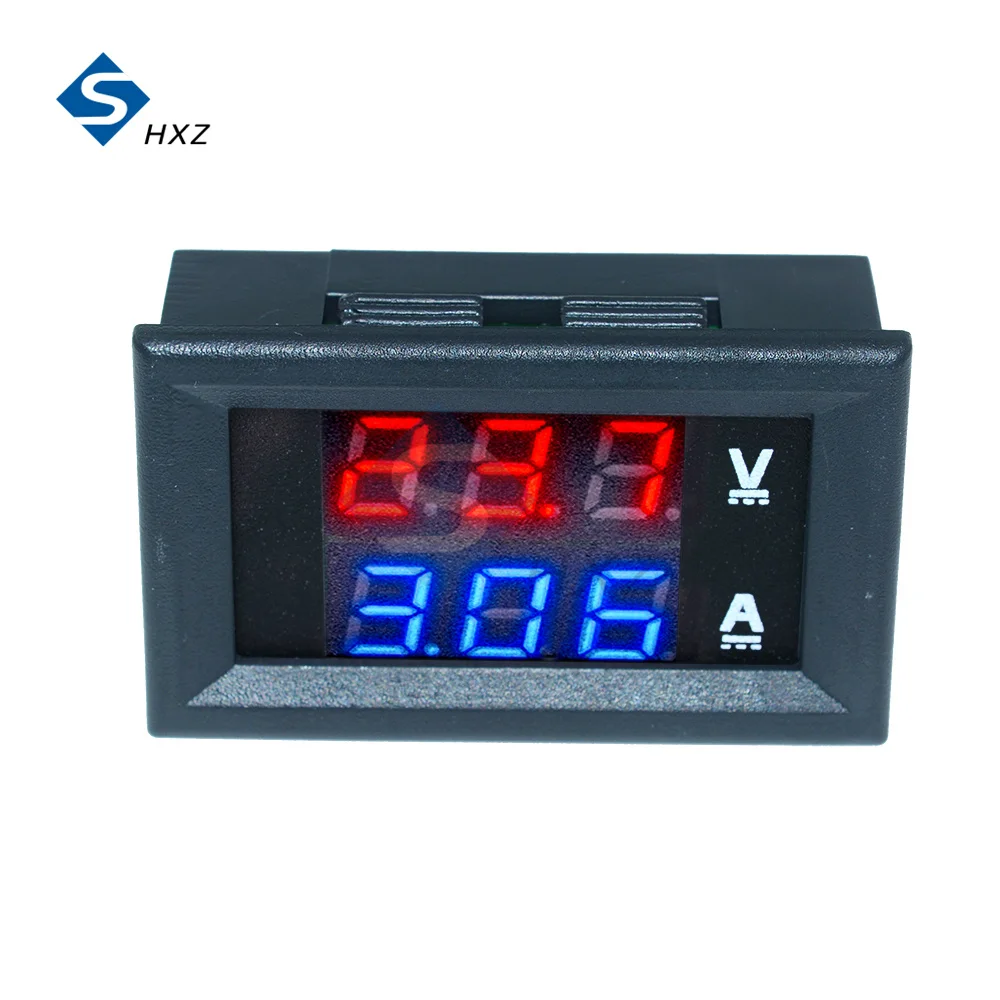

Display: 0.28" digital tube, two-color blue and red

Refresh rate: about 300mS/time

Size: 48mm * 29mm * 26mm

Working temperature: -10℃-+ 65℃

Package Includes:

1x DC 99.9V 10A Voltmeter Ammeter

Notice:

1.The instrument with a range of 10A can directly measure current.No shunt required,So the item do not include shunts.

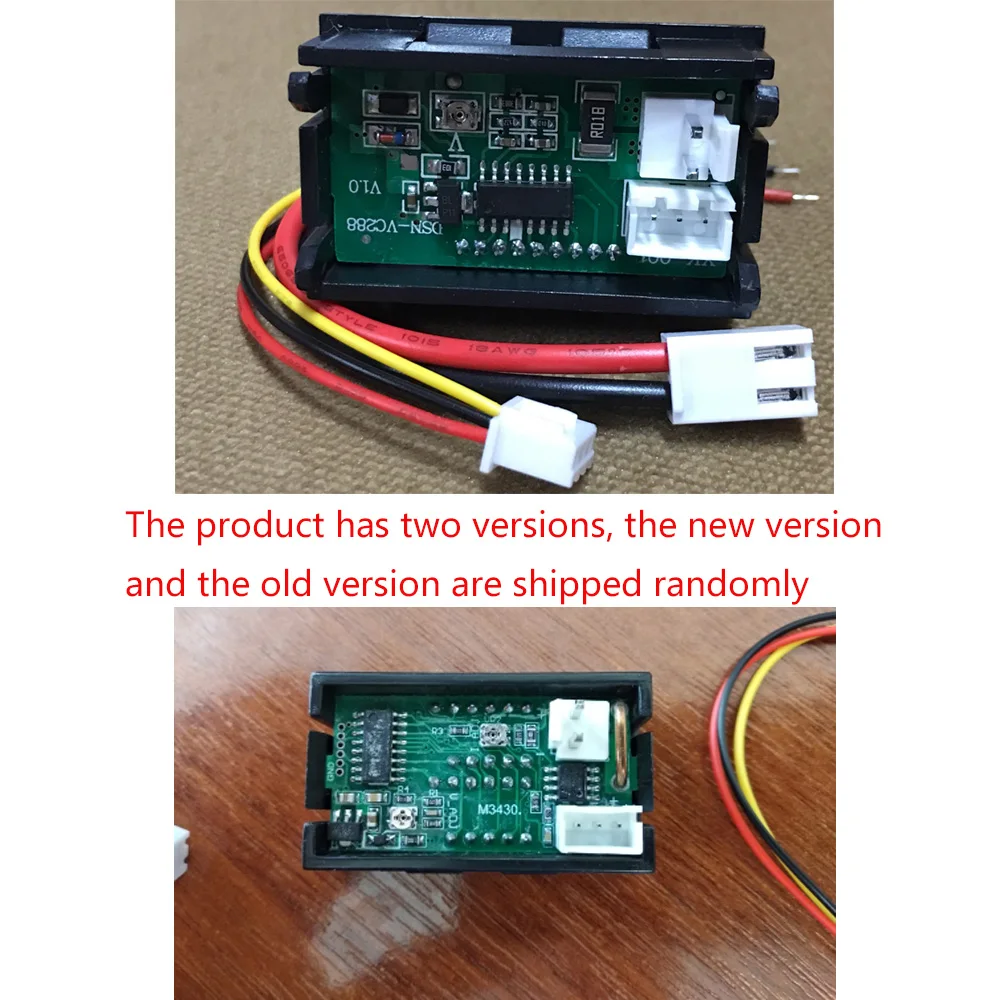

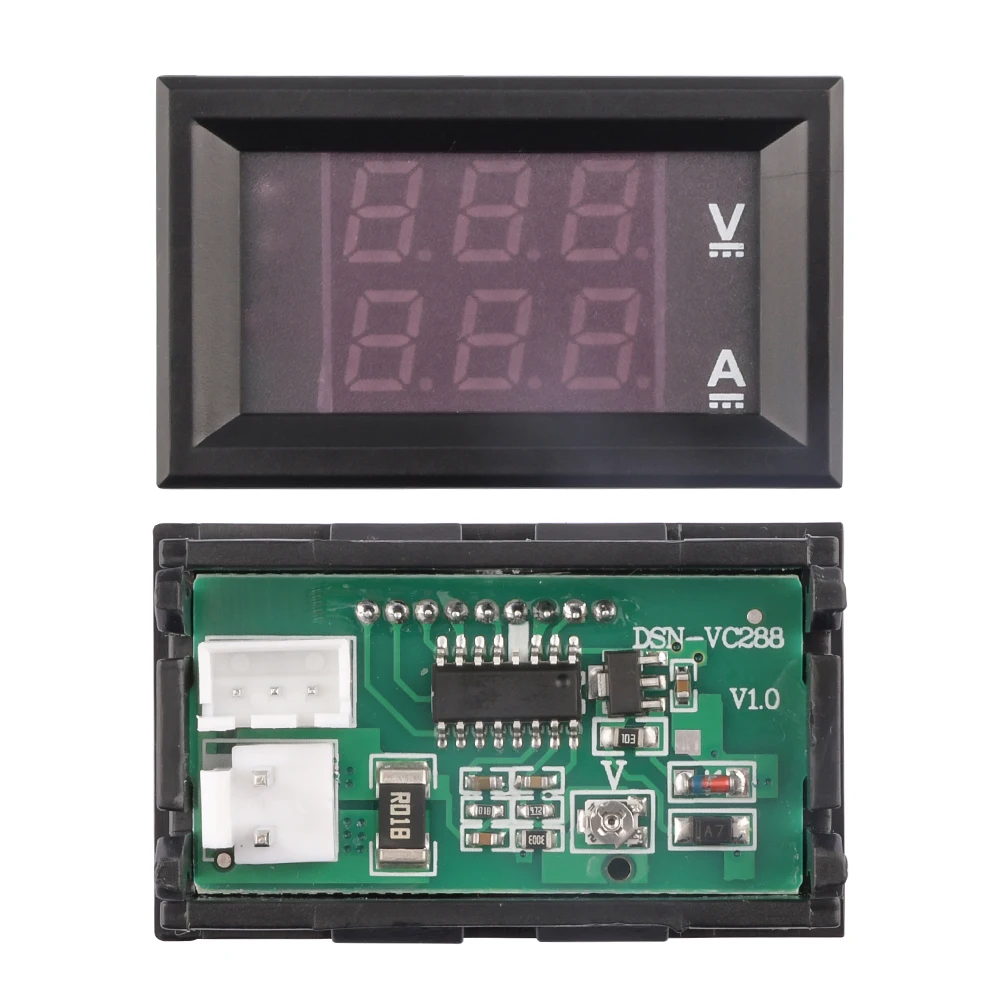

2.The product has two versions, the new version and the old version are shipped randomly.
